Scott Aerator DA-20 Pond Fountain Aerator
Scott Aerator DA-20 Display Aerator - Pond Fountain and Aeration System
The DA-20 Scott Aerator combines powerful sub-surface aeration with a clean V-shaped fountain display, giving pond owners a practical way to improve water quality while also upgrading the look of the property. Instead of choosing between a decorative fountain and a true aeration system, the DA-20 gives you both in one dependable unit. It helps combat algae buildup, oxygen depletion, and stale water conditions while creating a more polished, upscale appearance for residential ponds, private lakes, HOA entrances, golf courses, and commercial properties. With seven horsepower ratings from 1/3 HP to 3 HP and up to eleven total configurations across 115V and 230V, the DA-20 gives you the flexibility to match the system to your pond size, site conditions, and available power.
Every Scott Aerator DA-20 is built for customers who want strong long-term value, not a high-maintenance water feature that becomes a hassle after installation. The motor is designed for continuous 24-hour operation with no scheduled maintenance, helping you keep your pond circulating day and night without constant upkeep. Its stainless steel motor housing and marine-grade components are approved for freshwater, saltwater, and brackish environments, making it a smart choice for a wide range of properties. Each configuration also includes a factory-attached SJTOW power cord, and the DA-20 is designed for flexible, non-permanent placement when properly anchored for the installation site.
One of the biggest advantages of the DA-20 is how easy it is to choose a model that fits your goals, whether you are trying to improve water health, create a stronger visual statement, or do both at the same time. Smaller horsepower options offer an efficient solution for lighter-duty applications, while larger models deliver more flow, wider spray coverage, and a more dramatic display for bigger ponds and more demanding installations. If you want a system that looks impressive from the shoreline and works hard below the surface, the DA-20 is built to deliver that combination. The comparison chart and cable calculator below make it easier to narrow down the right configuration so you can buy with more confidence and get the performance your pond actually needs.
The Scott Aerator DA-20 combines true sub-surface aeration with a clean V-shaped fountain display, giving you better water quality and a more attractive pond in one system. Instead of choosing between performance and appearance, the DA-20 delivers both. It helps fight algae buildup, low oxygen levels, and stagnant water while adding a polished look to residential ponds, HOA entrances, golf courses, and commercial properties.
Built for long-term value, the DA-20 is designed for continuous 24-hour operation with no scheduled maintenance. Its stainless steel motor housing and marine-grade components are approved for freshwater, saltwater, and brackish environments, making it a dependable option for a wide range of installations. Each unit also includes a factory-attached SJTOW power cord for a more straightforward setup.
With seven horsepower ratings from 1/3 HP to 3 HP and multiple 115V and 230V configurations, the DA-20 gives you flexibility to match the right model to your pond size, site conditions, and available power. Smaller options work well for lighter-duty applications, while larger models provide more flow, wider spray coverage, and a stronger visual impact. If you want a system that looks impressive and works hard below the surface, the DA-20 is built to do both.
Looking for other Aerator models? Browse our full Pond Aerator collection.
Benefits of the Scott Aerator DA-20
Scott DA-20 Motor Configuration Comparison
| 1/3 HP 115V |
1/3 HP 230V |
1/2 HP 115V |
1/2 HP 230V |
3/4 HP 115V |
3/4 HP 230V |
1 HP 115V |
1 HP 230V |
1-1/2 HP 230V |
2 HP 230V |
3 HP 230V |
|
|---|---|---|---|---|---|---|---|---|---|---|---|
| Pond Size | Up to 3/4 Acre | 1/8 Acre or More | 1/8 Acre or More | 1/8 Acre or More | 1/4 Acre or More | 1/2 Acre or More | 1/2 Acre or More | ||||
| Minimum Water Depth | 32" | 32" | 34" | 36" | 38" | 42" | 42" | ||||
| Gallons Per Minute | 300 | 300 | 400 | 400 | 450 | 450 | 500 | 500 | 600 | 700 | 800 |

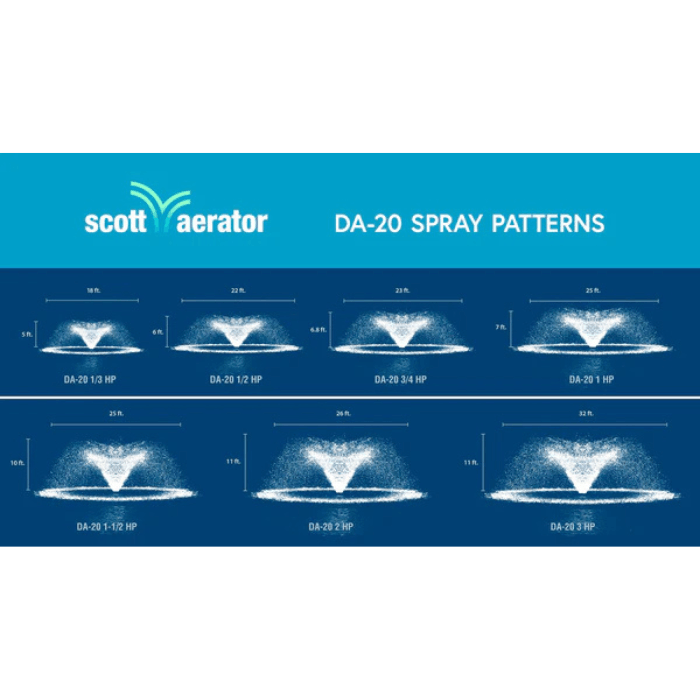

| Spray Height x Width | 5' H x 18' W | 6.5' H x 22' W | 6.8' H x 23' W | 7' H x 25' W | 10' H x 25' W | 11' H x 28' W | 11' H x 30' W | ||||
| KW | .25 | .25 | .37 | .37 | .55 | .55 | .75 | .75 | 1.1 | 1.5 | 2.2 |
| Amps | 8 | 4 | 10 | 5 | 10.7 | 6.8 | 11.5 | 8.2 | 10.6 | 10 | 13.3 |
| Hz | 60 | 60 | 60 | 60 | 60 | 60 | 60 | 60 | 60 | 60 | 60 |
| RPM | 3450 | 3450 | 3450 | 3450 | 3450 | 3450 | 3450 | 3450 | 3450 | 3450 | 3450 |
| Min Anchor Weight (each) | 20 lbs | 20 lbs | 25 lbs | 25 lbs | 25 lbs | 25 lbs | 35 lbs | 35 lbs | 45 lbs | 45 lbs | 55 lbs |
| Standard Cord Option (Longer Lengths Available) | 70' / 12 GA | 70' / 12 GA | 70' / 12 GA | 70' / 12 GA | 70' / 10 GA | 70' / 12 GA | 70' / 10 GA | 70' / 12 GA | 100' / 12 GA | 100' / 10 GA | 100' / 10 GA |
Key Features of the DA-20 by Scott Aerator
- Stainless Steel Motor Housing: Sealed motor assembly with marine-grade stainless steel construction resists corrosion in fresh and saltwater, protecting the motor through the full 5-year warranty period. All DA-20 motors are manufactured in the USA.
- Scalable Motor Range: Seven horsepower ratings from 1/3 HP to 3 HP, with dual-voltage options on the four smaller ratings. The 1/3 HP moves 300 GPM for smaller ponds, while the 3 HP pushes 800 GPM with an 11-foot spray height for larger water features.
- SJTOW Power Cord with Watertight Splice: Each DA-20 ships with a factory-attached SJTOW power cord in 12 GA or 10 GA, with 70 foot or 100 foot lengths depending on configuration. Longer replacement cords are available when the power source is farther from the pond.
- Flexible Anchoring Setup: The DA-20 is designed for non-permanent placement, but proper anchoring is still required for stable installation. Minimum anchor weight ranges from 20 lbs per anchor on the 1/3 HP model to 55 lbs per anchor on the 3 HP model, and mooring line is purchased separately.

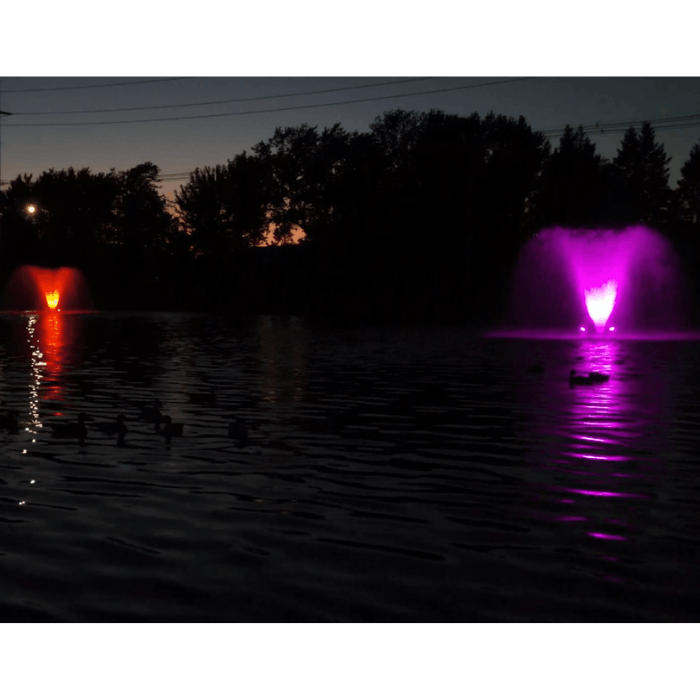

- Optional LED Light Kits: Scott Aerator offers both Night Glo warm white LED light sets and color-changing LED light sets for the DA-20, both sold separately.
See the DA-20 in Action
Maximum Cable Length - Motor to Main Breaker
| Cable Size | 1/3 HP 115V |
1/3 HP 230V |
1/2 HP 115V |
1/2 HP 230V |
3/4 HP 115V |
3/4 HP 230V |
1 HP 115V |
1 HP 230V |
1-1/2 HP 230V |
2 HP 230V |
3 HP 230V |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 12 AWG | 175' | 700' | 160' | 650' | 125' | 480' | 75' | 400' | 310' | 250' | 190' |
| 10 AWG | 275' | 1120' | 250' | 1020' | 150' | 760' | 100' | 630' | 480' | 390' | 300' |
| 8 AWG | 430' | 1720' | 390' | 1610' | 200' | 1200' | 150' | 990' | 770' | 620' | 470' |
| 6 AWG | 680' | 2680' | 620' | 2510' | 350' | 1870' | 300' | 1540' | 1200' | 970' | 750' |
| 4 AWG | 1050' | 4180' | 960' | 3880' | 700' | 2890' | 650' | 2380' | 1870' | 1530' | 1190' |
| 2 AWG | 1600' | 6320' | 1460' | 5880' | 1100' | 4370' | 1050' | 3610' | 2850' | 2360' | 1850' |
| Standard Cord Option (Longer Lengths Available) | 70' / 12 GA | 70' / 12 GA | 70' / 12 GA | 70' / 12 GA | 70' / 10 GA | 70' / 12 GA | 70' / 10 GA | 70' / 12 GA | 100' / 12 GA | 100' / 10 GA | 100' / 10 GA |
Requirements & What to Know Before You Buy
- GFCI Protection Required: The DA-20 must be connected to a GFCI-protected circuit. Consult a licensed electrician for proper installation.
- Disconnect Power Around Swimmers: Always disconnect power to the unit before anyone enters the water.
- Minimum Pond Depth Varies by Motor: 32" for 1/3 HP and 1/2 HP, 34" for 3/4 HP, 36" for 1 HP, 38" for 1-1/2 HP, and 42" for 2 HP and 3 HP models.

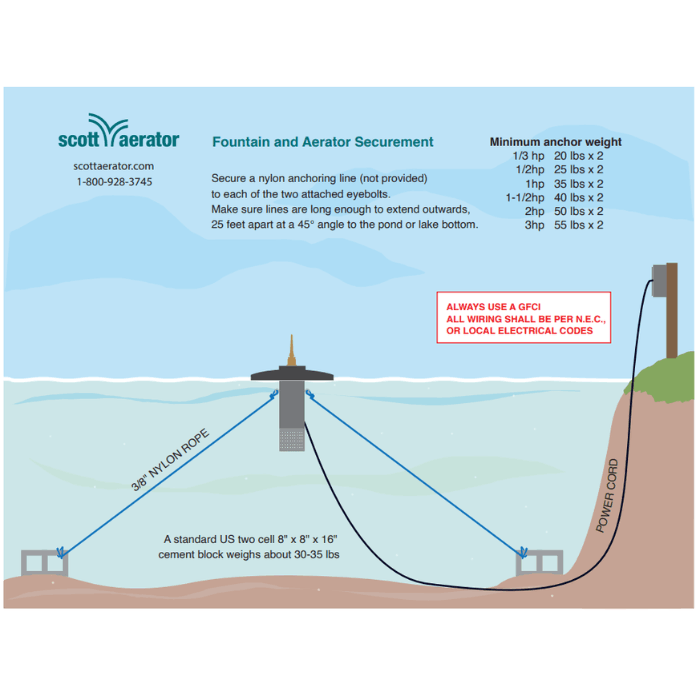

- Anchoring Required: Each unit must be properly anchored for stable installation. Minimum anchor weight ranges from 20 lbs to 55 lbs per anchor depending on motor size, and mooring line must be purchased separately.
- No Extension Cords: Do not use an extension cord to supply power to the motor. Use the cable calculator above to determine the correct wire gauge for your installation distance.
- Winter Operation: The DA-20 is built to withstand subzero conditions, so there is no complicated winterizing required. In most cases, you can shut off power and leave the unit in place through winter, then restart it after thaw.
- Saltwater Approved: Marine-grade stainless steel construction is rated for saltwater ponds and brackish environments.
- 24-Hour Continuous Operation: All DA-20 motors are designed to run continuously. No scheduled maintenance is required under normal operating conditions.
What's Included & Optional Add-Ons

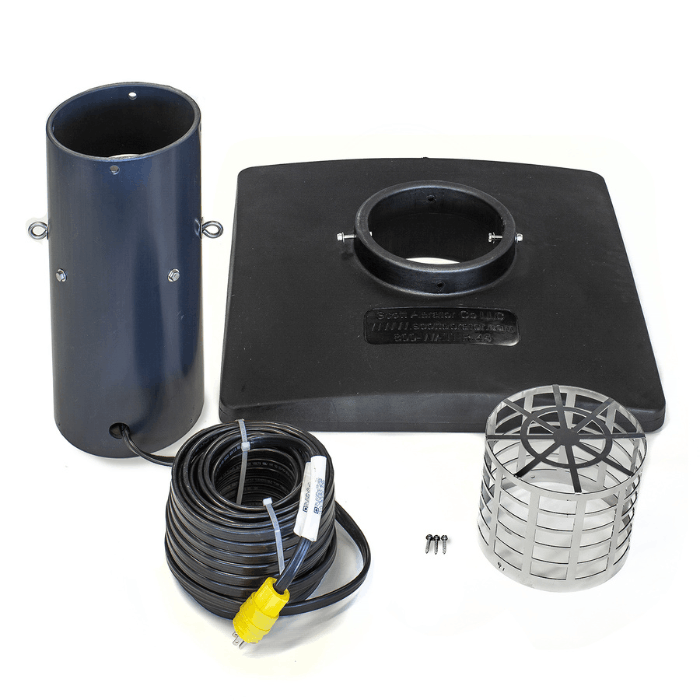

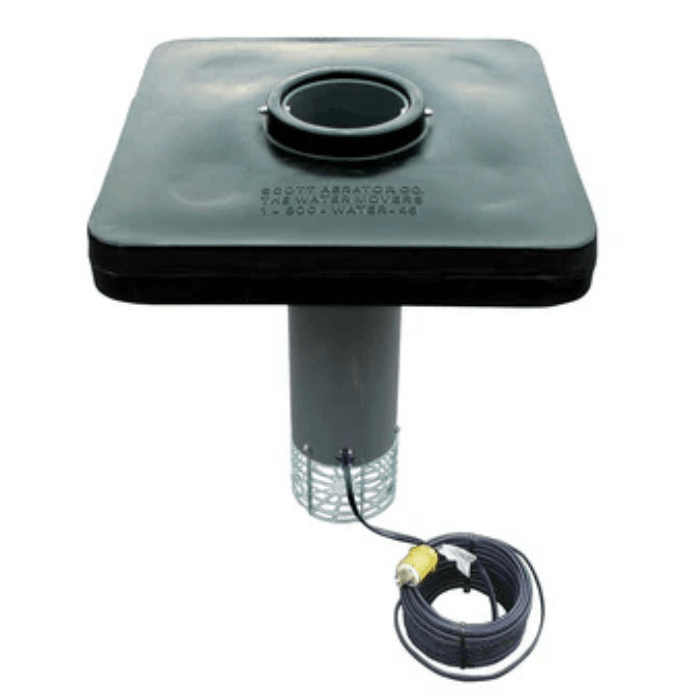

- Included: DA-20 pump and nozzle assembly, float platform, stainless debris shield, self-tapping assembly screws, SJTOW power cord with length and gauge varying by motor, and owner's manual.
- Optional - LED Light Kits: Scott Aerator offers both Night Glo warm white LED light sets and color-changing LED light sets for the DA-20, both sold separately.
- Optional - Mooring Line and Anchors: Proper anchoring is required for installation, but mooring line and anchor weights or concrete blocks are not included.
- Optional - Longer Power Cords: Longer replacement power cords are available for installations where the breaker panel is farther from the pond.
Scott Aerator DA-20 Display Aerator Specifications
| Manufacturer | Scott Aerator |
| Product Type | Display Aerator / Pond Fountain |
| Motor Options | 1/3 HP, 1/2 HP, 3/4 HP, 1 HP, 1-1/2 HP, 2 HP, 3 HP |
| Voltage Options | 115V on select smaller models and 230V across all seven ratings |
| Total Configurations | 11 |
| KW Range | .25 to 2.2 |
| Amp Draw Range | 4A to 13.3A depending on configuration |
| Pond Size Range | Up to 3/4 acre through 1/2 acre or more depending on motor |
| Minimum Water Depth | 32" to 42" depending on motor |
| Flow Rate Range | 300 GPM to 800 GPM |
| Max Spray Height | 5' to 11' depending on motor |
| Max Spray Width | 18' to 30' depending on motor |
| Motor Construction | Stainless-steel, oil-free, submersible motor |
| Saltwater Approved | Yes |
| Continuous Operation | 24-hour rated, no maintenance required |
| Anchoring | Proper anchoring required, with 20 lbs to 55 lbs minimum anchor weight per anchor depending on motor. Mooring line and anchor weights are not included. |
| Power Cord | SJTOW, 12 GA or 10 GA, 70' or 100' depending on motor |
| Electrical Requirement | Dedicated GFCI-protected circuit, no extension cords |
| Motor Speed / Frequency | 60 Hz, single-phase, 3,450 RPM |
| Optional Accessories | Night Glo warm white LED light kits, color-changing LED light kits, and longer power cords |
| Warranty | 5 years against motor failure for the original owner and 1 year against factory defects on all other product components. Warranty replacement requires return of the defective unit to the factory with shipping prepaid by the customer for inspection before replacement parts are issued. |
| Made in the USA | Yes |
