Vertex Aquatic Solutions

Match the system to your pond size and depth:

Under 1/4 acre residential: Vertex PondLyfe ($2,101). Compact stone-look cabinet, single diffuser.

1/2 to 1 acre residential: Air 1 XL2 ($2,731) or Air 1 Plus XL2 ($3,332). Single-diffuser XL2 series.

1 to 2 acres: Air 2 XL2 ($3,666).

2 to 3 acres or HOA-tier: Air 3 XL2 ($4,113). The volume mid-range pick.

3 to 4 acres or small commercial: Air 4 XL2 ($6,009).

4 to 6 acres commercial lake: Air 5 XL2 ($6,469) or Air 6 XL2 ($6,913).

Not sure? Use the Find My Perfect Aerator tool or call (470) 354-1969.

Diffused aeration pumps air through membrane diffusers anchored on the pond bottom. As bubbles rise, they entrain the entire water column, breaking thermal stratification and pulling oxygen-rich surface water down while pushing oxygen-depleted bottom water up.

On ponds deeper than 8 feet, this is measurably more effective than surface fountains or paddle aerators, which primarily oxygenate the top 2 to 3 feet. Vertex XL2 systems are engineered specifically for this bottom-to-surface circulation and can turn over a 1 acre by 12 foot deep pond every 12 to 24 hours.

For water-quality goals (algae reduction, fish health, sludge digestion, stratification breakdown), a diffused system is the technically correct answer on any pond deeper than 8 feet. Surface fountains are better when the primary goal is visual spray with aeration as a byproduct.

PondLyfe ($2,101): Vertex entry residential system. Stone-look cabinet designed to blend into landscaping. Single diffuser. Sized for 1/4 acre residential ponds. Best for pond owners who prioritize a compact discrete install.

XL2 Series (Air 1 through Air 6, $2,731 to $6,913): Vertex pro-grade lineup. Steel weatherproof cabinets, upgraded compressors, higher-flow diffusers. Sized 1/2 acre through 6 acres depending on model. Best for serious residential and commercial installs.

Every XL2 also has more diffusers as you climb the tier ladder: Air 1 has one diffuser, Air 6 has six diffusers spread across the pond bottom for even oxygen distribution on lake-scale installs.

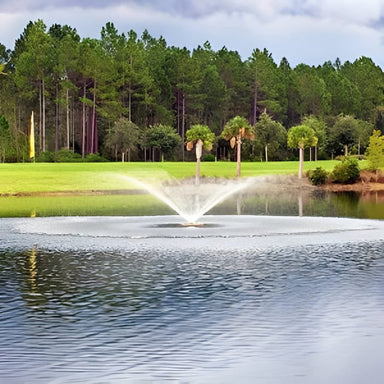

The Vertex fountain lineup starts at $8,840 (Vertical FunnelJet) and runs up to $44,040 (AerationJet Commercial). These are lake-scale premium fountains built for HOA, golf course, resort, corporate campus, and municipal water features.

Compared to peer brands:

Vertex fountains ($8K to $44K): Commercial-scale, lake-visible, spec-grade construction. Built for daily commercial duty cycles.

Scott Aerator fountains ($1,399 to $6,259): Premium residential and light commercial. Michigan-made, focused on high-end decorative spray patterns.

Kasco Marine fountains (J Series and VFX): Commercial-grade Wisconsin-built. Up to 7.5 HP in our catalog. Common HOA and golf-course pick.

PondSelect fountains ($585 to $1,895): Residential decorative. Complete-system pick with universal LED and timer.

For lake-scale installs where the fountain needs to read visible from a quarter mile, Vertex is the industry-spec pick.

The AerationJet ($44,040) is the Vertex flagship. It combines two things in one unit: (1) a premium commercial fountain that delivers signature Vertex spray display, and (2) true diffused aeration integrated into the fountain float assembly.

This is the pick for lake-scale installs where the water body needs both visual presence AND real bottom-to-surface aeration for water quality. Instead of specifying a Vertex fountain AND a separate Vertex XL2 aeration system, one AerationJet handles both roles from a single float.

Aeration systems (PondLyfe and XL2): 115V or 230V single-phase, depending on model. Smaller systems (PondLyfe, Air 1, Air 1 Plus, Air 2) run on standard 115V outdoor GFCI. Larger systems (Air 3 through Air 6) run on 230V. The compressor cabinet sits shoreside and airline tubing runs from the cabinet to the diffusers anchored on the pond bottom.

Commercial fountains: Most Vertex fountains require 230V single-phase or 230V 3-phase depending on HP. Specific electrical requirements are listed on each product page. Larger commercial fountains typically require a licensed electrician for install.

Most in-stock Vertex aeration systems ship within 3 to 7 business days with free U.S. shipping included. Transit is usually 3 to 7 business days after that. Total order-to-doorstep is typically 2 to 3 weeks.

Commercial fountains (RingJet, TriGeyser, MultiGeyser, FanJet, TriPod, AerationJet) are built-to-order and typically ship 3 to 6 weeks after order. These are large freight (LTL) shipments and often benefit from advance install coordination with your electrician and pond contractor.

Vertex offers manufacturer warranties on all XL2 series aeration systems, PondLyfe, and commercial fountains. Coverage typically includes multi-year warranty on compressors, cabinets, and fountain motors, plus lifetime warranty on membrane diffusers on the XL2 series.

Specific warranty terms per product are listed on each product page. All warranties are direct from Vertex Aquatic Solutions. Pro Pond Supply handles warranty claims as the authorized dealer.

Yes. Vertex diffused aeration systems are compressor-and-diffuser designs that install alongside (not replace) existing surface fountains or paddle aerators. Many serious pond owners run BOTH a Vertex XL2 diffused aeration system for water quality AND a Vertex, Kasco, or Scott floating fountain for visual spray, because each solves a different problem.

Vertex commercial fountains replace surface fountains from other brands. Because they run at higher HP tiers than most peer-brand fountains, the electrical service may need upgrade during install.

Aeration systems (XL2 and PondLyfe): Compressor cabinet needs air filter replacement every 6 to 12 months ($30 to $60) and rebuild-kit service every 3 to 5 years depending on runtime hours. Membrane diffusers on the pond bottom are essentially maintenance-free and carry lifetime warranty on the XL2 series.

Commercial fountains: Annual inspection of pump housing seals, intake screen cleaning as needed, spray nozzle mineral-buildup removal. In freezing climates, fountains typically get pulled and stored indoors for winter.

For a full maintenance schedule on your specific Vertex system, call (470) 354-1969 or check the manual PDF on each product page.

PondLyfe and Air 1 XL2 (115V systems): Most residential pond owners install these themselves. Set the cabinet on a level shoreside pad, run airline tubing to the pond, anchor the diffuser on the pond bottom, plug into an outdoor GFCI outlet.

Air 2 through Air 6 XL2 (230V systems): Often benefit from a licensed electrician for the 230V outlet install. The physical install of the cabinet and diffusers can still be DIY.

Commercial fountains ($8K+): Typically install by a pond contractor with electrical support. Vertex fountains are large, heavy, and often require crane or boat placement plus 230V (single or 3-phase) electrical service. Pro Pond Supply can recommend regional contractors familiar with Vertex installs.
