Diffused Aeration Systems

Diffused Aeration Hub

Diffused Aeration Systems For Sale: Pond & Lake Bottom-Diffuser Aerators From 5 Brands

Shop 15 diffused aeration systems across the Airmax, Kasco, Scott Aerator, Vanguard, and Vertex Aquatic Solutions lineups. Diffused aeration works by pumping air through membrane diffusers anchored on the pond bottom. As bubbles rise, they entrain the entire water column upward, breaking thermal stratification for real pond and lake water-quality improvement. Best for ponds deeper than 8 feet where surface aeration alone is insufficient. Free U.S. shipping on all orders.

5Brands In Stock
3 SOLAROff-Grid Options
FREEU.S. Shipping

Filters

Diffused Aeration Hub

Pond and lake diffused aeration systems: compare 15 systems across 5 brands

Diffused aeration is the technically superior aeration approach for any pond deeper than 8 feet. Instead of oxygenating only the top water layer like a surface aerator, a diffused system pumps air through membrane diffusers anchored on the pond bottom. As the bubbles rise, they entrain the entire water column upward, breaking thermal stratification, pulling oxygen-rich surface water down and pushing oxygen-depleted bottom water up. The result is a fully mixed, oxygenated pond that supports fish health, reduces algae, and prevents summer fish kills.

Pro Pond Supply is the multi-brand destination for diffused aeration. We carry 15 systems across Airmax, Kasco, Scott Aerator, Vanguard Water Creations, and Vertex Aquatic Solutions. Prices run $1,439 for the entry Vanguard Bottom Aerator up to $8,200 for the Airmax SolarSeries Battery Backup for off-grid installations. Three systems in the catalog are solar-powered for ponds without practical shore-side electrical access.

Not sure whether diffused or surface aeration fits your pond? Use our Find My Perfect Aerator tool or call (470) 354-1969. Buyer-decision guide below.

Vertex Air 3 XL2 diffused pond and lake aeration system with compressor cabinet and three diffuser assemblies

Why diffused aeration outperforms surface aeration on deeper ponds

Four reasons diffused aeration is the pond-industry technical standard for water quality.

↕

Full water column mixing

Bubbles rising from the bottom lift the entire water column, breaking summer thermal stratification and mixing oxygen-rich surface water with oxygen-depleted bottom water. Surface aerators only work the top 2-3 feet.

🐟

Prevents summer fish kills

Summer thermal stratification traps oxygen-depleted water at the bottom. Fall turnover releases this water suddenly, causing mass fish kills. Diffused aeration prevents stratification, eliminating the turnover event.

🌱

Reduces algae and muck

Increased bottom-water oxygen accelerates natural aerobic bacteria that digest organic muck. Reduced surface nutrient concentration slows algae blooms. Combined effect: cleaner water over 6-12 months.

🔇

Invisible & quiet operation

The compressor sits in a cabinet on shore. Only visible signs are subtle water boiling at the surface. No large motor unit floating in the middle of your pond. Aesthetically clean.

Diffused aeration vs surface aeration: the pond-owner decision

The 3-second version: pond depth is the primary decision driver.

Diffused

Diffused (bottom) aeration

Compressor cabinet on shore, membrane diffusers anchored on the pond bottom, airline runs between them. Bubbles rise and lift the entire water column for full-depth mixing.

Best for: ponds deeper than 8 feet, ponds where fish health / algae / summer fish-kill prevention are goals, larger ponds and lakes, aesthetically-focused installs (equipment hidden on shore).

Surface

Surface aeration

Floating unit on the water pulls air down into the top 2-3 feet of the pond with a visible spray or agitation pattern.

Best for: shallow ponds under 8 feet deep, ponds with surface algae or mosquito pressure, situations where you want visible aeration you can see from the shore, and ponds where the unit will double as a winter de-icer.

8 FT
RULE

The pond-industry 8-foot rule for choosing diffused aeration

If any part of your pond is deeper than 8 feet, diffused aeration is the technically correct answer. Below 8 feet, thermal stratification traps oxygen-depleted water at the bottom during summer. Surface aeration cannot reach that layer, so bottom water stays dead. Diffused aeration lifts the entire column and prevents stratification. On ponds shallower than 8 feet, either approach works well and surface aeration is often simpler and cheaper.

Doing the research first?

Read related buying guides and browse the broader pond and lake water-quality equipment ecosystem.

All Pond Aerators Hub Surface Aerators Find My Perfect Aerator Solar Pond Aerators Aeration Tubing

Featured diffused aeration systems for pond and lake

Hand-picked systems across the entry, mid, and pro/solar tiers.

Entry Diffused Systems ($1,439 to $1,650)

Vanguard Bottom pond aerator diffused aeration system aerating a pond from the bottom
Entry · Value · Vanguard

Vanguard Bottom Pond Aerator & Aeration System

Entry-tier diffused bottom aeration system. Shore-side electric compressor, weighted airline, and pond-bottom diffuser. Best value pick for residential ponds under 1/2 acre.

From $1,439
View Details
Kasco Robust-Aire diffused pond and lake aeration system diffuser close-up view
Entry · Commercial-Grade · Kasco

Kasco Robust-Aire Diffused Pond & Lake Aeration System

Wisconsin-built Kasco Robust-Aire with lifetime warranty on diffusers and 15-year warranty on SureSink weighted tubing. Commercial-grade construction at entry-tier pricing.

From $1,631
View Details

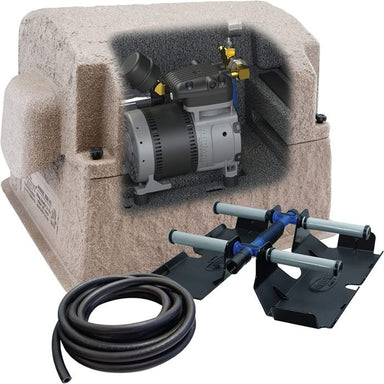

Airmax PondSeries diffused aeration system with cabinet and diffuser lineup for residential ponds
Entry · Workhorse · Airmax

Airmax PondSeries Aeration System

The Airmax workhorse residential diffused aeration system. Complete kit with compressor cabinet, weighted airline, and pond-bottom diffusers. Backed by Airmax's complete-ecosystem accessory lineup.

From $1,650
View Details

Mid Diffused Systems: Vertex XL2 Series ($2,101 to $4,113)

Vertex PondLyfe residential diffused aeration system with stone-look cabinet and single diffuser
Mid · Residential · Vertex PondLyfe

Vertex PondLyfe Pond & Lake Aeration System

Vertex entry residential system. Stone-look cabinet designed to blend into landscaping, single diffuser, sized for 1/4 acre residential ponds. Best entry into the Vertex diffused-aeration authority lineup.

From $2,101
View Details
Vertex Air 1 XL2 pro-grade diffused pond and lake aeration system
Mid · Pro Entry · Vertex XL2

Vertex Air 1 XL2 Pond & Lake Aeration System

Entry XL2 residential system. 1/3 HP compressor, single diffuser, sized for 1/2 to 1 acre ponds. The best XL2 entry for serious residential pond owners.

From $2,731
View Details
Vertex Air 3 XL2 mid-range diffused pond and lake aeration system with three diffusers
Mid · Volume Pick · Vertex XL2

Vertex Air 3 XL2 Pond & Lake Aeration System

The mid-range volume pick. Three diffusers, sized for 2 to 3 acre ponds and small lakes. Best for HOA-tier ponds and larger residential lakes.

From $4,113
View Details

Pro & Solar Diffused Systems ($5,800 to $8,200)

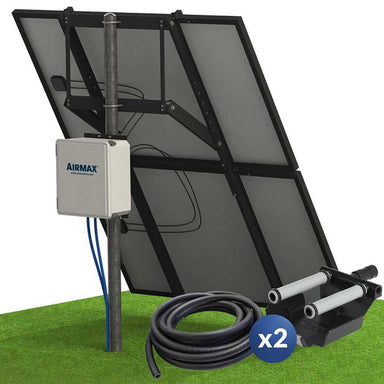

Airmax SolarSeries Direct Drive off-grid solar diffused pond aeration system
Solar · Direct Drive · Airmax

Airmax SolarSeries Direct Drive Aeration System

Solar-powered diffused aeration that runs during daylight hours only. No battery pack. Best entry into off-grid solar aeration for farm ponds and remote country properties.

From $5,800
View Details
Scott Aerator Solar Sub-Surface diffused pond aeration system with solar panel
Solar · Michigan-Made · Scott Aerator

Scott Aerator Solar Sub-Surface Pond Aerator & Aeration System

Michigan-made premium solar diffused aeration system. Scott Aerator's 5-year motor warranty applied to solar off-grid installation. Best pick for solar buyers who prioritize American manufacturing.

From $5,989
View Details

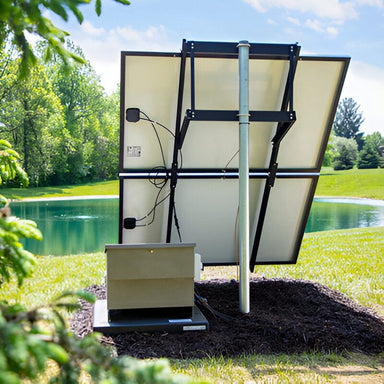

Airmax SolarSeries Battery Backup off-grid solar diffused aeration system with 24-hour battery
Solar · 24-Hour · Battery Backup · Airmax

Airmax SolarSeries Aeration System Battery Backup

Top solar aeration option. Solar plus battery pack for 24-hour continuous off-grid aeration. Best when the pond needs constant aeration through overnight hours (larger ponds, higher fish load).

From $8,200
View Details

Related pond aeration categories

Diffused aeration is one of several pond aeration approaches. Browse related categories and brand pages for a complete pond water-quality strategy.

All Pond Aerators Hub

Complete aeration category across diffused, surface, and solar systems from all brands.

Surface Aerators

Surface-mounted aeration for shallow ponds under 8 ft and fish-pond visual water movement.

Vertex Aquatic Solutions

The diffused-aeration authority: 8 XL2 and PondLyfe systems plus commercial fountains.

Aeration Tubing

Weighted and direct-burial airline for extending or repairing existing diffused aeration systems.

Diffused aeration FAQs

The most common questions our pond specialists get about diffused aeration systems.

What is a diffused aeration system?

A diffused aeration system uses a shore-mounted air compressor cabinet connected via weighted airline tubing to membrane diffusers anchored on the pond bottom. When the compressor runs, air travels down the airline, through the diffusers (the membrane units sold as aeration diffusers or pond aerator diffusers), and releases as fine bubbles that rise through the water column.

As the bubbles rise, they entrain the entire water column upward, breaking summer thermal stratification and mixing oxygen-rich surface water with oxygen-depleted bottom water. Result: fully oxygenated pond that supports fish health, reduces algae, and prevents summer fish kills.

Should I buy diffused aeration or surface aeration?

Depends primarily on pond depth:

Ponds deeper than 8 ft: Diffused aeration is the technically correct answer. Surface aerators cannot reach oxygen-depleted bottom water. Diffused aeration lifts the whole column.

Ponds under 8 ft: Either approach works. Surface aeration is often simpler and cheaper, plus most surface units double as winter de-icers.

Fish-health-focused: Diffused aeration prevents summer fish kills (a leading cause is fall turnover of oxygen-depleted bottom water). For fish-heavy ponds, diffused is the safer long-term choice regardless of depth.

Which diffused aeration brand should I buy?

Match to your pond size, budget, and priorities:

Value entry, small residential pond: Vanguard Bottom ($1,439) or Airmax PondSeries ($1,650).

Commercial-grade with lifetime diffuser warranty: Kasco Robust-Aire ($1,631). Wisconsin-built.

The diffused-aeration specialist brand: Vertex XL2 series ($2,731-$6,913). Industry-spec for lake managers and pond biologists.

Off-grid solar: Airmax SolarSeries Direct Drive ($5,800) or Battery Backup ($8,200), or Scott Solar Sub-Surface ($5,989).

What size aeration system do I need for my pond?

Rough sizing guide (call for exact recommendation):

Under 1/4 acre residential: 1-diffuser system, entry tier ($1,439-$1,650). Vanguard Bottom, Airmax PondSeries, or Kasco Robust-Aire.

1/2 to 1 acre: 1-2 diffuser system. Vertex PondLyfe or Air 1 XL2.

1 to 2 acres: 2-diffuser system. Vertex Air 2 XL2.

2 to 3 acres or HOA-tier: 3-diffuser system. Vertex Air 3 XL2 ($4,113).

3 to 6 acres commercial: 4-6 diffuser system. Vertex Air 4/5/6 XL2 ($6,009-$6,913).

Use the Find My Perfect Aerator tool or call (470) 354-1969 for a specific recommendation.

How does a solar diffused aeration system work?

Solar diffused aeration replaces the shore-side electrical outlet with a solar panel and compressor system:

Direct Drive (Airmax SolarSeries Direct Drive, Scott Solar Sub-Surface): Solar panel powers the compressor directly during daylight hours. No battery. Runs during sun-up, stops after sundown. Best for smaller off-grid ponds.

Battery Backup (Airmax SolarSeries Battery Backup): Solar panel plus battery pack. Battery stores solar-generated energy during the day and releases it overnight for 24-hour continuous operation. Best for larger off-grid ponds with higher biological load.

All three solar options avoid the need for shore-side electrical service, ideal for farm ponds and remote country properties.

What electrical does an electric diffused aeration system need?

All electric diffused aeration systems in our catalog run on standard 115V single-phase outdoor GFCI power. The compressor cabinet plugs into a standard outdoor outlet. Larger commercial systems (Vertex Air 4 XL2 and higher) may benefit from 230V for efficiency; check individual product pages for specifics.

Total pond-owner cost of electricity to run a small residential diffused aeration system is typically $8-$15/month depending on region.

How long is shipping on diffused aeration systems?

Most in-stock diffused aeration systems ship within 3 to 7 business days with free U.S. shipping included. Transit is usually 3 to 7 business days after that. Total order-to-doorstep is typically 2 to 3 weeks.

Solar systems (Airmax SolarSeries, Scott Solar Sub-Surface) can be built-to-order and may have longer lead times. Contact us at (470) 354-1969 for current stock and lead-time on any specific system.

What is the warranty on diffused aeration systems?

Warranty varies by brand:

Kasco Marine (Robust-Aire): Lifetime warranty on membrane diffusers, 15-year warranty on SureSink weighted tubing. Industry-leading.

Vertex XL2 series: Multi-year warranty on compressor and cabinet, lifetime warranty on membrane diffusers.

Airmax: Multi-year warranty on compressor and cabinet plus solar-panel warranty on SolarSeries.

Scott Aerator: 5-year motor warranty (industry-leading in the category) plus 1-year on other components.

Vanguard: Manufacturer parts warranty on compressor and diffuser.

All warranties are direct from manufacturer and Pro Pond Supply handles claims as authorized dealer.

Can I install a diffused aeration system myself?

Yes for residential-tier systems (Vanguard, Airmax PondSeries, Vertex PondLyfe, Vertex Air 1-3 XL2, Kasco Robust-Aire smaller units). Basic sequence: set the compressor cabinet on a level pad within reach of your GFCI outlet, run weighted airline from the cabinet to the pond bottom, anchor the diffuser(s) at the deepest point of the pond, plug in and verify operation.

Larger commercial systems (Vertex Air 4-6 XL2) and solar systems may benefit from a pond contractor for optimal diffuser placement, cabinet siting, and (for solar) south-facing sun exposure. Full install manual ships with every system.

What maintenance does a diffused aeration system need?

Routine maintenance is minimal:

Annually: Replace compressor cabinet air filter ($15-$40 depending on brand). Inspect airline for wear at connection points.

Every 2-3 years: Compressor rebuild kit (typically $80-$200) restores full pump output. Some Kasco and Vertex compressors run 5+ years without rebuild.

Diffusers: Essentially maintenance-free under normal use. Kasco Robust-Aire and Vertex XL2 diffusers carry lifetime warranty.

Total maintenance cost typically $50-$100/year including annual filter and airline check.
