Vanguard Electric Bottom Aeration System
Vanguard Bottom-Diffused Aeration for Ponds and Lakes

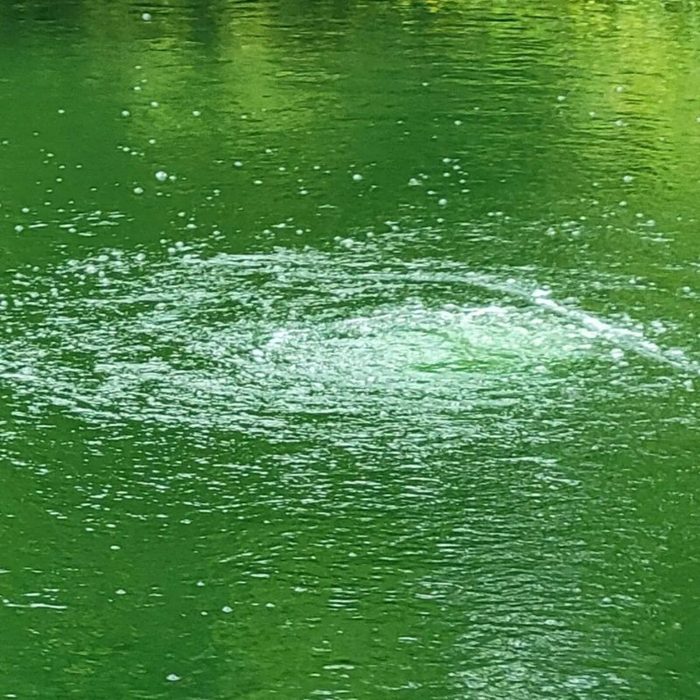

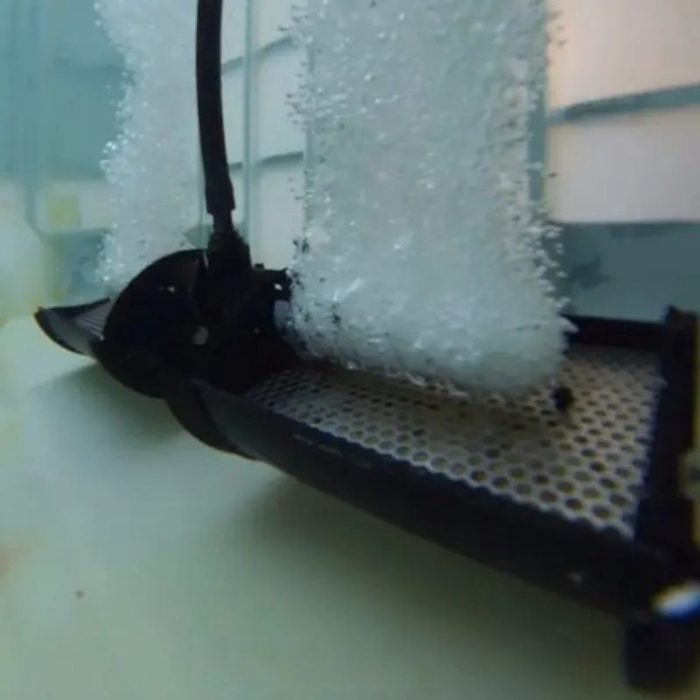

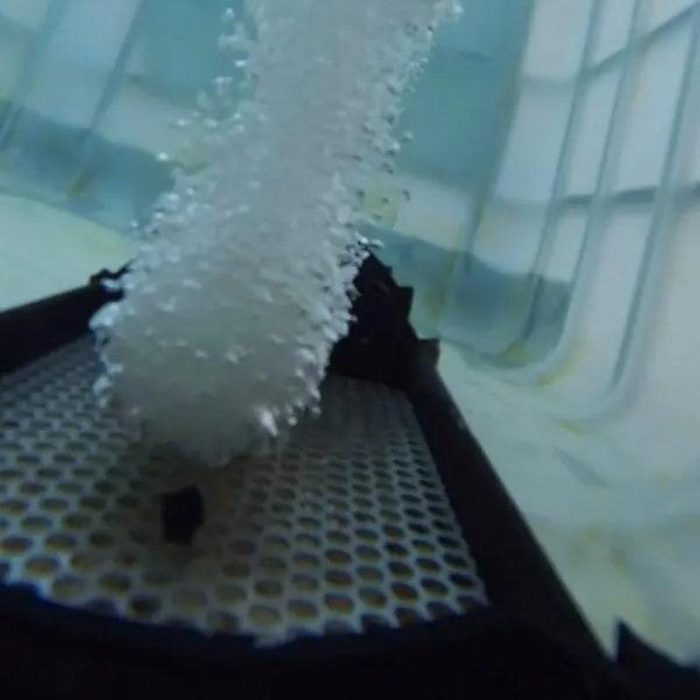

The Vanguard Electric Bottom Aerator is a shore-mounted air pump paired with sinking, weighted air tubing and one or two bottom-set diffuser plates. The pump pushes air through the tubing to the deepest part of the pond, where fine bubbles rise up in a column, dragging cold, oxygen-starved water off the bottom and lifting it to the surface. That single motion is what fixes almost every pond problem - low dissolved oxygen, muck and sediment buildup, foul odors, algae blooms, and thermal stratification.
Two configurations cover residential ponds through half-acre commercial water features. The Shallow kit (EBA-320) pairs a Hiblow WG-3 3.2 CFM pump with a single diffuser for ponds under 7 ft deep. The Deep kit (EBA-520) steps up to a Hiblow HP-120LL 5.2 CFM pump with two diffusers for ponds up to 12 ft deep, giving you the volume needed to fully turn over a taller water column.
Every kit ships complete: air pump, decorative stone enclosure to hide the pump on the shore, equipment pad, 100 ft of weighted air tubing, the diffuser(s), and 50 ft of outdoor-rated power cord. Plug into a shore-mounted 115 V GFCI outlet and it runs 24/7 on standard household power. Backed by a 3-year manufacturer warranty and free shipping.
Fix your pond from the bottom up. The Vanguard Electric Bottom Aerator pushes fine bubbles from the deepest point of the pond to the surface, dragging up cold, oxygen-starved water and mixing the whole column. That single motion resolves low oxygen, muck buildup, algae blooms, and foul odors.
Pick the Shallow kit (EBA-320) for ponds up to 7 ft deep - it runs a Hiblow 3.2 CFM pump with one bottom diffuser. Step up to the Deep kit (EBA-520) for ponds up to 12 ft deep - a Hiblow 5.2 CFM pump with two diffusers so you fully turn over a taller water column.
Every kit ships complete with the air pump, a decorative stone shore enclosure, equipment pad, 100 ft of sinking weighted tubing, the diffuser(s), and 50 ft of outdoor-rated power cord. Plugs into a standard 115 V GFCI outlet and runs 24/7 on household power.
Free shipping on every Vanguard bottom aeration kit. Call (470) 354-1969 for sizing help.
See the System in Action
Compare Shallow vs Deep Kits
| Shallow (EBA-320) | Deep (EBA-520) | |
|---|---|---|
| Max Pond Depth | Up to 7 ft | Up to 12 ft |
| Air Pump | Hiblow WG-3 | Hiblow HP-120LL |
| Airflow | 3.2 CFM | 5.2 CFM |
| Voltage | 115V | 115V |
| Diffusers | 1 diffuser plate | 2 diffuser plates |
| Weighted Tubing | 100 ft | 100 ft |
| Power Cord | 50 ft outdoor-rated | 50 ft outdoor-rated |
| Stone Shore Enclosure | Included | Included |
| Equipment Pad | Included | Included |
| Best For | Backyard residential ponds, koi ponds, small lakes | Half-acre HOA lakes, deeper ponds, water bodies with thermal stratification |
Why Choose Vanguard's Bottom Aerator
Requirements & What to Know Before You Buy
- Pond Depth: the Shallow kit is rated for ponds up to 7 ft deep, and the Deep kit for ponds up to 12 ft deep. If your pond is deeper than 12 ft or larger than half an acre, call us for a custom sizing.
- Shore Access: the air pump sits on the shore inside the included stone enclosure. You need a level spot within 100 ft of the pond edge with access to a 115 V GFCI outlet.
- Power: standard 115 V household current with GFCI protection. Runs 24/7 - budget roughly 60 to 100 W of continuous draw depending on which kit you have.
- Tubing Length: 100 ft of weighted sinking tubing ships with each kit. Measure from your intended pump location on shore straight to the deepest spot in the pond. If you need more than 100 ft, call before ordering.
- Diffuser Placement: set the diffuser(s) at the deepest point of the pond. On the Deep kit, space the two diffusers across the deepest area for better coverage.
- Startup Behavior: when you first turn on a bottom aerator on a stratified pond, expect the water to briefly cloud up as bottom sediments get stirred. This clears within a few days as the pond stabilizes.
- Winter Operation: most owners run the system year-round. In freezing climates, running it through winter maintains an open hole in the ice, which improves gas exchange and prevents winterkill of fish.
- Sizing Help: Call (470) 354-1969 with your pond dimensions and we will confirm which kit fits.
What's Included & Optional Add-Ons
- 115 V Air Pump - Hiblow WG-3 3.2 CFM (Shallow) or Hiblow HP-120LL 5.2 CFM (Deep)
- Decorative Stone Enclosure - hides the air pump on the shoreline
- Equipment Pad - vibration-damping pad the pump sits on inside the enclosure
- 100 ft Weighted Sinking Air Tubing - runs from pump to diffuser(s)
- Air Diffuser Plate(s) - 1 diffuser on the Shallow kit, 2 diffusers on the Deep kit
- 50 ft Outdoor-Rated Power Cord - plugs into a shore-mounted GFCI outlet
- Optional Solar Upgrade Kit (SBA-KIT): converts either kit to solar-powered operation. Call for pricing.
- Optional Extended Tubing / Cord: for installs needing more than 100 ft of tubing or 50 ft of power. Call before ordering.
Vanguard Electric Bottom Aerator Specifications
| Manufacturer | Vanguard Water Creations |
| Models | EBA-320 (Shallow), EBA-520 (Deep) |
| Type | Shore-mounted electric bottom-diffused aeration kit |
| Air Pump - Shallow | Hiblow WG-3, 3.2 CFM |
| Air Pump - Deep | Hiblow HP-120LL, 5.2 CFM |
| Voltage | 115V, 60 Hz household current |
| Rated Pond Depth - Shallow | Up to 7 ft |
| Rated Pond Depth - Deep | Up to 12 ft |
| Diffusers - Shallow | 1 diffuser plate |
| Diffusers - Deep | 2 diffuser plates |
| Weighted Air Tubing | 100 ft (sinking, pre-weighted) |
| Power Cord | 50 ft outdoor-rated |
| Shore Enclosure | Decorative stone enclosure included |
| Equipment Pad | Included |
| Solar Upgrade | Optional SBA-KIT converts to solar (sold separately) |
| Applications | Backyard ponds, koi ponds, HOA lakes up to half-acre, water bodies with stratification, muck / algae / odor problems |
| Warranty | 3-year manufacturer warranty |
| Country of Origin | Made in USA |
