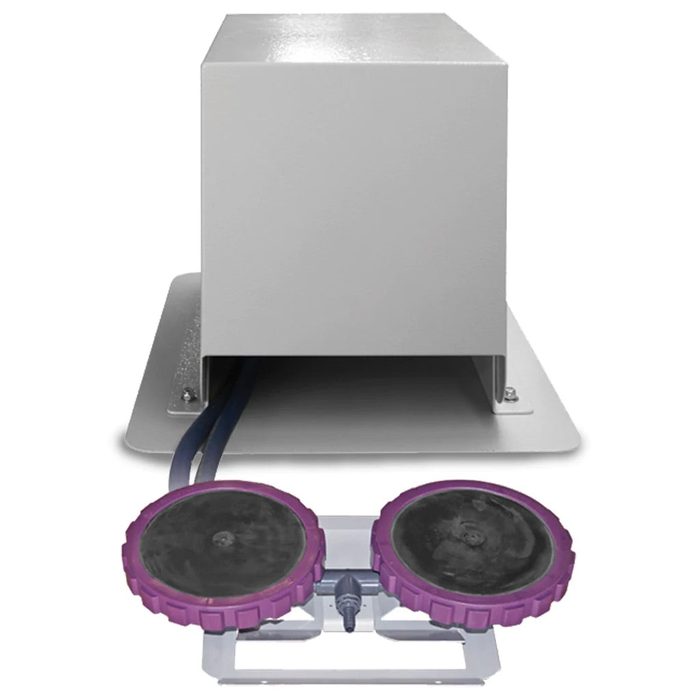

Vertex PondLyfe 1 Aeration System - Full Unit Stone Color Cabinet

Vertex PondLyfe Aeration System

by Vertex Aquatic Solutions
SKU PL1-ST-NOTUBE
$2,101.00
Made in the USA
No Sales Tax Outside Georgia
Free Delivery from U.S. Warehouses
Talk to a Specialist: (470) 354-1969
Better Price? Request a Wire Discount Bulk or Business Order? Get a Fast Custom Quote Veterans & First Responders Save
Free Shipping
Ships --
Arrives --

Notify me when back in stock

Trust badges for vertex 3 year warranty collection Trust badges for vertex 3 year warranty collection

Keep Your Pond Healthy Year Round with the Vertex PondLyfe Aerator

The Vertex PondLyfe Aeration System is a bottom-diffused aeration setup built for small to mid-size ponds up to 1.5 surface acres and 30 ft deep. It moves oxygen-rich water from the bottom of the pond to the surface using a shore-mounted compressor cabinet, weighted self-sinking tubing, and one or more membrane AirStations sitting on the pond floor. The result is consistent circulation that prevents stratification, reduces muck buildup, and keeps fish healthy year round.

Four configurations cover different aeration patterns: the PondLyfe 1 uses a single XL2 SW AirStation for compact ponds, the PondLyfe 2 and 3 use multiple XL1 AirStations to spread aeration across irregular shorelines, and the PondLyfe 4 mixes both station types for ponds with an obvious deep spot plus shallow sections. Every system runs on the same 1/4 HP rocking-piston compressor inside a quiet, powder-coated aluminum QuietAir cabinet that ships in Stone, Sand, or Garden Green to match your landscape.

Each system includes the QuietAir cabinet, compressor, GFCI safety circuit, and the AirStations matched to that configuration. Optional 3/8 in self-weighted BottomLine tubing is available in 50, 100, 250, and 500 ft lengths - pick the run that reaches your shore-mounted cabinet to the AirStation drop point. Free shipping on every PondLyfe.

The Vertex PondLyfe is a bottom-diffused aeration system for ponds up to 1.5 acres and 30 ft deep. Compressor cabinet on shore, weighted tubing on the bottom, membrane AirStations doing the lifting.

1/4 HP rocking-piston compressor. 2 CFM output. Powder-coated aluminum QuietAir cabinet in Stone, Sand, or Garden Green. Self-cleaning membrane diffusers. ETL-certified.

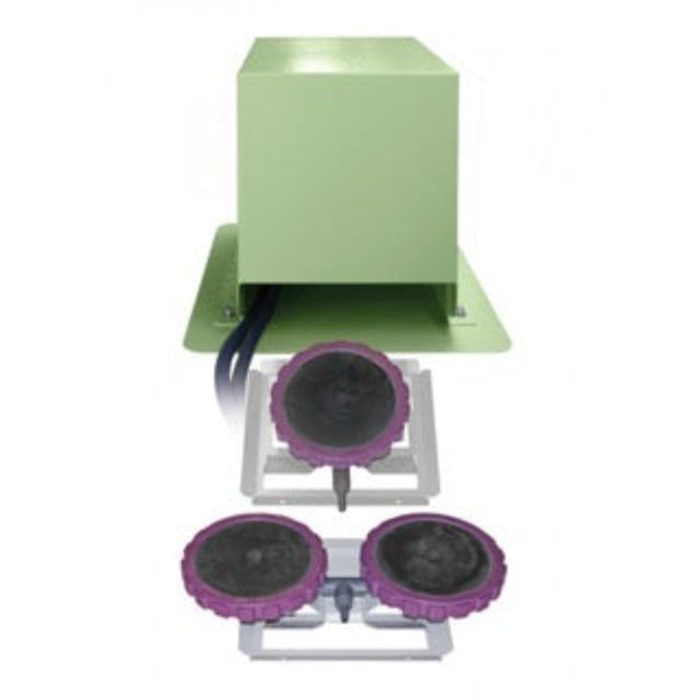

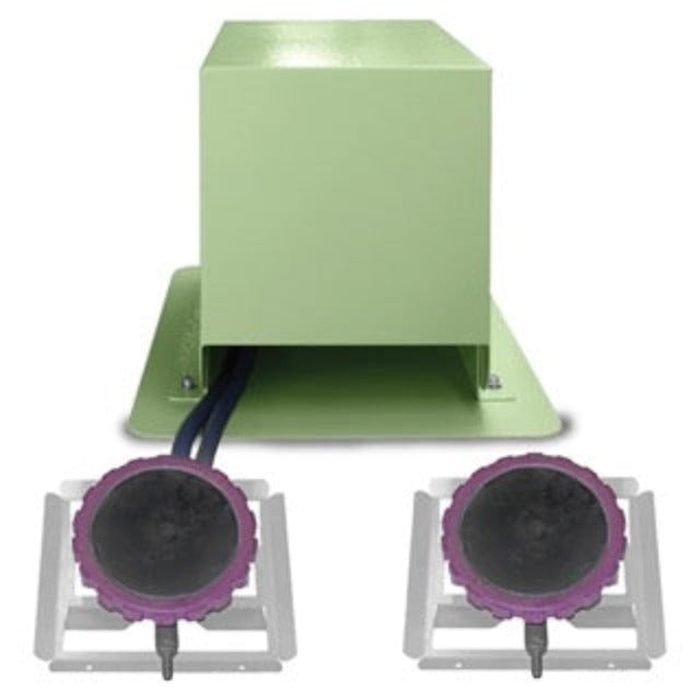

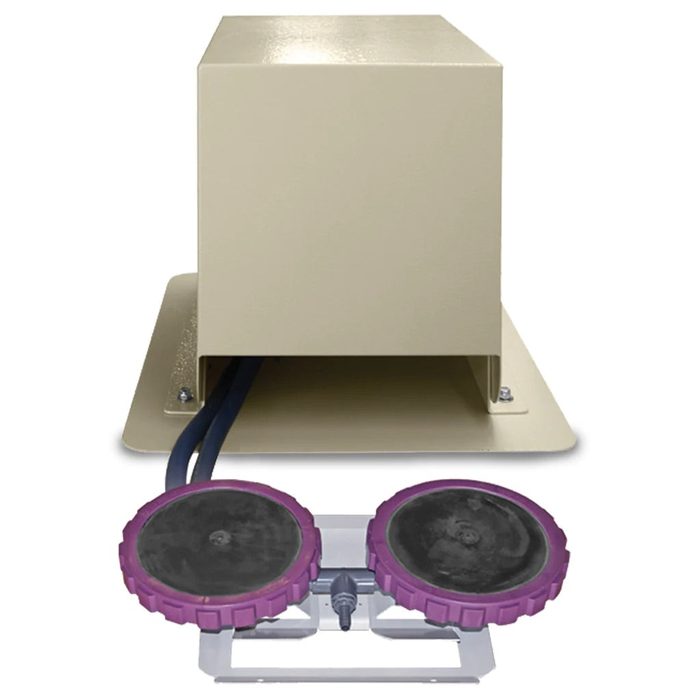

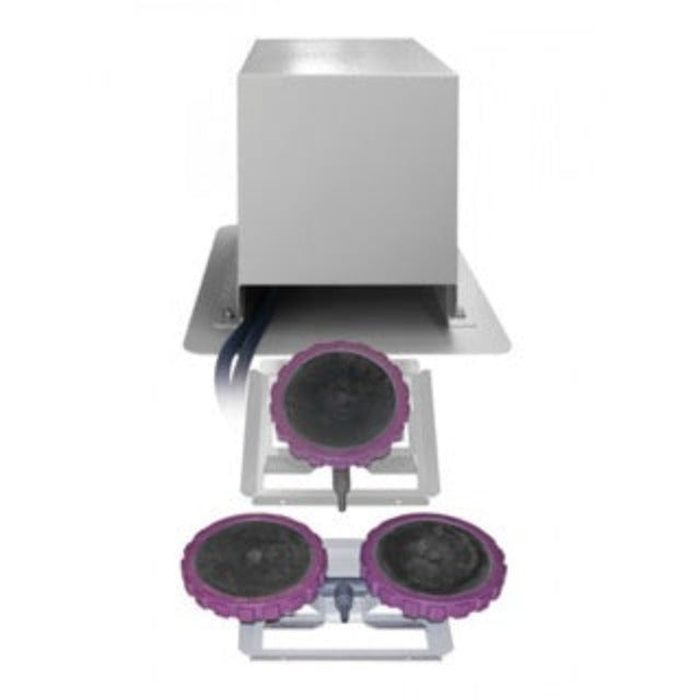

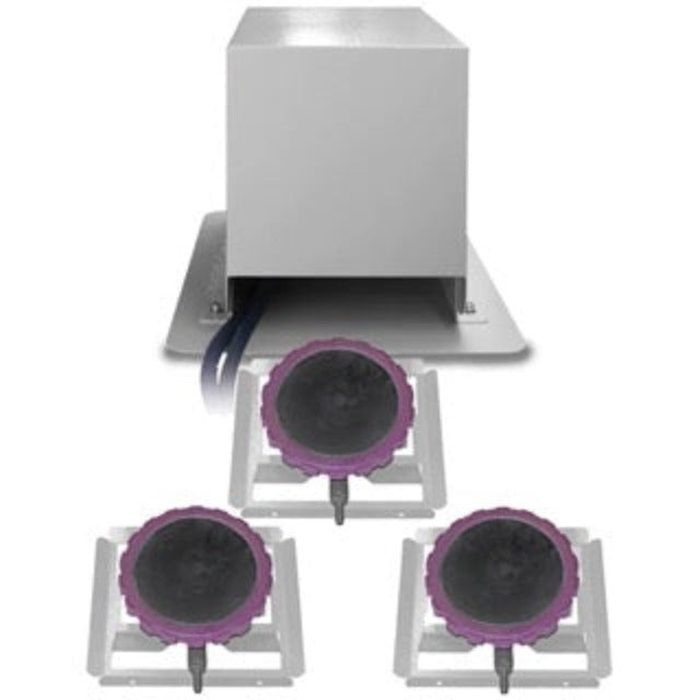

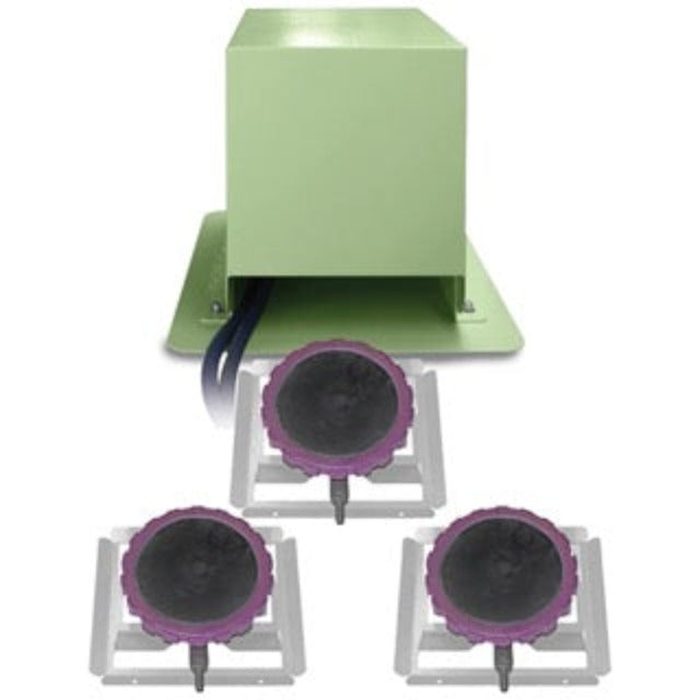

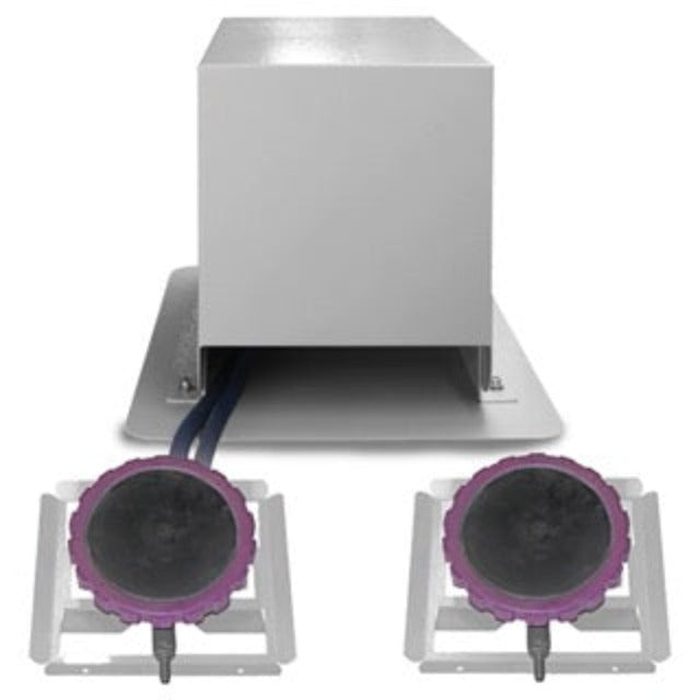

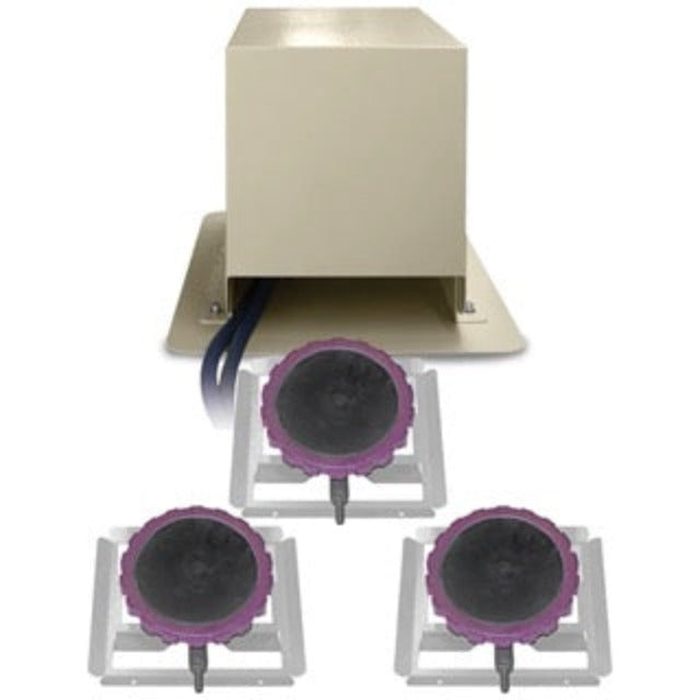

Four configurations: PondLyfe 1 (1 XL2 SW), PondLyfe 2 (2 XL1), PondLyfe 3 (3 XL1), PondLyfe 4 (1 XL2 SW + 1 XL1). Optional 50, 100, 250, or 500 ft BottomLine tubing.

Free shipping on every Vertex PondLyfe. Optional weighted tubing and cabinet colors available above. Call (470) 354-1969.

Vertex PondLyfe Aeration System with QuietAir cabinet on shore

Watch the PondLyfe in Action

Why Choose the PondLyfe by Vertex

Bottom-Up Pond Circulation
Membrane AirStations sit on the pond floor and release fine bubbles that lift water (not just air) to the surface. The lifting action turns the entire water column over - the most effective way to oxygenate a pond and prevent stagnation.
Four Configurations for Different Pond Shapes
The PondLyfe 1 covers compact uniform ponds with a single XL2 SW station. The PondLyfe 2 and 3 spread multiple XL1 stations across irregular shorelines. The PondLyfe 4 combines an XL2 SW with an XL1 - the right pick when you have one deep area plus a shallower bay.
Quiet, Discreet QuietAir Cabinet
Powder-coated aluminum enclosure with built-in sound insulation. Stone, Sand, or Garden Green color blends into landscaping. The compressor runs at a noise level that won't bother lakefront living.
Energy Efficient 1/4 HP Compressor
Rocking-piston compressor pulls just 1.6 running amps. Average monthly cost works out to about $14.77 running 24/7 at 5 psi (assuming 11 cents per kWh). One of the cheapest ways to keep an entire 1.5-acre pond circulating year round.
ETL Safety Certified
Class A GFCI safety circuit. ETL-certified for outdoor use. Restarts automatically after a power loss without intervention.
Self-Cleaning Membrane Diffusers
AirStations use independently tested self-cleaning membranes that resist calcification and biofouling - no annual rebuild required. Bubbles range from 0.5 to 1 mm for maximum oxygen transfer.
Best-in-Class Warranty
3 years on the compressor. 5 years on the AirStations. 15 years on the BottomLine tubing. Limited lifetime warranty on the powder-coated cabinet against rust.
Ships Complete
Cabinet, compressor, AirStations, and all internal plumbing ship ready to run. Add a tubing kit at order time to land everything you need in one box.

PondLyfe Unit Comparison

PondLyfe 1 PondLyfe 2 PondLyfe 3 PondLyfe 4
Horsepower 1/4 HP
Max / Running Amps 2.0 / 1.6 Amps
Maximum Air Output (CFM) 2 CFM
AirStation Model (Quantity) XL2 SW (1) XL1 (2) XL1 (3) XL2 SW (1) + XL1 (1)
Maximum Operating Depth 30 ft
Maximum Aerated Acres 1.5 acres
BottomLine Tubing (Optional) 50, 100, 250, or 500 ft - 3/8 in self-weighted
Avg. Monthly Running Cost $14.77 / month at 5 psi, 24 hr / day, 11 c per kWh
Powder Coated Aluminum Cabinet Yes
GFCI Safety Circuit Yes
ETL Safety Certification Yes
Self-Cleaning Membrane Diffusers Yes
Restarts Under Pressure Yes
Super Quiet Operation Yes
Compressor Warranty 3 yr
Cabinet Warranty Limited lifetime against rust
AirStation Warranty 5 yr
BottomLine Tubing Warranty 15 yr
PondLyfe systems use the QuietAir cabinet with rocking-piston compressor and self-cleaning membrane AirStations. Tubing sold separately or as an option below. Call (470) 354-1969 for sizing help.

Requirements & What to Know Before You Buy

  • Pond Surface: up to 1.5 acres on every PondLyfe configuration. For larger ponds, look at the XL2, XL2 SW, or HighFlow systems.
  • Pond Depth: 30 ft maximum operating depth on every PondLyfe.
  • Power: 115V standard. The cabinet plugs into a properly sized GFCI-protected dedicated circuit.
  • Cabinet Placement: the QuietAir cabinet mounts on shore within reach of a power outlet. Pick a spot that is shaded if possible to keep compressor temperatures down in summer.
  • Tubing Run: 3/8 in BottomLine self-weighted tubing connects the cabinet to the AirStations. Measure from your cabinet location to the planned AirStation drop point. We offer 50, 100, 250, and 500 ft kits in the options above.
  • AirStation Placement: drop AirStations in the deepest part of the pond. For multi-station systems (PondLyfe 2/3/4), spread them across high-traffic areas of the pond floor.
  • Winter Operation: the PondLyfe can run year round, but in freezing climates we recommend pulling stations into the shallow end during winter to maintain a small open water area without freezing the cabinet.
  • Sizing Help: Call (470) 354-1969 with your pond surface area, depth, and shape and we will recommend the right PondLyfe configuration.

What's Included & Optional Add-Ons

  • QuietAir Cabinet - powder-coated aluminum with sound insulation; ships in Stone, Sand, or Garden Green
  • 1/4 HP Rocking-Piston Compressor - 2 CFM at 5 psi; rated for continuous duty
  • GFCI Safety Circuit - Class A protection, restarts under pressure after power loss
  • AirStations - XL2 SW or XL1 self-cleaning membrane diffusers, matched to PondLyfe configuration
  • Internal Plumbing - manifold, pressure relief valve, and gauge pre-assembled in the cabinet
  • Optional 3/8 in BottomLine Tubing - 50, 100, 250, or 500 ft self-weighted; pick from the options above
  • Optional Sound Kit - upgraded muffler and filter for ultra-quiet operation; on request
  • Warranty - 3 yr compressor, 5 yr AirStations, 15 yr BottomLine tubing, limited lifetime cabinet (against rust)

Vertex PondLyfe Diffused Aerator Specifications

Manufacturer Vertex Aquatic Solutions
Model PondLyfe Aeration System
Type Bottom-diffused aeration system with shore-mounted compressor cabinet
Configurations PondLyfe 1, PondLyfe 2, PondLyfe 3, PondLyfe 4

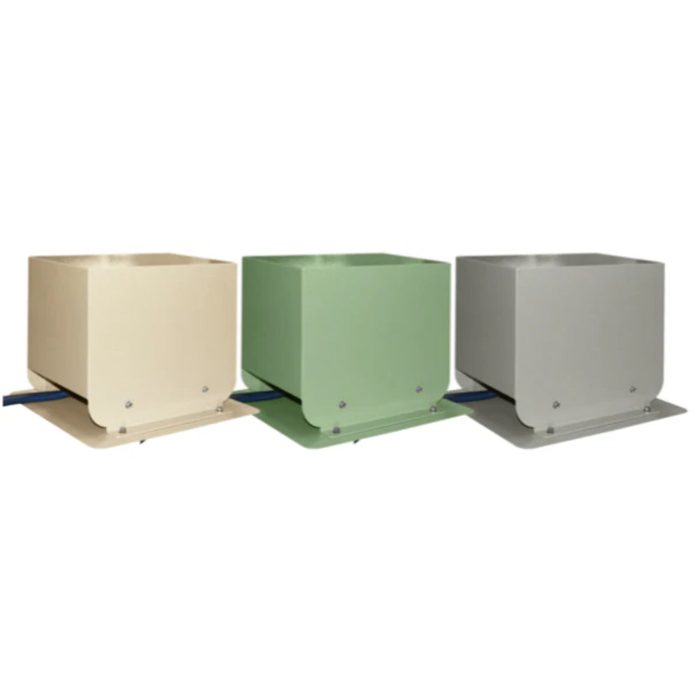

Cabinet Colors Stone, Sand, Garden Green
Horsepower 1/4 HP rocking-piston compressor
Voltage 115V, 60 Hz standard
Max / Running Amps 2.0 / 1.6 Amps
Air Output 2 CFM
Maximum Operating Depth 30 ft
Maximum Aerated Acres 1.5 acres
Cabinet Construction Powder-coated aluminum with sound insulation
Compressor Rocking-piston, continuous duty rated
AirStation Models XL2 SW (PondLyfe 1), XL1 x 2 (PondLyfe 2), XL1 x 3 (PondLyfe 3), XL2 SW + XL1 (PondLyfe 4)
Tubing (Optional) 3/8 in BottomLine self-weighted; 50, 100, 250, or 500 ft
Safety Features Class A GFCI safety circuit, ETL-certified, restarts under pressure
Avg. Monthly Running Cost $14.77 at 5 psi, 24 hr / day, 11 c per kWh
Total Configurations 60 across PondLyfe size, cabinet color, and tubing length
Applications Small to mid-size ponds, HOA water features, fishing ponds, landscape ponds, agricultural water bodies up to 1.5 acres and 30 ft deep
Warranty (Compressor) 3 years
Warranty (AirStations) 5 years
Warranty (BottomLine Tubing) 15 years
Warranty (Cabinet) Limited lifetime against rust
Country of Origin Vertex Aquatic Solutions, USA



Manuals

View the PondLyfe Aeration System Product Sheet

View the PondLyfe Aeration Systems Specification Sheet
