Kasco Mount for De-Icer and AquatiClear Circulator
Mount Your Kasco De-Icer or AquatiClear with a Kasco Dock Mount Kit

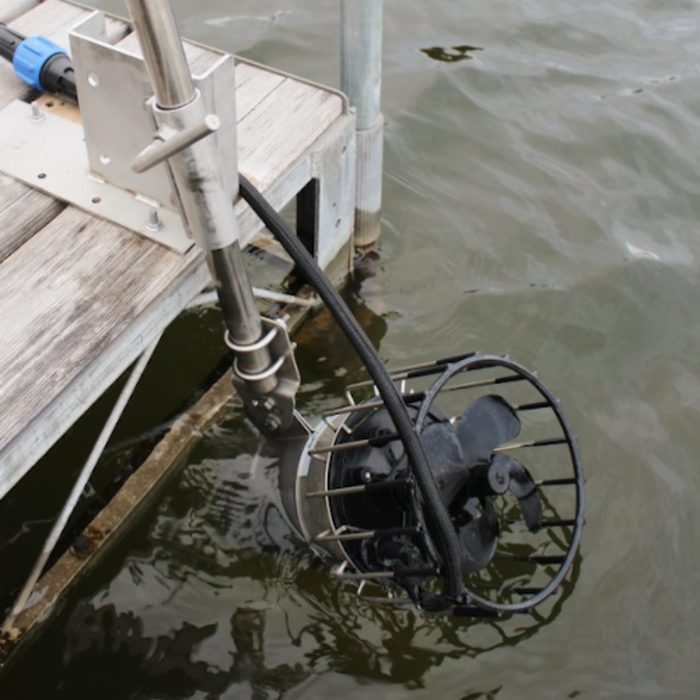

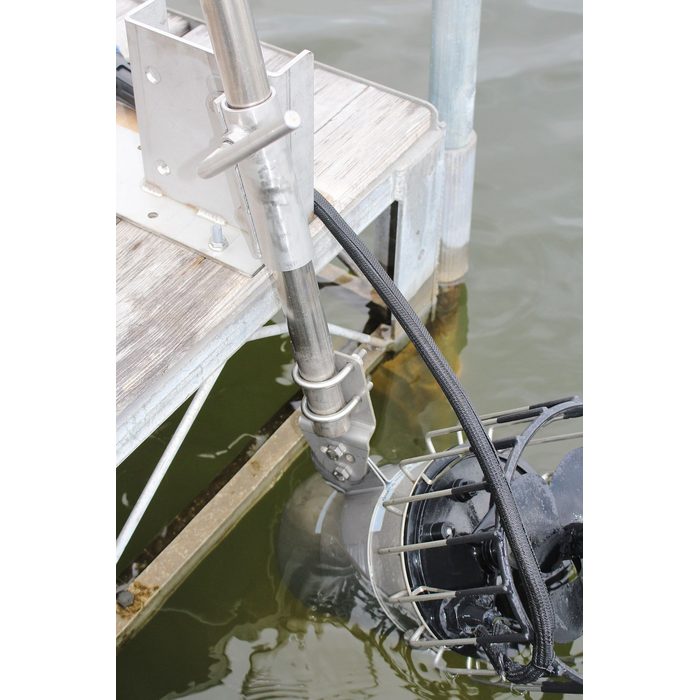

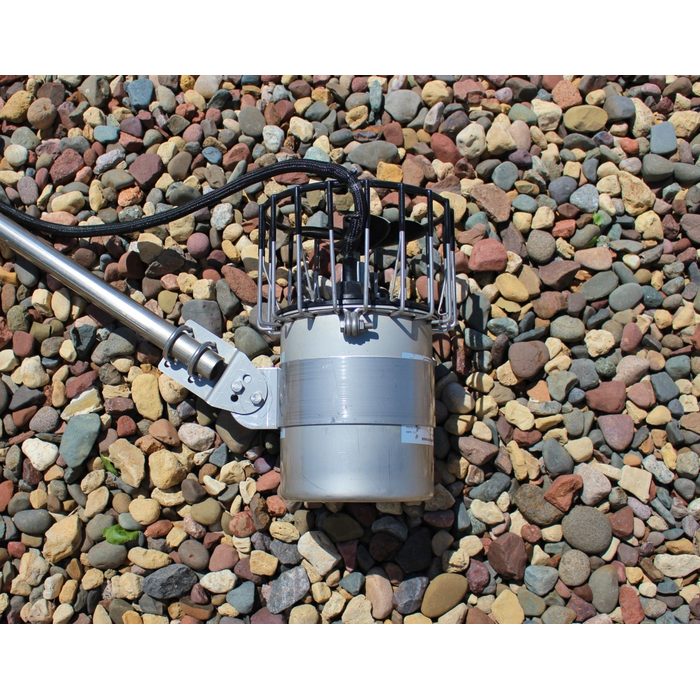

The Kasco Dock Mount bolts a Kasco De-Icer or AquatiClear circulator to a dock, piling, wall, or other waterfront structure so the unit stays where you want it and aims at the water you want to keep moving. Three versions are available: the Universal Mount with Simple Swivel for residential installs that need Kasco's patent-pending rotation accessory, the Universal Mount as a lower-priced basic version (same pipe size, same fit, no Simple Swivel), and the Industrial Mount for marinas, commercial piers, and harsh environments where the mount needs to handle up to a 2 HP unit and shrug off years of weather, ice, and salt.
All three are 300-series stainless steel and carry a lifetime warranty. Both Universal versions take a customer-supplied 1" / 25 mm threaded or unthreaded pipe (up to 10 ft long); the Industrial Mount takes a 1.5" / 40 mm pipe. In every case the pipe is not included - you supply schedule-40 galvanized or stainless. Several pre-drilled holes give you flexibility on how the mount sits against the dock; a shoulder bolt and pivot point near the unit make pipe and unit installation straightforward.
The Simple Swivel bracket is what separates the two Universal versions: it's Kasco's patent-pending rotation collar that lets you aim the unit at the dirtiest pocket of water without unbolting anything. If you don't need that, the basic Universal Mount saves you ~$40 and uses the standard shoulder-bolt rotation. Free shipping on every mount.
Bolts a Kasco De-Icer or AquatiClear to a dock, piling, or wall. All three versions are 300-series stainless steel with a lifetime warranty.
Universal Mount with Simple Swivel - 1/2, 3/4, and 1 HP units. Patent-pending rotation collar for easy aiming. 1" pipe (customer-supplied).
Universal Mount - same fit, ~$40 less. Basic shoulder-bolt rotation, no Simple Swivel. 1" pipe (customer-supplied).
Industrial Mount - 1/2, 3/4, 1, and 2 HP units. Built for marinas and harsh environments. 1.5" / 40 mm pipe (customer-supplied).
Free shipping on every Kasco mount. Call (470) 354-1969 if you need help matching a mount to your Kasco unit.
Which Mount Do I Need
- Universal Mount with Simple Swivel (243478) - residential docks and ponds with a 1/2, 3/4, or 1 HP De-Icer or AquatiClear. Includes Kasco's patent-pending Simple Swivel rotation bracket. Uses a 1" pipe (customer-supplied).

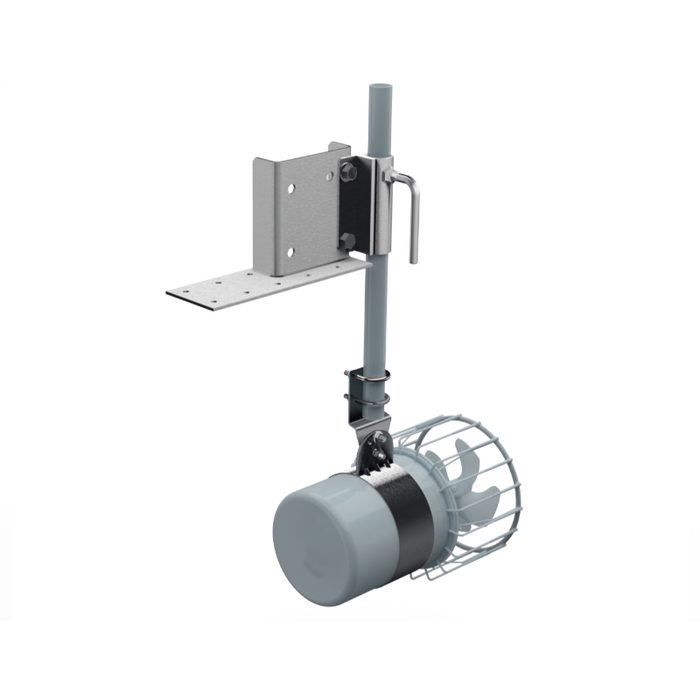

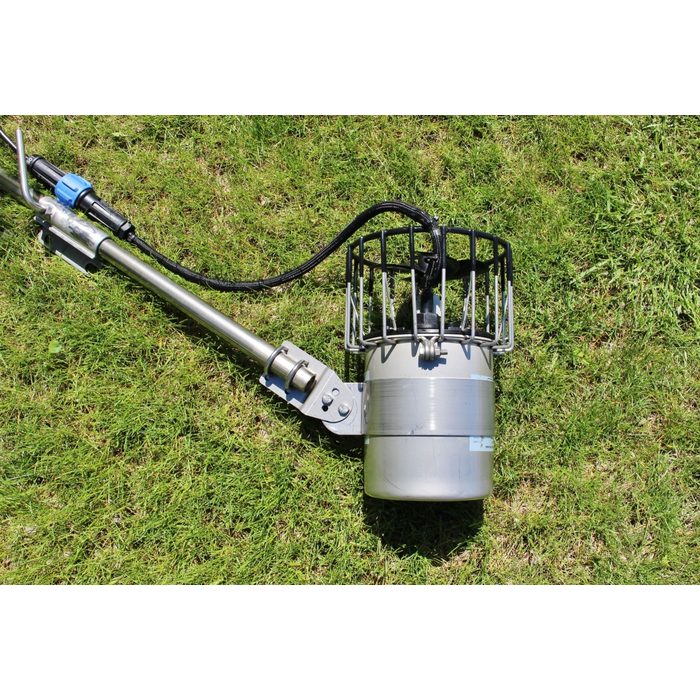

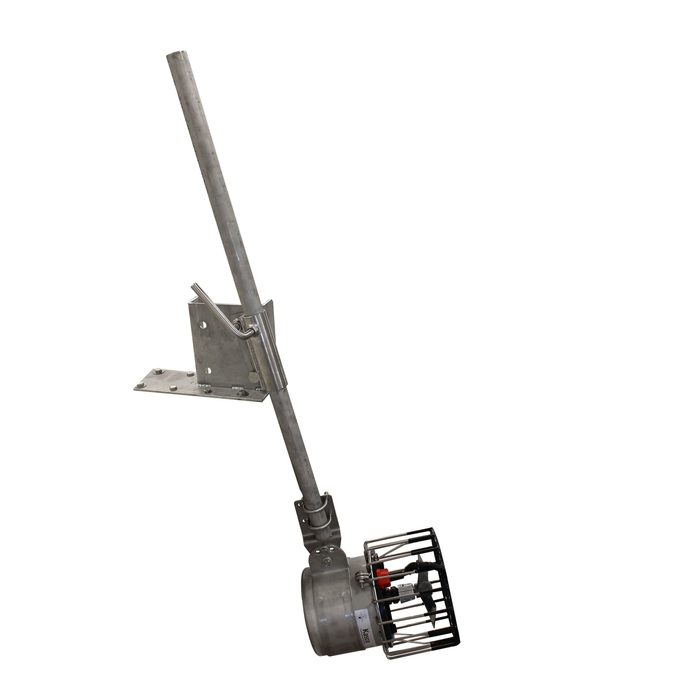

- Universal Mount (243485) - same fit as the Simple Swivel version (1/2-1 HP De-Icer or AquatiClear, 1" pipe) but without the Simple Swivel accessory. Lower price; you get standard shoulder-bolt + pivot-point rotation.

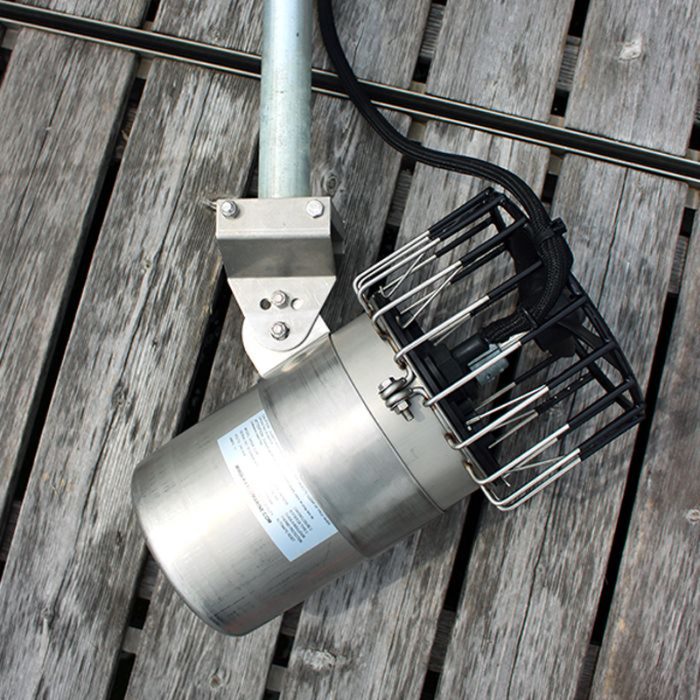

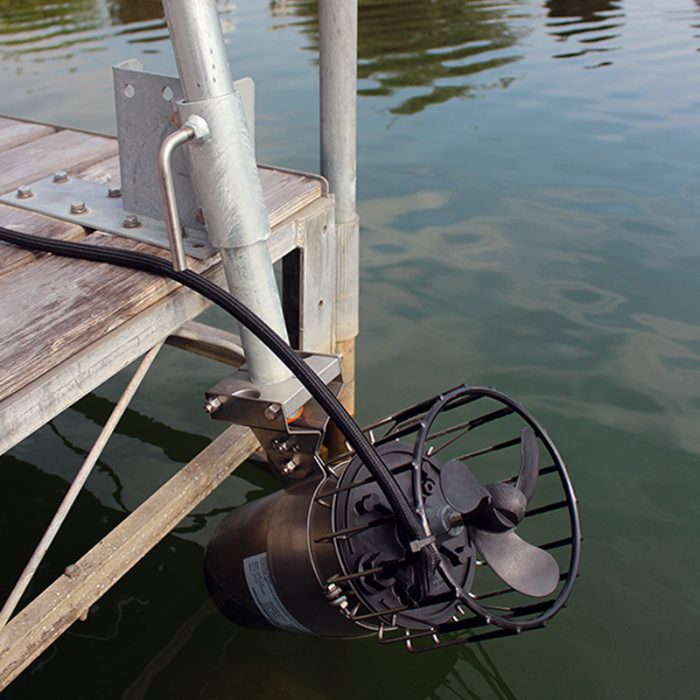

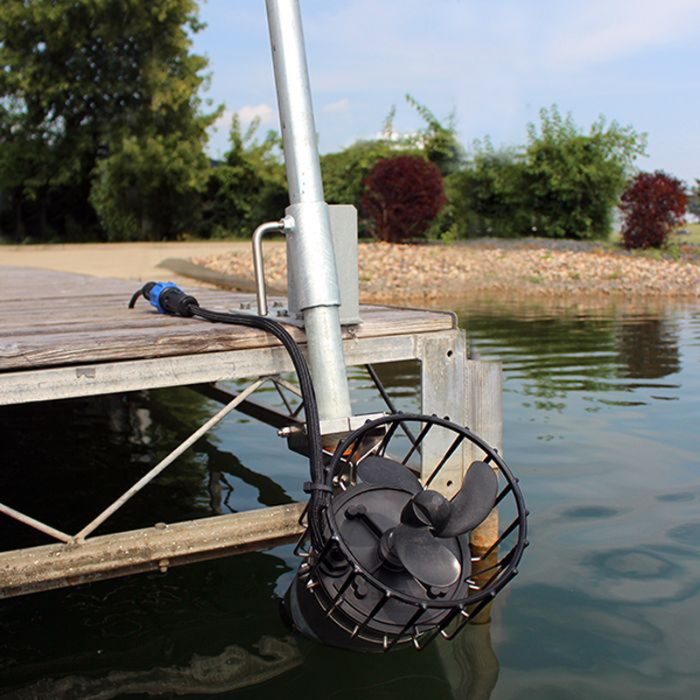

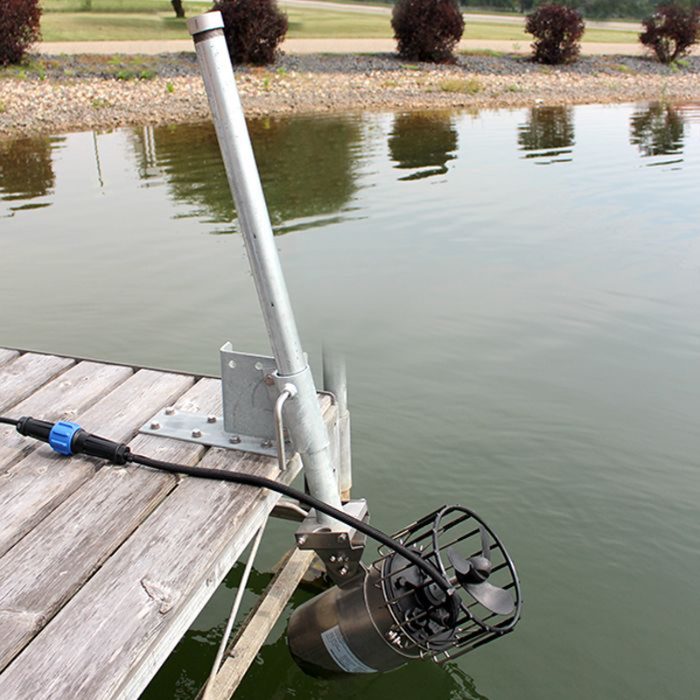

- Industrial Mount (243479) - marinas, commercial piers, and any install that includes a 2 HP unit or sees harsh winters, brackish water, or salt exposure. Uses a 1.5" / 40 mm pipe (customer-supplied).
- Floating vs Mounted - if you want the unit to float freely on the water instead of being bolted to a structure, use the included 20 ft mooring ropes (De-Icer) or the Horizontal Float (AquatiClear) instead of any of these mount kits.
- Still not sure? Call (470) 354-1969 with your Kasco unit model and we will confirm the right mount.
Mount Comparison
| Universal Mount with Simple Swivel (243478) |
Universal Mount (243485) |
Industrial Mount (243479) |
|
|---|---|---|---|
| Fits Kasco Units | 1/2, 3/4, and 1 HP De-Icers and AquatiClear Circulators | 1/2, 3/4, and 1 HP De-Icers and AquatiClear Circulators | 1/2, 3/4, 1, and 2 HP De-Icers, AquatiClear Circulators, and Surface Aerators |
| Pipe Size (customer-supplied) | 1" / 25 mm nominal, schedule 40 minimum, 1-5/16" OD, up to 10 ft | 1" / 25 mm nominal, schedule 40 minimum, 1-5/16" OD, up to 10 ft | 1.5" / 40 mm nominal, schedule 40 minimum, 1.9" OD, up to 10 ft |
| Construction | Stainless steel | Stainless steel | Stainless steel - extra corrosion-resistant for industrial / harsh environments |
| Simple Swivel Bracket | Included | Not included - basic shoulder bolt + pivot point rotation only | Included |
| Mounting Surface | Dock, piling, wall, or other waterfront structure | Dock, piling, wall, or other waterfront structure | Dock, piling, wall, or other waterfront structure |
| Hardware | Eight 5/16" lag screws or bolts (customer-supplied) | Eight 5/16" lag screws or bolts (customer-supplied) | Eight 5/16" lag screws or bolts (customer-supplied) |
| Best For | Residential docks and ponds - easy patent-pending rotation | Residential docks and ponds - basic rotation, lower price | Marinas, commercial piers, harsh-environment installs |
| Warranty | Lifetime on the mount | Lifetime on the mount | Lifetime on the mount |
What's Included

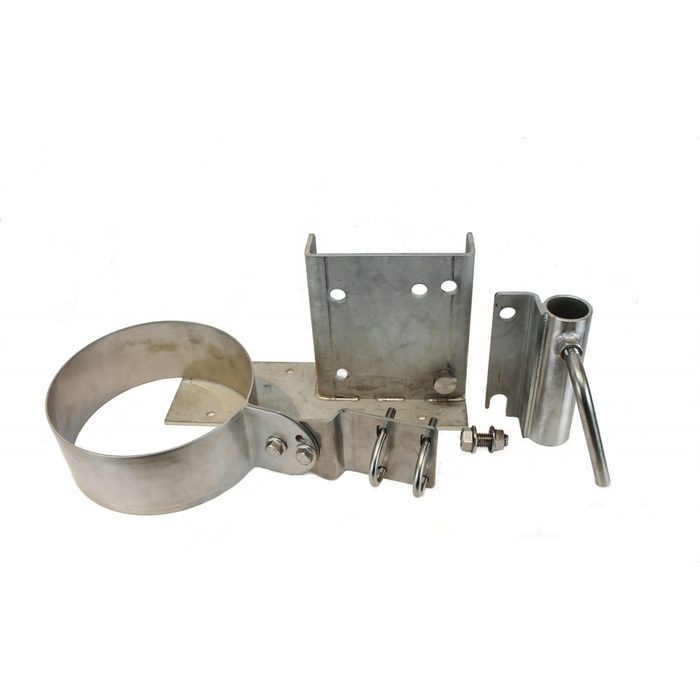

- Upper and Lower Mounting Brackets - 300-series stainless steel
- Simple Swivel Bracket - patent-pending rotation collar; included only on the Universal Mount with Simple Swivel (243478) and on the Industrial Mount (243479). The basic Universal Mount (243485) ships with shoulder-bolt rotation only.
- Shoulder Bolt and Pivot Point - included on all three; allows for easy pipe and unit installation
- Mounting Hardware - for assembling the bracket itself
- Installation Manual - linked below as PDF
- Pipe Not Included - customer-supplied. Universal: 1" / 25 mm. Industrial: 1.5" / 40 mm. Schedule-40 minimum, galvanized or stainless, max 10 ft.
- Lag Screws Not Included - customer-supplied. Eight 5/16" lag screws or bolts. Kasco recommends stainless steel.
Tools Needed for Installation
- 3/4" wrench
- 3/4" socket wrench
- 9/16" wrench
- 9/16" socket wrench
- Drill and drill bits for the lag-screw holes (size depends on your dock material)
- An extra set of hands - Kasco notes that installation often goes faster with two people, especially for the Industrial Mount
Mount Manuals
Returns - Kasco mounts are subject to a 10% manufacturer restocking fee on returns.
Free shipping on every Kasco mount. Call (470) 354-1969 for sizing help.
