Vanguard Pond Spa Surface Aerator / De-Icer
Winter De-Icer, Summer Surface Aerator - One Vanguard Motor

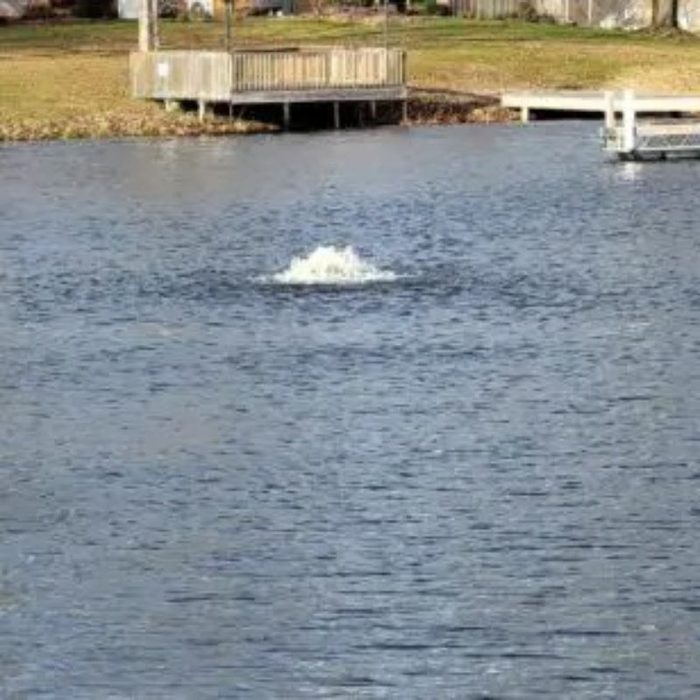

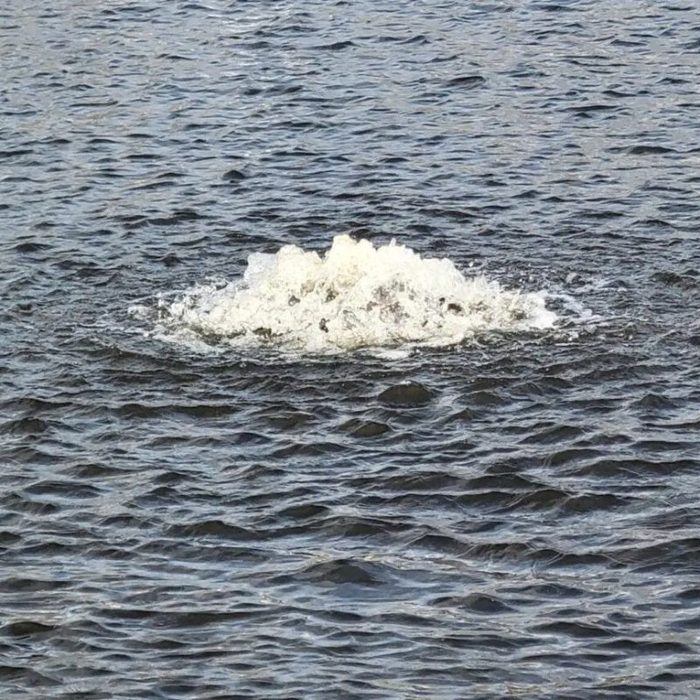

The Vanguard Pond Spa is a dual-purpose 3/4 HP submersible motor and float that pulls water from the surface (or from the bottom with the optional draw tube) and pushes it back out in an aerating boil - not a decorative plume. Summer, it lifts dissolved oxygen and knocks down surface algae without the display look of a fountain. Winter, the same motor keeps a hole open in the ice around docks, boat lifts, and shoreline aerators.
Runs on standard household 115 V or 230 V circuits and ships with an Intermatic daily timer and Inline GFCI on the 115 V build, or step up to the 230 V Deluxe GFCI Outdoor Breaker for permanent installs with a weatherproof shore panel and dedicated breaker switch. Cord options run from 50 ft up to 250 ft to reach the closest circuit on a shoreline, dock, or barn.
Add an RGBW color-changing LED kit or a Bright White LED kit to light the aeration at night - both kits carry the same 3-year warranty as the motor. Every unit ships with mooring ropes and float. Free shipping on every configuration.
Aerate in summer, de-ice in winter. The Vanguard Pond Spa is a 3/4 HP submersible motor on a floating platform that boils water back to the surface. Summer, it lifts dissolved oxygen and knocks down surface algae. Winter, it keeps a hole open in the ice around docks, boat lifts, and shoreline aerators.
Pick 115 V for standard household outlets with an Intermatic timer plus inline GFCI protection. Pick 230 V Standard Timer for direct-wired residential installs, or 230 V Deluxe GFCI Outdoor Breaker for permanent shoreline installs with a weatherproof breaker panel.
Cord options from 50 ft up to 250 ft to reach the closest circuit. Add an RGBW color-changing LED kit or a Bright White LED kit if you want the aeration lit at night. Every unit ships with the motor, float, and mooring ropes.
Free shipping on every Pond Spa. Call (470) 354-1969 for cord and lighting recommendations.
See the Pond Spa in Action
Compare Electrical / Panel Options
| 115V + Inline GFCI | 230V Standard Timer | 230V Deluxe GFCI Breaker | |
|---|---|---|---|
| Voltage | 115V | 230V | 230V |
| Amps at 3/4 HP | 9 A | 4.5 A | 4.5 A |
| Circuit Type | Standard household outlet | Dedicated 230V circuit | Dedicated 230V circuit with breaker panel |
| Included Timer | Intermatic daily timer | Intermatic daily timer | Intermatic daily timer inside the panel |
| GFCI Protection | Inline GFCI (plug-in style) | Not included - use outlet GFCI | Deluxe outdoor GFCI breaker (weatherproof) |
| Install Style | Plug and play, no permanent wiring | Semi-permanent, needs a 230V circuit | Fully permanent shoreline install |
| Best For | Residential ponds, DIY installs | Simple 230V installs where the outlet is close | HOA lakes, commercial ponds, weather-exposed installs |
Why Choose the Pond Spa
Requirements & What to Know Before You Buy
- Minimum Water Depth: 24 in at the operating location. The motor needs enough clearance below the float to draw water without pulling in air.
- Pond Size: rated for ponds up to 1/2 acre. On larger water bodies, place the unit near the shore feature you want to keep open in winter, or run multiple units.
- Electrical: 115V is 9 A at 3/4 HP - use a properly wired 15 A circuit with GFCI protection. 230 V draws about 4.5 A - use a dedicated 230 V circuit. The Deluxe Breaker option ships with an outdoor GFCI breaker inside a weatherproof panel.
- Cord Selection: measure from the intended unit location to the closest shore circuit. Pick the shortest cord that reaches - excess cord left in coils on the shore is a nuisance and slightly derates voltage.

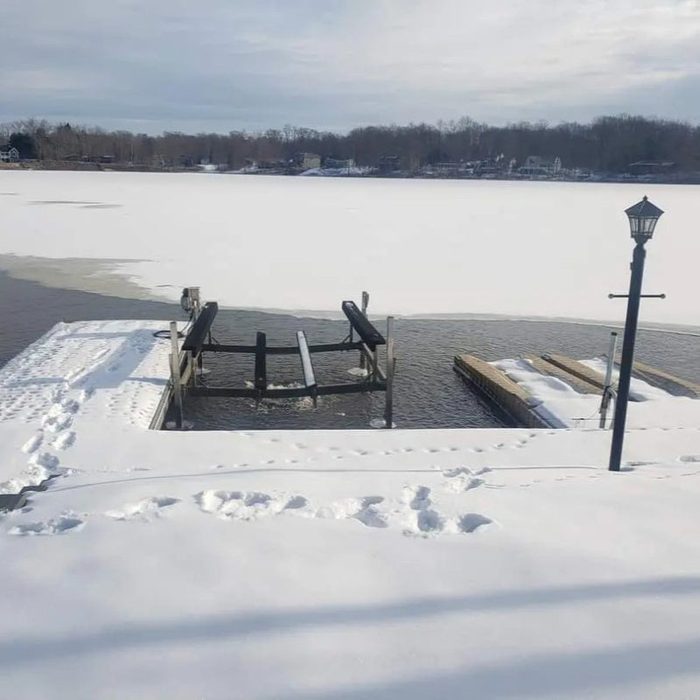

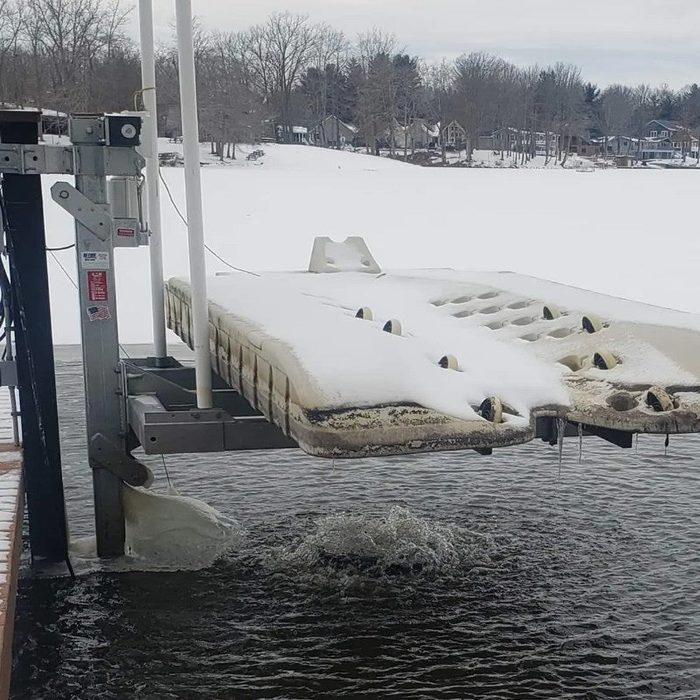

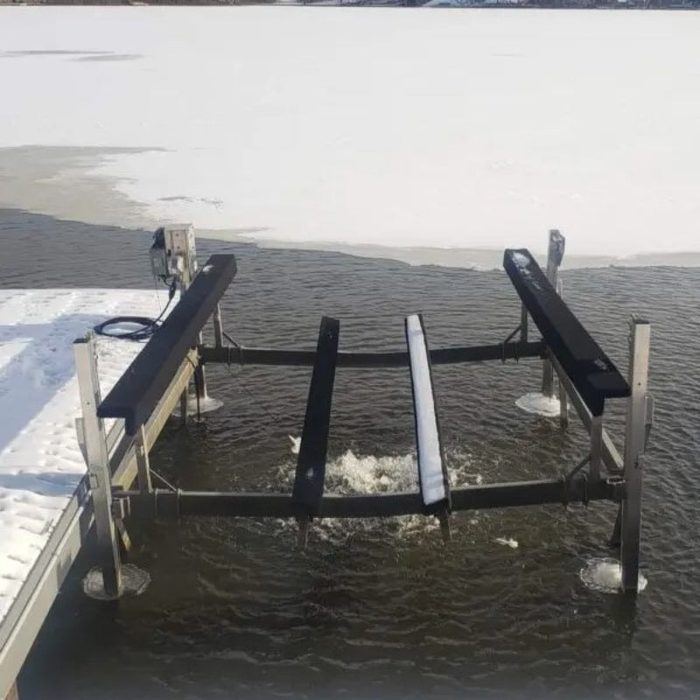

- Winter Operation: designed for continuous winter run to prevent ice damage around docks and boat lifts. Do not turn the unit off in freezing weather once the surrounding water has iced over - the motor stays warmer running than sitting idle.
- Mooring: two mooring ropes ship with each unit. You supply the anchor points on shore or in the water. Set the ropes so the unit floats in the position where you want the open hole in the ice.
- LED Kits: optional. Ship pre-wired for the motor. Install the light ring around the base of the float; the ring stays submerged and illuminates the aeration boil from below.
- Sizing Help: Call (470) 354-1969 with your pond size, shore circuit distance, and voltage preference and we will confirm the right build.
What's Included & Optional Add-Ons

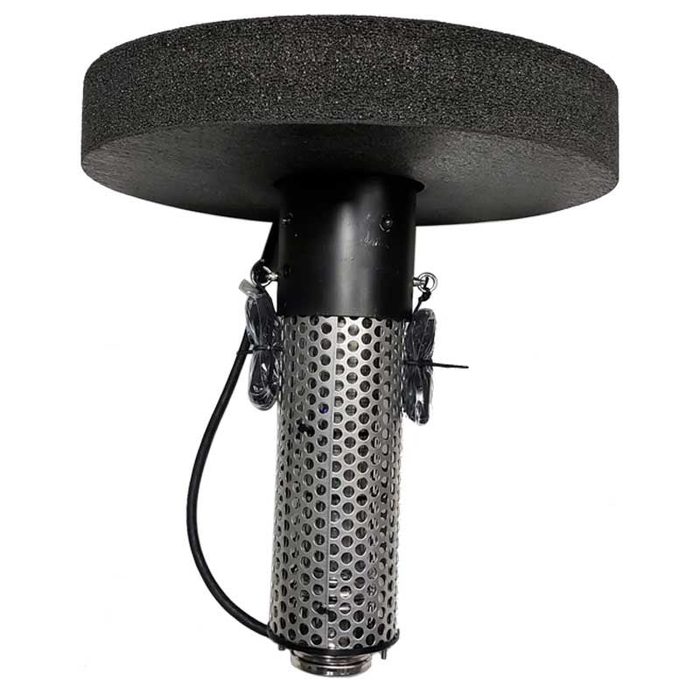

- 3/4 HP Submersible Motor - Vanguard aeration/de-icer motor
- Aerator Float - marine-grade float sized to the motor
- Mooring Ropes - two ropes included for shore or in-water anchoring
- Intermatic Daily Timer - included on all Voltage & Timer configurations
- Inline GFCI - included on the 115 V build
- Deluxe GFCI Outdoor Breaker Panel - option on the 230 V Deluxe build, weatherproof with dedicated breaker switch
- Power Cord - optional 50, 100, 150, 200, or 250 ft outdoor-rated cord (12-gauge to 150 ft, 10-gauge on 200 and 250 ft)
- Optional RGBW Color Changing LED Kit - remote-controlled, 3-year warranty
- Optional Bright White LED Kit - 3-year warranty
- Optional Bottom Draw Tube - converts the Pond Spa into a bottom aerator; sold separately
Pond Spa Aerator/De-Icer Specifications
| Manufacturer | Vanguard Water Creations |
| Models | SPA-115V, SPA-230V |
| Type | Dual-purpose surface aerator and de-icer (submersible motor + float) |
| Motor | 3/4 HP submersible |
| Voltage | 115V (9 A) or 230V (4.5 A) |
| Minimum Operating Depth | 24 in |
| Suggested Pond Size | Up to 1/2 acre |
| Included Timer | Intermatic daily timer (all builds) |
| GFCI - 115V Build | Inline plug-in GFCI |
| GFCI - 230V Deluxe Build | Deluxe outdoor GFCI breaker panel (weatherproof) |
| Power Cord (Optional) | 50, 100, 150, 200, or 250 ft outdoor-rated |
| Cord Gauge | 12-gauge (50-150 ft) / 10-gauge (200-250 ft) |
| Mooring Ropes | Included, two per unit |
| Optional Bottom Draw Tube | Converts to bottom aerator (sold separately) |
| Optional Lighting | RGBW Color Changing with remote, or Bright White LED - both 3-year warranty |
| Applications | Winter de-icing around docks, boat lifts, shore structures; year-round surface aeration on residential ponds up to 1/2 acre |
| Warranty | 3-year manufacturer warranty (motor, float, ropes, timer, LED kits, deluxe panel) |
| Country of Origin | Made in USA |
