Airmax SolarSeries Pond Fountain
Solar-Powered Fountain Display - Zero Electric Bill
The Airmax SolarSeries is a solar-powered floating fountain built around a maintenance-free direct-drive stainless-steel motor, a 34-inch marine-grade float, and four American-made monocrystalline solar panels mounted on Airmax's pre-assembled EasyMount system. It runs entirely off sunlight - no electric bill, no shore-run wiring, and no dig-and-trench install project. Just point the panels south, drop the fountain in the pond, and it turns on when the sun comes up.
Sized for ponds from half an acre up to about 1 acre with a maximum spray height of 14 ft on the Trumpet pattern. Three included spray patterns swap tool-free in under a minute (Classic, Crown & Trumpet, Trumpet), and four premium nozzles are available for wider or taller displays (Single Arch, Double Arch, Double Arch w/ Geyser, Blossom). Powered up to 12 hours of runtime on a single charge in typical summer sun.
Every kit ships with the float, motor, 4 solar panels, 2 EasyMount assemblies, disconnect switch and controller, and 3 spray pattern nozzles. Pick your cord length (100 to 300 ft) and cord protection (Standard SEOOW, PolyFlex braid, or Stainless Steel armored). Backed by a 3-year warranty on the power unit and electrical components, and a limited 25-year warranty on the solar panels.
Aerate your pond straight off the sun. The Airmax SolarSeries is a floating fountain powered by four American-made monocrystalline solar panels on Airmax's pre-assembled EasyMount system. No electric bill, no shore wiring, no trenching. Runs up to 12 hours on a single charge in typical summer sun.
Sized for ponds up to 1 acre with a maximum spray height of 14 ft on the Trumpet nozzle. Three included spray patterns swap tool-free (Classic, Crown & Trumpet, Trumpet), and four premium nozzles unlock wider arch and blossom shapes for showpiece water features.
Every kit ships with the motor, 34-inch float, 4 solar panels, 2 EasyMount assemblies, disconnect switch, controller, and the 3 nozzles. Pick your cord length and cord protection at checkout.
Free shipping on every SolarSeries kit. Call (470) 354-1969 for sizing help.
See the SolarSeries in Action
SolarSeries Spray Pattern Comparison
| Classic | Crown & Trumpet |

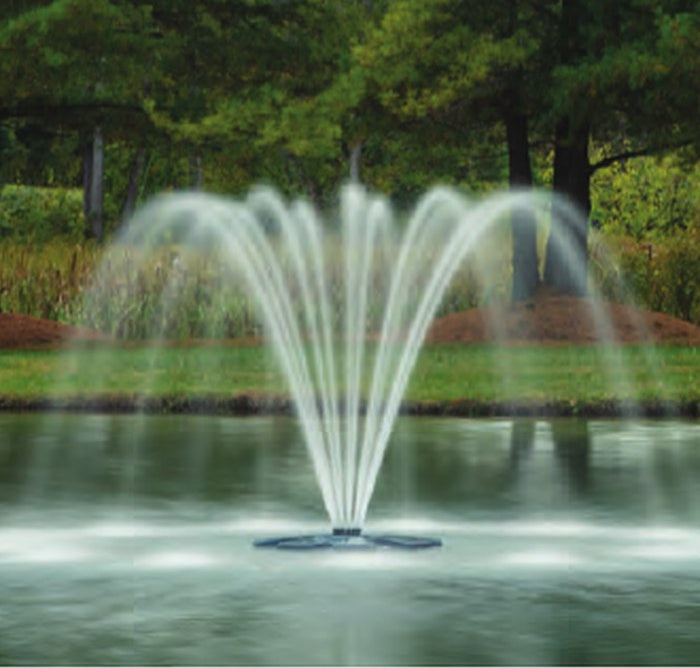

Trumpet | Single Arch |
Double Arch |

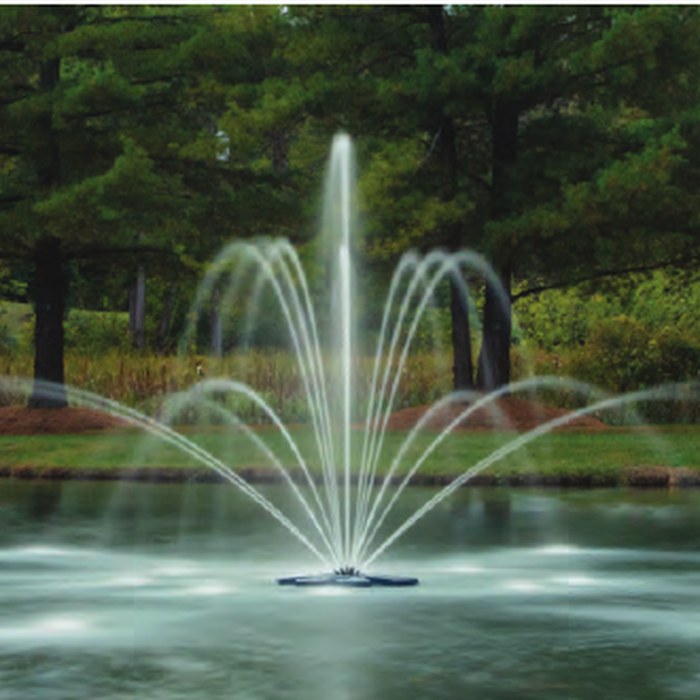

Double Arch w/ Geyser |

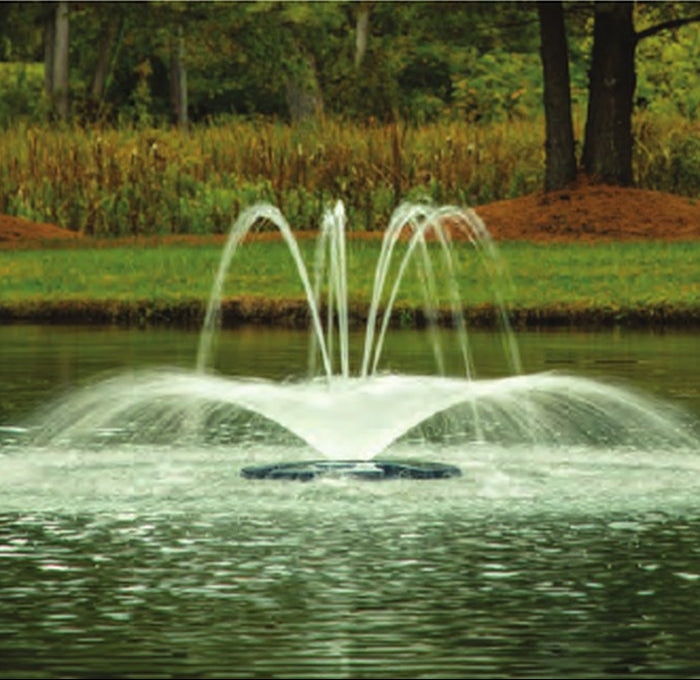

Blossom | |
|---|---|---|---|---|---|---|---|
| Pattern |  |
 |
 |
 |
 |
 |
 |
| Type | Included in Kit | Optional (Sold Separately) | |||||
| Spray Height x Width | 7.5' H x 18' W | Trumpet: 9.5' H x 6' W Crown: 4.5' H x 32' W |
14' H x 5.5' W | 8.5' H x 18' W | 1st Tier: 8.5' H x 9' W 2nd Tier: 4.5' H x 30' W |
Geyser: 8.5' H 1st Tier: 5.5' H x 9' W 2nd Tier: 4' H x 28' W |
1st Tier: 5.5' H x 8' W 2nd Tier: 2' H x 16' W |
| Best For | Standard everyday pond display | Wider or taller decorative displays; showpiece water features | |||||
Requirements & What to Know Before You Buy
- Pond Size: aerates ponds up to 1/2 to 1 acre with the standard Airmax display patterns. Larger ponds need additional diffused aeration or a second fountain.
- Minimum Operating Depth: 36 inches.
- Sun Exposure: the panels need at least 6 hours of clear line-of-sight sky per day for full performance. Runtime scales down proportionally on cloudy or heavily shaded sites.

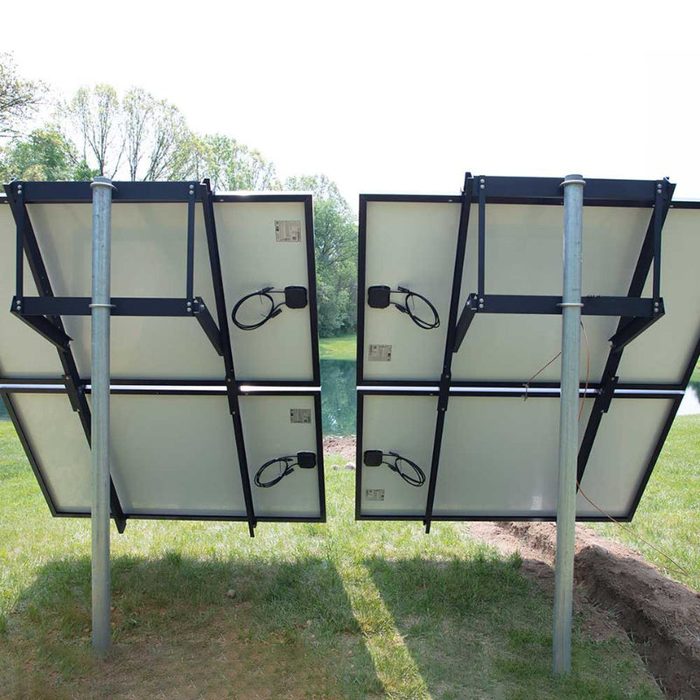

- Mounting Poles (Not Included): the EasyMount system requires two 2.5-inch diameter (2.875 OD / 2.47 ID) x 10 ft long Schedule 40 galvanized steel poles. Source locally - they are heavy, expensive to ship, and readily available at any building supply.
- Panel Location: the EasyMount panels can sit up to 300 ft from the fountain. Site them where they have unobstructed south-facing exposure and stay clear of tree drop.
- Cord Sizing: the cord runs from the controller / disconnect switch enclosure to the floating fountain. Measure straight from the intended controller pad to the deepest point of the pond.
- Cord Protection - Standard: SEOOW 12/4 600V outdoor rubber jacket with quick disconnects. Best for buried conduit runs and protected shorelines.
- Cord Protection - PolyFlex: braided sleeve over the cord. Rated for rocky shorelines, rodent-exposed installs, and dock traffic.
- Cord Protection - Stainless Steel Armored: stainless steel braid over the cord. Best for public installs, vandalism-prone sites, and heavy wildlife pressure.
- Quick Disconnects: every SolarSeries cord ships with two quick disconnects (fountain end + panel end) so seasonal removal and cleaning is a lift-and-unplug operation.
- Mooring: supply anchors and rope separately. Airmax's Fountain Mooring Kit is available in 150', 250', and 500' lengths.
- Sizing Help: Call (470) 354-1969 with your pond dimensions, sun exposure, and shore layout and we will confirm the right kit.

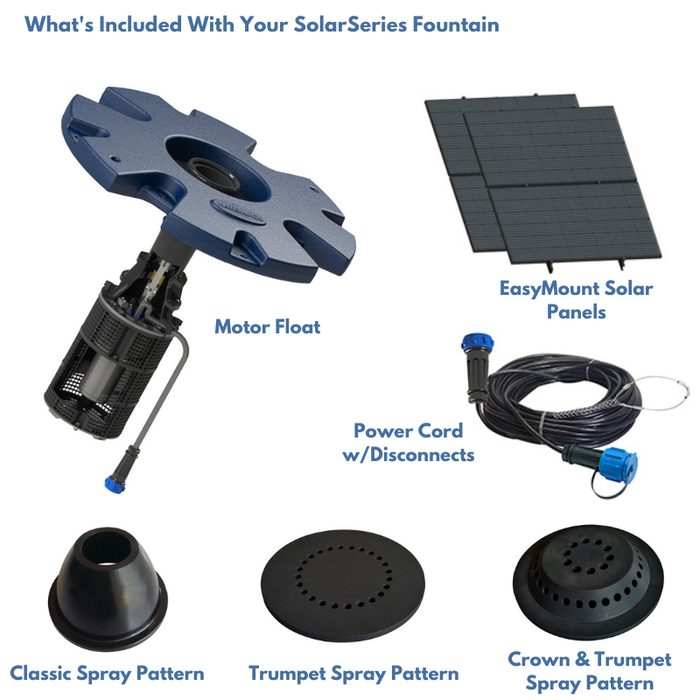

What's Included & Optional Add-Ons

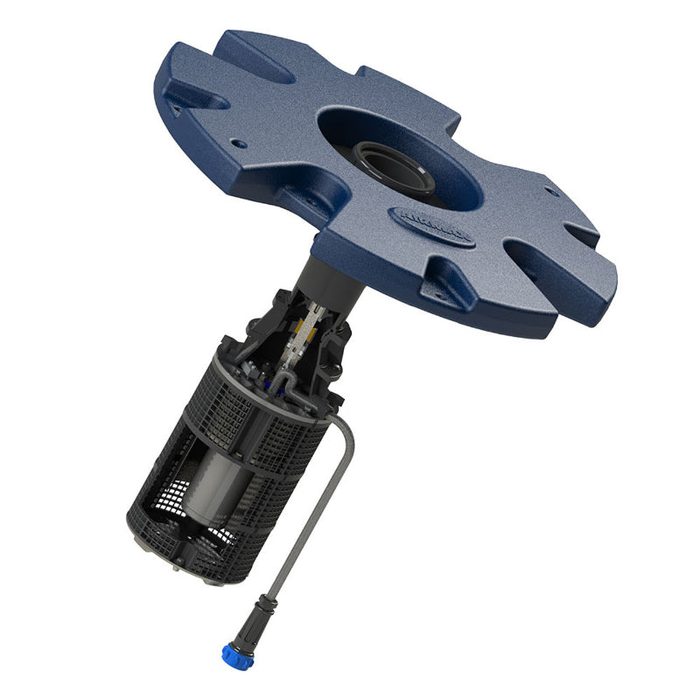

- SolarSeries Fountain Motor - direct-drive water-cooled stainless-steel continuous-duty motor
- 34-Inch Marine-Grade Float
- 4 Airmax High-Output Monocrystalline Solar Panels - 60-cell, American made, 75 in L x 41.5 in W x 1.57 in H

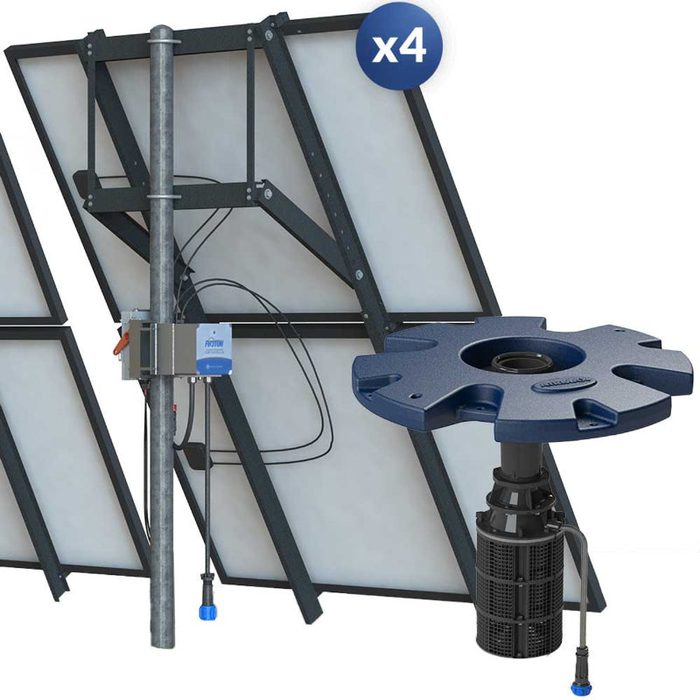

- 2 EasyMount Solar Panel Assemblies - pre-assembled, optimally angled for the fountain circuit

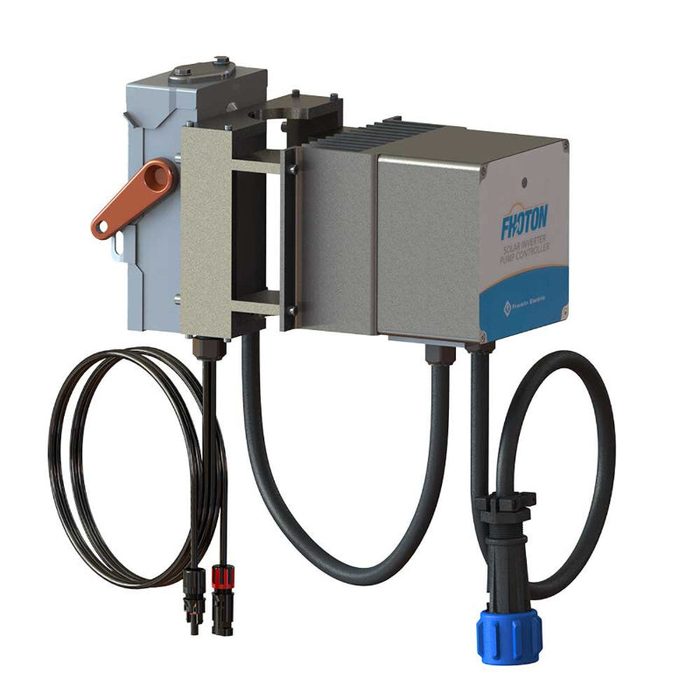

- Disconnect Switch and Controller Assembly - Airmax factory-programmed

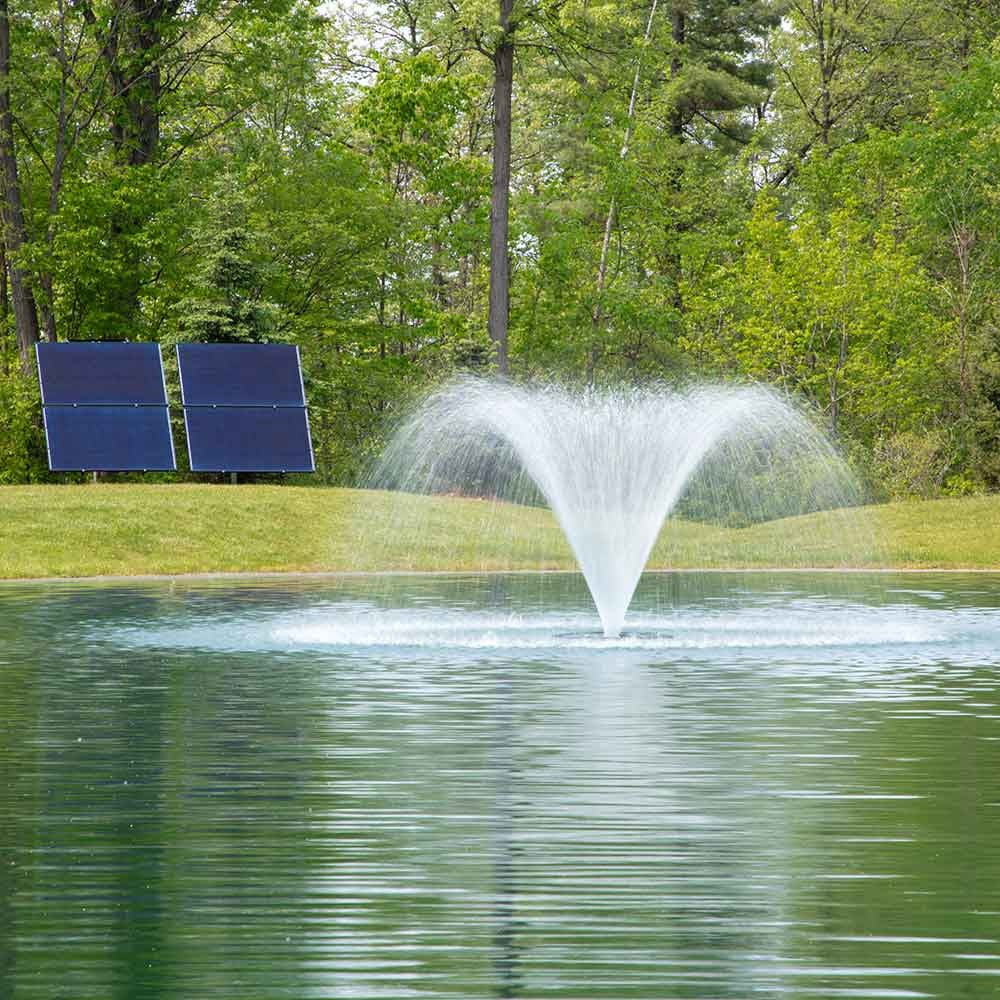

- Classic Spray Pattern Nozzle (7.5 ft H x 18 ft W)

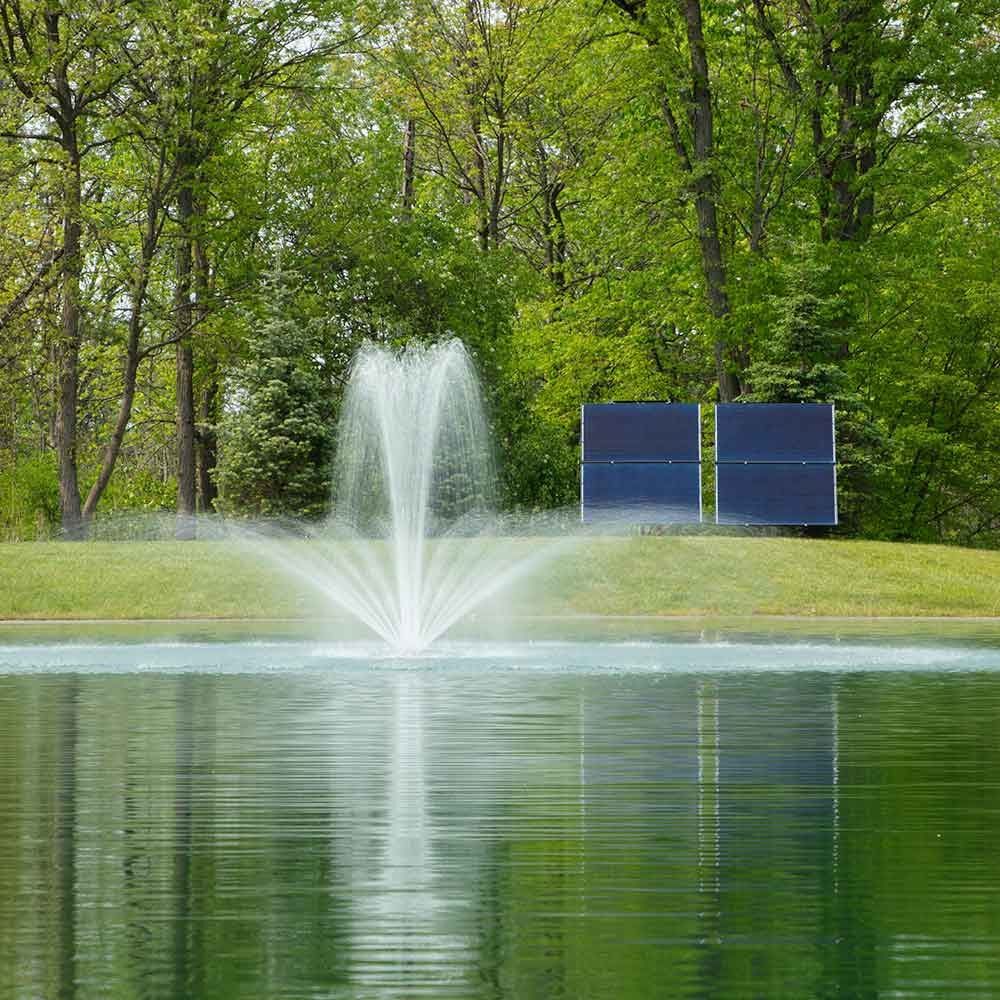

- Crown & Trumpet Spray Pattern Nozzle (Trumpet 9.5 x 6, Crown 4.5 x 32)

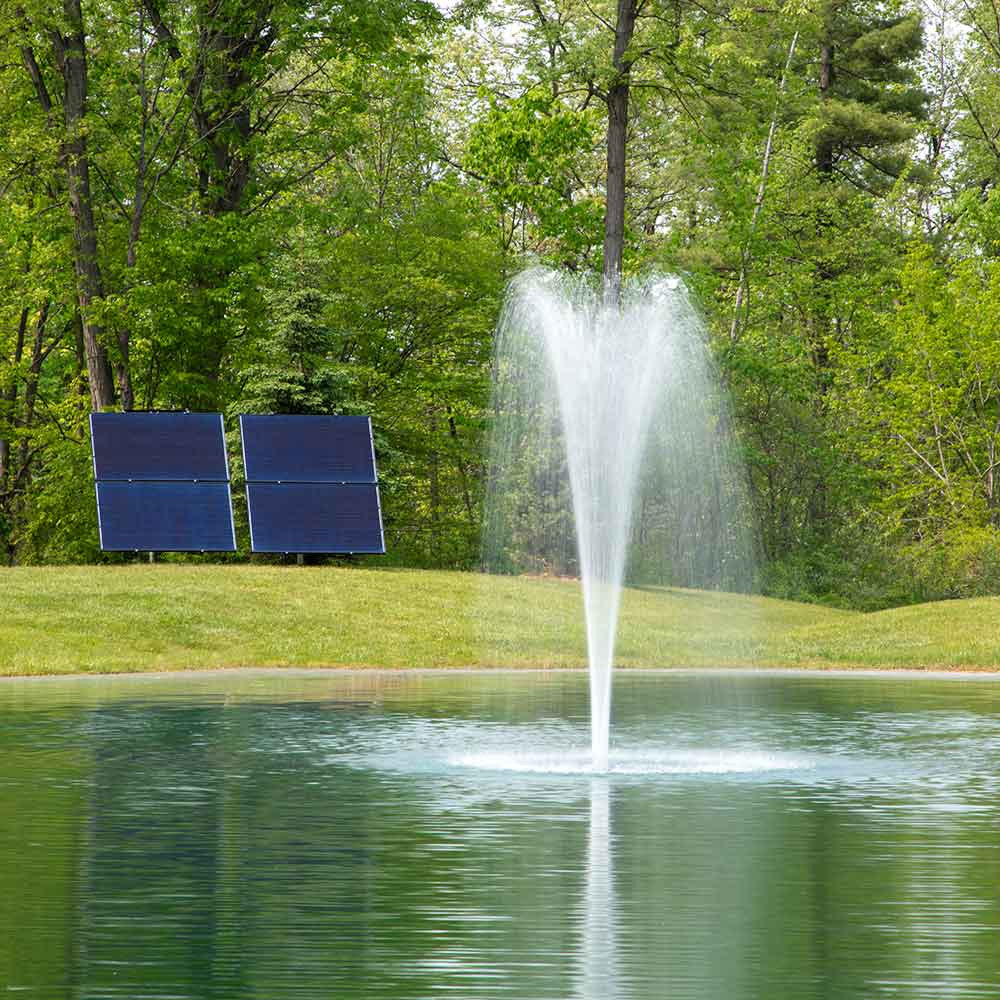

- Trumpet Spray Pattern Nozzle (14 ft H x 5.5 ft W)
- Power Cord w/ 2 Quick Disconnects - 12/4 SEOOW 600V; pick 100 to 300 ft length and Standard / PolyFlex / Stainless-Steel Armored protection

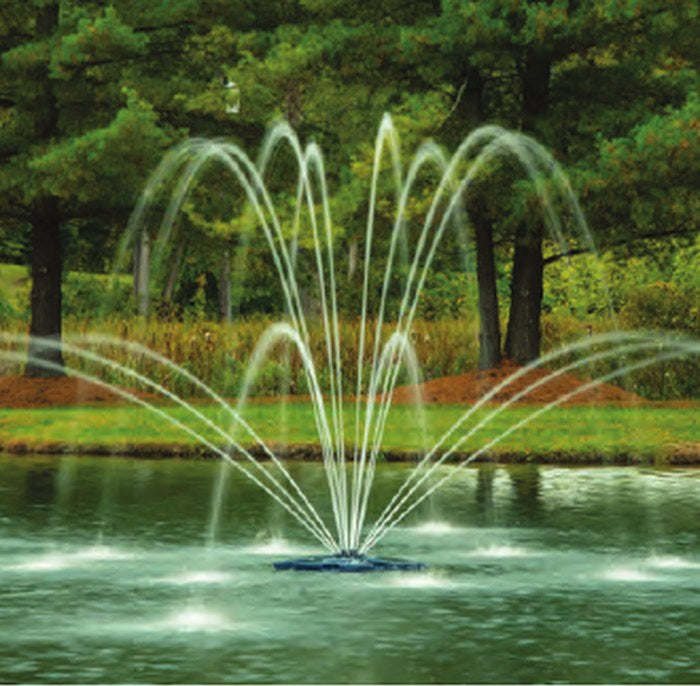

- Optional Premium Nozzles - Single Arch, Double Arch, Double Arch w/ Geyser, Blossom (sold separately)
- Optional Fountain Mooring Kit - 150', 250', or 500' lengths (sold separately)
- Optional Battery Backup (SS20-BB) - extends runtime on cloudy days and after dusk (sold separately)
SolarSeries Fountain Specifications
| Manufacturer | Airmax, Inc. (Armada, Michigan) |
| Series | SolarSeries |
| Motor | Direct-drive water-cooled stainless-steel continuous-duty submersible |
| Power Source | Solar (4 American-made monocrystalline panels on EasyMount) |
| Solar Panel Type | Monocrystalline (60-cell) |
| Solar Panel Dimensions | 75 in L x 41.5 in W x 1.57 in H (each) |
| Connector Type | MC4 |
| Recommended Pond Size | Up to 1/2 to 1 acre |
| Minimum Operating Depth | 36 in |
| Float Diameter | 34 in |
| Max Spray Height | 14 ft (Trumpet pattern) |
| Flow | 225 GPM |
| Runtime | Up to 12 hours per solar charge in typical summer sun |

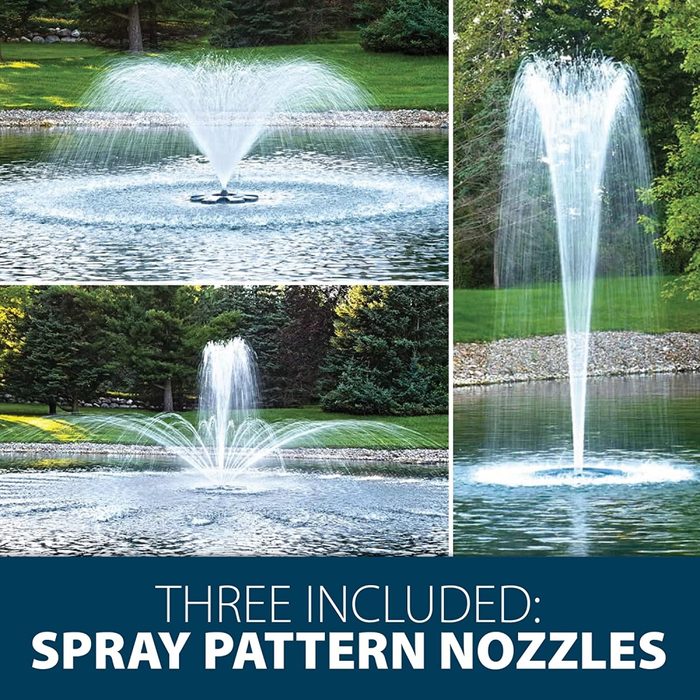

| Included Nozzles | Classic, Crown & Trumpet, Trumpet |
| Optional Nozzles | Single Arch, Double Arch, Double Arch w/ Geyser, Blossom |
| Cord Lengths Available | 100, 150, 200, 250, 300 ft |
| Cord Gauge | 12/4 SEOOW 600V with 2 quick disconnects |
| Cord Protection Options | Standard SEOOW, PolyFlex braided sleeve, Stainless Steel armored |
| Mounting Poles | 2 x 2.5 in DIA (2.875 OD / 2.47 ID) x 10 ft L Schedule 40 galvanized steel (sold separately, source locally) |
| Applications | Remote / off-grid ponds, ranches and farms without shore power, HOA lakes without a dedicated fountain circuit |
| Warranty - Power Unit and Electrical | 3 years |
| Warranty - Solar Panels | Limited 25 years |
| Country of Origin | Made in USA (Armada, MI) |
