Vanguard Typhoon Floating Display Aerator
Aerate and Decorate at the Same Time with the Vanguard Typhoon Floating Display Aerator

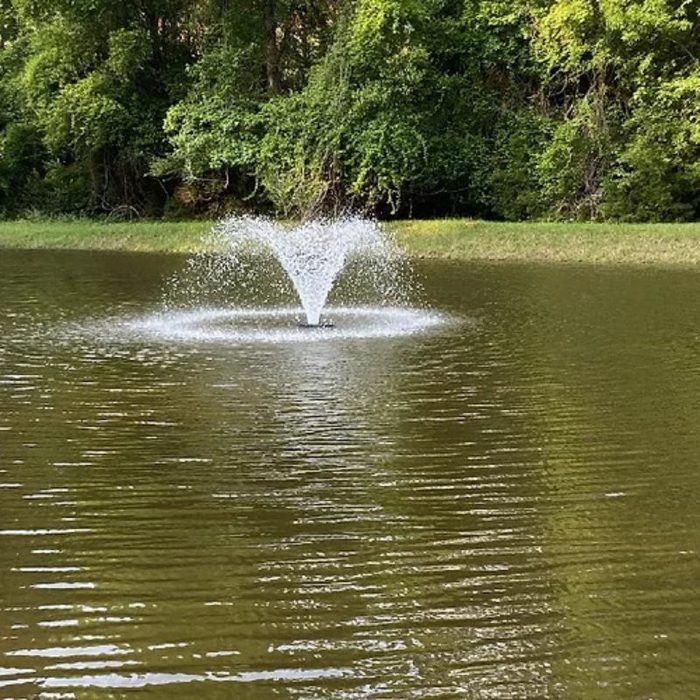

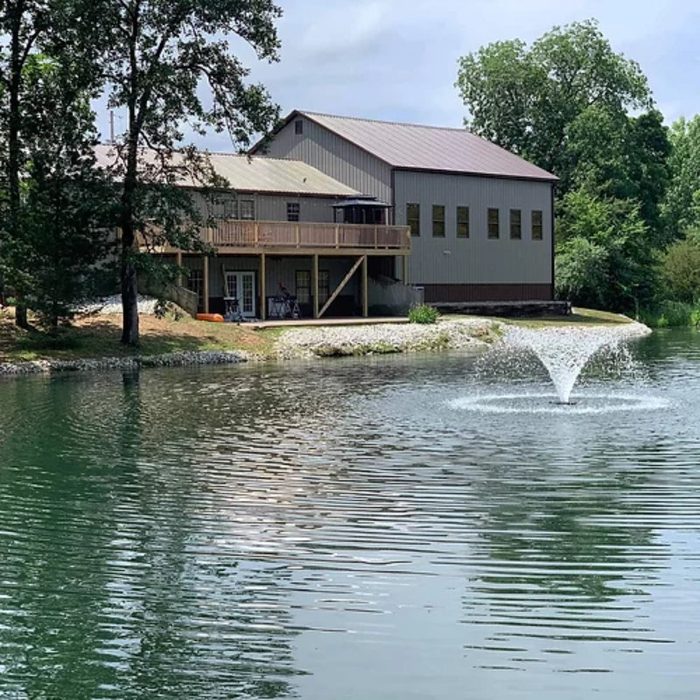

The Vanguard Typhoon Floating Display Aerator is a hybrid that throws a dramatic single-pattern water display AND adds oxygen to your pond at the same time. Unlike traditional decorative fountains that just push surface water up, the Typhoon pulls water from below the float through a high-flow impeller and aerates it as it goes up - so you get a wide, frothy plume that catches the light beautifully and a measurable bump in dissolved oxygen.
Two motor sizes cover most installs: 3/4 HP (up to 1/2 acre, 12 ft spray height) and 1.5 HP (up to 1 acre, 18 ft spray height). Both ride on a rotomolded UV-resistant float and use a stainless steel pump housing with sealed bearings. Power options include 115V household current or 230V for installs with that available - the 230V config cuts current draw and supports longer cable runs.
Pick your motor size based on pond acreage, then pick a power cord length (50 / 100 / 150 / 200 ft - or no cord if you have your own). Pick your electrical configuration: 115V with Inline GFCI Protection and timer (compact, plug-and-play), or 115V / 230V with the Deluxe GFCI Breaker Panel that includes a weatherproof enclosure, timer, and breaker switch for permanent shore-mount installs. Free shipping on every Typhoon.
The Vanguard Typhoon is a hybrid display aerator - dramatic water plume plus active aeration. 3/4 HP (1/2 acre, 12 ft spray) or 1.5 HP (1 acre, 18 ft spray).
Stainless steel pump. Rotomolded float. 115V or 230V. Pick 50 / 100 / 150 / 200 ft cord. Inline GFCI + timer or Deluxe GFCI Breaker Panel.
Optional RGBW LED light kit, white LED kit, and Bottom Draw Tube. American-made. 2-year warranty.
Free shipping on every Vanguard Typhoon. Call (470) 354-1969.
Watch the Vanguard Typhoon in Action
Why Choose the Typhoon by Vanguard

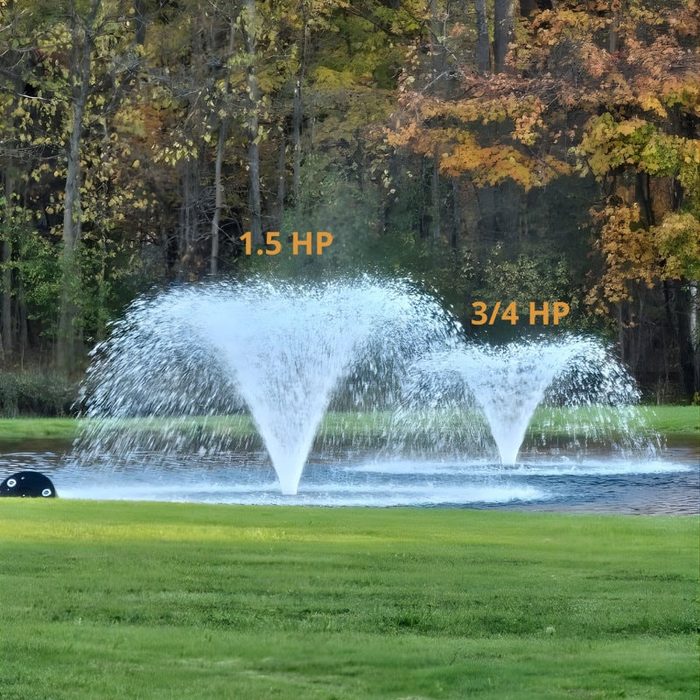

3/4 HP vs 1.5 HP Typhoon Comparison
| 3/4 HP Typhoon | 1.5 HP Typhoon | |
|---|---|---|
| Motor Horsepower | 3/4 HP | 1.5 HP |
| Voltage Options | 115V or 230V (60 Hz) | |
| Float Construction | Rotomolded polyethylene, UV-resistant | |
| Pump Construction | Stainless steel housing, sealed bearings | |
| Spray Pattern | Wide-pattern display jet (single-pattern, no nozzle changes) | |
| Maximum Spray Height | Up to 12 ft | Up to 18 ft |
| Maximum Spray Width | Up to 35 ft | Up to 50 ft |
| Surface Aeration | Yes - integrated aeration through the impeller; oxygenates the upper water column | |
| Pond Coverage | Up to 1/2 acre | Up to 1 acre |
| Mooring | Tether points on float; anchor rope sold separately | |
| GFCI / Timer Options | 115V with Inline GFCI and timer, or 115V / 230V with Deluxe GFCI Breaker Panel | |
| Cord Options | No power cord (cord at order time), 50 / 100 / 150 / 200 ft included | |
Requirements & What to Know Before You Buy
- Pond Size: 3/4 HP for ponds up to 1/2 acre; 1.5 HP for ponds up to 1 acre. For larger water bodies, look at the Vanguard Hydro-Torque lake fountain series.
- Pond Depth: 24 in minimum operating depth. Deeper pond = better aeration value from the Typhoon's bottom-draw design.
- Power: 115V or 230V (60 Hz). 230V is recommended for cord runs over 100 ft to reduce current draw and voltage drop. Plug into a properly sized GFCI-protected dedicated circuit.
- Cord Length: 50, 100, 150, 200 ft, or no cord. Match the cord gauge to the run length (see the Wire Size Chart linked under Manuals below).
- GFCI Configuration: the Inline option is compact and plug-and-play (115V only). The Deluxe Breaker Panel is the better choice for permanent installs and the only option for 230V.
- Mooring: the float has tether points but anchors and rope are sold separately. Plan for 2 to 4 anchors depending on water body size.
- Optional Bottom Draw Tube: the BDT (5 / 7 / 10 ft) extends the pump intake deeper into the water column. Recommended for ponds where you want maximum aeration value beyond surface display.
- Winterization: remove the unit from the water before freezing conditions. The shore enclosure stays on the bank year-round.
- Sizing Help: Call (470) 354-1969 with your pond surface area and depth and we will recommend the right motor and configuration.
What's Included & Optional Add-Ons

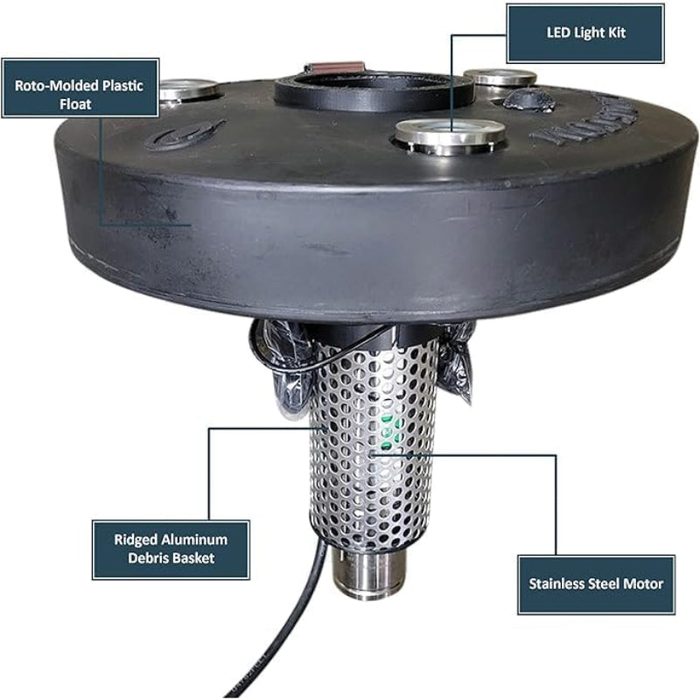

- Stainless Steel Pump Assembly - 3/4 HP or 1.5 HP, sealed bearings, designed for continuous duty
- Rotomolded Polyethylene Float - UV-resistant, ready to drop in the water
- Integrated Display Nozzle - wide-pattern single-pattern (no nozzle changes required)
- Electrical Configuration - 115V Inline GFCI + Timer, OR Deluxe GFCI Breaker Panel (115V or 230V) with timer, breaker switch, and weatherproof enclosure
- Power Cord - 50, 100, 150, or 200 ft (or no cord if you have your own)
- Optional RGBW Color-Changing LED Light Kit - remote-control 6-color program plus white; sized to motor (sold separately)
- Optional White-Only LED Light Kit - simpler white-only version (sold separately)
- Optional Bottom Draw Tube Kit - 5, 7, or 10 ft sleeve that extends the pump intake to deeper water (sold separately)
- Warranty - 2-year limited warranty on motor, float, and electrical components
- Returns - Unused Vanguard products are eligible for returns within 30 days, minus a 25% restocking fee.
Vanguard Typhoon Floating Display Aerator Specifications
| Manufacturer | Vanguard Water Creations |
| Model | Typhoon Floating Display Aerator |
| Type | Hybrid floating display aerator (decorative spray + active aeration) |
| Motor Options | 3/4 HP or 1.5 HP |
| Voltage Options | 115V or 230V, 60 Hz |
| Pump Construction | Stainless steel housing, sealed bearings, continuous duty |
| Float Construction | Rotomolded polyethylene, UV-resistant |
| Spray Pattern | Wide-pattern frothy display (single pattern, no nozzle changes) |
| Maximum Spray Height | Up to 12 ft (3/4 HP); up to 18 ft (1.5 HP) |
| Maximum Spray Width | Up to 35 ft (3/4 HP); up to 50 ft (1.5 HP) |
| Aeration Method | Bottom-draw / impeller-mix; air is entrained as water moves through the pump |
| Suggested Pond Size | Up to 1/2 acre (3/4 HP); up to 1 acre (1.5 HP) |
| Minimum Operating Depth | 24 in |
| Cord Length Options | 50 ft, 100 ft, 150 ft, 200 ft, or no cord |
| Electrical Configurations | 115V Inline GFCI + Timer, OR Deluxe GFCI Breaker Panel (115V or 230V) with timer + breaker switch |
| Total Configurations | 30 across motor, cord length, and GFCI configuration |
| Optional Lighting | Vanguard RGBW remote color-changing LED kit, or White-only LED kit (sold separately) |
| Optional Accessories | Bottom Draw Tube Kit (5 / 7 / 10 ft) |
| Applications | Residential ponds, HOA water features, golf course water hazards, agricultural water bodies, decorative landscape ponds |
| Warranty | 2-year limited warranty |
| Country of Origin | Made in USA |
