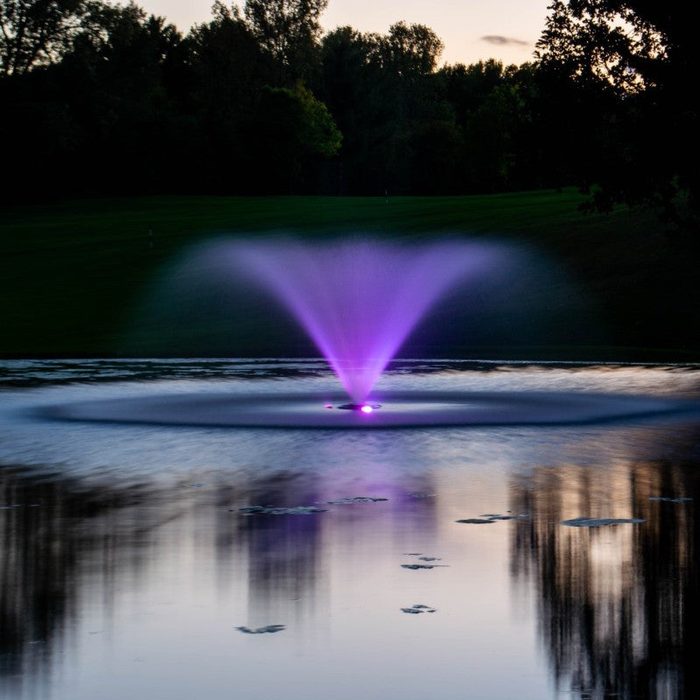

Kasco VFX illuminated with purple WaterGlow lights reflecting on a calm pond at dusk

Kasco VFX Aerating Fountain

SKU 2400VFX050
$1,762.00
Made in the USA
No Sales Tax Outside Georgia
Free Delivery from U.S. Warehouses
Talk to a Specialist: (470) 354-1969
Better Price? Request a Wire Discount Bulk or Business Order? Get a Fast Custom Quote Veterans & First Responders Save
Free Shipping
Ships --
Arrives --

Notify me when back in stock

Kasco 2 year warranty trust badges Kasco 2 year warranty trust badges

Add Aeration and an Elegant Display with the Kasco VFX

If you want a pond that looks beautiful AND stays healthy, the Kasco VFX is the cleanest way to do both at once. The VFX is a true crossover - half display fountain, half high-flow surface aerator. The pump pulls water in through a bottom screen and dispenses it as a clean, V-shaped spray pattern that aerates the upper water column while creating a focal point you can see from across the property. Available from 1/2 HP up to 5 HP for ponds and lakes from a fraction of an acre up to several acres.

Every Kasco VFX runs on a sealed stainless steel submersible motor with a UL- and CSA-listed GFCI-protected control panel as standard equipment. The control panel includes a photocell input for the optional WaterGlow lighting kit and a timer dial so you can program when the fountain runs each day. The float and bottom screen are high-density thermoplastic, UV-resistant, and built to handle continuous outdoor use. The unit operates in as little as 15 inches of water, which makes it a fit for shallow ponds where most other fountains can't reach.

Pick your unit from 1/2 HP (2400VFX) up through the 5 HP 5.1VFX, choose 120V or 240V where both are available, and pair it with a 50, 100, 150, 200, 250, 300, or 400 ft submersible power cord. The included cord is rated for direct submersion. If you need extra protection in harsh environments or rocky bottoms, the Stainless Steel Protected Cord upgrade is available as an add-on at order time. Add an optional Kasco WaterGlow lighting kit to keep the display lit after dark.

The Kasco VFX is a crossover aerating fountain - half display, half surface aerator. V-shaped spray pattern, high-flow water movement, runs in as little as 15 inches of water.

Stainless steel submersible motor, UL-listed GFCI control panel with photocell and timer included, UV-resistant high-density float and bottom screen. Built for continuous outdoor operation.

Five motor sizes from 1/2 HP to 5 HP. 120V or 240V where applicable. Cord lengths from 50 to 400 ft. Optional Stainless Steel Protected Cord upgrade and WaterGlow LED lighting kits available as add-ons.

Free shipping on every Kasco VFX. Optional Stainless Steel Protected Cord, WaterGlow lighting kits, longer cord lengths, and 50 Hz / three-phase configurations available on request. Call (470) 354-1969.

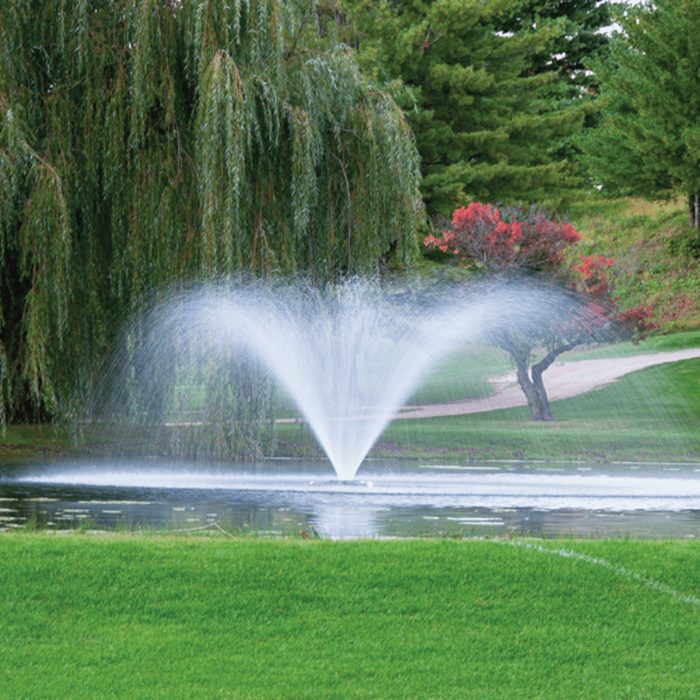

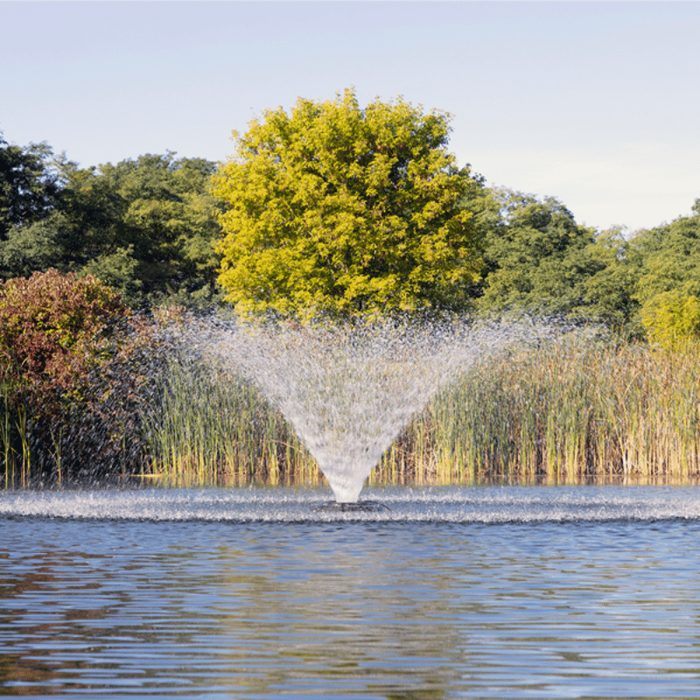

Kasco VFX aerating fountain on a pond with green trees and grass in the background

Why Choose the VFX by Kasco

Aeration AND Display in One Unit
The V-shaped spray pattern is a working surface aerator that also looks like an elegant display fountain. You don't have to choose between water quality and curb appeal.
Five Motor Sizes
1/2 HP, 3/4 HP, 1 HP, 2 HP, and 5 HP. Match the unit to your pond size and how much aeration and display height you need.

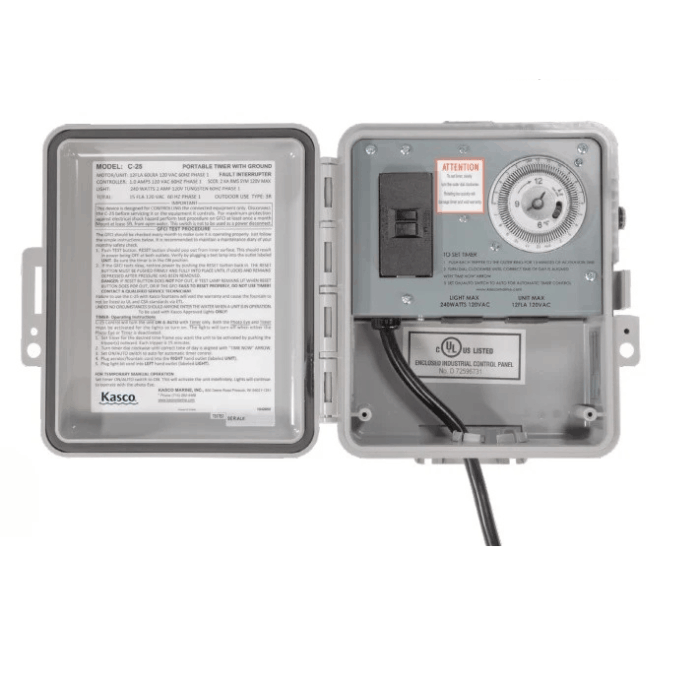

GFCI Control Panel Included
UL- and CSA-listed, GFCI-protected control panel ships with every unit. Includes a timer dial so you can program when the fountain runs and a photocell input for the optional WaterGlow lighting kit.
Runs in 15 Inches of Water
Operates in shallow ponds and lakes where other aerating fountains can't be installed. Minimum water depth is 15 inches under the unit.
Cord Lengths up to 400 ft
Choose 50, 100, 150, 200, 250, 300, or 400 ft of factory-attached submersible cord (availability varies by unit). Optional Stainless Steel Protected Cord upgrade adds outer steel armor for harsh environments - sold as an add-on, not a variant.
Built to Last
Sealed stainless steel motor, high-density thermoplastic float and bottom screen, rigorously tested by Kasco. 2-year warranty on 1/2-1 HP units; 3-year warranty on 2 and 5 HP units (optional 5-year extended warranty available).

VFX Unit Comparison

2400VFX 3400VFX 3400HVFX 4400VFX 4400HVFX 8400VFX 2.3VFX 5.1VFX 5.3VFX
HP 1/2 HP 3/4 HP 3/4 HP 1 HP 1 HP 2 HP 2 HP 5 HP 5 HP
Voltage 120V 120V 208-240V 120V 208-240V 208-240V 208-240V 208-240V 208-240V
Phase 1 1 1 1 1 1 3 1 3
Control Panel Included C-25 C-25 C-85 C-85 C-85 C-85 CF3235 C-95 C-95
Minimum Water Depth 15" 17.5" 17.5" 19" 19" 20" 20" 26" 26"
Amps 5.6 A 7.3 A 3.7 A 11.3 A 5.7 A 11 A 7.5 A 20 A 16 A
Spray Pattern Height 5 ft 5.5 ft 5.5 ft 8 ft 8 ft 8 ft 8 ft 9 ft 9 ft
Spray Pattern Width 15 ft 21 ft 21 ft 26 ft 26 ft 32 ft 32 ft 34 ft 34 ft
Cord Length Options 50-200 ft 50-200 ft 50-400 ft 50-200 ft 50-400 ft 50-200 ft 50-400 ft 100-400 ft 100-400 ft
Made in USA Yes
Warranty 2 yr 2 yr 2 yr 2 yr 2 yr 3 yr 3 yr 3 yr 3 yr
The 2.3VFX (2 HP, 3-phase) and 5.3VFX (5 HP, 3-phase) configurations are available by request and not in the variant dropdown. 50 Hz versions are also available on request. Stainless Steel Protected Cord upgrade is sold separately as an add-on; SS lengths over 200 ft require an estimated 4-week lead time. 2 HP and 5 HP units offer an optional 5-year extended warranty. Call (470) 354-1969 for sizing help.

Key Features

  • V-Shaped Spray + Surface Aeration: The signature Kasco V-shaped pattern displaces high water volumes at the surface, simultaneously aerating the upper water column and creating a clean, professional fountain pattern.
  • Stainless Steel Submersible Motor: Sealed stainless steel motor housing resists corrosion and is built for continuous duty in fresh water. Float and bottom screen are high-density thermoplastic and UV-stable.
  • GFCI Control Panel Included: Every unit ships with a UL- and CSA-listed Kasco control panel (C-25, C-85, or C-95 depending on motor). GFCI-protected, photocell-ready for WaterGlow lighting, and includes a timer dial for daily scheduling.
  • Wide Motor and Voltage Range: Choose from 1/2 HP (120V), 3/4 HP (120V or 240V), 1 HP (120V or 240V), 2 HP (240V), or 5 HP (240V). 60 Hz standard, with 50 Hz and three-phase configurations available on request.
  • Cord Lengths to 400 ft: Factory-attached submersible cord in 50, 100, 150, 200, 250, 300, or 400 ft (availability varies by motor and voltage). The standard cord is rated for direct submersion. Stainless Steel Protected Cord upgrade is available as a separate add-on for harsh environments.
  • Operates in 15 in of Water: Minimum water depth is just 15 inches under the float, making the VFX a fit for shallow residential ponds, retention basins, and golf course water features that other aerating fountains can't reach.
  • Industry-Standard Warranty: 2-year warranty on 1/2 HP, 3/4 HP, and 1 HP units. 3-year warranty on 2 HP and 5 HP units, with an optional 5-year extended warranty available on those models.

See the Kasco VFX in Action

Requirements & What to Know Before You Buy

  • Dedicated GFCI Circuit: Kasco's control panel handles GFCI protection, but it must be wired into a properly sized dedicated circuit. Have a licensed electrician verify your existing wiring.
  • Power Off Around Swimmers: disconnect power any time someone enters the water.
  • Minimum Water Depth: 15 inches under the float at the planned placement point. Measure where the unit will sit, not at the shoreline.
  • Mooring: two mooring lines are included; you supply anchors or weights to hold the float in position.
  • Cord Routing: the included submersible cord runs from the unit to your control panel and breaker. Choose a length that reaches comfortably without strain. The Stainless Steel Protected Cord upgrade is a separate add-on; SS lengths over 200 ft are special-order and ship in roughly 4 weeks.
  • Voltage Selection: 1/2 HP is 120V only. 3/4 HP and 1 HP are available in both 120V and 240V (240V recommended for longer cord runs to avoid voltage drop). 2 HP and 5 HP are 240V only.
  • Frequency / Phase: 60 Hz single-phase standard. 50 Hz and three-phase configurations are available on the larger units on request - call for a quote.

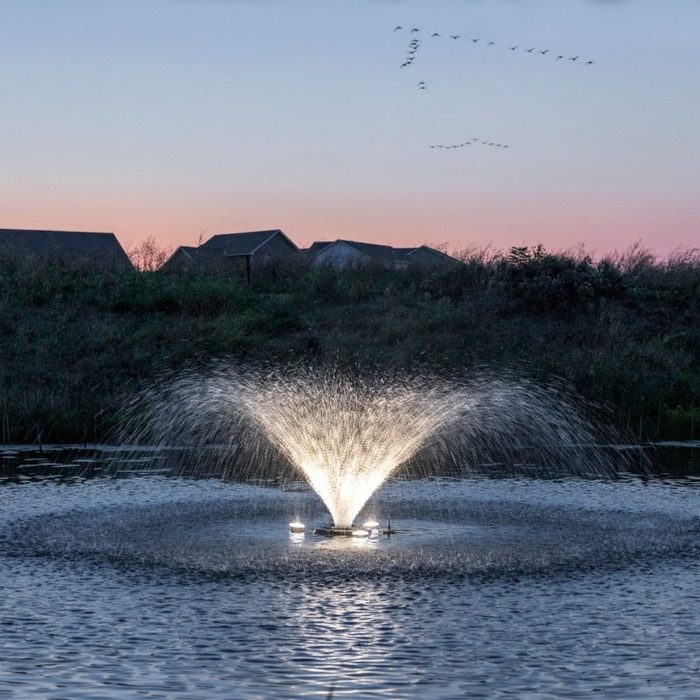

  • Lighting: the optional Kasco WaterGlow kit plugs into the control panel's photocell input. Sold separately.

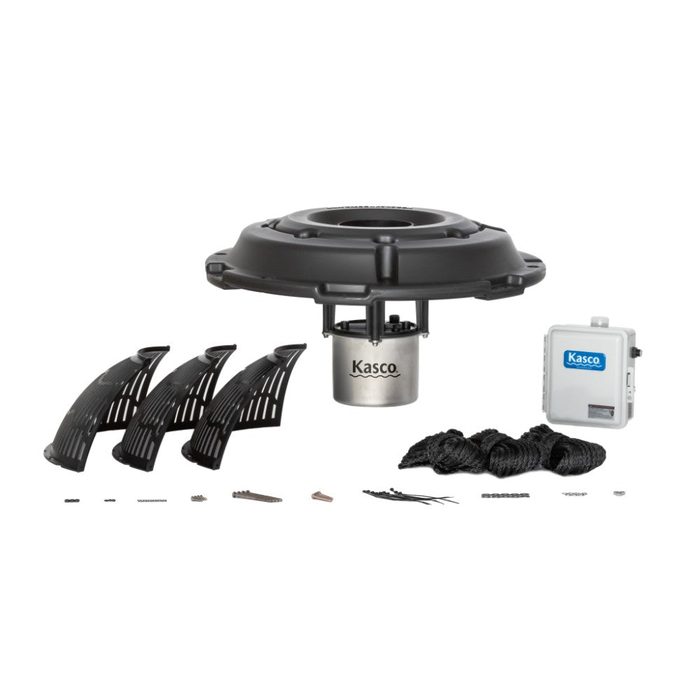

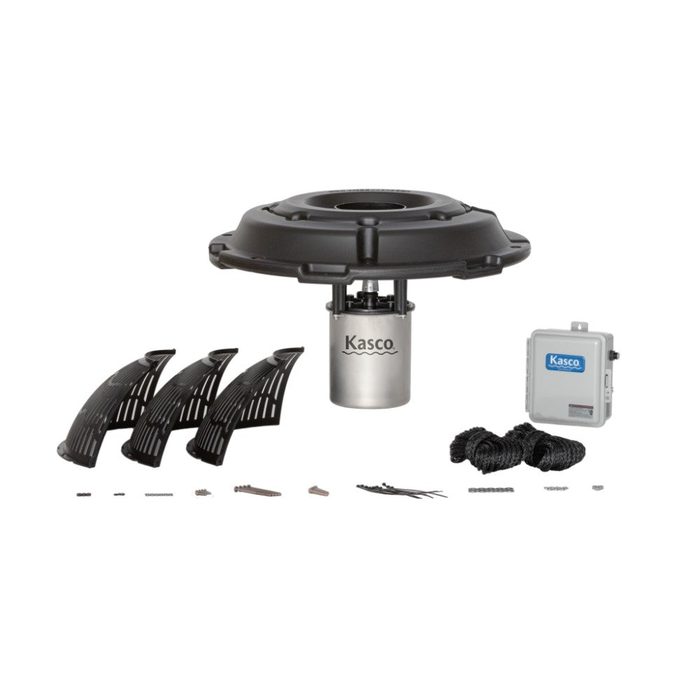

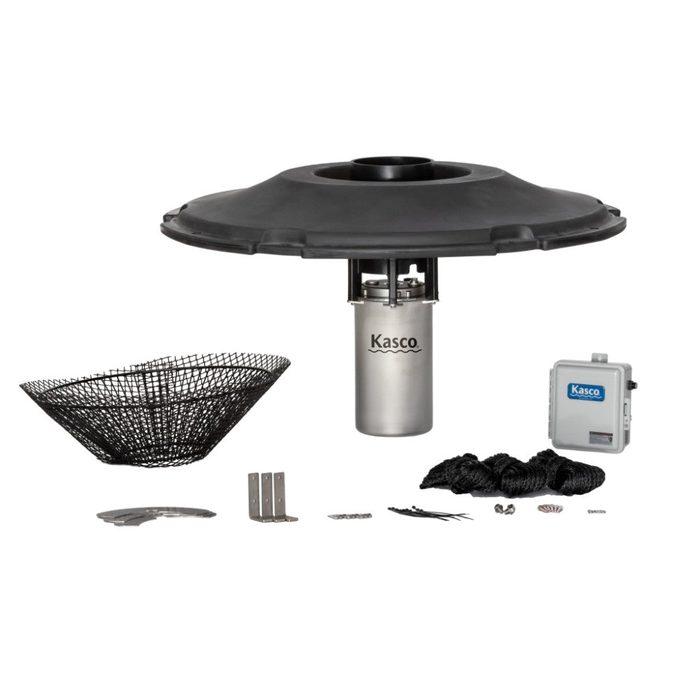

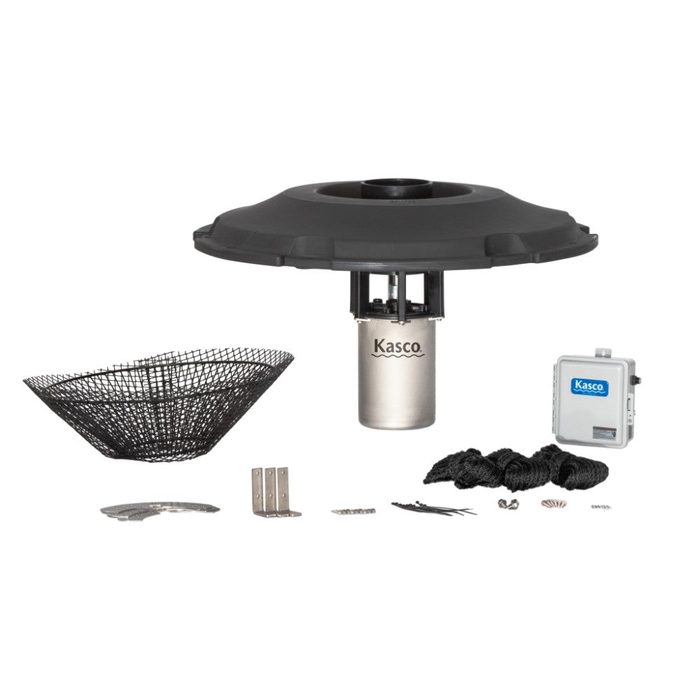

What's Included & Optional Add-Ons

  • Motor Unit - sealed stainless steel submersible motor
  • Float - high-density UV-resistant thermoplastic
  • Bottom Screen - high-density thermoplastic, protects the impeller from debris
  • Control Panel with GFCI Protection - UL and CSA listed; C-25 / C-85 / C-95 model selected per motor size; photocell ready, timer dial included
  • Power Cord - factory-attached submersible cord, length per your selection. Stainless Steel Protected Cord upgrade sold separately.
  • WaterGlow Lighting Ready: Optional Kasco WaterGlow lighting kits (composite or stainless) plug directly into the control panel's photocell circuit and illuminate the fountain after dark.
  • Mooring Lines - included with every unit
  • Warranty - 2 years on 1/2-1 HP units, 3 years on 2 and 5 HP units (optional 5-year extended warranty available on the larger models)

Kasco VFX Series Fountain Specifications

Manufacturer Kasco
Model VFX Series
Type Aerating fountain (surface aerator + display fountain)
Spray Pattern V-shaped pattern with high-flow surface aeration
Motor Options 1/2 HP (2400VFX), 3/4 HP (3400VFX/3400HVFX), 1 HP (4400VFX/4400HVFX), 2 HP (8400VFX), 5 HP (5.1VFX)
Voltage Options 120V on 1/2 HP, 3/4 HP, and 1 HP; 240V on 3/4 HP, 1 HP, 2 HP, and 5 HP
Frequency Options 60 Hz standard. 50 Hz available on request.
Phase Single-phase standard. Three-phase available on request for larger units.
Total Configurations 39 across cord length, HP, and voltage
Minimum Water Depth Operates in as little as 15 inches of water
Cord Length Options 50, 100, 150, 200, 250, 300, or 400 ft (availability varies by unit)
Cord Protection Standard submersible cord. Stainless Steel Protected Cord upgrade available as a separate add-on at order time.
Mooring Lines Included with every unit
Float High-density thermoplastic, UV-resistant
Bottom Screen High-density thermoplastic, included
Motor Construction Stainless steel submersible motor housing
Control Panel GFCI-protected, UL and CSA approved, photocell ready, timer dial included. C-25 / C-85 / C-95 panel selected per motor size.
Optional Lighting Kasco WaterGlow Lighting Kits (composite or stainless), sold separately
Applications Golf courses, parks, residential and commercial developments, marinas, industrial and agricultural ponds
Warranty (1/2, 3/4, 1 HP) 2 years
Warranty (2, 5 HP) 3 years (optional 5-year extended warranty available)
Lead Time Note Stainless Steel cord lengths over 200 ft require an estimated 4-week lead time
Country of Origin Made in USA



Manual

View the Kasco VFX 1/2, 3/4 & 1 HP Operation & Maintenance Manual

View the Kasco VFX 2 HP & 5 HP Operation & Maintenance Manual

Open the 2400VFX (1/2 HP, 120V) Product Sheet

Open the 3400VFX (3/4 HP, 120V) Product Sheet

Open the 3400HVFX (3/4 HP, 240V) Product Sheet

Open the 4400VFX (1 HP, 120V) Product Sheet

Open the 4400HVFX (1 HP, 240V) Product Sheet

Open the 8400VFX (2 HP, 240V) Product Sheet

Open the 5.1VFX (5 HP, 240V) Product Sheet



Overview

Add Aeration and an Elegant Display with the Kasco VFX

If you want a pond that looks beautiful AND stays healthy, the Kasco VFX is the cleanest way to do both at once. The VFX is a true crossover - half display fountain, half high-flow surface aerator. The pump pulls water in through a bottom screen and dispenses it as a clean, V-shaped spray pattern that aerates the upper water column while creating a focal point you can see from across the property. Available from 1/2 HP up to 5 HP for ponds and lakes from a fraction of an acre up to several acres.

Every Kasco VFX runs on a sealed stainless steel submersible motor with a UL- and CSA-listed GFCI-protected control panel as standard equipment. The control panel includes a photocell input for the optional WaterGlow lighting kit and a timer dial so you can program when the fountain runs each day. The float and bottom screen are high-density thermoplastic, UV-resistant, and built to handle continuous outdoor use. The unit operates in as little as 15 inches of water, which makes it a fit for shallow ponds where most other fountains can't reach.

Pick your unit from 1/2 HP (2400VFX) up through the 5 HP 5.1VFX, choose 120V or 240V where both are available, and pair it with a 50, 100, 150, 200, 250, 300, or 400 ft submersible power cord. The included cord is rated for direct submersion. If you need extra protection in harsh environments or rocky bottoms, the Stainless Steel Protected Cord upgrade is available as an add-on at order time. Add an optional Kasco WaterGlow lighting kit to keep the display lit after dark.

The Kasco VFX is a crossover aerating fountain - half display, half surface aerator. V-shaped spray pattern, high-flow water movement, runs in as little as 15 inches of water.

Stainless steel submersible motor, UL-listed GFCI control panel with photocell and timer included, UV-resistant high-density float and bottom screen. Built for continuous outdoor operation.

Five motor sizes from 1/2 HP to 5 HP. 120V or 240V where applicable. Cord lengths from 50 to 400 ft. Optional Stainless Steel Protected Cord upgrade and WaterGlow LED lighting kits available as add-ons.

Free shipping on every Kasco VFX. Optional Stainless Steel Protected Cord, WaterGlow lighting kits, longer cord lengths, and 50 Hz / three-phase configurations available on request. Call (470) 354-1969.

 Kasco VFX aerating fountain on a pond with green trees and grass in the background

Why Choose the VFX by Kasco

Aeration AND Display in One Unit The V-shaped spray pattern is a working surface aerator that also looks like an elegant display fountain. You don't have to choose between water quality and curb appeal. Five Motor Sizes 1/2 HP, 3/4 HP, 1 HP, 2 HP, and 5 HP. Match the unit to your pond size and how much aeration and display height you need. GFCI Control Panel Included UL- and CSA-listed, GFCI-protected control panel ships with every unit. Includes a timer dial so you can program when the fountain runs and a photocell input for the optional WaterGlow lighting kit. Runs in 15 Inches of Water Operates in shallow ponds and lakes where other aerating fountains can't be installed. Minimum water depth is 15 inches under the unit. Cord Lengths up to 400 ft Choose 50, 100, 150, 200, 250, 300, or 400 ft of factory-attached submersible cord (availability varies by unit). Optional Stainless Steel Protected Cord upgrade adds outer steel armor for harsh environments - sold as an add-on, not a variant. Built to Last Sealed stainless steel motor, high-density thermoplastic float and bottom screen, rigorously tested by Kasco. 2-year warranty on 1/2-1 HP units; 3-year warranty on 2 and 5 HP units (optional 5-year extended warranty available).

VFX Unit Comparison

2400VFX 3400VFX 3400HVFX 4400VFX 4400HVFX 8400VFX 2.3VFX 5.1VFX 5.3VFX
HP 1/2 HP 3/4 HP 3/4 HP 1 HP 1 HP 2 HP 2 HP 5 HP 5 HP
Voltage 120V 120V 208-240V 120V 208-240V 208-240V 208-240V 208-240V 208-240V
Phase 1 1 1 1 1 1 3 1 3
Control Panel Included C-25 C-25 C-85 C-85 C-85 C-85 CF3235 C-95 C-95
Minimum Water Depth 15" 17.5" 17.5" 19" 19" 20" 20" 26" 26"
Amps 5.6 A 7.3 A 3.7 A 11.3 A 5.7 A 11 A 7.5 A 20 A 16 A
Spray Pattern Height 5 ft 5.5 ft 5.5 ft 8 ft 8 ft 8 ft 8 ft 9 ft 9 ft
Spray Pattern Width 15 ft 21 ft 21 ft 26 ft 26 ft 32 ft 32 ft 34 ft 34 ft
Cord Length Options 50-200 ft 50-200 ft 50-400 ft 50-200 ft 50-400 ft 50-200 ft 50-400 ft 100-400 ft 100-400 ft
Made in USA Yes
Warranty 2 yr 2 yr 2 yr 2 yr 2 yr 3 yr 3 yr 3 yr 3 yr
The 2.3VFX (2 HP, 3-phase) and 5.3VFX (5 HP, 3-phase) configurations are available by request and not in the variant dropdown. 50 Hz versions are also available on request. Stainless Steel Protected Cord upgrade is sold separately as an add-on; SS lengths over 200 ft require an estimated 4-week lead time. 2 HP and 5 HP units offer an optional 5-year extended warranty. Call (470) 354-1969 for sizing help.

Key Features

  • V-Shaped Spray + Surface Aeration: The signature Kasco V-shaped pattern displaces high water volumes at the surface, simultaneously aerating the upper water column and creating a clean, professional fountain pattern.
  • Stainless Steel Submersible Motor: Sealed stainless steel motor housing resists corrosion and is built for continuous duty in fresh water. Float and bottom screen are high-density thermoplastic and UV-stable.
  • GFCI Control Panel Included: Every unit ships with a UL- and CSA-listed Kasco control panel (C-25, C-85, or C-95 depending on motor). GFCI-protected, photocell-ready for WaterGlow lighting, and includes a timer dial for daily scheduling.
  • Wide Motor and Voltage Range: Choose from 1/2 HP (120V), 3/4 HP (120V or 240V), 1 HP (120V or 240V), 2 HP (240V), or 5 HP (240V). 60 Hz standard, with 50 Hz and three-phase configurations available on request.
  • Cord Lengths to 400 ft: Factory-attached submersible cord in 50, 100, 150, 200, 250, 300, or 400 ft (availability varies by motor and voltage). The standard cord is rated for direct submersion. Stainless Steel Protected Cord upgrade is available as a separate add-on for harsh environments.
  • Operates in 15 in of Water: Minimum water depth is just 15 inches under the float, making the VFX a fit for shallow residential ponds, retention basins, and golf course water features that other aerating fountains can't reach.
  • Industry-Standard Warranty: 2-year warranty on 1/2 HP, 3/4 HP, and 1 HP units. 3-year warranty on 2 HP and 5 HP units, with an optional 5-year extended warranty available on those models.

See the Kasco VFX in Action

 

Requirements & What to Know Before You Buy

  • Dedicated GFCI Circuit: Kasco's control panel handles GFCI protection, but it must be wired into a properly sized dedicated circuit. Have a licensed electrician verify your existing wiring.
  • Power Off Around Swimmers: disconnect power any time someone enters the water.
  • Minimum Water Depth: 15 inches under the float at the planned placement point. Measure where the unit will sit, not at the shoreline.
  • Mooring: two mooring lines are included; you supply anchors or weights to hold the float in position.
  • Cord Routing: the included submersible cord runs from the unit to your control panel and breaker. Choose a length that reaches comfortably without strain. The Stainless Steel Protected Cord upgrade is a separate add-on; SS lengths over 200 ft are special-order and ship in roughly 4 weeks.
  • Voltage Selection: 1/2 HP is 120V only. 3/4 HP and 1 HP are available in both 120V and 240V (240V recommended for longer cord runs to avoid voltage drop). 2 HP and 5 HP are 240V only.
  • Frequency / Phase: 60 Hz single-phase standard. 50 Hz and three-phase configurations are available on the larger units on request - call for a quote.
  • Lighting: the optional Kasco WaterGlow kit plugs into the control panel's photocell input. Sold separately.

What's Included & Optional Add-Ons

  • Motor Unit - sealed stainless steel submersible motor
  • Float - high-density UV-resistant thermoplastic
  • Bottom Screen - high-density thermoplastic, protects the impeller from debris
  • Control Panel with GFCI Protection - UL and CSA listed; C-25 / C-85 / C-95 model selected per motor size; photocell ready, timer dial included
  • Power Cord - factory-attached submersible cord, length per your selection. Stainless Steel Protected Cord upgrade sold separately.
  • WaterGlow Lighting Ready: Optional Kasco WaterGlow lighting kits (composite or stainless) plug directly into the control panel's photocell circuit and illuminate the fountain after dark.
  • Mooring Lines - included with every unit
  • Warranty - 2 years on 1/2-1 HP units, 3 years on 2 and 5 HP units (optional 5-year extended warranty available on the larger models)

Kasco VFX Series Fountain Specifications

Manufacturer Kasco
Model VFX Series
Type Aerating fountain (surface aerator + display fountain)
Spray Pattern V-shaped pattern with high-flow surface aeration
Motor Options 1/2 HP (2400VFX), 3/4 HP (3400VFX/3400HVFX), 1 HP (4400VFX/4400HVFX), 2 HP (8400VFX), 5 HP (5.1VFX)
Voltage Options 120V on 1/2 HP, 3/4 HP, and 1 HP; 240V on 3/4 HP, 1 HP, 2 HP, and 5 HP
Frequency Options 60 Hz standard. 50 Hz available on request.
Phase Single-phase standard. Three-phase available on request for larger units.
Total Configurations 39 across cord length, HP, and voltage
Minimum Water Depth Operates in as little as 15 inches of water
Cord Length Options 50, 100, 150, 200, 250, 300, or 400 ft (availability varies by unit)
Cord Protection Standard submersible cord. Stainless Steel Protected Cord upgrade available as a separate add-on at order time.
Mooring Lines Included with every unit
Float High-density thermoplastic, UV-resistant
Bottom Screen High-density thermoplastic, included
Motor Construction Stainless steel submersible motor housing
Control Panel GFCI-protected, UL and CSA approved, photocell ready, timer dial included. C-25 / C-85 / C-95 panel selected per motor size.
Optional Lighting Kasco WaterGlow Lighting Kits (composite or stainless), sold separately
Applications Golf courses, parks, residential and commercial developments, marinas, industrial and agricultural ponds
Warranty (1/2, 3/4, 1 HP) 2 years
Warranty (2, 5 HP) 3 years (optional 5-year extended warranty available)
Lead Time Note Stainless Steel cord lengths over 200 ft require an estimated 4-week lead time
Country of Origin Made in USA



Manual

View the Kasco VFX 1/2, 3/4 & 1 HP Operation & Maintenance Manual

View the Kasco VFX 2 HP & 5 HP Operation & Maintenance Manual

Open the 2400VFX (1/2 HP, 120V) Product Sheet

Open the 3400VFX (3/4 HP, 120V) Product Sheet

Open the 3400HVFX (3/4 HP, 240V) Product Sheet

Open the 4400VFX (1 HP, 120V) Product Sheet

Open the 4400HVFX (1 HP, 240V) Product Sheet

Open the 8400VFX (2 HP, 240V) Product Sheet

Open the 5.1VFX (5 HP, 240V) Product Sheet



Shipping/Returns

Shipping

  • Order confirmation is emailed after checkout.
  • Orders typically process within 1 to 2 business days.
  • Delivery times may vary depending on the product, shipping method, and delivery location.
  • A shipping confirmation with tracking details will be sent once your order ships.
  • Any damage or shortage claims must be reported within 24 hours of delivery. Please keep the original packaging until the claim is resolved.

Returns

  • Eligible merchandise may be returned within 30 days of purchase with prior return authorization.
  • All returns require an RA Number before the item is sent back.
  • Returned items must be in their original packaging and in saleable condition.
  • Non-warranty returns may be subject to a 15% restocking fee, and original shipping charges are non-refundable.
  • Warranty returns require authorization, the original sales receipt, and an explanation of the product issue.

Questions? Contact support@propondsupply.com or call (470) 354-1969.

Warranty

Warranty

  • Kasco Marine products are warranted to be free from defects in material and workmanship under normal use and service.
  • 2-year warranty: 1/2, 3/4, and 1HP Surface Aerators, J Series fountains, VFX fountains, AquatiClear™ Circulators, all 50Hz fountain, aerator, de-icer, and circulator models, LEDC11 Composite LED Light Kits, RGB LED Light Kits, Home Series cabinet and TeichAire compressor, and HydraForce™ Lift Station Agitators.
  • 3-year warranty: 1/2, 3/4, and 1HP De-icers, 2, 3, and 5HP VFX and Surface Aerator models, 2HP J Series models, LEDS19 Stainless Steel Light Kits, RGBW18 LED Light Kits, W25 LED Light Kits, CertiSafe™ Tank Mixers, and RobustAire™ TeichAire Compressors.
  • 5-year warranty: 3, 5, and 7.5HP J Series fountains and RGBW LED Light Kits.
  • 15-year warranty: SureSink™ Weighted Tubing for RobustAire™ and Home Series Diffused Aeration Systems.
  • Lifetime warranty: Diffuser assemblies for RobustAire™ and Home Series Diffused Aeration Systems, RobustAire™ Post Mount Cabinets, and RobustAire™ Small, Medium, and Large Cabinets with patented AireGuard Cabinet Technology.
  • Control panels are included in the warranty when applicable to the covered product.
  • Ropes, power cords, and propellers are excluded from standard defect coverage.
  • Customers should register their product with Kasco Marine for warranty purposes after purchase.
  • Warranty coverage may be void if the equipment is not properly maintained according to the owner’s manual, altered from its original condition, used without the required GFI-protected circuit or Kasco control panel, or damaged by unauthorized tampering.
  • Units under warranty may be sent to a Kasco authorized repair center for evaluation and repair, and all units must include the required Repair Contact Form.
  • Only complete motor assemblies will be accepted for warranty repair, and the power cord and all other original components must be returned with the motor as originally assembled.
  • Kasco Marine will return units repaired under warranty at their expense by ground freight within the continental United States, while expedited return shipping is the customer’s responsibility.

Questions? Contact support@propondsupply.com or call (470) 354-1969.

★Reviews

Customer Reviews

Be the first to write a review
0%
(0)
0%
(0)
0%
(0)
0%
(0)
0%
(0)
NO SALES TAX

Orders outside Georgia are 100% sales tax-free

Give us a call

Free shipping on every order

Give us a call

Our team is available from 8 AM to 8 PM EST at (470) 354-1969

BEST PRICE GUARANTEE

If you find the same item for less, we’ll match it.

Overview

Add Aeration and an Elegant Display with the Kasco VFX

If you want a pond that looks beautiful AND stays healthy, the Kasco VFX is the cleanest way to do both at once. The VFX is a true crossover - half display fountain, half high-flow surface aerator. The pump pulls water in through a bottom screen and dispenses it as a clean, V-shaped spray pattern that aerates the upper water column while creating a focal point you can see from across the property. Available from 1/2 HP up to 5 HP for ponds and lakes from a fraction of an acre up to several acres.

Every Kasco VFX runs on a sealed stainless steel submersible motor with a UL- and CSA-listed GFCI-protected control panel as standard equipment. The control panel includes a photocell input for the optional WaterGlow lighting kit and a timer dial so you can program when the fountain runs each day. The float and bottom screen are high-density thermoplastic, UV-resistant, and built to handle continuous outdoor use. The unit operates in as little as 15 inches of water, which makes it a fit for shallow ponds where most other fountains can't reach.

Pick your unit from 1/2 HP (2400VFX) up through the 5 HP 5.1VFX, choose 120V or 240V where both are available, and pair it with a 50, 100, 150, 200, 250, 300, or 400 ft submersible power cord. The included cord is rated for direct submersion. If you need extra protection in harsh environments or rocky bottoms, the Stainless Steel Protected Cord upgrade is available as an add-on at order time. Add an optional Kasco WaterGlow lighting kit to keep the display lit after dark.

The Kasco VFX is a crossover aerating fountain - half display, half surface aerator. V-shaped spray pattern, high-flow water movement, runs in as little as 15 inches of water.

Stainless steel submersible motor, UL-listed GFCI control panel with photocell and timer included, UV-resistant high-density float and bottom screen. Built for continuous outdoor operation.

Five motor sizes from 1/2 HP to 5 HP. 120V or 240V where applicable. Cord lengths from 50 to 400 ft. Optional Stainless Steel Protected Cord upgrade and WaterGlow LED lighting kits available as add-ons.

Free shipping on every Kasco VFX. Optional Stainless Steel Protected Cord, WaterGlow lighting kits, longer cord lengths, and 50 Hz / three-phase configurations available on request. Call (470) 354-1969.

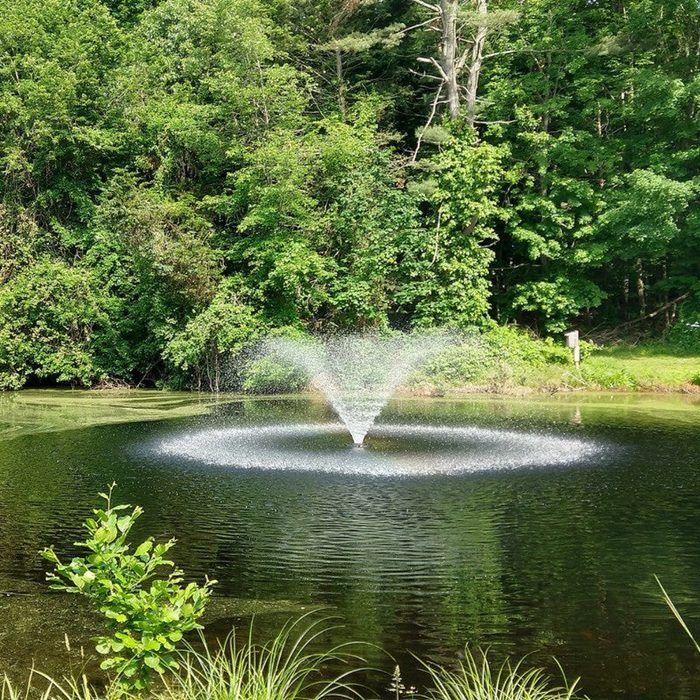

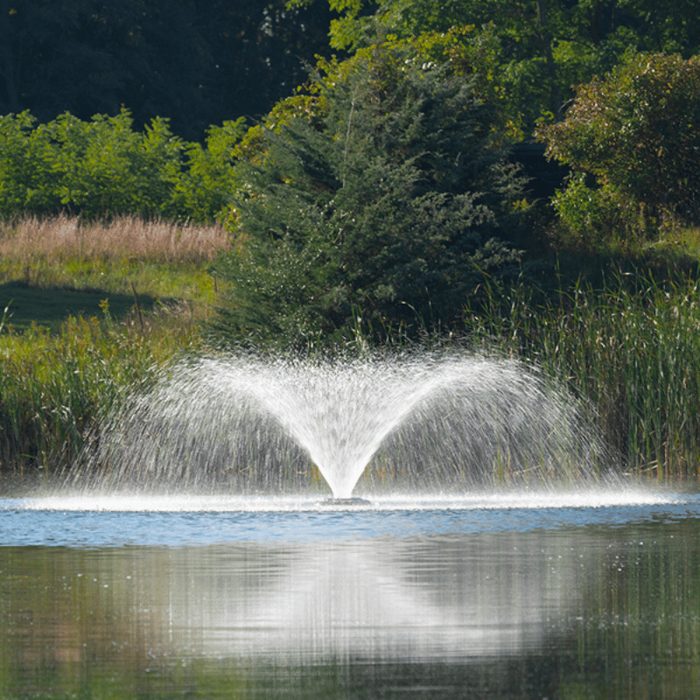

 Kasco VFX aerating fountain on a pond with green trees and grass in the background

Why Choose the VFX by Kasco

Aeration AND Display in One Unit The V-shaped spray pattern is a working surface aerator that also looks like an elegant display fountain. You don't have to choose between water quality and curb appeal. Five Motor Sizes 1/2 HP, 3/4 HP, 1 HP, 2 HP, and 5 HP. Match the unit to your pond size and how much aeration and display height you need. GFCI Control Panel Included UL- and CSA-listed, GFCI-protected control panel ships with every unit. Includes a timer dial so you can program when the fountain runs and a photocell input for the optional WaterGlow lighting kit. Runs in 15 Inches of Water Operates in shallow ponds and lakes where other aerating fountains can't be installed. Minimum water depth is 15 inches under the unit. Cord Lengths up to 400 ft Choose 50, 100, 150, 200, 250, 300, or 400 ft of factory-attached submersible cord (availability varies by unit). Optional Stainless Steel Protected Cord upgrade adds outer steel armor for harsh environments - sold as an add-on, not a variant. Built to Last Sealed stainless steel motor, high-density thermoplastic float and bottom screen, rigorously tested by Kasco. 2-year warranty on 1/2-1 HP units; 3-year warranty on 2 and 5 HP units (optional 5-year extended warranty available).

VFX Unit Comparison

2400VFX 3400VFX 3400HVFX 4400VFX 4400HVFX 8400VFX 2.3VFX 5.1VFX 5.3VFX
HP 1/2 HP 3/4 HP 3/4 HP 1 HP 1 HP 2 HP 2 HP 5 HP 5 HP
Voltage 120V 120V 208-240V 120V 208-240V 208-240V 208-240V 208-240V 208-240V
Phase 1 1 1 1 1 1 3 1 3
Control Panel Included C-25 C-25 C-85 C-85 C-85 C-85 CF3235 C-95 C-95
Minimum Water Depth 15" 17.5" 17.5" 19" 19" 20" 20" 26" 26"
Amps 5.6 A 7.3 A 3.7 A 11.3 A 5.7 A 11 A 7.5 A 20 A 16 A
Spray Pattern Height 5 ft 5.5 ft 5.5 ft 8 ft 8 ft 8 ft 8 ft 9 ft 9 ft
Spray Pattern Width 15 ft 21 ft 21 ft 26 ft 26 ft 32 ft 32 ft 34 ft 34 ft
Cord Length Options 50-200 ft 50-200 ft 50-400 ft 50-200 ft 50-400 ft 50-200 ft 50-400 ft 100-400 ft 100-400 ft
Made in USA Yes
Warranty 2 yr 2 yr 2 yr 2 yr 2 yr 3 yr 3 yr 3 yr 3 yr
The 2.3VFX (2 HP, 3-phase) and 5.3VFX (5 HP, 3-phase) configurations are available by request and not in the variant dropdown. 50 Hz versions are also available on request. Stainless Steel Protected Cord upgrade is sold separately as an add-on; SS lengths over 200 ft require an estimated 4-week lead time. 2 HP and 5 HP units offer an optional 5-year extended warranty. Call (470) 354-1969 for sizing help.

Key Features

  • V-Shaped Spray + Surface Aeration: The signature Kasco V-shaped pattern displaces high water volumes at the surface, simultaneously aerating the upper water column and creating a clean, professional fountain pattern.
  • Stainless Steel Submersible Motor: Sealed stainless steel motor housing resists corrosion and is built for continuous duty in fresh water. Float and bottom screen are high-density thermoplastic and UV-stable.
  • GFCI Control Panel Included: Every unit ships with a UL- and CSA-listed Kasco control panel (C-25, C-85, or C-95 depending on motor). GFCI-protected, photocell-ready for WaterGlow lighting, and includes a timer dial for daily scheduling.
  • Wide Motor and Voltage Range: Choose from 1/2 HP (120V), 3/4 HP (120V or 240V), 1 HP (120V or 240V), 2 HP (240V), or 5 HP (240V). 60 Hz standard, with 50 Hz and three-phase configurations available on request.
  • Cord Lengths to 400 ft: Factory-attached submersible cord in 50, 100, 150, 200, 250, 300, or 400 ft (availability varies by motor and voltage). The standard cord is rated for direct submersion. Stainless Steel Protected Cord upgrade is available as a separate add-on for harsh environments.
  • Operates in 15 in of Water: Minimum water depth is just 15 inches under the float, making the VFX a fit for shallow residential ponds, retention basins, and golf course water features that other aerating fountains can't reach.
  • Industry-Standard Warranty: 2-year warranty on 1/2 HP, 3/4 HP, and 1 HP units. 3-year warranty on 2 HP and 5 HP units, with an optional 5-year extended warranty available on those models.

See the Kasco VFX in Action

 

Requirements & What to Know Before You Buy

  • Dedicated GFCI Circuit: Kasco's control panel handles GFCI protection, but it must be wired into a properly sized dedicated circuit. Have a licensed electrician verify your existing wiring.
  • Power Off Around Swimmers: disconnect power any time someone enters the water.
  • Minimum Water Depth: 15 inches under the float at the planned placement point. Measure where the unit will sit, not at the shoreline.
  • Mooring: two mooring lines are included; you supply anchors or weights to hold the float in position.
  • Cord Routing: the included submersible cord runs from the unit to your control panel and breaker. Choose a length that reaches comfortably without strain. The Stainless Steel Protected Cord upgrade is a separate add-on; SS lengths over 200 ft are special-order and ship in roughly 4 weeks.
  • Voltage Selection: 1/2 HP is 120V only. 3/4 HP and 1 HP are available in both 120V and 240V (240V recommended for longer cord runs to avoid voltage drop). 2 HP and 5 HP are 240V only.
  • Frequency / Phase: 60 Hz single-phase standard. 50 Hz and three-phase configurations are available on the larger units on request - call for a quote.
  • Lighting: the optional Kasco WaterGlow kit plugs into the control panel's photocell input. Sold separately.

What's Included & Optional Add-Ons

  • Motor Unit - sealed stainless steel submersible motor
  • Float - high-density UV-resistant thermoplastic
  • Bottom Screen - high-density thermoplastic, protects the impeller from debris
  • Control Panel with GFCI Protection - UL and CSA listed; C-25 / C-85 / C-95 model selected per motor size; photocell ready, timer dial included
  • Power Cord - factory-attached submersible cord, length per your selection. Stainless Steel Protected Cord upgrade sold separately.
  • WaterGlow Lighting Ready: Optional Kasco WaterGlow lighting kits (composite or stainless) plug directly into the control panel's photocell circuit and illuminate the fountain after dark.
  • Mooring Lines - included with every unit
  • Warranty - 2 years on 1/2-1 HP units, 3 years on 2 and 5 HP units (optional 5-year extended warranty available on the larger models)

Kasco VFX Series Fountain Specifications

Manufacturer Kasco
Model VFX Series
Type Aerating fountain (surface aerator + display fountain)
Spray Pattern V-shaped pattern with high-flow surface aeration
Motor Options 1/2 HP (2400VFX), 3/4 HP (3400VFX/3400HVFX), 1 HP (4400VFX/4400HVFX), 2 HP (8400VFX), 5 HP (5.1VFX)
Voltage Options 120V on 1/2 HP, 3/4 HP, and 1 HP; 240V on 3/4 HP, 1 HP, 2 HP, and 5 HP
Frequency Options 60 Hz standard. 50 Hz available on request.
Phase Single-phase standard. Three-phase available on request for larger units.
Total Configurations 39 across cord length, HP, and voltage
Minimum Water Depth Operates in as little as 15 inches of water
Cord Length Options 50, 100, 150, 200, 250, 300, or 400 ft (availability varies by unit)
Cord Protection Standard submersible cord. Stainless Steel Protected Cord upgrade available as a separate add-on at order time.
Mooring Lines Included with every unit
Float High-density thermoplastic, UV-resistant
Bottom Screen High-density thermoplastic, included
Motor Construction Stainless steel submersible motor housing
Control Panel GFCI-protected, UL and CSA approved, photocell ready, timer dial included. C-25 / C-85 / C-95 panel selected per motor size.
Optional Lighting Kasco WaterGlow Lighting Kits (composite or stainless), sold separately
Applications Golf courses, parks, residential and commercial developments, marinas, industrial and agricultural ponds
Warranty (1/2, 3/4, 1 HP) 2 years
Warranty (2, 5 HP) 3 years (optional 5-year extended warranty available)
Lead Time Note Stainless Steel cord lengths over 200 ft require an estimated 4-week lead time
Country of Origin Made in USA



Manual

View the Kasco VFX 1/2, 3/4 & 1 HP Operation & Maintenance Manual

View the Kasco VFX 2 HP & 5 HP Operation & Maintenance Manual

Open the 2400VFX (1/2 HP, 120V) Product Sheet

Open the 3400VFX (3/4 HP, 120V) Product Sheet

Open the 3400HVFX (3/4 HP, 240V) Product Sheet

Open the 4400VFX (1 HP, 120V) Product Sheet

Open the 4400HVFX (1 HP, 240V) Product Sheet

Open the 8400VFX (2 HP, 240V) Product Sheet

Open the 5.1VFX (5 HP, 240V) Product Sheet



Shipping/Returns

Shipping

  • Order confirmation is emailed after checkout.
  • Orders typically process within 1 to 2 business days.
  • Delivery times may vary depending on the product, shipping method, and delivery location.
  • A shipping confirmation with tracking details will be sent once your order ships.
  • Any damage or shortage claims must be reported within 24 hours of delivery. Please keep the original packaging until the claim is resolved.

Returns

  • Eligible merchandise may be returned within 30 days of purchase with prior return authorization.
  • All returns require an RA Number before the item is sent back.
  • Returned items must be in their original packaging and in saleable condition.
  • Non-warranty returns may be subject to a 15% restocking fee, and original shipping charges are non-refundable.
  • Warranty returns require authorization, the original sales receipt, and an explanation of the product issue.

Questions? Contact support@propondsupply.com or call (470) 354-1969.

Warranty

Warranty

  • Kasco Marine products are warranted to be free from defects in material and workmanship under normal use and service.
  • 2-year warranty: 1/2, 3/4, and 1HP Surface Aerators, J Series fountains, VFX fountains, AquatiClear™ Circulators, all 50Hz fountain, aerator, de-icer, and circulator models, LEDC11 Composite LED Light Kits, RGB LED Light Kits, Home Series cabinet and TeichAire compressor, and HydraForce™ Lift Station Agitators.
  • 3-year warranty: 1/2, 3/4, and 1HP De-icers, 2, 3, and 5HP VFX and Surface Aerator models, 2HP J Series models, LEDS19 Stainless Steel Light Kits, RGBW18 LED Light Kits, W25 LED Light Kits, CertiSafe™ Tank Mixers, and RobustAire™ TeichAire Compressors.
  • 5-year warranty: 3, 5, and 7.5HP J Series fountains and RGBW LED Light Kits.
  • 15-year warranty: SureSink™ Weighted Tubing for RobustAire™ and Home Series Diffused Aeration Systems.
  • Lifetime warranty: Diffuser assemblies for RobustAire™ and Home Series Diffused Aeration Systems, RobustAire™ Post Mount Cabinets, and RobustAire™ Small, Medium, and Large Cabinets with patented AireGuard Cabinet Technology.
  • Control panels are included in the warranty when applicable to the covered product.
  • Ropes, power cords, and propellers are excluded from standard defect coverage.
  • Customers should register their product with Kasco Marine for warranty purposes after purchase.
  • Warranty coverage may be void if the equipment is not properly maintained according to the owner’s manual, altered from its original condition, used without the required GFI-protected circuit or Kasco control panel, or damaged by unauthorized tampering.
  • Units under warranty may be sent to a Kasco authorized repair center for evaluation and repair, and all units must include the required Repair Contact Form.
  • Only complete motor assemblies will be accepted for warranty repair, and the power cord and all other original components must be returned with the motor as originally assembled.
  • Kasco Marine will return units repaired under warranty at their expense by ground freight within the continental United States, while expedited return shipping is the customer’s responsibility.

Questions? Contact support@propondsupply.com or call (470) 354-1969.

★Reviews

Customer Reviews

Be the first to write a review
0%
(0)
0%
(0)
0%
(0)
0%
(0)
0%
(0)
