Airmax EcoSeries 1/2 HP Floating Fountain On Water with Classic Spray Nozzle

Airmax EcoSeries 1/2 HP Pond Fountain

by Airmax
SKU ECO12-NC-N-NCP
$1,850.00
Made in the USA
No Sales Tax Outside Georgia
Free Delivery from U.S. Warehouses
Talk to a Specialist: (470) 354-1969
Better Price? Request a Wire Discount Bulk or Business Order? Get a Fast Custom Quote Veterans & First Responders Save
Free Shipping
Ships --
Arrives --

Notify me when back in stock

Airmax 3 year warranty trust badges Airmax 3 year warranty trust badges

The 1/2 HP Fountain That Outperforms 3/4 and 1 HP Motors

The Airmax EcoSeries is a 1/2 HP floating pond fountain engineered around a stainless steel water-cooled asynchronous motor, silicon carbide shaft bearing, and ceramic shaft. It moves 225 gallons per minute without a nozzle and 130 GPM through one - out-throwing most 3/4 HP and 1 HP fountains while pulling only 5.8 amps at 115 V. That efficiency shows up on your electric bill: at eight hours a day, you'll spend around 53 cents.

Three spray patterns ship in the box - Classic, Crown & Trumpet, and Trumpet - and every nozzle swaps by hand in under a minute (no tools). Optional premium nozzles are available (Single Arch, Double Arch, Double Arch w/ Geyser, and Blossom) if you want a wider display or a taller geyser. Every kit ships with the 34-inch float, three included nozzles, and Airmax's 115 V Plug & Play control panel with two digital timers that let you run the fountain and an optional light set on separate schedules.

Configure cord length from 100 ft up to 400 ft, and pick standard, PolyFlex-protected, or stainless-steel-armored cord for exposed shorelines. Order the kit with the built-in control panel or opt out if you already have compatible switchgear. Backed by a 3-year Airmax warranty on both the fountain and control panel. Free shipping on every configuration.

The Airmax EcoSeries is a 1/2 HP floating fountain that out-throws 3/4 and 1 HP competitors. Stainless steel water-cooled motor, silicon-carbide bearing, and ceramic shaft - it moves 225 GPM without a nozzle at only 5.8 amps. Roughly 53 cents a day at eight hours of run time.

Three spray patterns ship in the kit (Classic, Crown & Trumpet, Trumpet) and swap tool-free in under a minute. Optional premium nozzles unlock arch, geyser, and blossom shapes. Every kit ships with the 34-inch float and Airmax's Plug & Play control panel with dual digital timers.

Pick your cord length from 100 ft up to 400 ft, and choose standard, PolyFlex-protected, or stainless-steel-armored jacket for exposed shorelines. Order with the control panel or opt out if you have compatible switchgear.

Free shipping on every EcoSeries kit. Call (470) 354-1969 for sizing help.

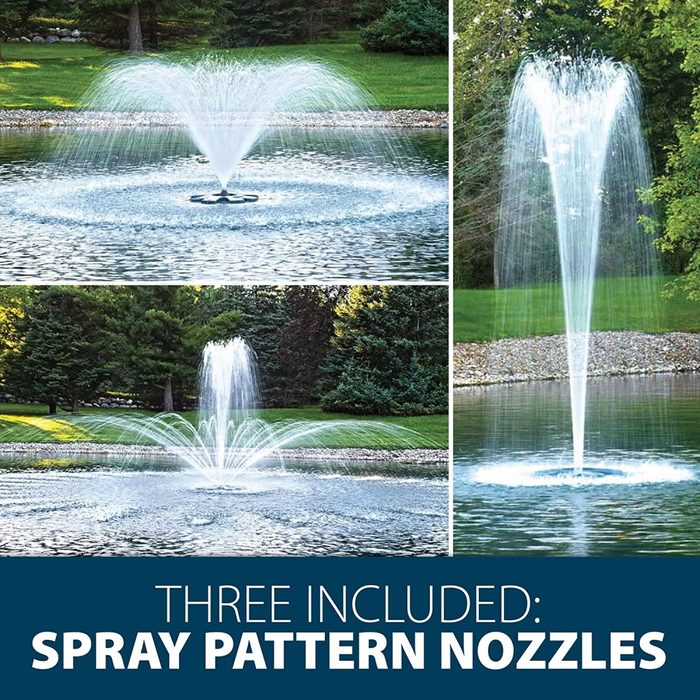

Airmax EcoSeries 1/2 HP floating fountain showing three included spray patterns

See the EcoSeries in Action

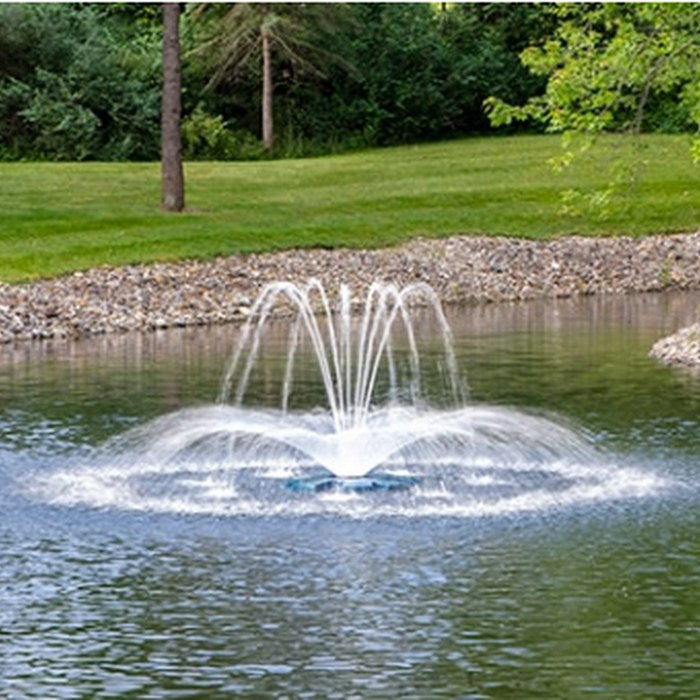

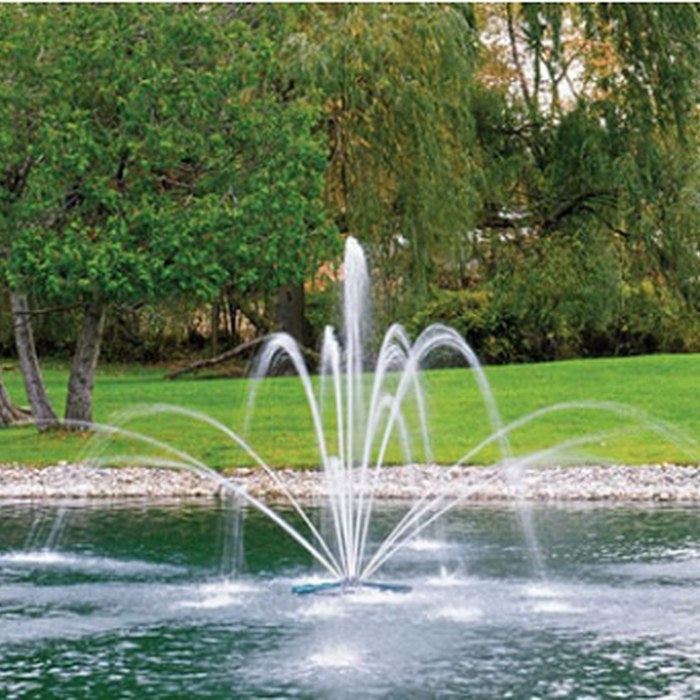

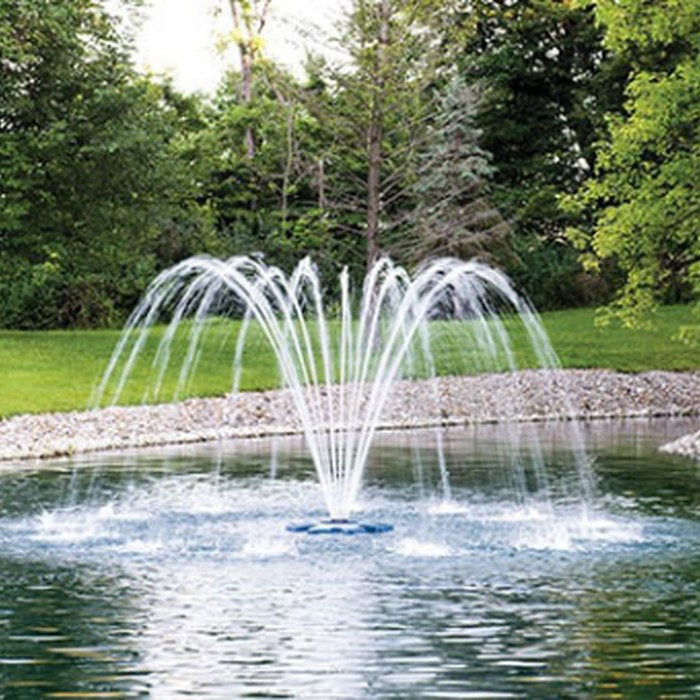

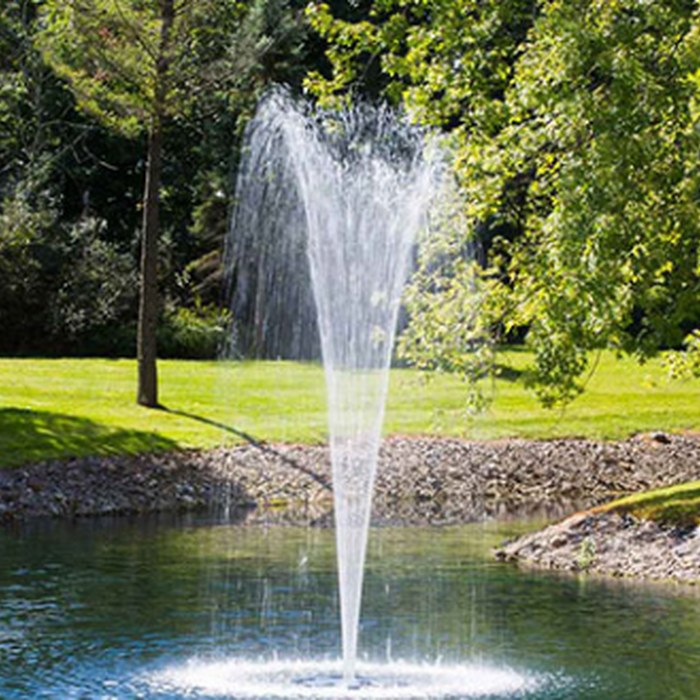

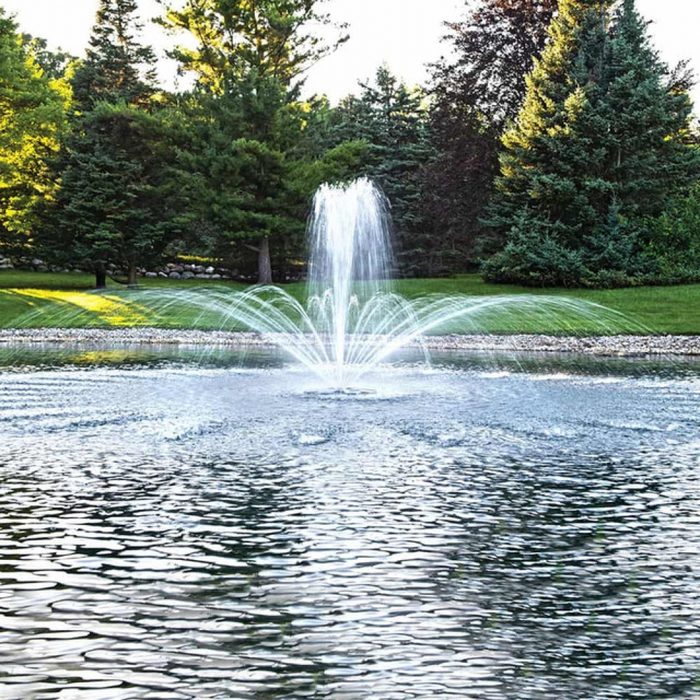

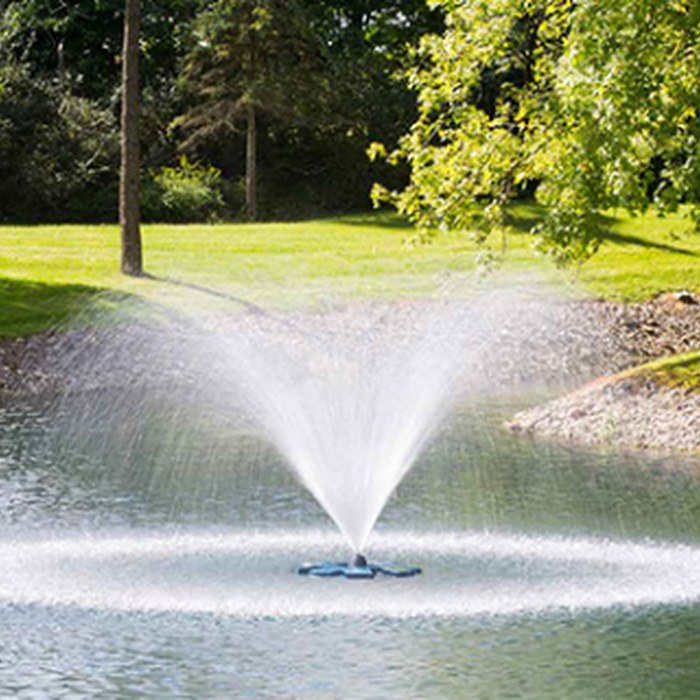

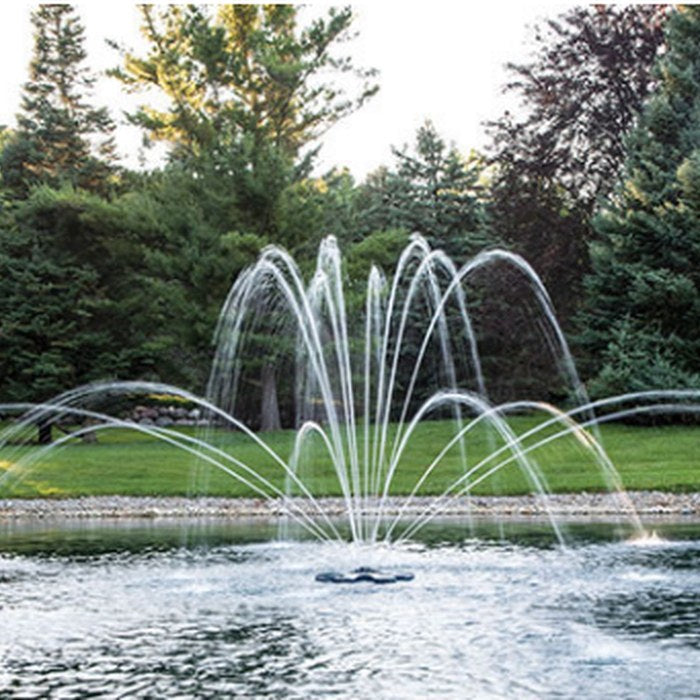

EcoSeries Spray Pattern Comparison

Classic Crown &
Trumpet		 Trumpet Single
Arch		 Double
Arch		 Double Arch
w/ Geyser		 Blossom
Pattern Classic spray pattern Crown & Trumpet spray pattern Trumpet spray pattern Single Arch spray pattern Double Arch spray pattern Double Arch w/ Geyser spray pattern Blossom spray pattern
Type Included in Kit Optional (Sold Separately)
Spray Height x Width 6' H x 16' W Trumpet: 8' H x 4' W
Crown: 4' H x 32' W		 14' H x 7' W 8' H x 16' W 1st Tier: 10' H x 16' W
2nd Tier: 5' H x 38' W		 Geyser: 9' H
1st Tier: 7' H x 12' W
2nd Tier: 5' H x 34' W		 1st Tier: 4' H x 6.5' W
2nd Tier: 1.5' H x 11' W
Airmax Part # 651164 651703 651708 651446 651445 651447 652147
Best For Standard everyday pond display Wider or taller decorative displays; showpiece water features

Why Choose the EcoSeries

Out-Throws 3/4 and 1 HP Competitors on 1/2 HP
225 GPM without a nozzle, 130 GPM through the Classic pattern - both numbers beat most 3/4 HP and 1 HP fountains on the market. That's Airmax's asynchronous water-cooled motor doing the work: less friction loss, more thrust per watt.
53 Cents a Day at 8 Hours Runtime
5.8 amps at 115 V works out to about $0.53 per day at eight hours - one of the lowest operating costs in the class. Run it dawn to dusk without watching the meter.
Three Spray Patterns Included
Classic (6 ft x 16 ft), Crown & Trumpet (Trumpet 8 x 4, Crown 4 x 32), and Trumpet (14 x 7) all ship in the kit. Swap by hand in under a minute - no tools, no wet fingers on threaded parts.
Optional Premium Nozzles
Add a Single Arch, Double Arch, Double Arch w/ Geyser, or Blossom nozzle for a taller or wider display. All optional patterns work on the same discharge without motor changes.

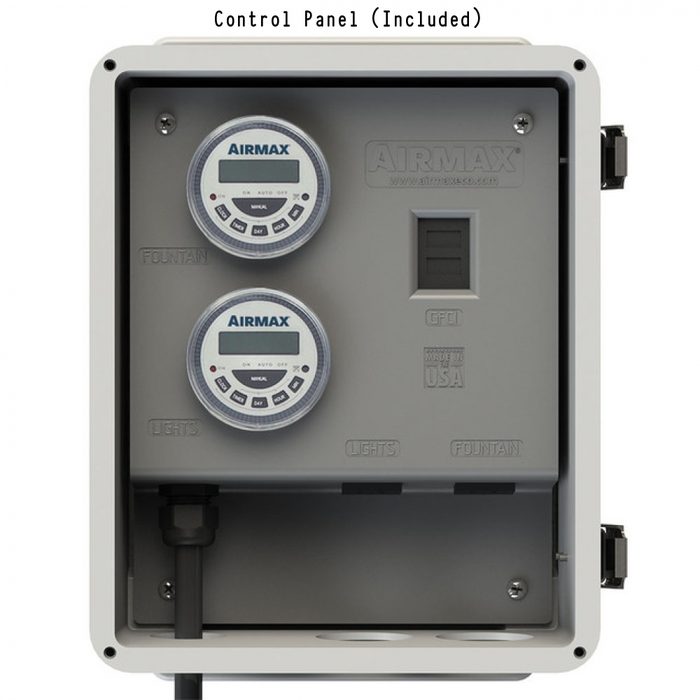

115 V Plug & Play Control Panel
Two 115V outlets on the panel - one for the fountain, one for an optional light set. Quick-response GFCI-style circuit breaker cuts power on a fault. Dual digital timers let you program up to 8 daily run cycles for the fountain and lights separately.
Cord Length + Protection to Match Your Site
100 ft up to 400 ft cord runs. Standard SJTOOW jacket for buried conduit runs, PolyFlex braided sleeve for rocky shorelines and rodent-exposed installs, or stainless steel armor for public installs where vandalism is a concern.
Underwater Quick Disconnect on 200 ft and Longer
Cords 200 ft and up ship with an underwater quick-disconnect at the motor. Lifts the whole fountain and cord run in one motion for winter storage or seasonal cleaning.
34 in Float, 24 in Minimum Operating Depth
The float is sized for stability in wind and boat wake. Minimum operating depth is 24 in - shallow enough for most residential ponds without the motor pulling in air.
Backed by a 3-Year Warranty
Full 3-year manufacturer warranty on both the fountain and the control panel. Airmax has been building pond equipment out of Armada, Michigan for decades.

Requirements & What to Know Before You Buy

  • Pond Size: aerates ponds up to 1/4 acre and 6 ft deep. Larger ponds will need additional diffused aeration or multiple fountains for full circulation.
  • Minimum Operating Depth: 24 inches. The intake pulls water below the float; less than 24 in and the motor draws air.
  • Electrical: standard 115 V household circuit, 5.8 amps running. The Plug & Play control panel plugs directly into a 115 V outlet with a 24-inch power whip - no dedicated 230 V circuit required.
  • Cord Sizing: measure from the fountain's intended location straight to the shore outlet or panel location. Pick the shortest cord that reaches - excess cord in coils is a nuisance and can nominally derate voltage.
  • Cord Protection - Standard: SJTOOW outdoor rubber jacket. Best for buried conduit runs and protected shorelines.
  • Cord Protection - PolyFlex: braided sleeve over the SJTOOW cord. Rated for rocky shorelines, rodent-exposed installs, and dock traffic where a bare cord would take physical damage.
  • Cord Protection - Stainless Steel Armored: stainless steel braid over the cord. Best for public installs and vandalism-prone sites.
  • Quick Disconnect: 200 ft and longer cords include an underwater quick disconnect at the motor for easy seasonal removal and cleaning. Shorter cords do not include the quick disc by default.
  • Mooring: supply anchors and rope separately. Airmax sells a compatible Fountain Mooring Kit in 150', 250', and 500' lengths (sold separately).
  • Sizing Help: Call (470) 354-1969 with your pond dimensions and shore layout - we will confirm the right cord length and protection option.

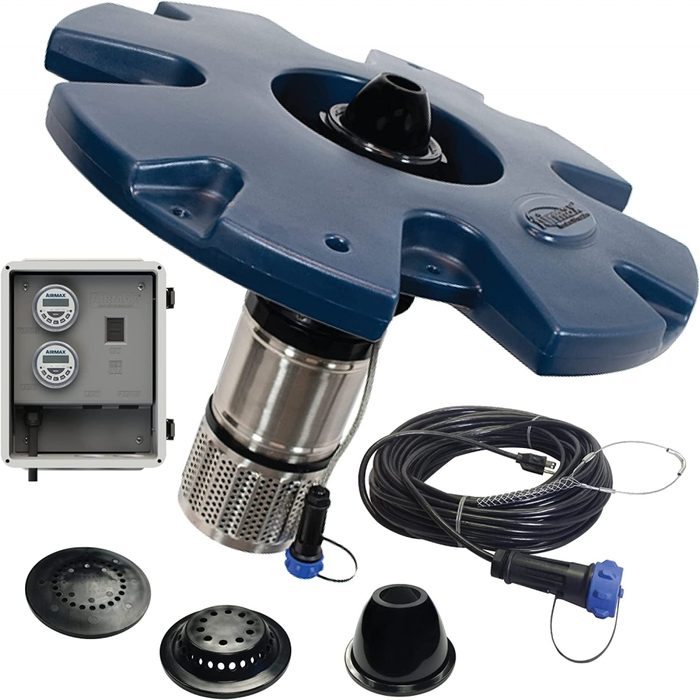

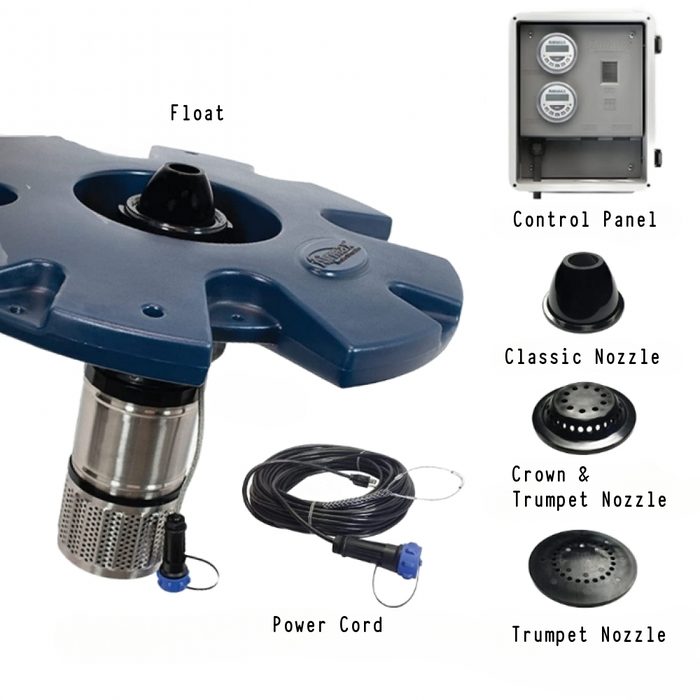

What's Included & Optional Add-Ons

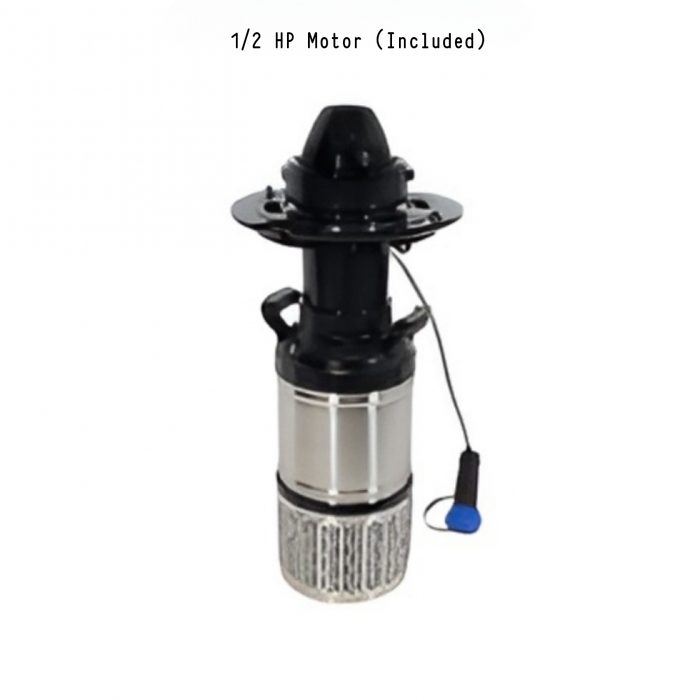

  • EcoSeries Stainless Steel Submersible Motor - 1/2 HP asynchronous water-cooled, silicon-carbide shaft bearing, ceramic shaft
  • 34 in Float - marine-grade, sized for wind and wake stability

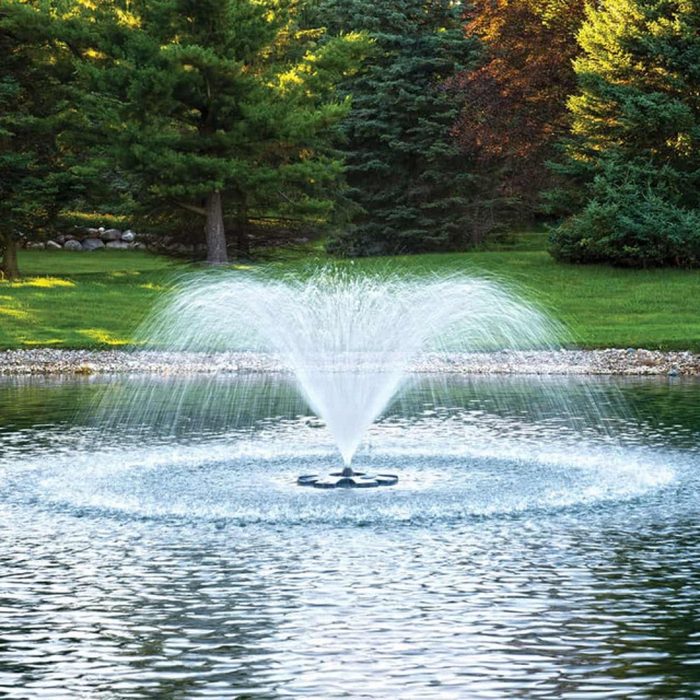

  • Classic Spray Pattern Nozzle (6 ft H x 16 ft W)

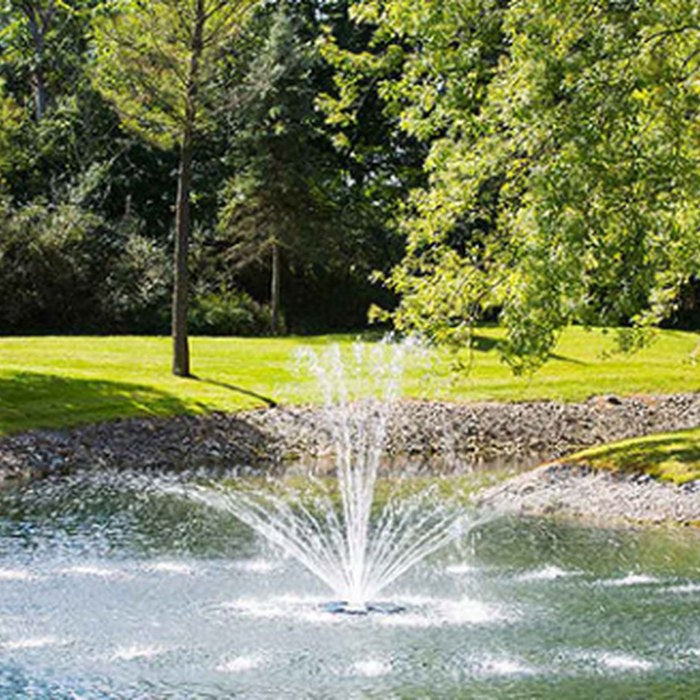

  • Crown & Trumpet Spray Pattern Nozzle (Trumpet 8 x 4, Crown 4 x 32)

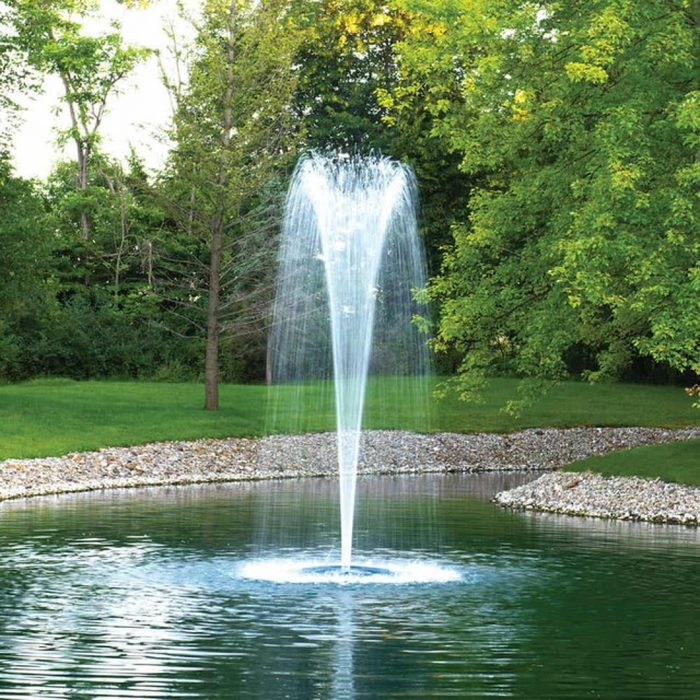

  • Trumpet Spray Pattern Nozzle (14 ft H x 7 ft W)
  • Fountain Flow Straightener
  • 115 V Plug & Play Control Panel - dual outlets (fountain + lights), quick-response breaker, dual digital timers, up to 8 daily run cycles (option: order without if you already have compatible switchgear)

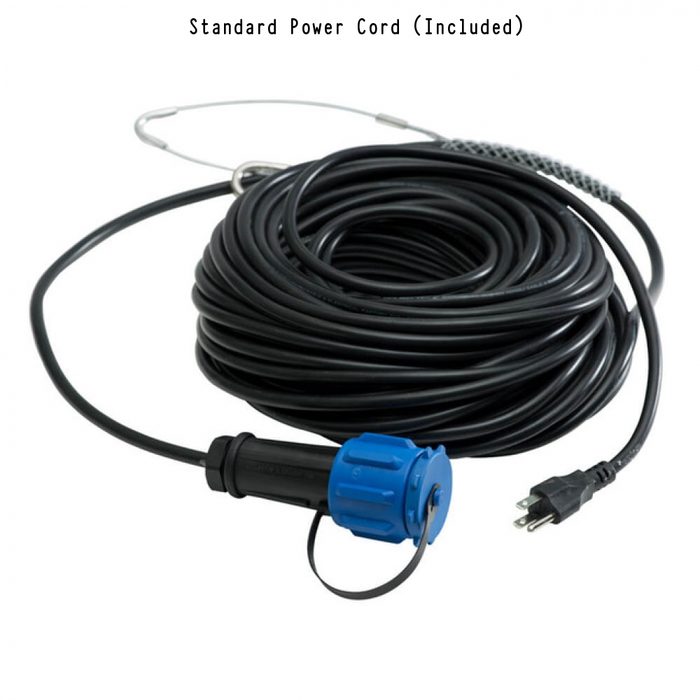

  • Power Cord w/ Strain Relief - choose 100 to 400 ft in standard, PolyFlex-protected, or stainless steel armored jacket
  • Underwater Quick Disconnect - included on 200 ft and longer cord runs
  • Optional RGBW 3-Light Combo Kit - matches the fountain to the same 115 V control panel; adds nighttime lighting; sold separately
  • Optional Premium Nozzles - Single Arch, Double Arch, Double Arch w/ Geyser, and Blossom patterns (sold separately)
  • Optional Fountain Mooring Kit - 150', 250', or 500' lengths (sold separately)

EcoSeries 1/2 HP Fountain Specifications

Manufacturer Airmax, Inc. (Armada, Michigan)
Series EcoSeries
Motor 1/2 HP asynchronous water-cooled, UL approved, fully sealed
Motor Materials Stainless steel housing, silicon carbide (SiC) shaft bearing, ceramic shaft
Voltage 115 V, 60 Hz
Running Amps 5.8 A
Wattage 667 W
Daily Operating Cost (8 hr) ~$0.53
Flow with Nozzle 130 GPM (Classic pattern)
Flow without Nozzle 225 GPM
Max Spray Height 14 ft (Trumpet pattern)
Recommended Pond Size Up to 1/4 acre, 6 ft deep (larger ponds need added diffusers)
Minimum Operating Depth 24 in
Float Diameter 34 in
Included Nozzles Classic, Crown & Trumpet, Trumpet
Optional Nozzles Single Arch, Double Arch, Double Arch w/ Geyser, Blossom
Nozzle Material Engineering-grade plastic
Control Panel 115 V Plug & Play, dual outlets (fountain + lights), quick-response breaker, dual digital timers (up to 8 cycles)
Cord Lengths Available 100, 150, 200, 250, 300, 350, 400 ft
Cord Protection Options Standard SJTOOW, PolyFlex braided sleeve, Stainless Steel armored
Underwater Quick Disconnect Standard on 200 ft and longer cord runs
Tools Required None for assembly or nozzle changes
Optional Lighting Airmax RGBW 3-Light Combo Kit (sold separately)
Applications Backyard residential ponds, koi ponds, HOA / neighborhood ponds, resort water features, commercial displays
Warranty 3-year manufacturer warranty on fountain and control panel
Country of Origin Made in USA (Armada, MI)
