Airmax SolarSeries Aeration System Battery Backup
Off-Grid Diffused Aeration That Runs 24 Hours a Day
The Airmax SS20-BB is Airmax's flagship off-grid aeration package - a 24 V DC direct-drive compressor paired with two 12 V AGM batteries, two American-made solar panels on the pre-assembled EasyMount rig, and Airmax's ProAir 2 weighted diffusers. Solar handles the day; the batteries handle the night. Continuous 24-hour bottom-up circulation with zero grid connection, zero electric bill, and zero trenching required to get power to a remote pond.
The battery-backup system is where the SS20-BB separates itself from a plain solar aerator. Standard solar aeration stops the moment the sun sets, and the pond's dissolved oxygen levels drift back down through the night. The SS20-BB's two 12 V AGM batteries store daytime solar charge and run the DC compressor straight through until dawn - up to a full 24 hours of continuous circulation even in low-light stretches or overcast weather. That means the pond gets nighttime aeration when fish need it most, not just during peak daylight.
Pick 2 Diffusers for ponds up to 1 acre or 4 Diffusers for ponds up to 2 acres. Order with the pre-measured 5/8-inch weighted airline (200 ft on the 2-diffuser kit, 400 ft on the 4-diffuser kit) or without if you're sourcing airline separately. The MPPT smart controller supports Bluetooth monitoring - check run-time, charge status, voltage, and amperage from your phone. All housed in a lockable powder-coated aluminum cabinet with dual air filters, cooling fan, and tamper-proof lid.
Off-grid aeration that runs 24/7. The Airmax SS20-BB is a battery-backup solar aeration system - 24 V DC compressor + two 12 V AGM batteries + two American-made solar panels on Airmax's EasyMount rig. Solar handles the day; batteries handle the night. Continuous circulation with zero grid connection and zero electric bill.
The battery backup is the whole point. Regular solar aerators stop at sunset. The SS20-BB stores daytime charge in AGM batteries and runs the DC compressor through the night - up to 24 hours of continuous aeration even in overcast weather. Fish get nighttime dissolved oxygen when they need it most.
Pick 2 Diffusers for ponds up to 1 acre or 4 Diffusers for ponds up to 2 acres. Order with pre-measured airline (200 ft on the 2-diff, 400 ft on the 4-diff) or without. MPPT smart controller with Bluetooth for phone monitoring. Lockable powder-coated aluminum cabinet.
Free shipping on every SS20-BB kit. Call (470) 354-1969 for sizing help.
See the Airmax SolarSeries SS20-BB in Action
SolarSeries SS20-BB Configuration Comparison
| SS20-BB 2 Diffusers |
SS20-BB 4 Diffusers |
|
|---|---|---|
| System |  |
 |
| ProAir 2 Diffusers | 2 | 4 |
| Recommended Pond Size | Up to 1 Acre | Up to 2 Acres |
| Max Airline Included | None or 200 ft | None or 400 ft |
| Compressor | 24 V DC direct-drive rocking-piston | |
| Battery Backup | Two 12 V AGM batteries (24 V DC bank) | |
| Nightly Runtime | Up to 24 hours continuous on stored charge | |
| Solar Panels | 2 American-made high-output monocrystalline on EasyMount | |
| Controller | MPPT smart controller w/ Bluetooth monitoring | |
| Cabinet | Powder-coated aluminum, lockable, tamper-proof lid, elevated base | |
| Airline Size | 5/8-inch weighted, kink-free, fish-hook resistant | |
| Best For | Off-grid residential ponds up to 1 acre; remote installs without shore power | Off-grid HOA lakes and commercial ponds up to 2 acres; ranches, farms, resorts |
Requirements & What to Know Before You Buy
- Pond Size: 2-diffuser kit up to 1 acre, 4-diffuser kit up to 2 acres. Larger ponds need multiple systems or step up to Airmax's grid-tied PondSeries line.
- Pond Depth: the SS20-BB is a full-depth aerator. Diffusers sit at the deepest point of the pond. Rated to standard PondSeries depth ranges (6 to 15+ ft).

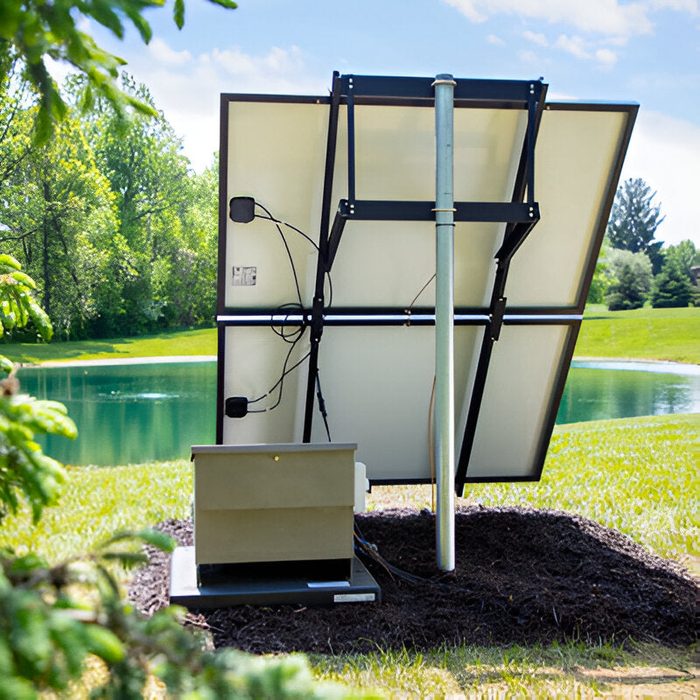

- Solar Panel Placement: two American-made monocrystalline panels mount on the pre-assembled EasyMount rig. Site them with unobstructed south-facing sky. Panels can be up to 1/4 mile from the pond - useful when the best sun exposure isn't right at the water's edge.
- Mounting Poles (Not Included): EasyMount requires two 2.5-inch OD Schedule 40 galvanized steel poles, 10 ft minimum length. Source locally.
- Cabinet Location: powder-coated aluminum lockable cabinet sits on the shore or wherever the batteries are convenient to service. Elevated base handles occasional standing water. Above the normal high-water mark.
- Airline Sizing: 5/8-inch weighted airline. 2-diffuser kit ships with 200 ft (or no airline); 4-diffuser kit ships with 400 ft (or no airline). Measure from cabinet location to each diffuser drop point through any conduit runs and add 5-10 ft of slack per line.
- Battery Life: AGM batteries are sealed maintenance-free lead-acid, rated for 5+ years of daily cycling in typical outdoor climates. Replace when runtime noticeably drops off - a straightforward two-battery swap.
- Winter Operation: the SS20-BB is designed for continuous year-round operation, including winter. Solar production drops in short winter days but the battery backup smooths through low-light stretches. Continuous circulation keeps an open hole in the ice for gas exchange.
- Cabinet Access: plan for 3 ft of clearance around the cabinet for lid opening and battery access. Cabinet is heavy - two-person lift when repositioning.
- MPPT Smart Controller: the built-in controller supports Bluetooth. Airmax's mobile app shows runtime, charge state, voltage, and amperage in real time.
- Sizing Help: Call (470) 354-1969 with your pond size, panel placement plan, and airline distance. We will confirm the right configuration.
What's Included & Optional Add-Ons

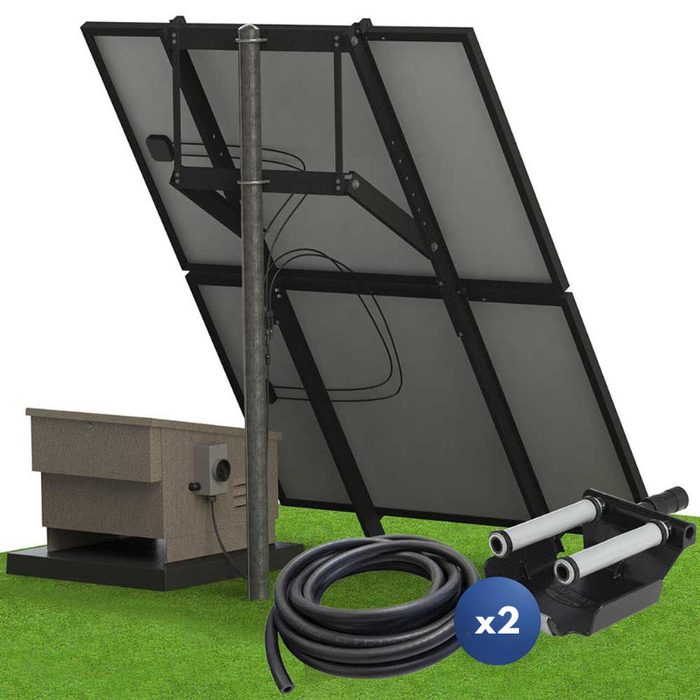

- 24 V DC Direct-Drive Compressor - solar-powered rocking-piston, matched to the airflow requirements of the ProAir 2 diffusers
- Two 12 V AGM Batteries - sealed maintenance-free, 24 V bank for nighttime and low-light operation
- MPPT Smart Controller - Bluetooth monitoring; runtime, charging status, voltage, amperage from your phone

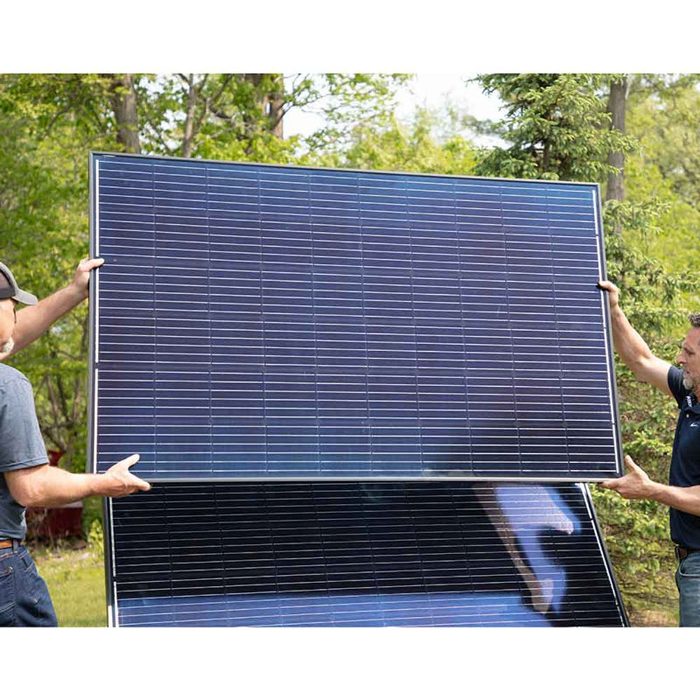

- Two American-Made Solar Panels - high-output monocrystalline; mounted on pre-assembled EasyMount rig
- EasyMount Assembly - preassembled, corrosion-resistant powder-coated military-grade aluminum

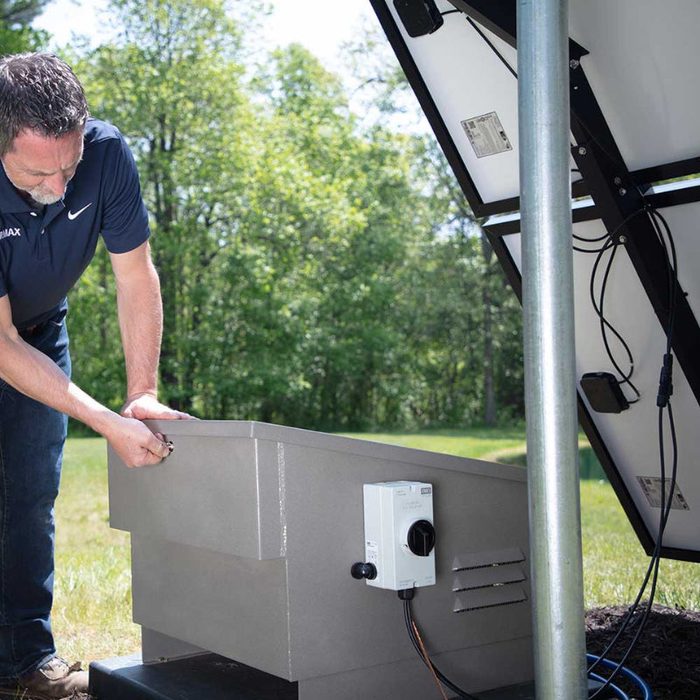

- Powder-Coated Aluminum Cabinet - lockable, tamper-proof lid, elevated base, dual air filters, cooling fan
- ProAir 2 Weighted Diffuser Plates - 2 on the 2-diff kit, 4 on the 4-diff kit; integrated check valve, self-weighted sled
- Airflow Manifold - 2-port (2-diff) or 4-port (4-diff); nickel-plated ball valves, pressure gauge, relief valve
- Optional 5/8-inch Weighted Airline - 200 ft on the 2-diff kit, 400 ft on the 4-diff kit (order without if sourcing separately)
- Optional Additional Solar Panels - for heavily shaded sites or extended winter operation (call for pricing)
- Optional Airmax SolarSeries Direct Drive System (SS20 without battery) - lower-cost option if you only need daytime aeration and don't care about nighttime runtime (separate product)
Airmax SS20-BB Specifications
| Manufacturer | Airmax, Inc. (Armada, Michigan) |
| Model | SS20-BB (SolarSeries Battery Backup) |
| Configurations | 2-diffuser or 4-diffuser; each available with or without pre-measured 5/8" airline |
| Type | Off-grid solar-powered diffused pond aeration with 24-hour battery backup |
| Compressor | 24 V DC direct-drive rocking-piston |
| Solar Panels | 2 American-made high-output monocrystalline |
| Battery Bank | Two 12 V AGM batteries (24 V nominal) |
| Nightly Runtime | Up to 24 hours continuous on stored charge |
| Controller | MPPT smart controller with Bluetooth monitoring |
| Cabinet | Powder-coated aluminum, lockable, tamper-proof lid, elevated base |
| Cabinet Features | Dual air filters, cooling fan |
| Diffusers | ProAir 2 weighted (2 or 4 units depending on config), integrated check valve |
| Airline | 5/8-inch weighted, kink-free, fish-hook resistant |
| Airline Included | None, or 200 ft (2-diff), or 400 ft (4-diff) |
| Recommended Pond Size | 2-diff: up to 1 acre | 4-diff: up to 2 acres |
| EasyMount Rig | Preassembled powder-coated aluminum; up to 1/4 mile from pond |
| Mounting Poles | 2 x 2.5" OD Schedule 40 galvanized steel, 10 ft L (sold separately, source locally) |
| Warranty | Airmax standard SolarSeries warranty |
| Country of Origin | Made in USA (Armada, MI) |
