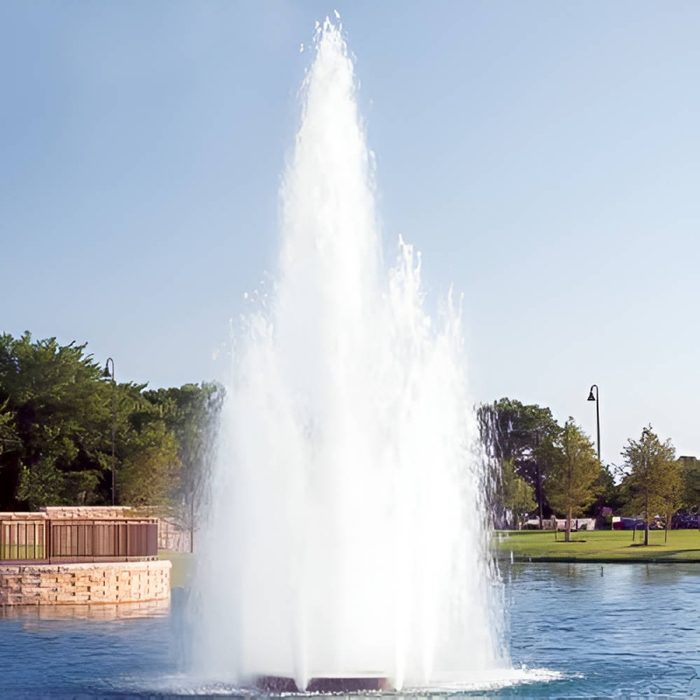

Vertex MultiGeyser Floating Fountain Series on Water Closee-up View

Vertex MultiGeyser Floating Pond Fountain

by Vertex Aquatic Solutions
SKU MULTIGEYSER-10-1P
$29,260.00
Made in the USA
No Sales Tax Outside Georgia
Free Delivery from U.S. Warehouses
Talk to a Specialist: (470) 354-1969
Better Price? Request a Wire Discount Bulk or Business Order? Get a Fast Custom Quote Veterans & First Responders Save
Free Shipping
Ships --
Arrives --

Notify me when back in stock

Vertex 4 year warranty trust badges Vertex 4 year warranty trust badges

Throw a Dense Wind-Resistant Pyramid with the Vertex MultiGeyser Floating Fountain

The Vertex MultiGeyser Floating Fountain is a commercial-grade display fountain built around a single tall center geyser ringed by smaller frothy side jets. The combination produces a dense, fully aerated pyramid of active water - the most wind-resistant pattern in the Vertex commercial line. The frothy, highly aerated finish also catches LED light dramatically at night, which is why so many municipalities and HOAs spec the MultiGeyser for highly visible fountain locations.

Four motor sizes cover medium and large commercial water bodies: 10 HP, 15 HP, 20 HP, and 30 HP. Center geyser heights run 12 to 22 ft, with the surrounding 4 to 5 side jets reaching 6 to 10 ft. Spray diameters land between 8 and 10 ft across the line, making the MultiGeyser a balanced choice when you want both vertical drama and a wide visual base. Every unit ships on a sealed stainless steel submersible turbine pump, a UL-listed control panel, and the same rotocast polypropylene float used across the Vertex commercial line.

Pick 10, 15, 20, or 30 HP. 10 and 15 HP are available in single-phase 230V or three-phase 230V; 20 and 30 HP are three-phase only. 208V and 460V three-phase configurations are available on request. Optional LED light kits sized to motor (6 fixtures on 10/15 HP, 7 on 20/30 HP per the 2026 Vertex catalog) and submersible power cord lengths sold at order time. Free shipping on every MultiGeyser.

The Vertex MultiGeyser is a commercial floating fountain with a tall center geyser ringed by smaller side jets. Dense, frothy, wind-resistant. Four motor sizes from 10 HP to 30 HP. Center heights 12-22 ft, 8-10 ft diameter.

Stainless steel submersible turbine pump. UL-listed control panel. Rotocast polypropylene float. STW-A rated submersible cable. 4-year pump and motor warranty.

10 and 15 HP in single-phase or three-phase 230V. 20 and 30 HP are 3-phase only. Optional 6 or 7 LED kits and cord lengths sold at order time.

Free shipping on every Vertex MultiGeyser. Optional LED lighting kits and cord lengths available on request. Call (470) 354-1969.

Vertex MultiGeyser Floating Pond Fountain close-up on water

Why Choose the MultiGeyser by Vertex

Dense Wind-Resistant Pyramid Pattern
A tall center geyser surrounded by 4 or 5 smaller side jets produces a thick, fully aerated pyramid of water. The dense pattern holds its shape in wind better than thinner jet patterns - the right pick for exposed water bodies.
Highly Aerated Frothy Display
Every jet is intentionally aerated for white, frothy visibility in daylight and dramatic lift on LED light at night. The MultiGeyser is one of the most photogenic patterns in the Vertex catalog.
Four Motor Sizes
10 HP, 15 HP, 20 HP, and 30 HP. Center geyser heights 12-22 ft. Sized for medium to large commercial ponds, HOA lakes, golf course water hazards, and corporate campuses.
Stainless Steel Turbine Pump
Sealed submersible motor. Water-cooled with no oils, no seals, and no annual maintenance kits. Spring-loaded check valve for smooth operation at any angle. Lower lifetime cost than oil-cooled commercial fountains.
UL-Listed Control Panel
Weatherproof steel NEMA enclosure ships with every unit. Class A GFCI protection. Single or three-phase 230V on the 10/15 HP; three-phase only on the 20/30 HP. 208V or 460V three-phase configurations available on request.
STW-A Rated Submersible Cable
Power cable rated for direct underwater use. Sized to motor; custom cord lengths available at order time.
Optional LED Lighting Sized to Motor
6 fixtures on the 10 and 15 HP, 7 fixtures on the 20 and 30 HP per the 2026 Vertex catalog. High-efficiency LEDs at 140 lumens/watt. Optional colored / color-changing LEDs available on request.
Vertex Warranty Package
4-year warranty on the display head, pump, and motor. 2-year warranty on LED lighting (excluding bulbs). 1-year warranty on the control panel.

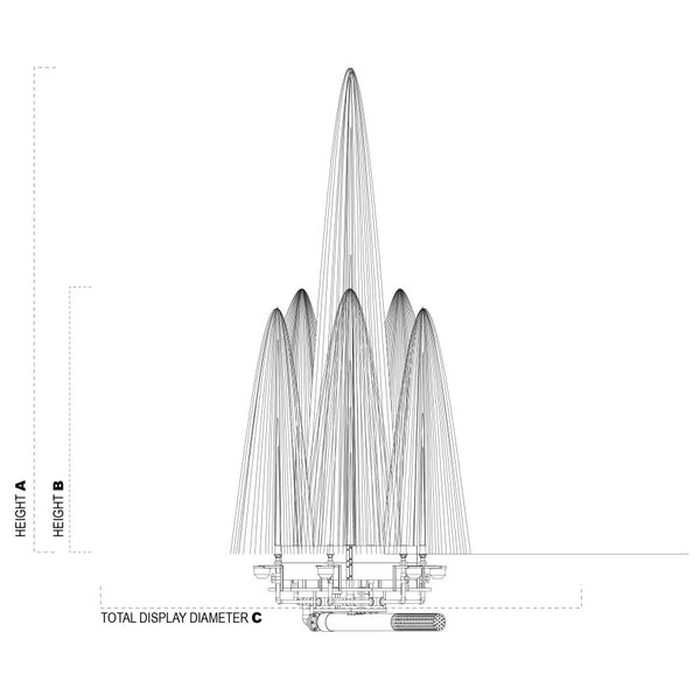

MultiGeyser Unit Comparison

10 HP Unit 15 HP Unit 20 HP Unit 30 HP Unit
Minimum Operating Depth 6 ft 7 ft 7 ft 8 ft
Center Height Spray (A) 12 ft 15 ft 18 ft 22 ft
Side Height Spray (B) 6 ft 8 ft 9 ft 10 ft
Spray Diameter (C) 8 ft 9 ft 10 ft 10 ft
Number of Side Jets 4 4 5 5
LED Lights Included 6 6 7 7
Total LED Wattage 258 W 258 W 301 W 301 W
LED Amp Draw 3 A 3 A 3.5 A 3.5 A
Available Phase 1 Phase or 3 Phase 1 Phase or 3 Phase 3 Phase only 3 Phase only
1 Phase Voltage 230V 230V Not available Not available
3 Phase Voltage 208V or 230V
Display Head / Nozzle Warranty 4 yr
Pump and Motor Warranty 4 yr
LED Lighting Warranty 2 yr
Control Panel Warranty 1 yr
MultiGeyser combines a single tall center geyser with a ring of smaller side jets for a dense pyramid pattern that resists wind. LED kits sold separately at order time. 460V three-phase configurations available on request. Vertex fountains must be removed from water before freezing. Call (470) 354-1969 for sizing help.

Requirements & What to Know Before You Buy

  • Pond Depth: 6 ft minimum on the 10 HP, 7 ft on the 15 and 20 HP, and 8 ft on the 30 HP.
  • Pond Size: the MultiGeyser is sized for medium and large commercial water bodies. Smaller residential ponds should look at the TwoTier or TriTier instead.
  • Voltage and Phase Selection: 10 and 15 HP are available in 230V single-phase or three-phase. 20 and 30 HP are three-phase only. 208V and 460V three-phase configurations are available on request.
  • Dedicated Circuit: the included control panel needs a properly sized dedicated circuit. Confirm with a licensed electrician before install.
  • Mooring: commercial fountains need anchoring. You supply anchors or weights sized to the float and water body.
  • Cable Run: standard cord lengths are available; longer runs are an order-time option.
  • Winterization: Vertex fountains must be removed from water before freezing conditions.
  • Lighting: the suggested LED kit is 6 lights for the 10 and 15 HP and 7 for the 20 and 30 HP. Add at order time so the harness ships with the float.
  • Sizing Help: Call (470) 354-1969 with your pond surface area and depth and we will recommend the right motor size.

What's Included & Optional Add-Ons

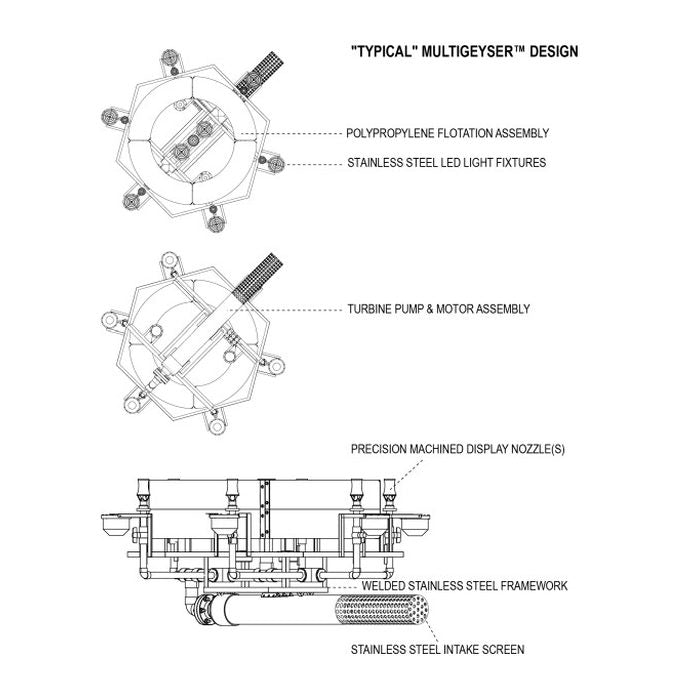

  • Stainless Steel Turbine Pump - sealed submersible motor, water-cooled, self-lubricated
  • Rotocast Polypropylene Float - UV-inhibited, heavy-duty, low profile
  • MultiGeyser Display Head - tall center geyser plus ring of 4 or 5 frothy side jets
  • Stainless Steel Intake Screen - protects the impeller from debris
  • UL-Listed Control Panel - weatherproof steel NEMA enclosure with Class A GFCI
  • STW-A Rated Submersible Cable - sized to motor; ordered separately
  • Optional LED Lighting Kit - 6 fixtures (10/15 HP) or 7 fixtures (20/30 HP). 43 W each. Sold at order time.
  • Optional Custom Phase / Voltage - 208V or 460V three-phase on request
  • Optional Colored / Color-Changing LEDs - on request
  • Optional Wind Sensor / Remote / Multi-Unit Master Panel - on request
  • Warranty - 4 yr display head / pump / motor; 2 yr LED lights; 1 yr control panel

Vertex MultiGeyser Floating Fountain Specifications

Manufacturer Vertex Aquatic Solutions
Model MultiGeyser Floating Pond Fountain
Type Center geyser with surrounding side jets - dense wind-resistant pyramid display fountain
Motor Options 10 HP, 15 HP, 20 HP, 30 HP
Phase Options 230V single-phase or three-phase on 10 and 15 HP; three-phase only on 20 and 30 HP. 208V or 460V three-phase on request.
Frequency 60 Hz standard
Total Configurations 12 across HP, phase, and lighting
Spray Pattern Tall center geyser surrounded by 4 or 5 frothy side jets
Center Geyser Height 12 ft (10 HP) up to 22 ft (30 HP)
Side Jet Height 6 ft (10 HP) up to 10 ft (30 HP)
Spray Diameter 8 ft (10 HP) up to 10 ft (20/30 HP)
Minimum Pond Depth 6 ft (10 HP) up to 8 ft (30 HP)
Motor Construction Stainless steel submersible turbine
Float Construction Rotocast polypropylene with UV inhibitors, low profile
Power Cable STW-A rated for direct underwater use; sized to motor; ordered separately
Control Panel UL-listed in weatherproof steel NEMA enclosure with Class A GFCI
Optional LED Lighting 6 or 7 fixture kit depending on motor size; 43 W per fixture at 140 lumens/watt. Colored / color-changing on request.
Applications Commercial lakes, HOA waterways, corporate campuses, golf course water hazards, parks, exposed water bodies where wind resistance matters
Warranty (Display Head / Pump / Motor) 4 years
Warranty (LED Lighting) 2 years (excluding bulbs)
Warranty (Control Panel) 1 year
Winterization Must be removed from water before freezing conditions
Country of Origin Vertex Aquatic Solutions, USA



Manuals

View the MultiGeyser Product Sheet

View the MultiGeyser System Specifications

View the MultiGeyser Owner's Manual

Overview

Throw a Dense Wind-Resistant Pyramid with the Vertex MultiGeyser Floating Fountain

The Vertex MultiGeyser Floating Fountain is a commercial-grade display fountain built around a single tall center geyser ringed by smaller frothy side jets. The combination produces a dense, fully aerated pyramid of active water - the most wind-resistant pattern in the Vertex commercial line. The frothy, highly aerated finish also catches LED light dramatically at night, which is why so many municipalities and HOAs spec the MultiGeyser for highly visible fountain locations.

Four motor sizes cover medium and large commercial water bodies: 10 HP, 15 HP, 20 HP, and 30 HP. Center geyser heights run 12 to 22 ft, with the surrounding 4 to 5 side jets reaching 6 to 10 ft. Spray diameters land between 8 and 10 ft across the line, making the MultiGeyser a balanced choice when you want both vertical drama and a wide visual base. Every unit ships on a sealed stainless steel submersible turbine pump, a UL-listed control panel, and the same rotocast polypropylene float used across the Vertex commercial line.

Pick 10, 15, 20, or 30 HP. 10 and 15 HP are available in single-phase 230V or three-phase 230V; 20 and 30 HP are three-phase only. 208V and 460V three-phase configurations are available on request. Optional LED light kits sized to motor (6 fixtures on 10/15 HP, 7 on 20/30 HP per the 2026 Vertex catalog) and submersible power cord lengths sold at order time. Free shipping on every MultiGeyser.

The Vertex MultiGeyser is a commercial floating fountain with a tall center geyser ringed by smaller side jets. Dense, frothy, wind-resistant. Four motor sizes from 10 HP to 30 HP. Center heights 12-22 ft, 8-10 ft diameter.

Stainless steel submersible turbine pump. UL-listed control panel. Rotocast polypropylene float. STW-A rated submersible cable. 4-year pump and motor warranty.

10 and 15 HP in single-phase or three-phase 230V. 20 and 30 HP are 3-phase only. Optional 6 or 7 LED kits and cord lengths sold at order time.

Free shipping on every Vertex MultiGeyser. Optional LED lighting kits and cord lengths available on request. Call (470) 354-1969.

 Vertex MultiGeyser Floating Pond Fountain close-up on water

Why Choose the MultiGeyser by Vertex

Dense Wind-Resistant Pyramid Pattern A tall center geyser surrounded by 4 or 5 smaller side jets produces a thick, fully aerated pyramid of water. The dense pattern holds its shape in wind better than thinner jet patterns - the right pick for exposed water bodies. Highly Aerated Frothy Display Every jet is intentionally aerated for white, frothy visibility in daylight and dramatic lift on LED light at night. The MultiGeyser is one of the most photogenic patterns in the Vertex catalog. Four Motor Sizes 10 HP, 15 HP, 20 HP, and 30 HP. Center geyser heights 12-22 ft. Sized for medium to large commercial ponds, HOA lakes, golf course water hazards, and corporate campuses. Stainless Steel Turbine Pump Sealed submersible motor. Water-cooled with no oils, no seals, and no annual maintenance kits. Spring-loaded check valve for smooth operation at any angle. Lower lifetime cost than oil-cooled commercial fountains. UL-Listed Control Panel Weatherproof steel NEMA enclosure ships with every unit. Class A GFCI protection. Single or three-phase 230V on the 10/15 HP; three-phase only on the 20/30 HP. 208V or 460V three-phase configurations available on request. STW-A Rated Submersible Cable Power cable rated for direct underwater use. Sized to motor; custom cord lengths available at order time. Optional LED Lighting Sized to Motor 6 fixtures on the 10 and 15 HP, 7 fixtures on the 20 and 30 HP per the 2026 Vertex catalog. High-efficiency LEDs at 140 lumens/watt. Optional colored / color-changing LEDs available on request. Vertex Warranty Package 4-year warranty on the display head, pump, and motor. 2-year warranty on LED lighting (excluding bulbs). 1-year warranty on the control panel.

MultiGeyser Unit Comparison

10 HP Unit 15 HP Unit 20 HP Unit 30 HP Unit
Minimum Operating Depth 6 ft 7 ft 7 ft 8 ft
Center Height Spray (A) 12 ft 15 ft 18 ft 22 ft
Side Height Spray (B) 6 ft 8 ft 9 ft 10 ft
Spray Diameter (C) 8 ft 9 ft 10 ft 10 ft
Number of Side Jets 4 4 5 5
LED Lights Included 6 6 7 7
Total LED Wattage 258 W 258 W 301 W 301 W
LED Amp Draw 3 A 3 A 3.5 A 3.5 A
Available Phase 1 Phase or 3 Phase 1 Phase or 3 Phase 3 Phase only 3 Phase only
1 Phase Voltage 230V 230V Not available Not available
3 Phase Voltage 208V or 230V
Display Head / Nozzle Warranty 4 yr
Pump and Motor Warranty 4 yr
LED Lighting Warranty 2 yr
Control Panel Warranty 1 yr
MultiGeyser combines a single tall center geyser with a ring of smaller side jets for a dense pyramid pattern that resists wind. LED kits sold separately at order time. 460V three-phase configurations available on request. Vertex fountains must be removed from water before freezing. Call (470) 354-1969 for sizing help.

Requirements & What to Know Before You Buy

  • Pond Depth: 6 ft minimum on the 10 HP, 7 ft on the 15 and 20 HP, and 8 ft on the 30 HP.
  • Pond Size: the MultiGeyser is sized for medium and large commercial water bodies. Smaller residential ponds should look at the TwoTier or TriTier instead.
  • Voltage and Phase Selection: 10 and 15 HP are available in 230V single-phase or three-phase. 20 and 30 HP are three-phase only. 208V and 460V three-phase configurations are available on request.
  • Dedicated Circuit: the included control panel needs a properly sized dedicated circuit. Confirm with a licensed electrician before install.
  • Mooring: commercial fountains need anchoring. You supply anchors or weights sized to the float and water body.
  • Cable Run: standard cord lengths are available; longer runs are an order-time option.
  • Winterization: Vertex fountains must be removed from water before freezing conditions.
  • Lighting: the suggested LED kit is 6 lights for the 10 and 15 HP and 7 for the 20 and 30 HP. Add at order time so the harness ships with the float.
  • Sizing Help: Call (470) 354-1969 with your pond surface area and depth and we will recommend the right motor size.

What's Included & Optional Add-Ons

  • Stainless Steel Turbine Pump - sealed submersible motor, water-cooled, self-lubricated
  • Rotocast Polypropylene Float - UV-inhibited, heavy-duty, low profile
  • MultiGeyser Display Head - tall center geyser plus ring of 4 or 5 frothy side jets
  • Stainless Steel Intake Screen - protects the impeller from debris
  • UL-Listed Control Panel - weatherproof steel NEMA enclosure with Class A GFCI
  • STW-A Rated Submersible Cable - sized to motor; ordered separately
  • Optional LED Lighting Kit - 6 fixtures (10/15 HP) or 7 fixtures (20/30 HP). 43 W each. Sold at order time.
  • Optional Custom Phase / Voltage - 208V or 460V three-phase on request
  • Optional Colored / Color-Changing LEDs - on request
  • Optional Wind Sensor / Remote / Multi-Unit Master Panel - on request
  • Warranty - 4 yr display head / pump / motor; 2 yr LED lights; 1 yr control panel

Vertex MultiGeyser Floating Fountain Specifications

Manufacturer Vertex Aquatic Solutions
Model MultiGeyser Floating Pond Fountain
Type Center geyser with surrounding side jets - dense wind-resistant pyramid display fountain
Motor Options 10 HP, 15 HP, 20 HP, 30 HP
Phase Options 230V single-phase or three-phase on 10 and 15 HP; three-phase only on 20 and 30 HP. 208V or 460V three-phase on request.
Frequency 60 Hz standard
Total Configurations 12 across HP, phase, and lighting
Spray Pattern Tall center geyser surrounded by 4 or 5 frothy side jets
Center Geyser Height 12 ft (10 HP) up to 22 ft (30 HP)
Side Jet Height 6 ft (10 HP) up to 10 ft (30 HP)
Spray Diameter 8 ft (10 HP) up to 10 ft (20/30 HP)
Minimum Pond Depth 6 ft (10 HP) up to 8 ft (30 HP)
Motor Construction Stainless steel submersible turbine
Float Construction Rotocast polypropylene with UV inhibitors, low profile
Power Cable STW-A rated for direct underwater use; sized to motor; ordered separately
Control Panel UL-listed in weatherproof steel NEMA enclosure with Class A GFCI
Optional LED Lighting 6 or 7 fixture kit depending on motor size; 43 W per fixture at 140 lumens/watt. Colored / color-changing on request.
Applications Commercial lakes, HOA waterways, corporate campuses, golf course water hazards, parks, exposed water bodies where wind resistance matters
Warranty (Display Head / Pump / Motor) 4 years
Warranty (LED Lighting) 2 years (excluding bulbs)
Warranty (Control Panel) 1 year
Winterization Must be removed from water before freezing conditions
Country of Origin Vertex Aquatic Solutions, USA



Manuals

View the MultiGeyser Product Sheet

View the MultiGeyser System Specifications

View the MultiGeyser Owner's Manual

Shipping/Returns

Shipping

  • Order confirmation is emailed after checkout.
  • Orders typically process within 1 to 2 business days.
  • Delivery times may vary depending on the product, shipping method, and delivery location.
  • A shipping confirmation with tracking details will be sent once your order ships.
  • Any damage or shortage claims must be reported within 24 hours of delivery. Please keep the original packaging until the claim is resolved.

Returns

  • Unused Vertex fountains are eligible for return within 60 days with prior return authorization.
  • All returns require approval before the item is sent back.
  • Returned items must be unused, in their original packaging, and in saleable condition.
  • Approved Vertex fountain returns are subject to a 25% restocking fee, and original shipping charges are non-refundable.
  • Warranty returns require authorization, the original sales receipt, and an explanation of the product issue.

Questions? Contact support@propondsupply.com or call (470) 354-1969.

Warranty

Warranty

  • Vertex Aquatic Solutions products are warranted to be free from defects in material and workmanship under normal use and service.
  • 4-year warranty: In-water fountain components, including the pump, motor, flotation, framework, nozzles, submersible cables, and similar fountain components.
  • 3-year warranty: Vertex compressor systems for defective parts.
  • 2-year warranty: Fountain lighting fixtures, excluding bulbs.
  • 1-year warranty: Fountain control panels.
  • 5-year warranty: AirStation diffuser assemblies.
  • 15-year warranty: BottomLine tubing.
  • Lifetime warranty: Compressor cabinets against rust.
  • Air filters and compressor maintenance kits are considered wearable parts and are not covered under standard warranty coverage.
  • Warranty claims must be made through an authorized Vertex dealer or directly through Vertex Aquatic Solutions.
  • Warranty claims may require product photos, warranty labels, compressor labels, and an overall photo of the system or damaged item.
  • Customers are responsible for return shipping when sending products in for warranty inspection.
  • If Vertex determines the issue is due to a manufacturing defect, the product may be repaired or replaced at no cost.
  • Warranty coverage may be void due to incorrect voltage, faulty installation, vandalism, negligence, water intrusion, cabinet painting, or other non-warranty failures.

Questions? Contact support@propondsupply.com or call (470) 354-1969.

★Reviews

Customer Reviews

Be the first to write a review
0%
(0)
0%
(0)
0%
(0)
0%
(0)
0%
(0)
NO SALES TAX

Orders outside Georgia are 100% sales tax-free

Give us a call

Free shipping on every order

Give us a call

Our team is available from 8 AM to 8 PM EST at (470) 354-1969

BEST PRICE GUARANTEE

If you find the same item for less, we’ll match it.

Overview

Throw a Dense Wind-Resistant Pyramid with the Vertex MultiGeyser Floating Fountain

The Vertex MultiGeyser Floating Fountain is a commercial-grade display fountain built around a single tall center geyser ringed by smaller frothy side jets. The combination produces a dense, fully aerated pyramid of active water - the most wind-resistant pattern in the Vertex commercial line. The frothy, highly aerated finish also catches LED light dramatically at night, which is why so many municipalities and HOAs spec the MultiGeyser for highly visible fountain locations.

Four motor sizes cover medium and large commercial water bodies: 10 HP, 15 HP, 20 HP, and 30 HP. Center geyser heights run 12 to 22 ft, with the surrounding 4 to 5 side jets reaching 6 to 10 ft. Spray diameters land between 8 and 10 ft across the line, making the MultiGeyser a balanced choice when you want both vertical drama and a wide visual base. Every unit ships on a sealed stainless steel submersible turbine pump, a UL-listed control panel, and the same rotocast polypropylene float used across the Vertex commercial line.

Pick 10, 15, 20, or 30 HP. 10 and 15 HP are available in single-phase 230V or three-phase 230V; 20 and 30 HP are three-phase only. 208V and 460V three-phase configurations are available on request. Optional LED light kits sized to motor (6 fixtures on 10/15 HP, 7 on 20/30 HP per the 2026 Vertex catalog) and submersible power cord lengths sold at order time. Free shipping on every MultiGeyser.

The Vertex MultiGeyser is a commercial floating fountain with a tall center geyser ringed by smaller side jets. Dense, frothy, wind-resistant. Four motor sizes from 10 HP to 30 HP. Center heights 12-22 ft, 8-10 ft diameter.

Stainless steel submersible turbine pump. UL-listed control panel. Rotocast polypropylene float. STW-A rated submersible cable. 4-year pump and motor warranty.

10 and 15 HP in single-phase or three-phase 230V. 20 and 30 HP are 3-phase only. Optional 6 or 7 LED kits and cord lengths sold at order time.

Free shipping on every Vertex MultiGeyser. Optional LED lighting kits and cord lengths available on request. Call (470) 354-1969.

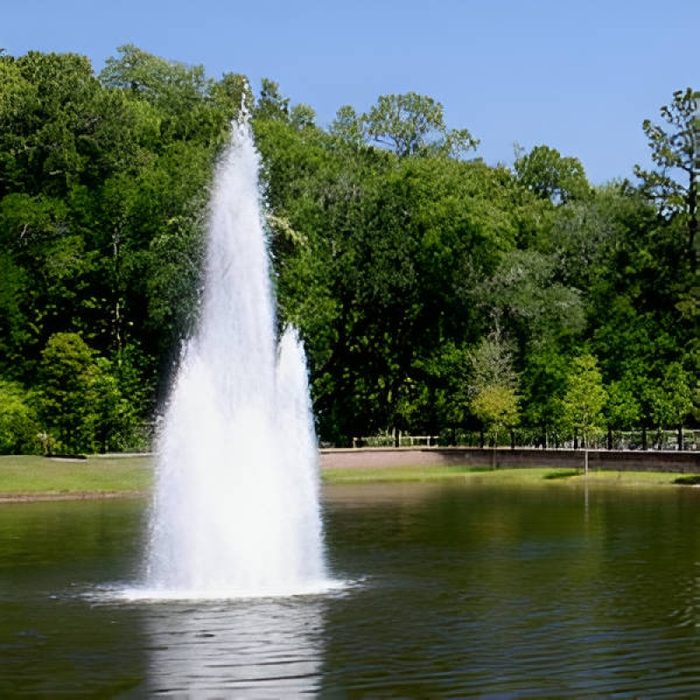

 Vertex MultiGeyser Floating Pond Fountain close-up on water

Why Choose the MultiGeyser by Vertex

Dense Wind-Resistant Pyramid Pattern A tall center geyser surrounded by 4 or 5 smaller side jets produces a thick, fully aerated pyramid of water. The dense pattern holds its shape in wind better than thinner jet patterns - the right pick for exposed water bodies. Highly Aerated Frothy Display Every jet is intentionally aerated for white, frothy visibility in daylight and dramatic lift on LED light at night. The MultiGeyser is one of the most photogenic patterns in the Vertex catalog. Four Motor Sizes 10 HP, 15 HP, 20 HP, and 30 HP. Center geyser heights 12-22 ft. Sized for medium to large commercial ponds, HOA lakes, golf course water hazards, and corporate campuses. Stainless Steel Turbine Pump Sealed submersible motor. Water-cooled with no oils, no seals, and no annual maintenance kits. Spring-loaded check valve for smooth operation at any angle. Lower lifetime cost than oil-cooled commercial fountains. UL-Listed Control Panel Weatherproof steel NEMA enclosure ships with every unit. Class A GFCI protection. Single or three-phase 230V on the 10/15 HP; three-phase only on the 20/30 HP. 208V or 460V three-phase configurations available on request. STW-A Rated Submersible Cable Power cable rated for direct underwater use. Sized to motor; custom cord lengths available at order time. Optional LED Lighting Sized to Motor 6 fixtures on the 10 and 15 HP, 7 fixtures on the 20 and 30 HP per the 2026 Vertex catalog. High-efficiency LEDs at 140 lumens/watt. Optional colored / color-changing LEDs available on request. Vertex Warranty Package 4-year warranty on the display head, pump, and motor. 2-year warranty on LED lighting (excluding bulbs). 1-year warranty on the control panel.

MultiGeyser Unit Comparison

10 HP Unit 15 HP Unit 20 HP Unit 30 HP Unit
Minimum Operating Depth 6 ft 7 ft 7 ft 8 ft
Center Height Spray (A) 12 ft 15 ft 18 ft 22 ft
Side Height Spray (B) 6 ft 8 ft 9 ft 10 ft
Spray Diameter (C) 8 ft 9 ft 10 ft 10 ft
Number of Side Jets 4 4 5 5
LED Lights Included 6 6 7 7
Total LED Wattage 258 W 258 W 301 W 301 W
LED Amp Draw 3 A 3 A 3.5 A 3.5 A
Available Phase 1 Phase or 3 Phase 1 Phase or 3 Phase 3 Phase only 3 Phase only
1 Phase Voltage 230V 230V Not available Not available
3 Phase Voltage 208V or 230V
Display Head / Nozzle Warranty 4 yr
Pump and Motor Warranty 4 yr
LED Lighting Warranty 2 yr
Control Panel Warranty 1 yr
MultiGeyser combines a single tall center geyser with a ring of smaller side jets for a dense pyramid pattern that resists wind. LED kits sold separately at order time. 460V three-phase configurations available on request. Vertex fountains must be removed from water before freezing. Call (470) 354-1969 for sizing help.

Requirements & What to Know Before You Buy

  • Pond Depth: 6 ft minimum on the 10 HP, 7 ft on the 15 and 20 HP, and 8 ft on the 30 HP.
  • Pond Size: the MultiGeyser is sized for medium and large commercial water bodies. Smaller residential ponds should look at the TwoTier or TriTier instead.
  • Voltage and Phase Selection: 10 and 15 HP are available in 230V single-phase or three-phase. 20 and 30 HP are three-phase only. 208V and 460V three-phase configurations are available on request.
  • Dedicated Circuit: the included control panel needs a properly sized dedicated circuit. Confirm with a licensed electrician before install.
  • Mooring: commercial fountains need anchoring. You supply anchors or weights sized to the float and water body.
  • Cable Run: standard cord lengths are available; longer runs are an order-time option.
  • Winterization: Vertex fountains must be removed from water before freezing conditions.
  • Lighting: the suggested LED kit is 6 lights for the 10 and 15 HP and 7 for the 20 and 30 HP. Add at order time so the harness ships with the float.
  • Sizing Help: Call (470) 354-1969 with your pond surface area and depth and we will recommend the right motor size.

What's Included & Optional Add-Ons

  • Stainless Steel Turbine Pump - sealed submersible motor, water-cooled, self-lubricated
  • Rotocast Polypropylene Float - UV-inhibited, heavy-duty, low profile
  • MultiGeyser Display Head - tall center geyser plus ring of 4 or 5 frothy side jets
  • Stainless Steel Intake Screen - protects the impeller from debris
  • UL-Listed Control Panel - weatherproof steel NEMA enclosure with Class A GFCI
  • STW-A Rated Submersible Cable - sized to motor; ordered separately
  • Optional LED Lighting Kit - 6 fixtures (10/15 HP) or 7 fixtures (20/30 HP). 43 W each. Sold at order time.
  • Optional Custom Phase / Voltage - 208V or 460V three-phase on request
  • Optional Colored / Color-Changing LEDs - on request
  • Optional Wind Sensor / Remote / Multi-Unit Master Panel - on request
  • Warranty - 4 yr display head / pump / motor; 2 yr LED lights; 1 yr control panel

Vertex MultiGeyser Floating Fountain Specifications

Manufacturer Vertex Aquatic Solutions
Model MultiGeyser Floating Pond Fountain
Type Center geyser with surrounding side jets - dense wind-resistant pyramid display fountain
Motor Options 10 HP, 15 HP, 20 HP, 30 HP
Phase Options 230V single-phase or three-phase on 10 and 15 HP; three-phase only on 20 and 30 HP. 208V or 460V three-phase on request.
Frequency 60 Hz standard
Total Configurations 12 across HP, phase, and lighting
Spray Pattern Tall center geyser surrounded by 4 or 5 frothy side jets
Center Geyser Height 12 ft (10 HP) up to 22 ft (30 HP)
Side Jet Height 6 ft (10 HP) up to 10 ft (30 HP)
Spray Diameter 8 ft (10 HP) up to 10 ft (20/30 HP)
Minimum Pond Depth 6 ft (10 HP) up to 8 ft (30 HP)
Motor Construction Stainless steel submersible turbine
Float Construction Rotocast polypropylene with UV inhibitors, low profile
Power Cable STW-A rated for direct underwater use; sized to motor; ordered separately
Control Panel UL-listed in weatherproof steel NEMA enclosure with Class A GFCI
Optional LED Lighting 6 or 7 fixture kit depending on motor size; 43 W per fixture at 140 lumens/watt. Colored / color-changing on request.
Applications Commercial lakes, HOA waterways, corporate campuses, golf course water hazards, parks, exposed water bodies where wind resistance matters
Warranty (Display Head / Pump / Motor) 4 years
Warranty (LED Lighting) 2 years (excluding bulbs)
Warranty (Control Panel) 1 year
Winterization Must be removed from water before freezing conditions
Country of Origin Vertex Aquatic Solutions, USA



Manuals

View the MultiGeyser Product Sheet

View the MultiGeyser System Specifications

View the MultiGeyser Owner's Manual

Shipping/Returns

Shipping

  • Order confirmation is emailed after checkout.
  • Orders typically process within 1 to 2 business days.
  • Delivery times may vary depending on the product, shipping method, and delivery location.
  • A shipping confirmation with tracking details will be sent once your order ships.
  • Any damage or shortage claims must be reported within 24 hours of delivery. Please keep the original packaging until the claim is resolved.

Returns

  • Unused Vertex fountains are eligible for return within 60 days with prior return authorization.
  • All returns require approval before the item is sent back.
  • Returned items must be unused, in their original packaging, and in saleable condition.
  • Approved Vertex fountain returns are subject to a 25% restocking fee, and original shipping charges are non-refundable.
  • Warranty returns require authorization, the original sales receipt, and an explanation of the product issue.

Questions? Contact support@propondsupply.com or call (470) 354-1969.

Warranty

Warranty

  • Vertex Aquatic Solutions products are warranted to be free from defects in material and workmanship under normal use and service.
  • 4-year warranty: In-water fountain components, including the pump, motor, flotation, framework, nozzles, submersible cables, and similar fountain components.
  • 3-year warranty: Vertex compressor systems for defective parts.
  • 2-year warranty: Fountain lighting fixtures, excluding bulbs.
  • 1-year warranty: Fountain control panels.
  • 5-year warranty: AirStation diffuser assemblies.
  • 15-year warranty: BottomLine tubing.
  • Lifetime warranty: Compressor cabinets against rust.
  • Air filters and compressor maintenance kits are considered wearable parts and are not covered under standard warranty coverage.
  • Warranty claims must be made through an authorized Vertex dealer or directly through Vertex Aquatic Solutions.
  • Warranty claims may require product photos, warranty labels, compressor labels, and an overall photo of the system or damaged item.
  • Customers are responsible for return shipping when sending products in for warranty inspection.
  • If Vertex determines the issue is due to a manufacturing defect, the product may be repaired or replaced at no cost.
  • Warranty coverage may be void due to incorrect voltage, faulty installation, vandalism, negligence, water intrusion, cabinet painting, or other non-warranty failures.

Questions? Contact support@propondsupply.com or call (470) 354-1969.

★Reviews

Customer Reviews

Be the first to write a review
0%
(0)
0%
(0)
0%
(0)
0%
(0)
0%
(0)
