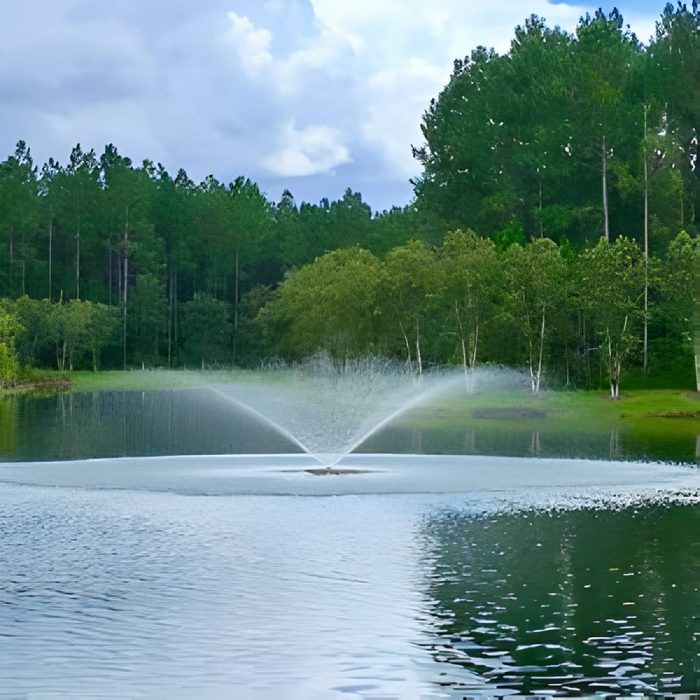

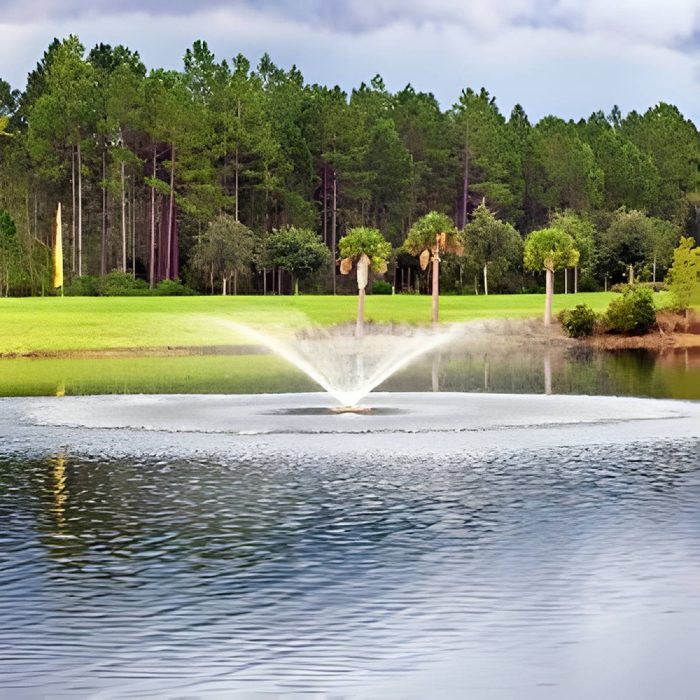

Vertex FunnelJet Floating Fountain Series On Water with Trees at the Background

Vertex FunnelJet Floating Pond Fountain

by Vertex Aquatic Solutions
SKU FUNNELJET-2-1P
$10,670.00
Made in the USA
No Sales Tax Outside Georgia
Free Delivery from U.S. Warehouses
Talk to a Specialist: (470) 354-1969
Better Price? Request a Wire Discount Bulk or Business Order? Get a Fast Custom Quote Veterans & First Responders Save
Free Shipping
Ships --
Arrives --

Notify me when back in stock

Vertex 4 year warranty trust badges Vertex 4 year warranty trust badges

Throw a Wide Funnel-Shaped Pattern with the Vertex FunnelJet Floating Fountain

The Vertex FunnelJet Floating Fountain is a commercial-grade display fountain that throws a wide, low funnel-shaped spray pattern. It has the largest spray diameter relative to height in the Vertex line - the 10 HP reaches just 9 ft tall but spreads 50 ft across the water surface. The funnel shape is dramatic, very photogenic, and ideal for shallow ponds and water bodies where height is limited but you still want a fountain that commands the whole surface.

Five motor sizes cover residential through large commercial water bodies: 2 HP, 3 HP, 5 HP, 7.5 HP, and 10 HP. Spray heights are modest at 6 to 9 ft, but spray diameters stretch from 25 ft (2 HP) all the way to 50 ft (10 HP). The 2 and 3 HP units fit ponds as shallow as 3 ft, making the FunnelJet one of the most versatile fountains in the Vertex catalog when pond depth is tight. Every unit ships on a sealed stainless steel submersible turbine pump, a UL-listed control panel, and the same rotocast polypropylene float used across the Vertex commercial line.

Pick 2, 3, 5, 7.5, or 10 HP. Every motor size is available in 230V single-phase or three-phase. 208V or 460V three-phase configurations are available on request. Optional LED light kits use 3 fixtures across all motor sizes per the 2026 Vertex catalog, with submersible power cord lengths sold at order time. Free shipping on every FunnelJet.

The Vertex FunnelJet is a commercial floating fountain with a wide, low funnel-shaped pattern. Largest spray diameter in the Vertex line relative to height - up to 50 ft wide. Five motor sizes from 2 HP to 10 HP. Heights 6-9 ft, diameters 25-50 ft.

Stainless steel submersible turbine pump. UL-listed control panel. Rotocast polypropylene float. STW-A rated submersible cable. 4-year pump and motor warranty.

Every motor in single-phase or three-phase 230V. Optional 3-light LED kit sized uniformly across the line, plus cord lengths sold at order time.

Free shipping on every Vertex FunnelJet. Optional LED lighting kits and cord lengths available on request. Call (470) 354-1969.

Vertex FunnelJet Floating Pond Fountain on water

Why Choose the FunnelJet by Vertex

Widest Diameter Per HP in the Vertex Line
The FunnelJet trades height for spread. A 5 HP throws 35 ft wide while staying just 8 ft tall, and the 10 HP stretches 50 ft across. No other Vertex pattern covers as much water surface for the same motor size.
Designed for Shallow Ponds
The 2 and 3 HP units run in just 3 ft of water - half what most commercial fountains require. Perfect for shallow HOA ponds, decorative landscape features, and water bodies where depth is limited but a wide visual spread matters.
Five Motor Sizes
2 HP, 3 HP, 5 HP, 7.5 HP, and 10 HP. Covers small residential ponds up through medium commercial water bodies.
Stainless Steel Turbine Pump
Sealed submersible motor. Water-cooled with no oils, no seals, and no annual maintenance kits. Spring-loaded check valve for smooth operation at any angle. Lower lifetime cost than oil-cooled commercial fountains.
UL-Listed Control Panel
Weatherproof steel NEMA enclosure ships with every unit. Class A GFCI protection. Every motor size is available in 230V single-phase or three-phase. 208V or 460V three-phase configurations available on request.
STW-A Rated Submersible Cable
Power cable rated for direct underwater use. Sized to motor; custom cord lengths available at order time.
Uniform LED Lighting Kit
All five motor sizes use the same 3-fixture LED kit per the 2026 Vertex catalog - simplifies ordering and replacement. High-efficiency LEDs at 140 lumens/watt. Optional colored / color-changing LEDs available on request.
Vertex Warranty Package
4-year warranty on the display head, pump, and motor. 2-year warranty on LED lighting (excluding bulbs). 1-year warranty on the control panel.

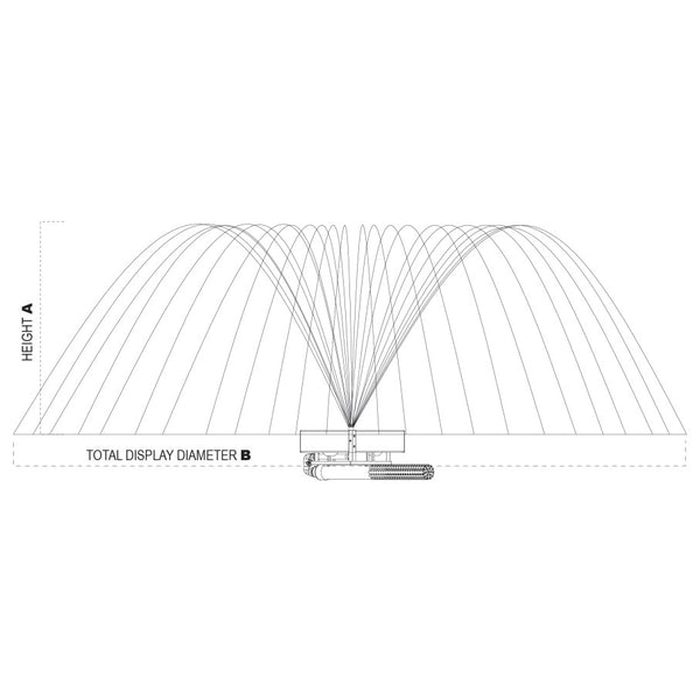

FunnelJet Unit Comparison

2 HP Unit 3 HP Unit 5 HP Unit 7.5 HP Unit 10 HP Unit
Minimum Operating Depth 3 ft 3 ft 4 ft 5 ft 6 ft
Spray Height (A) 6 ft 7 ft 8 ft 8 ft 9 ft
Spray Diameter (B) 25 ft 30 ft 35 ft 45 ft 50 ft
LED Lights Included 3
Total LED Wattage 86 W
LED Amp Draw 1 A
Available Phase 1 Phase or 3 Phase
1 Phase Voltage 230V
3 Phase Voltage 208V or 230V
Display Head / Nozzle Warranty 4 yr
Pump and Motor Warranty 4 yr
LED Lighting Warranty 2 yr
Control Panel Warranty 1 yr
FunnelJet produces a wide, low funnel-shaped pattern - the largest spray diameter relative to height in the Vertex line. LED kits sold separately at order time. 460V three-phase configurations available on request. Vertex fountains must be removed from water before freezing. Call (470) 354-1969 for sizing help.

Requirements & What to Know Before You Buy

  • Pond Depth: 3 ft minimum on the 2 and 3 HP, 4 ft on the 5 HP, 5 ft on the 7.5 HP, and 6 ft on the 10 HP.
  • Pond Size: FunnelJet has a wide footprint - 25 to 50 ft diameter - so it needs open water around it. Confirm you have at least 25 ft of clearance to any shoreline on each side of the fountain when running larger motor sizes.
  • Voltage and Phase Selection: every motor size is available in 230V single-phase or three-phase. 208V and 460V three-phase configurations are available on request.
  • Dedicated Circuit: the included control panel needs a properly sized dedicated circuit. Confirm with a licensed electrician before install.
  • Mooring: commercial fountains need anchoring. You supply anchors or weights sized to the float and water body.
  • Cable Run: standard cord lengths are available; longer runs are an order-time option.
  • Winterization: Vertex fountains must be removed from water before freezing conditions.
  • Lighting: the suggested LED kit is 3 lights for every motor size. Add at order time so the harness ships with the float.
  • Sizing Help: Call (470) 354-1969 with your pond surface area and depth and we will recommend the right motor size.

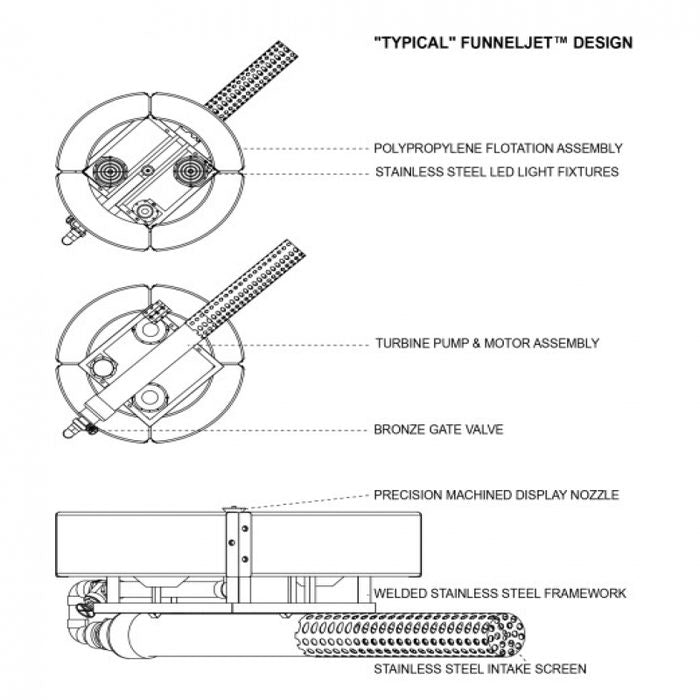

What's Included & Optional Add-Ons

  • Stainless Steel Turbine Pump - sealed submersible motor, water-cooled, self-lubricated
  • Rotocast Polypropylene Float - UV-inhibited, heavy-duty, low profile
  • FunnelJet Display Head - wide, low funnel-shaped spray pattern
  • Stainless Steel Intake Screen - protects the impeller from debris
  • UL-Listed Control Panel - weatherproof steel NEMA enclosure with Class A GFCI
  • STW-A Rated Submersible Cable - sized to motor; ordered separately
  • Optional LED Lighting Kit - 3 fixtures on every motor size. 43 W each. Sold at order time.
  • Optional Custom Phase / Voltage - 208V or 460V three-phase on request
  • Optional Colored / Color-Changing LEDs - on request
  • Optional Wind Sensor / Remote / Multi-Unit Master Panel - on request
  • Warranty - 4 yr display head / pump / motor; 2 yr LED lights; 1 yr control panel

Vertex FunnelJet Floating Fountain Specifications

Manufacturer Vertex Aquatic Solutions
Model FunnelJet Floating Pond Fountain
Type Wide, low funnel-shaped display fountain - largest diameter per HP in the Vertex line
Motor Options 2 HP, 3 HP, 5 HP, 7.5 HP, 10 HP
Phase Options 230V single-phase or three-phase on every motor size. 208V or 460V three-phase on request.
Frequency 60 Hz standard
Total Configurations 20 across HP, phase, and lighting
Spray Pattern Wide funnel - low height, broad diameter
Spray Height 6 ft (2 HP) up to 9 ft (10 HP)
Spray Diameter 25 ft (2 HP) up to 50 ft (10 HP)
Minimum Pond Depth 3 ft (2/3 HP) up to 6 ft (10 HP)
Motor Construction Stainless steel submersible turbine
Float Construction Rotocast polypropylene with UV inhibitors, low profile
Power Cable STW-A rated for direct underwater use; sized to motor; ordered separately
Control Panel UL-listed in weatherproof steel NEMA enclosure with Class A GFCI
Optional LED Lighting 3-fixture kit across all motor sizes; 43 W per fixture at 140 lumens/watt. Colored / color-changing on request.
Applications Shallow ponds, HOA water features, landscape ponds, golf course water hazards, parks, commercial campuses where a wide low pattern is preferred over a tall narrow one
Warranty (Display Head / Pump / Motor) 4 years
Warranty (LED Lighting) 2 years (excluding bulbs)
Warranty (Control Panel) 1 year
Winterization Must be removed from water before freezing conditions
Country of Origin Vertex Aquatic Solutions, USA



Manuals

View the FunnelJet Product Sheet

View the FunnelJet System Specifications

View the FunnelJet Owner's Manual

Overview

Throw a Wide Funnel-Shaped Pattern with the Vertex FunnelJet Floating Fountain

The Vertex FunnelJet Floating Fountain is a commercial-grade display fountain that throws a wide, low funnel-shaped spray pattern. It has the largest spray diameter relative to height in the Vertex line - the 10 HP reaches just 9 ft tall but spreads 50 ft across the water surface. The funnel shape is dramatic, very photogenic, and ideal for shallow ponds and water bodies where height is limited but you still want a fountain that commands the whole surface.

Five motor sizes cover residential through large commercial water bodies: 2 HP, 3 HP, 5 HP, 7.5 HP, and 10 HP. Spray heights are modest at 6 to 9 ft, but spray diameters stretch from 25 ft (2 HP) all the way to 50 ft (10 HP). The 2 and 3 HP units fit ponds as shallow as 3 ft, making the FunnelJet one of the most versatile fountains in the Vertex catalog when pond depth is tight. Every unit ships on a sealed stainless steel submersible turbine pump, a UL-listed control panel, and the same rotocast polypropylene float used across the Vertex commercial line.

Pick 2, 3, 5, 7.5, or 10 HP. Every motor size is available in 230V single-phase or three-phase. 208V or 460V three-phase configurations are available on request. Optional LED light kits use 3 fixtures across all motor sizes per the 2026 Vertex catalog, with submersible power cord lengths sold at order time. Free shipping on every FunnelJet.

The Vertex FunnelJet is a commercial floating fountain with a wide, low funnel-shaped pattern. Largest spray diameter in the Vertex line relative to height - up to 50 ft wide. Five motor sizes from 2 HP to 10 HP. Heights 6-9 ft, diameters 25-50 ft.

Stainless steel submersible turbine pump. UL-listed control panel. Rotocast polypropylene float. STW-A rated submersible cable. 4-year pump and motor warranty.

Every motor in single-phase or three-phase 230V. Optional 3-light LED kit sized uniformly across the line, plus cord lengths sold at order time.

Free shipping on every Vertex FunnelJet. Optional LED lighting kits and cord lengths available on request. Call (470) 354-1969.

 Vertex FunnelJet Floating Pond Fountain on water

Why Choose the FunnelJet by Vertex

Widest Diameter Per HP in the Vertex Line The FunnelJet trades height for spread. A 5 HP throws 35 ft wide while staying just 8 ft tall, and the 10 HP stretches 50 ft across. No other Vertex pattern covers as much water surface for the same motor size. Designed for Shallow Ponds The 2 and 3 HP units run in just 3 ft of water - half what most commercial fountains require. Perfect for shallow HOA ponds, decorative landscape features, and water bodies where depth is limited but a wide visual spread matters. Five Motor Sizes 2 HP, 3 HP, 5 HP, 7.5 HP, and 10 HP. Covers small residential ponds up through medium commercial water bodies. Stainless Steel Turbine Pump Sealed submersible motor. Water-cooled with no oils, no seals, and no annual maintenance kits. Spring-loaded check valve for smooth operation at any angle. Lower lifetime cost than oil-cooled commercial fountains. UL-Listed Control Panel Weatherproof steel NEMA enclosure ships with every unit. Class A GFCI protection. Every motor size is available in 230V single-phase or three-phase. 208V or 460V three-phase configurations available on request. STW-A Rated Submersible Cable Power cable rated for direct underwater use. Sized to motor; custom cord lengths available at order time. Uniform LED Lighting Kit All five motor sizes use the same 3-fixture LED kit per the 2026 Vertex catalog - simplifies ordering and replacement. High-efficiency LEDs at 140 lumens/watt. Optional colored / color-changing LEDs available on request. Vertex Warranty Package 4-year warranty on the display head, pump, and motor. 2-year warranty on LED lighting (excluding bulbs). 1-year warranty on the control panel.

FunnelJet Unit Comparison

2 HP Unit 3 HP Unit 5 HP Unit 7.5 HP Unit 10 HP Unit
Minimum Operating Depth 3 ft 3 ft 4 ft 5 ft 6 ft
Spray Height (A) 6 ft 7 ft 8 ft 8 ft 9 ft
Spray Diameter (B) 25 ft 30 ft 35 ft 45 ft 50 ft
LED Lights Included 3
Total LED Wattage 86 W
LED Amp Draw 1 A
Available Phase 1 Phase or 3 Phase
1 Phase Voltage 230V
3 Phase Voltage 208V or 230V
Display Head / Nozzle Warranty 4 yr
Pump and Motor Warranty 4 yr
LED Lighting Warranty 2 yr
Control Panel Warranty 1 yr
FunnelJet produces a wide, low funnel-shaped pattern - the largest spray diameter relative to height in the Vertex line. LED kits sold separately at order time. 460V three-phase configurations available on request. Vertex fountains must be removed from water before freezing. Call (470) 354-1969 for sizing help.

Requirements & What to Know Before You Buy

  • Pond Depth: 3 ft minimum on the 2 and 3 HP, 4 ft on the 5 HP, 5 ft on the 7.5 HP, and 6 ft on the 10 HP.
  • Pond Size: FunnelJet has a wide footprint - 25 to 50 ft diameter - so it needs open water around it. Confirm you have at least 25 ft of clearance to any shoreline on each side of the fountain when running larger motor sizes.
  • Voltage and Phase Selection: every motor size is available in 230V single-phase or three-phase. 208V and 460V three-phase configurations are available on request.
  • Dedicated Circuit: the included control panel needs a properly sized dedicated circuit. Confirm with a licensed electrician before install.
  • Mooring: commercial fountains need anchoring. You supply anchors or weights sized to the float and water body.
  • Cable Run: standard cord lengths are available; longer runs are an order-time option.
  • Winterization: Vertex fountains must be removed from water before freezing conditions.
  • Lighting: the suggested LED kit is 3 lights for every motor size. Add at order time so the harness ships with the float.
  • Sizing Help: Call (470) 354-1969 with your pond surface area and depth and we will recommend the right motor size.

What's Included & Optional Add-Ons

  • Stainless Steel Turbine Pump - sealed submersible motor, water-cooled, self-lubricated
  • Rotocast Polypropylene Float - UV-inhibited, heavy-duty, low profile
  • FunnelJet Display Head - wide, low funnel-shaped spray pattern
  • Stainless Steel Intake Screen - protects the impeller from debris
  • UL-Listed Control Panel - weatherproof steel NEMA enclosure with Class A GFCI
  • STW-A Rated Submersible Cable - sized to motor; ordered separately
  • Optional LED Lighting Kit - 3 fixtures on every motor size. 43 W each. Sold at order time.
  • Optional Custom Phase / Voltage - 208V or 460V three-phase on request
  • Optional Colored / Color-Changing LEDs - on request
  • Optional Wind Sensor / Remote / Multi-Unit Master Panel - on request
  • Warranty - 4 yr display head / pump / motor; 2 yr LED lights; 1 yr control panel

Vertex FunnelJet Floating Fountain Specifications

Manufacturer Vertex Aquatic Solutions
Model FunnelJet Floating Pond Fountain
Type Wide, low funnel-shaped display fountain - largest diameter per HP in the Vertex line
Motor Options 2 HP, 3 HP, 5 HP, 7.5 HP, 10 HP
Phase Options 230V single-phase or three-phase on every motor size. 208V or 460V three-phase on request.
Frequency 60 Hz standard
Total Configurations 20 across HP, phase, and lighting
Spray Pattern Wide funnel - low height, broad diameter
Spray Height 6 ft (2 HP) up to 9 ft (10 HP)
Spray Diameter 25 ft (2 HP) up to 50 ft (10 HP)
Minimum Pond Depth 3 ft (2/3 HP) up to 6 ft (10 HP)
Motor Construction Stainless steel submersible turbine
Float Construction Rotocast polypropylene with UV inhibitors, low profile
Power Cable STW-A rated for direct underwater use; sized to motor; ordered separately
Control Panel UL-listed in weatherproof steel NEMA enclosure with Class A GFCI
Optional LED Lighting 3-fixture kit across all motor sizes; 43 W per fixture at 140 lumens/watt. Colored / color-changing on request.
Applications Shallow ponds, HOA water features, landscape ponds, golf course water hazards, parks, commercial campuses where a wide low pattern is preferred over a tall narrow one
Warranty (Display Head / Pump / Motor) 4 years
Warranty (LED Lighting) 2 years (excluding bulbs)
Warranty (Control Panel) 1 year
Winterization Must be removed from water before freezing conditions
Country of Origin Vertex Aquatic Solutions, USA



Manuals

View the FunnelJet Product Sheet

View the FunnelJet System Specifications

View the FunnelJet Owner's Manual

Shipping/Returns

Shipping

  • Order confirmation is emailed after checkout.
  • Orders typically process within 1 to 2 business days.
  • Delivery times may vary depending on the product, shipping method, and delivery location.
  • A shipping confirmation with tracking details will be sent once your order ships.
  • Any damage or shortage claims must be reported within 24 hours of delivery. Please keep the original packaging until the claim is resolved.

Returns

  • Unused Vertex fountains are eligible for return within 60 days with prior return authorization.
  • All returns require approval before the item is sent back.
  • Returned items must be unused, in their original packaging, and in saleable condition.
  • Approved Vertex fountain returns are subject to a 25% restocking fee, and original shipping charges are non-refundable.
  • Warranty returns require authorization, the original sales receipt, and an explanation of the product issue.

Questions? Contact support@propondsupply.com or call (470) 354-1969.

Warranty

Warranty

  • Vertex Aquatic Solutions products are warranted to be free from defects in material and workmanship under normal use and service.
  • 4-year warranty: In-water fountain components, including the pump, motor, flotation, framework, nozzles, submersible cables, and similar fountain components.
  • 3-year warranty: Vertex compressor systems for defective parts.
  • 2-year warranty: Fountain lighting fixtures, excluding bulbs.
  • 1-year warranty: Fountain control panels.
  • 5-year warranty: AirStation diffuser assemblies.
  • 15-year warranty: BottomLine tubing.
  • Lifetime warranty: Compressor cabinets against rust.
  • Air filters and compressor maintenance kits are considered wearable parts and are not covered under standard warranty coverage.
  • Warranty claims must be made through an authorized Vertex dealer or directly through Vertex Aquatic Solutions.
  • Warranty claims may require product photos, warranty labels, compressor labels, and an overall photo of the system or damaged item.
  • Customers are responsible for return shipping when sending products in for warranty inspection.
  • If Vertex determines the issue is due to a manufacturing defect, the product may be repaired or replaced at no cost.
  • Warranty coverage may be void due to incorrect voltage, faulty installation, vandalism, negligence, water intrusion, cabinet painting, or other non-warranty failures.

Questions? Contact support@propondsupply.com or call (470) 354-1969.

★Reviews

Customer Reviews

Be the first to write a review
0%
(0)
0%
(0)
0%
(0)
0%
(0)
0%
(0)
NO SALES TAX

Orders outside Georgia are 100% sales tax-free

Give us a call

Free shipping on every order

Give us a call

Our team is available from 8 AM to 8 PM EST at (470) 354-1969

BEST PRICE GUARANTEE

If you find the same item for less, we’ll match it.

Overview

Throw a Wide Funnel-Shaped Pattern with the Vertex FunnelJet Floating Fountain

The Vertex FunnelJet Floating Fountain is a commercial-grade display fountain that throws a wide, low funnel-shaped spray pattern. It has the largest spray diameter relative to height in the Vertex line - the 10 HP reaches just 9 ft tall but spreads 50 ft across the water surface. The funnel shape is dramatic, very photogenic, and ideal for shallow ponds and water bodies where height is limited but you still want a fountain that commands the whole surface.

Five motor sizes cover residential through large commercial water bodies: 2 HP, 3 HP, 5 HP, 7.5 HP, and 10 HP. Spray heights are modest at 6 to 9 ft, but spray diameters stretch from 25 ft (2 HP) all the way to 50 ft (10 HP). The 2 and 3 HP units fit ponds as shallow as 3 ft, making the FunnelJet one of the most versatile fountains in the Vertex catalog when pond depth is tight. Every unit ships on a sealed stainless steel submersible turbine pump, a UL-listed control panel, and the same rotocast polypropylene float used across the Vertex commercial line.

Pick 2, 3, 5, 7.5, or 10 HP. Every motor size is available in 230V single-phase or three-phase. 208V or 460V three-phase configurations are available on request. Optional LED light kits use 3 fixtures across all motor sizes per the 2026 Vertex catalog, with submersible power cord lengths sold at order time. Free shipping on every FunnelJet.

The Vertex FunnelJet is a commercial floating fountain with a wide, low funnel-shaped pattern. Largest spray diameter in the Vertex line relative to height - up to 50 ft wide. Five motor sizes from 2 HP to 10 HP. Heights 6-9 ft, diameters 25-50 ft.

Stainless steel submersible turbine pump. UL-listed control panel. Rotocast polypropylene float. STW-A rated submersible cable. 4-year pump and motor warranty.

Every motor in single-phase or three-phase 230V. Optional 3-light LED kit sized uniformly across the line, plus cord lengths sold at order time.

Free shipping on every Vertex FunnelJet. Optional LED lighting kits and cord lengths available on request. Call (470) 354-1969.

 Vertex FunnelJet Floating Pond Fountain on water

Why Choose the FunnelJet by Vertex

Widest Diameter Per HP in the Vertex Line The FunnelJet trades height for spread. A 5 HP throws 35 ft wide while staying just 8 ft tall, and the 10 HP stretches 50 ft across. No other Vertex pattern covers as much water surface for the same motor size. Designed for Shallow Ponds The 2 and 3 HP units run in just 3 ft of water - half what most commercial fountains require. Perfect for shallow HOA ponds, decorative landscape features, and water bodies where depth is limited but a wide visual spread matters. Five Motor Sizes 2 HP, 3 HP, 5 HP, 7.5 HP, and 10 HP. Covers small residential ponds up through medium commercial water bodies. Stainless Steel Turbine Pump Sealed submersible motor. Water-cooled with no oils, no seals, and no annual maintenance kits. Spring-loaded check valve for smooth operation at any angle. Lower lifetime cost than oil-cooled commercial fountains. UL-Listed Control Panel Weatherproof steel NEMA enclosure ships with every unit. Class A GFCI protection. Every motor size is available in 230V single-phase or three-phase. 208V or 460V three-phase configurations available on request. STW-A Rated Submersible Cable Power cable rated for direct underwater use. Sized to motor; custom cord lengths available at order time. Uniform LED Lighting Kit All five motor sizes use the same 3-fixture LED kit per the 2026 Vertex catalog - simplifies ordering and replacement. High-efficiency LEDs at 140 lumens/watt. Optional colored / color-changing LEDs available on request. Vertex Warranty Package 4-year warranty on the display head, pump, and motor. 2-year warranty on LED lighting (excluding bulbs). 1-year warranty on the control panel.

FunnelJet Unit Comparison

2 HP Unit 3 HP Unit 5 HP Unit 7.5 HP Unit 10 HP Unit
Minimum Operating Depth 3 ft 3 ft 4 ft 5 ft 6 ft
Spray Height (A) 6 ft 7 ft 8 ft 8 ft 9 ft
Spray Diameter (B) 25 ft 30 ft 35 ft 45 ft 50 ft
LED Lights Included 3
Total LED Wattage 86 W
LED Amp Draw 1 A
Available Phase 1 Phase or 3 Phase
1 Phase Voltage 230V
3 Phase Voltage 208V or 230V
Display Head / Nozzle Warranty 4 yr
Pump and Motor Warranty 4 yr
LED Lighting Warranty 2 yr
Control Panel Warranty 1 yr
FunnelJet produces a wide, low funnel-shaped pattern - the largest spray diameter relative to height in the Vertex line. LED kits sold separately at order time. 460V three-phase configurations available on request. Vertex fountains must be removed from water before freezing. Call (470) 354-1969 for sizing help.

Requirements & What to Know Before You Buy

  • Pond Depth: 3 ft minimum on the 2 and 3 HP, 4 ft on the 5 HP, 5 ft on the 7.5 HP, and 6 ft on the 10 HP.
  • Pond Size: FunnelJet has a wide footprint - 25 to 50 ft diameter - so it needs open water around it. Confirm you have at least 25 ft of clearance to any shoreline on each side of the fountain when running larger motor sizes.
  • Voltage and Phase Selection: every motor size is available in 230V single-phase or three-phase. 208V and 460V three-phase configurations are available on request.
  • Dedicated Circuit: the included control panel needs a properly sized dedicated circuit. Confirm with a licensed electrician before install.
  • Mooring: commercial fountains need anchoring. You supply anchors or weights sized to the float and water body.
  • Cable Run: standard cord lengths are available; longer runs are an order-time option.
  • Winterization: Vertex fountains must be removed from water before freezing conditions.
  • Lighting: the suggested LED kit is 3 lights for every motor size. Add at order time so the harness ships with the float.
  • Sizing Help: Call (470) 354-1969 with your pond surface area and depth and we will recommend the right motor size.

What's Included & Optional Add-Ons

  • Stainless Steel Turbine Pump - sealed submersible motor, water-cooled, self-lubricated
  • Rotocast Polypropylene Float - UV-inhibited, heavy-duty, low profile
  • FunnelJet Display Head - wide, low funnel-shaped spray pattern
  • Stainless Steel Intake Screen - protects the impeller from debris
  • UL-Listed Control Panel - weatherproof steel NEMA enclosure with Class A GFCI
  • STW-A Rated Submersible Cable - sized to motor; ordered separately
  • Optional LED Lighting Kit - 3 fixtures on every motor size. 43 W each. Sold at order time.
  • Optional Custom Phase / Voltage - 208V or 460V three-phase on request
  • Optional Colored / Color-Changing LEDs - on request
  • Optional Wind Sensor / Remote / Multi-Unit Master Panel - on request
  • Warranty - 4 yr display head / pump / motor; 2 yr LED lights; 1 yr control panel

Vertex FunnelJet Floating Fountain Specifications

Manufacturer Vertex Aquatic Solutions
Model FunnelJet Floating Pond Fountain
Type Wide, low funnel-shaped display fountain - largest diameter per HP in the Vertex line
Motor Options 2 HP, 3 HP, 5 HP, 7.5 HP, 10 HP
Phase Options 230V single-phase or three-phase on every motor size. 208V or 460V three-phase on request.
Frequency 60 Hz standard
Total Configurations 20 across HP, phase, and lighting
Spray Pattern Wide funnel - low height, broad diameter
Spray Height 6 ft (2 HP) up to 9 ft (10 HP)
Spray Diameter 25 ft (2 HP) up to 50 ft (10 HP)
Minimum Pond Depth 3 ft (2/3 HP) up to 6 ft (10 HP)
Motor Construction Stainless steel submersible turbine
Float Construction Rotocast polypropylene with UV inhibitors, low profile
Power Cable STW-A rated for direct underwater use; sized to motor; ordered separately
Control Panel UL-listed in weatherproof steel NEMA enclosure with Class A GFCI
Optional LED Lighting 3-fixture kit across all motor sizes; 43 W per fixture at 140 lumens/watt. Colored / color-changing on request.
Applications Shallow ponds, HOA water features, landscape ponds, golf course water hazards, parks, commercial campuses where a wide low pattern is preferred over a tall narrow one
Warranty (Display Head / Pump / Motor) 4 years
Warranty (LED Lighting) 2 years (excluding bulbs)
Warranty (Control Panel) 1 year
Winterization Must be removed from water before freezing conditions
Country of Origin Vertex Aquatic Solutions, USA



Manuals

View the FunnelJet Product Sheet

View the FunnelJet System Specifications

View the FunnelJet Owner's Manual

Shipping/Returns

Shipping

  • Order confirmation is emailed after checkout.
  • Orders typically process within 1 to 2 business days.
  • Delivery times may vary depending on the product, shipping method, and delivery location.
  • A shipping confirmation with tracking details will be sent once your order ships.
  • Any damage or shortage claims must be reported within 24 hours of delivery. Please keep the original packaging until the claim is resolved.

Returns

  • Unused Vertex fountains are eligible for return within 60 days with prior return authorization.
  • All returns require approval before the item is sent back.
  • Returned items must be unused, in their original packaging, and in saleable condition.
  • Approved Vertex fountain returns are subject to a 25% restocking fee, and original shipping charges are non-refundable.
  • Warranty returns require authorization, the original sales receipt, and an explanation of the product issue.

Questions? Contact support@propondsupply.com or call (470) 354-1969.

Warranty

Warranty

  • Vertex Aquatic Solutions products are warranted to be free from defects in material and workmanship under normal use and service.
  • 4-year warranty: In-water fountain components, including the pump, motor, flotation, framework, nozzles, submersible cables, and similar fountain components.
  • 3-year warranty: Vertex compressor systems for defective parts.
  • 2-year warranty: Fountain lighting fixtures, excluding bulbs.
  • 1-year warranty: Fountain control panels.
  • 5-year warranty: AirStation diffuser assemblies.
  • 15-year warranty: BottomLine tubing.
  • Lifetime warranty: Compressor cabinets against rust.
  • Air filters and compressor maintenance kits are considered wearable parts and are not covered under standard warranty coverage.
  • Warranty claims must be made through an authorized Vertex dealer or directly through Vertex Aquatic Solutions.
  • Warranty claims may require product photos, warranty labels, compressor labels, and an overall photo of the system or damaged item.
  • Customers are responsible for return shipping when sending products in for warranty inspection.
  • If Vertex determines the issue is due to a manufacturing defect, the product may be repaired or replaced at no cost.
  • Warranty coverage may be void due to incorrect voltage, faulty installation, vandalism, negligence, water intrusion, cabinet painting, or other non-warranty failures.

Questions? Contact support@propondsupply.com or call (470) 354-1969.

★Reviews

Customer Reviews

Be the first to write a review
0%
(0)
0%
(0)
0%
(0)
0%
(0)
0%
(0)
