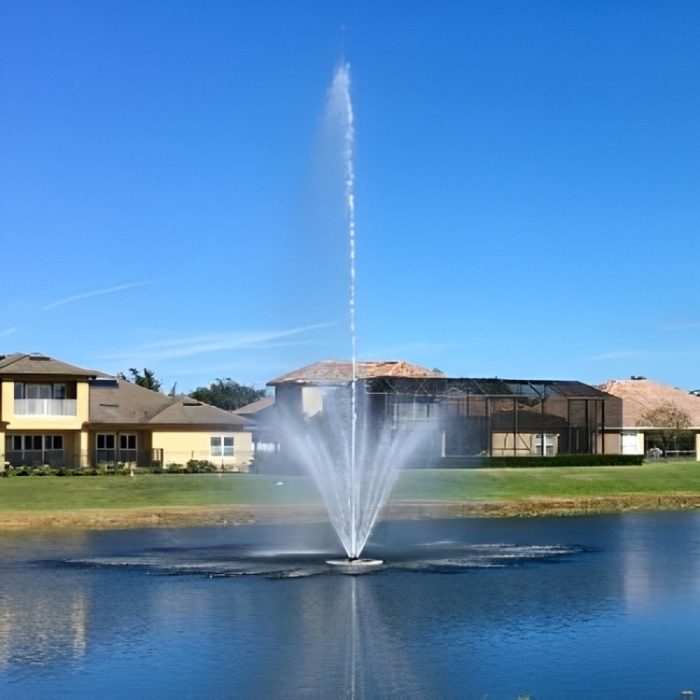

Vertex Vertical TwoTier Fountain On Blue Water with Houses at the Background

Vertex Vertical TwoTier Pond Fountain

by Vertex Aquatic Solutions
SKU VTT-2-1P
$9,450.00
Made in the USA
No Sales Tax Outside Georgia
Free Delivery from U.S. Warehouses
Talk to a Specialist: (470) 354-1969
Better Price? Request a Wire Discount Bulk or Business Order? Get a Fast Custom Quote Veterans & First Responders Save
Free Shipping
Ships --
Arrives --

Notify me when back in stock

Vertex 4 year warranty trust badges Vertex 4 year warranty trust badges

Anchor Your Pond with the Compact, Vertical Vertex Vertical TwoTier

The Vertex Vertical TwoTier Pond Fountain is part of Vertex's Vertical Series - a compact, narrow two-tier display that stays in a tight column instead of spreading out across the water. Elegant floral side jets ascend and expand from the discharge head, giving you a focused vertical pattern that reads beautifully in smaller ponds or in tight installations where a wider Standard TwoTier would feel oversized.

Three motor sizes cover small to mid-sized ponds: 2 HP, 3 HP, and 5 HP. Every unit needs at least 6.5 ft of water under it to operate, so the Vertical TwoTier is a fit for residential ponds, formal gardens, and any installation where you'd rather have a focused vertical display than a wide horizontal one. The fountain runs on a sealed stainless steel turbine pump, ships with a UL-listed Class A GFCI-protected control panel, and is built on the same rotocast polyethylene float and stainless / brass machined nozzles used across the Vertex commercial line.

Pick 2, 3, or 5 HP. Single-phase or three-phase 230V is standard on every motor; 208V or 460V three-phase configurations are available on request. Optional Stainless Steel LED light kits (sized to motor per the 2026 Vertex catalog) and submersible power cord lengths are sold at order time. The Vertical TwoTier ships with 4-year coverage on display heads, pumps, and motors; 2 years on LED lighting; and 1 year on the control panel. Free shipping on every Vertical TwoTier.

The Vertex Vertical TwoTier is a compact, focused two-tier vertical display fountain for small and mid-sized ponds. 2, 3, or 5 HP. Tight column pattern with elegant floral side jets - no wide horizontal spread.

Stainless steel turbine pump. UL-listed Class A GFCI control panel. Rotocast polyethylene float. Stainless steel / brass machined nozzles. Requires at least 6.5 ft of water depth.

Standard single-phase or three-phase 230V on every motor size. 208V / 460V three-phase available on request. Optional CREE-chip stainless steel LED light kits and cord lengths sold at order time.

Free shipping on every Vertex Vertical TwoTier. Optional LED lighting kits and cord lengths available on request. Call (470) 354-1969.

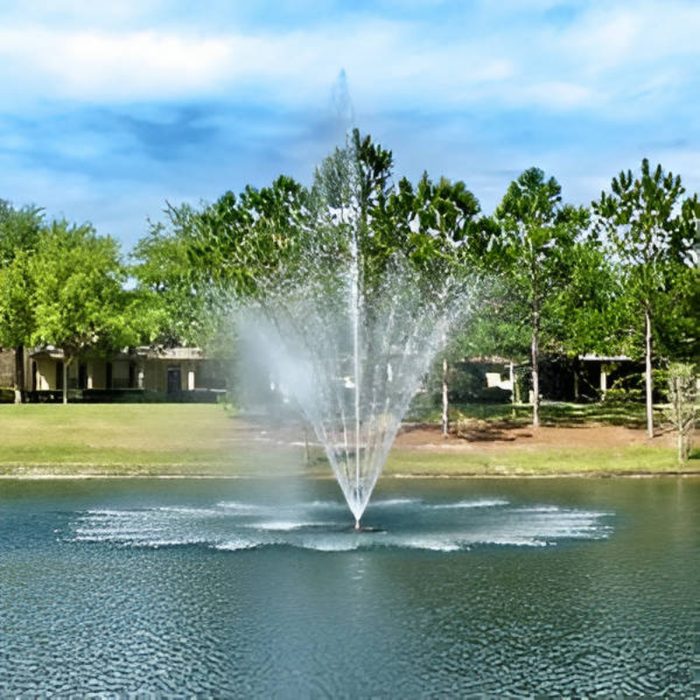

Vertex Vertical TwoTier Pond Fountain on water with trees in the background

Why Choose the Vertical TwoTier by Vertex

Compact Vertical Display Pattern
Tight column pattern with elegant floral side jets that ascend and expand. Narrower than the Standard TwoTier - the right look for small or mid-sized ponds where a wider spread would feel oversized.
Three Motor Sizes
2 HP, 3 HP, and 5 HP. Smaller residential and formal-garden ponds. Pick the HP based on the vertical scale you want; spray heights range from 18 ft (2 HP) up to 26 ft (5 HP).
6.5 ft Minimum Depth Across All Sizes
Every Vertical TwoTier needs at least 6.5 ft of water under it. The compact vertical design sits deeper in the water than the Standard TwoTier, so you need enough depth to clear the intake.
Stainless Steel Turbine Pump
Water-cooled, self-lubricated, no oils or O-rings to replace. Brass and stainless steel precision machined nozzles for clean spray patterns and long-term corrosion resistance.
UL-Listed Class A GFCI Control Panel
Every unit ships with a UL-listed control panel in a weatherproof steel NEMA enclosure. Class A GFCI protection on every model. 208V and 460V three-phase configurations available on request.
Optional Stainless Steel CREE LED Lighting
CREE-chip LED kits sized to each motor (2 lights for 2 HP and 3 HP, 3 lights for 5 HP). Stainless steel construction for marine-grade durability. Sold at order time.

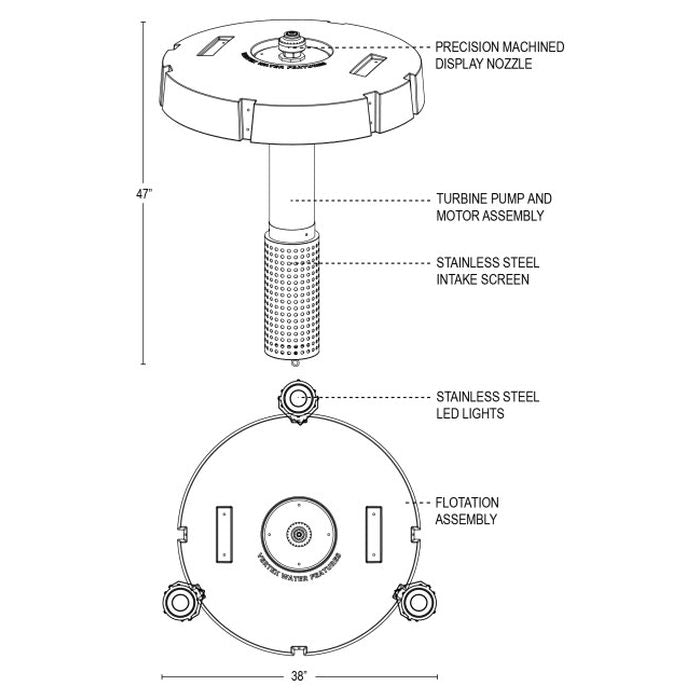

Self-Leveling Float Design
Quicker installations and a smaller footprint. Lower weight than the Standard TwoTier reduces freight costs and makes the unit easier to handle during install.
Vertex Warranty Package
4-year warranty on display heads, pumps, and motors. 2-year warranty on LED lighting (excluding bulbs). 1-year warranty on the control panel.

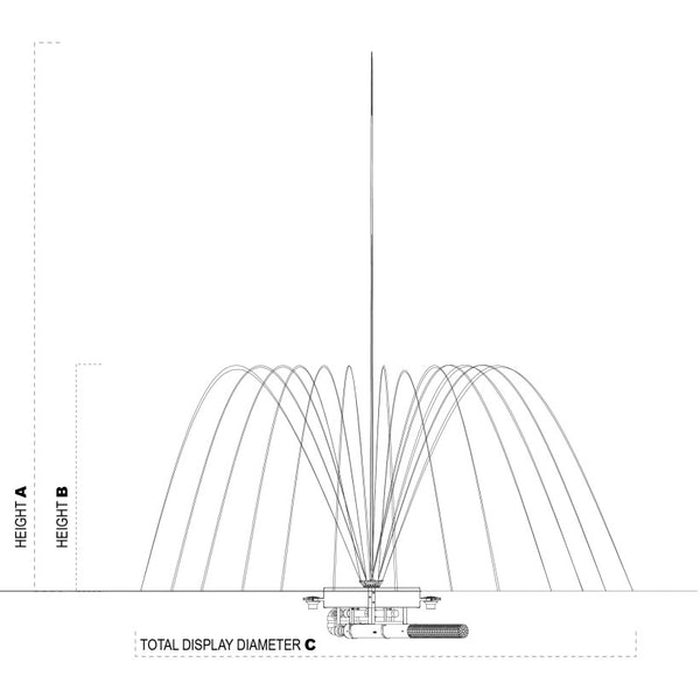

Vertical TwoTier Unit Comparison

2 HP Unit 3 HP Unit 5 HP Unit
Spray Height (A) 18 ft 23 ft 26 ft
Spray Height (B) 10 ft 12 ft 16 ft
Spray Diameter (C) 20 ft 25 ft 25 ft
LED Lights Included 2 2 3
Total LED Wattage 86 W 86 W 129 W
LED Amp Draw 0.8 A 0.8 A 1.1 A
Minimum Operating Depth 6.5 ft
Available Phase 1 Phase or 3 Phase
1 Phase Voltage 230V
3 Phase Voltage 208V or 230V
Display Heads Warranty 4 yr
Pumps and Motors Warranty 4 yr
LED Lighting Warranty 2 yr
Control Panel Warranty 1 yr
Vertical Series spray pattern dimensions per the 2026 Vertex catalog. LED kits are sold separately at order time. 460V three-phase configurations are available on request. Vertex fountains must be removed from water before freezing. Call (470) 354-1969 for sizing help.

Requirements & What to Know Before You Buy

  • Pond Depth: 6.5 ft minimum on every Vertical TwoTier. The compact design sits deeper in the water than the Standard TwoTier - if you have shallower water, look at the Standard / Horizontal TwoTier instead.
  • Pond Size: the Vertical Series is best for small and mid-sized ponds where a focused vertical display reads better than a wide horizontal one. Larger lakes show off the Standard TwoTier or AerationJet better.
  • Voltage and Phase Selection: single-phase or three-phase 230V is standard on every motor. 208V or 460V three-phase configurations are available on request - call for a quote.
  • Dedicated Circuit: the included control panel needs a properly sized dedicated circuit with GFCI protection. Confirm with a licensed electrician before install.
  • Mooring: commercial fountains need anchoring. You supply anchors or weights sized to the float and water body; Vertex provides the float-side mooring attachment points.
  • Cable Run: standard cord lengths are available; longer runs are an order-time option. Plan for the run from the float to your control panel and breaker.
  • Winterization: Vertex fountains must be removed from water before freezing. Plan for pull-and-store at the end of the season; the owner's manual covers the procedure.
  • Lighting: the suggested LED kit is 2 lights on the 2 and 3 HP and 3 lights on the 5 HP. Add at order time so the harness ships with the float.
  • Sizing Help: Call (470) 354-1969 with your pond surface area and depth and we will recommend the right motor size.

What's Included & Optional Add-Ons

  • Stainless Steel Turbine Pump - water-cooled, self-lubricated, no maintenance kits required
  • Self-Leveling Rotocast Polyethylene Float - UV-inhibited, smaller profile than the Standard TwoTier
  • Vertical TwoTier Discharge Head - brass and stainless steel precision machined nozzles for elegant floral side jets
  • UL-Listed Control Panel - Class A GFCI in a weatherproof steel NEMA enclosure
  • Submersible Power Cord - sized to motor; ordered separately
  • Optional Stainless Steel LED Lighting Kit - CREE-chip LEDs, sized to motor (2 or 3 fixtures depending on HP). Sold at order time.
  • Optional Custom Phase / Voltage - 208V or 460V three-phase configurations available on request
  • Optional Custom Controls - wind-sensing shutoff, remote control operation, multi-unit master panels on request
  • Warranty - 4 yr on display heads / pumps / motors; 2 yr on LED lighting; 1 yr on control panel
  • Returns - Unused Vertex fountains are eligible for returns within 30 days, minus a 25% restocking fee.

Vertex Vertical TwoTier Fountain Specifications

Manufacturer Vertex Aquatic Solutions
Model Vertical TwoTier Pond Fountain
Series Vertical
Type Two-tier vertical floating display fountain
Motor Options 2 HP, 3 HP, 5 HP
Phase Options Single-phase or three-phase 230V on every motor. 208V or 460V three-phase on request.
Frequency 60 Hz standard
Total Configurations 6 motor combos (12 variants including suggested LED kits)
Spray Pattern Compact vertical two-tier - elegant floral side jets ascending and expanding
Minimum Pond Depth 6.5 ft on all units
Spray Heights 18 ft (2 HP) up to 26 ft (5 HP) on the center jet
Motor Construction Stainless steel submersible turbine, water-cooled, self-lubricated
Nozzle Construction Brass and stainless steel precision-machined
Float Construction Rotocast polyethylene with UV inhibitors, low profile, self-leveling
Power Cable Sized to motor; UL/CSA/NEC rated for direct underwater use; sold at order time
Control Panel UL-listed Class A GFCI in weatherproof steel NEMA enclosure
Optional Custom Control Features Wind-sensing shutoff, remote control, master controls for multi-unit installs - on request
Optional LED Lighting Stainless steel CREE-chip kit, sized to motor: (2) 43 W on the 2 and 3 HP, (3) 43 W on the 5 HP
Applications Residential ponds, formal gardens, HOA waterways, golf courses, parks, retention basins
Warranty (Display Heads / Pumps / Motors) 4 years
Warranty (LED Lighting) 2 years (excluding bulbs)
Warranty (Control Panel) 1 year
Winterization Must be removed from water before freezing conditions
Country of Origin Vertex Aquatic Solutions, USA



Manuals

View the Vertical TwoTier Product Sheet

View the Vertical TwoTier System Specifications

View the Vertical TwoTier Owner's Manual
