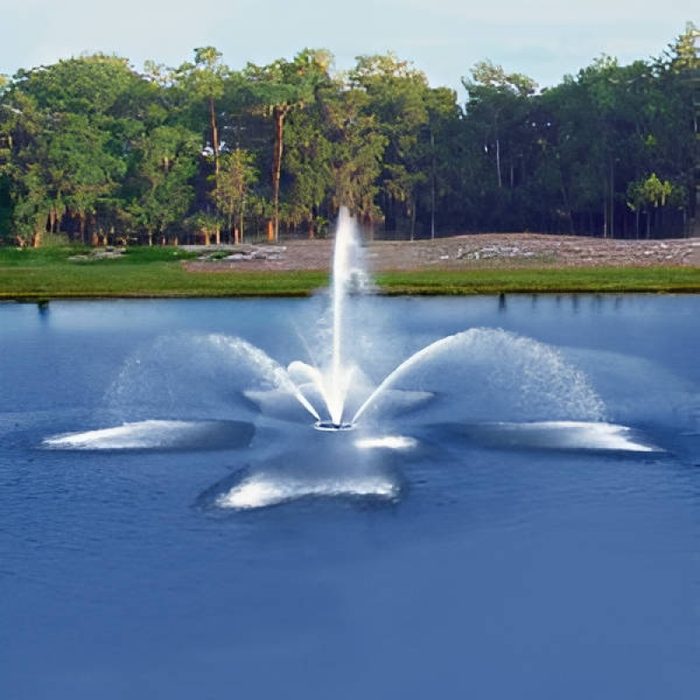

Vertex FanJet Floating Fountain Series On Water With Beautiful Spray Pattern

Vertex FanJet Floating Pond Fountain

by Vertex Aquatic Solutions
SKU FAN-10-1P
$31,620.00
Made in the USA
No Sales Tax Outside Georgia
Free Delivery from U.S. Warehouses
Talk to a Specialist: (470) 354-1969
Better Price? Request a Wire Discount Bulk or Business Order? Get a Fast Custom Quote Veterans & First Responders Save
Free Shipping
Ships --
Arrives --

Notify me when back in stock

Vertex 4 year warranty trust badges Vertex 4 year warranty trust badges

Layer a Tall Center Jet over a Wide Side Fan with the Vertex FanJet

The Vertex FanJet Floating Fountain is a commercial-grade display fountain that blends a high vertical center column with a wider side fan pattern beneath it. The two layers stack together cleanly - the tall center spray draws the eye at distance, the lower side fan adds visual width up close - creating a unified, impressive water feature designed to be the focal point of any pond, corporate campus, golf course, or HOA waterway.

Four motor sizes cover medium and large commercial water bodies: 10 HP, 15 HP, 20 HP, and 30 HP. Center jet heights range from 25 ft on the 10 HP up to 45 ft on the 30 HP, with spray diameters from 35 ft up to 50 ft across. Each fountain runs on a sealed stainless steel submersible turbine pump, ships with a UL-listed control panel, and is built on the same rotocast polypropylene float used across the Vertex commercial line. The cable is STW-A rated for direct submersion, and the intake screen is stainless steel.

Pick 10, 15, 20, or 30 HP. 10 and 15 HP are available in single-phase 230V or three-phase 230V; 20 and 30 HP are three-phase only. 208V and 460V three-phase configurations are available on request. Optional LED light kits sized to motor (7 fixtures on the 10/15 HP, 9 fixtures on the 20/30 HP per the 2026 Vertex catalog) and submersible power cord lengths sold at order time. Free shipping on every FanJet.

The Vertex FanJet is a commercial floating fountain that combines a tall center jet with a wide side fan beneath it. Four motor sizes from 10 HP to 30 HP. Center heights 25-45 ft, spray diameters 35-50 ft.

Stainless steel submersible turbine pump. UL-listed control panel. Rotocast polypropylene float. STW-A rated submersible cable. 4-year pump and motor warranty.

10 and 15 HP in single-phase 230V or three-phase 230V. 20 and 30 HP are 3-phase only. Optional 7 or 9 LED kits and cord lengths sold at order time.

Free shipping on every Vertex FanJet. Optional LED lighting kits and cord lengths available on request. Call (470) 354-1969.

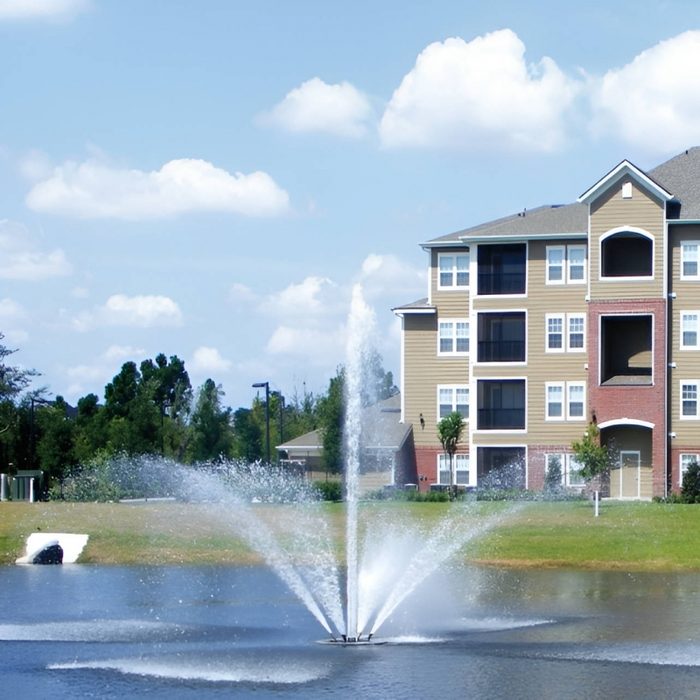

Vertex FanJet Floating Pond Fountain on water with trees in the background

Why Choose the FanJet by Vertex

Layered Center Jet + Side Fan
Tall vertical center column reads from across the lake; the wide side fan pattern adds visual weight up close. The two patterns blend into a unified display - more layered than a single geyser, more focused than a multi-jet.
Four Motor Sizes for Medium and Large Lakes
10 HP, 15 HP, 20 HP, and 30 HP. Center heights from 25 ft up to 45 ft. Spray diameters from 35 ft up to 50 ft - sized for ponds where you want the fountain to be the focal point.
Stainless Steel Turbine Pump
Sealed submersible motor. No oils, no seals, no annual maintenance kits. Lower lifetime cost than oil-cooled commercial fountains.
UL-Listed Control Panel
Weatherproof steel NEMA enclosure ships with every unit. Single or three-phase 230V on the 10/15 HP; three-phase only on the 20/30 HP. 208V or 460V three-phase configurations on request.
STW-A Rated Submersible Cable
Power cable rated for direct underwater use. Sized to motor; standard and custom cord lengths available at order time.
Rotocast Polypropylene Float
UV-inhibited, low-profile float. Stainless steel intake screen protects the pump from debris while letting the unit draw full flow.
Optional LED Lighting
7-fixture kits sized for the 10 and 15 HP units; 9-fixture kits sized for the 20 and 30 HP per the 2026 Vertex catalog. Optional colored / color-changing LEDs available on request.
Vertex Warranty Package
4-year warranty on the display head, pump, and motor. 2-year warranty on LED lighting (excluding bulbs). 1-year warranty on the control panel.

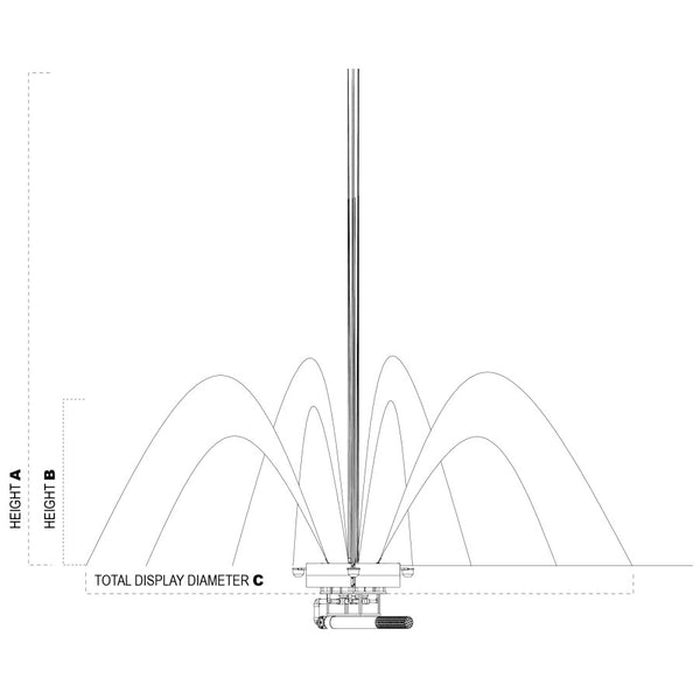

FanJet Unit Comparison

10 HP Unit 15 HP Unit 20 HP Unit 30 HP Unit
Center Height Spray (A) 25 ft 30 ft 35 ft 45 ft
Side Height Spray (B) 8 ft 10 ft 12 ft 15 ft
Spray Diameter (C) 35 ft 40 ft 45 ft 50 ft
Minimum Operating Depth 6 ft 7 ft 7 ft 8 ft
LED Lights Included 7 7 9 9
Total LED Wattage 301 W 301 W 387 W 387 W
LED Amp Draw 3.5 A 3.5 A 4.5 A 4.5 A
Available Phase 1 Phase or 3 Phase 1 Phase or 3 Phase 3 Phase only 3 Phase only
1 Phase Voltage 230V 230V Not available Not available
3 Phase Voltage 208V or 230V
Display Head / Nozzle Warranty 4 yr
Pump and Motor Warranty 4 yr
LED Lighting Warranty 2 yr
Control Panel Warranty 1 yr
FanJet pattern combines a tall center spray with a wider side fan that blends into a single layered look. LED kits sold separately at order time. 460V three-phase configurations available on request. Vertex fountains must be removed from water before freezing. Call (470) 354-1969 for sizing help.

Requirements & What to Know Before You Buy

  • Pond Depth: 6 ft minimum on the 10 HP, 7 ft on the 15 and 20 HP, and 8 ft on the 30 HP. Measure where the float will sit, not at the shoreline.
  • Pond Size: the FanJet is designed for medium and large commercial water bodies. Smaller residential ponds should look at the TwoTier or TriTier instead.
  • Voltage and Phase Selection: 10 and 15 HP units are available in 230V single-phase or three-phase. 20 and 30 HP are three-phase only. 208V and 460V three-phase configurations are available on request.
  • Dedicated Circuit: the included control panel needs a properly sized dedicated circuit. Confirm with a licensed electrician before install.
  • Mooring: commercial fountains need anchoring. You supply anchors or weights sized to the float and water body.
  • Cable Run: standard cord lengths are available; longer runs are an order-time option.
  • Winterization: Vertex fountains must be removed from water before freezing conditions.
  • Lighting: the suggested LED kit is 7 lights for the 10 and 15 HP and 9 lights for the 20 and 30 HP. Add at order time so the harness ships with the float.
  • Sizing Help: Call (470) 354-1969 with your pond surface area and depth and we will recommend the right motor size.

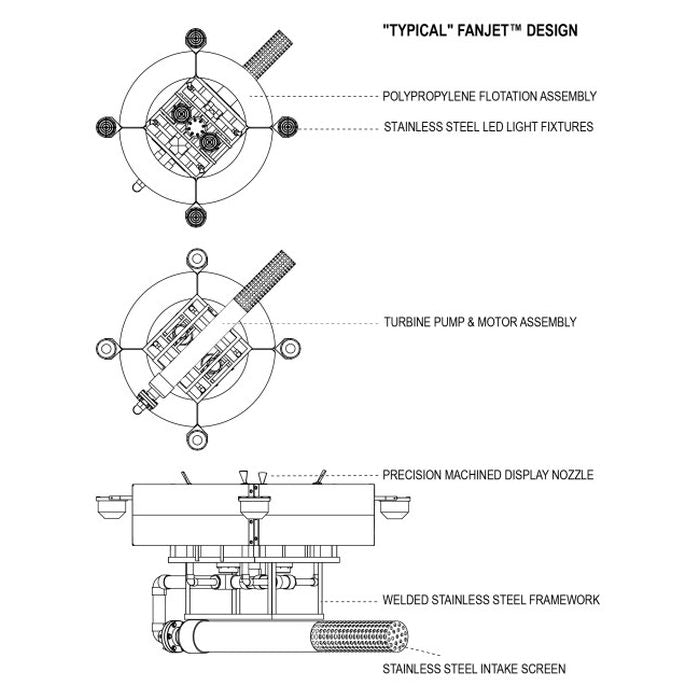

What's Included & Optional Add-Ons

  • Stainless Steel Turbine Pump - sealed submersible motor, water-cooled, self-lubricated
  • Rotocast Polypropylene Float - UV-inhibited, heavy-duty, low profile
  • FanJet Discharge Head - center jet + side fan spray pattern
  • Stainless Steel Intake Screen - protects the impeller from debris
  • UL-Listed Control Panel - weatherproof steel NEMA enclosure
  • STW-A Rated Submersible Cable - sized to motor; ordered separately
  • Optional LED Lighting Kit - 7 fixtures (10/15 HP) or 9 fixtures (20/30 HP). 43 W each. Sold at order time.
  • Optional Custom Phase / Voltage - 208V or 460V three-phase configurations on request
  • Optional Colored / Color-Changing LEDs - on request
  • Warranty - 4 yr display head / pump / motor; 2 yr LED lights; 1 yr control panel

Vertex FanJet Floating Fountain Specifications

Manufacturer Vertex Aquatic Solutions
Model FanJet Floating Pond Fountain
Type Center jet + side fan combination commercial display fountain
Motor Options 10 HP, 15 HP, 20 HP, 30 HP
Phase Options 230V single-phase or three-phase on 10 and 15 HP; three-phase only on 20 and 30 HP. 208V or 460V three-phase on request.
Frequency 60 Hz standard
Total Configurations 12 across HP, phase, and lighting
Spray Pattern Layered center jet over wide side fan
Center Jet Height 25 ft (10 HP) up to 45 ft (30 HP)
Side Fan Height 8 ft (10 HP) up to 15 ft (30 HP)
Spray Diameter 35 ft (10 HP) up to 50 ft (30 HP)
Minimum Pond Depth 6 ft (10 HP) up to 8 ft (30 HP)
Motor Construction Stainless steel submersible turbine
Float Construction Rotocast polypropylene with UV inhibitors, low profile
Power Cable STW-A rated for direct underwater use; sized to motor; ordered separately
Control Panel UL-listed in weatherproof steel NEMA enclosure
Optional LED Lighting 7-fixture kit (10/15 HP) or 9-fixture kit (20/30 HP); 43 W per fixture. Colored / color-changing on request.
Applications Commercial lakes, HOA waterways, corporate campuses, golf courses, parks, retention basins
Warranty (Display Head / Pump / Motor) 4 years
Warranty (LED Lighting) 2 years (excluding bulbs)
Warranty (Control Panel) 1 year
Winterization Must be removed from water before freezing conditions
Country of Origin Vertex Aquatic Solutions, USA



Manuals

View the FanJet Product Sheet

View the FanJet System Specifications

View the FanJet Owner's Manual

Overview

Layer a Tall Center Jet over a Wide Side Fan with the Vertex FanJet

The Vertex FanJet Floating Fountain is a commercial-grade display fountain that blends a high vertical center column with a wider side fan pattern beneath it. The two layers stack together cleanly - the tall center spray draws the eye at distance, the lower side fan adds visual width up close - creating a unified, impressive water feature designed to be the focal point of any pond, corporate campus, golf course, or HOA waterway.

Four motor sizes cover medium and large commercial water bodies: 10 HP, 15 HP, 20 HP, and 30 HP. Center jet heights range from 25 ft on the 10 HP up to 45 ft on the 30 HP, with spray diameters from 35 ft up to 50 ft across. Each fountain runs on a sealed stainless steel submersible turbine pump, ships with a UL-listed control panel, and is built on the same rotocast polypropylene float used across the Vertex commercial line. The cable is STW-A rated for direct submersion, and the intake screen is stainless steel.

Pick 10, 15, 20, or 30 HP. 10 and 15 HP are available in single-phase 230V or three-phase 230V; 20 and 30 HP are three-phase only. 208V and 460V three-phase configurations are available on request. Optional LED light kits sized to motor (7 fixtures on the 10/15 HP, 9 fixtures on the 20/30 HP per the 2026 Vertex catalog) and submersible power cord lengths sold at order time. Free shipping on every FanJet.

The Vertex FanJet is a commercial floating fountain that combines a tall center jet with a wide side fan beneath it. Four motor sizes from 10 HP to 30 HP. Center heights 25-45 ft, spray diameters 35-50 ft.

Stainless steel submersible turbine pump. UL-listed control panel. Rotocast polypropylene float. STW-A rated submersible cable. 4-year pump and motor warranty.

10 and 15 HP in single-phase 230V or three-phase 230V. 20 and 30 HP are 3-phase only. Optional 7 or 9 LED kits and cord lengths sold at order time.

Free shipping on every Vertex FanJet. Optional LED lighting kits and cord lengths available on request. Call (470) 354-1969.

 Vertex FanJet Floating Pond Fountain on water with trees in the background

Why Choose the FanJet by Vertex

Layered Center Jet + Side Fan Tall vertical center column reads from across the lake; the wide side fan pattern adds visual weight up close. The two patterns blend into a unified display - more layered than a single geyser, more focused than a multi-jet. Four Motor Sizes for Medium and Large Lakes 10 HP, 15 HP, 20 HP, and 30 HP. Center heights from 25 ft up to 45 ft. Spray diameters from 35 ft up to 50 ft - sized for ponds where you want the fountain to be the focal point. Stainless Steel Turbine Pump Sealed submersible motor. No oils, no seals, no annual maintenance kits. Lower lifetime cost than oil-cooled commercial fountains. UL-Listed Control Panel Weatherproof steel NEMA enclosure ships with every unit. Single or three-phase 230V on the 10/15 HP; three-phase only on the 20/30 HP. 208V or 460V three-phase configurations on request. STW-A Rated Submersible Cable Power cable rated for direct underwater use. Sized to motor; standard and custom cord lengths available at order time. Rotocast Polypropylene Float UV-inhibited, low-profile float. Stainless steel intake screen protects the pump from debris while letting the unit draw full flow. Optional LED Lighting 7-fixture kits sized for the 10 and 15 HP units; 9-fixture kits sized for the 20 and 30 HP per the 2026 Vertex catalog. Optional colored / color-changing LEDs available on request. Vertex Warranty Package 4-year warranty on the display head, pump, and motor. 2-year warranty on LED lighting (excluding bulbs). 1-year warranty on the control panel.

FanJet Unit Comparison

10 HP Unit 15 HP Unit 20 HP Unit 30 HP Unit
Center Height Spray (A) 25 ft 30 ft 35 ft 45 ft
Side Height Spray (B) 8 ft 10 ft 12 ft 15 ft
Spray Diameter (C) 35 ft 40 ft 45 ft 50 ft
Minimum Operating Depth 6 ft 7 ft 7 ft 8 ft
LED Lights Included 7 7 9 9
Total LED Wattage 301 W 301 W 387 W 387 W
LED Amp Draw 3.5 A 3.5 A 4.5 A 4.5 A
Available Phase 1 Phase or 3 Phase 1 Phase or 3 Phase 3 Phase only 3 Phase only
1 Phase Voltage 230V 230V Not available Not available
3 Phase Voltage 208V or 230V
Display Head / Nozzle Warranty 4 yr
Pump and Motor Warranty 4 yr
LED Lighting Warranty 2 yr
Control Panel Warranty 1 yr
FanJet pattern combines a tall center spray with a wider side fan that blends into a single layered look. LED kits sold separately at order time. 460V three-phase configurations available on request. Vertex fountains must be removed from water before freezing. Call (470) 354-1969 for sizing help.

Requirements & What to Know Before You Buy

  • Pond Depth: 6 ft minimum on the 10 HP, 7 ft on the 15 and 20 HP, and 8 ft on the 30 HP. Measure where the float will sit, not at the shoreline.
  • Pond Size: the FanJet is designed for medium and large commercial water bodies. Smaller residential ponds should look at the TwoTier or TriTier instead.
  • Voltage and Phase Selection: 10 and 15 HP units are available in 230V single-phase or three-phase. 20 and 30 HP are three-phase only. 208V and 460V three-phase configurations are available on request.
  • Dedicated Circuit: the included control panel needs a properly sized dedicated circuit. Confirm with a licensed electrician before install.
  • Mooring: commercial fountains need anchoring. You supply anchors or weights sized to the float and water body.
  • Cable Run: standard cord lengths are available; longer runs are an order-time option.
  • Winterization: Vertex fountains must be removed from water before freezing conditions.
  • Lighting: the suggested LED kit is 7 lights for the 10 and 15 HP and 9 lights for the 20 and 30 HP. Add at order time so the harness ships with the float.
  • Sizing Help: Call (470) 354-1969 with your pond surface area and depth and we will recommend the right motor size.

What's Included & Optional Add-Ons

  • Stainless Steel Turbine Pump - sealed submersible motor, water-cooled, self-lubricated
  • Rotocast Polypropylene Float - UV-inhibited, heavy-duty, low profile
  • FanJet Discharge Head - center jet + side fan spray pattern
  • Stainless Steel Intake Screen - protects the impeller from debris
  • UL-Listed Control Panel - weatherproof steel NEMA enclosure
  • STW-A Rated Submersible Cable - sized to motor; ordered separately
  • Optional LED Lighting Kit - 7 fixtures (10/15 HP) or 9 fixtures (20/30 HP). 43 W each. Sold at order time.
  • Optional Custom Phase / Voltage - 208V or 460V three-phase configurations on request
  • Optional Colored / Color-Changing LEDs - on request
  • Warranty - 4 yr display head / pump / motor; 2 yr LED lights; 1 yr control panel

Vertex FanJet Floating Fountain Specifications

Manufacturer Vertex Aquatic Solutions
Model FanJet Floating Pond Fountain
Type Center jet + side fan combination commercial display fountain
Motor Options 10 HP, 15 HP, 20 HP, 30 HP
Phase Options 230V single-phase or three-phase on 10 and 15 HP; three-phase only on 20 and 30 HP. 208V or 460V three-phase on request.
Frequency 60 Hz standard
Total Configurations 12 across HP, phase, and lighting
Spray Pattern Layered center jet over wide side fan
Center Jet Height 25 ft (10 HP) up to 45 ft (30 HP)
Side Fan Height 8 ft (10 HP) up to 15 ft (30 HP)
Spray Diameter 35 ft (10 HP) up to 50 ft (30 HP)
Minimum Pond Depth 6 ft (10 HP) up to 8 ft (30 HP)
Motor Construction Stainless steel submersible turbine
Float Construction Rotocast polypropylene with UV inhibitors, low profile
Power Cable STW-A rated for direct underwater use; sized to motor; ordered separately
Control Panel UL-listed in weatherproof steel NEMA enclosure
Optional LED Lighting 7-fixture kit (10/15 HP) or 9-fixture kit (20/30 HP); 43 W per fixture. Colored / color-changing on request.
Applications Commercial lakes, HOA waterways, corporate campuses, golf courses, parks, retention basins
Warranty (Display Head / Pump / Motor) 4 years
Warranty (LED Lighting) 2 years (excluding bulbs)
Warranty (Control Panel) 1 year
Winterization Must be removed from water before freezing conditions
Country of Origin Vertex Aquatic Solutions, USA



Manuals

View the FanJet Product Sheet

View the FanJet System Specifications

View the FanJet Owner's Manual

Shipping/Returns

Shipping

  • Order confirmation is emailed after checkout.
  • Orders typically process within 1 to 2 business days.
  • Delivery times may vary depending on the product, shipping method, and delivery location.
  • A shipping confirmation with tracking details will be sent once your order ships.
  • Any damage or shortage claims must be reported within 24 hours of delivery. Please keep the original packaging until the claim is resolved.

Returns

  • Unused Vertex fountains are eligible for return within 60 days with prior return authorization.
  • All returns require approval before the item is sent back.
  • Returned items must be unused, in their original packaging, and in saleable condition.
  • Approved Vertex fountain returns are subject to a 25% restocking fee, and original shipping charges are non-refundable.
  • Warranty returns require authorization, the original sales receipt, and an explanation of the product issue.

Questions? Contact support@propondsupply.com or call (470) 354-1969.

Warranty

Warranty

  • Vertex Aquatic Solutions products are warranted to be free from defects in material and workmanship under normal use and service.
  • 4-year warranty: In-water fountain components, including the pump, motor, flotation, framework, nozzles, submersible cables, and similar fountain components.
  • 3-year warranty: Vertex compressor systems for defective parts.
  • 2-year warranty: Fountain lighting fixtures, excluding bulbs.
  • 1-year warranty: Fountain control panels.
  • 5-year warranty: AirStation diffuser assemblies.
  • 15-year warranty: BottomLine tubing.
  • Lifetime warranty: Compressor cabinets against rust.
  • Air filters and compressor maintenance kits are considered wearable parts and are not covered under standard warranty coverage.
  • Warranty claims must be made through an authorized Vertex dealer or directly through Vertex Aquatic Solutions.
  • Warranty claims may require product photos, warranty labels, compressor labels, and an overall photo of the system or damaged item.
  • Customers are responsible for return shipping when sending products in for warranty inspection.
  • If Vertex determines the issue is due to a manufacturing defect, the product may be repaired or replaced at no cost.
  • Warranty coverage may be void due to incorrect voltage, faulty installation, vandalism, negligence, water intrusion, cabinet painting, or other non-warranty failures.

Questions? Contact support@propondsupply.com or call (470) 354-1969.

★Reviews

Customer Reviews

Be the first to write a review
0%
(0)
0%
(0)
0%
(0)
0%
(0)
0%
(0)
NO SALES TAX

Orders outside Georgia are 100% sales tax-free

Give us a call

Free shipping on every order

Give us a call

Our team is available from 8 AM to 8 PM EST at (470) 354-1969

BEST PRICE GUARANTEE

If you find the same item for less, we’ll match it.

Overview

Layer a Tall Center Jet over a Wide Side Fan with the Vertex FanJet

The Vertex FanJet Floating Fountain is a commercial-grade display fountain that blends a high vertical center column with a wider side fan pattern beneath it. The two layers stack together cleanly - the tall center spray draws the eye at distance, the lower side fan adds visual width up close - creating a unified, impressive water feature designed to be the focal point of any pond, corporate campus, golf course, or HOA waterway.

Four motor sizes cover medium and large commercial water bodies: 10 HP, 15 HP, 20 HP, and 30 HP. Center jet heights range from 25 ft on the 10 HP up to 45 ft on the 30 HP, with spray diameters from 35 ft up to 50 ft across. Each fountain runs on a sealed stainless steel submersible turbine pump, ships with a UL-listed control panel, and is built on the same rotocast polypropylene float used across the Vertex commercial line. The cable is STW-A rated for direct submersion, and the intake screen is stainless steel.

Pick 10, 15, 20, or 30 HP. 10 and 15 HP are available in single-phase 230V or three-phase 230V; 20 and 30 HP are three-phase only. 208V and 460V three-phase configurations are available on request. Optional LED light kits sized to motor (7 fixtures on the 10/15 HP, 9 fixtures on the 20/30 HP per the 2026 Vertex catalog) and submersible power cord lengths sold at order time. Free shipping on every FanJet.

The Vertex FanJet is a commercial floating fountain that combines a tall center jet with a wide side fan beneath it. Four motor sizes from 10 HP to 30 HP. Center heights 25-45 ft, spray diameters 35-50 ft.

Stainless steel submersible turbine pump. UL-listed control panel. Rotocast polypropylene float. STW-A rated submersible cable. 4-year pump and motor warranty.

10 and 15 HP in single-phase 230V or three-phase 230V. 20 and 30 HP are 3-phase only. Optional 7 or 9 LED kits and cord lengths sold at order time.

Free shipping on every Vertex FanJet. Optional LED lighting kits and cord lengths available on request. Call (470) 354-1969.

 Vertex FanJet Floating Pond Fountain on water with trees in the background

Why Choose the FanJet by Vertex

Layered Center Jet + Side Fan Tall vertical center column reads from across the lake; the wide side fan pattern adds visual weight up close. The two patterns blend into a unified display - more layered than a single geyser, more focused than a multi-jet. Four Motor Sizes for Medium and Large Lakes 10 HP, 15 HP, 20 HP, and 30 HP. Center heights from 25 ft up to 45 ft. Spray diameters from 35 ft up to 50 ft - sized for ponds where you want the fountain to be the focal point. Stainless Steel Turbine Pump Sealed submersible motor. No oils, no seals, no annual maintenance kits. Lower lifetime cost than oil-cooled commercial fountains. UL-Listed Control Panel Weatherproof steel NEMA enclosure ships with every unit. Single or three-phase 230V on the 10/15 HP; three-phase only on the 20/30 HP. 208V or 460V three-phase configurations on request. STW-A Rated Submersible Cable Power cable rated for direct underwater use. Sized to motor; standard and custom cord lengths available at order time. Rotocast Polypropylene Float UV-inhibited, low-profile float. Stainless steel intake screen protects the pump from debris while letting the unit draw full flow. Optional LED Lighting 7-fixture kits sized for the 10 and 15 HP units; 9-fixture kits sized for the 20 and 30 HP per the 2026 Vertex catalog. Optional colored / color-changing LEDs available on request. Vertex Warranty Package 4-year warranty on the display head, pump, and motor. 2-year warranty on LED lighting (excluding bulbs). 1-year warranty on the control panel.

FanJet Unit Comparison

10 HP Unit 15 HP Unit 20 HP Unit 30 HP Unit
Center Height Spray (A) 25 ft 30 ft 35 ft 45 ft
Side Height Spray (B) 8 ft 10 ft 12 ft 15 ft
Spray Diameter (C) 35 ft 40 ft 45 ft 50 ft
Minimum Operating Depth 6 ft 7 ft 7 ft 8 ft
LED Lights Included 7 7 9 9
Total LED Wattage 301 W 301 W 387 W 387 W
LED Amp Draw 3.5 A 3.5 A 4.5 A 4.5 A
Available Phase 1 Phase or 3 Phase 1 Phase or 3 Phase 3 Phase only 3 Phase only
1 Phase Voltage 230V 230V Not available Not available
3 Phase Voltage 208V or 230V
Display Head / Nozzle Warranty 4 yr
Pump and Motor Warranty 4 yr
LED Lighting Warranty 2 yr
Control Panel Warranty 1 yr
FanJet pattern combines a tall center spray with a wider side fan that blends into a single layered look. LED kits sold separately at order time. 460V three-phase configurations available on request. Vertex fountains must be removed from water before freezing. Call (470) 354-1969 for sizing help.

Requirements & What to Know Before You Buy

  • Pond Depth: 6 ft minimum on the 10 HP, 7 ft on the 15 and 20 HP, and 8 ft on the 30 HP. Measure where the float will sit, not at the shoreline.
  • Pond Size: the FanJet is designed for medium and large commercial water bodies. Smaller residential ponds should look at the TwoTier or TriTier instead.
  • Voltage and Phase Selection: 10 and 15 HP units are available in 230V single-phase or three-phase. 20 and 30 HP are three-phase only. 208V and 460V three-phase configurations are available on request.
  • Dedicated Circuit: the included control panel needs a properly sized dedicated circuit. Confirm with a licensed electrician before install.
  • Mooring: commercial fountains need anchoring. You supply anchors or weights sized to the float and water body.
  • Cable Run: standard cord lengths are available; longer runs are an order-time option.
  • Winterization: Vertex fountains must be removed from water before freezing conditions.
  • Lighting: the suggested LED kit is 7 lights for the 10 and 15 HP and 9 lights for the 20 and 30 HP. Add at order time so the harness ships with the float.
  • Sizing Help: Call (470) 354-1969 with your pond surface area and depth and we will recommend the right motor size.

What's Included & Optional Add-Ons

  • Stainless Steel Turbine Pump - sealed submersible motor, water-cooled, self-lubricated
  • Rotocast Polypropylene Float - UV-inhibited, heavy-duty, low profile
  • FanJet Discharge Head - center jet + side fan spray pattern
  • Stainless Steel Intake Screen - protects the impeller from debris
  • UL-Listed Control Panel - weatherproof steel NEMA enclosure
  • STW-A Rated Submersible Cable - sized to motor; ordered separately
  • Optional LED Lighting Kit - 7 fixtures (10/15 HP) or 9 fixtures (20/30 HP). 43 W each. Sold at order time.
  • Optional Custom Phase / Voltage - 208V or 460V three-phase configurations on request
  • Optional Colored / Color-Changing LEDs - on request
  • Warranty - 4 yr display head / pump / motor; 2 yr LED lights; 1 yr control panel

Vertex FanJet Floating Fountain Specifications

Manufacturer Vertex Aquatic Solutions
Model FanJet Floating Pond Fountain
Type Center jet + side fan combination commercial display fountain
Motor Options 10 HP, 15 HP, 20 HP, 30 HP
Phase Options 230V single-phase or three-phase on 10 and 15 HP; three-phase only on 20 and 30 HP. 208V or 460V three-phase on request.
Frequency 60 Hz standard
Total Configurations 12 across HP, phase, and lighting
Spray Pattern Layered center jet over wide side fan
Center Jet Height 25 ft (10 HP) up to 45 ft (30 HP)
Side Fan Height 8 ft (10 HP) up to 15 ft (30 HP)
Spray Diameter 35 ft (10 HP) up to 50 ft (30 HP)
Minimum Pond Depth 6 ft (10 HP) up to 8 ft (30 HP)
Motor Construction Stainless steel submersible turbine
Float Construction Rotocast polypropylene with UV inhibitors, low profile
Power Cable STW-A rated for direct underwater use; sized to motor; ordered separately
Control Panel UL-listed in weatherproof steel NEMA enclosure
Optional LED Lighting 7-fixture kit (10/15 HP) or 9-fixture kit (20/30 HP); 43 W per fixture. Colored / color-changing on request.
Applications Commercial lakes, HOA waterways, corporate campuses, golf courses, parks, retention basins
Warranty (Display Head / Pump / Motor) 4 years
Warranty (LED Lighting) 2 years (excluding bulbs)
Warranty (Control Panel) 1 year
Winterization Must be removed from water before freezing conditions
Country of Origin Vertex Aquatic Solutions, USA



Manuals

View the FanJet Product Sheet

View the FanJet System Specifications

View the FanJet Owner's Manual

Shipping/Returns

Shipping

  • Order confirmation is emailed after checkout.
  • Orders typically process within 1 to 2 business days.
  • Delivery times may vary depending on the product, shipping method, and delivery location.
  • A shipping confirmation with tracking details will be sent once your order ships.
  • Any damage or shortage claims must be reported within 24 hours of delivery. Please keep the original packaging until the claim is resolved.

Returns

  • Unused Vertex fountains are eligible for return within 60 days with prior return authorization.
  • All returns require approval before the item is sent back.
  • Returned items must be unused, in their original packaging, and in saleable condition.
  • Approved Vertex fountain returns are subject to a 25% restocking fee, and original shipping charges are non-refundable.
  • Warranty returns require authorization, the original sales receipt, and an explanation of the product issue.

Questions? Contact support@propondsupply.com or call (470) 354-1969.

Warranty

Warranty

  • Vertex Aquatic Solutions products are warranted to be free from defects in material and workmanship under normal use and service.
  • 4-year warranty: In-water fountain components, including the pump, motor, flotation, framework, nozzles, submersible cables, and similar fountain components.
  • 3-year warranty: Vertex compressor systems for defective parts.
  • 2-year warranty: Fountain lighting fixtures, excluding bulbs.
  • 1-year warranty: Fountain control panels.
  • 5-year warranty: AirStation diffuser assemblies.
  • 15-year warranty: BottomLine tubing.
  • Lifetime warranty: Compressor cabinets against rust.
  • Air filters and compressor maintenance kits are considered wearable parts and are not covered under standard warranty coverage.
  • Warranty claims must be made through an authorized Vertex dealer or directly through Vertex Aquatic Solutions.
  • Warranty claims may require product photos, warranty labels, compressor labels, and an overall photo of the system or damaged item.
  • Customers are responsible for return shipping when sending products in for warranty inspection.
  • If Vertex determines the issue is due to a manufacturing defect, the product may be repaired or replaced at no cost.
  • Warranty coverage may be void due to incorrect voltage, faulty installation, vandalism, negligence, water intrusion, cabinet painting, or other non-warranty failures.

Questions? Contact support@propondsupply.com or call (470) 354-1969.

★Reviews

Customer Reviews

Be the first to write a review
0%
(0)
0%
(0)
0%
(0)
0%
(0)
0%
(0)
