Vertex AerationJet Floating Fountain Vertex AerationJet Floating Fountain Series On Water with Trees at the Backrgound

Vertex AerationJet Commercial Fountain

by Vertex Aquatic Solutions
SKU 70024.100
$46,080.00
Made in the USA
No Sales Tax Outside Georgia
Free Delivery from U.S. Warehouses
Talk to a Specialist: (470) 354-1969
Better Price? Request a Wire Discount Bulk or Business Order? Get a Fast Custom Quote Veterans & First Responders Save
Free Shipping
Ships --
Arrives --

Notify me when back in stock

Vertex 4 year warranty trust badges Vertex 4 year warranty trust badges

Anchor Your Lake with the Vertex AerationJet Commercial Floating Fountain

The Vertex AerationJet is a commercial-grade floating fountain for large lakes and ponds 2 acres and larger. Heavily aerated arching jets shoot up to 45 ft on the 30 HP unit and span up to a 40-ft diameter, with the outer streams creating a wide cone of mist that holds together in moderate wind. The result is the kind of fountain that anchors a corporate campus, golf course, HOA waterway, or commercial lake from the moment you turn it on.

Inside the float is a water-cooled and self-lubricated submersible turbine pump paired with a UL-listed control panel. No oils, no seals, and no annual maintenance kits - just water keeping the pump cool and quiet. The float is rotocast polyethylene with UV inhibitors and corrosion-resistant components throughout. Vertex backs every unit with a 4-year warranty on the pump, motor, float, and cable, 2 years on the optional LED lights, and 1 year on the control panel.

Pick from 10, 15, 20, or 30 HP. 10 and 15 HP are available in single-phase 230V or three-phase 460V; 20 and 30 HP are three-phase 460V only. Standard cord lengths are 100 ft (1-2 HP), 200 ft (all units), and 300 ft (20 and 30 HP); custom lengths available on request. Each fountain can ship with or without the 10-fixture LED lighting package - the lights mount inside the float and illuminate the spray after dark. Free shipping on every AerationJet.

The Vertex AerationJet is a commercial floating fountain for lakes 2 acres and larger. Up to 45 ft center jet, 40 ft spray diameter, wind-resistant. Heavily aerated arching jets add dissolved oxygen on top of the visual display. Built for corporate campuses, HOA waterways, and golf course lakes.

Water-cooled stainless turbine pump (no oils, no seals). UL-listed control panel. Rotocast UV-stable polyethylene float. 4-year warranty on the pump, motor, float, and cable. Vertex fountains must be removed from the water before freezing conditions.

10, 15, 20, or 30 HP. 10 and 15 HP in 230V single-phase or 460V three-phase. 20 and 30 HP are 460V three-phase only. Optional 10-fixture LED lighting available on every variant. Standard cord lengths are 100, 200, or 300 ft; custom motor configurations and longer cord runs available on request.

Free shipping on every Vertex AerationJet. Custom motor configurations and cord lengths available on request. Call (470) 354-1969.

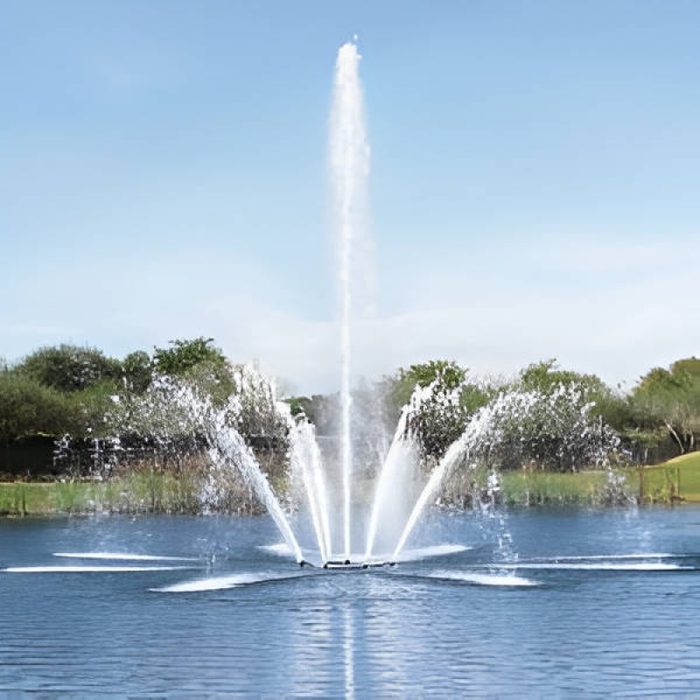

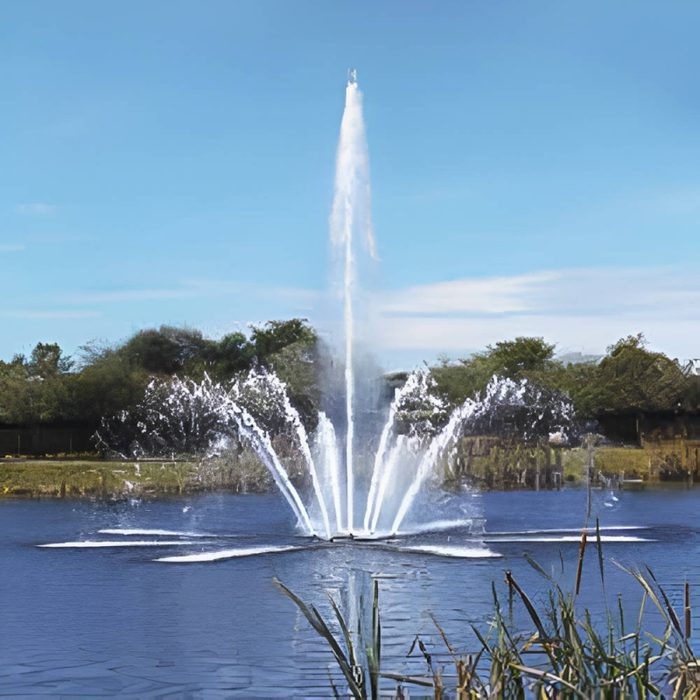

Vertex AerationJet Commercial Fountain on a pond with trees in the background

Why Choose the AerationJet by Vertex

45 ft Center Jet, 40 ft Diameter
On the 30 HP unit. Even the smallest 10 HP throws 30 ft tall and a 30 ft wide spray cone - this is a commercial fountain that shows up from across the lake.
Four Motor Sizes for 2+ Acre Lakes
10 HP, 15 HP, 20 HP, and 30 HP. All sized for ponds 2 acres and larger; AerationJet is overkill for smaller water bodies (consider the Vertex TriGeyser or one of the Kasco display fountains instead).
Heavy Aeration in Every Stream
The AerationJet's heavily aerated arching jets are designed to add oxygen on top of the visual display, so the same unit improves water quality at the same time it anchors the lake aesthetically.
Wind-Resistant Spray Pattern
The arching streams stay together better than a tall single-column geyser in moderate wind. Less drift, less wasted spray, more time the fountain actually looks the way you bought it.
Water-Cooled, Self-Lubricated Pump
Stainless steel submersible turbine. No oils to change, no seals to replace, no annual maintenance kits. Lower lifetime cost than oil-cooled commercial fountains.
UL-Listed Control Panel
Weatherproof steel NEMA enclosure with safety listings. Standard options include wind-sensing shutoff and master controls for multi-unit installs - call for a quote.
Optional 10-Fixture LED Lighting
Bright high-efficiency LEDs mount inside the float and illuminate the entire spray cone after dark. Available on every variant. Colored LED packages and automated color changes on request.
Vertex Warranty
4 years on the pump, motor, float, and cable. 2 years on the LED lights (excluding replaceable bulbs). 1 year on the control panel.

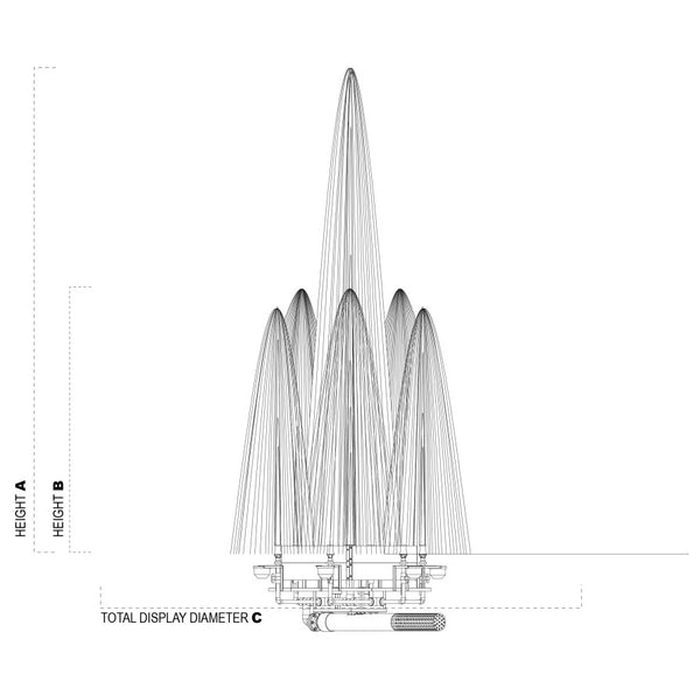

AerationJet Unit Comparison

10 HP Unit 15 HP Unit 20 HP Unit 30 HP Unit
Center Jet Height 30 ft 35 ft 40 ft 45 ft
Outer Spray Height 15 ft 20 ft 20 ft 25 ft
Spray Diameter 30 ft 33 ft 35 ft 40 ft
Minimum Pond Depth 6 ft 7 ft 7 ft 8 ft
Ideal Pond Size 2+ acres 2+ acres 2+ acres 2+ acres
Available Voltage / Phase 230V 1P or 460V 3P 230V 1P or 460V 3P 460V 3P only 460V 3P only
Amps - 230V 1 Phase 51 A 47 A Not available Not available
Amps - 460V 3 Phase 15.8 A 23.7 A 32 A 47.2 A
Power Cord Gauge - 1P 230V 8-gauge 6-gauge Not available Not available
Power Cord Gauge - 3P 460V 12-gauge 10-gauge 10-gauge 8-gauge
Motor and Pump Warranty 4 yr 4 yr 4 yr 4 yr
LED Lighting Warranty 2 yr 2 yr 2 yr 2 yr
Control Panel Warranty 1 yr 1 yr 1 yr 1 yr
Standard configurations shown. Custom motor configurations (single-phase 230V; three-phase 208V, 230V, or 460V) and custom power cord lengths available on request. Vertex fountains must be removed from the water before freezing conditions. Call (470) 354-1969 for sizing help.

Requirements & What to Know Before You Buy

  • Pond Size: the AerationJet is designed for lakes and ponds 2 acres and larger. For smaller water bodies, consider the Vertex TriGeyser or one of the Kasco aerating fountains.
  • Pond Depth: 6 ft minimum on the 10 HP, 7 ft on the 15 and 20 HP, and 8 ft on the 30 HP. Measure where the float will sit, not at the shoreline.
  • Voltage and Phase Selection: 10 and 15 HP are available in 230V single-phase or 460V three-phase. 20 and 30 HP are 460V three-phase only. Three-phase is recommended wherever possible - smoother running and lower current draw.
  • Dedicated Circuit: the included control panel needs a properly sized dedicated circuit. Confirm with a licensed electrician before install.
  • Mooring: commercial fountains need anchoring. You supply anchors or weights sized to the float and water body. Vertex provides the float-side mooring attachment points.
  • Cable Run: standard cord lengths come pre-attached. Longer runs are an order-time option - call for a quote.
  • Winterization: the AerationJet must be removed from the water before freezing conditions. Plan for pull-and-store at the end of the season; the owner's manual covers the procedure.
  • Lighting: the 10-fixture LED kit is optional on every variant. Add it at order time - retrofitting requires a separate float-internal install.
  • Sizing Help: Call (470) 354-1969 with your lake surface area and we will recommend the right motor size.

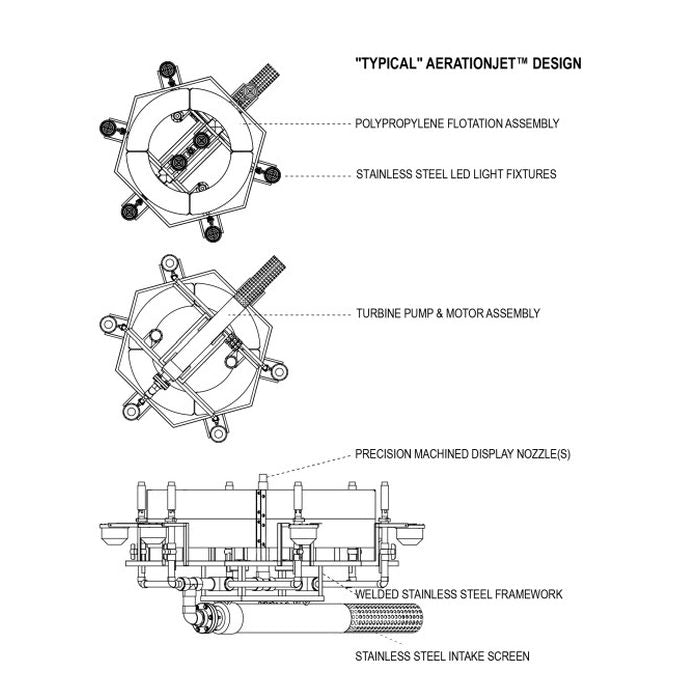

What's Included & Optional Add-Ons

  • Stainless Steel Turbine Pump - water-cooled, self-lubricated, no maintenance kits required
  • Rotocast Polyethylene Float - UV-inhibited, heavy-duty, low profile
  • Heavily Aerated Jet Discharge Head - tall center jet with arching outer streams
  • UL-Listed Control Panel - weatherproof steel NEMA enclosure
  • Submersible Power Cord - factory-attached, length per your selection (100 to 300 ft standard; custom on request)
  • Optional 10-Fixture LED Lighting Kit - mounts inside the float; illuminates the full spray cone. Available on every variant.
  • Optional Custom Control Panel Features - wind sensing shutoff, master multi-unit controls. Available on request.
  • Optional Colored / Color-Changing LEDs - on request.
  • Warranty - 4 yr pump/motor/float/cable; 2 yr LED lights; 1 yr control panel
  • Returns - Unused Vertex fountains are eligible for returns within 30 days, minus a 25% restocking fee.

Vertex AerationJet Fountain Specifications

Manufacturer Vertex Aquatic Solutions
Model AerationJet Commercial Fountain
Type Heavily aerated commercial display fountain
Motor Options 10 HP, 15 HP, 20 HP, 30 HP
Voltage Options 230V single-phase on 10 HP and 15 HP; 460V three-phase on all sizes. Custom 208V / 230V three-phase configurations available on request.
Frequency 60 Hz standard
Total Configurations 24 across motor, cord length, and lighting
Cord Length Options 100 ft (1-2 HP), 200 ft (all), 300 ft (20 and 30 HP). Custom lengths on request.
Center Jet Height 30 to 45 ft depending on HP
Outer Spray Height 15 to 25 ft depending on HP
Spray Diameter 30 to 40 ft depending on HP
Minimum Pond Depth 6 to 8 ft depending on HP
Ideal Pond Size 2 acres and larger
Motor Construction Stainless steel submersible turbine, water-cooled, self-lubricated
Float Construction Rotocast polyethylene with UV inhibitors, low profile
Power Cable Sized to motor; UL/CSA/NEC rated for direct underwater use
Control Panel UL-listed in weatherproof steel NEMA enclosure
Optional Lighting 10-fixture LED set; mounts inside the float. Colored / color-changing on request.
Custom Control Options Wind-sensing shutoff, master controls for multi-unit installs - on request
Applications Commercial lakes, HOA waterways, corporate campuses, golf courses, parks, retention basins 2 acres and larger
Warranty (Pump / Motor / Float / Cable) 4 years
Warranty (LED Lighting) 2 years (excluding replaceable bulbs)
Warranty (Control Panel) 1 year
Winterization Must be removed from water before freezing conditions
Country of Origin Vertex Aquatic Solutions, USA



Manuals

View the AerationJet Product Sheet

View the AerationJet System Specifications

View the AerationJet Owner's Manual
