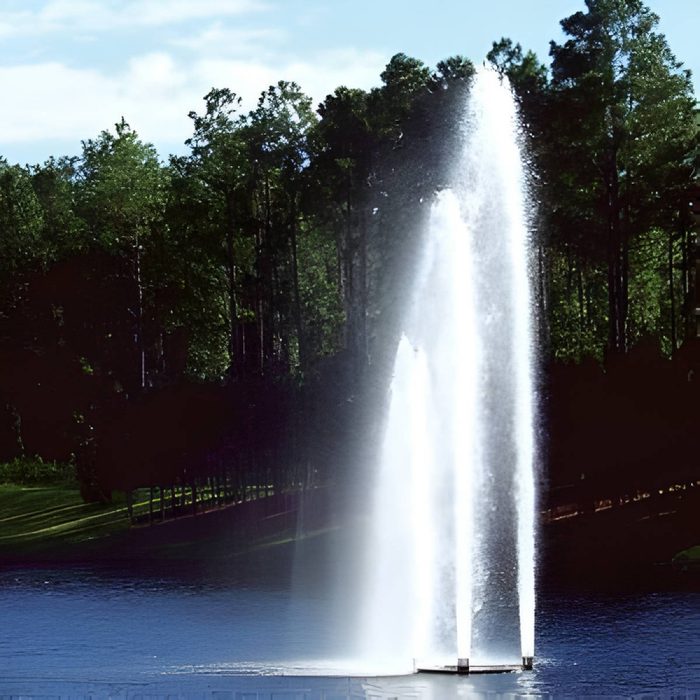

Vertex TriPod Floating Fountain Series On Water Display With Trees at the Background

Vertex TriPod Floating Pond Fountain

by Vertex Aquatic Solutions
SKU TRIPOD-10-1P
$37,840.00
Made in the USA
No Sales Tax Outside Georgia
Free Delivery from U.S. Warehouses
Talk to a Specialist: (470) 354-1969
Better Price? Request a Wire Discount Bulk or Business Order? Get a Fast Custom Quote Veterans & First Responders Save
Free Shipping
Ships --
Arrives --

Notify me when back in stock

Vertex 4 year warranty trust badges Vertex 4 year warranty trust badges

Throw Three Tall Vertical Jets with the Vertex TriPod Floating Fountain

The Vertex TriPod Floating Fountain is a commercial-grade display fountain built around three tall vertical jets arranged in a tight tripod pattern. The center jet hits the highest mark (up to 40 ft on the 30 HP unit) while the two flanking jets stack down beneath it at staggered heights. The result is a narrow, dramatically vertical display - elegant in a constrained spot where a wider fan or spread pattern would compete with surrounding landscaping or structures.

Four motor sizes cover medium and large commercial water bodies: 10 HP, 15 HP, 20 HP, and 30 HP. Center jet heights range from 20 ft on the 10 HP up to 40 ft on the 30 HP, but the spray diameter stays compact at 10-12 ft - the TriPod is a vertical statement, not a wide spread. Each fountain runs on a sealed stainless steel submersible turbine pump, ships with a UL-listed control panel, and is built on the same rotocast polypropylene float used across the Vertex commercial line.

Pick 10, 15, 20, or 30 HP. 10 and 15 HP are available in single-phase 230V or three-phase 230V; 20 and 30 HP are three-phase only. 208V and 460V three-phase configurations are available on request. Optional LED light kits sized to motor (6 fixtures on 10 HP, 7 on 15 HP, 9 on 20/30 HP per the 2026 Vertex catalog) and submersible power cord lengths sold at order time. Free shipping on every TriPod.

The Vertex TriPod is a commercial floating fountain with three tall vertical jets in a tight tripod pattern. Four motor sizes from 10 HP to 30 HP. Center heights 20-40 ft, narrow 10-12 ft diameter.

Stainless steel submersible turbine pump. UL-listed control panel. Rotocast polypropylene float. STW-A rated submersible cable. 4-year pump and motor warranty.

10 and 15 HP in single-phase or three-phase 230V. 20 and 30 HP are 3-phase only. Optional 6, 7, or 9 LED kits and cord lengths sold at order time.

Free shipping on every Vertex TriPod. Optional LED lighting kits and cord lengths available on request. Call (470) 354-1969.

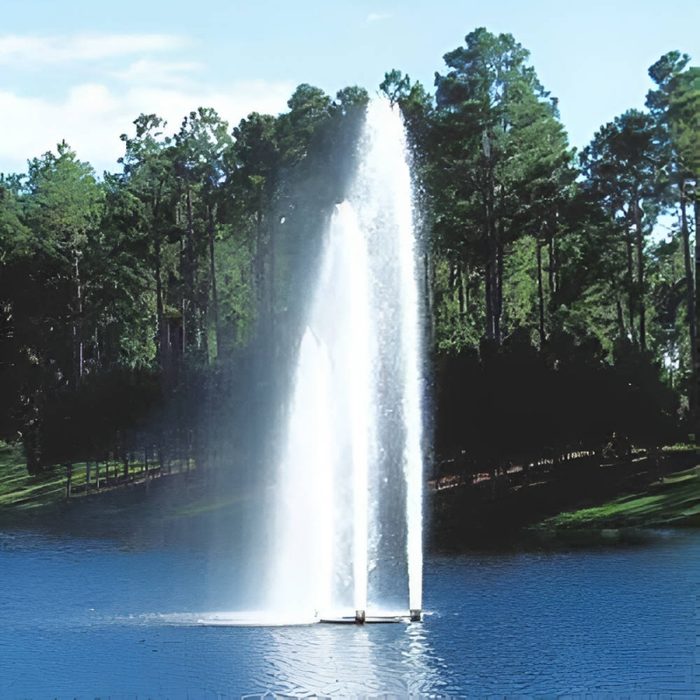

Vertex TriPod Floating Pond Fountain on water with trees in the background

Why Choose the TriPod by Vertex

Three Tall Vertical Jets in a Tripod Pattern
Center jet plus two flanking jets arranged in a tight triangle. The pattern reads tall, narrow, and dramatic - the right look when the fountain has to live next to landscaping, structures, or a constrained shoreline.
Four Motor Sizes
10 HP, 15 HP, 20 HP, and 30 HP. Center jet heights 20-40 ft. The 30 HP is one of the tallest single-display patterns in the Vertex catalog.
Compact 10-12 ft Diameter Footprint
The TriPod stays tight across all four motor sizes - 10 ft on the 10 HP, 12 ft on the 15/20/30 HP. Same vertical reach as the AerationJet without the wide horizontal spread.
Stainless Steel Turbine Pump
Sealed submersible motor. No oils, no seals, no annual maintenance kits. Lower lifetime cost than oil-cooled commercial fountains.
UL-Listed Control Panel
Weatherproof steel NEMA enclosure ships with every unit. Single or three-phase 230V on the 10/15 HP; three-phase only on the 20/30 HP. 208V or 460V three-phase configurations available on request.
STW-A Rated Submersible Cable
Power cable rated for direct underwater use. Sized to motor; custom cord lengths available at order time.
Optional LED Lighting Sized to Motor
6 fixtures on the 10 HP, 7 on the 15 HP, 9 on the 20/30 HP per the 2026 Vertex catalog. Optional colored / color-changing LEDs available on request.
Vertex Warranty Package
4-year warranty on the display head, pump, and motor. 2-year warranty on LED lighting (excluding bulbs). 1-year warranty on the control panel.

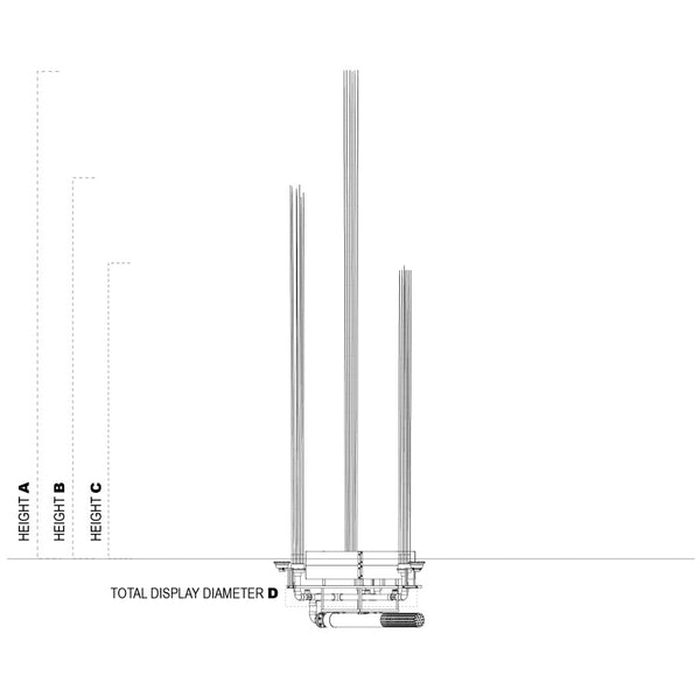

TriPod Unit Comparison

10 HP Unit 15 HP Unit 20 HP Unit 30 HP Unit
Spray Height 1 (A) 20 ft 25 ft 30 ft 40 ft
Spray Height 2 (B) 15 ft 20 ft 25 ft 30 ft
Spray Height 3 (C) 10 ft 15 ft 20 ft 25 ft
Spray Diameter (D) 10 ft 12 ft 12 ft 12 ft
Minimum Operating Depth 6 ft 7 ft 7 ft 8 ft
LED Lights Included 6 7 9 9
Total LED Wattage 258 W 301 W 387 W 387 W
LED Amp Draw 3 A 3.5 A 4.5 A 4.5 A
Available Phase 1 Phase or 3 Phase 1 Phase or 3 Phase 3 Phase only 3 Phase only
1 Phase Voltage 230V 230V Not available Not available
3 Phase Voltage 208V or 230V
Display Head / Nozzle Warranty 4 yr
Pump and Motor Warranty 4 yr
LED Lighting Warranty 2 yr
Control Panel Warranty 1 yr
TriPod produces three tall vertical streams in a narrow tripod pattern. LED kits sold separately at order time. 460V three-phase configurations available on request. Vertex fountains must be removed from water before freezing. Call (470) 354-1969 for sizing help.

Requirements & What to Know Before You Buy

  • Pond Depth: 6 ft minimum on the 10 HP, 7 ft on the 15 and 20 HP, and 8 ft on the 30 HP.
  • Pond Size: the TriPod is sized for medium and large commercial water bodies. Smaller residential ponds should look at the TwoTier or TriTier instead.
  • Voltage and Phase Selection: 10 and 15 HP are available in 230V single-phase or three-phase. 20 and 30 HP are three-phase only. 208V and 460V three-phase configurations are available on request.
  • Dedicated Circuit: the included control panel needs a properly sized dedicated circuit. Confirm with a licensed electrician before install.
  • Mooring: commercial fountains need anchoring. You supply anchors or weights sized to the float and water body.
  • Cable Run: standard cord lengths are available; longer runs are an order-time option.
  • Winterization: Vertex fountains must be removed from water before freezing conditions.
  • Lighting: the suggested LED kit is 6 lights for the 10 HP, 7 for the 15 HP, and 9 for the 20/30 HP. Add at order time so the harness ships with the float.
  • Sizing Help: Call (470) 354-1969 with your pond surface area and depth and we will recommend the right motor size.

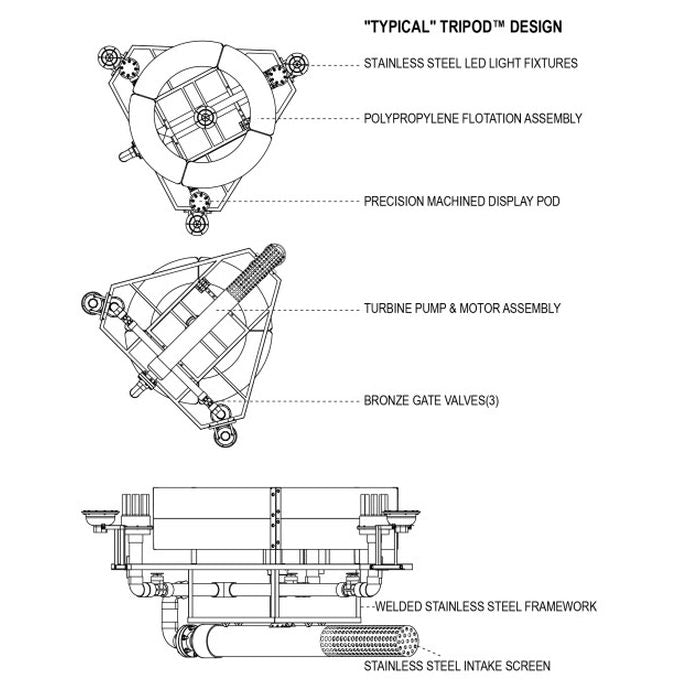

What's Included & Optional Add-Ons

  • Stainless Steel Turbine Pump - sealed submersible motor, water-cooled, self-lubricated
  • Rotocast Polypropylene Float - UV-inhibited, heavy-duty, low profile
  • TriPod Discharge Head - three tall vertical jets in a tripod pattern
  • Stainless Steel Intake Screen - protects the impeller from debris
  • UL-Listed Control Panel - weatherproof steel NEMA enclosure
  • STW-A Rated Submersible Cable - sized to motor; ordered separately
  • Optional LED Lighting Kit - 6 fixtures (10 HP), 7 fixtures (15 HP), or 9 fixtures (20/30 HP). 43 W each. Sold at order time.
  • Optional Custom Phase / Voltage - 208V or 460V three-phase on request
  • Optional Colored / Color-Changing LEDs - on request
  • Warranty - 4 yr display head / pump / motor; 2 yr LED lights; 1 yr control panel

Vertex TriPod Floating Fountain Specifications

Manufacturer Vertex Aquatic Solutions
Model TriPod Floating Pond Fountain
Type Three vertical jets in a tripod pattern - commercial display fountain
Motor Options 10 HP, 15 HP, 20 HP, 30 HP
Phase Options 230V single-phase or three-phase on 10 and 15 HP; three-phase only on 20 and 30 HP. 208V or 460V three-phase on request.
Frequency 60 Hz standard
Total Configurations 12 across HP, phase, and lighting
Spray Pattern Three tall vertical jets in a narrow tripod arrangement
Center Jet Height 20 ft (10 HP) up to 40 ft (30 HP)
Spray Diameter 10 ft (10 HP) up to 12 ft (15/20/30 HP)
Minimum Pond Depth 6 ft (10 HP) up to 8 ft (30 HP)
Motor Construction Stainless steel submersible turbine
Float Construction Rotocast polypropylene with UV inhibitors, low profile
Power Cable STW-A rated for direct underwater use; sized to motor; ordered separately
Control Panel UL-listed in weatherproof steel NEMA enclosure
Optional LED Lighting 6, 7, or 9 fixture kit depending on motor size; 43 W per fixture. Colored / color-changing on request.
Applications Commercial lakes, HOA waterways, corporate campuses, golf courses, parks where a tall narrow display is preferred over a wide one
Warranty (Display Head / Pump / Motor) 4 years
Warranty (LED Lighting) 2 years (excluding bulbs)
Warranty (Control Panel) 1 year
Winterization Must be removed from water before freezing conditions
Country of Origin Vertex Aquatic Solutions, USA



Manuals

View the TriPod Product Sheet

View the TriPod System Specifications

View the TriPod Owner's Manual
