Vertex TwoTier Floating Fountain Series On Blue Water with Trees at the Background

Vertex TwoTier Floating Pond Fountain

by Vertex Aquatic Solutions
SKU TT-2-1P
$11,250.00
Made in the USA
No Sales Tax Outside Georgia
Free Delivery from U.S. Warehouses
Talk to a Specialist: (470) 354-1969
Better Price? Request a Wire Discount Bulk or Business Order? Get a Fast Custom Quote Veterans & First Responders Save
Free Shipping
Ships --
Arrives --

Notify me when back in stock

Vertex 4 year warranty trust badges Vertex 4 year warranty trust badges

Bring a Wide Two-Tier Display to Your Pond with the Vertex TwoTier

The Vertex TwoTier Floating Pond Fountain is part of Vertex's Standard / Horizontal Series - a wide, two-level water display engineered for medium and large ponds. The lower tier opens into a broad cascading dome while the upper tier holds a tight vertical column above it. The combined pattern is wider and more layered than the Vertical TwoTier and reads beautifully across most residential and commercial lake settings.

Six motor sizes cover ponds from a half-acre on the 2 HP unit up through multi-acre commercial lakes on the 15 HP. Each fountain runs on a sealed submersible turbine pump, ships with a UL-listed control panel, and is built on the same rotocast polyethylene float used across the Vertex line. The 2026 Vertex catalog backs every unit with a 4-year pump-and-motor warranty, 2 years on the optional LED lights, and 1 year on the control panel.

Pick 2, 3, 5, 7.5, 10, or 15 HP. Single-phase 230V is standard up through 15 HP; three-phase 230V is available on every size for longer cord runs or industrial three-phase service. 208V and 460V three-phase configurations are available on request. Optional LED light kits sized to each motor (2-5 fixtures depending on HP) and submersible power cord lengths from 100 to 300 ft sold at order time. Free shipping on every TwoTier.

The Vertex TwoTier is a wide, two-level display fountain for medium and large ponds. Six motor sizes from 2 HP to 15 HP. Standard/Horizontal Series with a broad cascading lower tier and a vertical center column.

Sealed submersible turbine pump. UL-listed control panel. Rotocast polyethylene float. 4-year pump and motor warranty. 3 ft minimum water depth on the 2 HP; 7 ft on the 15 HP.

Standard single-phase or three-phase 230V on every motor size. 208V / 460V three-phase available on request. Optional LED light kits (2-5 fixtures per motor) and 100-300 ft cord lengths sold at order time.

Free shipping on every Vertex TwoTier. Optional LED lighting kits and cord lengths available on request. Call (470) 354-1969.

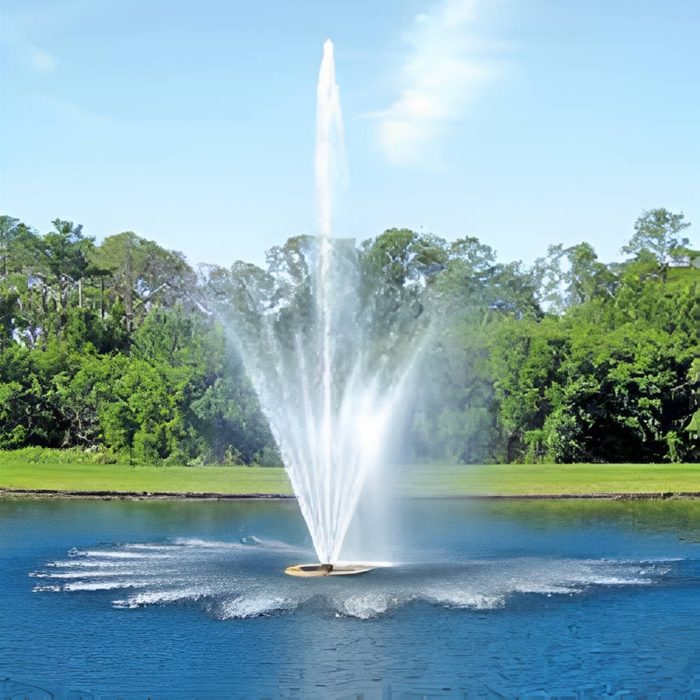

Vertex TwoTier Floating Pond Fountain on a pond with trees in the background

Why Choose the TwoTier by Vertex

Wide Two-Tier Display Pattern
The Standard / Horizontal TwoTier opens into a broad cascading lower dome with a tight vertical center column on top. Wider and more layered than the Vertical TwoTier - the right look on most residential ponds and commercial lakes.
Six Motor Sizes
2, 3, 5, 7.5, 10, and 15 HP. Smaller end fits a half-acre residential pond; larger end anchors a multi-acre commercial lake. Pick the HP that matches your pond surface area and the visual scale you want.
Shallow-to-Deep Operation
Minimum water depth scales with motor: just 3 ft on the 2 HP, up to 7 ft on the 15 HP. The smaller motors are a fit for shallower ponds where other commercial fountains can't operate.
Water-Cooled Stainless Turbine Pump
Sealed submersible motor. No oils, no seals, no annual maintenance kits. Lower lifetime cost than oil-cooled commercial fountains.
UL-Listed Control Panel
Weatherproof steel NEMA enclosure ships with every unit. Standard configurations include single-phase or three-phase 230V; 208V and 460V three-phase configurations available on request.
Rotocast Polyethylene Float
UV-inhibited, low-profile float. Sits flush with the lake surface during the day and disappears into the water at night so the spray does the visual work.
Optional LED Lighting Sized to Motor
2 to 5 fixtures depending on HP, per the 2026 Vertex catalog. LED kits sold at order time; colored LEDs and color-changing controllers available on request.
Vertex Warranty
4-year warranty on the pump, motor, float, and cable. 2-year warranty on LED lighting (excluding bulbs). 1-year warranty on the control panel.

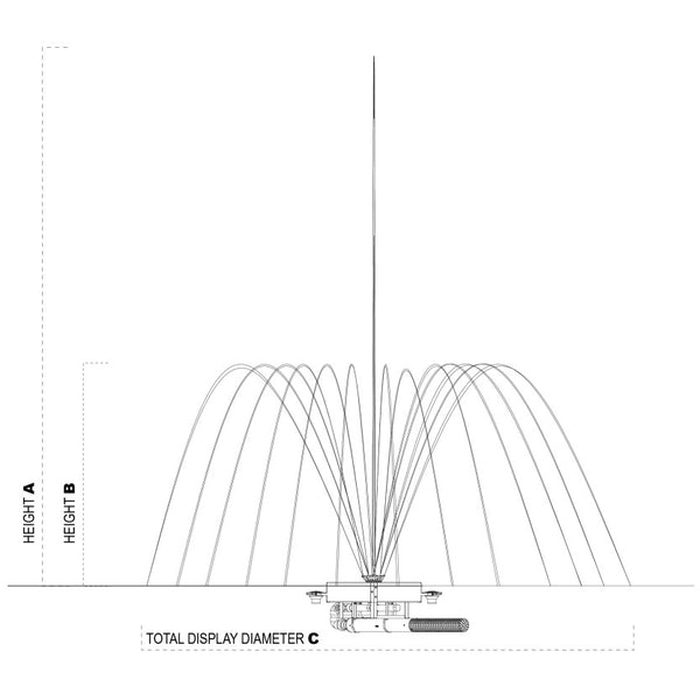

TwoTier Unit Comparison

2 HP Unit 3 HP Unit 5 HP Unit 7.5 HP Unit 10 HP Unit 15 HP Unit
Minimum Operating Depth 3 ft 4 ft 4 ft 5 ft 6 ft 7 ft
Center Height (A) 18 ft 23 ft 26 ft 30 ft 35 ft 40 ft
Side Height (B) 8 ft 10 ft 12 ft 15 ft 17 ft 20 ft
Spray Diameter (C) 20 ft 25 ft 30 ft 35 ft 40 ft 45 ft
LED Lights Included 2 2 3 4 4 5
Total LED Wattage 86 W 86 W 129 W 172 W 172 W 215 W
LED Amp Draw 1 A 1 A 1.5 A 2 A 2 A 2.5 A
Available Phase 1 Phase or 3 Phase
1 Phase Voltage 230V
3 Phase Voltage 208V or 230V
Display Head / Nozzle Warranty 4 yr
Pump and Motor Warranty 4 yr
LED Lighting Warranty 2 yr
Control Panel Warranty 1 yr
Spray pattern dimensions per Vertex's 2026 specifications. LED kits are sold separately at order time. 460V three-phase configurations are available on request. Vertex fountains must be removed from water before freezing. Call (470) 354-1969 for sizing help.

Requirements & What to Know Before You Buy

  • Pond Depth: 3 ft minimum on the 2 HP, scaling up to 7 ft on the 15 HP. Measure where the float will sit, not at the shoreline.
  • Pond Size: the 2 HP fits ponds from a half-acre; the 15 HP is sized for multi-acre commercial lakes. The TwoTier is wider than the Vertical TwoTier so larger water bodies show off the spray better.
  • Voltage and Phase Selection: single-phase 230V is standard up through 15 HP. Three-phase 230V is available on every size for industrial service or longer cord runs. 208V and 460V three-phase configurations are available on request.
  • Dedicated Circuit: the included control panel needs a properly sized dedicated circuit. Confirm with a licensed electrician before install.
  • Mooring: commercial fountains need anchoring. You supply anchors or weights sized to the float and water body. Vertex provides the float-side mooring attachment points.
  • Cable Run: standard cord lengths are 100, 200, or 300 ft, sized to motor. Longer runs are an order-time option - call for a quote.
  • Winterization: Vertex fountains must be removed from the water before freezing conditions. Plan for pull-and-store at the end of the season; the owner's manual covers the procedure.
  • Lighting: LED kits are optional on every unit. Add them at order time so the harness and float-internal mounts ship in the same package.
  • Sizing Help: Call (470) 354-1969 with your lake surface area and we will recommend the right motor size.

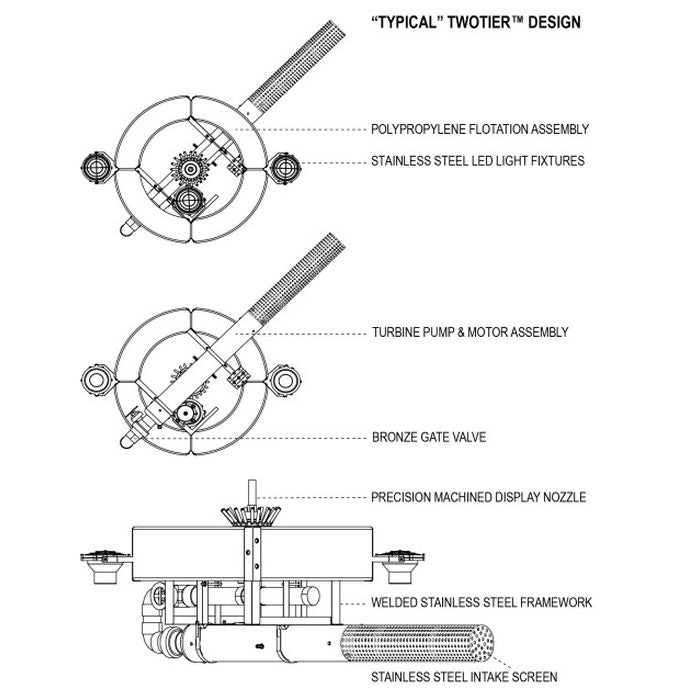

What's Included & Optional Add-Ons

  • Stainless Steel Turbine Pump - water-cooled, self-lubricated, no maintenance kits required
  • Rotocast Polyethylene Float - UV-inhibited, heavy-duty, low profile
  • Two-Tier Discharge Head - fixed spray pattern, wide lower tier + vertical center column
  • UL-Listed Control Panel - weatherproof steel NEMA enclosure
  • Submersible Power Cord - sized to motor (typically 100-300 ft); ordered separately
  • Optional LED Lighting Kit - (2) - (5) 43 W LEDs depending on motor size. Sold at order time.
  • Optional Custom Phase / Voltage - 208V or 460V three-phase configurations available on request
  • Optional Colored / Color-Changing LEDs - on request
  • Warranty - 4 yr pump/motor/float/cable; 2 yr LED lights; 1 yr control panel

Vertex TwoTier Floating Fountain Specifications

Manufacturer Vertex Aquatic Solutions
Model TwoTier Floating Pond Fountain
Series Standard / Horizontal
Type Two-tier wide-pattern floating display fountain
Motor Options 2 HP, 3 HP, 5 HP, 7.5 HP, 10 HP, 15 HP
Phase Options Single-phase 230V or three-phase 230V on every motor. 208V or 460V three-phase on request.
Frequency 60 Hz standard
Total Configurations 12 across HP and phase
Spray Pattern Wide two-level dome with vertical center column
Spray Tiers Lower cascading dome + upper vertical column
Minimum Pond Depth 3 ft (2 HP) to 7 ft (15 HP)
Recommended Pond Size 0.5 acre (2 HP) to 3+ acres (15 HP)
Motor Construction Stainless steel submersible turbine, water-cooled, self-lubricated
Float Construction Rotocast polyethylene with UV inhibitors, low profile
Power Cable Sized to motor; UL/CSA/NEC rated for direct underwater use; sold at order time
Standard Cord Lengths 100, 200, or 300 ft. Custom lengths on request.
Control Panel UL-listed in weatherproof steel NEMA enclosure
Optional Custom Control Features Wind-sensing shutoff, master controls for multi-unit installs - on request
Optional LED Lighting (2) - (5) 43 W LED kit, sized to motor. Colored / color-changing on request.
Applications Residential and commercial lakes, HOA waterways, corporate campuses, parks, retention basins
Warranty (Pump / Motor / Float / Cable) 4 years
Warranty (LED Lighting) 2 years (excluding bulbs)
Warranty (Control Panel) 1 year
Winterization Must be removed from water before freezing conditions
Country of Origin Vertex Aquatic Solutions, USA



Manuals

View the TwoTier Product Sheet

View the TwoTier System Specifications

View the TwoTier Owner's Manual

Overview

Bring a Wide Two-Tier Display to Your Pond with the Vertex TwoTier

The Vertex TwoTier Floating Pond Fountain is part of Vertex's Standard / Horizontal Series - a wide, two-level water display engineered for medium and large ponds. The lower tier opens into a broad cascading dome while the upper tier holds a tight vertical column above it. The combined pattern is wider and more layered than the Vertical TwoTier and reads beautifully across most residential and commercial lake settings.

Six motor sizes cover ponds from a half-acre on the 2 HP unit up through multi-acre commercial lakes on the 15 HP. Each fountain runs on a sealed submersible turbine pump, ships with a UL-listed control panel, and is built on the same rotocast polyethylene float used across the Vertex line. The 2026 Vertex catalog backs every unit with a 4-year pump-and-motor warranty, 2 years on the optional LED lights, and 1 year on the control panel.

Pick 2, 3, 5, 7.5, 10, or 15 HP. Single-phase 230V is standard up through 15 HP; three-phase 230V is available on every size for longer cord runs or industrial three-phase service. 208V and 460V three-phase configurations are available on request. Optional LED light kits sized to each motor (2-5 fixtures depending on HP) and submersible power cord lengths from 100 to 300 ft sold at order time. Free shipping on every TwoTier.

The Vertex TwoTier is a wide, two-level display fountain for medium and large ponds. Six motor sizes from 2 HP to 15 HP. Standard/Horizontal Series with a broad cascading lower tier and a vertical center column.

Sealed submersible turbine pump. UL-listed control panel. Rotocast polyethylene float. 4-year pump and motor warranty. 3 ft minimum water depth on the 2 HP; 7 ft on the 15 HP.

Standard single-phase or three-phase 230V on every motor size. 208V / 460V three-phase available on request. Optional LED light kits (2-5 fixtures per motor) and 100-300 ft cord lengths sold at order time.

Free shipping on every Vertex TwoTier. Optional LED lighting kits and cord lengths available on request. Call (470) 354-1969.

 Vertex TwoTier Floating Pond Fountain on a pond with trees in the background

Why Choose the TwoTier by Vertex

Wide Two-Tier Display Pattern The Standard / Horizontal TwoTier opens into a broad cascading lower dome with a tight vertical center column on top. Wider and more layered than the Vertical TwoTier - the right look on most residential ponds and commercial lakes. Six Motor Sizes 2, 3, 5, 7.5, 10, and 15 HP. Smaller end fits a half-acre residential pond; larger end anchors a multi-acre commercial lake. Pick the HP that matches your pond surface area and the visual scale you want. Shallow-to-Deep Operation Minimum water depth scales with motor: just 3 ft on the 2 HP, up to 7 ft on the 15 HP. The smaller motors are a fit for shallower ponds where other commercial fountains can't operate. Water-Cooled Stainless Turbine Pump Sealed submersible motor. No oils, no seals, no annual maintenance kits. Lower lifetime cost than oil-cooled commercial fountains. UL-Listed Control Panel Weatherproof steel NEMA enclosure ships with every unit. Standard configurations include single-phase or three-phase 230V; 208V and 460V three-phase configurations available on request. Rotocast Polyethylene Float UV-inhibited, low-profile float. Sits flush with the lake surface during the day and disappears into the water at night so the spray does the visual work. Optional LED Lighting Sized to Motor 2 to 5 fixtures depending on HP, per the 2026 Vertex catalog. LED kits sold at order time; colored LEDs and color-changing controllers available on request. Vertex Warranty 4-year warranty on the pump, motor, float, and cable. 2-year warranty on LED lighting (excluding bulbs). 1-year warranty on the control panel.

TwoTier Unit Comparison

2 HP Unit 3 HP Unit 5 HP Unit 7.5 HP Unit 10 HP Unit 15 HP Unit
Minimum Operating Depth 3 ft 4 ft 4 ft 5 ft 6 ft 7 ft
Center Height (A) 18 ft 23 ft 26 ft 30 ft 35 ft 40 ft
Side Height (B) 8 ft 10 ft 12 ft 15 ft 17 ft 20 ft
Spray Diameter (C) 20 ft 25 ft 30 ft 35 ft 40 ft 45 ft
LED Lights Included 2 2 3 4 4 5
Total LED Wattage 86 W 86 W 129 W 172 W 172 W 215 W
LED Amp Draw 1 A 1 A 1.5 A 2 A 2 A 2.5 A
Available Phase 1 Phase or 3 Phase
1 Phase Voltage 230V
3 Phase Voltage 208V or 230V
Display Head / Nozzle Warranty 4 yr
Pump and Motor Warranty 4 yr
LED Lighting Warranty 2 yr
Control Panel Warranty 1 yr
Spray pattern dimensions per Vertex's 2026 specifications. LED kits are sold separately at order time. 460V three-phase configurations are available on request. Vertex fountains must be removed from water before freezing. Call (470) 354-1969 for sizing help.

Requirements & What to Know Before You Buy

  • Pond Depth: 3 ft minimum on the 2 HP, scaling up to 7 ft on the 15 HP. Measure where the float will sit, not at the shoreline.
  • Pond Size: the 2 HP fits ponds from a half-acre; the 15 HP is sized for multi-acre commercial lakes. The TwoTier is wider than the Vertical TwoTier so larger water bodies show off the spray better.
  • Voltage and Phase Selection: single-phase 230V is standard up through 15 HP. Three-phase 230V is available on every size for industrial service or longer cord runs. 208V and 460V three-phase configurations are available on request.
  • Dedicated Circuit: the included control panel needs a properly sized dedicated circuit. Confirm with a licensed electrician before install.
  • Mooring: commercial fountains need anchoring. You supply anchors or weights sized to the float and water body. Vertex provides the float-side mooring attachment points.
  • Cable Run: standard cord lengths are 100, 200, or 300 ft, sized to motor. Longer runs are an order-time option - call for a quote.
  • Winterization: Vertex fountains must be removed from the water before freezing conditions. Plan for pull-and-store at the end of the season; the owner's manual covers the procedure.
  • Lighting: LED kits are optional on every unit. Add them at order time so the harness and float-internal mounts ship in the same package.
  • Sizing Help: Call (470) 354-1969 with your lake surface area and we will recommend the right motor size.

What's Included & Optional Add-Ons

  • Stainless Steel Turbine Pump - water-cooled, self-lubricated, no maintenance kits required
  • Rotocast Polyethylene Float - UV-inhibited, heavy-duty, low profile
  • Two-Tier Discharge Head - fixed spray pattern, wide lower tier + vertical center column
  • UL-Listed Control Panel - weatherproof steel NEMA enclosure
  • Submersible Power Cord - sized to motor (typically 100-300 ft); ordered separately
  • Optional LED Lighting Kit - (2) - (5) 43 W LEDs depending on motor size. Sold at order time.
  • Optional Custom Phase / Voltage - 208V or 460V three-phase configurations available on request
  • Optional Colored / Color-Changing LEDs - on request
  • Warranty - 4 yr pump/motor/float/cable; 2 yr LED lights; 1 yr control panel

Vertex TwoTier Floating Fountain Specifications

Manufacturer Vertex Aquatic Solutions
Model TwoTier Floating Pond Fountain
Series Standard / Horizontal
Type Two-tier wide-pattern floating display fountain
Motor Options 2 HP, 3 HP, 5 HP, 7.5 HP, 10 HP, 15 HP
Phase Options Single-phase 230V or three-phase 230V on every motor. 208V or 460V three-phase on request.
Frequency 60 Hz standard
Total Configurations 12 across HP and phase
Spray Pattern Wide two-level dome with vertical center column
Spray Tiers Lower cascading dome + upper vertical column
Minimum Pond Depth 3 ft (2 HP) to 7 ft (15 HP)
Recommended Pond Size 0.5 acre (2 HP) to 3+ acres (15 HP)
Motor Construction Stainless steel submersible turbine, water-cooled, self-lubricated
Float Construction Rotocast polyethylene with UV inhibitors, low profile
Power Cable Sized to motor; UL/CSA/NEC rated for direct underwater use; sold at order time
Standard Cord Lengths 100, 200, or 300 ft. Custom lengths on request.
Control Panel UL-listed in weatherproof steel NEMA enclosure
Optional Custom Control Features Wind-sensing shutoff, master controls for multi-unit installs - on request
Optional LED Lighting (2) - (5) 43 W LED kit, sized to motor. Colored / color-changing on request.
Applications Residential and commercial lakes, HOA waterways, corporate campuses, parks, retention basins
Warranty (Pump / Motor / Float / Cable) 4 years
Warranty (LED Lighting) 2 years (excluding bulbs)
Warranty (Control Panel) 1 year
Winterization Must be removed from water before freezing conditions
Country of Origin Vertex Aquatic Solutions, USA



Manuals

View the TwoTier Product Sheet

View the TwoTier System Specifications

View the TwoTier Owner's Manual

Shipping/Returns

Shipping

  • Order confirmation is emailed after checkout.
  • Orders typically process within 1 to 2 business days.
  • Delivery times may vary depending on the product, shipping method, and delivery location.
  • A shipping confirmation with tracking details will be sent once your order ships.
  • Any damage or shortage claims must be reported within 24 hours of delivery. Please keep the original packaging until the claim is resolved.

Returns

  • Unused Vertex fountains are eligible for return within 60 days with prior return authorization.
  • All returns require approval before the item is sent back.
  • Returned items must be unused, in their original packaging, and in saleable condition.
  • Approved Vertex fountain returns are subject to a 25% restocking fee, and original shipping charges are non-refundable.
  • Warranty returns require authorization, the original sales receipt, and an explanation of the product issue.

Questions? Contact support@propondsupply.com or call (470) 354-1969.

Warranty

Warranty

  • Vertex Aquatic Solutions products are warranted to be free from defects in material and workmanship under normal use and service.
  • 4-year warranty: In-water fountain components, including the pump, motor, flotation, framework, nozzles, submersible cables, and similar fountain components.
  • 3-year warranty: Vertex compressor systems for defective parts.
  • 2-year warranty: Fountain lighting fixtures, excluding bulbs.
  • 1-year warranty: Fountain control panels.
  • 5-year warranty: AirStation diffuser assemblies.
  • 15-year warranty: BottomLine tubing.
  • Lifetime warranty: Compressor cabinets against rust.
  • Air filters and compressor maintenance kits are considered wearable parts and are not covered under standard warranty coverage.
  • Warranty claims must be made through an authorized Vertex dealer or directly through Vertex Aquatic Solutions.
  • Warranty claims may require product photos, warranty labels, compressor labels, and an overall photo of the system or damaged item.
  • Customers are responsible for return shipping when sending products in for warranty inspection.
  • If Vertex determines the issue is due to a manufacturing defect, the product may be repaired or replaced at no cost.
  • Warranty coverage may be void due to incorrect voltage, faulty installation, vandalism, negligence, water intrusion, cabinet painting, or other non-warranty failures.

Questions? Contact support@propondsupply.com or call (470) 354-1969.

★Reviews

Customer Reviews

Be the first to write a review
0%
(0)
0%
(0)
0%
(0)
0%
(0)
0%
(0)
NO SALES TAX

Orders outside Georgia are 100% sales tax-free

Give us a call

Free shipping on every order

Give us a call

Our team is available from 8 AM to 8 PM EST at (470) 354-1969

BEST PRICE GUARANTEE

If you find the same item for less, we’ll match it.

Overview

Bring a Wide Two-Tier Display to Your Pond with the Vertex TwoTier

The Vertex TwoTier Floating Pond Fountain is part of Vertex's Standard / Horizontal Series - a wide, two-level water display engineered for medium and large ponds. The lower tier opens into a broad cascading dome while the upper tier holds a tight vertical column above it. The combined pattern is wider and more layered than the Vertical TwoTier and reads beautifully across most residential and commercial lake settings.

Six motor sizes cover ponds from a half-acre on the 2 HP unit up through multi-acre commercial lakes on the 15 HP. Each fountain runs on a sealed submersible turbine pump, ships with a UL-listed control panel, and is built on the same rotocast polyethylene float used across the Vertex line. The 2026 Vertex catalog backs every unit with a 4-year pump-and-motor warranty, 2 years on the optional LED lights, and 1 year on the control panel.

Pick 2, 3, 5, 7.5, 10, or 15 HP. Single-phase 230V is standard up through 15 HP; three-phase 230V is available on every size for longer cord runs or industrial three-phase service. 208V and 460V three-phase configurations are available on request. Optional LED light kits sized to each motor (2-5 fixtures depending on HP) and submersible power cord lengths from 100 to 300 ft sold at order time. Free shipping on every TwoTier.

The Vertex TwoTier is a wide, two-level display fountain for medium and large ponds. Six motor sizes from 2 HP to 15 HP. Standard/Horizontal Series with a broad cascading lower tier and a vertical center column.

Sealed submersible turbine pump. UL-listed control panel. Rotocast polyethylene float. 4-year pump and motor warranty. 3 ft minimum water depth on the 2 HP; 7 ft on the 15 HP.

Standard single-phase or three-phase 230V on every motor size. 208V / 460V three-phase available on request. Optional LED light kits (2-5 fixtures per motor) and 100-300 ft cord lengths sold at order time.

Free shipping on every Vertex TwoTier. Optional LED lighting kits and cord lengths available on request. Call (470) 354-1969.

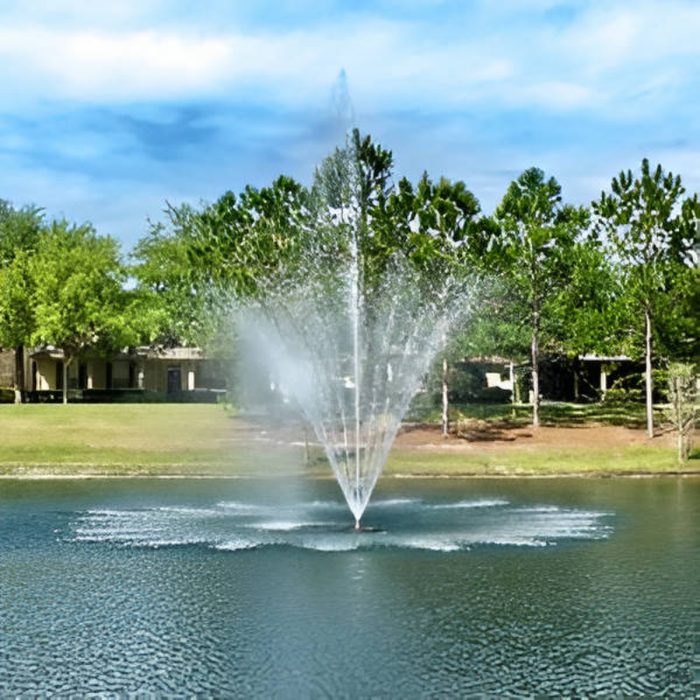

 Vertex TwoTier Floating Pond Fountain on a pond with trees in the background

Why Choose the TwoTier by Vertex

Wide Two-Tier Display Pattern The Standard / Horizontal TwoTier opens into a broad cascading lower dome with a tight vertical center column on top. Wider and more layered than the Vertical TwoTier - the right look on most residential ponds and commercial lakes. Six Motor Sizes 2, 3, 5, 7.5, 10, and 15 HP. Smaller end fits a half-acre residential pond; larger end anchors a multi-acre commercial lake. Pick the HP that matches your pond surface area and the visual scale you want. Shallow-to-Deep Operation Minimum water depth scales with motor: just 3 ft on the 2 HP, up to 7 ft on the 15 HP. The smaller motors are a fit for shallower ponds where other commercial fountains can't operate. Water-Cooled Stainless Turbine Pump Sealed submersible motor. No oils, no seals, no annual maintenance kits. Lower lifetime cost than oil-cooled commercial fountains. UL-Listed Control Panel Weatherproof steel NEMA enclosure ships with every unit. Standard configurations include single-phase or three-phase 230V; 208V and 460V three-phase configurations available on request. Rotocast Polyethylene Float UV-inhibited, low-profile float. Sits flush with the lake surface during the day and disappears into the water at night so the spray does the visual work. Optional LED Lighting Sized to Motor 2 to 5 fixtures depending on HP, per the 2026 Vertex catalog. LED kits sold at order time; colored LEDs and color-changing controllers available on request. Vertex Warranty 4-year warranty on the pump, motor, float, and cable. 2-year warranty on LED lighting (excluding bulbs). 1-year warranty on the control panel.

TwoTier Unit Comparison

2 HP Unit 3 HP Unit 5 HP Unit 7.5 HP Unit 10 HP Unit 15 HP Unit
Minimum Operating Depth 3 ft 4 ft 4 ft 5 ft 6 ft 7 ft
Center Height (A) 18 ft 23 ft 26 ft 30 ft 35 ft 40 ft
Side Height (B) 8 ft 10 ft 12 ft 15 ft 17 ft 20 ft
Spray Diameter (C) 20 ft 25 ft 30 ft 35 ft 40 ft 45 ft
LED Lights Included 2 2 3 4 4 5
Total LED Wattage 86 W 86 W 129 W 172 W 172 W 215 W
LED Amp Draw 1 A 1 A 1.5 A 2 A 2 A 2.5 A
Available Phase 1 Phase or 3 Phase
1 Phase Voltage 230V
3 Phase Voltage 208V or 230V
Display Head / Nozzle Warranty 4 yr
Pump and Motor Warranty 4 yr
LED Lighting Warranty 2 yr
Control Panel Warranty 1 yr
Spray pattern dimensions per Vertex's 2026 specifications. LED kits are sold separately at order time. 460V three-phase configurations are available on request. Vertex fountains must be removed from water before freezing. Call (470) 354-1969 for sizing help.

Requirements & What to Know Before You Buy

  • Pond Depth: 3 ft minimum on the 2 HP, scaling up to 7 ft on the 15 HP. Measure where the float will sit, not at the shoreline.
  • Pond Size: the 2 HP fits ponds from a half-acre; the 15 HP is sized for multi-acre commercial lakes. The TwoTier is wider than the Vertical TwoTier so larger water bodies show off the spray better.
  • Voltage and Phase Selection: single-phase 230V is standard up through 15 HP. Three-phase 230V is available on every size for industrial service or longer cord runs. 208V and 460V three-phase configurations are available on request.
  • Dedicated Circuit: the included control panel needs a properly sized dedicated circuit. Confirm with a licensed electrician before install.
  • Mooring: commercial fountains need anchoring. You supply anchors or weights sized to the float and water body. Vertex provides the float-side mooring attachment points.
  • Cable Run: standard cord lengths are 100, 200, or 300 ft, sized to motor. Longer runs are an order-time option - call for a quote.
  • Winterization: Vertex fountains must be removed from the water before freezing conditions. Plan for pull-and-store at the end of the season; the owner's manual covers the procedure.
  • Lighting: LED kits are optional on every unit. Add them at order time so the harness and float-internal mounts ship in the same package.
  • Sizing Help: Call (470) 354-1969 with your lake surface area and we will recommend the right motor size.

What's Included & Optional Add-Ons

  • Stainless Steel Turbine Pump - water-cooled, self-lubricated, no maintenance kits required
  • Rotocast Polyethylene Float - UV-inhibited, heavy-duty, low profile
  • Two-Tier Discharge Head - fixed spray pattern, wide lower tier + vertical center column
  • UL-Listed Control Panel - weatherproof steel NEMA enclosure
  • Submersible Power Cord - sized to motor (typically 100-300 ft); ordered separately
  • Optional LED Lighting Kit - (2) - (5) 43 W LEDs depending on motor size. Sold at order time.
  • Optional Custom Phase / Voltage - 208V or 460V three-phase configurations available on request
  • Optional Colored / Color-Changing LEDs - on request
  • Warranty - 4 yr pump/motor/float/cable; 2 yr LED lights; 1 yr control panel

Vertex TwoTier Floating Fountain Specifications

Manufacturer Vertex Aquatic Solutions
Model TwoTier Floating Pond Fountain
Series Standard / Horizontal
Type Two-tier wide-pattern floating display fountain
Motor Options 2 HP, 3 HP, 5 HP, 7.5 HP, 10 HP, 15 HP
Phase Options Single-phase 230V or three-phase 230V on every motor. 208V or 460V three-phase on request.
Frequency 60 Hz standard
Total Configurations 12 across HP and phase
Spray Pattern Wide two-level dome with vertical center column
Spray Tiers Lower cascading dome + upper vertical column
Minimum Pond Depth 3 ft (2 HP) to 7 ft (15 HP)
Recommended Pond Size 0.5 acre (2 HP) to 3+ acres (15 HP)
Motor Construction Stainless steel submersible turbine, water-cooled, self-lubricated
Float Construction Rotocast polyethylene with UV inhibitors, low profile
Power Cable Sized to motor; UL/CSA/NEC rated for direct underwater use; sold at order time
Standard Cord Lengths 100, 200, or 300 ft. Custom lengths on request.
Control Panel UL-listed in weatherproof steel NEMA enclosure
Optional Custom Control Features Wind-sensing shutoff, master controls for multi-unit installs - on request
Optional LED Lighting (2) - (5) 43 W LED kit, sized to motor. Colored / color-changing on request.
Applications Residential and commercial lakes, HOA waterways, corporate campuses, parks, retention basins
Warranty (Pump / Motor / Float / Cable) 4 years
Warranty (LED Lighting) 2 years (excluding bulbs)
Warranty (Control Panel) 1 year
Winterization Must be removed from water before freezing conditions
Country of Origin Vertex Aquatic Solutions, USA



Manuals

View the TwoTier Product Sheet

View the TwoTier System Specifications

View the TwoTier Owner's Manual

Shipping/Returns

Shipping

  • Order confirmation is emailed after checkout.
  • Orders typically process within 1 to 2 business days.
  • Delivery times may vary depending on the product, shipping method, and delivery location.
  • A shipping confirmation with tracking details will be sent once your order ships.
  • Any damage or shortage claims must be reported within 24 hours of delivery. Please keep the original packaging until the claim is resolved.

Returns

  • Unused Vertex fountains are eligible for return within 60 days with prior return authorization.
  • All returns require approval before the item is sent back.
  • Returned items must be unused, in their original packaging, and in saleable condition.
  • Approved Vertex fountain returns are subject to a 25% restocking fee, and original shipping charges are non-refundable.
  • Warranty returns require authorization, the original sales receipt, and an explanation of the product issue.

Questions? Contact support@propondsupply.com or call (470) 354-1969.

Warranty

Warranty

  • Vertex Aquatic Solutions products are warranted to be free from defects in material and workmanship under normal use and service.
  • 4-year warranty: In-water fountain components, including the pump, motor, flotation, framework, nozzles, submersible cables, and similar fountain components.
  • 3-year warranty: Vertex compressor systems for defective parts.
  • 2-year warranty: Fountain lighting fixtures, excluding bulbs.
  • 1-year warranty: Fountain control panels.
  • 5-year warranty: AirStation diffuser assemblies.
  • 15-year warranty: BottomLine tubing.
  • Lifetime warranty: Compressor cabinets against rust.
  • Air filters and compressor maintenance kits are considered wearable parts and are not covered under standard warranty coverage.
  • Warranty claims must be made through an authorized Vertex dealer or directly through Vertex Aquatic Solutions.
  • Warranty claims may require product photos, warranty labels, compressor labels, and an overall photo of the system or damaged item.
  • Customers are responsible for return shipping when sending products in for warranty inspection.
  • If Vertex determines the issue is due to a manufacturing defect, the product may be repaired or replaced at no cost.
  • Warranty coverage may be void due to incorrect voltage, faulty installation, vandalism, negligence, water intrusion, cabinet painting, or other non-warranty failures.

Questions? Contact support@propondsupply.com or call (470) 354-1969.

★Reviews

Customer Reviews

Be the first to write a review
0%
(0)
0%
(0)
0%
(0)
0%
(0)
0%
(0)
