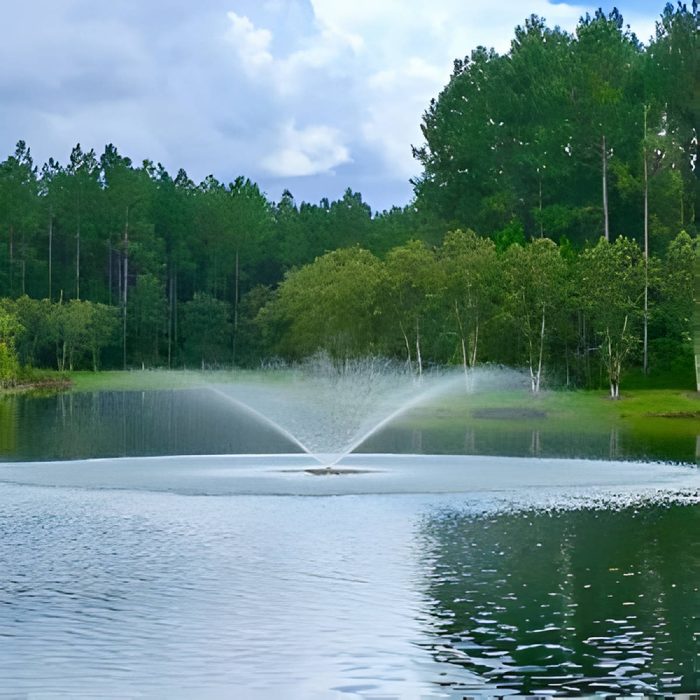

Vertex Vertical FunnelJet Fountain - On Water with Trees at the Background

Vertex Vertical FunnelJet Pond Fountain

by Vertex Aquatic Solutions
SKU VFUNNELJET-2-1P
$8,840.00
Made in the USA
No Sales Tax Outside Georgia
Free Delivery from U.S. Warehouses
Talk to a Specialist: (470) 354-1969
Better Price? Request a Wire Discount Bulk or Business Order? Get a Fast Custom Quote Veterans & First Responders Save
Free Shipping
Ships --
Arrives --

Notify me when back in stock

Vertex 4 year warranty trust badges Vertex 4 year warranty trust badges

Throw a Wide Funnel-Shaped Display from Deep Water with the Vertex Vertical FunnelJet

The Vertex Vertical FunnelJet Fountain is the deep-water version of Vertex's wide funnel-shaped display. It throws the same low, broad pattern as the standard FunnelJet - a dramatic funnel with the largest diameter relative to height in the Vertex line - but in a vertical configuration designed for ponds that stay deep year-round. All three motor sizes run from a uniform 6.5 ft minimum depth, which means you can spec the right HP based on the visual you want without worrying about depth changes from one motor to the next.

Three motor sizes cover residential through small commercial water bodies: 2 HP, 3 HP, and 5 HP. Spray heights are intentionally low at 6 to 8 ft, but the funnel spreads 20 to 35 ft wide across the surface - the right pick when you want a fountain that fills a deep pond with a wide, photogenic ring of water without the tall vertical jet most commercial fountains throw. Every unit ships on a sealed stainless steel submersible turbine pump, a UL-listed control panel, and the rotocast polypropylene float used across the Vertex commercial line.

Pick 2, 3, or 5 HP. Every motor size is available in 230V single-phase or three-phase. 208V or 460V three-phase configurations are available on request. Optional LED light kits use 3 fixtures uniformly across all motor sizes per the 2026 Vertex catalog, with submersible power cord lengths sold at order time. Free shipping on every Vertical FunnelJet.

The Vertex Vertical FunnelJet is a deep-water floating fountain with a wide low funnel pattern. Three motor sizes from 2 HP to 5 HP. Heights 6-8 ft, diameters 20-35 ft. Uniform 6.5 ft min depth across the line.

Stainless steel submersible turbine pump. UL-listed control panel. Rotocast polypropylene float. STW-A rated submersible cable. 4-year pump and motor warranty.

Every motor in single-phase or three-phase 230V. Optional 3-light LED kit sized uniformly across the line, plus cord lengths sold at order time.

Free shipping on every Vertex Vertical FunnelJet. Optional LED lighting kits and cord lengths available on request. Call (470) 354-1969.

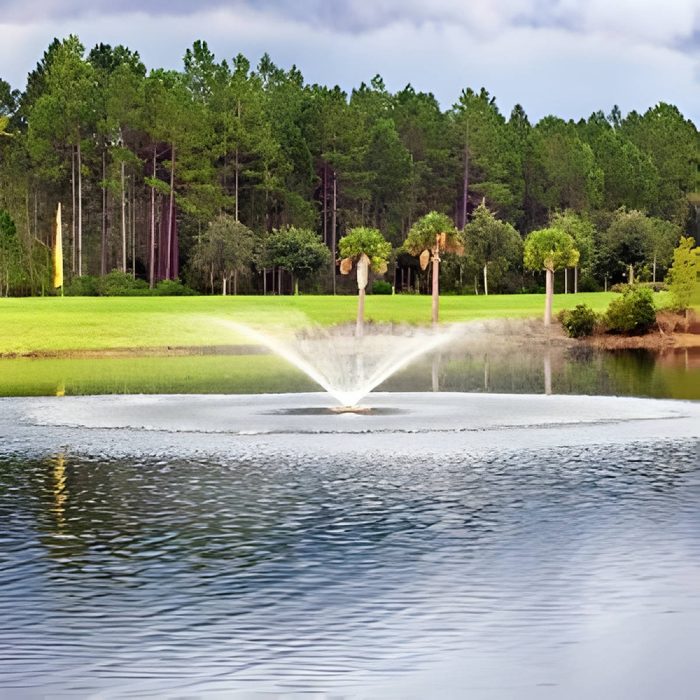

Vertex Vertical FunnelJet Pond Fountain on water

Why Choose the Vertical FunnelJet by Vertex

Wide Funnel-Shaped Pattern in a Deep-Water Configuration
The Vertical FunnelJet trades the standard funnel's shallow-pond range for a deep-water configuration that runs in 6.5 ft uniformly across all three motor sizes. You get the same broad low pattern but in a fountain built for ponds that hold depth year-round.
Uniform 6.5 ft Minimum Depth
Every motor size - 2 HP, 3 HP, and 5 HP - requires the same 6.5 ft minimum operating depth. Spec the motor for the visual you want, not for the depth you have.
Wide Spray Diameter for the Motor Size
The 5 HP throws a 35 ft diameter funnel at just 8 ft tall - the broadest visual you'll get from a 5 HP commercial fountain. Perfect for filling deep ponds where a wide horizontal spread reads better than a single tall vertical jet.
Stainless Steel Turbine Pump
Sealed submersible motor. Water-cooled with no oils, no seals, and no annual maintenance kits. Spring-loaded check valve for smooth operation at any angle. Lower lifetime cost than oil-cooled commercial fountains.
UL-Listed Control Panel
Weatherproof steel NEMA enclosure ships with every unit. Class A GFCI protection. Every motor size is available in 230V single-phase or three-phase. 208V or 460V three-phase configurations available on request.
STW-A Rated Submersible Cable
Power cable rated for direct underwater use. Sized to motor; custom cord lengths available at order time.
Uniform LED Lighting Kit
All three motor sizes use the same 3-fixture LED kit per the 2026 Vertex catalog - simplifies ordering and replacement. High-efficiency LEDs at 140 lumens/watt. Optional colored / color-changing LEDs available on request.
Vertex Warranty Package
4-year warranty on the display head, pump, and motor. 2-year warranty on LED lighting (excluding bulbs). 1-year warranty on the control panel.

Vertical FunnelJet Unit Comparison

2 HP Unit 3 HP Unit 5 HP Unit
Minimum Operating Depth 6.5 ft

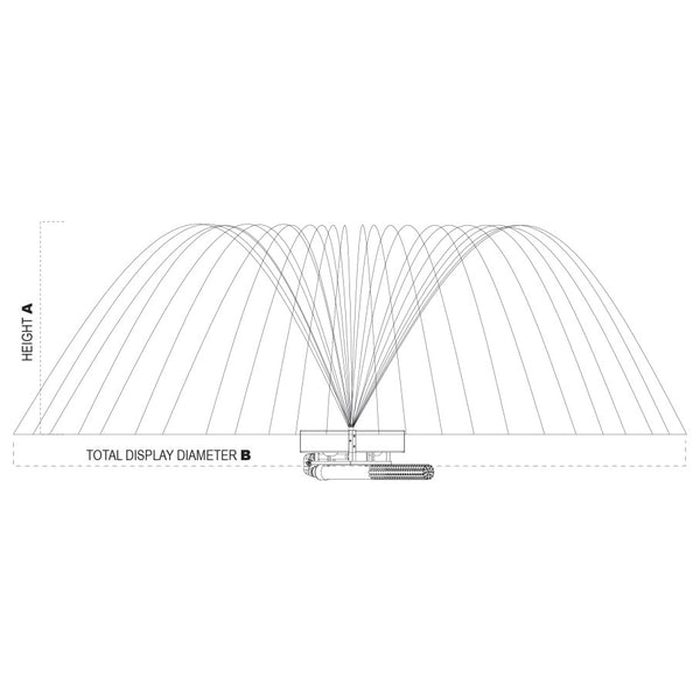

Spray Height (A) 6 ft 7 ft 8 ft
Spray Diameter (B) 20 ft 30 ft 35 ft
LED Lights Included 3
Total LED Wattage 86 W
LED Amp Draw 0.8 A
Available Phase 1 Phase or 3 Phase
1 Phase Voltage 230V
3 Phase Voltage 208V or 230V
Display Head / Nozzle Warranty 4 yr
Pump and Motor Warranty 4 yr
LED Lighting Warranty 2 yr
Control Panel Warranty 1 yr
Vertical FunnelJet uses the same wide funnel pattern as the standard FunnelJet but in a deeper-water vertical configuration - 6.5 ft minimum depth across all motor sizes. LED kits sold separately at order time. 460V three-phase configurations available on request. Vertex fountains must be removed from water before freezing. Call (470) 354-1969 for sizing help.

Requirements & What to Know Before You Buy

  • Pond Depth: 6.5 ft minimum on every motor size. If your pond is shallower, look at the standard FunnelJet, which runs in 3 to 6 ft depending on motor.
  • Pond Size: the funnel spreads 20 to 35 ft wide depending on motor size. Confirm at least 15 to 20 ft of clearance to any shoreline on each side of the fountain.
  • Voltage and Phase Selection: every motor size is available in 230V single-phase or three-phase. 208V and 460V three-phase configurations are available on request.
  • Dedicated Circuit: the included control panel needs a properly sized dedicated circuit. Confirm with a licensed electrician before install.
  • Mooring: commercial fountains need anchoring. You supply anchors or weights sized to the float and water body.
  • Cable Run: standard cord lengths are available; longer runs are an order-time option.
  • Winterization: Vertex fountains must be removed from water before freezing conditions.
  • Lighting: the suggested LED kit is 3 lights for every motor size. Add at order time so the harness ships with the float.
  • Sizing Help: Call (470) 354-1969 with your pond surface area and depth and we will recommend the right motor size.

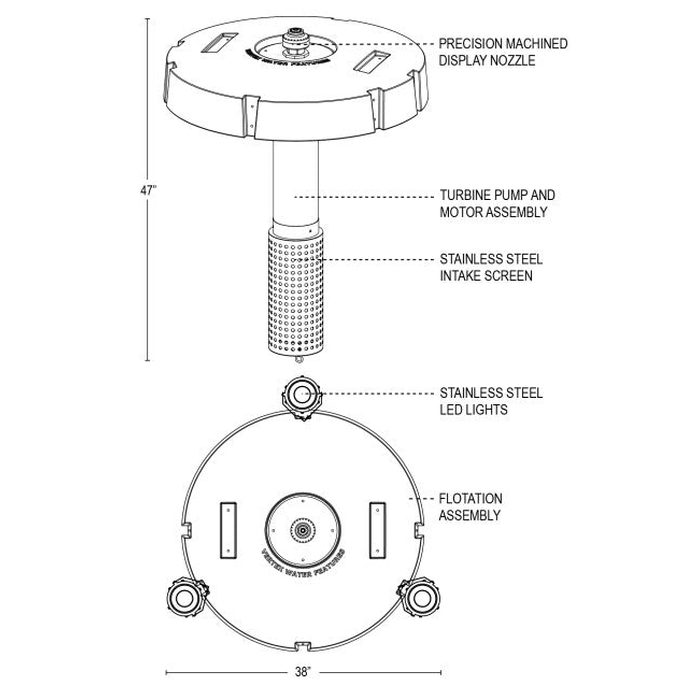

What's Included & Optional Add-Ons

  • Stainless Steel Turbine Pump - sealed submersible motor, water-cooled, self-lubricated
  • Rotocast Polypropylene Float - UV-inhibited, heavy-duty, low profile
  • Vertical FunnelJet Display Head - wide low funnel-shaped pattern, deep-water configuration
  • Stainless Steel Intake Screen - protects the impeller from debris
  • UL-Listed Control Panel - weatherproof steel NEMA enclosure with Class A GFCI
  • STW-A Rated Submersible Cable - sized to motor; ordered separately
  • Optional LED Lighting Kit - 3 fixtures on every motor size. 43 W each. Sold at order time.
  • Optional Custom Phase / Voltage - 208V or 460V three-phase on request
  • Optional Colored / Color-Changing LEDs - on request
  • Optional Wind Sensor / Remote / Multi-Unit Master Panel - on request
  • Warranty - 4 yr display head / pump / motor; 2 yr LED lights; 1 yr control panel
  • Returns - Unused Vertex fountains are eligible for returns within 30 days, minus a 25% restocking fee.

Vertex Vertical FunnelJet Fountain Specifications

Manufacturer Vertex Aquatic Solutions
Model Vertical FunnelJet Pond Fountain
Type Wide funnel-shaped display fountain in a deep-water vertical configuration
Motor Options 2 HP, 3 HP, 5 HP
Phase Options 230V single-phase or three-phase on every motor size. 208V or 460V three-phase on request.
Frequency 60 Hz standard
Total Configurations 12 across HP, phase, and lighting
Spray Pattern Wide funnel - low height, broad diameter
Spray Height 6 ft (2 HP) up to 8 ft (5 HP)
Spray Diameter 20 ft (2 HP) up to 35 ft (5 HP)
Minimum Pond Depth 6.5 ft - uniform across all motor sizes
Motor Construction Stainless steel submersible turbine
Float Construction Rotocast polypropylene with UV inhibitors, low profile
Power Cable STW-A rated for direct underwater use; sized to motor; ordered separately
Control Panel UL-listed in weatherproof steel NEMA enclosure with Class A GFCI
Optional LED Lighting 3-fixture kit across all motor sizes; 43 W per fixture at 140 lumens/watt. Colored / color-changing on request.
Applications Deep ponds, HOA water features, landscape ponds, golf course water hazards, parks, commercial campuses where a wide low funnel pattern is preferred over a tall narrow jet
Warranty (Display Head / Pump / Motor) 4 years
Warranty (LED Lighting) 2 years (excluding bulbs)
Warranty (Control Panel) 1 year
Winterization Must be removed from water before freezing conditions
Country of Origin Vertex Aquatic Solutions, USA



Manuals

View the Vertical FunnelJet Product Sheet

View the Vertical FunnelJet System Specifications

View the Vertical FunnelJet Owner's Manual

Overview

Throw a Wide Funnel-Shaped Display from Deep Water with the Vertex Vertical FunnelJet

The Vertex Vertical FunnelJet Fountain is the deep-water version of Vertex's wide funnel-shaped display. It throws the same low, broad pattern as the standard FunnelJet - a dramatic funnel with the largest diameter relative to height in the Vertex line - but in a vertical configuration designed for ponds that stay deep year-round. All three motor sizes run from a uniform 6.5 ft minimum depth, which means you can spec the right HP based on the visual you want without worrying about depth changes from one motor to the next.

Three motor sizes cover residential through small commercial water bodies: 2 HP, 3 HP, and 5 HP. Spray heights are intentionally low at 6 to 8 ft, but the funnel spreads 20 to 35 ft wide across the surface - the right pick when you want a fountain that fills a deep pond with a wide, photogenic ring of water without the tall vertical jet most commercial fountains throw. Every unit ships on a sealed stainless steel submersible turbine pump, a UL-listed control panel, and the rotocast polypropylene float used across the Vertex commercial line.

Pick 2, 3, or 5 HP. Every motor size is available in 230V single-phase or three-phase. 208V or 460V three-phase configurations are available on request. Optional LED light kits use 3 fixtures uniformly across all motor sizes per the 2026 Vertex catalog, with submersible power cord lengths sold at order time. Free shipping on every Vertical FunnelJet.

The Vertex Vertical FunnelJet is a deep-water floating fountain with a wide low funnel pattern. Three motor sizes from 2 HP to 5 HP. Heights 6-8 ft, diameters 20-35 ft. Uniform 6.5 ft min depth across the line.

Stainless steel submersible turbine pump. UL-listed control panel. Rotocast polypropylene float. STW-A rated submersible cable. 4-year pump and motor warranty.

Every motor in single-phase or three-phase 230V. Optional 3-light LED kit sized uniformly across the line, plus cord lengths sold at order time.

Free shipping on every Vertex Vertical FunnelJet. Optional LED lighting kits and cord lengths available on request. Call (470) 354-1969.

 Vertex Vertical FunnelJet Pond Fountain on water

Why Choose the Vertical FunnelJet by Vertex

Wide Funnel-Shaped Pattern in a Deep-Water Configuration The Vertical FunnelJet trades the standard funnel's shallow-pond range for a deep-water configuration that runs in 6.5 ft uniformly across all three motor sizes. You get the same broad low pattern but in a fountain built for ponds that hold depth year-round. Uniform 6.5 ft Minimum Depth Every motor size - 2 HP, 3 HP, and 5 HP - requires the same 6.5 ft minimum operating depth. Spec the motor for the visual you want, not for the depth you have. Wide Spray Diameter for the Motor Size The 5 HP throws a 35 ft diameter funnel at just 8 ft tall - the broadest visual you'll get from a 5 HP commercial fountain. Perfect for filling deep ponds where a wide horizontal spread reads better than a single tall vertical jet. Stainless Steel Turbine Pump Sealed submersible motor. Water-cooled with no oils, no seals, and no annual maintenance kits. Spring-loaded check valve for smooth operation at any angle. Lower lifetime cost than oil-cooled commercial fountains. UL-Listed Control Panel Weatherproof steel NEMA enclosure ships with every unit. Class A GFCI protection. Every motor size is available in 230V single-phase or three-phase. 208V or 460V three-phase configurations available on request. STW-A Rated Submersible Cable Power cable rated for direct underwater use. Sized to motor; custom cord lengths available at order time. Uniform LED Lighting Kit All three motor sizes use the same 3-fixture LED kit per the 2026 Vertex catalog - simplifies ordering and replacement. High-efficiency LEDs at 140 lumens/watt. Optional colored / color-changing LEDs available on request. Vertex Warranty Package 4-year warranty on the display head, pump, and motor. 2-year warranty on LED lighting (excluding bulbs). 1-year warranty on the control panel.

Vertical FunnelJet Unit Comparison

2 HP Unit 3 HP Unit 5 HP Unit
Minimum Operating Depth 6.5 ft
Spray Height (A) 6 ft 7 ft 8 ft
Spray Diameter (B) 20 ft 30 ft 35 ft
LED Lights Included 3
Total LED Wattage 86 W
LED Amp Draw 0.8 A
Available Phase 1 Phase or 3 Phase
1 Phase Voltage 230V
3 Phase Voltage 208V or 230V
Display Head / Nozzle Warranty 4 yr
Pump and Motor Warranty 4 yr
LED Lighting Warranty 2 yr
Control Panel Warranty 1 yr
Vertical FunnelJet uses the same wide funnel pattern as the standard FunnelJet but in a deeper-water vertical configuration - 6.5 ft minimum depth across all motor sizes. LED kits sold separately at order time. 460V three-phase configurations available on request. Vertex fountains must be removed from water before freezing. Call (470) 354-1969 for sizing help.

Requirements & What to Know Before You Buy

  • Pond Depth: 6.5 ft minimum on every motor size. If your pond is shallower, look at the standard FunnelJet, which runs in 3 to 6 ft depending on motor.
  • Pond Size: the funnel spreads 20 to 35 ft wide depending on motor size. Confirm at least 15 to 20 ft of clearance to any shoreline on each side of the fountain.
  • Voltage and Phase Selection: every motor size is available in 230V single-phase or three-phase. 208V and 460V three-phase configurations are available on request.
  • Dedicated Circuit: the included control panel needs a properly sized dedicated circuit. Confirm with a licensed electrician before install.
  • Mooring: commercial fountains need anchoring. You supply anchors or weights sized to the float and water body.
  • Cable Run: standard cord lengths are available; longer runs are an order-time option.
  • Winterization: Vertex fountains must be removed from water before freezing conditions.
  • Lighting: the suggested LED kit is 3 lights for every motor size. Add at order time so the harness ships with the float.
  • Sizing Help: Call (470) 354-1969 with your pond surface area and depth and we will recommend the right motor size.

What's Included & Optional Add-Ons

  • Stainless Steel Turbine Pump - sealed submersible motor, water-cooled, self-lubricated
  • Rotocast Polypropylene Float - UV-inhibited, heavy-duty, low profile
  • Vertical FunnelJet Display Head - wide low funnel-shaped pattern, deep-water configuration
  • Stainless Steel Intake Screen - protects the impeller from debris
  • UL-Listed Control Panel - weatherproof steel NEMA enclosure with Class A GFCI
  • STW-A Rated Submersible Cable - sized to motor; ordered separately
  • Optional LED Lighting Kit - 3 fixtures on every motor size. 43 W each. Sold at order time.
  • Optional Custom Phase / Voltage - 208V or 460V three-phase on request
  • Optional Colored / Color-Changing LEDs - on request
  • Optional Wind Sensor / Remote / Multi-Unit Master Panel - on request
  • Warranty - 4 yr display head / pump / motor; 2 yr LED lights; 1 yr control panel
  • Returns - Unused Vertex fountains are eligible for returns within 30 days, minus a 25% restocking fee.

Vertex Vertical FunnelJet Fountain Specifications

Manufacturer Vertex Aquatic Solutions
Model Vertical FunnelJet Pond Fountain
Type Wide funnel-shaped display fountain in a deep-water vertical configuration
Motor Options 2 HP, 3 HP, 5 HP
Phase Options 230V single-phase or three-phase on every motor size. 208V or 460V three-phase on request.
Frequency 60 Hz standard
Total Configurations 12 across HP, phase, and lighting
Spray Pattern Wide funnel - low height, broad diameter
Spray Height 6 ft (2 HP) up to 8 ft (5 HP)
Spray Diameter 20 ft (2 HP) up to 35 ft (5 HP)
Minimum Pond Depth 6.5 ft - uniform across all motor sizes
Motor Construction Stainless steel submersible turbine
Float Construction Rotocast polypropylene with UV inhibitors, low profile
Power Cable STW-A rated for direct underwater use; sized to motor; ordered separately
Control Panel UL-listed in weatherproof steel NEMA enclosure with Class A GFCI
Optional LED Lighting 3-fixture kit across all motor sizes; 43 W per fixture at 140 lumens/watt. Colored / color-changing on request.
Applications Deep ponds, HOA water features, landscape ponds, golf course water hazards, parks, commercial campuses where a wide low funnel pattern is preferred over a tall narrow jet
Warranty (Display Head / Pump / Motor) 4 years
Warranty (LED Lighting) 2 years (excluding bulbs)
Warranty (Control Panel) 1 year
Winterization Must be removed from water before freezing conditions
Country of Origin Vertex Aquatic Solutions, USA



Manuals

View the Vertical FunnelJet Product Sheet

View the Vertical FunnelJet System Specifications

View the Vertical FunnelJet Owner's Manual

Shipping/Returns

Shipping

  • Order confirmation is emailed after checkout.
  • Orders typically process within 1 to 2 business days.
  • Delivery times may vary depending on the product, shipping method, and delivery location.
  • A shipping confirmation with tracking details will be sent once your order ships.
  • Any damage or shortage claims must be reported within 24 hours of delivery. Please keep the original packaging until the claim is resolved.

Returns

  • Unused Vertex fountains are eligible for return within 60 days with prior return authorization.
  • All returns require approval before the item is sent back.
  • Returned items must be unused, in their original packaging, and in saleable condition.
  • Approved Vertex fountain returns are subject to a 25% restocking fee, and original shipping charges are non-refundable.
  • Warranty returns require authorization, the original sales receipt, and an explanation of the product issue.

Questions? Contact support@propondsupply.com or call (470) 354-1969.

Warranty

Warranty

  • Vertex Aquatic Solutions products are warranted to be free from defects in material and workmanship under normal use and service.
  • 4-year warranty: In-water fountain components, including the pump, motor, flotation, framework, nozzles, submersible cables, and similar fountain components.
  • 3-year warranty: Vertex compressor systems for defective parts.
  • 2-year warranty: Fountain lighting fixtures, excluding bulbs.
  • 1-year warranty: Fountain control panels.
  • 5-year warranty: AirStation diffuser assemblies.
  • 15-year warranty: BottomLine tubing.
  • Lifetime warranty: Compressor cabinets against rust.
  • Air filters and compressor maintenance kits are considered wearable parts and are not covered under standard warranty coverage.
  • Warranty claims must be made through an authorized Vertex dealer or directly through Vertex Aquatic Solutions.
  • Warranty claims may require product photos, warranty labels, compressor labels, and an overall photo of the system or damaged item.
  • Customers are responsible for return shipping when sending products in for warranty inspection.
  • If Vertex determines the issue is due to a manufacturing defect, the product may be repaired or replaced at no cost.
  • Warranty coverage may be void due to incorrect voltage, faulty installation, vandalism, negligence, water intrusion, cabinet painting, or other non-warranty failures.

Questions? Contact support@propondsupply.com or call (470) 354-1969.

★Reviews

Customer Reviews

Be the first to write a review
0%
(0)
0%
(0)
0%
(0)
0%
(0)
0%
(0)
NO SALES TAX

Orders outside Georgia are 100% sales tax-free

Give us a call

Free shipping on every order

Give us a call

Our team is available from 8 AM to 8 PM EST at (470) 354-1969

BEST PRICE GUARANTEE

If you find the same item for less, we’ll match it.

Overview

Throw a Wide Funnel-Shaped Display from Deep Water with the Vertex Vertical FunnelJet

The Vertex Vertical FunnelJet Fountain is the deep-water version of Vertex's wide funnel-shaped display. It throws the same low, broad pattern as the standard FunnelJet - a dramatic funnel with the largest diameter relative to height in the Vertex line - but in a vertical configuration designed for ponds that stay deep year-round. All three motor sizes run from a uniform 6.5 ft minimum depth, which means you can spec the right HP based on the visual you want without worrying about depth changes from one motor to the next.

Three motor sizes cover residential through small commercial water bodies: 2 HP, 3 HP, and 5 HP. Spray heights are intentionally low at 6 to 8 ft, but the funnel spreads 20 to 35 ft wide across the surface - the right pick when you want a fountain that fills a deep pond with a wide, photogenic ring of water without the tall vertical jet most commercial fountains throw. Every unit ships on a sealed stainless steel submersible turbine pump, a UL-listed control panel, and the rotocast polypropylene float used across the Vertex commercial line.

Pick 2, 3, or 5 HP. Every motor size is available in 230V single-phase or three-phase. 208V or 460V three-phase configurations are available on request. Optional LED light kits use 3 fixtures uniformly across all motor sizes per the 2026 Vertex catalog, with submersible power cord lengths sold at order time. Free shipping on every Vertical FunnelJet.

The Vertex Vertical FunnelJet is a deep-water floating fountain with a wide low funnel pattern. Three motor sizes from 2 HP to 5 HP. Heights 6-8 ft, diameters 20-35 ft. Uniform 6.5 ft min depth across the line.

Stainless steel submersible turbine pump. UL-listed control panel. Rotocast polypropylene float. STW-A rated submersible cable. 4-year pump and motor warranty.

Every motor in single-phase or three-phase 230V. Optional 3-light LED kit sized uniformly across the line, plus cord lengths sold at order time.

Free shipping on every Vertex Vertical FunnelJet. Optional LED lighting kits and cord lengths available on request. Call (470) 354-1969.

 Vertex Vertical FunnelJet Pond Fountain on water

Why Choose the Vertical FunnelJet by Vertex

Wide Funnel-Shaped Pattern in a Deep-Water Configuration The Vertical FunnelJet trades the standard funnel's shallow-pond range for a deep-water configuration that runs in 6.5 ft uniformly across all three motor sizes. You get the same broad low pattern but in a fountain built for ponds that hold depth year-round. Uniform 6.5 ft Minimum Depth Every motor size - 2 HP, 3 HP, and 5 HP - requires the same 6.5 ft minimum operating depth. Spec the motor for the visual you want, not for the depth you have. Wide Spray Diameter for the Motor Size The 5 HP throws a 35 ft diameter funnel at just 8 ft tall - the broadest visual you'll get from a 5 HP commercial fountain. Perfect for filling deep ponds where a wide horizontal spread reads better than a single tall vertical jet. Stainless Steel Turbine Pump Sealed submersible motor. Water-cooled with no oils, no seals, and no annual maintenance kits. Spring-loaded check valve for smooth operation at any angle. Lower lifetime cost than oil-cooled commercial fountains. UL-Listed Control Panel Weatherproof steel NEMA enclosure ships with every unit. Class A GFCI protection. Every motor size is available in 230V single-phase or three-phase. 208V or 460V three-phase configurations available on request. STW-A Rated Submersible Cable Power cable rated for direct underwater use. Sized to motor; custom cord lengths available at order time. Uniform LED Lighting Kit All three motor sizes use the same 3-fixture LED kit per the 2026 Vertex catalog - simplifies ordering and replacement. High-efficiency LEDs at 140 lumens/watt. Optional colored / color-changing LEDs available on request. Vertex Warranty Package 4-year warranty on the display head, pump, and motor. 2-year warranty on LED lighting (excluding bulbs). 1-year warranty on the control panel.

Vertical FunnelJet Unit Comparison

2 HP Unit 3 HP Unit 5 HP Unit
Minimum Operating Depth 6.5 ft
Spray Height (A) 6 ft 7 ft 8 ft
Spray Diameter (B) 20 ft 30 ft 35 ft
LED Lights Included 3
Total LED Wattage 86 W
LED Amp Draw 0.8 A
Available Phase 1 Phase or 3 Phase
1 Phase Voltage 230V
3 Phase Voltage 208V or 230V
Display Head / Nozzle Warranty 4 yr
Pump and Motor Warranty 4 yr
LED Lighting Warranty 2 yr
Control Panel Warranty 1 yr
Vertical FunnelJet uses the same wide funnel pattern as the standard FunnelJet but in a deeper-water vertical configuration - 6.5 ft minimum depth across all motor sizes. LED kits sold separately at order time. 460V three-phase configurations available on request. Vertex fountains must be removed from water before freezing. Call (470) 354-1969 for sizing help.

Requirements & What to Know Before You Buy

  • Pond Depth: 6.5 ft minimum on every motor size. If your pond is shallower, look at the standard FunnelJet, which runs in 3 to 6 ft depending on motor.
  • Pond Size: the funnel spreads 20 to 35 ft wide depending on motor size. Confirm at least 15 to 20 ft of clearance to any shoreline on each side of the fountain.
  • Voltage and Phase Selection: every motor size is available in 230V single-phase or three-phase. 208V and 460V three-phase configurations are available on request.
  • Dedicated Circuit: the included control panel needs a properly sized dedicated circuit. Confirm with a licensed electrician before install.
  • Mooring: commercial fountains need anchoring. You supply anchors or weights sized to the float and water body.
  • Cable Run: standard cord lengths are available; longer runs are an order-time option.
  • Winterization: Vertex fountains must be removed from water before freezing conditions.
  • Lighting: the suggested LED kit is 3 lights for every motor size. Add at order time so the harness ships with the float.
  • Sizing Help: Call (470) 354-1969 with your pond surface area and depth and we will recommend the right motor size.

What's Included & Optional Add-Ons

  • Stainless Steel Turbine Pump - sealed submersible motor, water-cooled, self-lubricated
  • Rotocast Polypropylene Float - UV-inhibited, heavy-duty, low profile
  • Vertical FunnelJet Display Head - wide low funnel-shaped pattern, deep-water configuration
  • Stainless Steel Intake Screen - protects the impeller from debris
  • UL-Listed Control Panel - weatherproof steel NEMA enclosure with Class A GFCI
  • STW-A Rated Submersible Cable - sized to motor; ordered separately
  • Optional LED Lighting Kit - 3 fixtures on every motor size. 43 W each. Sold at order time.
  • Optional Custom Phase / Voltage - 208V or 460V three-phase on request
  • Optional Colored / Color-Changing LEDs - on request
  • Optional Wind Sensor / Remote / Multi-Unit Master Panel - on request
  • Warranty - 4 yr display head / pump / motor; 2 yr LED lights; 1 yr control panel
  • Returns - Unused Vertex fountains are eligible for returns within 30 days, minus a 25% restocking fee.

Vertex Vertical FunnelJet Fountain Specifications

Manufacturer Vertex Aquatic Solutions
Model Vertical FunnelJet Pond Fountain
Type Wide funnel-shaped display fountain in a deep-water vertical configuration
Motor Options 2 HP, 3 HP, 5 HP
Phase Options 230V single-phase or three-phase on every motor size. 208V or 460V three-phase on request.
Frequency 60 Hz standard
Total Configurations 12 across HP, phase, and lighting
Spray Pattern Wide funnel - low height, broad diameter
Spray Height 6 ft (2 HP) up to 8 ft (5 HP)
Spray Diameter 20 ft (2 HP) up to 35 ft (5 HP)
Minimum Pond Depth 6.5 ft - uniform across all motor sizes
Motor Construction Stainless steel submersible turbine
Float Construction Rotocast polypropylene with UV inhibitors, low profile
Power Cable STW-A rated for direct underwater use; sized to motor; ordered separately
Control Panel UL-listed in weatherproof steel NEMA enclosure with Class A GFCI
Optional LED Lighting 3-fixture kit across all motor sizes; 43 W per fixture at 140 lumens/watt. Colored / color-changing on request.
Applications Deep ponds, HOA water features, landscape ponds, golf course water hazards, parks, commercial campuses where a wide low funnel pattern is preferred over a tall narrow jet
Warranty (Display Head / Pump / Motor) 4 years
Warranty (LED Lighting) 2 years (excluding bulbs)
Warranty (Control Panel) 1 year
Winterization Must be removed from water before freezing conditions
Country of Origin Vertex Aquatic Solutions, USA



Manuals

View the Vertical FunnelJet Product Sheet

View the Vertical FunnelJet System Specifications

View the Vertical FunnelJet Owner's Manual

Shipping/Returns

Shipping

  • Order confirmation is emailed after checkout.
  • Orders typically process within 1 to 2 business days.
  • Delivery times may vary depending on the product, shipping method, and delivery location.
  • A shipping confirmation with tracking details will be sent once your order ships.
  • Any damage or shortage claims must be reported within 24 hours of delivery. Please keep the original packaging until the claim is resolved.

Returns

  • Unused Vertex fountains are eligible for return within 60 days with prior return authorization.
  • All returns require approval before the item is sent back.
  • Returned items must be unused, in their original packaging, and in saleable condition.
  • Approved Vertex fountain returns are subject to a 25% restocking fee, and original shipping charges are non-refundable.
  • Warranty returns require authorization, the original sales receipt, and an explanation of the product issue.

Questions? Contact support@propondsupply.com or call (470) 354-1969.

Warranty

Warranty

  • Vertex Aquatic Solutions products are warranted to be free from defects in material and workmanship under normal use and service.
  • 4-year warranty: In-water fountain components, including the pump, motor, flotation, framework, nozzles, submersible cables, and similar fountain components.
  • 3-year warranty: Vertex compressor systems for defective parts.
  • 2-year warranty: Fountain lighting fixtures, excluding bulbs.
  • 1-year warranty: Fountain control panels.
  • 5-year warranty: AirStation diffuser assemblies.
  • 15-year warranty: BottomLine tubing.
  • Lifetime warranty: Compressor cabinets against rust.
  • Air filters and compressor maintenance kits are considered wearable parts and are not covered under standard warranty coverage.
  • Warranty claims must be made through an authorized Vertex dealer or directly through Vertex Aquatic Solutions.
  • Warranty claims may require product photos, warranty labels, compressor labels, and an overall photo of the system or damaged item.
  • Customers are responsible for return shipping when sending products in for warranty inspection.
  • If Vertex determines the issue is due to a manufacturing defect, the product may be repaired or replaced at no cost.
  • Warranty coverage may be void due to incorrect voltage, faulty installation, vandalism, negligence, water intrusion, cabinet painting, or other non-warranty failures.

Questions? Contact support@propondsupply.com or call (470) 354-1969.

★Reviews

Customer Reviews

Be the first to write a review
0%
(0)
0%
(0)
0%
(0)
0%
(0)
0%
(0)
