Vertex Vertical TriTier Fountain - On Water Display With Trees at the Background

Vertex Vertical TriTier Pond Fountain

by Vertex Aquatic Solutions
SKU VTRI-2-1P
$9,450.00
Made in the USA
No Sales Tax Outside Georgia
Free Delivery from U.S. Warehouses
Talk to a Specialist: (470) 354-1969
Better Price? Request a Wire Discount Bulk or Business Order? Get a Fast Custom Quote Veterans & First Responders Save
Free Shipping
Ships --
Arrives --

Notify me when back in stock

Vertex 4 year warranty trust badges Vertex 4 year warranty trust badges

Anchor Your Pond with the Compact Vertex Vertical TriTier Display Fountain

The Vertex Vertical TriTier Fountain is part of Vertex's Vertical Series - a compact three-tier display that stays in a tight column instead of spreading wide across the water. Three independent spray heights stack vertically (18 ft on the 2 HP up to 26 ft on the 5 HP) and the elegant floral side jets ascend and expand at each tier. The result is the same layered drama the Standard TriTier delivers, scaled to fit smaller and deeper ponds.

Three motor sizes cover small and mid-sized commercial water bodies: 2 HP, 3 HP, and 5 HP. Every unit needs 6.5 ft of water under it to operate - the compact vertical design sits deeper in the pond than the wider Standard / Horizontal TriTier. The Vertical TriTier runs on a sealed stainless steel turbine pump, ships with a UL-listed Class A GFCI-protected control panel, and is built on the same rotocast polyethylene float and stainless / brass machined nozzles used across the Vertex commercial line.

Pick 2, 3, or 5 HP. Single-phase or three-phase 230V is standard on every motor; 208V or 460V three-phase configurations are available on request. Optional stainless steel CREE LED lighting kits (sized to motor per the 2026 Vertex catalog) and submersible power cord lengths are sold at order time. 4-year warranty on display heads, pumps, and motors; 2 years on LED lighting; 1 year on the control panel. Free shipping on every Vertical TriTier.

The Vertex Vertical TriTier is a compact three-tier vertical display fountain for small and mid-sized ponds. 2, 3, or 5 HP. Three stacked spray heights with elegant floral side jets - no wide horizontal spread.

Stainless steel turbine pump. UL-listed Class A GFCI control panel. Rotocast polyethylene float. Stainless steel / brass machined nozzles. Requires at least 6.5 ft of water depth.

Standard single-phase or three-phase 230V on every motor size. 208V / 460V three-phase available on request. Optional CREE-chip stainless steel LED light kits and cord lengths sold at order time.

Free shipping on every Vertex Vertical TriTier. Optional LED lighting kits and cord lengths available on request. Call (470) 354-1969.

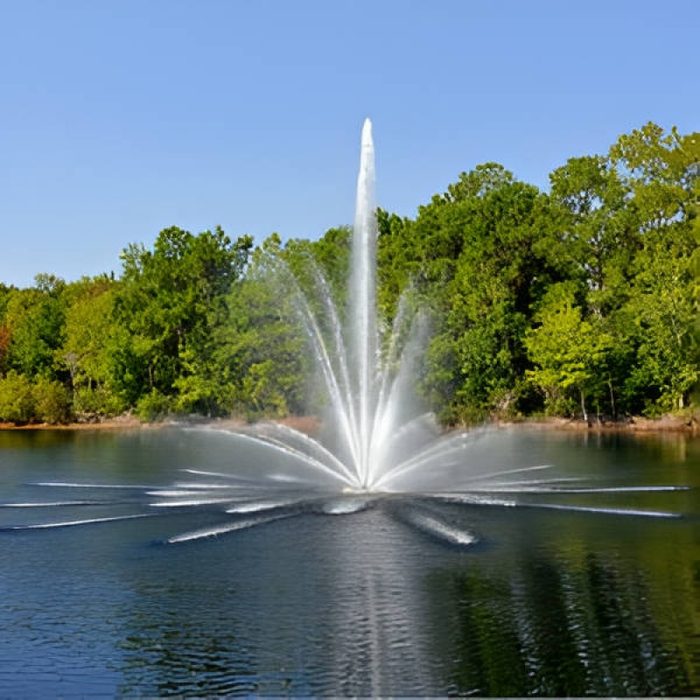

Vertex Vertical TriTier Pond Fountain on water with trees in the background

Why Choose the Vertical TriTier by Vertex

Compact Three-Tier Vertical Display
Three stacked spray heights with elegant floral side jets. Tighter column pattern than the Standard TriTier - the right look for small or mid-sized ponds where a wide horizontal spread would feel oversized.
Three Motor Sizes
2 HP, 3 HP, and 5 HP. Smaller residential and commercial ponds. Spray heights stack from 18 ft (2 HP) up to 26 ft (5 HP) on the center column.
6.5 ft Minimum Depth Across All Sizes
Every Vertical TriTier needs 6.5 ft of water under it. The compact vertical design sits deeper than the Standard / Horizontal TriTier - if you have shallower water, look at the Standard TriTier or TwoTier instead.
Stainless Steel Turbine Pump
Water-cooled, self-lubricated, no oils or O-rings to replace. Brass and stainless steel precision machined nozzles for clean spray patterns and long-term corrosion resistance.
UL-Listed Class A GFCI Control Panel
Every unit ships with a UL-listed control panel in a weatherproof steel NEMA enclosure. Class A GFCI protection on every model. 208V and 460V three-phase configurations available on request.
Optional Stainless Steel CREE LED Lighting
CREE-chip LED kits sized to each motor (2 lights for 2 HP and 3 HP, 3 lights for 5 HP). Stainless steel construction for marine-grade durability. Sold at order time.
Self-Leveling Float Design
Quicker installations and a smaller footprint. Lower weight than the Standard TriTier reduces freight costs and makes the unit easier to handle during install.
Vertex Warranty Package
4-year warranty on display heads, pumps, and motors. 2-year warranty on LED lighting (excluding bulbs). 1-year warranty on the control panel.

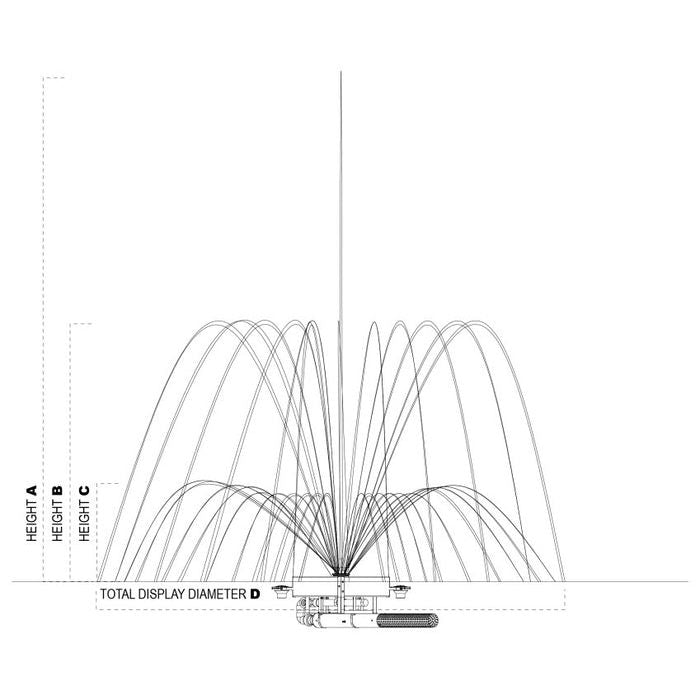

Vertical TriTier Unit Comparison

2 HP Unit 3 HP Unit 5 HP Unit
Spray Height (A) 18 ft 23 ft 26 ft
Spray Height (B) 10 ft 13 ft 12 ft
Spray Height (C) 4 ft 6 ft 6 ft
Spray Diameter (D) 18 ft 23 ft 40 ft
LED Lights Included 2 2 3
Total LED Wattage 86 W 86 W 129 W
LED Amp Draw 0.8 A 0.8 A 1.1 A
Minimum Operating Depth 6.5 ft
Available Phase 1 Phase or 3 Phase
1 Phase Voltage 230V
3 Phase Voltage 208V or 230V
Display Heads Warranty 4 yr
Pumps and Motors Warranty 4 yr
LED Lighting Warranty 2 yr
Control Panel Warranty 1 yr
Vertical Series three-tier spray pattern. LED kits are sold separately at order time. 460V three-phase configurations are available on request. Vertex fountains must be removed from water before freezing. Call (470) 354-1969 for sizing help.

Requirements & What to Know Before You Buy

  • Pond Depth: 6.5 ft minimum on every Vertical TriTier. The compact design sits deeper than the Standard / Horizontal TriTier - if you have shallower water, look at the Standard TriTier or TwoTier instead.
  • Pond Size: the Vertical Series is best for small and mid-sized ponds where a focused vertical display reads better than a wide horizontal one. Larger lakes show off the Standard TriTier or AerationJet better.
  • Voltage and Phase Selection: single-phase or three-phase 230V is standard on every motor. 208V or 460V three-phase configurations are available on request - call for a quote.
  • Dedicated Circuit: the included control panel needs a properly sized dedicated circuit with GFCI protection. Confirm with a licensed electrician before install.
  • Mooring: commercial fountains need anchoring. You supply anchors or weights sized to the float and water body.
  • Cable Run: standard cord lengths are available; longer runs are an order-time option. Plan for the run from the float to your control panel and breaker.
  • Winterization: Vertex fountains must be removed from water before freezing conditions. Plan for pull-and-store at the end of the season.
  • Lighting: the suggested LED kit is 2 lights on the 2 and 3 HP and 3 lights on the 5 HP. Add at order time so the harness ships with the float.
  • Sizing Help: Call (470) 354-1969 with your pond surface area and depth and we will recommend the right motor size.

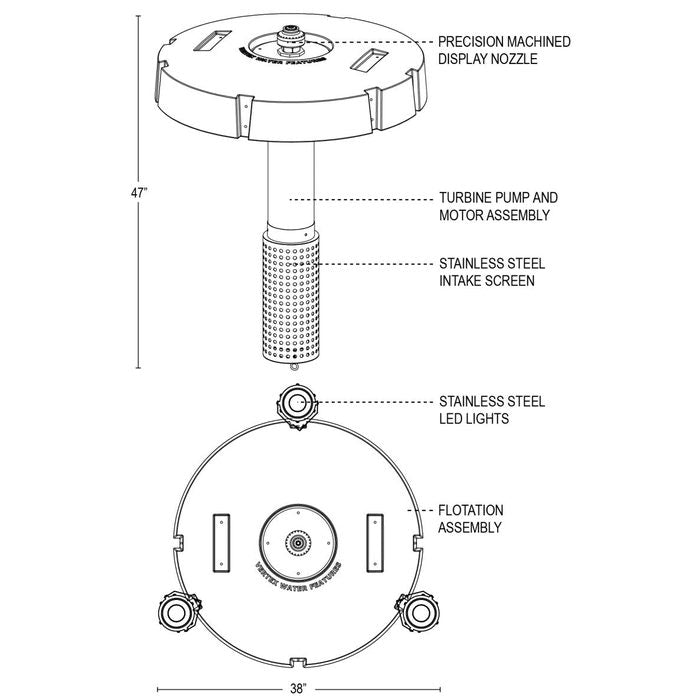

What's Included & Optional Add-Ons

  • Stainless Steel Turbine Pump - water-cooled, self-lubricated, no maintenance kits required
  • Self-Leveling Rotocast Polyethylene Float - UV-inhibited, smaller profile than the Standard TriTier
  • Vertical TriTier Discharge Head - brass and stainless steel precision machined nozzles for elegant floral side jets across three stacked tiers
  • UL-Listed Control Panel - Class A GFCI in a weatherproof steel NEMA enclosure
  • Submersible Power Cord - sized to motor; ordered separately
  • Optional Stainless Steel LED Lighting Kit - CREE-chip LEDs, sized to motor (2 or 3 fixtures depending on HP). Sold at order time.
  • Optional Custom Phase / Voltage - 208V or 460V three-phase configurations available on request
  • Optional Custom Controls - wind-sensing shutoff, remote control operation, multi-unit master panels on request
  • Warranty - 4 yr on display heads / pumps / motors; 2 yr on LED lighting; 1 yr on control panel

Vertex Vertical TriTier Fountain Specifications

Manufacturer Vertex Aquatic Solutions
Model Vertical TriTier Pond Fountain
Series Vertical
Type Three-tier vertical floating display fountain
Motor Options 2 HP, 3 HP, 5 HP
Phase Options Single-phase or three-phase 230V on every motor. 208V or 460V three-phase on request.
Frequency 60 Hz standard
Total Configurations 12 variants including suggested LED kits
Spray Pattern Compact three-tier vertical with elegant floral side jets at each tier
Minimum Pond Depth 6.5 ft on all units
Spray Heights 18 ft (2 HP) up to 26 ft (5 HP) on the center column
Spray Diameter 18 ft (2 HP) up to 40 ft (5 HP)
Motor Construction Stainless steel submersible turbine, water-cooled, self-lubricated
Nozzle Construction Brass and stainless steel precision-machined
Float Construction Rotocast polyethylene with UV inhibitors, low profile, self-leveling
Power Cable Sized to motor; UL/CSA/NEC rated for direct underwater use; sold at order time
Control Panel UL-listed Class A GFCI in weatherproof steel NEMA enclosure
Optional Custom Control Features Wind-sensing shutoff, remote control, master controls for multi-unit installs - on request
Optional LED Lighting Stainless steel CREE-chip kit, sized to motor: (2) 43 W on the 2 and 3 HP, (3) 43 W on the 5 HP
Applications Residential ponds, formal gardens, HOA waterways, golf courses, parks, retention basins
Warranty (Display Heads / Pumps / Motors) 4 years
Warranty (LED Lighting) 2 years (excluding bulbs)
Warranty (Control Panel) 1 year
Winterization Must be removed from water before freezing conditions
Country of Origin Vertex Aquatic Solutions, USA



Manuals

View the Vertical TriTier Product Sheet

View the Vertical TriTier System Specifications

View the Vertical TriTier Owner's Manual

Overview

Anchor Your Pond with the Compact Vertex Vertical TriTier Display Fountain

The Vertex Vertical TriTier Fountain is part of Vertex's Vertical Series - a compact three-tier display that stays in a tight column instead of spreading wide across the water. Three independent spray heights stack vertically (18 ft on the 2 HP up to 26 ft on the 5 HP) and the elegant floral side jets ascend and expand at each tier. The result is the same layered drama the Standard TriTier delivers, scaled to fit smaller and deeper ponds.

Three motor sizes cover small and mid-sized commercial water bodies: 2 HP, 3 HP, and 5 HP. Every unit needs 6.5 ft of water under it to operate - the compact vertical design sits deeper in the pond than the wider Standard / Horizontal TriTier. The Vertical TriTier runs on a sealed stainless steel turbine pump, ships with a UL-listed Class A GFCI-protected control panel, and is built on the same rotocast polyethylene float and stainless / brass machined nozzles used across the Vertex commercial line.

Pick 2, 3, or 5 HP. Single-phase or three-phase 230V is standard on every motor; 208V or 460V three-phase configurations are available on request. Optional stainless steel CREE LED lighting kits (sized to motor per the 2026 Vertex catalog) and submersible power cord lengths are sold at order time. 4-year warranty on display heads, pumps, and motors; 2 years on LED lighting; 1 year on the control panel. Free shipping on every Vertical TriTier.

The Vertex Vertical TriTier is a compact three-tier vertical display fountain for small and mid-sized ponds. 2, 3, or 5 HP. Three stacked spray heights with elegant floral side jets - no wide horizontal spread.

Stainless steel turbine pump. UL-listed Class A GFCI control panel. Rotocast polyethylene float. Stainless steel / brass machined nozzles. Requires at least 6.5 ft of water depth.

Standard single-phase or three-phase 230V on every motor size. 208V / 460V three-phase available on request. Optional CREE-chip stainless steel LED light kits and cord lengths sold at order time.

Free shipping on every Vertex Vertical TriTier. Optional LED lighting kits and cord lengths available on request. Call (470) 354-1969.

 Vertex Vertical TriTier Pond Fountain on water with trees in the background

Why Choose the Vertical TriTier by Vertex

Compact Three-Tier Vertical Display Three stacked spray heights with elegant floral side jets. Tighter column pattern than the Standard TriTier - the right look for small or mid-sized ponds where a wide horizontal spread would feel oversized. Three Motor Sizes 2 HP, 3 HP, and 5 HP. Smaller residential and commercial ponds. Spray heights stack from 18 ft (2 HP) up to 26 ft (5 HP) on the center column. 6.5 ft Minimum Depth Across All Sizes Every Vertical TriTier needs 6.5 ft of water under it. The compact vertical design sits deeper than the Standard / Horizontal TriTier - if you have shallower water, look at the Standard TriTier or TwoTier instead. Stainless Steel Turbine Pump Water-cooled, self-lubricated, no oils or O-rings to replace. Brass and stainless steel precision machined nozzles for clean spray patterns and long-term corrosion resistance. UL-Listed Class A GFCI Control Panel Every unit ships with a UL-listed control panel in a weatherproof steel NEMA enclosure. Class A GFCI protection on every model. 208V and 460V three-phase configurations available on request. Optional Stainless Steel CREE LED Lighting CREE-chip LED kits sized to each motor (2 lights for 2 HP and 3 HP, 3 lights for 5 HP). Stainless steel construction for marine-grade durability. Sold at order time. Self-Leveling Float Design Quicker installations and a smaller footprint. Lower weight than the Standard TriTier reduces freight costs and makes the unit easier to handle during install. Vertex Warranty Package 4-year warranty on display heads, pumps, and motors. 2-year warranty on LED lighting (excluding bulbs). 1-year warranty on the control panel.

Vertical TriTier Unit Comparison

2 HP Unit 3 HP Unit 5 HP Unit
Spray Height (A) 18 ft 23 ft 26 ft
Spray Height (B) 10 ft 13 ft 12 ft
Spray Height (C) 4 ft 6 ft 6 ft
Spray Diameter (D) 18 ft 23 ft 40 ft
LED Lights Included 2 2 3
Total LED Wattage 86 W 86 W 129 W
LED Amp Draw 0.8 A 0.8 A 1.1 A
Minimum Operating Depth 6.5 ft
Available Phase 1 Phase or 3 Phase
1 Phase Voltage 230V
3 Phase Voltage 208V or 230V
Display Heads Warranty 4 yr
Pumps and Motors Warranty 4 yr
LED Lighting Warranty 2 yr
Control Panel Warranty 1 yr
Vertical Series three-tier spray pattern. LED kits are sold separately at order time. 460V three-phase configurations are available on request. Vertex fountains must be removed from water before freezing. Call (470) 354-1969 for sizing help.

Requirements & What to Know Before You Buy

  • Pond Depth: 6.5 ft minimum on every Vertical TriTier. The compact design sits deeper than the Standard / Horizontal TriTier - if you have shallower water, look at the Standard TriTier or TwoTier instead.
  • Pond Size: the Vertical Series is best for small and mid-sized ponds where a focused vertical display reads better than a wide horizontal one. Larger lakes show off the Standard TriTier or AerationJet better.
  • Voltage and Phase Selection: single-phase or three-phase 230V is standard on every motor. 208V or 460V three-phase configurations are available on request - call for a quote.
  • Dedicated Circuit: the included control panel needs a properly sized dedicated circuit with GFCI protection. Confirm with a licensed electrician before install.
  • Mooring: commercial fountains need anchoring. You supply anchors or weights sized to the float and water body.
  • Cable Run: standard cord lengths are available; longer runs are an order-time option. Plan for the run from the float to your control panel and breaker.
  • Winterization: Vertex fountains must be removed from water before freezing conditions. Plan for pull-and-store at the end of the season.
  • Lighting: the suggested LED kit is 2 lights on the 2 and 3 HP and 3 lights on the 5 HP. Add at order time so the harness ships with the float.
  • Sizing Help: Call (470) 354-1969 with your pond surface area and depth and we will recommend the right motor size.

What's Included & Optional Add-Ons

  • Stainless Steel Turbine Pump - water-cooled, self-lubricated, no maintenance kits required
  • Self-Leveling Rotocast Polyethylene Float - UV-inhibited, smaller profile than the Standard TriTier
  • Vertical TriTier Discharge Head - brass and stainless steel precision machined nozzles for elegant floral side jets across three stacked tiers
  • UL-Listed Control Panel - Class A GFCI in a weatherproof steel NEMA enclosure
  • Submersible Power Cord - sized to motor; ordered separately
  • Optional Stainless Steel LED Lighting Kit - CREE-chip LEDs, sized to motor (2 or 3 fixtures depending on HP). Sold at order time.
  • Optional Custom Phase / Voltage - 208V or 460V three-phase configurations available on request
  • Optional Custom Controls - wind-sensing shutoff, remote control operation, multi-unit master panels on request
  • Warranty - 4 yr on display heads / pumps / motors; 2 yr on LED lighting; 1 yr on control panel

Vertex Vertical TriTier Fountain Specifications

Manufacturer Vertex Aquatic Solutions
Model Vertical TriTier Pond Fountain
Series Vertical
Type Three-tier vertical floating display fountain
Motor Options 2 HP, 3 HP, 5 HP
Phase Options Single-phase or three-phase 230V on every motor. 208V or 460V three-phase on request.
Frequency 60 Hz standard
Total Configurations 12 variants including suggested LED kits
Spray Pattern Compact three-tier vertical with elegant floral side jets at each tier
Minimum Pond Depth 6.5 ft on all units
Spray Heights 18 ft (2 HP) up to 26 ft (5 HP) on the center column
Spray Diameter 18 ft (2 HP) up to 40 ft (5 HP)
Motor Construction Stainless steel submersible turbine, water-cooled, self-lubricated
Nozzle Construction Brass and stainless steel precision-machined
Float Construction Rotocast polyethylene with UV inhibitors, low profile, self-leveling
Power Cable Sized to motor; UL/CSA/NEC rated for direct underwater use; sold at order time
Control Panel UL-listed Class A GFCI in weatherproof steel NEMA enclosure
Optional Custom Control Features Wind-sensing shutoff, remote control, master controls for multi-unit installs - on request
Optional LED Lighting Stainless steel CREE-chip kit, sized to motor: (2) 43 W on the 2 and 3 HP, (3) 43 W on the 5 HP
Applications Residential ponds, formal gardens, HOA waterways, golf courses, parks, retention basins
Warranty (Display Heads / Pumps / Motors) 4 years
Warranty (LED Lighting) 2 years (excluding bulbs)
Warranty (Control Panel) 1 year
Winterization Must be removed from water before freezing conditions
Country of Origin Vertex Aquatic Solutions, USA



Manuals

View the Vertical TriTier Product Sheet

View the Vertical TriTier System Specifications

View the Vertical TriTier Owner's Manual

Shipping/Returns

Shipping

  • Order confirmation is emailed after checkout.
  • Orders typically process within 1 to 2 business days.
  • Delivery times may vary depending on the product, shipping method, and delivery location.
  • A shipping confirmation with tracking details will be sent once your order ships.
  • Any damage or shortage claims must be reported within 24 hours of delivery. Please keep the original packaging until the claim is resolved.

Returns

  • Unused Vertex fountains are eligible for return within 60 days with prior return authorization.
  • All returns require approval before the item is sent back.
  • Returned items must be unused, in their original packaging, and in saleable condition.
  • Approved Vertex fountain returns are subject to a 25% restocking fee, and original shipping charges are non-refundable.
  • Warranty returns require authorization, the original sales receipt, and an explanation of the product issue.

Questions? Contact support@propondsupply.com or call (470) 354-1969.

Warranty

Warranty

  • Vertex Aquatic Solutions products are warranted to be free from defects in material and workmanship under normal use and service.
  • 4-year warranty: In-water fountain components, including the pump, motor, flotation, framework, nozzles, submersible cables, and similar fountain components.
  • 3-year warranty: Vertex compressor systems for defective parts.
  • 2-year warranty: Fountain lighting fixtures, excluding bulbs.
  • 1-year warranty: Fountain control panels.
  • 5-year warranty: AirStation diffuser assemblies.
  • 15-year warranty: BottomLine tubing.
  • Lifetime warranty: Compressor cabinets against rust.
  • Air filters and compressor maintenance kits are considered wearable parts and are not covered under standard warranty coverage.
  • Warranty claims must be made through an authorized Vertex dealer or directly through Vertex Aquatic Solutions.
  • Warranty claims may require product photos, warranty labels, compressor labels, and an overall photo of the system or damaged item.
  • Customers are responsible for return shipping when sending products in for warranty inspection.
  • If Vertex determines the issue is due to a manufacturing defect, the product may be repaired or replaced at no cost.
  • Warranty coverage may be void due to incorrect voltage, faulty installation, vandalism, negligence, water intrusion, cabinet painting, or other non-warranty failures.

Questions? Contact support@propondsupply.com or call (470) 354-1969.

★Reviews

Customer Reviews

Be the first to write a review
0%
(0)
0%
(0)
0%
(0)
0%
(0)
0%
(0)
NO SALES TAX

Orders outside Georgia are 100% sales tax-free

Give us a call

Free shipping on every order

Give us a call

Our team is available from 8 AM to 8 PM EST at (470) 354-1969

BEST PRICE GUARANTEE

If you find the same item for less, we’ll match it.

Overview

Anchor Your Pond with the Compact Vertex Vertical TriTier Display Fountain

The Vertex Vertical TriTier Fountain is part of Vertex's Vertical Series - a compact three-tier display that stays in a tight column instead of spreading wide across the water. Three independent spray heights stack vertically (18 ft on the 2 HP up to 26 ft on the 5 HP) and the elegant floral side jets ascend and expand at each tier. The result is the same layered drama the Standard TriTier delivers, scaled to fit smaller and deeper ponds.

Three motor sizes cover small and mid-sized commercial water bodies: 2 HP, 3 HP, and 5 HP. Every unit needs 6.5 ft of water under it to operate - the compact vertical design sits deeper in the pond than the wider Standard / Horizontal TriTier. The Vertical TriTier runs on a sealed stainless steel turbine pump, ships with a UL-listed Class A GFCI-protected control panel, and is built on the same rotocast polyethylene float and stainless / brass machined nozzles used across the Vertex commercial line.

Pick 2, 3, or 5 HP. Single-phase or three-phase 230V is standard on every motor; 208V or 460V three-phase configurations are available on request. Optional stainless steel CREE LED lighting kits (sized to motor per the 2026 Vertex catalog) and submersible power cord lengths are sold at order time. 4-year warranty on display heads, pumps, and motors; 2 years on LED lighting; 1 year on the control panel. Free shipping on every Vertical TriTier.

The Vertex Vertical TriTier is a compact three-tier vertical display fountain for small and mid-sized ponds. 2, 3, or 5 HP. Three stacked spray heights with elegant floral side jets - no wide horizontal spread.

Stainless steel turbine pump. UL-listed Class A GFCI control panel. Rotocast polyethylene float. Stainless steel / brass machined nozzles. Requires at least 6.5 ft of water depth.

Standard single-phase or three-phase 230V on every motor size. 208V / 460V three-phase available on request. Optional CREE-chip stainless steel LED light kits and cord lengths sold at order time.

Free shipping on every Vertex Vertical TriTier. Optional LED lighting kits and cord lengths available on request. Call (470) 354-1969.

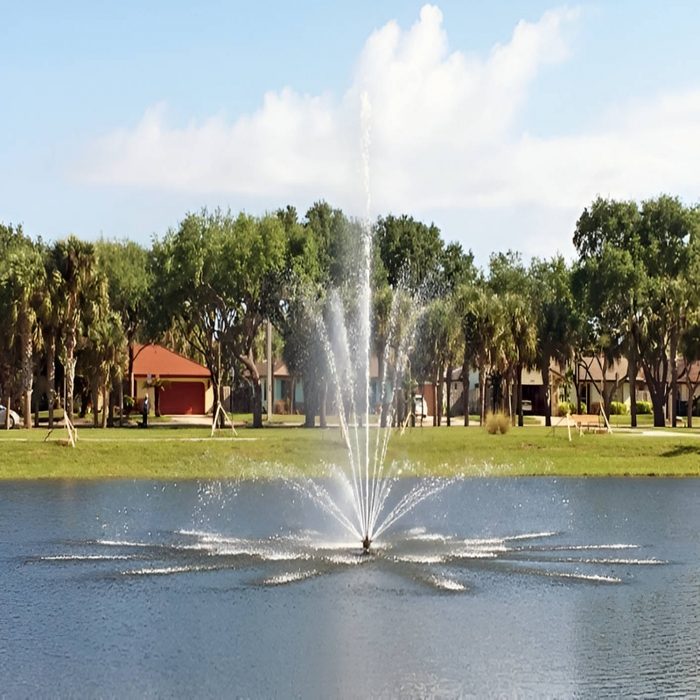

 Vertex Vertical TriTier Pond Fountain on water with trees in the background

Why Choose the Vertical TriTier by Vertex

Compact Three-Tier Vertical Display Three stacked spray heights with elegant floral side jets. Tighter column pattern than the Standard TriTier - the right look for small or mid-sized ponds where a wide horizontal spread would feel oversized. Three Motor Sizes 2 HP, 3 HP, and 5 HP. Smaller residential and commercial ponds. Spray heights stack from 18 ft (2 HP) up to 26 ft (5 HP) on the center column. 6.5 ft Minimum Depth Across All Sizes Every Vertical TriTier needs 6.5 ft of water under it. The compact vertical design sits deeper than the Standard / Horizontal TriTier - if you have shallower water, look at the Standard TriTier or TwoTier instead. Stainless Steel Turbine Pump Water-cooled, self-lubricated, no oils or O-rings to replace. Brass and stainless steel precision machined nozzles for clean spray patterns and long-term corrosion resistance. UL-Listed Class A GFCI Control Panel Every unit ships with a UL-listed control panel in a weatherproof steel NEMA enclosure. Class A GFCI protection on every model. 208V and 460V three-phase configurations available on request. Optional Stainless Steel CREE LED Lighting CREE-chip LED kits sized to each motor (2 lights for 2 HP and 3 HP, 3 lights for 5 HP). Stainless steel construction for marine-grade durability. Sold at order time. Self-Leveling Float Design Quicker installations and a smaller footprint. Lower weight than the Standard TriTier reduces freight costs and makes the unit easier to handle during install. Vertex Warranty Package 4-year warranty on display heads, pumps, and motors. 2-year warranty on LED lighting (excluding bulbs). 1-year warranty on the control panel.

Vertical TriTier Unit Comparison

2 HP Unit 3 HP Unit 5 HP Unit
Spray Height (A) 18 ft 23 ft 26 ft
Spray Height (B) 10 ft 13 ft 12 ft
Spray Height (C) 4 ft 6 ft 6 ft
Spray Diameter (D) 18 ft 23 ft 40 ft
LED Lights Included 2 2 3
Total LED Wattage 86 W 86 W 129 W
LED Amp Draw 0.8 A 0.8 A 1.1 A
Minimum Operating Depth 6.5 ft
Available Phase 1 Phase or 3 Phase
1 Phase Voltage 230V
3 Phase Voltage 208V or 230V
Display Heads Warranty 4 yr
Pumps and Motors Warranty 4 yr
LED Lighting Warranty 2 yr
Control Panel Warranty 1 yr
Vertical Series three-tier spray pattern. LED kits are sold separately at order time. 460V three-phase configurations are available on request. Vertex fountains must be removed from water before freezing. Call (470) 354-1969 for sizing help.

Requirements & What to Know Before You Buy

  • Pond Depth: 6.5 ft minimum on every Vertical TriTier. The compact design sits deeper than the Standard / Horizontal TriTier - if you have shallower water, look at the Standard TriTier or TwoTier instead.
  • Pond Size: the Vertical Series is best for small and mid-sized ponds where a focused vertical display reads better than a wide horizontal one. Larger lakes show off the Standard TriTier or AerationJet better.
  • Voltage and Phase Selection: single-phase or three-phase 230V is standard on every motor. 208V or 460V three-phase configurations are available on request - call for a quote.
  • Dedicated Circuit: the included control panel needs a properly sized dedicated circuit with GFCI protection. Confirm with a licensed electrician before install.
  • Mooring: commercial fountains need anchoring. You supply anchors or weights sized to the float and water body.
  • Cable Run: standard cord lengths are available; longer runs are an order-time option. Plan for the run from the float to your control panel and breaker.
  • Winterization: Vertex fountains must be removed from water before freezing conditions. Plan for pull-and-store at the end of the season.
  • Lighting: the suggested LED kit is 2 lights on the 2 and 3 HP and 3 lights on the 5 HP. Add at order time so the harness ships with the float.
  • Sizing Help: Call (470) 354-1969 with your pond surface area and depth and we will recommend the right motor size.

What's Included & Optional Add-Ons

  • Stainless Steel Turbine Pump - water-cooled, self-lubricated, no maintenance kits required
  • Self-Leveling Rotocast Polyethylene Float - UV-inhibited, smaller profile than the Standard TriTier
  • Vertical TriTier Discharge Head - brass and stainless steel precision machined nozzles for elegant floral side jets across three stacked tiers
  • UL-Listed Control Panel - Class A GFCI in a weatherproof steel NEMA enclosure
  • Submersible Power Cord - sized to motor; ordered separately
  • Optional Stainless Steel LED Lighting Kit - CREE-chip LEDs, sized to motor (2 or 3 fixtures depending on HP). Sold at order time.
  • Optional Custom Phase / Voltage - 208V or 460V three-phase configurations available on request
  • Optional Custom Controls - wind-sensing shutoff, remote control operation, multi-unit master panels on request
  • Warranty - 4 yr on display heads / pumps / motors; 2 yr on LED lighting; 1 yr on control panel

Vertex Vertical TriTier Fountain Specifications

Manufacturer Vertex Aquatic Solutions
Model Vertical TriTier Pond Fountain
Series Vertical
Type Three-tier vertical floating display fountain
Motor Options 2 HP, 3 HP, 5 HP
Phase Options Single-phase or three-phase 230V on every motor. 208V or 460V three-phase on request.
Frequency 60 Hz standard
Total Configurations 12 variants including suggested LED kits

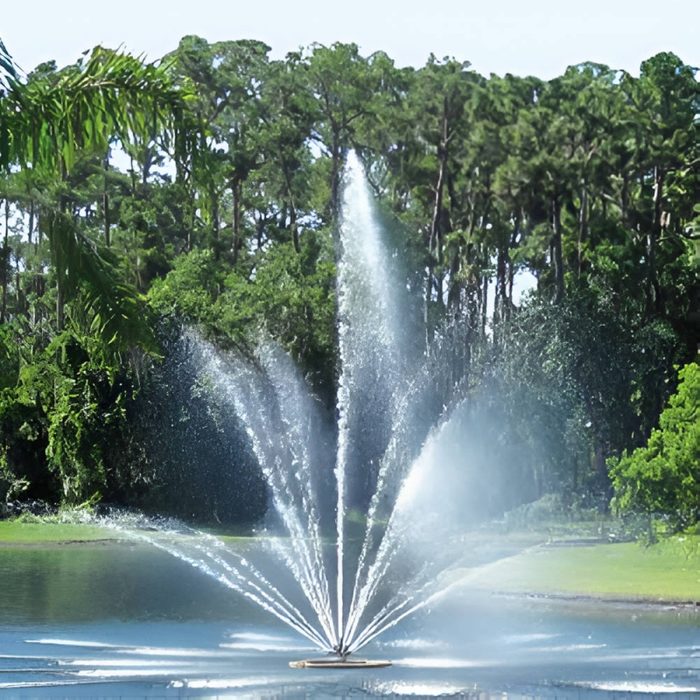

Spray Pattern Compact three-tier vertical with elegant floral side jets at each tier
Minimum Pond Depth 6.5 ft on all units
Spray Heights 18 ft (2 HP) up to 26 ft (5 HP) on the center column
Spray Diameter 18 ft (2 HP) up to 40 ft (5 HP)
Motor Construction Stainless steel submersible turbine, water-cooled, self-lubricated
Nozzle Construction Brass and stainless steel precision-machined
Float Construction Rotocast polyethylene with UV inhibitors, low profile, self-leveling
Power Cable Sized to motor; UL/CSA/NEC rated for direct underwater use; sold at order time
Control Panel UL-listed Class A GFCI in weatherproof steel NEMA enclosure
Optional Custom Control Features Wind-sensing shutoff, remote control, master controls for multi-unit installs - on request
Optional LED Lighting Stainless steel CREE-chip kit, sized to motor: (2) 43 W on the 2 and 3 HP, (3) 43 W on the 5 HP
Applications Residential ponds, formal gardens, HOA waterways, golf courses, parks, retention basins
Warranty (Display Heads / Pumps / Motors) 4 years
Warranty (LED Lighting) 2 years (excluding bulbs)
Warranty (Control Panel) 1 year
Winterization Must be removed from water before freezing conditions
Country of Origin Vertex Aquatic Solutions, USA



Manuals

View the Vertical TriTier Product Sheet

View the Vertical TriTier System Specifications

View the Vertical TriTier Owner's Manual

Shipping/Returns

Shipping

  • Order confirmation is emailed after checkout.
  • Orders typically process within 1 to 2 business days.
  • Delivery times may vary depending on the product, shipping method, and delivery location.
  • A shipping confirmation with tracking details will be sent once your order ships.
  • Any damage or shortage claims must be reported within 24 hours of delivery. Please keep the original packaging until the claim is resolved.

Returns

  • Unused Vertex fountains are eligible for return within 60 days with prior return authorization.
  • All returns require approval before the item is sent back.
  • Returned items must be unused, in their original packaging, and in saleable condition.
  • Approved Vertex fountain returns are subject to a 25% restocking fee, and original shipping charges are non-refundable.
  • Warranty returns require authorization, the original sales receipt, and an explanation of the product issue.

Questions? Contact support@propondsupply.com or call (470) 354-1969.

Warranty

Warranty

  • Vertex Aquatic Solutions products are warranted to be free from defects in material and workmanship under normal use and service.
  • 4-year warranty: In-water fountain components, including the pump, motor, flotation, framework, nozzles, submersible cables, and similar fountain components.
  • 3-year warranty: Vertex compressor systems for defective parts.
  • 2-year warranty: Fountain lighting fixtures, excluding bulbs.
  • 1-year warranty: Fountain control panels.
  • 5-year warranty: AirStation diffuser assemblies.
  • 15-year warranty: BottomLine tubing.
  • Lifetime warranty: Compressor cabinets against rust.
  • Air filters and compressor maintenance kits are considered wearable parts and are not covered under standard warranty coverage.
  • Warranty claims must be made through an authorized Vertex dealer or directly through Vertex Aquatic Solutions.
  • Warranty claims may require product photos, warranty labels, compressor labels, and an overall photo of the system or damaged item.
  • Customers are responsible for return shipping when sending products in for warranty inspection.
  • If Vertex determines the issue is due to a manufacturing defect, the product may be repaired or replaced at no cost.
  • Warranty coverage may be void due to incorrect voltage, faulty installation, vandalism, negligence, water intrusion, cabinet painting, or other non-warranty failures.

Questions? Contact support@propondsupply.com or call (470) 354-1969.

★Reviews

Customer Reviews

Be the first to write a review
0%
(0)
0%
(0)
0%
(0)
0%
(0)
0%
(0)
