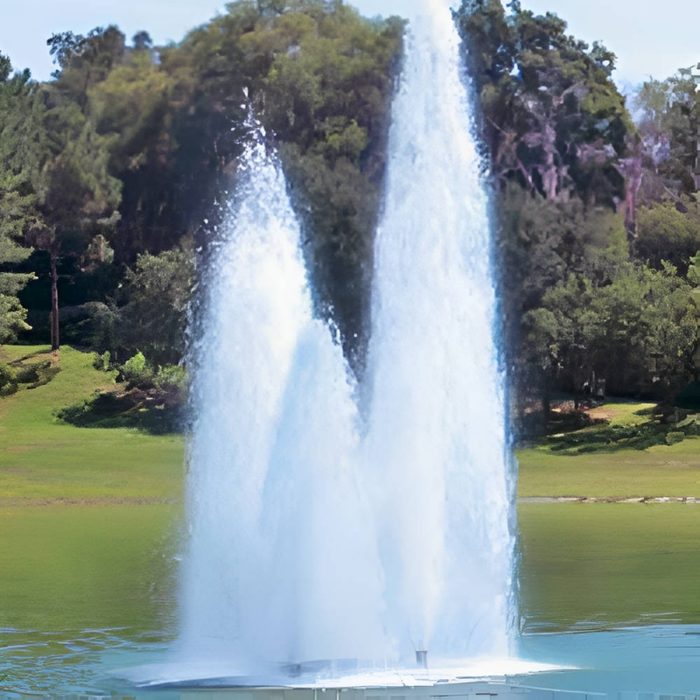

Vertex TriGeyser Floating Fountain on water with trees at the background

Vertex TriGeyser Floating Pond Fountain

by Vertex Aquatic Solutions
SKU TG10-1P
$30,360.00
Made in the USA
No Sales Tax Outside Georgia
Free Delivery from U.S. Warehouses
Talk to a Specialist: (470) 354-1969
Better Price? Request a Wire Discount Bulk or Business Order? Get a Fast Custom Quote Veterans & First Responders Save
Free Shipping
Ships --
Arrives --

Notify me when back in stock

Vertex 4 year warranty trust badges Vertex 4 year warranty trust badges

Bring a 3-Tier Pyramid of Water to Your Lake with the Vertex TriGeyser

The Vertex TriGeyser Pond Fountain is a commercial-grade display fountain built for large lakes, retention basins, and corporate or HOA ponds. Three heavily aerated conical streams stack into an unmistakable pyramid of water that can reach 25 ft at the top tier on the 30 HP unit and run as wide as 12 ft across the base. The three tier heights are independently adjustable on site via valves at the discharge head, so the same fountain can show a dramatic vertical column one season and a softer, wider display the next.

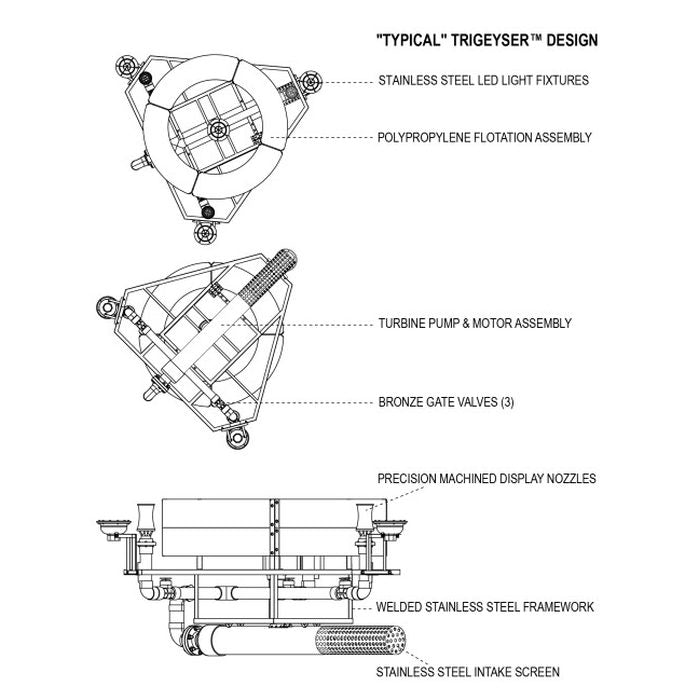

Inside the float is a stainless steel turbine pump and a UL-listed control panel with Class A GFCI protection. The pump is water-cooled, which means no oils, no seals, and no annual maintenance kits to buy. The float itself is rotocast polypropylene with UV inhibitors, and the cable is STW-A rated for direct submersion. Four-year warranty on the motor and display head, two years on the LED lighting, and one year on the control panel.

Pick from 10 HP, 15 HP, 20 HP, or 30 HP. The 10 and 15 HP units are available in either single-phase or three-phase 230V; 20 and 30 HP are three-phase only. Every unit ships with six LED lights (258 W total, 140 lumens per watt). Optional custom control panels (wind sensing shutoff, remote control, master multi-unit control) and colored LED packages with automated color changes available on request. Free shipping on every TriGeyser.

The Vertex TriGeyser is a commercial-grade 3-tier display fountain for large lakes and HOA ponds. Three independently adjustable conical streams stack into a pyramid up to 25 ft tall on the 30 HP unit.

Stainless steel water-cooled turbine pump (no oils, no seals, no maintenance kits). UL-listed Class A GFCI control panel. Rotocast UV-stable polypropylene float. STW-A submersible cable.

10 HP, 15 HP, 20 HP, or 30 HP. 10 and 15 HP available in 1-phase or 3-phase 230V. 20 and 30 HP are 3-phase only. Six LED lights included. Custom control and color packages available.

Free shipping on every Vertex TriGeyser. Custom control panel and LED color options available on request. Call (470) 354-1969.

Vertex TriGeyser Floating Pond Fountain on water with trees at the background

Why Choose the TriGeyser by Vertex

Three Independently Adjustable Tiers
Three conical streams stack into a pyramid. Each tier height is adjustable on site via valves at the discharge head - dial in the look you want and change it season to season without pulling the unit.
Four Motor Sizes
10 HP, 15 HP, 20 HP, and 30 HP cover lake displays from medium retention basins up to large multi-acre commercial water bodies. Top tier reaches 25 ft on the 30 HP unit; spray diameter spans 8 to 12 ft.
Water-Cooled Stainless Steel Turbine Pump
No oils, no seals, no O-rings to replace. Water-cooled motor means no annual maintenance kits to buy. Lower lifetime cost than oil-cooled alternatives.
UL-Listed Control Panel with Class A GFCI
Weatherproof steel NEMA enclosure. Custom options include wind-sensing shutoff, remote control operation, and master multi-unit controls for large installs.
Six LED Lights Included
Bright high-efficiency LED package - 140 lumens per watt, 258 W total. Optional colored lights and automated color changes available on request.
Commercial Float Construction
Rotocast polypropylene with UV inhibitors. Low profile so it sits flush with the surface and doesn't visually dominate the lake during the day.
Spring-Loaded Discharge Check Valve
Smooth pump operation at any tilt angle - the TriGeyser can run even with the float pitched slightly in wind or wakes without losing prime.
Industry-Standard Warranty
4-year warranty on motor, pump, and display head. 2-year warranty on LED lighting. 1-year warranty on control panel.

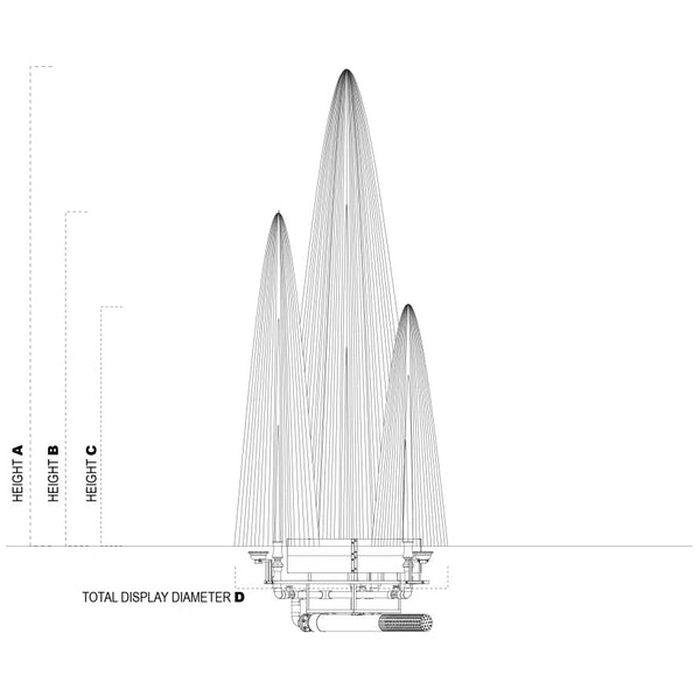

TriGeyser Unit Comparison

10 HP Unit 15 HP Unit 20 HP Unit 30 HP Unit
Minimum Operating Depth 6 ft 7 ft 7 ft 8 ft
Spray Height 1 (top tier) 15 ft 18 ft 22 ft 25 ft
Spray Height 2 (middle tier) 10 ft 12 ft 15 ft 18 ft
Spray Height 3 (bottom tier) 6 ft 8 ft 10 ft 12 ft
Spray Diameter 8 ft 9 ft 10 ft 12 ft
LED Lights Included 6 6 6 6
Total Wattage 258 W 258 W 258 W 258 W
LED Amp Draw 3 A 3 A 3 A 3 A
Available Phase 1 Phase or 3 Phase 1 Phase or 3 Phase 3 Phase only 3 Phase only
1 Phase Voltage 230V 230V Not available Not available
3 Phase Voltage 208V or 230V 208V or 230V 208V or 230V 208V or 230V
Display Head / Nozzle Warranty 4 yr 4 yr 4 yr 4 yr
Pump and Motor Warranty 4 yr 4 yr 4 yr 4 yr
LED Lighting Warranty 2 yr 2 yr 2 yr 2 yr
Control Panel Warranty 1 yr 1 yr 1 yr 1 yr
Three-tier conical spray pattern - heights are adjustable on site via valves in the discharge head. Custom control panel options (wind sensing shutoff, remote control, master controls for multi-unit installs) available on request. Optional LED color packages and automated color changes also available. Call (470) 354-1969 for sizing help.

Requirements & What to Know Before You Buy

  • Pond Depth: 6 ft minimum on the 10 HP, 7 ft on the 15 and 20 HP, and 8 ft on the 30 HP. Measure at the planned float location, not at the shoreline.
  • Dedicated Circuit: the included control panel needs a properly sized dedicated circuit. Confirm with a licensed electrician before install.
  • Voltage and Phase Selection: the 10 HP and 15 HP are available in either single-phase or three-phase 230V. The 20 HP and 30 HP are three-phase only. Choose three-phase wherever possible for smoother running and lower current draw.
  • Mooring: commercial-grade fountains need anchoring. You supply anchors or weights sized to the float and water body; Vertex provides the float-side mooring attachment points.
  • Cable Run: standard cable runs are available; longer runs are an order-time option. Plan for the run from the float to your control panel and breaker.
  • Custom Control Options: wind sensing shutoff, remote control operation, and master controls for multi-unit installs are all available on request. Add these at order time.
  • LED Color Options: the standard LED package is bright white. Colored LEDs and automated color-changing controllers are available on request.
  • Sizing Help: Call (470) 354-1969 with your lake surface area and depth and we will help you match the right TriGeyser size.

What's Included & Optional Add-Ons

  • Stainless Steel Turbine Pump - water-cooled, no oils or seals to service
  • Rotocast Polypropylene Float - UV-resistant, low profile
  • Three-Tier Display Head / Nozzle - independently adjustable tier heights via on-board valves
  • Stainless Steel Intake Screen - protects the impeller from debris
  • UL-Listed Control Panel - Class A GFCI, weatherproof steel NEMA enclosure
  • STW-A Submersible Cable - rated for direct underwater use
  • Six LED Lights - 258 W total, 140 lumens per watt, bright white
  • Optional Custom Control Panels - wind sensing shutoff, remote control, master controls for multi-unit installs. Available on request.
  • Optional LED Color Packages - colored LEDs and automated color-change controllers available on request.
  • Warranty - 4 years on motor/pump/nozzle; 2 years on LED lighting; 1 year on control panel

Vertex TriGeyser Pond Fountain Specifications

Manufacturer Vertex Aquatic Solutions
Model TriGeyser Floating Pond Fountain
Type Three-tier commercial display fountain
Motor Options 10 HP, 15 HP, 20 HP, 30 HP
Voltage Options 230V (1-phase available on 10 HP and 15 HP only; 3-phase available on all)
Frequency 60 Hz standard
Total Configurations 6 across HP and phase
Spray Pattern Three-tier conical pyramid - heights independently adjustable on site
Min Water Depth 6 ft (10 HP) up to 8 ft (30 HP)
Spray Diameter 8 to 12 ft depending on HP
Top-Tier Spray Height 15 to 25 ft depending on HP
LED Lights Included 6 lights, 258 W total, 140 lumens per watt
LED Amp Draw 3 amps
Float Construction Rotocast polypropylene, UV-inhibited, low profile
Motor Construction Stainless steel water-cooled turbine pump
Intake Screen Stainless steel
Power Cable STW-A rated for direct underwater use
Control Panel UL-listed Class A GFCI in weatherproof steel NEMA enclosure
Custom Control Options Wind sensing shutoff, remote control, master multi-unit control - all on request
LED Color Options Colored LEDs and automated color-change controllers - on request
Applications Commercial lakes, HOA ponds, golf courses, parks, corporate campuses, retention basins
Warranty (Motor + Pump + Nozzle) 4 years
Warranty (LED Lighting) 2 years
Warranty (Control Panel) 1 year
Country of Origin Vertex Aquatic Solutions, USA
