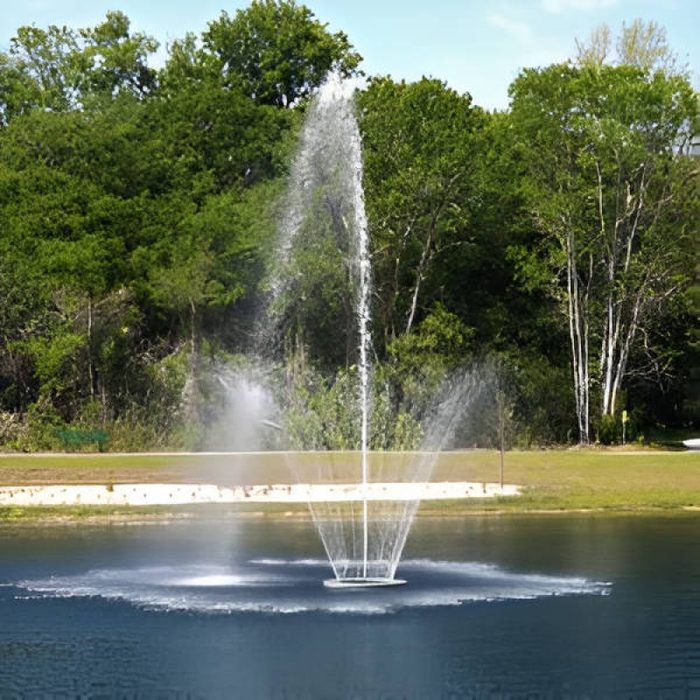

Vertex RingJet Floating Fountain Series On Water with Beautiful Spray Display

Vertex RingJet Floating Pond Fountain

by Vertex Aquatic Solutions
SKU RINGJET-5-1P
$20,780.00
Made in the USA
No Sales Tax Outside Georgia
Free Delivery from U.S. Warehouses
Talk to a Specialist: (470) 354-1969
Better Price? Request a Wire Discount Bulk or Business Order? Get a Fast Custom Quote Veterans & First Responders Save
Free Shipping
Ships --
Arrives --

Notify me when back in stock

Vertex 4 year warranty trust badges Vertex 4 year warranty trust badges

Throw a Wide Circular Display with the Vertex RingJet Floating Fountain

The Vertex RingJet Floating Fountain is a commercial-grade display fountain built around a tall vertical center jet ringed by a circle of smaller jets. The result is a wide, classic circular fountain pattern - the biggest spray footprint in the Vertex catalog. With the 15 HP unit reaching 45 ft center and 40 ft diameter, the RingJet is the right pick when you want a fountain that genuinely commands the entire surface of a large pond or lake.

Four motor sizes cover small commercial through large municipal water bodies: 5 HP, 7.5 HP, 10 HP, and 15 HP. Center jet heights run 25 to 45 ft, with the surrounding ring of jets reaching 12 to 20 ft. Spray diameters stretch 25 to 40 ft across the line. Every unit ships on a sealed stainless steel submersible turbine pump, a UL-listed control panel, and the same rotocast polypropylene float used across the Vertex commercial line.

Pick 5, 7.5, 10, or 15 HP. Every motor size is available in 230V single-phase or three-phase. 208V or 460V three-phase configurations are available on request. Optional LED light kits sized to motor (4 fixtures on 5/7.5 HP, 5 on 10/15 HP per the 2026 Vertex catalog) and submersible power cord lengths sold at order time. Free shipping on every RingJet.

The Vertex RingJet is a commercial floating fountain with a tall center jet surrounded by a ring of smaller jets. Widest spray pattern in the Vertex line - up to 40 ft diameter. Four motor sizes from 5 HP to 15 HP. Center heights 25-45 ft.

Stainless steel submersible turbine pump. UL-listed control panel. Rotocast polypropylene float. STW-A rated submersible cable. 4-year pump and motor warranty.

Every motor in single-phase or three-phase 230V. Optional 4 or 5 LED kits and cord lengths sold at order time.

Free shipping on every Vertex RingJet. Optional LED lighting kits and cord lengths available on request. Call (470) 354-1969.

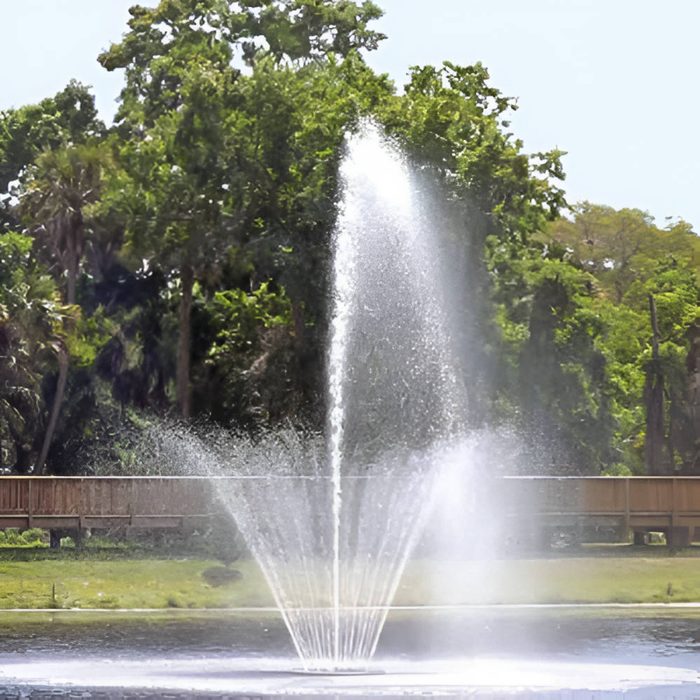

Vertex RingJet Floating Pond Fountain spraying on water

Why Choose the RingJet by Vertex

Widest Display in the Vertex Line
A tall center jet ringed by smaller jets produces a classic circular fountain pattern up to 40 ft in diameter on the 15 HP. No other Vertex pattern covers as much surface area.
Tall Center Spray with a Ringed Skirt
Center heights from 25 ft (5 HP) up to 45 ft (15 HP) deliver vertical drama, while the outer ring of jets adds depth and movement around the base - a more complete look than a single tall spray on its own.
Four Motor Sizes
5 HP, 7.5 HP, 10 HP, and 15 HP. Sized for small commercial up to large municipal water bodies. The 5 HP fits ponds as shallow as 4 ft.
Stainless Steel Turbine Pump
Sealed submersible motor. Water-cooled with no oils, no seals, and no annual maintenance kits. Spring-loaded check valve for smooth operation at any angle. Lower lifetime cost than oil-cooled commercial fountains.
UL-Listed Control Panel
Weatherproof steel NEMA enclosure ships with every unit. Class A GFCI protection. Every motor size is available in 230V single-phase or three-phase. 208V or 460V three-phase configurations available on request.
STW-A Rated Submersible Cable
Power cable rated for direct underwater use. Sized to motor; custom cord lengths available at order time.
Optional LED Lighting Sized to Motor
4 fixtures on the 5 and 7.5 HP, 5 fixtures on the 10 and 15 HP per the 2026 Vertex catalog. High-efficiency LEDs at 140 lumens/watt. Optional colored / color-changing LEDs available on request.
Vertex Warranty Package
4-year warranty on the display head, pump, and motor. 2-year warranty on LED lighting (excluding bulbs). 1-year warranty on the control panel.

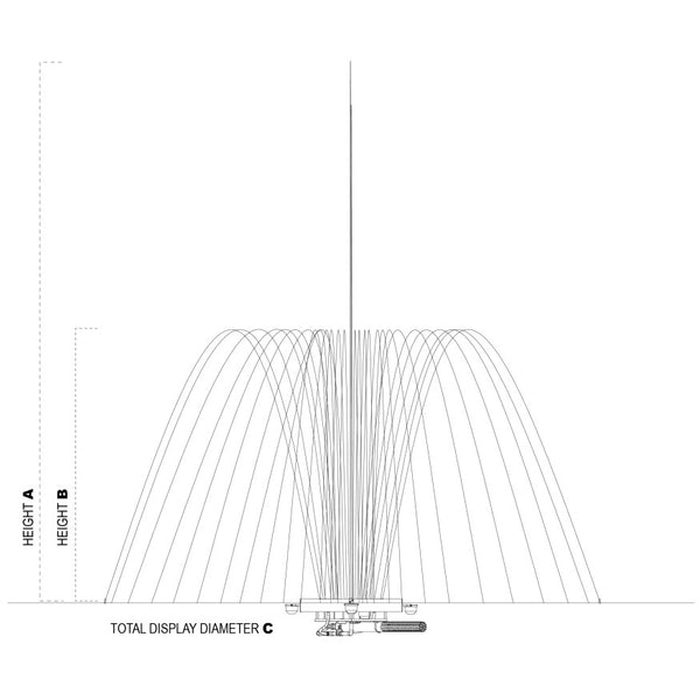

RingJet Unit Comparison

5 HP Unit 7.5 HP Unit 10 HP Unit 15 HP Unit
Minimum Operating Depth 4 ft 5 ft 6 ft 7 ft
Center Height Spray (A) 25 ft 30 ft 40 ft 45 ft
Side Height Spray (B) 12 ft 15 ft 18 ft 20 ft
Spray Diameter (C) 25 ft 30 ft 35 ft 40 ft
Nozzle Diameter 3/16 in 3/16 in 1/4 in 1/4 in
LED Lights Included 4 4 5 5
Total LED Wattage 172 W 172 W 215 W 215 W
LED Amp Draw 2 A 2 A 2.5 A 2.5 A
Available Phase 1 Phase or 3 Phase
1 Phase Voltage 230V
3 Phase Voltage 208V or 230V
Display Head / Nozzle Warranty 4 yr
Pump and Motor Warranty 4 yr
LED Lighting Warranty 2 yr
Control Panel Warranty 1 yr
RingJet produces a tall center jet ringed by smaller jets that create a wide circular display. LED kits sold separately at order time. 460V three-phase configurations available on request. Vertex fountains must be removed from water before freezing. Call (470) 354-1969 for sizing help.

Requirements & What to Know Before You Buy

  • Pond Depth: 4 ft minimum on the 5 HP, 5 ft on the 7.5 HP, 6 ft on the 10 HP, and 7 ft on the 15 HP.
  • Pond Size: RingJet has a wide footprint - 25 to 40 ft diameter - so it needs open water around it. Confirm you have at least 20 ft of clearance to any shoreline on each side of the fountain.
  • Voltage and Phase Selection: every motor size is available in 230V single-phase or three-phase. 208V and 460V three-phase configurations are available on request.
  • Dedicated Circuit: the included control panel needs a properly sized dedicated circuit. Confirm with a licensed electrician before install.
  • Mooring: commercial fountains need anchoring. You supply anchors or weights sized to the float and water body.
  • Cable Run: standard cord lengths are available; longer runs are an order-time option.
  • Winterization: Vertex fountains must be removed from water before freezing conditions.
  • Lighting: the suggested LED kit is 4 lights for the 5 and 7.5 HP and 5 for the 10 and 15 HP. Add at order time so the harness ships with the float.
  • Sizing Help: Call (470) 354-1969 with your pond surface area and depth and we will recommend the right motor size.

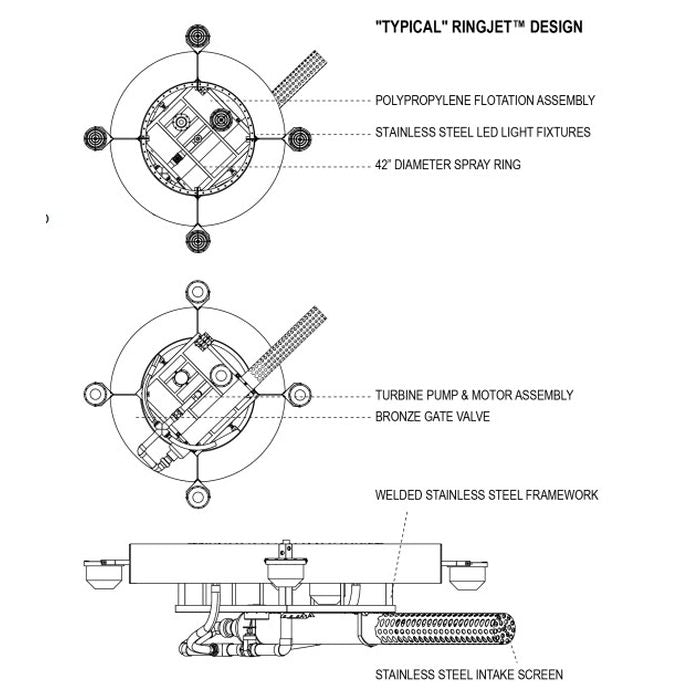

What's Included & Optional Add-Ons

  • Stainless Steel Turbine Pump - sealed submersible motor, water-cooled, self-lubricated
  • Rotocast Polypropylene Float - UV-inhibited, heavy-duty, low profile
  • RingJet Display Head - tall center jet ringed by smaller jets in a wide circular pattern
  • Stainless Steel Intake Screen - protects the impeller from debris
  • UL-Listed Control Panel - weatherproof steel NEMA enclosure with Class A GFCI
  • STW-A Rated Submersible Cable - sized to motor; ordered separately
  • Optional LED Lighting Kit - 4 fixtures (5/7.5 HP) or 5 fixtures (10/15 HP). 43 W each. Sold at order time.
  • Optional Custom Phase / Voltage - 208V or 460V three-phase on request
  • Optional Colored / Color-Changing LEDs - on request
  • Optional Wind Sensor / Remote / Multi-Unit Master Panel - on request
  • Warranty - 4 yr display head / pump / motor; 2 yr LED lights; 1 yr control panel

Vertex RingJet Floating Fountain Specifications

Manufacturer Vertex Aquatic Solutions
Model RingJet Floating Pond Fountain
Type Tall center jet with ring of surrounding jets - widest circular display fountain in the Vertex line
Motor Options 5 HP, 7.5 HP, 10 HP, 15 HP
Phase Options 230V single-phase or three-phase on every motor size. 208V or 460V three-phase on request.
Frequency 60 Hz standard
Total Configurations 16 across HP, phase, and lighting
Spray Pattern Tall center jet ringed by a circle of smaller jets
Center Jet Height 25 ft (5 HP) up to 45 ft (15 HP)
Side Jet Height 12 ft (5 HP) up to 20 ft (15 HP)
Spray Diameter 25 ft (5 HP) up to 40 ft (15 HP)
Nozzle Diameter 3/16 in (5/7.5 HP) or 1/4 in (10/15 HP)
Minimum Pond Depth 4 ft (5 HP) up to 7 ft (15 HP)
Motor Construction Stainless steel submersible turbine
Float Construction Rotocast polypropylene with UV inhibitors, low profile
Power Cable STW-A rated for direct underwater use; sized to motor; ordered separately
Control Panel UL-listed in weatherproof steel NEMA enclosure with Class A GFCI
Optional LED Lighting 4 or 5 fixture kit depending on motor size; 43 W per fixture at 140 lumens/watt. Colored / color-changing on request.
Applications Commercial lakes, HOA waterways, corporate campuses, golf course water hazards, parks, large municipal water features that benefit from a wide circular display
Warranty (Display Head / Pump / Motor) 4 years
Warranty (LED Lighting) 2 years (excluding bulbs)
Warranty (Control Panel) 1 year
Winterization Must be removed from water before freezing conditions
Country of Origin Vertex Aquatic Solutions, USA



Manuals

View the RingJet Product Sheet

View the RingJet System Specifications

View the RingJet Owner's Manual

Overview

Throw a Wide Circular Display with the Vertex RingJet Floating Fountain

The Vertex RingJet Floating Fountain is a commercial-grade display fountain built around a tall vertical center jet ringed by a circle of smaller jets. The result is a wide, classic circular fountain pattern - the biggest spray footprint in the Vertex catalog. With the 15 HP unit reaching 45 ft center and 40 ft diameter, the RingJet is the right pick when you want a fountain that genuinely commands the entire surface of a large pond or lake.

Four motor sizes cover small commercial through large municipal water bodies: 5 HP, 7.5 HP, 10 HP, and 15 HP. Center jet heights run 25 to 45 ft, with the surrounding ring of jets reaching 12 to 20 ft. Spray diameters stretch 25 to 40 ft across the line. Every unit ships on a sealed stainless steel submersible turbine pump, a UL-listed control panel, and the same rotocast polypropylene float used across the Vertex commercial line.

Pick 5, 7.5, 10, or 15 HP. Every motor size is available in 230V single-phase or three-phase. 208V or 460V three-phase configurations are available on request. Optional LED light kits sized to motor (4 fixtures on 5/7.5 HP, 5 on 10/15 HP per the 2026 Vertex catalog) and submersible power cord lengths sold at order time. Free shipping on every RingJet.

The Vertex RingJet is a commercial floating fountain with a tall center jet surrounded by a ring of smaller jets. Widest spray pattern in the Vertex line - up to 40 ft diameter. Four motor sizes from 5 HP to 15 HP. Center heights 25-45 ft.

Stainless steel submersible turbine pump. UL-listed control panel. Rotocast polypropylene float. STW-A rated submersible cable. 4-year pump and motor warranty.

Every motor in single-phase or three-phase 230V. Optional 4 or 5 LED kits and cord lengths sold at order time.

Free shipping on every Vertex RingJet. Optional LED lighting kits and cord lengths available on request. Call (470) 354-1969.

 Vertex RingJet Floating Pond Fountain spraying on water

Why Choose the RingJet by Vertex

Widest Display in the Vertex Line A tall center jet ringed by smaller jets produces a classic circular fountain pattern up to 40 ft in diameter on the 15 HP. No other Vertex pattern covers as much surface area. Tall Center Spray with a Ringed Skirt Center heights from 25 ft (5 HP) up to 45 ft (15 HP) deliver vertical drama, while the outer ring of jets adds depth and movement around the base - a more complete look than a single tall spray on its own. Four Motor Sizes 5 HP, 7.5 HP, 10 HP, and 15 HP. Sized for small commercial up to large municipal water bodies. The 5 HP fits ponds as shallow as 4 ft. Stainless Steel Turbine Pump Sealed submersible motor. Water-cooled with no oils, no seals, and no annual maintenance kits. Spring-loaded check valve for smooth operation at any angle. Lower lifetime cost than oil-cooled commercial fountains. UL-Listed Control Panel Weatherproof steel NEMA enclosure ships with every unit. Class A GFCI protection. Every motor size is available in 230V single-phase or three-phase. 208V or 460V three-phase configurations available on request. STW-A Rated Submersible Cable Power cable rated for direct underwater use. Sized to motor; custom cord lengths available at order time. Optional LED Lighting Sized to Motor 4 fixtures on the 5 and 7.5 HP, 5 fixtures on the 10 and 15 HP per the 2026 Vertex catalog. High-efficiency LEDs at 140 lumens/watt. Optional colored / color-changing LEDs available on request. Vertex Warranty Package 4-year warranty on the display head, pump, and motor. 2-year warranty on LED lighting (excluding bulbs). 1-year warranty on the control panel.

RingJet Unit Comparison

5 HP Unit 7.5 HP Unit 10 HP Unit 15 HP Unit
Minimum Operating Depth 4 ft 5 ft 6 ft 7 ft
Center Height Spray (A) 25 ft 30 ft 40 ft 45 ft
Side Height Spray (B) 12 ft 15 ft 18 ft 20 ft
Spray Diameter (C) 25 ft 30 ft 35 ft 40 ft
Nozzle Diameter 3/16 in 3/16 in 1/4 in 1/4 in
LED Lights Included 4 4 5 5
Total LED Wattage 172 W 172 W 215 W 215 W
LED Amp Draw 2 A 2 A 2.5 A 2.5 A
Available Phase 1 Phase or 3 Phase
1 Phase Voltage 230V
3 Phase Voltage 208V or 230V
Display Head / Nozzle Warranty 4 yr
Pump and Motor Warranty 4 yr
LED Lighting Warranty 2 yr
Control Panel Warranty 1 yr
RingJet produces a tall center jet ringed by smaller jets that create a wide circular display. LED kits sold separately at order time. 460V three-phase configurations available on request. Vertex fountains must be removed from water before freezing. Call (470) 354-1969 for sizing help.

Requirements & What to Know Before You Buy

  • Pond Depth: 4 ft minimum on the 5 HP, 5 ft on the 7.5 HP, 6 ft on the 10 HP, and 7 ft on the 15 HP.
  • Pond Size: RingJet has a wide footprint - 25 to 40 ft diameter - so it needs open water around it. Confirm you have at least 20 ft of clearance to any shoreline on each side of the fountain.
  • Voltage and Phase Selection: every motor size is available in 230V single-phase or three-phase. 208V and 460V three-phase configurations are available on request.
  • Dedicated Circuit: the included control panel needs a properly sized dedicated circuit. Confirm with a licensed electrician before install.
  • Mooring: commercial fountains need anchoring. You supply anchors or weights sized to the float and water body.
  • Cable Run: standard cord lengths are available; longer runs are an order-time option.
  • Winterization: Vertex fountains must be removed from water before freezing conditions.
  • Lighting: the suggested LED kit is 4 lights for the 5 and 7.5 HP and 5 for the 10 and 15 HP. Add at order time so the harness ships with the float.
  • Sizing Help: Call (470) 354-1969 with your pond surface area and depth and we will recommend the right motor size.

What's Included & Optional Add-Ons

  • Stainless Steel Turbine Pump - sealed submersible motor, water-cooled, self-lubricated
  • Rotocast Polypropylene Float - UV-inhibited, heavy-duty, low profile
  • RingJet Display Head - tall center jet ringed by smaller jets in a wide circular pattern
  • Stainless Steel Intake Screen - protects the impeller from debris
  • UL-Listed Control Panel - weatherproof steel NEMA enclosure with Class A GFCI
  • STW-A Rated Submersible Cable - sized to motor; ordered separately
  • Optional LED Lighting Kit - 4 fixtures (5/7.5 HP) or 5 fixtures (10/15 HP). 43 W each. Sold at order time.
  • Optional Custom Phase / Voltage - 208V or 460V three-phase on request
  • Optional Colored / Color-Changing LEDs - on request
  • Optional Wind Sensor / Remote / Multi-Unit Master Panel - on request
  • Warranty - 4 yr display head / pump / motor; 2 yr LED lights; 1 yr control panel

Vertex RingJet Floating Fountain Specifications

Manufacturer Vertex Aquatic Solutions
Model RingJet Floating Pond Fountain
Type Tall center jet with ring of surrounding jets - widest circular display fountain in the Vertex line
Motor Options 5 HP, 7.5 HP, 10 HP, 15 HP
Phase Options 230V single-phase or three-phase on every motor size. 208V or 460V three-phase on request.
Frequency 60 Hz standard
Total Configurations 16 across HP, phase, and lighting
Spray Pattern Tall center jet ringed by a circle of smaller jets
Center Jet Height 25 ft (5 HP) up to 45 ft (15 HP)
Side Jet Height 12 ft (5 HP) up to 20 ft (15 HP)
Spray Diameter 25 ft (5 HP) up to 40 ft (15 HP)
Nozzle Diameter 3/16 in (5/7.5 HP) or 1/4 in (10/15 HP)
Minimum Pond Depth 4 ft (5 HP) up to 7 ft (15 HP)
Motor Construction Stainless steel submersible turbine
Float Construction Rotocast polypropylene with UV inhibitors, low profile
Power Cable STW-A rated for direct underwater use; sized to motor; ordered separately
Control Panel UL-listed in weatherproof steel NEMA enclosure with Class A GFCI
Optional LED Lighting 4 or 5 fixture kit depending on motor size; 43 W per fixture at 140 lumens/watt. Colored / color-changing on request.
Applications Commercial lakes, HOA waterways, corporate campuses, golf course water hazards, parks, large municipal water features that benefit from a wide circular display
Warranty (Display Head / Pump / Motor) 4 years
Warranty (LED Lighting) 2 years (excluding bulbs)
Warranty (Control Panel) 1 year
Winterization Must be removed from water before freezing conditions
Country of Origin Vertex Aquatic Solutions, USA



Manuals

View the RingJet Product Sheet

View the RingJet System Specifications

View the RingJet Owner's Manual

Shipping/Returns

Shipping

  • Order confirmation is emailed after checkout.
  • Orders typically process within 1 to 2 business days.
  • Delivery times may vary depending on the product, shipping method, and delivery location.
  • A shipping confirmation with tracking details will be sent once your order ships.
  • Any damage or shortage claims must be reported within 24 hours of delivery. Please keep the original packaging until the claim is resolved.

Returns

  • Unused Vertex fountains are eligible for return within 60 days with prior return authorization.
  • All returns require approval before the item is sent back.
  • Returned items must be unused, in their original packaging, and in saleable condition.
  • Approved Vertex fountain returns are subject to a 25% restocking fee, and original shipping charges are non-refundable.
  • Warranty returns require authorization, the original sales receipt, and an explanation of the product issue.

Questions? Contact support@propondsupply.com or call (470) 354-1969.

Warranty

Warranty

  • Vertex Aquatic Solutions products are warranted to be free from defects in material and workmanship under normal use and service.
  • 4-year warranty: In-water fountain components, including the pump, motor, flotation, framework, nozzles, submersible cables, and similar fountain components.
  • 3-year warranty: Vertex compressor systems for defective parts.
  • 2-year warranty: Fountain lighting fixtures, excluding bulbs.
  • 1-year warranty: Fountain control panels.
  • 5-year warranty: AirStation diffuser assemblies.
  • 15-year warranty: BottomLine tubing.
  • Lifetime warranty: Compressor cabinets against rust.
  • Air filters and compressor maintenance kits are considered wearable parts and are not covered under standard warranty coverage.
  • Warranty claims must be made through an authorized Vertex dealer or directly through Vertex Aquatic Solutions.
  • Warranty claims may require product photos, warranty labels, compressor labels, and an overall photo of the system or damaged item.
  • Customers are responsible for return shipping when sending products in for warranty inspection.
  • If Vertex determines the issue is due to a manufacturing defect, the product may be repaired or replaced at no cost.
  • Warranty coverage may be void due to incorrect voltage, faulty installation, vandalism, negligence, water intrusion, cabinet painting, or other non-warranty failures.

Questions? Contact support@propondsupply.com or call (470) 354-1969.

★Reviews

Customer Reviews

Be the first to write a review
0%
(0)
0%
(0)
0%
(0)
0%
(0)
0%
(0)
NO SALES TAX

Orders outside Georgia are 100% sales tax-free

Give us a call

Free shipping on every order

Give us a call

Our team is available from 8 AM to 8 PM EST at (470) 354-1969

BEST PRICE GUARANTEE

If you find the same item for less, we’ll match it.

Overview

Throw a Wide Circular Display with the Vertex RingJet Floating Fountain

The Vertex RingJet Floating Fountain is a commercial-grade display fountain built around a tall vertical center jet ringed by a circle of smaller jets. The result is a wide, classic circular fountain pattern - the biggest spray footprint in the Vertex catalog. With the 15 HP unit reaching 45 ft center and 40 ft diameter, the RingJet is the right pick when you want a fountain that genuinely commands the entire surface of a large pond or lake.

Four motor sizes cover small commercial through large municipal water bodies: 5 HP, 7.5 HP, 10 HP, and 15 HP. Center jet heights run 25 to 45 ft, with the surrounding ring of jets reaching 12 to 20 ft. Spray diameters stretch 25 to 40 ft across the line. Every unit ships on a sealed stainless steel submersible turbine pump, a UL-listed control panel, and the same rotocast polypropylene float used across the Vertex commercial line.

Pick 5, 7.5, 10, or 15 HP. Every motor size is available in 230V single-phase or three-phase. 208V or 460V three-phase configurations are available on request. Optional LED light kits sized to motor (4 fixtures on 5/7.5 HP, 5 on 10/15 HP per the 2026 Vertex catalog) and submersible power cord lengths sold at order time. Free shipping on every RingJet.

The Vertex RingJet is a commercial floating fountain with a tall center jet surrounded by a ring of smaller jets. Widest spray pattern in the Vertex line - up to 40 ft diameter. Four motor sizes from 5 HP to 15 HP. Center heights 25-45 ft.

Stainless steel submersible turbine pump. UL-listed control panel. Rotocast polypropylene float. STW-A rated submersible cable. 4-year pump and motor warranty.

Every motor in single-phase or three-phase 230V. Optional 4 or 5 LED kits and cord lengths sold at order time.

Free shipping on every Vertex RingJet. Optional LED lighting kits and cord lengths available on request. Call (470) 354-1969.

 Vertex RingJet Floating Pond Fountain spraying on water

Why Choose the RingJet by Vertex

Widest Display in the Vertex Line A tall center jet ringed by smaller jets produces a classic circular fountain pattern up to 40 ft in diameter on the 15 HP. No other Vertex pattern covers as much surface area. Tall Center Spray with a Ringed Skirt Center heights from 25 ft (5 HP) up to 45 ft (15 HP) deliver vertical drama, while the outer ring of jets adds depth and movement around the base - a more complete look than a single tall spray on its own. Four Motor Sizes 5 HP, 7.5 HP, 10 HP, and 15 HP. Sized for small commercial up to large municipal water bodies. The 5 HP fits ponds as shallow as 4 ft. Stainless Steel Turbine Pump Sealed submersible motor. Water-cooled with no oils, no seals, and no annual maintenance kits. Spring-loaded check valve for smooth operation at any angle. Lower lifetime cost than oil-cooled commercial fountains. UL-Listed Control Panel Weatherproof steel NEMA enclosure ships with every unit. Class A GFCI protection. Every motor size is available in 230V single-phase or three-phase. 208V or 460V three-phase configurations available on request. STW-A Rated Submersible Cable Power cable rated for direct underwater use. Sized to motor; custom cord lengths available at order time. Optional LED Lighting Sized to Motor 4 fixtures on the 5 and 7.5 HP, 5 fixtures on the 10 and 15 HP per the 2026 Vertex catalog. High-efficiency LEDs at 140 lumens/watt. Optional colored / color-changing LEDs available on request. Vertex Warranty Package 4-year warranty on the display head, pump, and motor. 2-year warranty on LED lighting (excluding bulbs). 1-year warranty on the control panel.

RingJet Unit Comparison

5 HP Unit 7.5 HP Unit 10 HP Unit 15 HP Unit
Minimum Operating Depth 4 ft 5 ft 6 ft 7 ft
Center Height Spray (A) 25 ft 30 ft 40 ft 45 ft
Side Height Spray (B) 12 ft 15 ft 18 ft 20 ft
Spray Diameter (C) 25 ft 30 ft 35 ft 40 ft
Nozzle Diameter 3/16 in 3/16 in 1/4 in 1/4 in
LED Lights Included 4 4 5 5
Total LED Wattage 172 W 172 W 215 W 215 W
LED Amp Draw 2 A 2 A 2.5 A 2.5 A
Available Phase 1 Phase or 3 Phase
1 Phase Voltage 230V
3 Phase Voltage 208V or 230V
Display Head / Nozzle Warranty 4 yr
Pump and Motor Warranty 4 yr
LED Lighting Warranty 2 yr
Control Panel Warranty 1 yr
RingJet produces a tall center jet ringed by smaller jets that create a wide circular display. LED kits sold separately at order time. 460V three-phase configurations available on request. Vertex fountains must be removed from water before freezing. Call (470) 354-1969 for sizing help.

Requirements & What to Know Before You Buy

  • Pond Depth: 4 ft minimum on the 5 HP, 5 ft on the 7.5 HP, 6 ft on the 10 HP, and 7 ft on the 15 HP.
  • Pond Size: RingJet has a wide footprint - 25 to 40 ft diameter - so it needs open water around it. Confirm you have at least 20 ft of clearance to any shoreline on each side of the fountain.
  • Voltage and Phase Selection: every motor size is available in 230V single-phase or three-phase. 208V and 460V three-phase configurations are available on request.
  • Dedicated Circuit: the included control panel needs a properly sized dedicated circuit. Confirm with a licensed electrician before install.
  • Mooring: commercial fountains need anchoring. You supply anchors or weights sized to the float and water body.
  • Cable Run: standard cord lengths are available; longer runs are an order-time option.
  • Winterization: Vertex fountains must be removed from water before freezing conditions.
  • Lighting: the suggested LED kit is 4 lights for the 5 and 7.5 HP and 5 for the 10 and 15 HP. Add at order time so the harness ships with the float.
  • Sizing Help: Call (470) 354-1969 with your pond surface area and depth and we will recommend the right motor size.

What's Included & Optional Add-Ons

  • Stainless Steel Turbine Pump - sealed submersible motor, water-cooled, self-lubricated
  • Rotocast Polypropylene Float - UV-inhibited, heavy-duty, low profile
  • RingJet Display Head - tall center jet ringed by smaller jets in a wide circular pattern
  • Stainless Steel Intake Screen - protects the impeller from debris
  • UL-Listed Control Panel - weatherproof steel NEMA enclosure with Class A GFCI
  • STW-A Rated Submersible Cable - sized to motor; ordered separately
  • Optional LED Lighting Kit - 4 fixtures (5/7.5 HP) or 5 fixtures (10/15 HP). 43 W each. Sold at order time.
  • Optional Custom Phase / Voltage - 208V or 460V three-phase on request
  • Optional Colored / Color-Changing LEDs - on request
  • Optional Wind Sensor / Remote / Multi-Unit Master Panel - on request
  • Warranty - 4 yr display head / pump / motor; 2 yr LED lights; 1 yr control panel

Vertex RingJet Floating Fountain Specifications

Manufacturer Vertex Aquatic Solutions
Model RingJet Floating Pond Fountain
Type Tall center jet with ring of surrounding jets - widest circular display fountain in the Vertex line
Motor Options 5 HP, 7.5 HP, 10 HP, 15 HP
Phase Options 230V single-phase or three-phase on every motor size. 208V or 460V three-phase on request.
Frequency 60 Hz standard
Total Configurations 16 across HP, phase, and lighting
Spray Pattern Tall center jet ringed by a circle of smaller jets
Center Jet Height 25 ft (5 HP) up to 45 ft (15 HP)
Side Jet Height 12 ft (5 HP) up to 20 ft (15 HP)
Spray Diameter 25 ft (5 HP) up to 40 ft (15 HP)
Nozzle Diameter 3/16 in (5/7.5 HP) or 1/4 in (10/15 HP)
Minimum Pond Depth 4 ft (5 HP) up to 7 ft (15 HP)
Motor Construction Stainless steel submersible turbine
Float Construction Rotocast polypropylene with UV inhibitors, low profile
Power Cable STW-A rated for direct underwater use; sized to motor; ordered separately
Control Panel UL-listed in weatherproof steel NEMA enclosure with Class A GFCI
Optional LED Lighting 4 or 5 fixture kit depending on motor size; 43 W per fixture at 140 lumens/watt. Colored / color-changing on request.
Applications Commercial lakes, HOA waterways, corporate campuses, golf course water hazards, parks, large municipal water features that benefit from a wide circular display
Warranty (Display Head / Pump / Motor) 4 years
Warranty (LED Lighting) 2 years (excluding bulbs)
Warranty (Control Panel) 1 year
Winterization Must be removed from water before freezing conditions
Country of Origin Vertex Aquatic Solutions, USA



Manuals

View the RingJet Product Sheet

View the RingJet System Specifications

View the RingJet Owner's Manual

Shipping/Returns

Shipping

  • Order confirmation is emailed after checkout.
  • Orders typically process within 1 to 2 business days.
  • Delivery times may vary depending on the product, shipping method, and delivery location.
  • A shipping confirmation with tracking details will be sent once your order ships.
  • Any damage or shortage claims must be reported within 24 hours of delivery. Please keep the original packaging until the claim is resolved.

Returns

  • Unused Vertex fountains are eligible for return within 60 days with prior return authorization.
  • All returns require approval before the item is sent back.
  • Returned items must be unused, in their original packaging, and in saleable condition.
  • Approved Vertex fountain returns are subject to a 25% restocking fee, and original shipping charges are non-refundable.
  • Warranty returns require authorization, the original sales receipt, and an explanation of the product issue.

Questions? Contact support@propondsupply.com or call (470) 354-1969.

Warranty

Warranty

  • Vertex Aquatic Solutions products are warranted to be free from defects in material and workmanship under normal use and service.
  • 4-year warranty: In-water fountain components, including the pump, motor, flotation, framework, nozzles, submersible cables, and similar fountain components.
  • 3-year warranty: Vertex compressor systems for defective parts.
  • 2-year warranty: Fountain lighting fixtures, excluding bulbs.
  • 1-year warranty: Fountain control panels.
  • 5-year warranty: AirStation diffuser assemblies.
  • 15-year warranty: BottomLine tubing.
  • Lifetime warranty: Compressor cabinets against rust.
  • Air filters and compressor maintenance kits are considered wearable parts and are not covered under standard warranty coverage.
  • Warranty claims must be made through an authorized Vertex dealer or directly through Vertex Aquatic Solutions.
  • Warranty claims may require product photos, warranty labels, compressor labels, and an overall photo of the system or damaged item.
  • Customers are responsible for return shipping when sending products in for warranty inspection.
  • If Vertex determines the issue is due to a manufacturing defect, the product may be repaired or replaced at no cost.
  • Warranty coverage may be void due to incorrect voltage, faulty installation, vandalism, negligence, water intrusion, cabinet painting, or other non-warranty failures.

Questions? Contact support@propondsupply.com or call (470) 354-1969.

★Reviews

Customer Reviews

Be the first to write a review
0%
(0)
0%
(0)
0%
(0)
0%
(0)
0%
(0)
