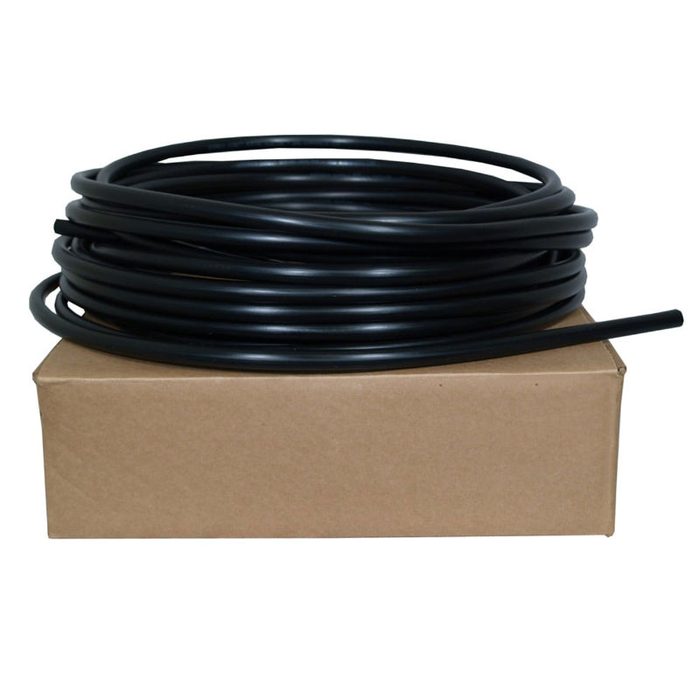

Airmax EasySet Direct Burial Airline
Buried Airline for the Land Run Between Compressor and Pond
The Airmax Direct Burial Airline is the counterpart to the underwater EasySet Weighted Airline - a rugged 5/8-inch polyethylene tubing rated for underground use in the trenched run from the aeration compressor cabinet to the shoreline. Because most compressor pads sit away from the water's edge, most aeration installs actually need two kinds of airline: one for the buried land run (this product) and one for the submerged pond run (EasySet Weighted). They join at the shore with a standard EasySet Connector Kit.
Built for the mechanical punishment of a buried install: crush-resistant thick-wall construction that won't deform under settling soil, UV-resistant for the small exposed transitions at the cabinet and pond edge, and a smooth interior wall for low pressure drop across long shore runs. 5/8-inch inside diameter matches the higher-CFM systems (SW40, PS40, PS60, SolarSeries) and any single line running longer than 300 ft.
Trench 6 to 12 inches, lay the airline in, backfill. Connect to any Airmax compressor at the cabinet end with a 5/8-inch connector kit and to the pond's weighted airline at the shore end with a 5/8-to-5/8 kit. Cuts to length with a utility knife. Backed by a 5-year Airmax warranty. Sold in 100 ft rolls - order multiple rolls for longer runs (up to 1,000 ft total per diffuser plate).
Trenched airline for the land run. The Airmax Direct Burial Airline is the buried counterpart to the underwater EasySet Weighted Airline - a rugged 5/8-inch polyethylene tubing rated for underground use from the compressor cabinet out to the pond's edge.
Crush-resistant thick-wall construction that won't deform under settling soil. Smooth interior for low pressure drop across long shore runs. 5/8-inch matches higher-CFM systems (SW40, PS40, PS60, SolarSeries) and any single run over 300 ft.
Trench 6-12 inches, lay the airline in, backfill. Joins to the compressor and to the pond's weighted airline with EasySet Connector Kits. Cuts to length with a utility knife. 5-year warranty. Sold in 100 ft rolls.
Free shipping on airline orders. Call (470) 354-1969 for sizing help.
Direct Burial vs Weighted Airline
| Direct Burial Airline |
EasySet Weighted Airline |
|
|---|---|---|
| Application | Buried land run (compressor to shore) | Underwater run (shore to diffuser) |
| Inside Diameter | 5/8" | 3/8" or 5/8" |
| Available Lengths | 100 ft | 25 ft, 50 ft, 100 ft (3/8"); 100 ft (5/8") |
| Wall Type | Crush-resistant thick-wall, UV-resistant | Kink-free, self-weighted, fish-safe |
| Weighting | None (buried in trench) | Self-weighted through the wall |
| Install | Trench 6-12 in, lay, backfill | Drop into water, self-sinks |
| Connects To Compressor | Yes (5/8" connector kit) | Yes (matching diameter connector kit) |
| Connects To Each Other | Yes - use EasySet Connector Kit at the shoreline transition | |
| Warranty | 5 years | |
| Best For | Any install where the compressor pad sits away from the pond edge | Every install (needed to reach the diffuser under water) |
Requirements & What to Know Before You Buy
- Underground Use Only: Direct Burial Airline is designed to be trenched in and buried. It's not weighted, so if you drop it in water it floats. For the submerged pond run use Airmax EasySet Weighted Airline (sold separately).
- Typical Install: most Airmax aeration systems need both airline types - Direct Burial from the compressor cabinet out to the shoreline, then EasySet Weighted from the shoreline down to the diffuser. They connect at the shore with a 5/8-inch Connector Kit.
- Trench Depth: 6 to 12 inches. Remove exposed rocks and sharp debris before laying the airline in - the thick wall resists crushing but sharp objects will eventually work through.
- Maximum Length per Plate: 1,000 ft total per diffuser (buried + underwater combined). Beyond that, pressure drop starts to noticeably reduce diffuser output.
- 5/8-inch is Standard: Direct Burial ships only in 5/8-inch to match the size customers typically need for the long shore run. 5/8-inch is required when the single line runs over 300 ft, when total system airline exceeds 600 ft, or when the compressor is a higher-CFM SW40 / PS40 / PS60 / SolarSeries.
- Connector Kits Required: use a 5/8-inch EasySet Airline Connector Kit at the compressor end. Use a 5/8-to-3/8 or 5/8-to-5/8 kit at the shoreline transition depending on the diameter of the pond-side Weighted Airline you're using. Sold separately.
- Cutting to Length: cuts cleanly with a utility knife. Make the cut square (not at an angle) for a proper seal with the connector fittings.
- UV Exposure at Transitions: the tubing is UV-resistant enough for brief exposed transitions at the compressor cabinet and pond edge, but long exposed spans in direct sunlight aren't recommended. Bury the whole shore run or shield exposed sections.
- Frost Depth: in freezing climates, bury below the local frost line where possible to protect the airline from soil movement during freeze-thaw cycles. Airmax's 6-12 inch general recommendation is a minimum, not a maximum.
- Sizing Help: Call (470) 354-1969 with your aeration system model and shore-to-pond distance and we will confirm the right length.
What's Included & Optional Add-Ons
- 1 Roll of 5/8-inch Direct Burial Airline - 100 ft length, crush-resistant polyethylene
- Optional EasySet Airline Connector Kit - required to connect the airline to the compressor and to the pond-side Weighted Airline (sold separately)
- Optional EasySet Weighted Airline - the submerged pond-side counterpart (sold separately)
- Optional Airline Reel or Winder - useful when installing longer runs (sold separately)
Direct Burial Airline Specifications
| Manufacturer | Airmax, Inc. (Armada, Michigan) |
| Model | 510120 |
| Type | Underground aeration airline |
| Inside Diameter | 5/8-inch |
| Length | 100 ft |
| Material | Crush-resistant, UV-resistant polyethylene |
| Wall Construction | Thick-wall for buried use |
| Application | Underground trenched runs from compressor to pond edge |
| Trench Depth | 6-12 in typical (deeper in frost-prone climates) |
| Max Length per Plate | 1,000 ft (any Airmax aeration system, buried + underwater combined) |
| Cutting | Utility knife - cut square for proper connector seal |
| Connector Kit Required | EasySet Airline Connector Kit (sold separately) |
| Compatible With | All Airmax diffused aeration systems (SW Series, PondSeries, SolarSeries) |
| Underwater Airline Compatibility | Connects to Airmax EasySet Weighted Airline (3/8-inch or 5/8-inch) with the appropriate Connector Kit |
| Warranty | 5 years |
| Country of Origin | Made in USA (Armada, MI) |
