Airmax LakeSeries Floating Fountain (2, 3 & 5 HP)
Commercial-Scale Floating Fountains for Ponds up to 5 Acres
The Airmax LakeSeries is Airmax's flagship large-pond fountain family - built on the patented ISP (Innovative Stability Platform) float for maximum stability under high-horsepower operation, water-cooled sealed motors rated for continuous commercial-scale duty, and a broad range of interchangeable spray nozzles that scale up to match the pond. Three single-phase HP classes cover roughly 2 to 5 surface acres of water on 230V power.
Pick the 2 HP for ponds up to about 2.5 acres (12 A at 230V). Step up to 3 HP for ponds 2 to 4 acres (16 A). The 5 HP handles ponds 4 to 5 acres with the tallest spray heights in the single-phase LakeSeries lineup and 26 A of running current. All three fountains share the same ISP float platform and accept the same interchangeable nozzle collection.
Every fountain ships with the sealed water-cooled motor, ISP float assembly, and control panel. Spray nozzles are sold separately - the LakeSeries supports Classic, Crown & Trumpet, Trumpet, Gusher, Crown & Gusher, Single Arch, Double Arch, Double Arch w/ Geyser, and Blossom (plus a Spinning Blossom on the 5 HP). Cord runs from 100 ft up to 400 ft ship pre-attached at order time. Backed by a 5-year manufacturer warranty.
Large-pond fountains for water bodies up to 5 acres. The Airmax LakeSeries is built on the patent-pending ISP (Innovative Stability Platform) float for high-horsepower stability, water-cooled sealed motor, and interchangeable spray nozzles that scale up to match the pond.
Pick 2 HP for ponds up to 2.5 acres (12 A), 3 HP for 2-4 acres (16 A), or 5 HP for 4-5 acres (26 A). All 230V single-phase - dedicated shore circuit required. Larger 3-phase LakeSeries (7.5 and 10 HP) available as a separate product.
Every fountain ships with the sealed motor, ISP float, and control panel. Spray nozzles are sold separately - Classic, Crown & Trumpet, Trumpet, Gusher, Single Arch, Double Arch, Double Arch w/ Geyser, and Blossom all compatible. Cord runs 100 ft up to 400 ft. 5-year warranty.
Free shipping on every LakeSeries fountain. Call (470) 354-1969 for sizing and nozzle recommendations.
See the LakeSeries in Action
LakeSeries HP Comparison
| 2 HP | 3 HP | 5 HP | |
|---|---|---|---|
| Recommended Pond Size | Up to ~2.5 Acres | ~2 to 4 Acres | ~4 to 5 Acres |
| Voltage | 230 V single-phase (3-phase 230V / 460V available separately) | ||
| Running Amps | 12 A | 16 A | 26 A |
| Minimum Operating Depth | 36 in | 48 in | 60 in |
| Float Platform | Innovative Stability Platform (ISP) — patent-pending high-HP stability design | ||
| Motor Type | Water-cooled, sealed, continuous-duty submersible | ||
| Cord Lengths Available | 100, 150, 200, 250, 300, 350, 400 ft (longer available - call) | ||
| Compatible Nozzles | Classic, Trumpet, Crown & Trumpet, Gusher, Crown & Gusher, Single Arch, Double Arch, Double Arch w/ Geyser, Blossom | Classic, Trumpet, Crown & Trumpet, Gusher, Crown & Gusher, Single Arch, Double Arch, Double Arch w/ Geyser, Blossom | All 2/3 HP patterns + Spinning Blossom |
| Best For | Small to mid-size HOA ponds, entry-level LakeSeries installs | Mid-size HOA lakes, commercial ponds needing taller spray | Larger HOA and commercial water features, resort centerpieces |
Requirements & What to Know Before You Buy
- Pond Depth: 2 HP needs 36 in minimum, 3 HP needs 48 in, 5 HP needs 60 in. Shallower ponds should use the Airmax PondSeries or Shallow Water Series instead - LakeSeries is engineered for depth.
- Pond Size: 2 HP up to ~2.5 acres, 3 HP for 2-4 acres, 5 HP for 4-5 acres. Larger water bodies need the 3-phase LakeSeries (7.5 or 10 HP) or multiple fountains.
- Electrical: all three ship as 230V single-phase. Dedicated 230V circuit with GFCI protection required. 2 HP: 12 A. 3 HP: 16 A. 5 HP: 26 A. 3-phase 230V and 460V versions are available separately (call for pricing).

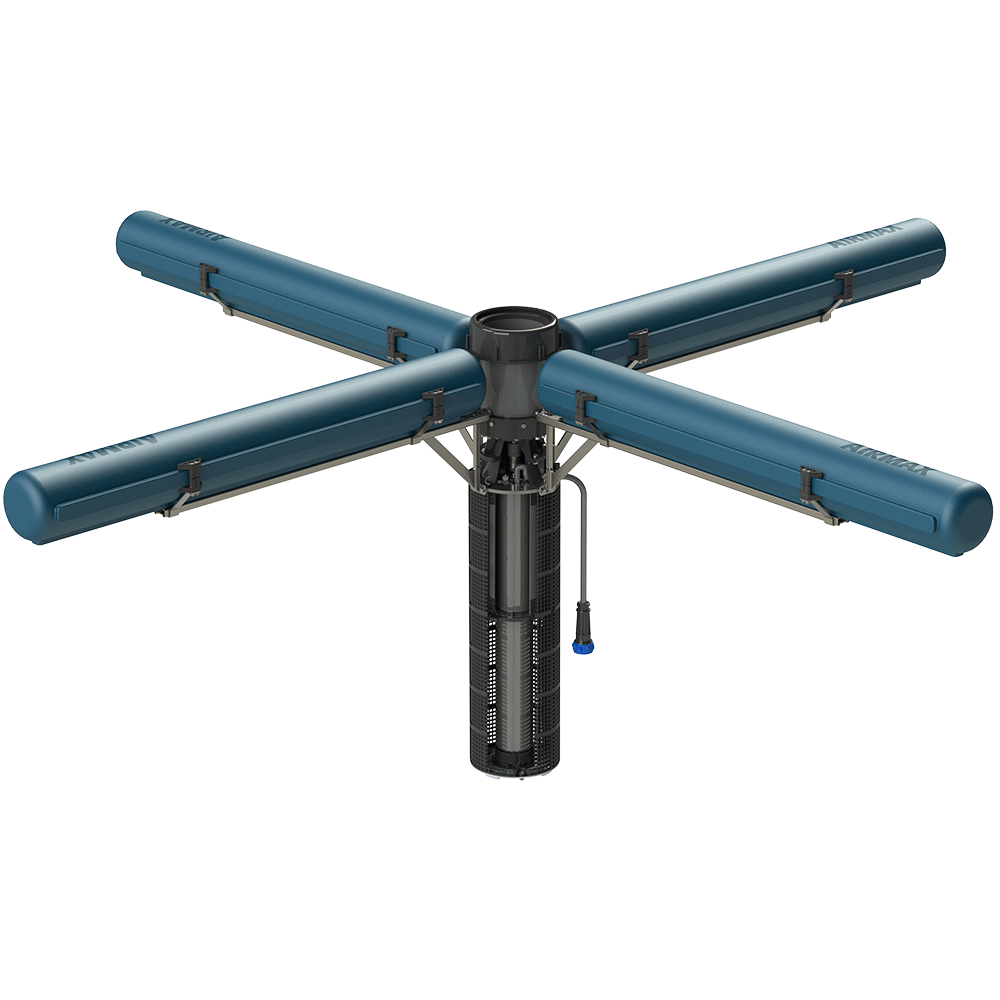

- ISP Float: the Innovative Stability Platform is Airmax's patent-pending float design engineered specifically for higher-horsepower fountain stability. It handles the reactive forces from high-flow spray patterns without the drift and dip you get on standard round floats.
- Nozzles Sold Separately: the LakeSeries fountain ships without nozzles. Pick the pattern that matches your visual (Classic through Blossom) — every LakeSeries nozzle is compatible across the 2, 3, and 5 HP fountains.
- Cord Sizing: measure from the intended fountain location out to the shore control panel. Add 5-10 ft of slack. Pick the cord length that reaches — longer cords increase the base price. Cords over 400 ft are available (call).
- Mooring: supply anchors and rope separately. Airmax Fountain Mooring Kit (150', 250', or 500') is available as a separate product.
- Winter Operation: continuous operation is possible in freezing climates as long as the fountain stays running - the plume keeps a hole open in the ice. Do not turn off in mid-winter or the frozen surface can trap the float.
- Sizing Help: Call (470) 354-1969 with pond size, depth, shore-run distance, and voltage preference. We will confirm the right HP class and cord length.
What's Included & Optional Add-Ons
- Water-Cooled Sealed Motor — 2, 3, or 5 HP, 230V single-phase, continuous-duty submersible
- ISP (Innovative Stability Platform) Float — patent-pending high-HP fountain float
- Control Panel — 230V single-phase with breaker protection
- Power Cord — 100 to 400 ft depending on the length you select
- Optional Spray Pattern Nozzles — Classic, Crown & Trumpet, Trumpet, Gusher, Crown & Gusher, Single Arch, Double Arch, Double Arch w/ Geyser, Blossom (all sold separately)

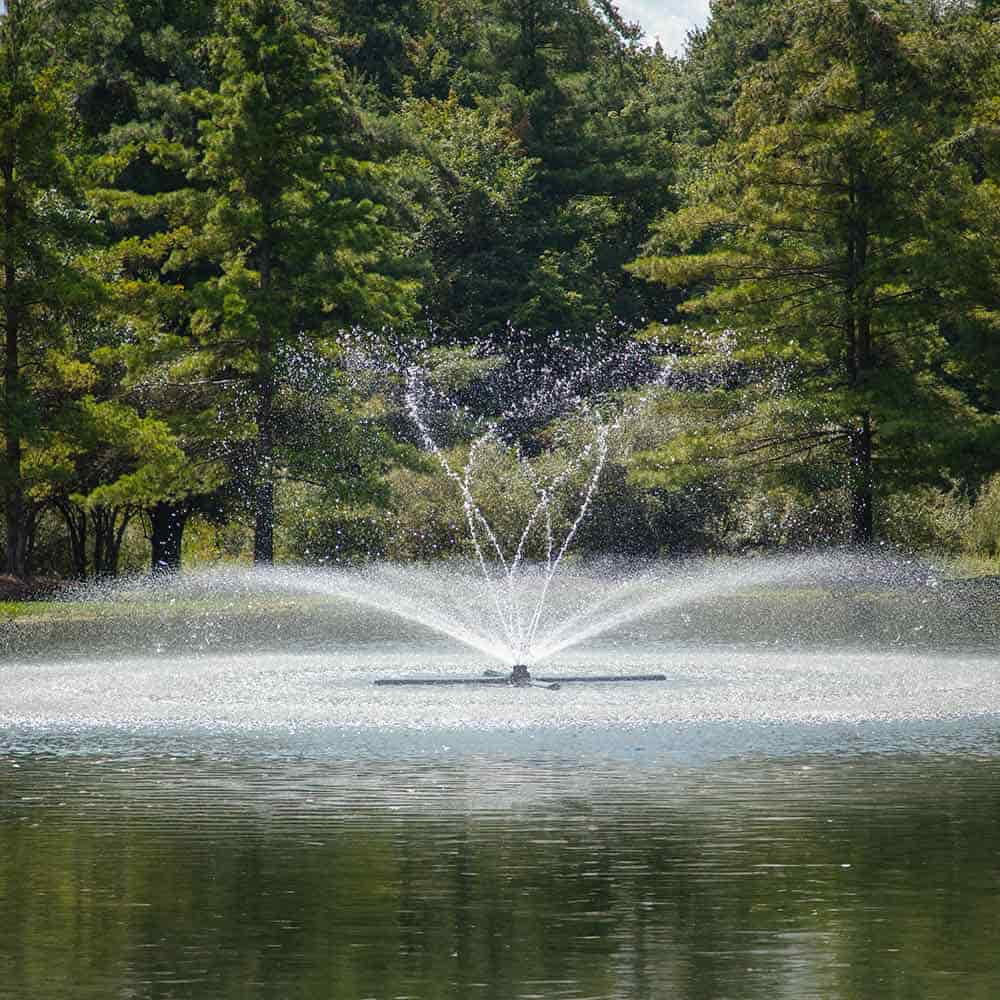

- Optional Spinning Blossom Nozzle — for the 5 HP only, adds motion to the Blossom pattern (sold separately)
- Optional 3-Phase Version — 230V or 460V 3-phase available for lower amp draw and longer shore runs (call for pricing)
- Optional Fountain Mooring Kit — 150', 250', or 500' lengths (sold separately)

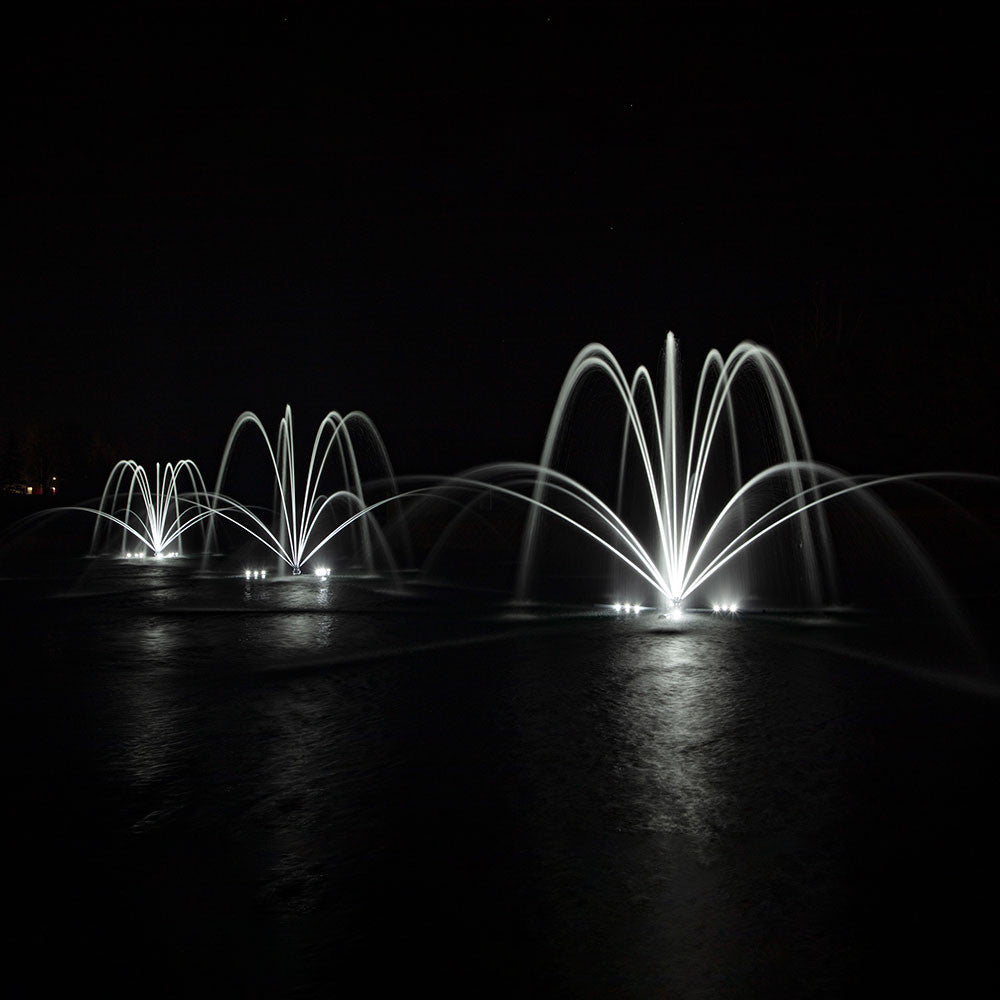

- Optional RGBW LED Light Kit — nighttime color lighting (sold separately)
LakeSeries Spray Pattern Options

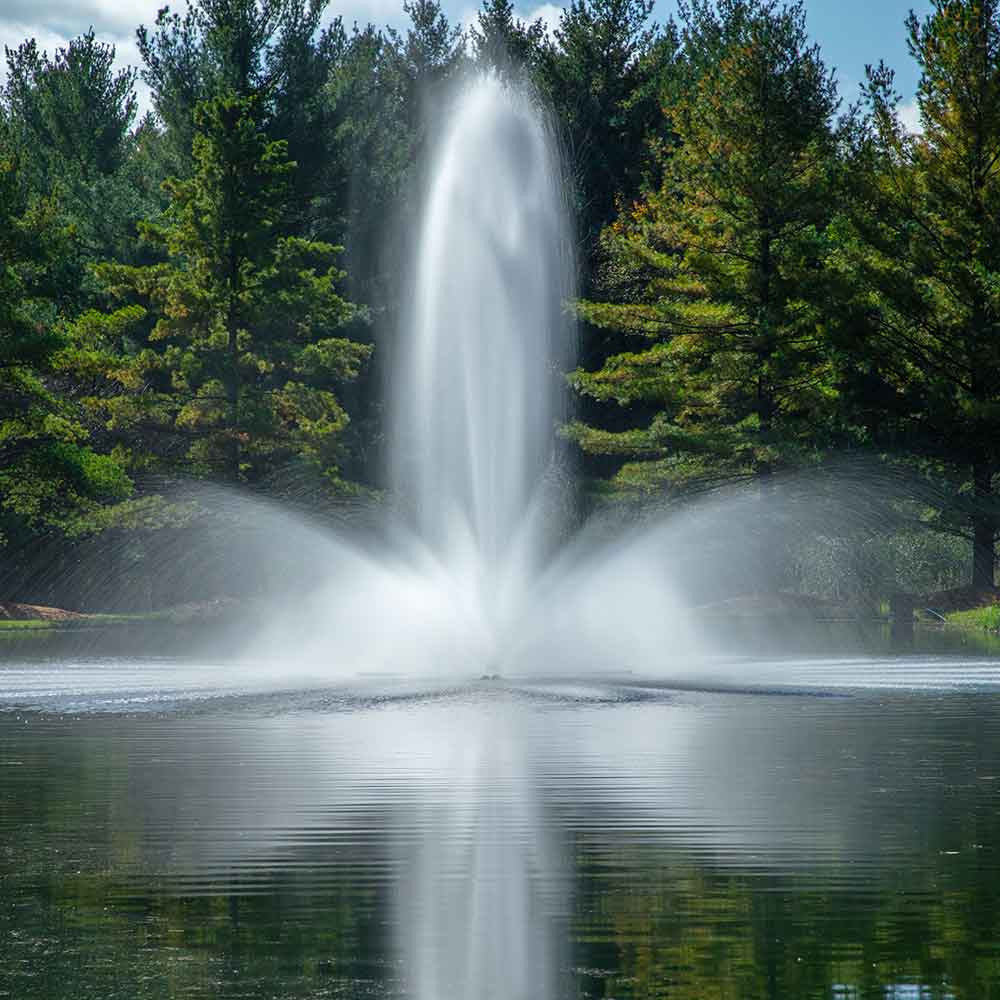

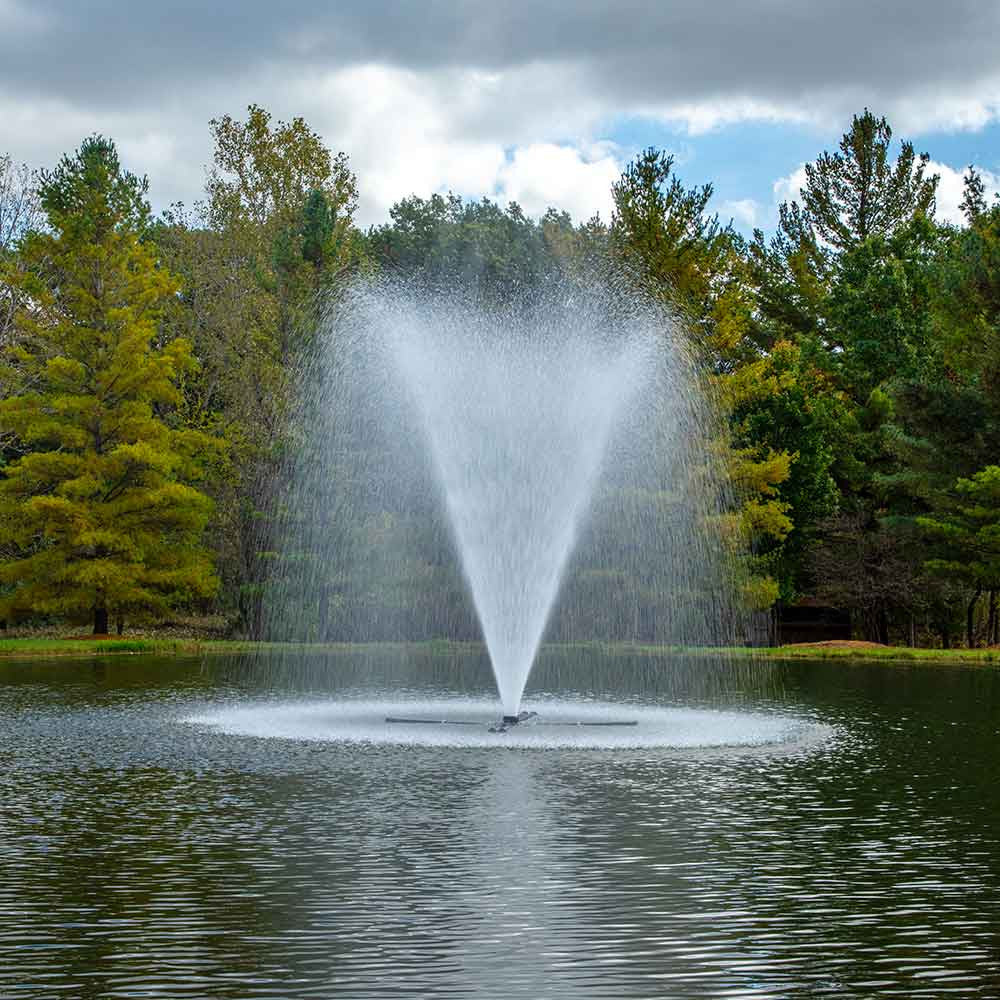

| Classic | Crown & Trumpet |

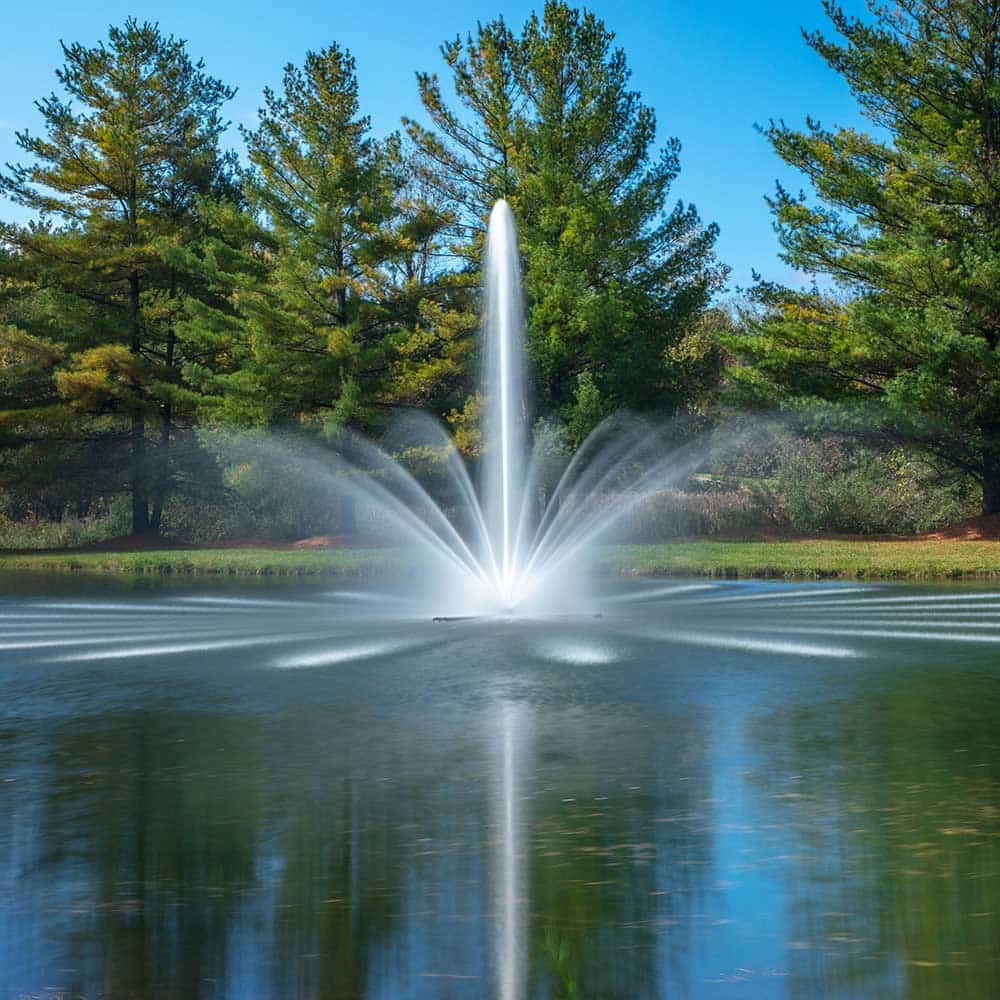

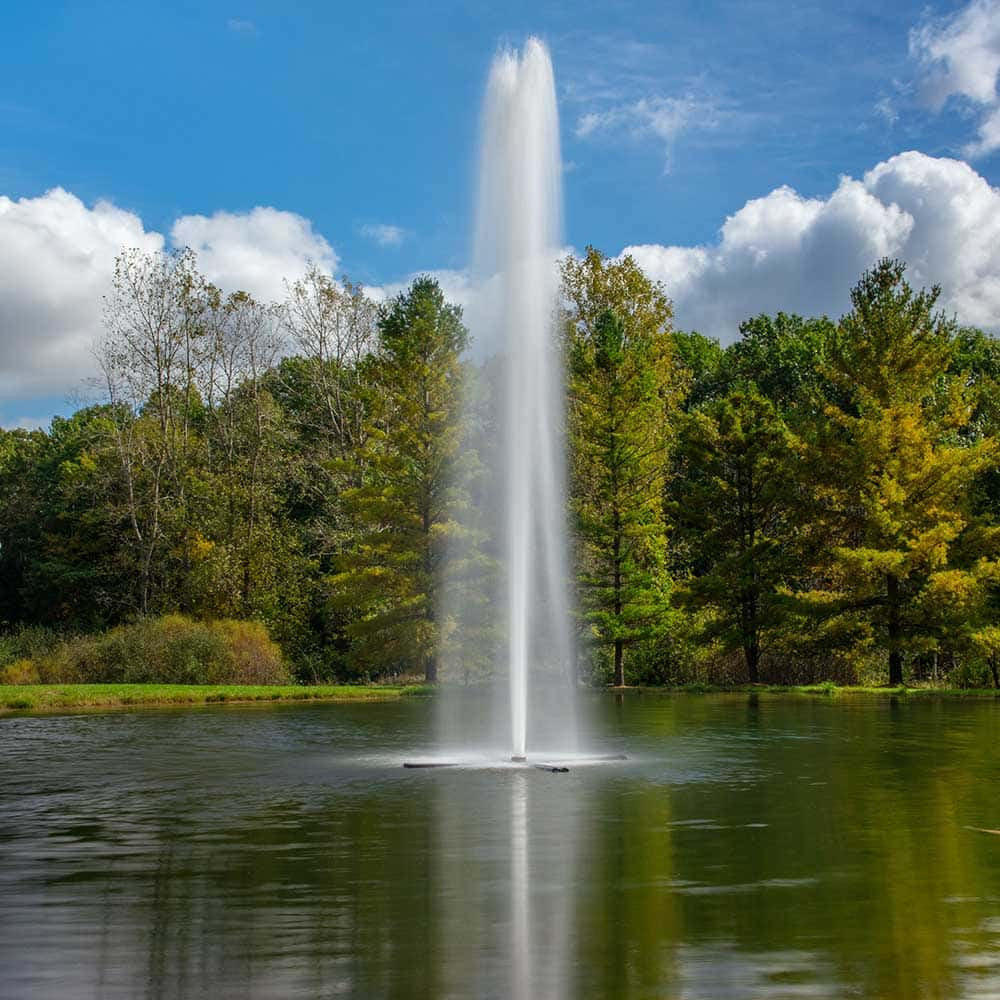

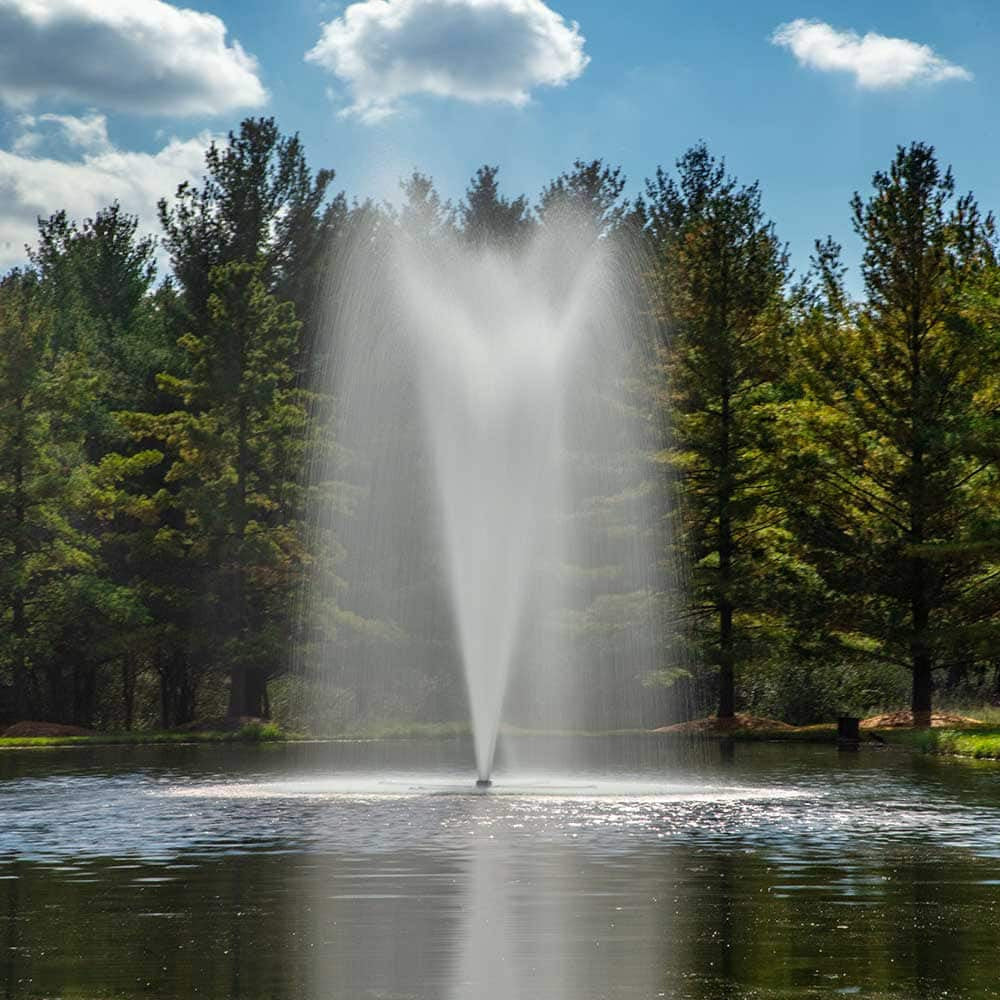

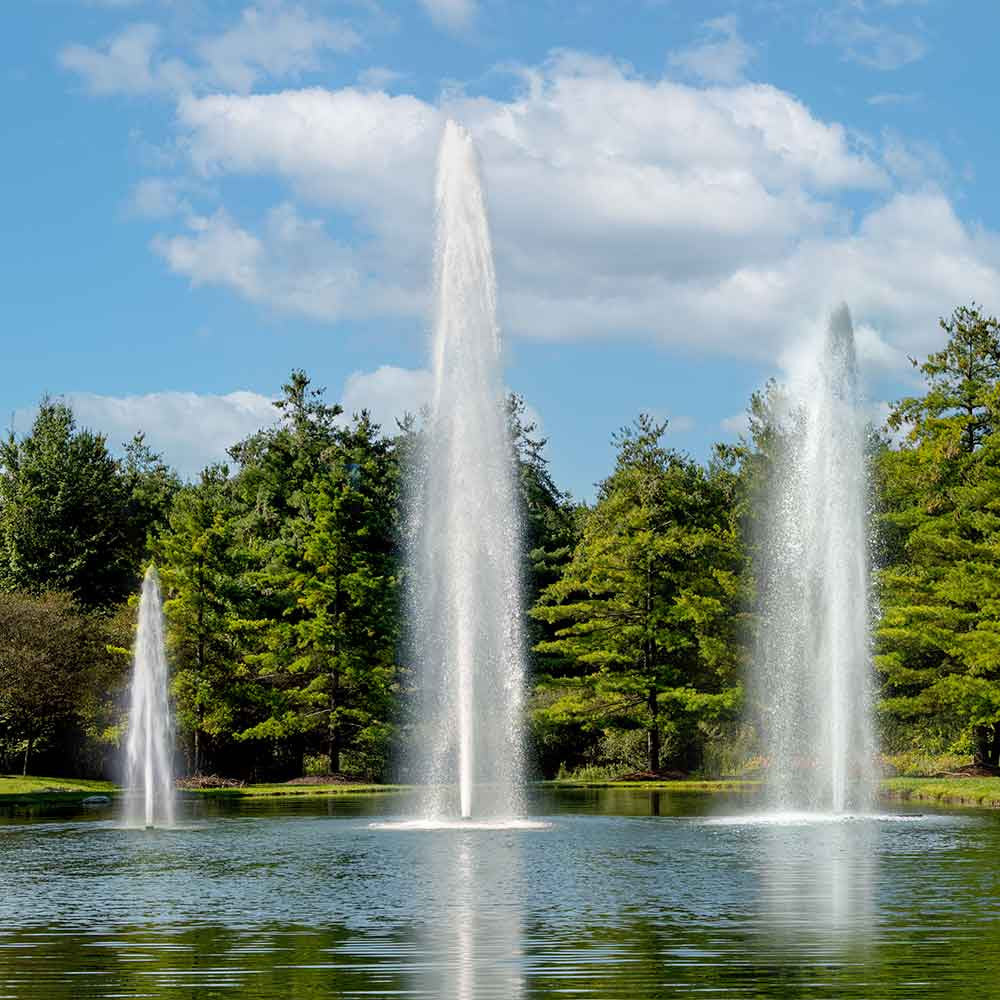

Trumpet | Gusher | Crown & Gusher |

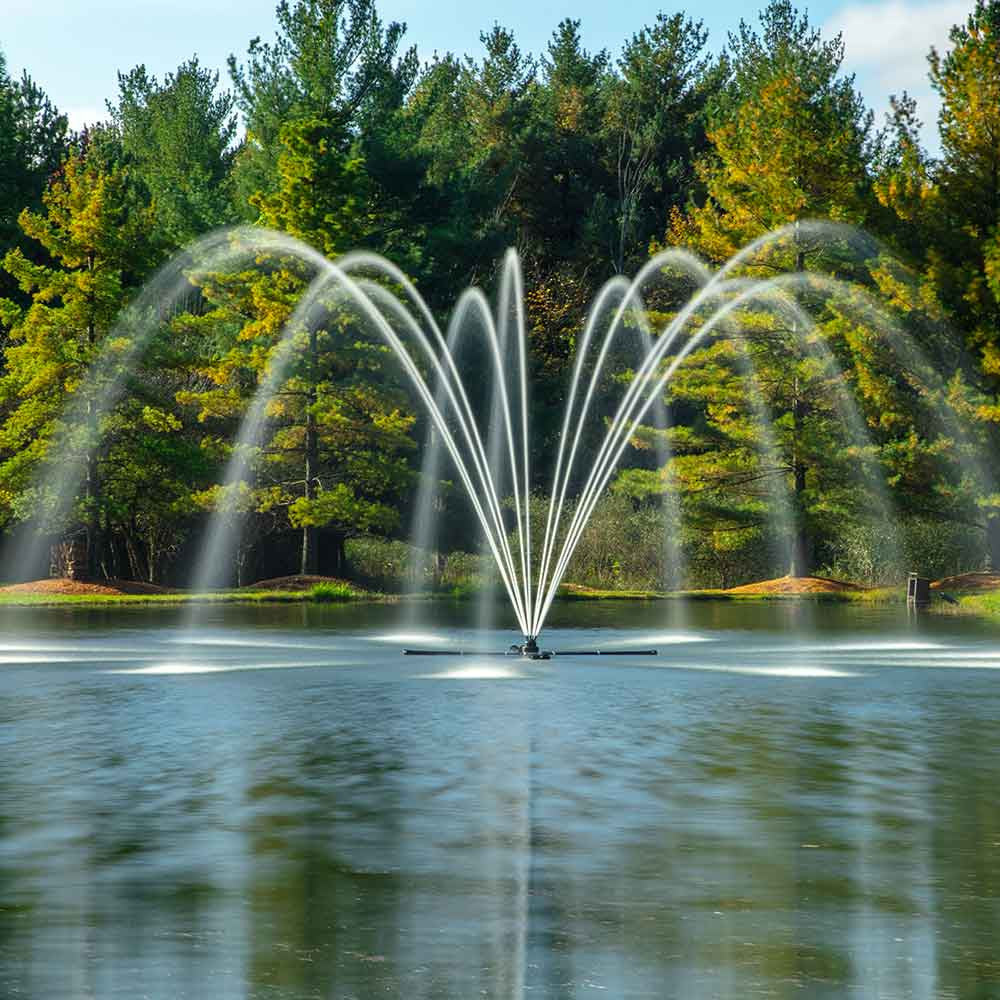

Single Arch |

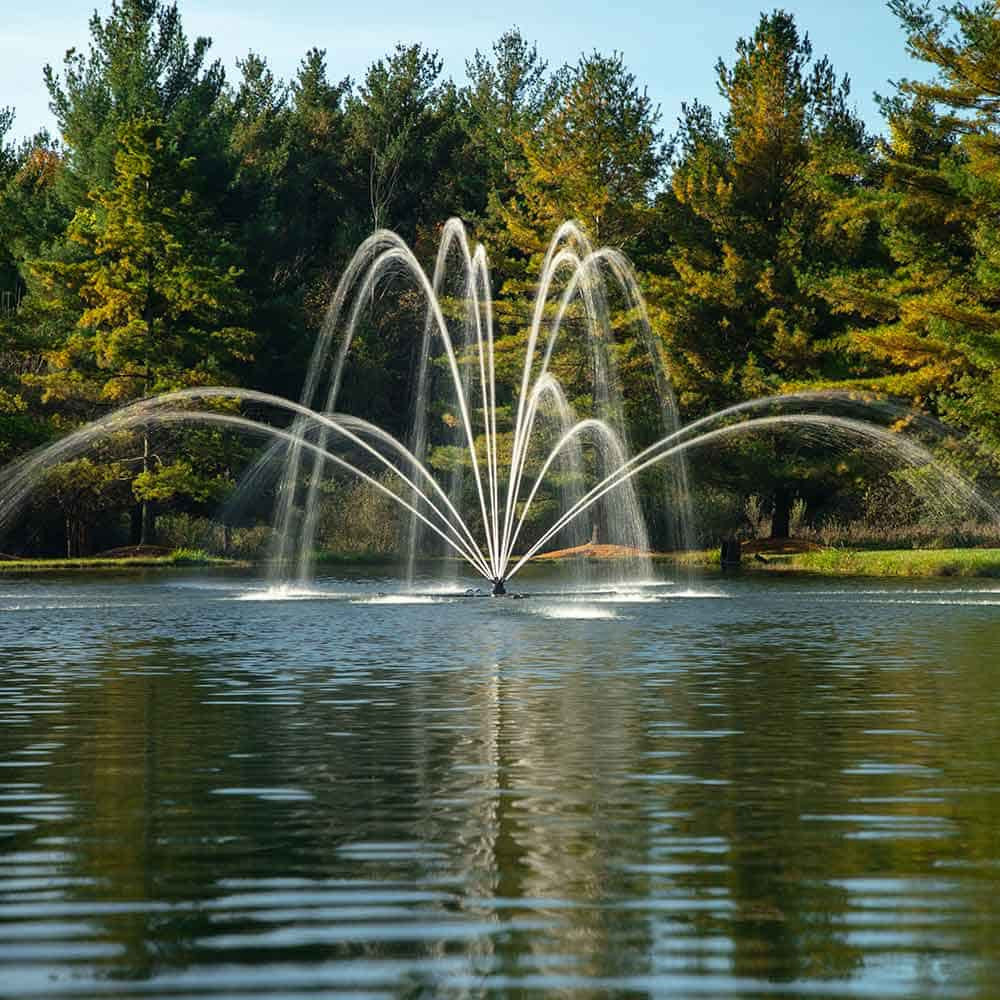

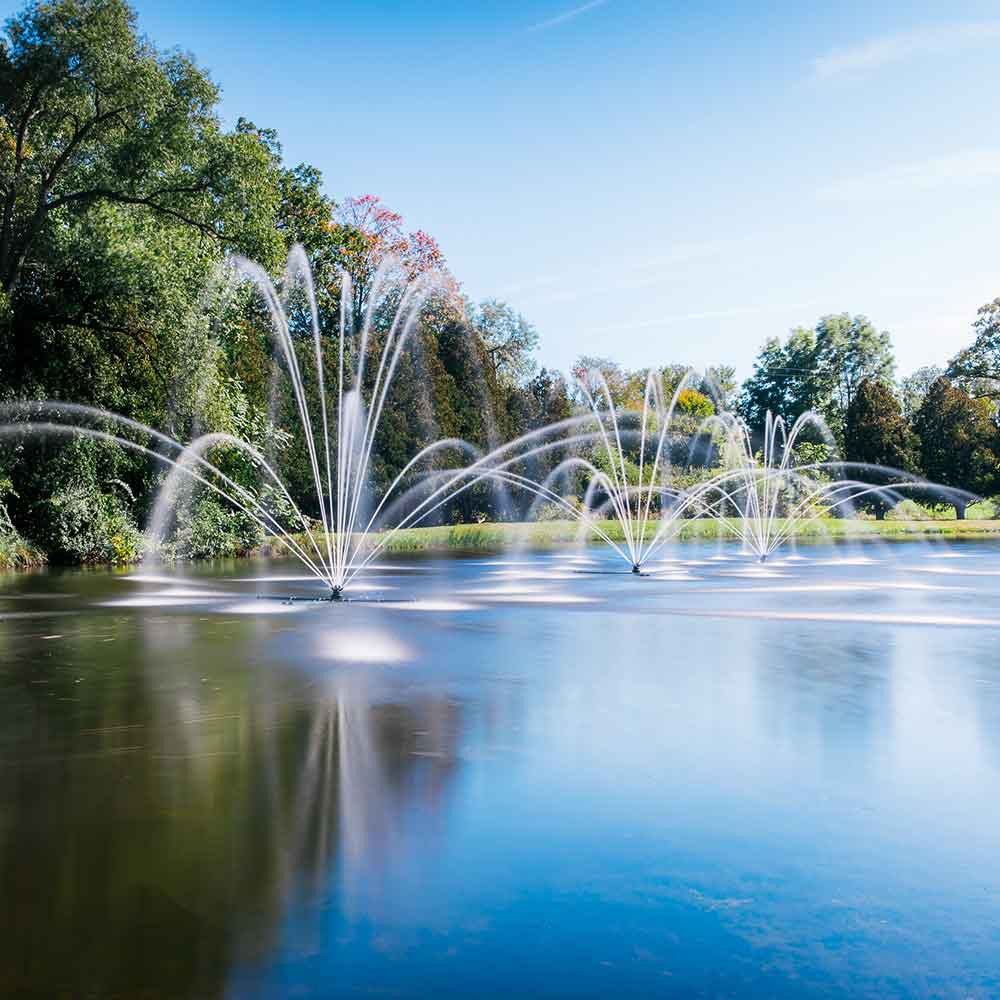

Double Arch |

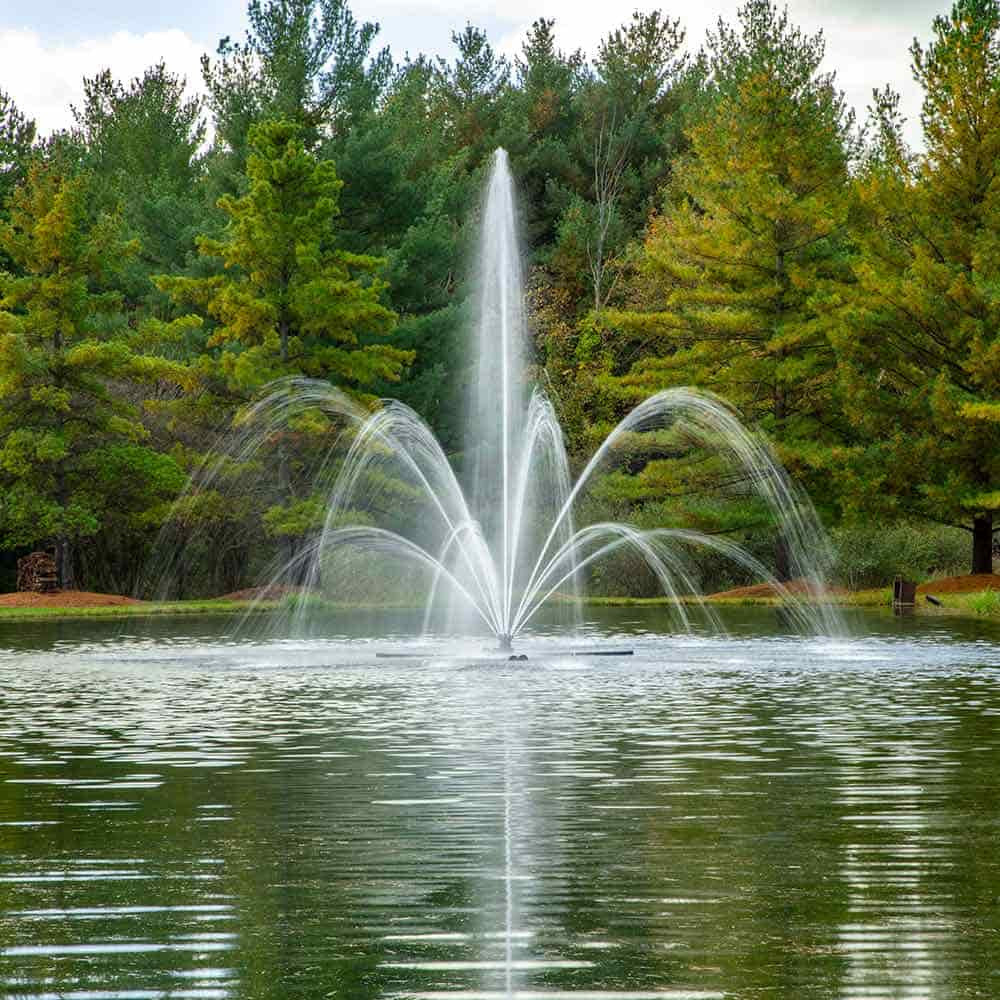

Double Arch w/ Geyser |

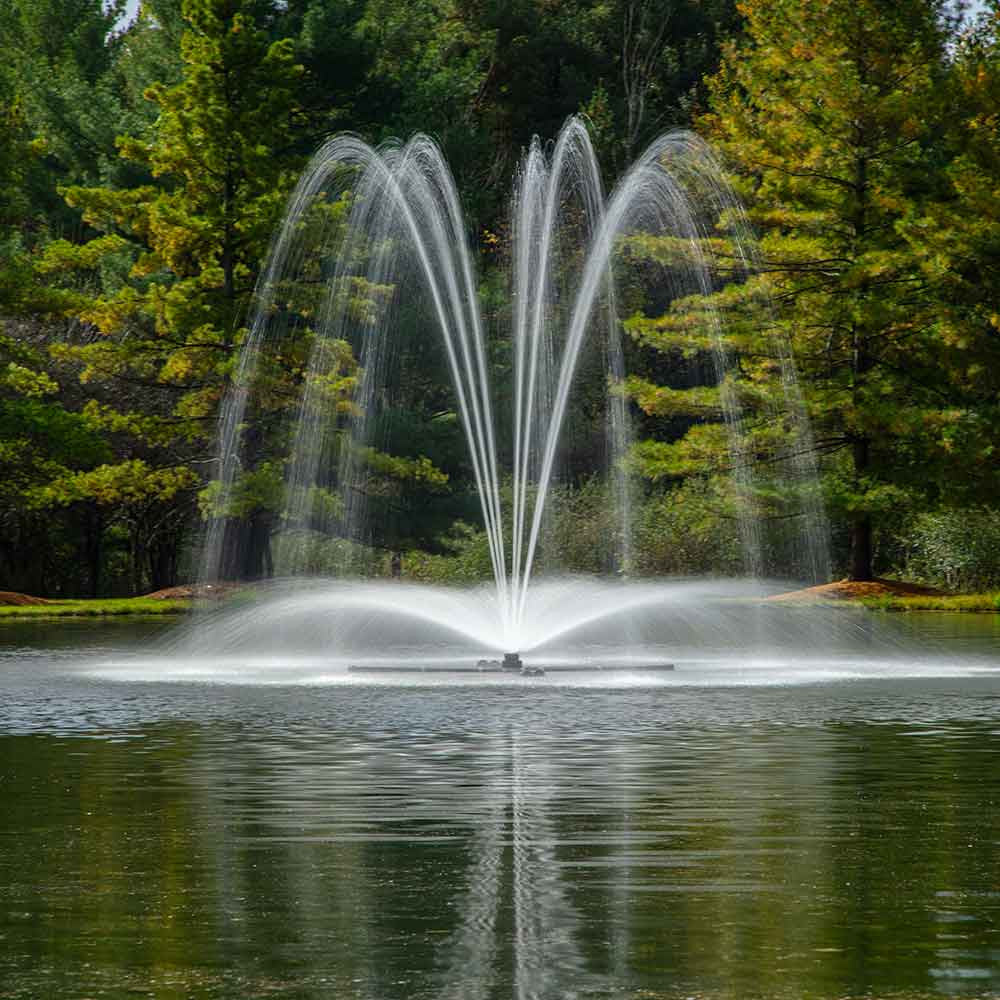

Blossom | Spinning Blossom |
|
|---|---|---|---|---|---|---|---|---|---|---|
| Pattern |  |
 |
 |
 |
 |
 |
 |
 |
 |
 |
| Approx Dimensions (scales with HP) |
~13 ft H × 30 ft W | Trumpet: 20 ft H × 9 ft W Crown: 8 ft H × 52 ft W |
23 ft H × 10 ft W | 13 ft H × 30 ft W | Gusher: 15 ft H × 10 ft W Crown: 8 ft H × 50 ft W |
9 ft H × 20 ft W | 1st: 16 ft H × 12 ft W 2nd: 8 ft H × 50 ft W |
Geyser: 16 ft H × 35 ft W Tiers: 30 ft H × 10 ft W |
12 ft H × 56 ft W | 13 ft H × 60 ft W (5 HP) |
| Look | Wide vase-shape everyday display | Tall center + wide crown skirt | Tall narrow single-column geyser | Powerful thick vertical plume | Center gusher + wide crown skirt | Wide single-tier arching display | Two-tier arching display | Center geyser + tiered arches | Wide low blossoming crown | Rotating blossom - 5 HP only |
LakeSeries 2 / 3 / 5 HP Specifications
| Manufacturer | Airmax, Inc. (Armada, Michigan) |
| Series | LakeSeries |
| HP Options | 2 HP, 3 HP, 5 HP |
| Voltage | 230V single-phase (3-phase 230V / 460V available separately) |
| Amps | 2 HP: 12 A | 3 HP: 16 A | 5 HP: 26 A |
| Motor Construction | Water-cooled, sealed, continuous-duty submersible |
| Float Platform | ISP (Innovative Stability Platform) — patent-pending high-HP design |
| Minimum Operating Depth | 2 HP: 36 in | 3 HP: 48 in | 5 HP: 60 in |
| Recommended Pond Size | 2 HP: up to ~2.5 acres | 3 HP: ~2 to 4 acres | 5 HP: ~4 to 5 acres |
| Included Nozzles | None - LakeSeries nozzles sold separately |
| Compatible Nozzles | Classic, Crown & Trumpet, Trumpet, Gusher, Crown & Gusher, Single Arch, Double Arch, Double Arch w/ Geyser, Blossom (2/3/5 HP); Spinning Blossom (5 HP only) |
| Cord Lengths Available | 100, 150, 200, 250, 300, 350, 400 ft (over 400 ft: call) |
| Applications | HOA lakes, resort water features, commercial ponds, municipal water bodies |
| Warranty | 5-year manufacturer warranty |
| Country of Origin | Made in USA (Armada, MI) |
