Airmax LakeSeries Floating Fountain (7.5 & 10 HP 3-Phase)
Three-Phase Commercial Fountains for Ponds Up to 12 Acres
The Airmax LakeSeries 7.5 & 10 HP fountains are the largest single-fountain platforms Airmax builds - engineered for 3-phase commercial power (230V or 460V), water-cooled sealed motors rated for 24/7 duty on multi-acre lakes, and the same patent-pending ISP (Innovative Stability Platform) float that the smaller LakeSeries uses. The 7.5 HP covers ponds up to about 8 acres; the 10 HP handles up to 12 acres with the tallest, widest LakeSeries spray displays available.
These are 3-phase-only fountains - they require dedicated commercial electrical service and are not compatible with residential single-phase power. Pick 230V for shorter runs from a commercial 3-phase distribution point (24 A on the 7.5 HP, 32 A on the 10 HP), or 460V for lower amp draw across long shore-run conduit distances (12 A on the 7.5 HP, 16 A on the 10 HP).
Cord is not included. The 7.5 and 10 HP builds are almost always installed by a certified professional at the site — call for cord pricing sized to your specific shore-to-fountain distance. Spray nozzles are also sold separately. Backed by a 5-year Airmax manufacturer warranty.
Commercial 3-phase fountains for the largest ponds. The Airmax LakeSeries 7.5 & 10 HP fountains cover 8 to 12 acres of water. Water-cooled sealed motors, patent-pending ISP float, tallest spray in the LakeSeries lineup.
3-phase power only. Pick 230V for shorter runs (24 A on 7.5 HP, 32 A on 10 HP) or 460V for lower amp draw across long conduit distances (12 A / 16 A). Requires commercial electrical service — not compatible with residential single-phase.
Cord not included (call for cord pricing sized to your shore-to-fountain distance). Nozzles also sold separately — all LakeSeries pattern nozzles are compatible. 5-year warranty.
Free shipping on the fountain. Call (470) 354-1969 for cord pricing and installation coordination.

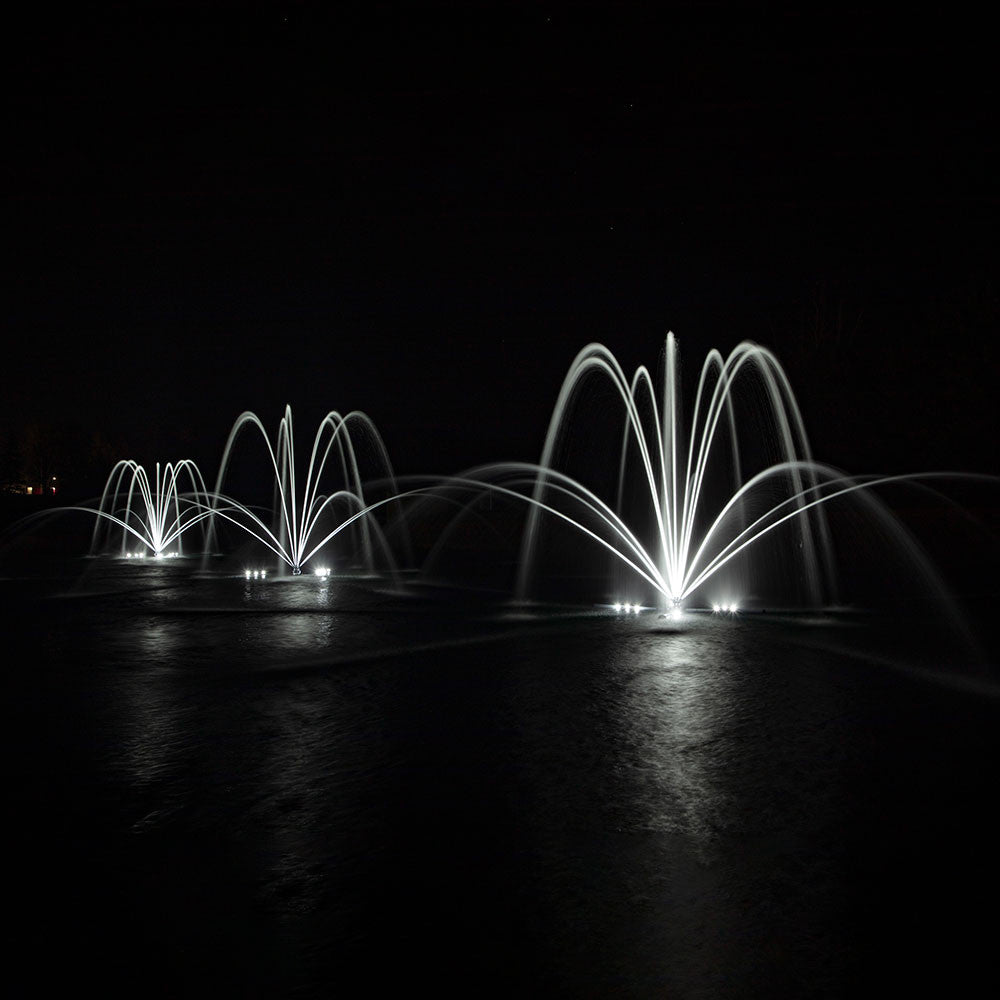

See the LakeSeries in Action
7.5 HP vs 10 HP LakeSeries Comparison
| 7.5 HP | 10 HP | |
|---|---|---|
| Recommended Pond Size | Up to ~8 Acres | Up to ~12 Acres |
| Voltage | 230V or 460V 3-phase (commercial only) | |
| Running Amps at 230V | 24 A | 32 A |
| Running Amps at 460V | 12 A | 16 A |
| Minimum Operating Depth | 48 in | |
| Float Platform | ISP (Innovative Stability Platform) — patent-pending high-HP stability | |
| Motor Type | Water-cooled, sealed, continuous-duty submersible | |
| Included Nozzle | None — LakeSeries nozzles sold separately | |
| Power Cord | Not included — call for pricing sized to your install | |
| Compatible Nozzles | All LakeSeries patterns (Classic, Trumpet, Crown & Trumpet, Gusher, Crown & Gusher, Single Arch, Double Arch, Double Arch w/ Geyser, Blossom, Spinning Blossom) | |
| Best For | Large HOA lakes, mid-sized municipal water bodies, resort centerpieces | Largest single-fountain installs, 10+ acre commercial lakes, showpiece water features |
Requirements & What to Know Before You Buy
- Three-Phase Power Required: both fountains are 3-phase only. Residential single-phase power will not run these motors. Your site must have commercial 3-phase service or a 3-phase power drop from the utility.
- 230V vs 460V: pick 230V when the shore panel is within moderate distance of the fountain and lower voltage-drop math isn't a concern. Pick 460V when the shore run is long (voltage drop) or the site already has 460V 3-phase service — 460V halves the running amps.
- Pond Size: 7.5 HP for lakes up to ~8 acres; 10 HP for lakes up to ~12 acres. Larger water bodies need multiple LakeSeries fountains or step up to industrial-scale platforms.
- Minimum Depth: 48 in. These are large-motor fountains — shallow-water installs will pull air, cavitate, and stress the seals.
- Nozzles Sold Separately: the fountain ships without a nozzle. Every LakeSeries nozzle (Classic through Spinning Blossom) is compatible — pick the pattern that matches your visual.
- Cord Not Included: the 7.5 and 10 HP builds are typically installed by a professional. Cord pricing depends on your shore-to-fountain distance. Call us with the measurement and we'll price the correct gauge and length.
- Professional Installation Strongly Recommended: 3-phase electrical, mooring layout, cord termination, and initial start-up are best handled by a certified Airmax installer for these HP classes. We can coordinate.
- Mooring: supply anchors and rope separately. Airmax Fountain Mooring Kit (150', 250', or 500') is a separate product — the 500' kit is the typical fit for larger lake installs.
- Sizing & Cord Pricing: Call (470) 354-1969 with pond acreage, shore-to-fountain distance, voltage preference, and desired nozzle pattern. We will confirm the right build.
What's Included & Optional Add-Ons
- Water-Cooled Sealed Motor — 7.5 or 10 HP, 3-phase 230V or 460V, continuous-duty submersible

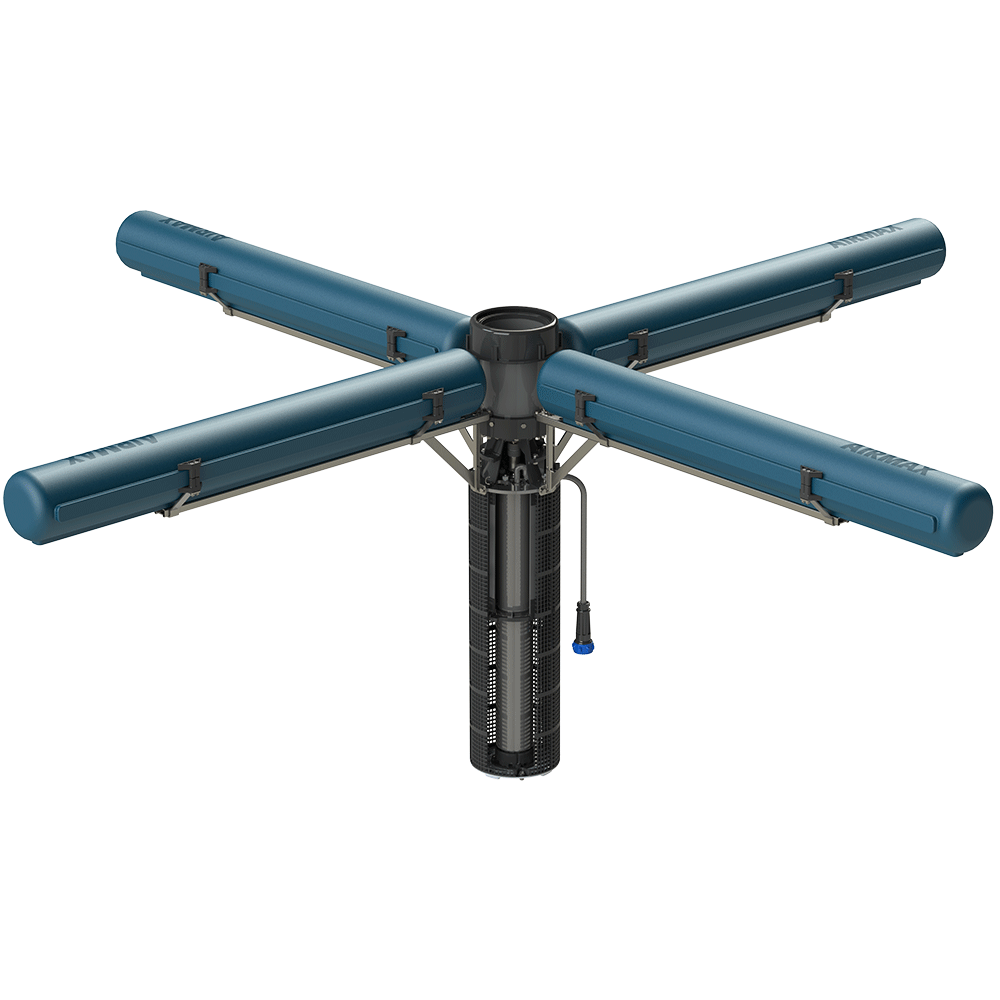

- ISP (Innovative Stability Platform) Float — patent-pending high-HP fountain float
- Control Panel — 3-phase with breaker protection matched to voltage
- Power Cord — NOT included; call for pricing sized to your shore-to-fountain distance
- Optional LakeSeries Spray Nozzle — Classic, Trumpet, Crown & Trumpet, Gusher, Crown & Gusher, Single Arch, Double Arch, Double Arch w/ Geyser, Blossom, Spinning Blossom (sold separately)
- Optional Fountain Mooring Kit — 500' kit typical fit (sold separately)
- Optional Professional Installation — Airmax Certified Installer network available (call to coordinate)
- Optional RGBW LED Light Kit — nighttime color lighting for the plume (sold separately)
LakeSeries Spray Pattern Options

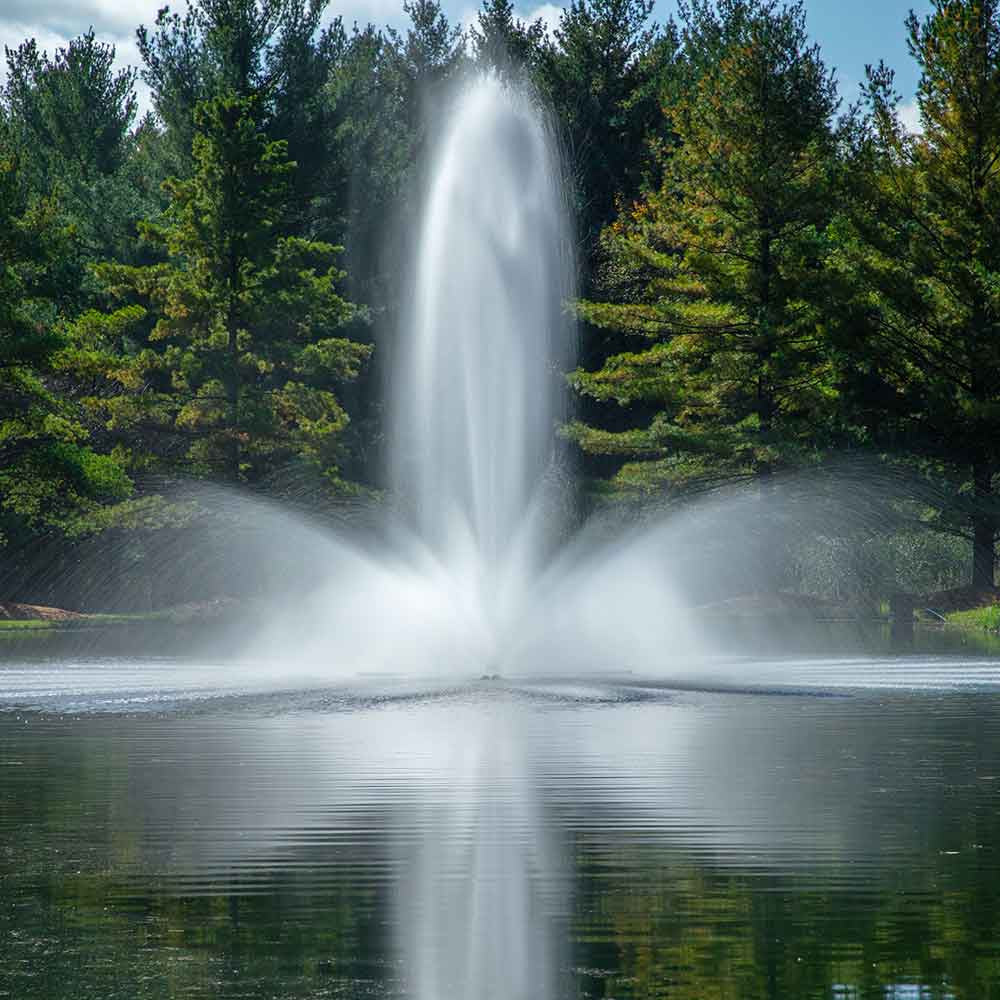

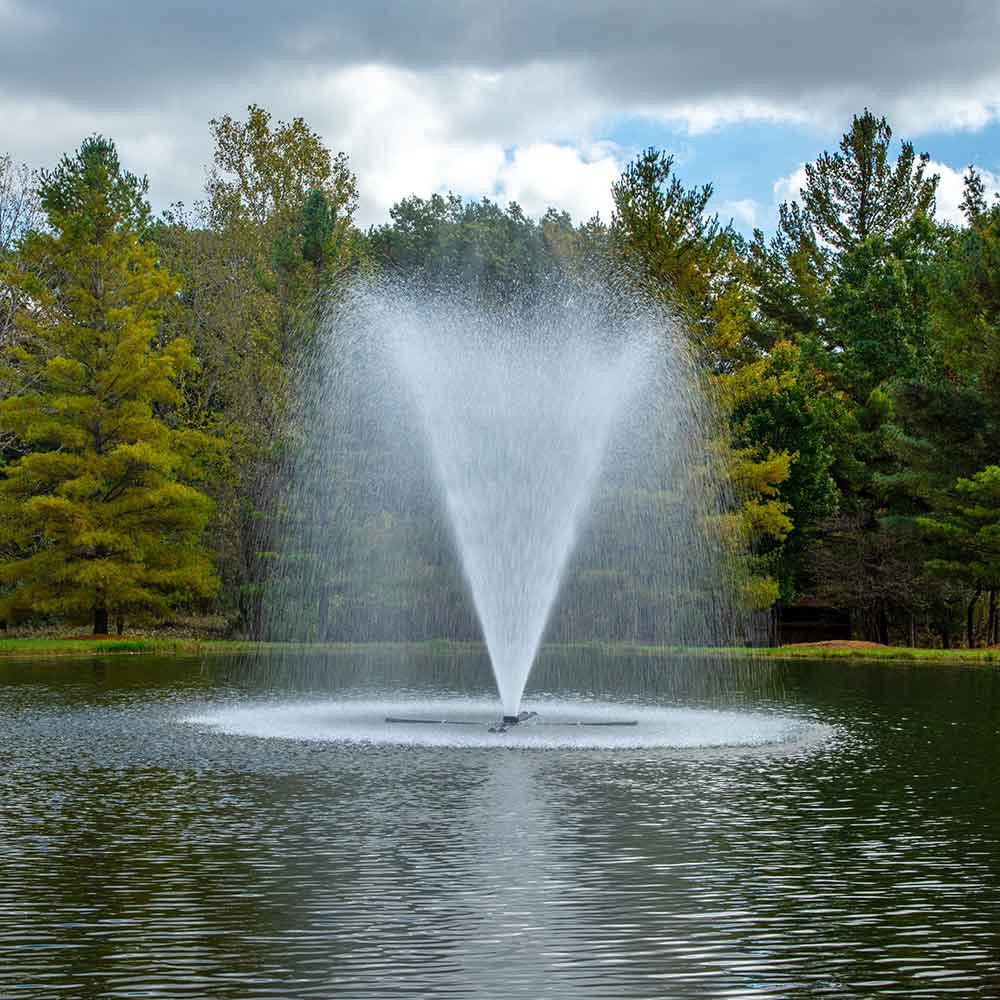

| Classic | Crown & Trumpet |

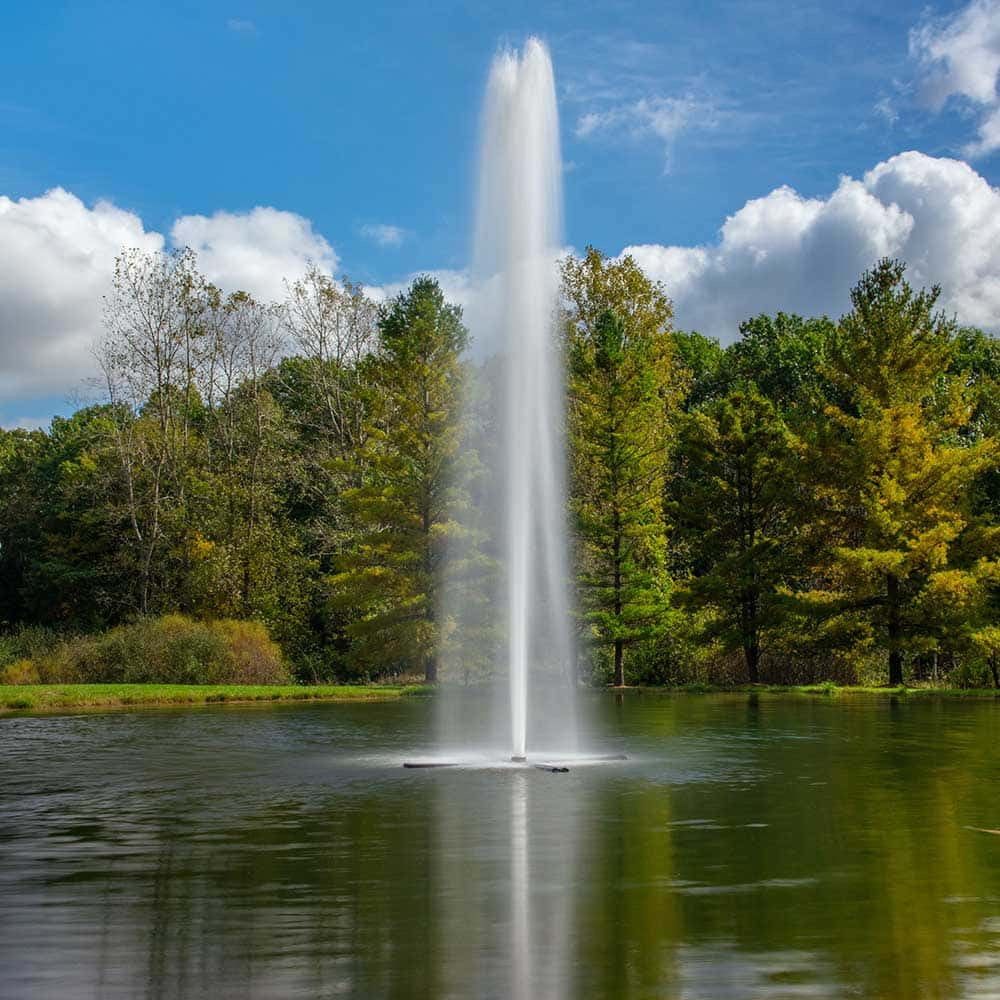

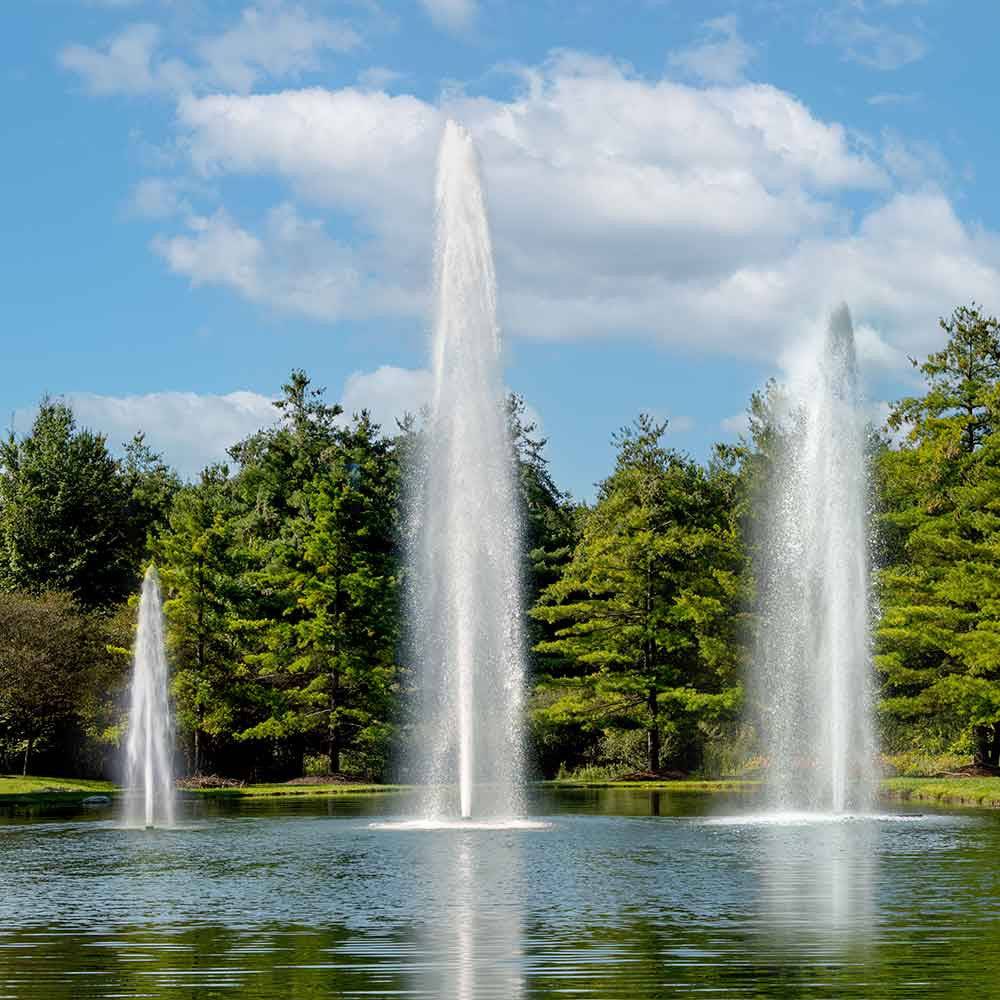

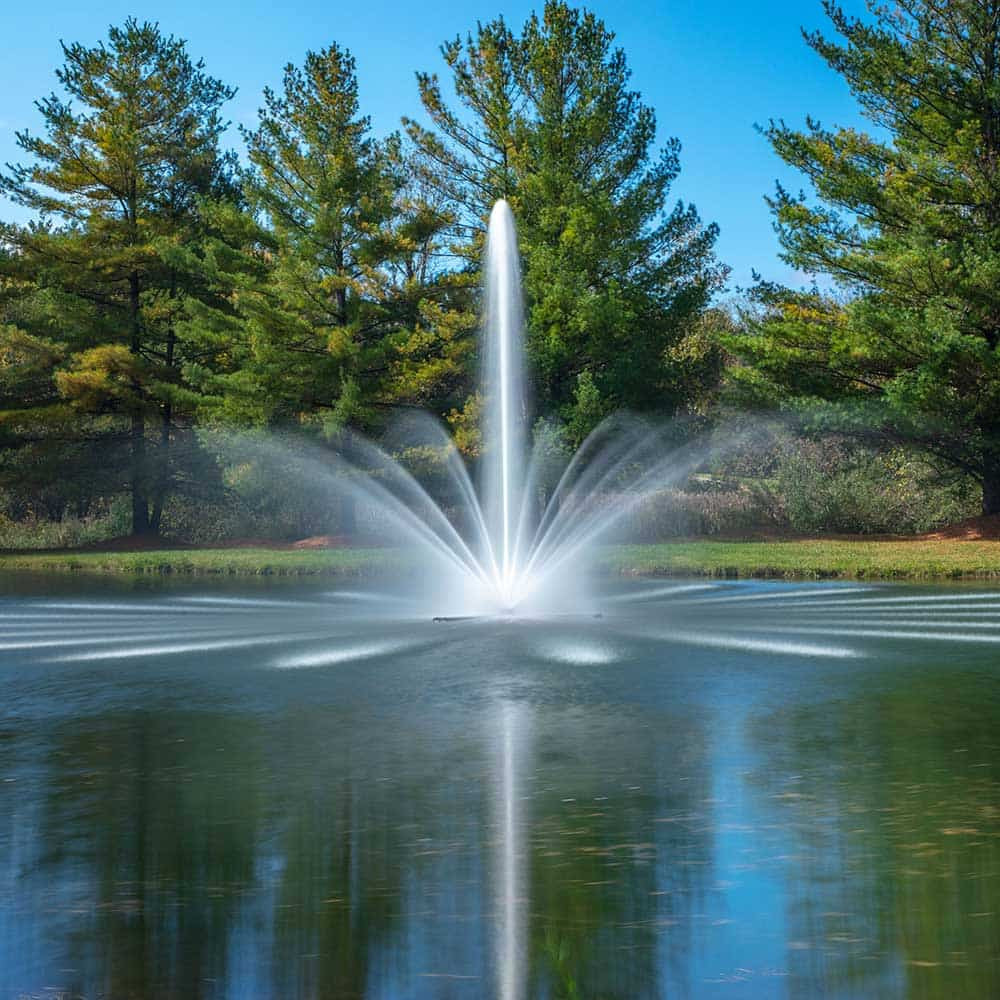

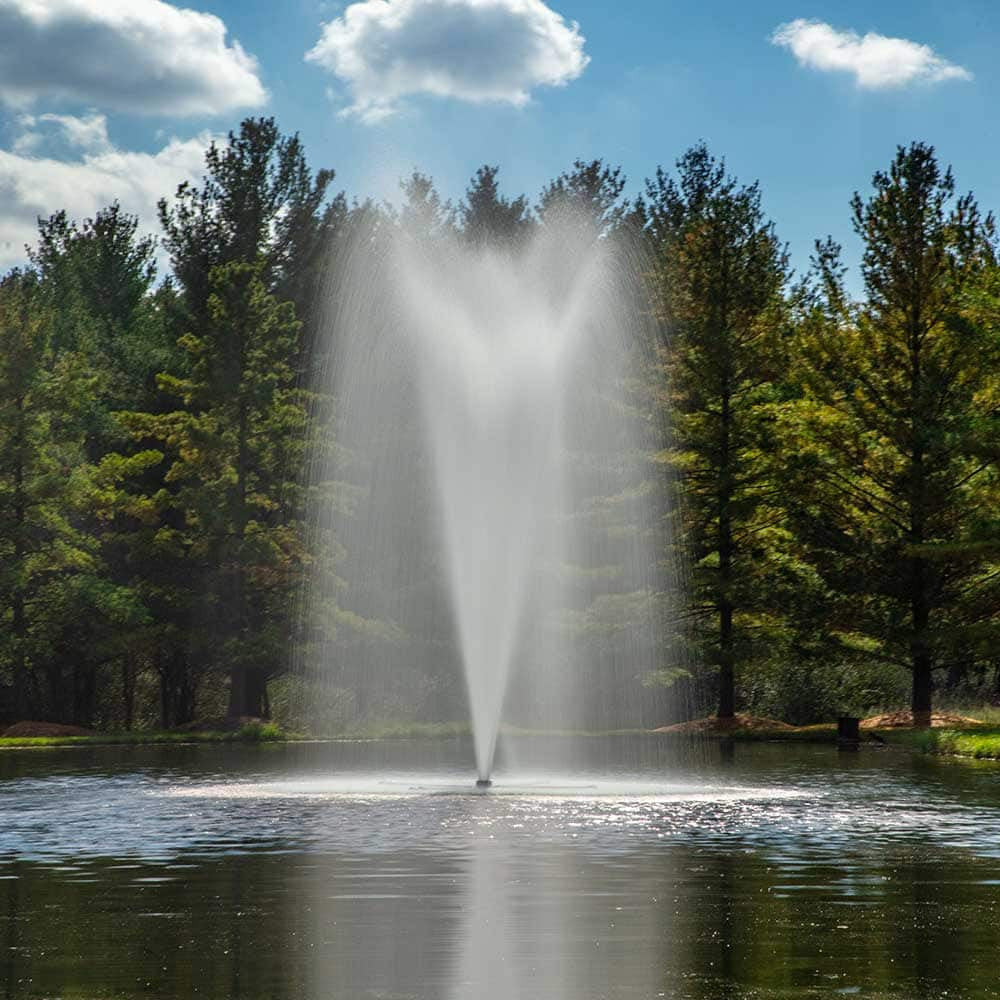

Trumpet | Gusher | Crown & Gusher |

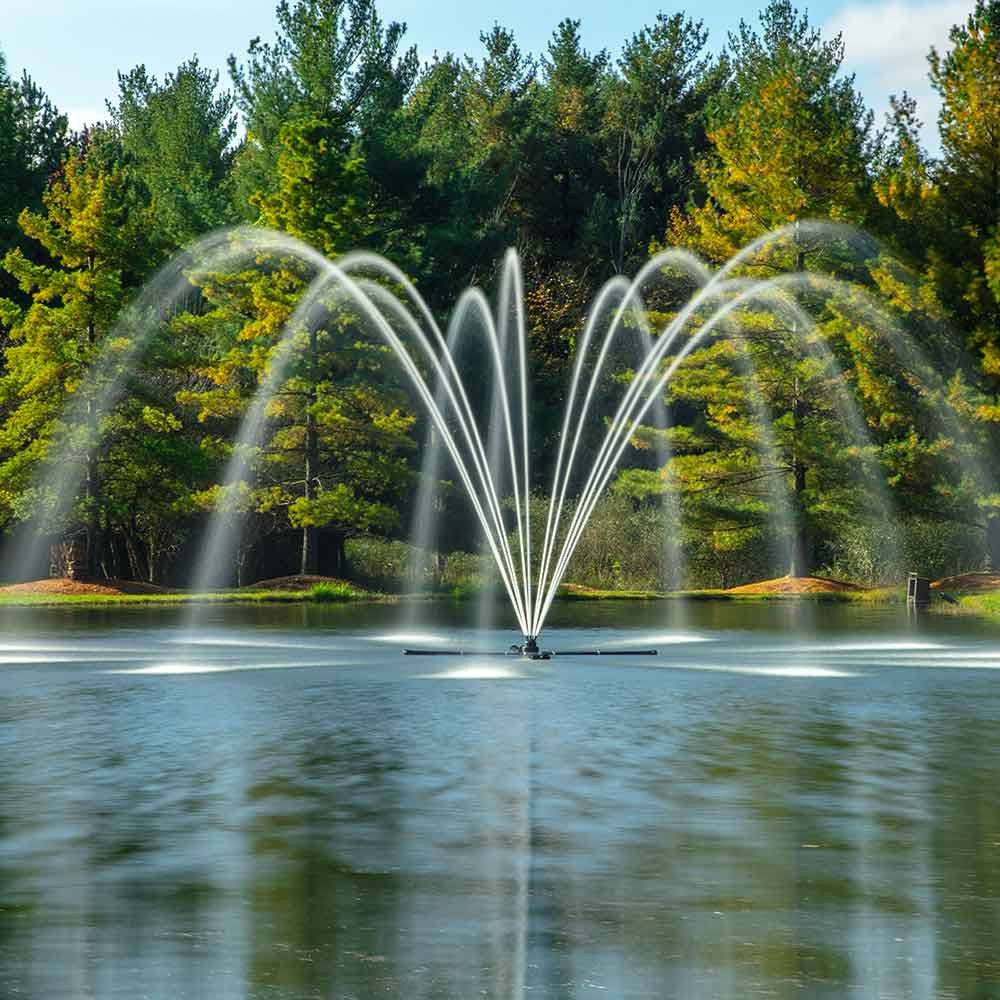

Single Arch |

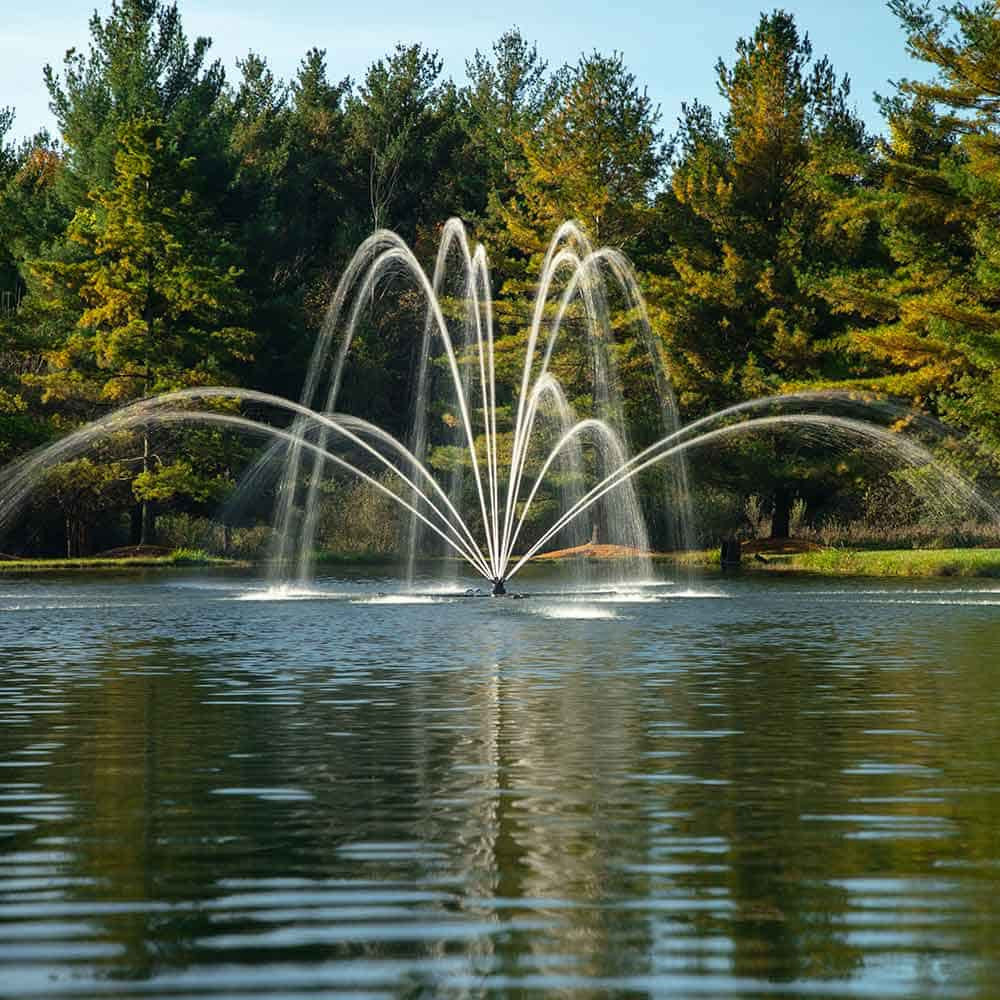

Double Arch |

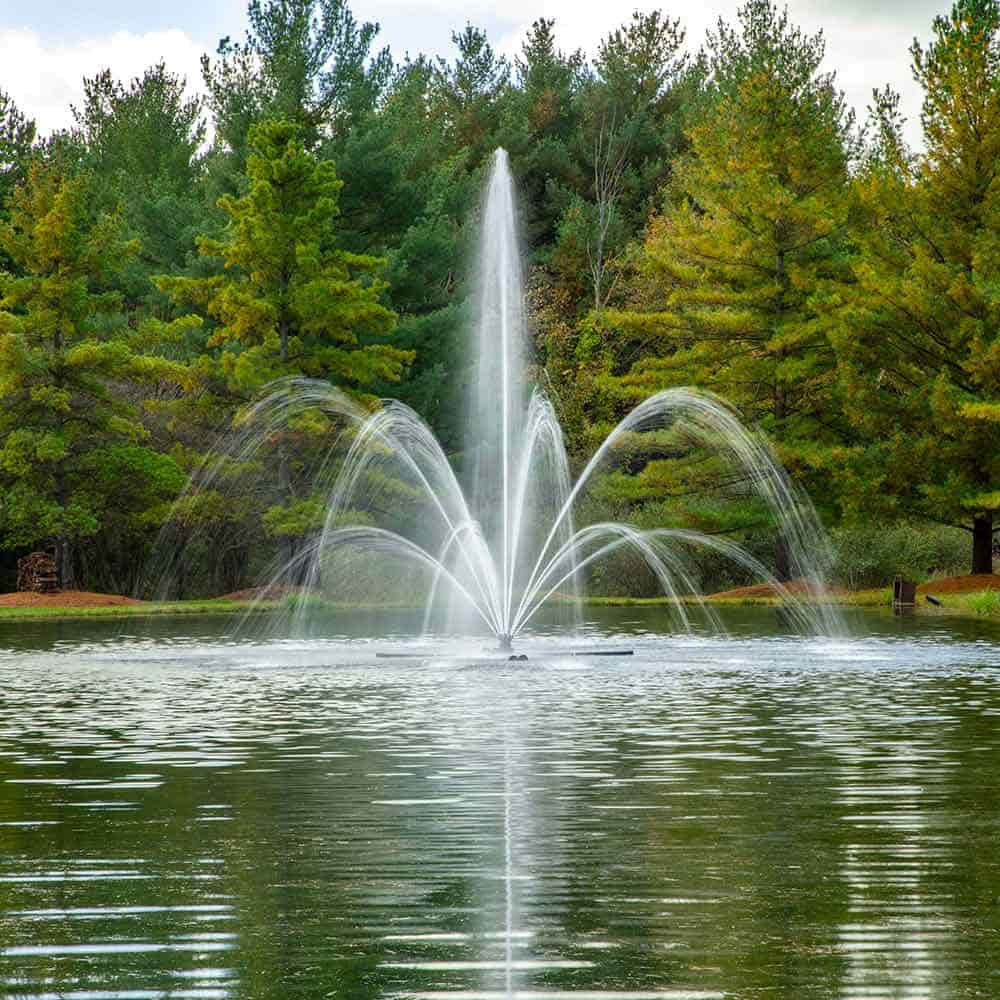

Double Arch w/ Geyser |

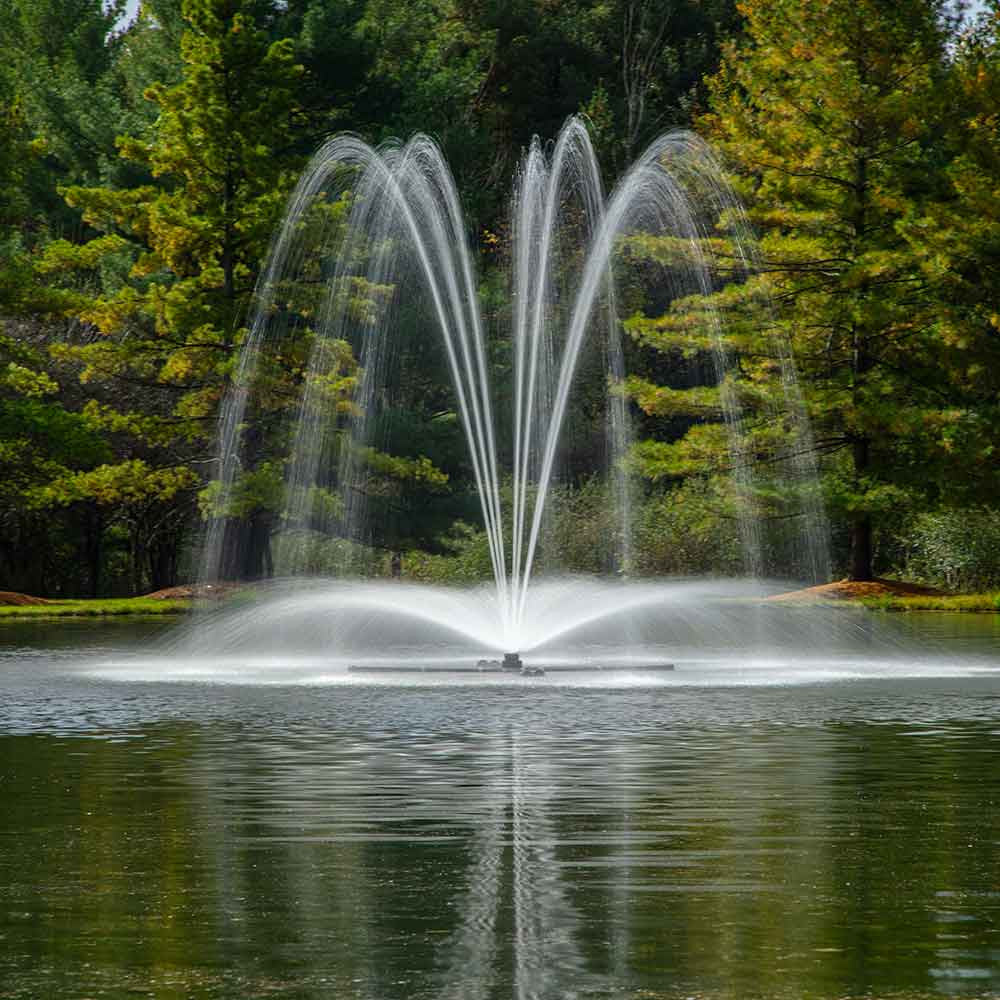

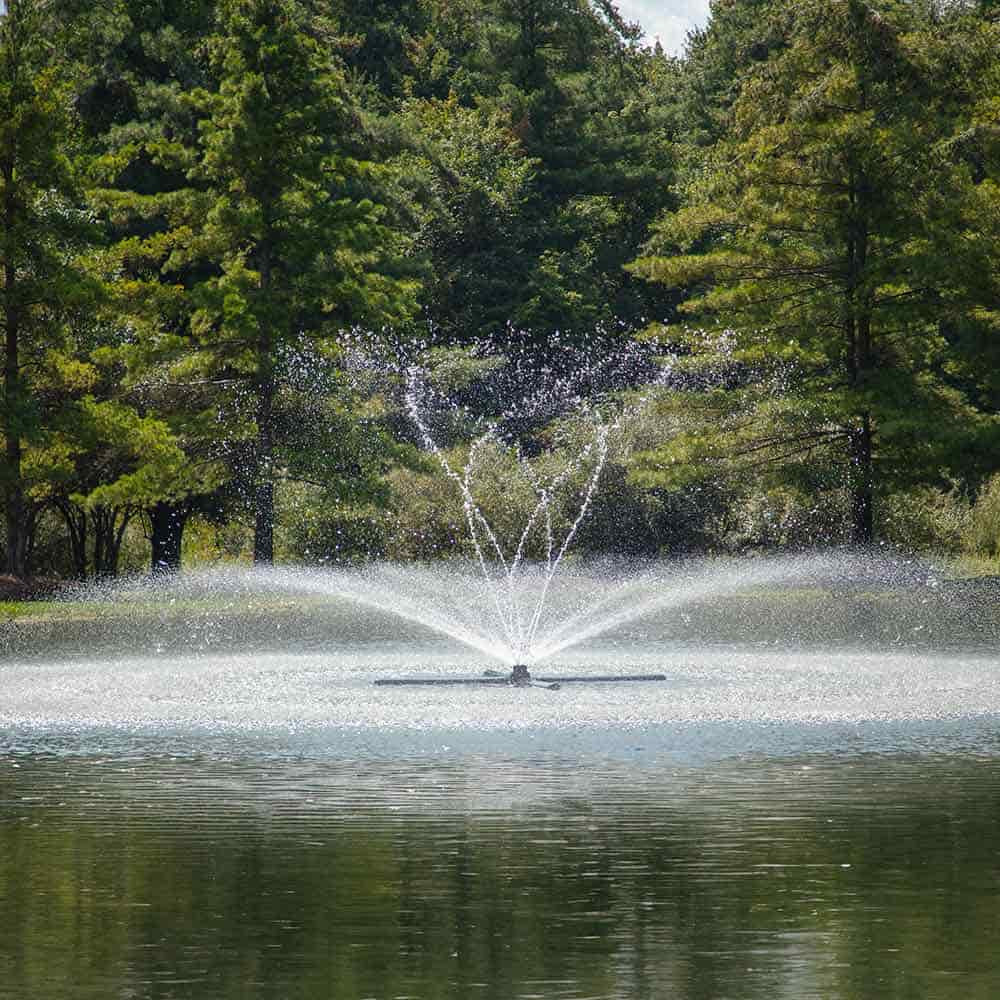

Blossom | Spinning Blossom |
|
|---|---|---|---|---|---|---|---|---|---|---|
| Pattern |  |
 |
 |
 |
 |
 |
 |
 |
 |
 |
| Approx Dimensions (7.5 - 10 HP) |
~16 ft H × 36 ft W | Trumpet: 24 ft H × 11 ft W Crown: 10 ft H × 62 ft W |
28 ft H × 12 ft W | 16 ft H × 36 ft W | Gusher: 18 ft H × 12 ft W Crown: 10 ft H × 60 ft W |
11 ft H × 24 ft W | 1st: 19 ft H × 14 ft W 2nd: 10 ft H × 60 ft W |
Geyser: 19 ft H × 42 ft W Tiers: 36 ft H × 12 ft W |
14 ft H × 68 ft W | 16 ft H × 72 ft W |
| Look | Wide vase-shape everyday display | Tall center + wide crown skirt | Tall narrow single-column geyser | Powerful thick vertical plume | Center gusher + wide crown skirt | Wide single-tier arching display | Two-tier arching display | Center geyser + tiered arches | Wide low blossoming crown | Rotating blossom pattern |
LakeSeries 7.5 & 10 HP Specifications
| Manufacturer | Airmax, Inc. (Armada, Michigan) |
| Series | LakeSeries (3-Phase) |
| HP Options | 7.5 HP, 10 HP |
| Voltage | 230V or 460V 3-phase (commercial power only) |
| Amps at 230V | 7.5 HP: 24 A | 10 HP: 32 A |
| Amps at 460V | 7.5 HP: 12 A | 10 HP: 16 A |
| Motor Construction | Water-cooled, sealed, continuous-duty submersible |
| Float Platform | ISP (Innovative Stability Platform) — patent-pending high-HP design |
| Minimum Operating Depth | 48 in |
| Recommended Pond Size | 7.5 HP: up to ~8 acres | 10 HP: up to ~12 acres |
| Included Nozzles | None — LakeSeries nozzles sold separately |
| Compatible Nozzles | Classic, Crown & Trumpet, Trumpet, Gusher, Crown & Gusher, Single Arch, Double Arch, Double Arch w/ Geyser, Blossom, Spinning Blossom |
| Power Cord | Not included; call for cord pricing sized to install distance |
| Applications | Large HOA lakes, resort water features, municipal water bodies, commercial ponds 8-12 acres |
| Warranty | 5-year manufacturer warranty |
| Country of Origin | Made in USA (Armada, MI) |
