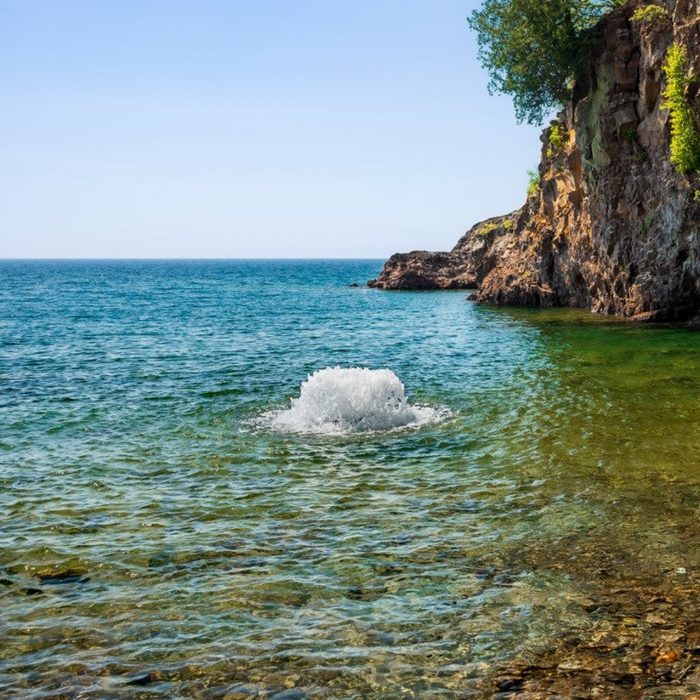

Kasco Surface Aerator creating strong water agitation in a clear coastal water setting near rocky shoreline

Kasco Surface Aerator

SKU 2400AF050
$1,323.00
Made in the USA
No Sales Tax Outside Georgia
Free Delivery from U.S. Warehouses
Talk to a Specialist: (470) 354-1969
Better Price? Request a Wire Discount Bulk or Business Order? Get a Fast Custom Quote Veterans & First Responders Save
Free Shipping
Ships --
Arrives --

Notify me when back in stock

Kasco 2 year warranty trust badges Kasco 2 year warranty trust badges

Clean Up Your Pond Fast with Kasco's Surface Aerator

The Kasco Surface Aerator is a working aeration unit first, decorative fountain second. The propeller draws water from below and throws it into the air as a churning umbrella, which adds up to 3.0 lbs of dissolved oxygen per horsepower every hour. That oxygen transfer rate is what makes the Surface Aerator a fit for wastewater lagoons, retention basins, and any pond that's gone murky, smelly, or algae-heavy.

Every Surface Aerator runs on a sealed stainless steel submersible motor and is fully saltwater compatible. The complete package is ETL listed to UL and CSA standards. The cord is rated for direct underwater use, and the float and mounting hardware ship with every unit along with three 50 ft braided nylon mooring ropes. Available from 1/2 HP up through 5 HP - that covers ponds from 1/2 acre through 5 acres of surface area.

Pick your unit from 1/2 HP (2400AF) up through the 5 HP 5.1AF, choose 120V or 240V where both are available, and pair it with a 50, 100, 150, 200, 250, 300, or 400 ft submersible power cord. The included cord is rated for direct submersion. If you need extra protection in harsh environments or rocky bottoms, the Stainless Steel Protected Cord upgrade is available as an add-on at order time. Optional bottom screen, control panel, and WaterGlow lighting kits sold separately.

The Kasco Surface Aerator is a working aeration unit - up to 3.0 lbs of dissolved oxygen per HP per hour. For wastewater, retention basins, murky ponds, and odor control.

Sealed stainless steel motor, saltwater compatible. ETL listed total package. Three 50 ft braided nylon mooring ropes included.

Six motor sizes from 1/2 HP to 5 HP, ponds up to 5 acres. 120V or 240V where applicable. Cord lengths 50 to 400 ft. Optional Stainless Steel Protected Cord, control panel, and lighting kits available.

Free shipping on every Kasco Surface Aerator. Optional Stainless Steel Protected Cord, control panels, WaterGlow lighting kits, and industrial-stainless modifications available on request. Call (470) 354-1969.

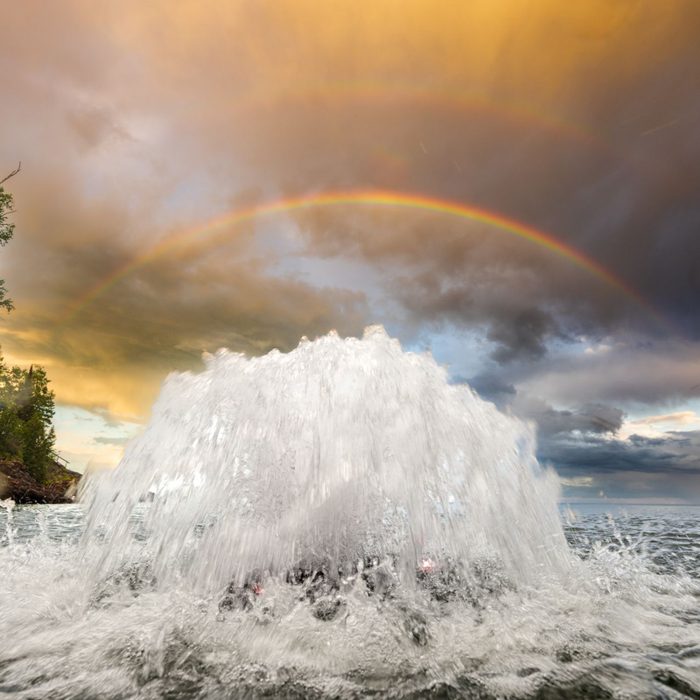

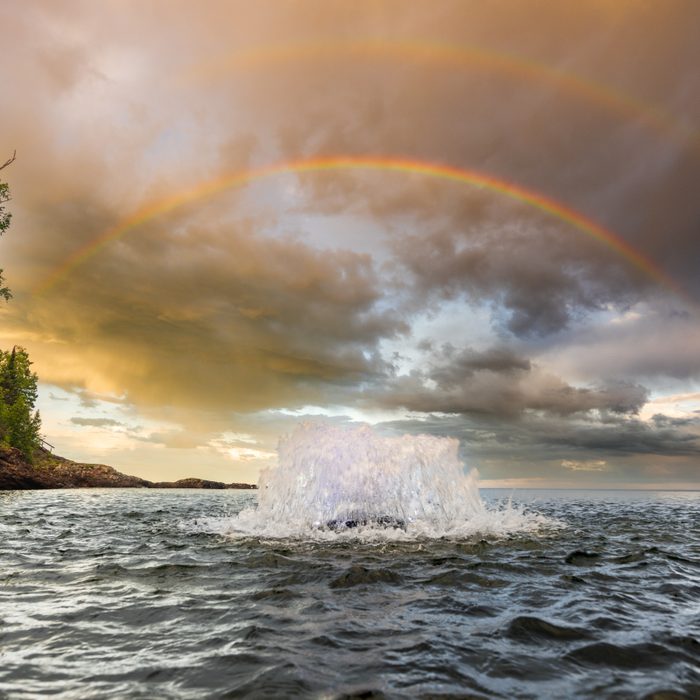

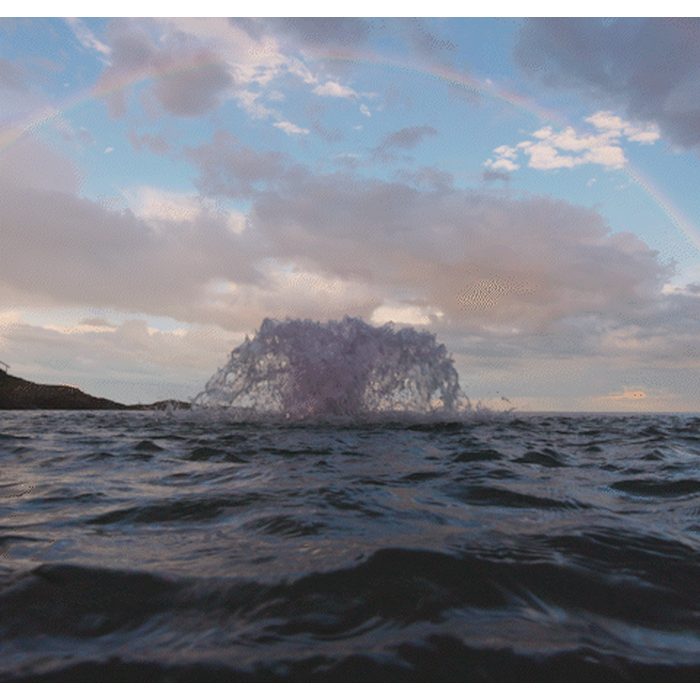

Kasco Surface Aerator aerating on water with rainbow in the background

Why Choose the Surface Aerator by Kasco

Up to 3 lbs of Oxygen per HP per Hour
The Surface Aerator's churning umbrella pattern delivers some of the highest oxygen transfer rates in its class. Use it for continuous, supplemental, or emergency aeration on stressed ponds and lagoons.
Six Motor Sizes
1/2 HP through 5 HP, sized to surface acreage from 1/2 acre up to 5 acres. Pick the right unit for your pond - we can help.
Saltwater and Brackish Water Compatible
Sealed stainless steel motor and components handle salt, brackish, and coastal-pond water without corroding.
ETL Listed Total Package
The complete unit (motor, cord, and float) is ETL listed to UL and CSA standards. The cord itself is rated for direct underwater use.
Cord Lengths up to 400 ft
Choose 50, 100, 150, 200, 250, 300, or 400 ft of factory-attached submersible cord (availability varies by unit). Stainless Steel Protected Cord upgrade is available as a separate add-on for harsh environments.
Shallow Pond Operation
The intake sits near the surface, which lets the Surface Aerator operate in as little as 15 inches of water on the 1/2 HP unit (deeper units need 17.5 to 26 inches).
Industrial Modification Available
Surface Aerator units can be modified with an industrial stainless steel domed top and double mechanical seal for wastewater and harsh industrial settings. Call for a quote.
Industry-Standard Warranty
2-year warranty on 1/2 HP, 3/4 HP, and 1 HP units. 3-year warranty on the 2 HP, 3 HP, and 5 HP units.

Surface Aerator Unit Comparison

Kasco Surface Aerator 2400AF motor (1/2 HP) Kasco Surface Aerator 3400AF motor (3/4 HP) Kasco Surface Aerator 4400AF motor (1 HP) Kasco Surface Aerator 8400AF motor (2 HP) Kasco Surface Aerator 3.1AF motor (3 HP) Kasco Surface Aerator 5.1AF motor (5 HP)
2400AF (1/2 HP) 3400AF / 3400HAF (3/4 HP) 4400AF / 4400HAF (1 HP) 8400AF (2 HP) 3.1AF (3 HP) 5.1AF (5 HP)
Voltage 120V 120V or 240V 120V or 240V 240V 240V 240V
Phase 1 1 1 1 1 1
Hertz 60 Hz 60 Hz 60 Hz 60 Hz 60 Hz 60 Hz
Running Amps 5.7 7 / 3.5 9.1 / 4.5 9 10.7 18
Wattage 656 W 805 W 1,047 W 2,070 W 2,461 W 4,140 W
Pond Size (Surface Area)* Up to 1/2 acre Up to 3/4 acre Up to 1 acre Up to 2 acres Up to 3 acres Up to 5 acres
Min Pond Depth 15" 17.5" 19" 20" 24" 26"
RPM 1750 1750 1750 1750 1750 1750
Unit + Pattern Dimensions 24" H × 48" W 24" H × 48" W 30" H × 50" W 44" H × 98" W 50" H × 130" W 60" H × 148" W
Power Cord Length 50-200 ft 50-400 ft 50-400 ft 50-400 ft 50-400 ft 100-400 ft
Mooring Ropes Three 50 ft braided nylon Three 50 ft braided nylon Three 50 ft braided nylon Three 50 ft braided nylon Three 50 ft braided nylon Three 50 ft braided nylon
Float / Mounting Included Included Included Included Included Included
Warranty 2 yr 2 yr 2 yr 3 yr 3 yr 3 yr
* Surface acreage; also consider pond shape, depth, and oxygen demand. Up to 3.0 lbs of oxygen per HP each hour. Stainless Steel Protected Cord upgrade is sold separately as an add-on; SS lengths over 200 ft require an estimated 4-week lead time. Call (470) 354-1969 for sizing help.

See the Kasco Surface Aerator in Action

Requirements & What to Know Before You Buy

  • Dedicated Circuit: the Surface Aerator does not include a control panel by default. Wire it into a properly sized dedicated circuit with appropriate GFCI protection. Have a licensed electrician verify your existing wiring or add an optional Kasco control panel.
  • Power Off Around Swimmers: disconnect power any time someone enters the water.
  • Minimum Pond Depth: 15 inches for the 1/2 HP, up to 26 inches for the 5 HP. Measure where the unit will sit, not at the shoreline.
  • Mooring: three 50 ft braided nylon mooring ropes are included. You supply anchors or weights to hold the float in position.
  • Cord Routing: the included submersible cord runs from the unit to your breaker. Choose a length that reaches comfortably without strain. The Stainless Steel Protected Cord upgrade is a separate add-on; SS lengths over 200 ft are special-order and ship in roughly 4 weeks.
  • Voltage Selection: 1/2 HP is 120V only. 3/4 HP and 1 HP are available in both 120V and 240V (240V recommended for longer cord runs to avoid voltage drop). 2 HP, 3 HP, and 5 HP are 240V only.
  • Industrial Use: for wastewater and aggressive industrial applications, ask about the stainless steel domed-top modification.
  • Sizing Help: Call (470) 354-1969 and we will help you match the unit to your pond surface, depth, and aeration goal.

What's Included & Optional Add-Ons

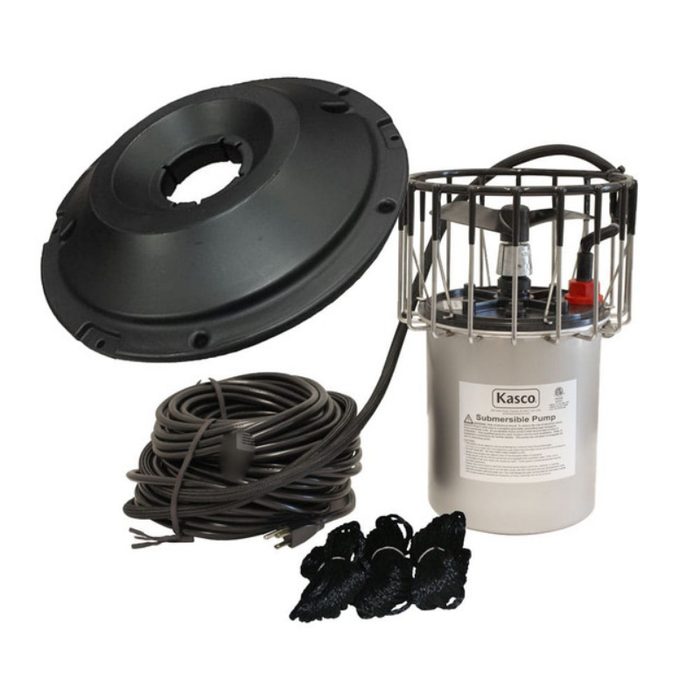

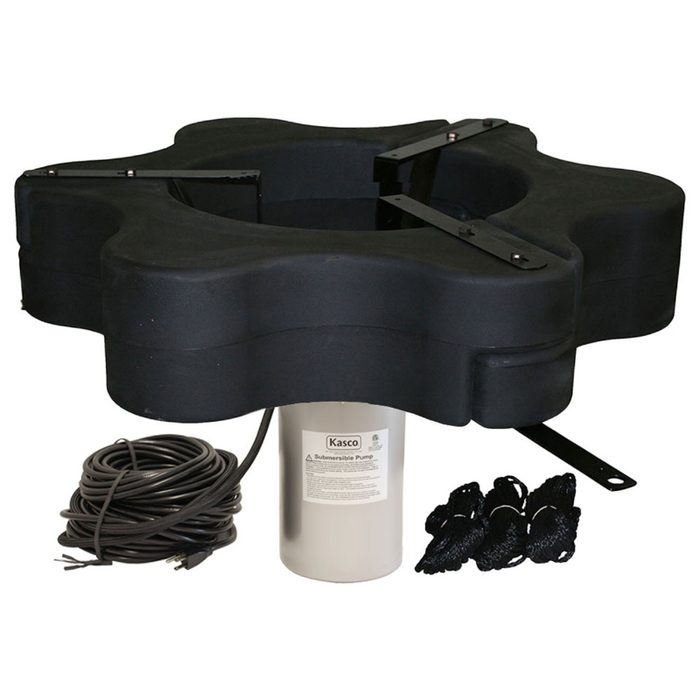

  • Motor Unit - sealed stainless steel submersible motor, saltwater compatible
  • Float - UV-resistant thermoplastic, heavy-duty for continuous outdoor use
  • Power Cord - factory-attached submersible cord, length per your selection. UL, CSA, and NEC rated for underwater use. Stainless Steel Protected Cord upgrade sold separately.
  • Three 50 ft Mooring Ropes - braided nylon, included
  • Mounting Hardware - included
  • Owner's Manual + Product Sheet - linked below

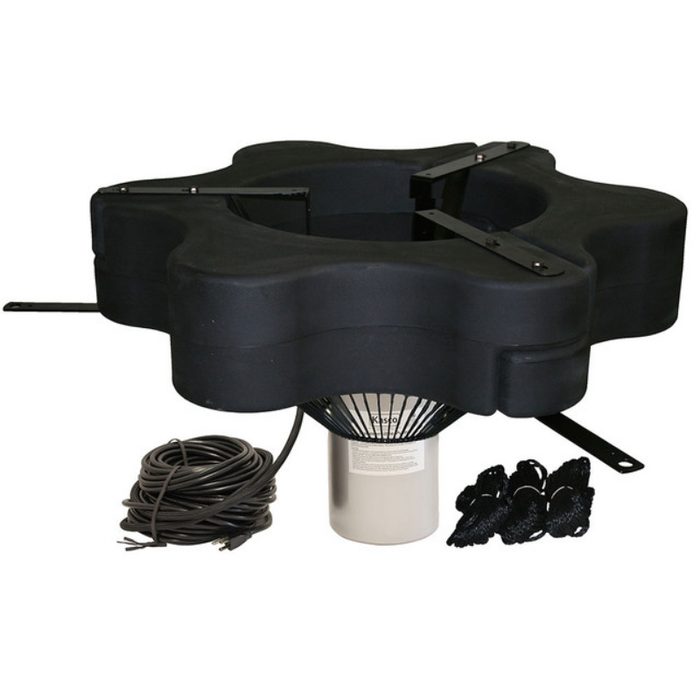

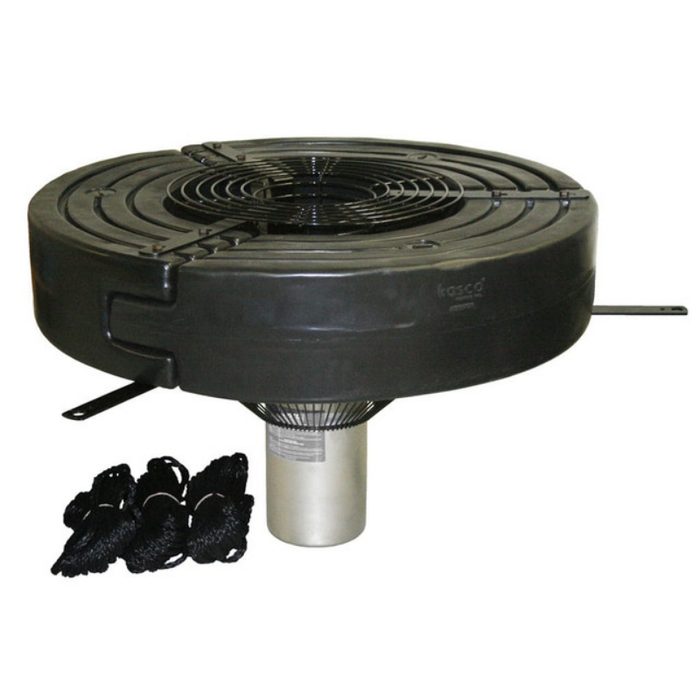

  • Optional Bottom Screen - protects the impeller from debris; sold separately
  • Optional Kasco Control Panel - UL/CSA listed, GFCI-protected, photocell input, timer dial. Sold separately.

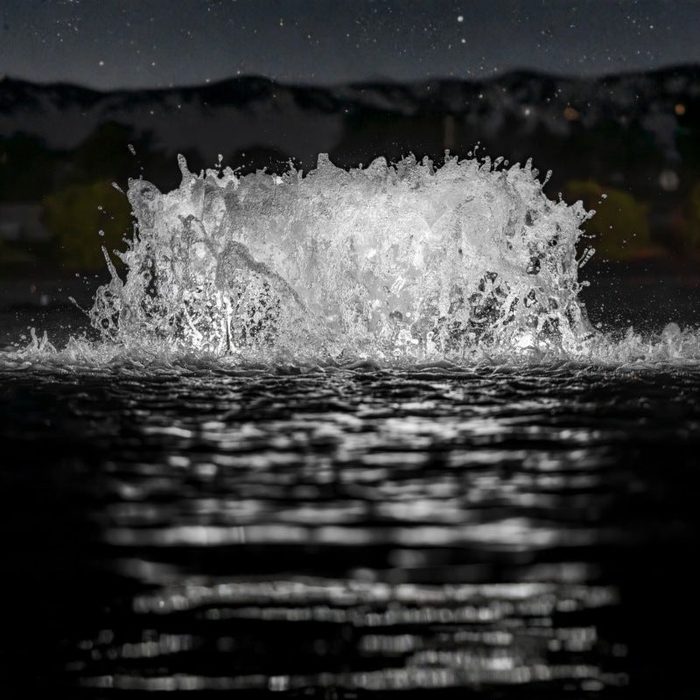

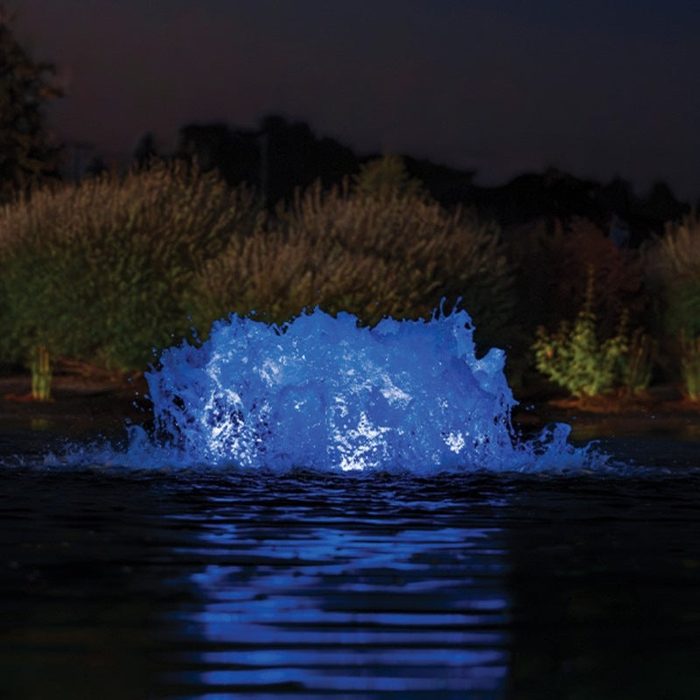

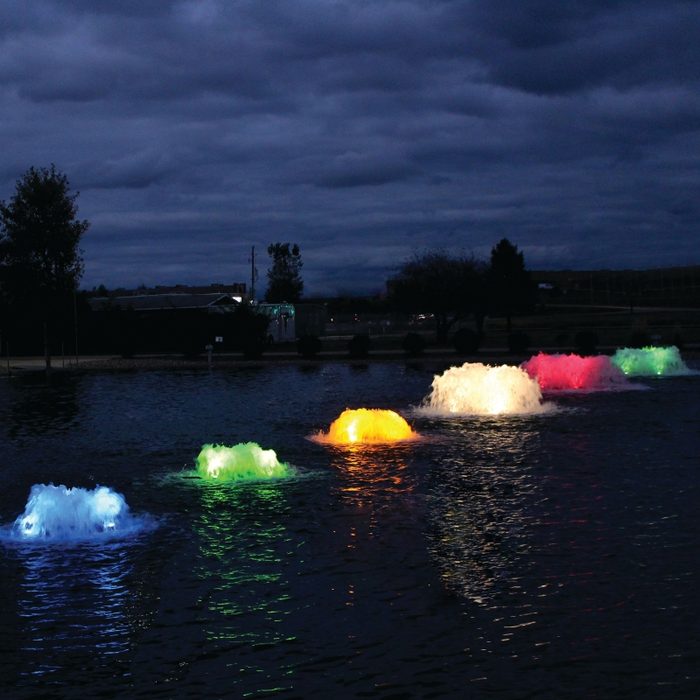

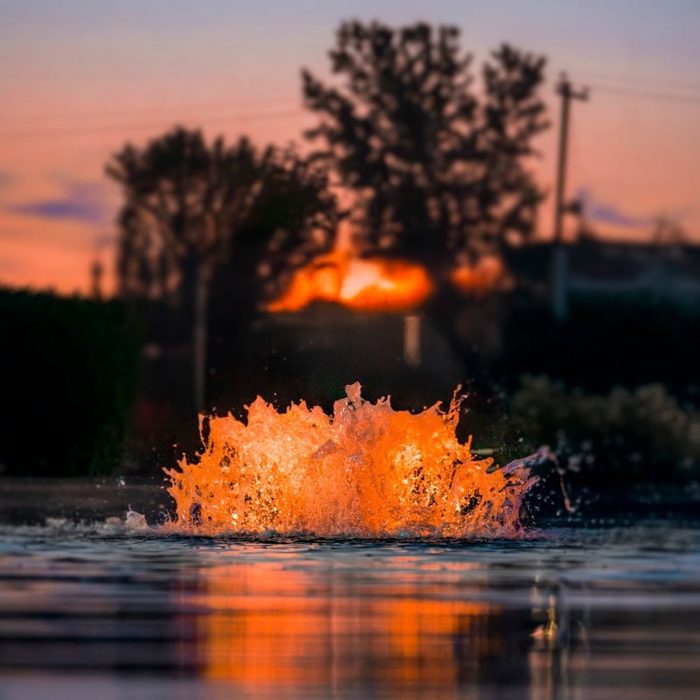

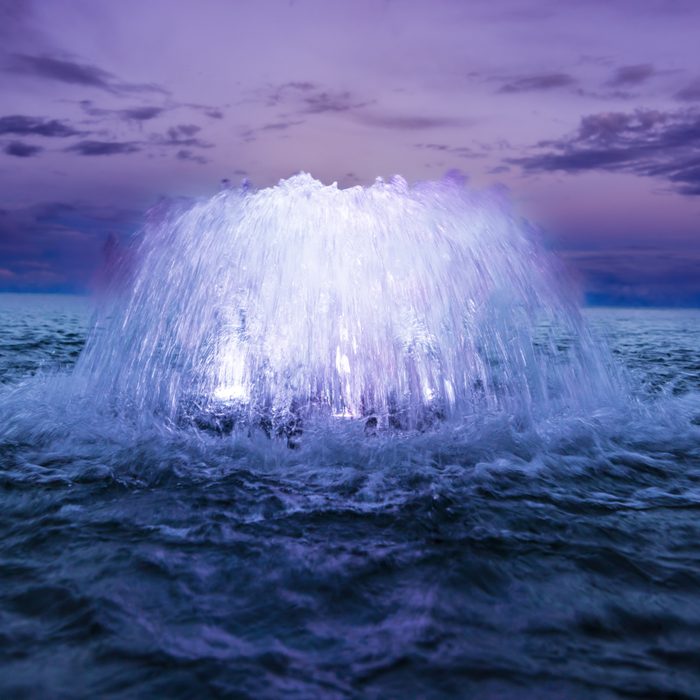

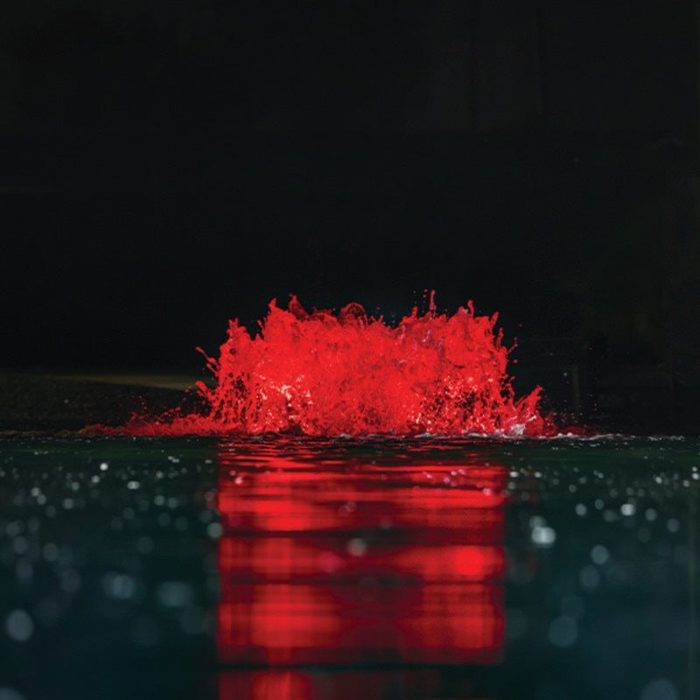

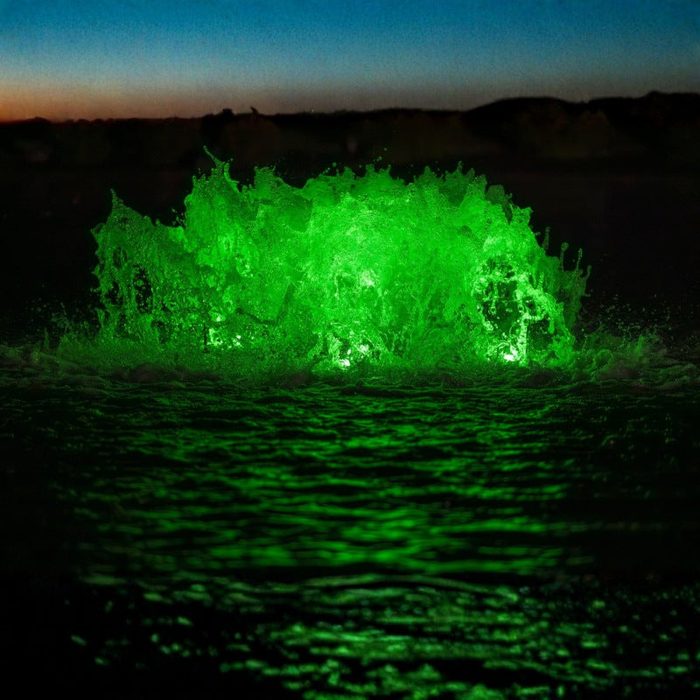

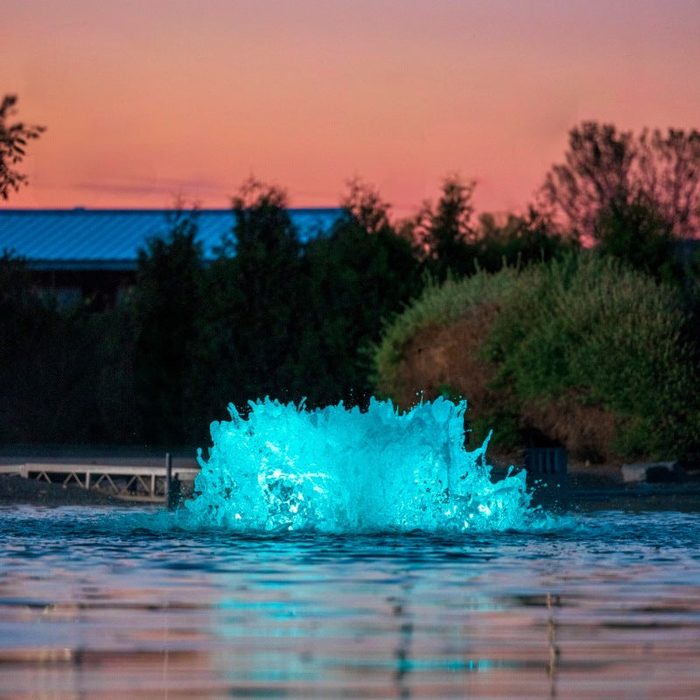

  • Optional WaterGlow Lighting Kit - composite or stainless housings, multiple colors. Sold separately.
  • Optional Industrial Modification - stainless steel domed top and double mechanical seal for wastewater applications. Call for a quote.
  • Warranty - 2 yr (1/2 HP, 3/4 HP, 1 HP); 3 yr (2 HP, 3 HP, 5 HP)

Kasco Pond Surface Aerator Specifications

Manufacturer Kasco
Model Surface Aerator
Type High-flow surface aeration unit
Motor Options 1/2 HP (2400AF), 3/4 HP (3400AF/3400HAF), 1 HP (4400AF/4400HAF), 2 HP (8400AF), 3 HP (3.1AF), 5 HP (5.1AF)
Voltage Options 120V on 1/2 HP, 3/4 HP, and 1 HP; 240V on 3/4 HP through 5 HP
Frequency 60 Hz standard
Phase Single-phase standard. Three-phase available on request for larger units.
Total Configurations 46 across HP, voltage, and cord length
Oxygen Transfer Rate Up to 3.0 lbs of dissolved oxygen per HP per hour
Pond Surface Area 1/2 acre (1/2 HP) up to 5 acres (5 HP)
Min Water Depth 15" (1/2 HP) up to 26" (5 HP)
Unit + Spray Pattern 24" H × 48" W (1/2 HP) up to 60" H × 148" W (5 HP)
Cord Length Options 50, 100, 150, 200, 250, 300, or 400 ft (availability varies)
Cord Rating UL, CSA, and NEC rated for direct underwater use
Cord Protection Standard submersible cord. Stainless Steel Protected Cord upgrade available as a separate add-on.
Mooring Ropes Three 50 ft braided nylon mooring ropes (included)
Mounting Hardware Included
Float UV-resistant thermoplastic, included
Motor Construction Sealed stainless steel submersible motor, saltwater compatible
Optional Bottom Screen Sold separately
Optional Control Panel Kasco UL/CSA listed panels with GFCI, timer dial, photocell input. Sold separately.
Optional Lighting Kasco WaterGlow LED Lighting Kits (composite or stainless), sold separately
Industrial Modification Stainless steel domed top and double mechanical seal available on request
Listings Total package ETL listed to UL and CSA standards
Applications Wastewater lagoons, retention basins, residential and commercial ponds, marinas, agricultural and industrial settings
Warranty (1/2 HP, 3/4 HP, 1 HP) 2 years
Warranty (2 HP, 3 HP, 5 HP) 3 years



Manuals

View the Surface Aerator 1/2 HP, 3/4 HP, and 1 HP Owner's Assembly Manual

View the Surface Aerator 2 HP, 3 HP, and 5 HP Owner's Assembly Manual

Open the 2400AF (1/2 HP, 120V) Product Sheet

Open the 3400AF (3/4 HP, 120V) Product Sheet

Open the 3400HAF (3/4 HP, 240V) Product Sheet

Open the 4400AF (1 HP, 120V) Product Sheet

Open the 4400HAF (1 HP, 240V) Product Sheet

Open the 8400AF (2 HP, 240V) Product Sheet

Open the 3.1AF (3 HP, 240V) Product Sheet

Open the 5.1AF (5 HP, 240V) Product Sheet

Open the Surface Aerator Brochure

Open the Surface Aerator Case Study

Overview

Clean Up Your Pond Fast with Kasco's Surface Aerator

The Kasco Surface Aerator is a working aeration unit first, decorative fountain second. The propeller draws water from below and throws it into the air as a churning umbrella, which adds up to 3.0 lbs of dissolved oxygen per horsepower every hour. That oxygen transfer rate is what makes the Surface Aerator a fit for wastewater lagoons, retention basins, and any pond that's gone murky, smelly, or algae-heavy.

Every Surface Aerator runs on a sealed stainless steel submersible motor and is fully saltwater compatible. The complete package is ETL listed to UL and CSA standards. The cord is rated for direct underwater use, and the float and mounting hardware ship with every unit along with three 50 ft braided nylon mooring ropes. Available from 1/2 HP up through 5 HP - that covers ponds from 1/2 acre through 5 acres of surface area.

Pick your unit from 1/2 HP (2400AF) up through the 5 HP 5.1AF, choose 120V or 240V where both are available, and pair it with a 50, 100, 150, 200, 250, 300, or 400 ft submersible power cord. The included cord is rated for direct submersion. If you need extra protection in harsh environments or rocky bottoms, the Stainless Steel Protected Cord upgrade is available as an add-on at order time. Optional bottom screen, control panel, and WaterGlow lighting kits sold separately.

The Kasco Surface Aerator is a working aeration unit - up to 3.0 lbs of dissolved oxygen per HP per hour. For wastewater, retention basins, murky ponds, and odor control.

Sealed stainless steel motor, saltwater compatible. ETL listed total package. Three 50 ft braided nylon mooring ropes included.

Six motor sizes from 1/2 HP to 5 HP, ponds up to 5 acres. 120V or 240V where applicable. Cord lengths 50 to 400 ft. Optional Stainless Steel Protected Cord, control panel, and lighting kits available.

Free shipping on every Kasco Surface Aerator. Optional Stainless Steel Protected Cord, control panels, WaterGlow lighting kits, and industrial-stainless modifications available on request. Call (470) 354-1969.

 Kasco Surface Aerator aerating on water with rainbow in the background

Why Choose the Surface Aerator by Kasco

Up to 3 lbs of Oxygen per HP per Hour The Surface Aerator's churning umbrella pattern delivers some of the highest oxygen transfer rates in its class. Use it for continuous, supplemental, or emergency aeration on stressed ponds and lagoons. Six Motor Sizes 1/2 HP through 5 HP, sized to surface acreage from 1/2 acre up to 5 acres. Pick the right unit for your pond - we can help. Saltwater and Brackish Water Compatible Sealed stainless steel motor and components handle salt, brackish, and coastal-pond water without corroding. ETL Listed Total Package The complete unit (motor, cord, and float) is ETL listed to UL and CSA standards. The cord itself is rated for direct underwater use. Cord Lengths up to 400 ft Choose 50, 100, 150, 200, 250, 300, or 400 ft of factory-attached submersible cord (availability varies by unit). Stainless Steel Protected Cord upgrade is available as a separate add-on for harsh environments. Shallow Pond Operation The intake sits near the surface, which lets the Surface Aerator operate in as little as 15 inches of water on the 1/2 HP unit (deeper units need 17.5 to 26 inches). Industrial Modification Available Surface Aerator units can be modified with an industrial stainless steel domed top and double mechanical seal for wastewater and harsh industrial settings. Call for a quote. Industry-Standard Warranty 2-year warranty on 1/2 HP, 3/4 HP, and 1 HP units. 3-year warranty on the 2 HP, 3 HP, and 5 HP units.

Surface Aerator Unit Comparison

Kasco Surface Aerator 2400AF motor (1/2 HP) Kasco Surface Aerator 3400AF motor (3/4 HP) Kasco Surface Aerator 4400AF motor (1 HP) Kasco Surface Aerator 8400AF motor (2 HP) Kasco Surface Aerator 3.1AF motor (3 HP) Kasco Surface Aerator 5.1AF motor (5 HP)
2400AF (1/2 HP) 3400AF / 3400HAF (3/4 HP) 4400AF / 4400HAF (1 HP) 8400AF (2 HP) 3.1AF (3 HP) 5.1AF (5 HP)
Voltage 120V 120V or 240V 120V or 240V 240V 240V 240V
Phase 1 1 1 1 1 1
Hertz 60 Hz 60 Hz 60 Hz 60 Hz 60 Hz 60 Hz
Running Amps 5.7 7 / 3.5 9.1 / 4.5 9 10.7 18
Wattage 656 W 805 W 1,047 W 2,070 W 2,461 W 4,140 W
Pond Size (Surface Area)* Up to 1/2 acre Up to 3/4 acre Up to 1 acre Up to 2 acres Up to 3 acres Up to 5 acres
Min Pond Depth 15" 17.5" 19" 20" 24" 26"
RPM 1750 1750 1750 1750 1750 1750
Unit + Pattern Dimensions 24" H × 48" W 24" H × 48" W 30" H × 50" W 44" H × 98" W 50" H × 130" W 60" H × 148" W
Power Cord Length 50-200 ft 50-400 ft 50-400 ft 50-400 ft 50-400 ft 100-400 ft
Mooring Ropes Three 50 ft braided nylon Three 50 ft braided nylon Three 50 ft braided nylon Three 50 ft braided nylon Three 50 ft braided nylon Three 50 ft braided nylon
Float / Mounting Included Included Included Included Included Included
Warranty 2 yr 2 yr 2 yr 3 yr 3 yr 3 yr
* Surface acreage; also consider pond shape, depth, and oxygen demand. Up to 3.0 lbs of oxygen per HP each hour. Stainless Steel Protected Cord upgrade is sold separately as an add-on; SS lengths over 200 ft require an estimated 4-week lead time. Call (470) 354-1969 for sizing help.

See the Kasco Surface Aerator in Action

 

Requirements & What to Know Before You Buy

  • Dedicated Circuit: the Surface Aerator does not include a control panel by default. Wire it into a properly sized dedicated circuit with appropriate GFCI protection. Have a licensed electrician verify your existing wiring or add an optional Kasco control panel.
  • Power Off Around Swimmers: disconnect power any time someone enters the water.
  • Minimum Pond Depth: 15 inches for the 1/2 HP, up to 26 inches for the 5 HP. Measure where the unit will sit, not at the shoreline.
  • Mooring: three 50 ft braided nylon mooring ropes are included. You supply anchors or weights to hold the float in position.
  • Cord Routing: the included submersible cord runs from the unit to your breaker. Choose a length that reaches comfortably without strain. The Stainless Steel Protected Cord upgrade is a separate add-on; SS lengths over 200 ft are special-order and ship in roughly 4 weeks.
  • Voltage Selection: 1/2 HP is 120V only. 3/4 HP and 1 HP are available in both 120V and 240V (240V recommended for longer cord runs to avoid voltage drop). 2 HP, 3 HP, and 5 HP are 240V only.
  • Industrial Use: for wastewater and aggressive industrial applications, ask about the stainless steel domed-top modification.
  • Sizing Help: Call (470) 354-1969 and we will help you match the unit to your pond surface, depth, and aeration goal.

What's Included & Optional Add-Ons

  • Motor Unit - sealed stainless steel submersible motor, saltwater compatible
  • Float - UV-resistant thermoplastic, heavy-duty for continuous outdoor use
  • Power Cord - factory-attached submersible cord, length per your selection. UL, CSA, and NEC rated for underwater use. Stainless Steel Protected Cord upgrade sold separately.
  • Three 50 ft Mooring Ropes - braided nylon, included
  • Mounting Hardware - included
  • Owner's Manual + Product Sheet - linked below
  • Optional Bottom Screen - protects the impeller from debris; sold separately
  • Optional Kasco Control Panel - UL/CSA listed, GFCI-protected, photocell input, timer dial. Sold separately.
  • Optional WaterGlow Lighting Kit - composite or stainless housings, multiple colors. Sold separately.
  • Optional Industrial Modification - stainless steel domed top and double mechanical seal for wastewater applications. Call for a quote.
  • Warranty - 2 yr (1/2 HP, 3/4 HP, 1 HP); 3 yr (2 HP, 3 HP, 5 HP)

Kasco Pond Surface Aerator Specifications

Manufacturer Kasco
Model Surface Aerator
Type High-flow surface aeration unit
Motor Options 1/2 HP (2400AF), 3/4 HP (3400AF/3400HAF), 1 HP (4400AF/4400HAF), 2 HP (8400AF), 3 HP (3.1AF), 5 HP (5.1AF)
Voltage Options 120V on 1/2 HP, 3/4 HP, and 1 HP; 240V on 3/4 HP through 5 HP
Frequency 60 Hz standard
Phase Single-phase standard. Three-phase available on request for larger units.
Total Configurations 46 across HP, voltage, and cord length
Oxygen Transfer Rate Up to 3.0 lbs of dissolved oxygen per HP per hour
Pond Surface Area 1/2 acre (1/2 HP) up to 5 acres (5 HP)
Min Water Depth 15" (1/2 HP) up to 26" (5 HP)
Unit + Spray Pattern 24" H × 48" W (1/2 HP) up to 60" H × 148" W (5 HP)
Cord Length Options 50, 100, 150, 200, 250, 300, or 400 ft (availability varies)
Cord Rating UL, CSA, and NEC rated for direct underwater use
Cord Protection Standard submersible cord. Stainless Steel Protected Cord upgrade available as a separate add-on.
Mooring Ropes Three 50 ft braided nylon mooring ropes (included)
Mounting Hardware Included
Float UV-resistant thermoplastic, included
Motor Construction Sealed stainless steel submersible motor, saltwater compatible
Optional Bottom Screen Sold separately
Optional Control Panel Kasco UL/CSA listed panels with GFCI, timer dial, photocell input. Sold separately.
Optional Lighting Kasco WaterGlow LED Lighting Kits (composite or stainless), sold separately
Industrial Modification Stainless steel domed top and double mechanical seal available on request
Listings Total package ETL listed to UL and CSA standards
Applications Wastewater lagoons, retention basins, residential and commercial ponds, marinas, agricultural and industrial settings
Warranty (1/2 HP, 3/4 HP, 1 HP) 2 years
Warranty (2 HP, 3 HP, 5 HP) 3 years



Manuals

View the Surface Aerator 1/2 HP, 3/4 HP, and 1 HP Owner's Assembly Manual

View the Surface Aerator 2 HP, 3 HP, and 5 HP Owner's Assembly Manual

Open the 2400AF (1/2 HP, 120V) Product Sheet

Open the 3400AF (3/4 HP, 120V) Product Sheet

Open the 3400HAF (3/4 HP, 240V) Product Sheet

Open the 4400AF (1 HP, 120V) Product Sheet

Open the 4400HAF (1 HP, 240V) Product Sheet

Open the 8400AF (2 HP, 240V) Product Sheet

Open the 3.1AF (3 HP, 240V) Product Sheet

Open the 5.1AF (5 HP, 240V) Product Sheet

Open the Surface Aerator Brochure

Open the Surface Aerator Case Study

Shipping/Returns

Shipping

  • Order confirmation is emailed after checkout.
  • Orders typically process within 1 to 2 business days.
  • Delivery times may vary depending on the product, shipping method, and delivery location.
  • A shipping confirmation with tracking details will be sent once your order ships.
  • Any damage or shortage claims must be reported within 24 hours of delivery. Please keep the original packaging until the claim is resolved.

Returns

  • Eligible merchandise may be returned within 30 days of purchase with prior return authorization.
  • All returns require an RA Number before the item is sent back.
  • Returned items must be in their original packaging and in saleable condition.
  • Non-warranty returns may be subject to a 15% restocking fee, and original shipping charges are non-refundable.
  • Warranty returns require authorization, the original sales receipt, and an explanation of the product issue.

Questions? Contact support@propondsupply.com or call (470) 354-1969.

Warranty

Warranty

  • Kasco Marine products are warranted to be free from defects in material and workmanship under normal use and service.
  • 2-year warranty: 1/2, 3/4, and 1HP Surface Aerators, J Series fountains, VFX fountains, AquatiClear™ Circulators, all 50Hz fountain, aerator, de-icer, and circulator models, LEDC11 Composite LED Light Kits, RGB LED Light Kits, Home Series cabinet and TeichAire compressor, and HydraForce™ Lift Station Agitators.
  • 3-year warranty: 1/2, 3/4, and 1HP De-icers, 2, 3, and 5HP VFX and Surface Aerator models, 2HP J Series models, LEDS19 Stainless Steel Light Kits, RGBW18 LED Light Kits, W25 LED Light Kits, CertiSafe™ Tank Mixers, and RobustAire™ TeichAire Compressors.
  • 5-year warranty: 3, 5, and 7.5HP J Series fountains and RGBW LED Light Kits.
  • 15-year warranty: SureSink™ Weighted Tubing for RobustAire™ and Home Series Diffused Aeration Systems.
  • Lifetime warranty: Diffuser assemblies for RobustAire™ and Home Series Diffused Aeration Systems, RobustAire™ Post Mount Cabinets, and RobustAire™ Small, Medium, and Large Cabinets with patented AireGuard Cabinet Technology.
  • Control panels are included in the warranty when applicable to the covered product.
  • Ropes, power cords, and propellers are excluded from standard defect coverage.
  • Customers should register their product with Kasco Marine for warranty purposes after purchase.
  • Warranty coverage may be void if the equipment is not properly maintained according to the owner’s manual, altered from its original condition, used without the required GFI-protected circuit or Kasco control panel, or damaged by unauthorized tampering.
  • Units under warranty may be sent to a Kasco authorized repair center for evaluation and repair, and all units must include the required Repair Contact Form.
  • Only complete motor assemblies will be accepted for warranty repair, and the power cord and all other original components must be returned with the motor as originally assembled.
  • Kasco Marine will return units repaired under warranty at their expense by ground freight within the continental United States, while expedited return shipping is the customer’s responsibility.

Questions? Contact support@propondsupply.com or call (470) 354-1969.

★Reviews

Customer Reviews

Be the first to write a review
0%
(0)
0%
(0)
0%
(0)
0%
(0)
0%
(0)
NO SALES TAX

Orders outside Georgia are 100% sales tax-free

Give us a call

Free shipping on every order

Give us a call

Our team is available from 8 AM to 8 PM EST at (470) 354-1969

BEST PRICE GUARANTEE

If you find the same item for less, we’ll match it.

Overview

Clean Up Your Pond Fast with Kasco's Surface Aerator

The Kasco Surface Aerator is a working aeration unit first, decorative fountain second. The propeller draws water from below and throws it into the air as a churning umbrella, which adds up to 3.0 lbs of dissolved oxygen per horsepower every hour. That oxygen transfer rate is what makes the Surface Aerator a fit for wastewater lagoons, retention basins, and any pond that's gone murky, smelly, or algae-heavy.

Every Surface Aerator runs on a sealed stainless steel submersible motor and is fully saltwater compatible. The complete package is ETL listed to UL and CSA standards. The cord is rated for direct underwater use, and the float and mounting hardware ship with every unit along with three 50 ft braided nylon mooring ropes. Available from 1/2 HP up through 5 HP - that covers ponds from 1/2 acre through 5 acres of surface area.

Pick your unit from 1/2 HP (2400AF) up through the 5 HP 5.1AF, choose 120V or 240V where both are available, and pair it with a 50, 100, 150, 200, 250, 300, or 400 ft submersible power cord. The included cord is rated for direct submersion. If you need extra protection in harsh environments or rocky bottoms, the Stainless Steel Protected Cord upgrade is available as an add-on at order time. Optional bottom screen, control panel, and WaterGlow lighting kits sold separately.

The Kasco Surface Aerator is a working aeration unit - up to 3.0 lbs of dissolved oxygen per HP per hour. For wastewater, retention basins, murky ponds, and odor control.

Sealed stainless steel motor, saltwater compatible. ETL listed total package. Three 50 ft braided nylon mooring ropes included.

Six motor sizes from 1/2 HP to 5 HP, ponds up to 5 acres. 120V or 240V where applicable. Cord lengths 50 to 400 ft. Optional Stainless Steel Protected Cord, control panel, and lighting kits available.

Free shipping on every Kasco Surface Aerator. Optional Stainless Steel Protected Cord, control panels, WaterGlow lighting kits, and industrial-stainless modifications available on request. Call (470) 354-1969.

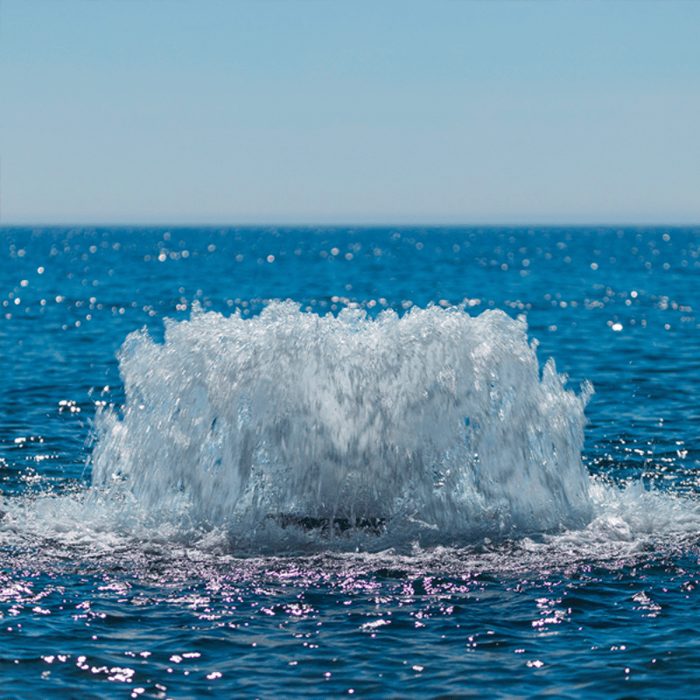

 Kasco Surface Aerator aerating on water with rainbow in the background

Why Choose the Surface Aerator by Kasco

Up to 3 lbs of Oxygen per HP per Hour The Surface Aerator's churning umbrella pattern delivers some of the highest oxygen transfer rates in its class. Use it for continuous, supplemental, or emergency aeration on stressed ponds and lagoons. Six Motor Sizes 1/2 HP through 5 HP, sized to surface acreage from 1/2 acre up to 5 acres. Pick the right unit for your pond - we can help. Saltwater and Brackish Water Compatible Sealed stainless steel motor and components handle salt, brackish, and coastal-pond water without corroding. ETL Listed Total Package The complete unit (motor, cord, and float) is ETL listed to UL and CSA standards. The cord itself is rated for direct underwater use. Cord Lengths up to 400 ft Choose 50, 100, 150, 200, 250, 300, or 400 ft of factory-attached submersible cord (availability varies by unit). Stainless Steel Protected Cord upgrade is available as a separate add-on for harsh environments. Shallow Pond Operation The intake sits near the surface, which lets the Surface Aerator operate in as little as 15 inches of water on the 1/2 HP unit (deeper units need 17.5 to 26 inches). Industrial Modification Available Surface Aerator units can be modified with an industrial stainless steel domed top and double mechanical seal for wastewater and harsh industrial settings. Call for a quote. Industry-Standard Warranty 2-year warranty on 1/2 HP, 3/4 HP, and 1 HP units. 3-year warranty on the 2 HP, 3 HP, and 5 HP units.

Surface Aerator Unit Comparison

Kasco Surface Aerator 2400AF motor (1/2 HP) Kasco Surface Aerator 3400AF motor (3/4 HP) Kasco Surface Aerator 4400AF motor (1 HP) Kasco Surface Aerator 8400AF motor (2 HP) Kasco Surface Aerator 3.1AF motor (3 HP) Kasco Surface Aerator 5.1AF motor (5 HP)
2400AF (1/2 HP) 3400AF / 3400HAF (3/4 HP) 4400AF / 4400HAF (1 HP) 8400AF (2 HP) 3.1AF (3 HP) 5.1AF (5 HP)
Voltage 120V 120V or 240V 120V or 240V 240V 240V 240V
Phase 1 1 1 1 1 1
Hertz 60 Hz 60 Hz 60 Hz 60 Hz 60 Hz 60 Hz
Running Amps 5.7 7 / 3.5 9.1 / 4.5 9 10.7 18
Wattage 656 W 805 W 1,047 W 2,070 W 2,461 W 4,140 W
Pond Size (Surface Area)* Up to 1/2 acre Up to 3/4 acre Up to 1 acre Up to 2 acres Up to 3 acres Up to 5 acres
Min Pond Depth 15" 17.5" 19" 20" 24" 26"
RPM 1750 1750 1750 1750 1750 1750
Unit + Pattern Dimensions 24" H × 48" W 24" H × 48" W 30" H × 50" W 44" H × 98" W 50" H × 130" W 60" H × 148" W
Power Cord Length 50-200 ft 50-400 ft 50-400 ft 50-400 ft 50-400 ft 100-400 ft
Mooring Ropes Three 50 ft braided nylon Three 50 ft braided nylon Three 50 ft braided nylon Three 50 ft braided nylon Three 50 ft braided nylon Three 50 ft braided nylon
Float / Mounting Included Included Included Included Included Included
Warranty 2 yr 2 yr 2 yr 3 yr 3 yr 3 yr
* Surface acreage; also consider pond shape, depth, and oxygen demand. Up to 3.0 lbs of oxygen per HP each hour. Stainless Steel Protected Cord upgrade is sold separately as an add-on; SS lengths over 200 ft require an estimated 4-week lead time. Call (470) 354-1969 for sizing help.

See the Kasco Surface Aerator in Action

 

Requirements & What to Know Before You Buy

  • Dedicated Circuit: the Surface Aerator does not include a control panel by default. Wire it into a properly sized dedicated circuit with appropriate GFCI protection. Have a licensed electrician verify your existing wiring or add an optional Kasco control panel.
  • Power Off Around Swimmers: disconnect power any time someone enters the water.
  • Minimum Pond Depth: 15 inches for the 1/2 HP, up to 26 inches for the 5 HP. Measure where the unit will sit, not at the shoreline.
  • Mooring: three 50 ft braided nylon mooring ropes are included. You supply anchors or weights to hold the float in position.
  • Cord Routing: the included submersible cord runs from the unit to your breaker. Choose a length that reaches comfortably without strain. The Stainless Steel Protected Cord upgrade is a separate add-on; SS lengths over 200 ft are special-order and ship in roughly 4 weeks.
  • Voltage Selection: 1/2 HP is 120V only. 3/4 HP and 1 HP are available in both 120V and 240V (240V recommended for longer cord runs to avoid voltage drop). 2 HP, 3 HP, and 5 HP are 240V only.
  • Industrial Use: for wastewater and aggressive industrial applications, ask about the stainless steel domed-top modification.
  • Sizing Help: Call (470) 354-1969 and we will help you match the unit to your pond surface, depth, and aeration goal.

What's Included & Optional Add-Ons

  • Motor Unit - sealed stainless steel submersible motor, saltwater compatible
  • Float - UV-resistant thermoplastic, heavy-duty for continuous outdoor use
  • Power Cord - factory-attached submersible cord, length per your selection. UL, CSA, and NEC rated for underwater use. Stainless Steel Protected Cord upgrade sold separately.
  • Three 50 ft Mooring Ropes - braided nylon, included
  • Mounting Hardware - included
  • Owner's Manual + Product Sheet - linked below
  • Optional Bottom Screen - protects the impeller from debris; sold separately
  • Optional Kasco Control Panel - UL/CSA listed, GFCI-protected, photocell input, timer dial. Sold separately.
  • Optional WaterGlow Lighting Kit - composite or stainless housings, multiple colors. Sold separately.
  • Optional Industrial Modification - stainless steel domed top and double mechanical seal for wastewater applications. Call for a quote.
  • Warranty - 2 yr (1/2 HP, 3/4 HP, 1 HP); 3 yr (2 HP, 3 HP, 5 HP)

Kasco Pond Surface Aerator Specifications

Manufacturer Kasco
Model Surface Aerator
Type High-flow surface aeration unit
Motor Options 1/2 HP (2400AF), 3/4 HP (3400AF/3400HAF), 1 HP (4400AF/4400HAF), 2 HP (8400AF), 3 HP (3.1AF), 5 HP (5.1AF)
Voltage Options 120V on 1/2 HP, 3/4 HP, and 1 HP; 240V on 3/4 HP through 5 HP
Frequency 60 Hz standard
Phase Single-phase standard. Three-phase available on request for larger units.
Total Configurations 46 across HP, voltage, and cord length
Oxygen Transfer Rate Up to 3.0 lbs of dissolved oxygen per HP per hour
Pond Surface Area 1/2 acre (1/2 HP) up to 5 acres (5 HP)
Min Water Depth 15" (1/2 HP) up to 26" (5 HP)
Unit + Spray Pattern 24" H × 48" W (1/2 HP) up to 60" H × 148" W (5 HP)
Cord Length Options 50, 100, 150, 200, 250, 300, or 400 ft (availability varies)
Cord Rating UL, CSA, and NEC rated for direct underwater use
Cord Protection Standard submersible cord. Stainless Steel Protected Cord upgrade available as a separate add-on.
Mooring Ropes Three 50 ft braided nylon mooring ropes (included)
Mounting Hardware Included
Float UV-resistant thermoplastic, included
Motor Construction Sealed stainless steel submersible motor, saltwater compatible
Optional Bottom Screen Sold separately
Optional Control Panel Kasco UL/CSA listed panels with GFCI, timer dial, photocell input. Sold separately.
Optional Lighting Kasco WaterGlow LED Lighting Kits (composite or stainless), sold separately
Industrial Modification Stainless steel domed top and double mechanical seal available on request
Listings Total package ETL listed to UL and CSA standards
Applications Wastewater lagoons, retention basins, residential and commercial ponds, marinas, agricultural and industrial settings
Warranty (1/2 HP, 3/4 HP, 1 HP) 2 years
Warranty (2 HP, 3 HP, 5 HP) 3 years



Manuals

View the Surface Aerator 1/2 HP, 3/4 HP, and 1 HP Owner's Assembly Manual

View the Surface Aerator 2 HP, 3 HP, and 5 HP Owner's Assembly Manual

Open the 2400AF (1/2 HP, 120V) Product Sheet

Open the 3400AF (3/4 HP, 120V) Product Sheet

Open the 3400HAF (3/4 HP, 240V) Product Sheet

Open the 4400AF (1 HP, 120V) Product Sheet

Open the 4400HAF (1 HP, 240V) Product Sheet

Open the 8400AF (2 HP, 240V) Product Sheet

Open the 3.1AF (3 HP, 240V) Product Sheet

Open the 5.1AF (5 HP, 240V) Product Sheet

Open the Surface Aerator Brochure

Open the Surface Aerator Case Study

Shipping/Returns

Shipping

  • Order confirmation is emailed after checkout.
  • Orders typically process within 1 to 2 business days.
  • Delivery times may vary depending on the product, shipping method, and delivery location.
  • A shipping confirmation with tracking details will be sent once your order ships.
  • Any damage or shortage claims must be reported within 24 hours of delivery. Please keep the original packaging until the claim is resolved.

Returns

  • Eligible merchandise may be returned within 30 days of purchase with prior return authorization.
  • All returns require an RA Number before the item is sent back.
  • Returned items must be in their original packaging and in saleable condition.
  • Non-warranty returns may be subject to a 15% restocking fee, and original shipping charges are non-refundable.
  • Warranty returns require authorization, the original sales receipt, and an explanation of the product issue.

Questions? Contact support@propondsupply.com or call (470) 354-1969.

Warranty

Warranty

  • Kasco Marine products are warranted to be free from defects in material and workmanship under normal use and service.
  • 2-year warranty: 1/2, 3/4, and 1HP Surface Aerators, J Series fountains, VFX fountains, AquatiClear™ Circulators, all 50Hz fountain, aerator, de-icer, and circulator models, LEDC11 Composite LED Light Kits, RGB LED Light Kits, Home Series cabinet and TeichAire compressor, and HydraForce™ Lift Station Agitators.
  • 3-year warranty: 1/2, 3/4, and 1HP De-icers, 2, 3, and 5HP VFX and Surface Aerator models, 2HP J Series models, LEDS19 Stainless Steel Light Kits, RGBW18 LED Light Kits, W25 LED Light Kits, CertiSafe™ Tank Mixers, and RobustAire™ TeichAire Compressors.
  • 5-year warranty: 3, 5, and 7.5HP J Series fountains and RGBW LED Light Kits.
  • 15-year warranty: SureSink™ Weighted Tubing for RobustAire™ and Home Series Diffused Aeration Systems.
  • Lifetime warranty: Diffuser assemblies for RobustAire™ and Home Series Diffused Aeration Systems, RobustAire™ Post Mount Cabinets, and RobustAire™ Small, Medium, and Large Cabinets with patented AireGuard Cabinet Technology.
  • Control panels are included in the warranty when applicable to the covered product.
  • Ropes, power cords, and propellers are excluded from standard defect coverage.
  • Customers should register their product with Kasco Marine for warranty purposes after purchase.
  • Warranty coverage may be void if the equipment is not properly maintained according to the owner’s manual, altered from its original condition, used without the required GFI-protected circuit or Kasco control panel, or damaged by unauthorized tampering.
  • Units under warranty may be sent to a Kasco authorized repair center for evaluation and repair, and all units must include the required Repair Contact Form.
  • Only complete motor assemblies will be accepted for warranty repair, and the power cord and all other original components must be returned with the motor as originally assembled.
  • Kasco Marine will return units repaired under warranty at their expense by ground freight within the continental United States, while expedited return shipping is the customer’s responsibility.

Questions? Contact support@propondsupply.com or call (470) 354-1969.

★Reviews

Customer Reviews

Be the first to write a review
0%
(0)
0%
(0)
0%
(0)
0%
(0)
0%
(0)
