Vanguard Hydro-Torque Series Floating Lake Fountain
Command Your Lake with the Vanguard Hydro-Torque Series

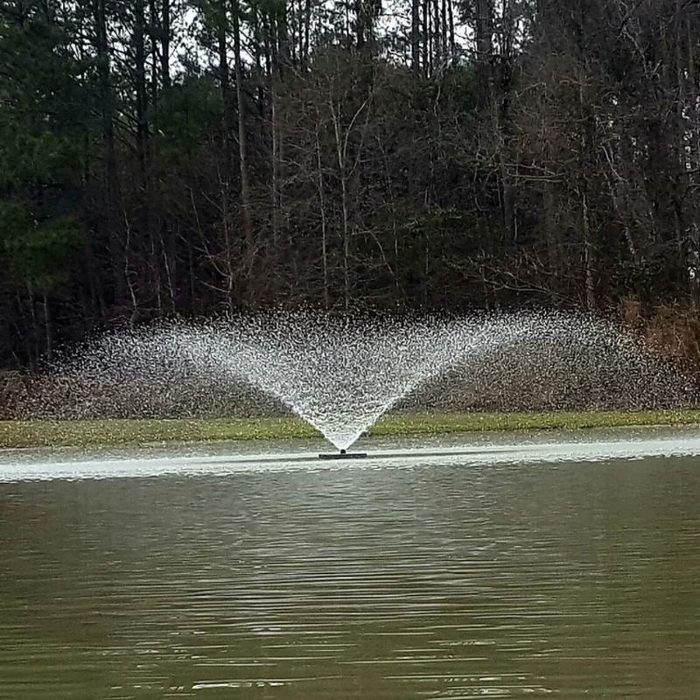

The Hydro-Torque is Vanguard's flagship display fountain line - stainless steel submersible pumps sized for real lake-scale water features and built for continuous 24/7 duty. Five motor sizes span the range from a 1/2 HP for 1/2-acre residential ponds up to a 5 HP for 5-acre municipal water bodies, and everything in between. Interchangeable spray nozzles let you dial in the exact visual you want - a tall single geyser, a wide crown, a starburst pattern, or anything in between.
Every Hydro-Torque ships with the pump, rotomolded 30 in float, quick-change nozzle mount, and shore-mounted electrical control. Two GFCI configurations cover most installs: the 115V Inline GFCI + Timer for compact residential installs (1/2 and 1 HP only), or the Deluxe GFCI Breaker Panel with weatherproof shore enclosure, timer, and breaker switch. The 2, 3, and 5 HP motors are 230V only - the current draw at those sizes on 115V isn't practical.
Pick your motor size based on lake acreage and the spray height you want (roughly 15 ft on 1/2 HP up to 40 ft on 5 HP). Pick your cord length (100 / 150 / 200 / 250 ft) to reach a shore-mounted circuit. Then pick your electrical configuration. Optional RGBW color-changing or White-only LED lighting kits sized to motor sold separately. Free shipping on every Hydro-Torque.

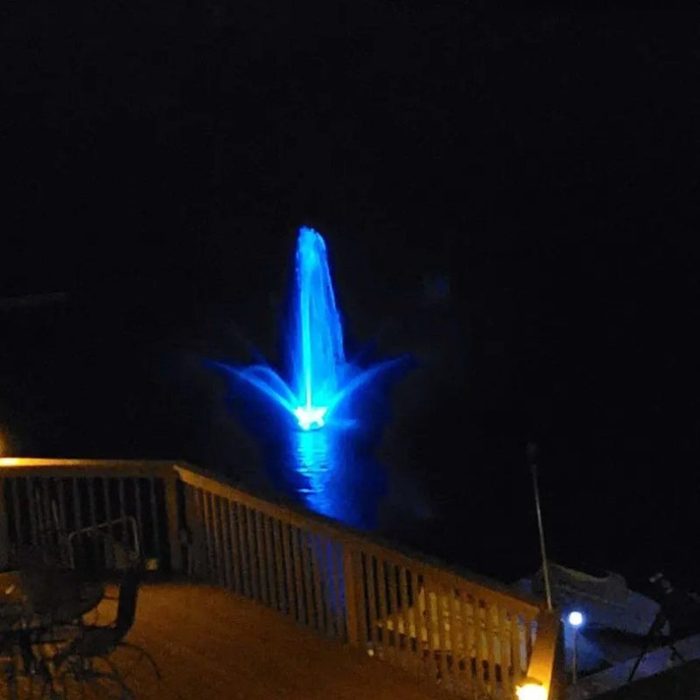

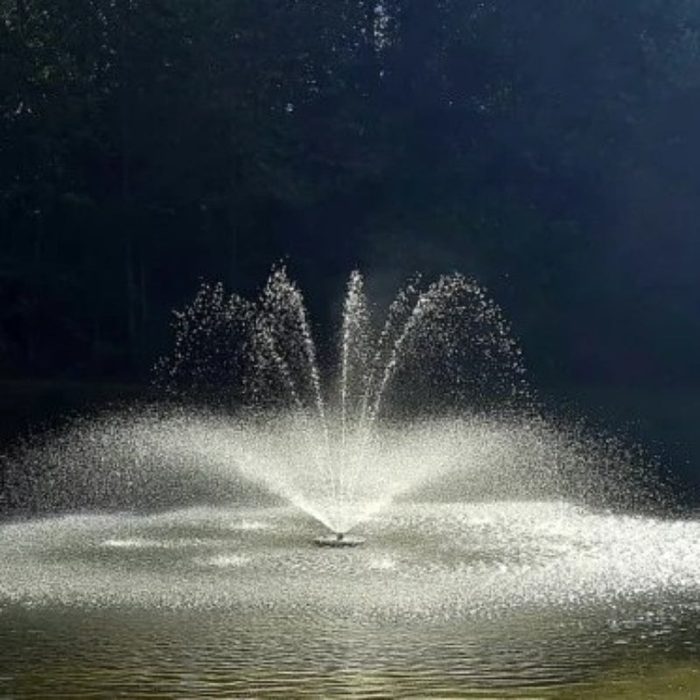

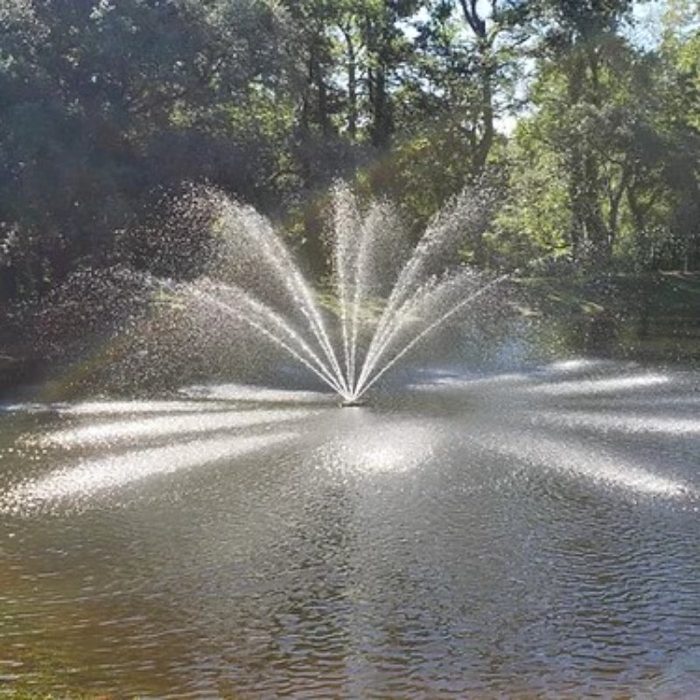

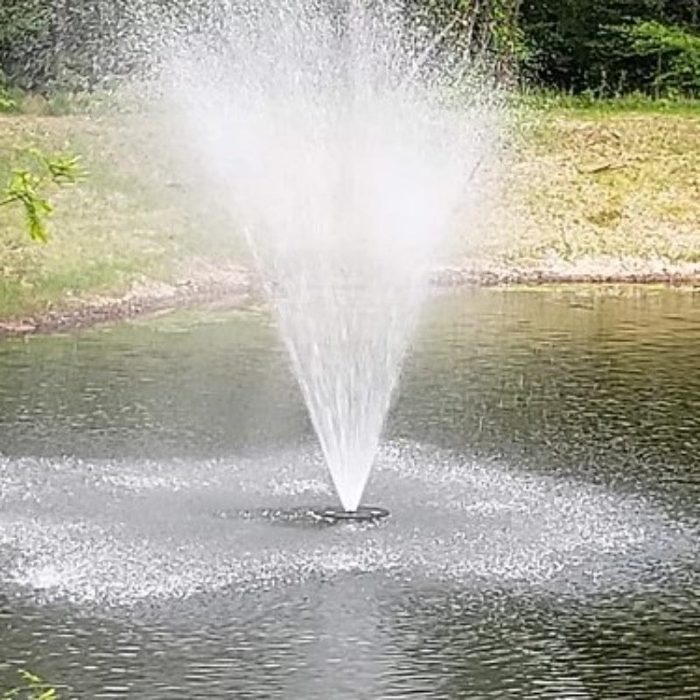

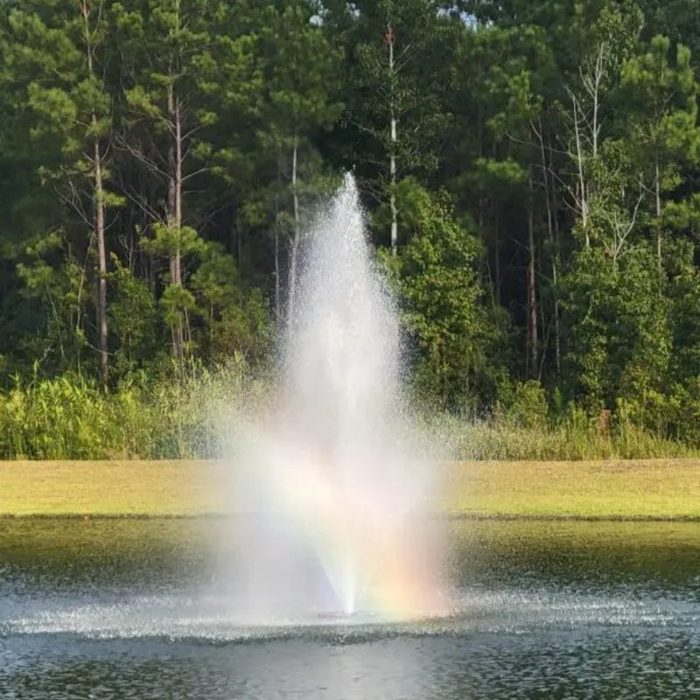

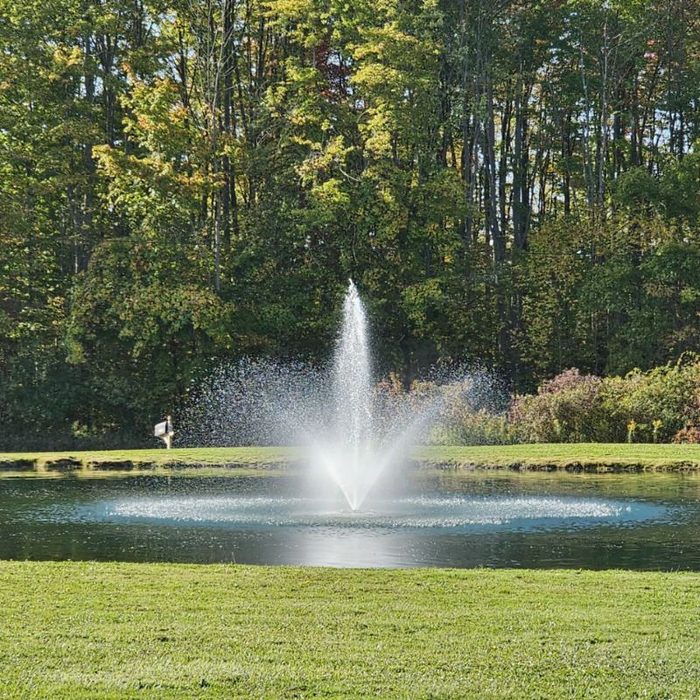

Turn your lake into a centerpiece. The Vanguard Hydro-Torque throws a dramatic, high-visibility water plume that catches the light all day and glows with optional LED lighting at night. Built around a stainless steel submersible pump engineered for continuous 24/7 lake duty.
Five motor sizes cover residential ponds through 5-acre municipal water bodies. Spray heights run from a striking 15 ft on the 1/2 HP up to a lake-commanding 40 ft on the 5 HP. Every unit ships on the same 30 in rotomolded float with a quick-change nozzle mount, so you can swap between spray patterns whenever you want a new look.
Pick 115V or 230V (the 2, 3, and 5 HP motors are 230V only), then pick 100, 150, 200, or 250 ft of cord to reach a shore-mounted circuit. Choose the compact Inline GFCI + Timer for plug-and-play residential installs, or the Deluxe Breaker Panel for permanent setups with a weatherproof shore enclosure, daily timer, and dedicated breaker switch.
Free shipping on every Vanguard Hydro-Torque. Call (470) 354-1969.
Watch the Vanguard Hydro-Torque in Action
Why Choose the Hydro-Torque Series by Vanguard
Hydro-Torque Series Comparison
| 275 (1/2 HP) | 550 (1 HP) | 1100 (2 HP) | 1650 (3 HP) | 2750 (5 HP) | |
|---|---|---|---|---|---|
| Motor Horsepower | 1/2 HP | 1 HP | 2 HP | 3 HP | 5 HP |
| Vanguard Series Code | 275 | 550 | 1100 | 1650 | 2750 |
| Voltage Options | 115V or 230V | 115V or 230V | 230V only | 230V only | 230V only |
| Pond Coverage | Up to 1/2 acre | Up to 1 acre | Up to 2 acres | Up to 3 acres | Up to 5 acres |
| Approximate Spray Height | Up to 15 ft | Up to 20 ft | Up to 26 ft | Up to 32 ft | Up to 40 ft |
| Approximate Spray Width | Up to 30 ft | Up to 40 ft | Up to 55 ft | Up to 70 ft | Up to 90 ft |
| Motor Type | Stainless steel submersible with sealed bearings | ||||
| Float Construction | Rotomolded polyethylene, UV-resistant, 30 in diameter | ||||
| Nozzle System | Quick-change nozzle mount (spray patterns sold separately by series) | ||||
| Minimum Operating Depth | 24 in | ||||
| Mooring | Tether points on float; anchor rope sold separately | ||||
| GFCI / Timer Options | 115V Inline OR 115V Deluxe OR 230V Deluxe | 115V Inline OR 115V Deluxe OR 230V Deluxe | 230V Deluxe only | 230V Deluxe only | 230V Deluxe only |
| Available Cord Lengths | 100, 150, 200, or 250 ft | ||||
| Optional Lighting | RGBW or White LED kit (0.5-1 HP) | RGBW or White LED kit (0.5-1 HP) | RGBW or White LED kit (2 HP) | RGBW or White LED kit (3-5 HP) | RGBW or White LED kit (3-5 HP) |
Requirements & What to Know Before You Buy
- Lake Size: 1/2 HP for up to 1/2 acre; 1 HP for up to 1 acre; 2 HP for up to 2 acres; 3 HP for up to 3 acres; 5 HP for up to 5 acres. Match motor size to acreage - undersizing gives you a wimpy plume.
- Lake Depth: 24 in minimum operating depth. Deeper lakes typically look better with the taller-spray HPs (3 or 5 HP).
- Power: 1/2 HP and 1 HP available in 115V or 230V. 2 HP, 3 HP, 5 HP are 230V only - current draw at 115V for those sizes exceeds standard household circuits. Plug into a properly sized GFCI-protected dedicated circuit.
- Cord Length: 100, 150, 200, or 250 ft. Match gauge to run length using the Wire Size Chart. Longer runs need heavier gauge to avoid voltage drop.
- GFCI Configuration: the Inline option is compact and plug-and-play (115V only). The Deluxe Breaker Panel is required for 230V and recommended for permanent installs.
- Nozzles: the quick-change nozzle mount ships with the fountain but individual nozzle patterns are sold separately. Pick the pattern (or patterns) you want to swap between for your visual.
- Mooring: the float has tether points but anchors and rope are sold separately. Larger lakes typically need 4 anchors positioned around the float.
- Winterization: remove the fountain from the water before freezing conditions. The shore enclosure stays on the bank year-round.
- Sizing Help: Call (470) 354-1969 with your lake surface area and depth and we will recommend the right HP, voltage, cord, and lighting setup.
What's Included & Optional Add-Ons

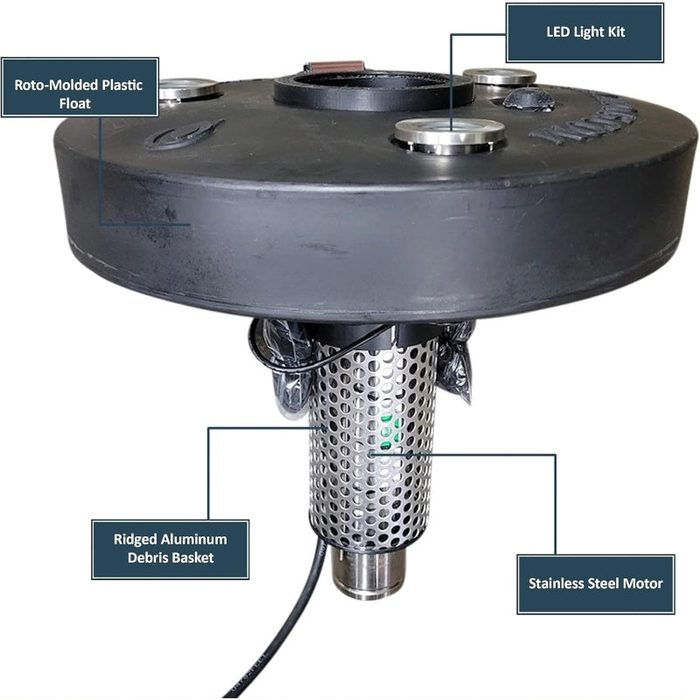

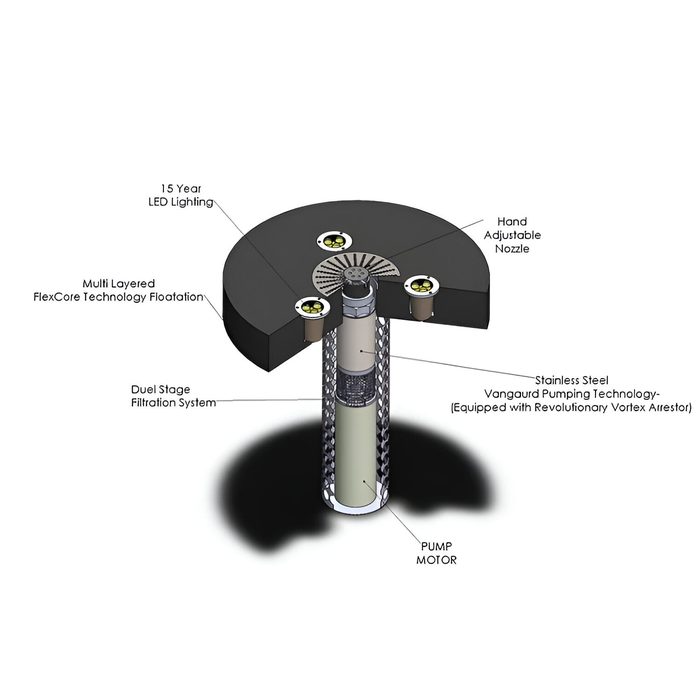

- Stainless Steel Submersible Pump - sized by HP; sealed bearings; continuous duty
- Rotomolded Polyethylene Float - 30 in diameter, UV-resistant
- Quick-Change Nozzle Mount - swap between spray patterns without pulling the pump
- Electrical Configuration - 115V Inline GFCI + Timer (1/2 or 1 HP), OR Deluxe GFCI Breaker Panel with timer + breaker switch + weatherproof shore enclosure (required for 2, 3, 5 HP)
- Power Cord - 100, 150, 200, or 250 ft; wire gauge sized to motor and run length

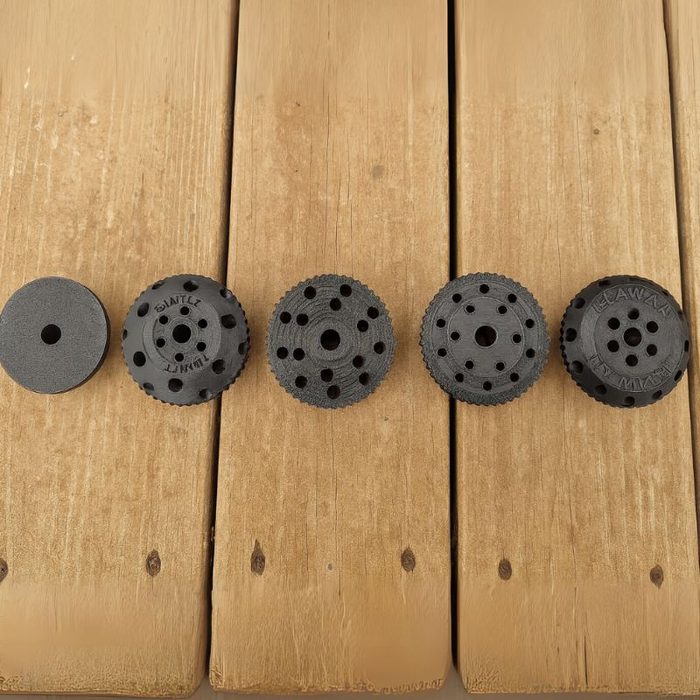

- Optional Individual Spray Nozzles - sold separately, sized by series (275, 550, 1100, 1650, 2750)

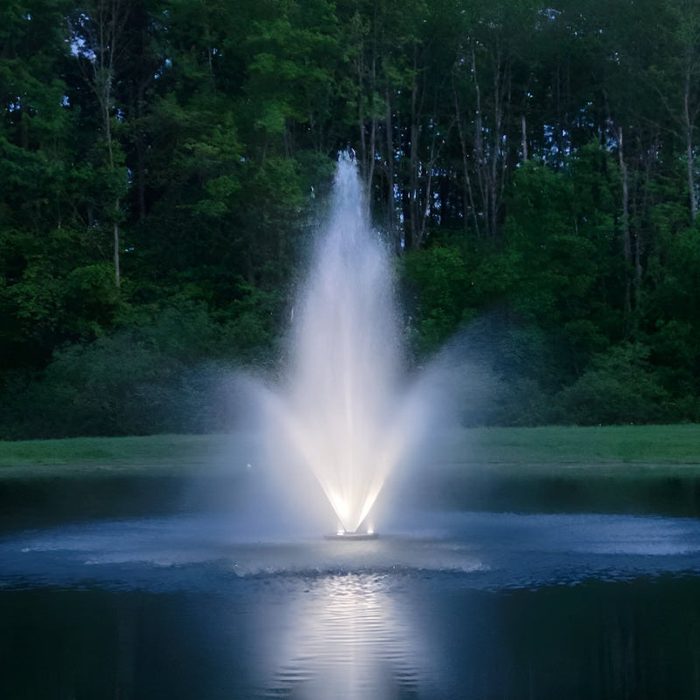

- Optional RGBW Color-Changing LED Kit - remote-controlled 6-color cycle plus white; sized to motor (sold separately)

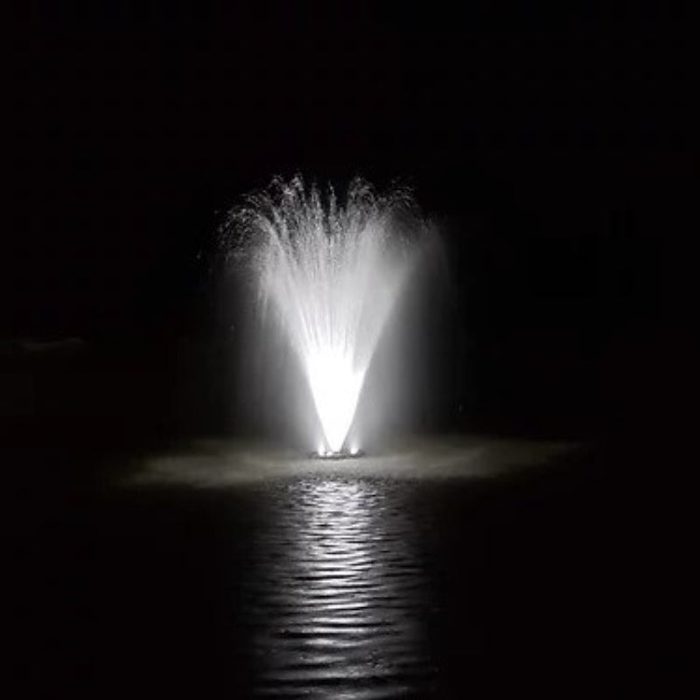

- Optional White LED Kit - simpler white-only version (sold separately)
- Optional Anchors and Mooring Rope - sold separately
Hydro-Torque Series Specifications
| Manufacturer | Vanguard Water Creations |
| Model | Hydro-Torque Series Floating Lake Fountain |
| Type | Commercial-grade decorative floating lake fountain with interchangeable spray patterns |
| Motor Options | 1/2 HP (275), 1 HP (550), 2 HP (1100), 3 HP (1650), 5 HP (2750) |
| Voltage Options | 1/2 HP and 1 HP: 115V or 230V. 2 HP, 3 HP, 5 HP: 230V only |
| Pump Construction | Stainless steel submersible, sealed bearings, continuous duty |
| Float Construction | Rotomolded polyethylene, UV-resistant, 30 in diameter |
| Spray Height Range | 15 ft (1/2 HP) up to 40 ft (5 HP) |
| Spray Width Range | 30 ft (1/2 HP) up to 90 ft (5 HP) |
| Lake Coverage | Up to 1/2 acre (1/2 HP) up to 5 acres (5 HP) |
| Minimum Operating Depth | 24 in |
| Nozzle System | Quick-change nozzle mount; interchangeable patterns sold separately |
| Cord Length Options | 100 ft, 150 ft, 200 ft, 250 ft |
| Electrical Configurations | 115V Inline GFCI + Timer, OR Deluxe GFCI Breaker Panel (with timer, breaker switch, and shore enclosure) |
| Total Configurations | 36 across motor, cord length, voltage, and GFCI configuration |
| Optional Lighting | Vanguard RGBW remote color-changing LED kit or White-only LED kit sized to motor (sold separately) |
| Applications | HOA lakes, golf course water hazards, municipal water features, agricultural water bodies, commercial ponds, resort water features |
| Warranty | 2-year limited warranty |
| Country of Origin | Made in USA |
