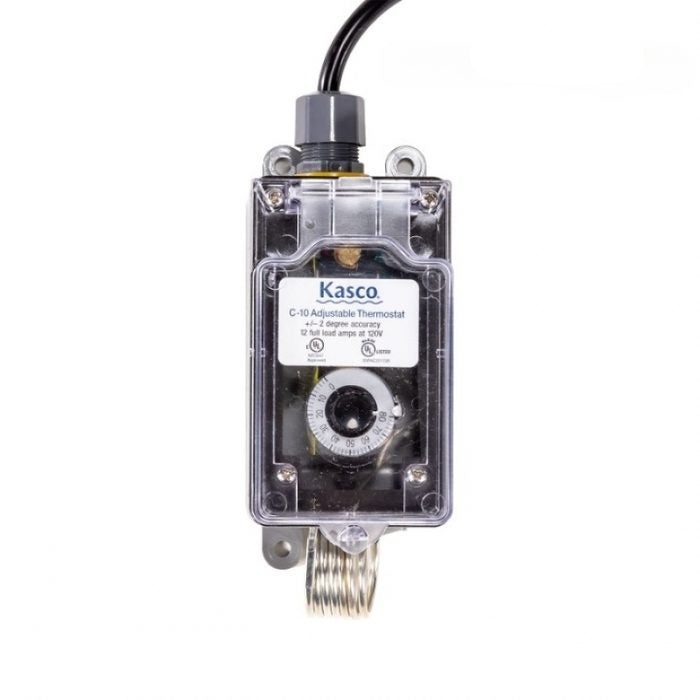

Kasco Control Panel C-10 Model Front View

Kasco Control Panel

SKU 110225
$150.00
Made in the USA
No Sales Tax Outside Georgia
Free Delivery from U.S. Warehouses
Talk to a Specialist: (470) 354-1969
Better Price? Request a Wire Discount Bulk or Business Order? Get a Fast Custom Quote Veterans & First Responders Save
Free Shipping
Ships --
Arrives --

Notify me when back in stock

Kasco 2 year warranty trust badges Kasco 2 year warranty trust badges

Match the Right Kasco Control Panel to Your Fountain, Aerator, Circulator, or De-Icer

Every Kasco control panel is a UL- and CSA-listed, rain-proof enclosure that handles GFCI protection, daily run-time scheduling, and (on most models) lighting control for one Kasco fountain, aerator, circulator, or de-icer. Wiring a Kasco unit straight to a breaker works, but a control panel is what lets you run the unit on a daily schedule, dim the lights at the right time of night, and trip the GFCI safely when something goes wrong instead of damaging the motor.

Picking the right panel comes down to two things: which unit you're running, and whether you want a built-in lighting outlet. The C-10 and C-20 are dedicated thermostats for the De-Icer. The C-25 is the smallest fountain/aerator/circulator panel and the one most 120V owners need. The C-85, C-95, C-220, and C-230 cover bigger 240V units (the C-85 and C-95 include a lighting outlet; the C-220 and C-230 do not). The CF-3075 is the three-phase panel that fits the 7.5 HP J Series. Each panel ships with a 10% manufacturer restocking fee on returns.

One Kasco control panel per Kasco fountain, aerator, circulator, or de-icer. UL and CSA listed, rain-proof, GFCI-protected, 24-hour timer on every model. C-85, C-95, and CF-3075 also include a separate lighting outlet and a second timer for the lights.

C-10 and C-20 are thermostats for the De-Icer. C-25 is the 120V fountain/aerator/circulator panel. C-85/C-95 (with lighting) or C-220/C-230 (without lighting) cover 240V units. CF-3075 is the three-phase 7.5 HP J Series panel.

Free shipping on every Kasco Control Panel. Call (470) 354-1969 and we will confirm the right panel for your unit before you order.

Which Panel Do I Need

  • I own a Kasco De-Icer - pick C-10 for a simple air-temp thermostat, or C-20 if you want time-of-day scheduling layered on top of the temperature trigger.
  • I own a 120V Kasco fountain, AquatiClear, or Surface Aerator (1/2 to 1 HP) - C-25. Includes a photocell outlet for optional WaterGlow lighting.
  • I own a 240V Kasco fountain or surface aerator (3/4 to 2 HP) - C-85 if you want a built-in lighting outlet with a second timer; C-220 if you don't.
  • I own a 240V Kasco fountain or surface aerator (3 to 5 HP) - C-95 with lighting outlet, or C-230 without.
  • I own a 240V 7.5 HP J Series fountain (three-phase) - CF-3075. Dual 24-hour timers (unit + lights).
  • Still not sure? Call (470) 354-1969 with your unit's model number and we will match it to the right panel.

Control Panel Comparison

Panel Voltage / Phase Fits Features
C-10 120V / 1 phase De-Icer Air-temperature thermostat, 0-80°F operating range. Includes 8 ft cord.

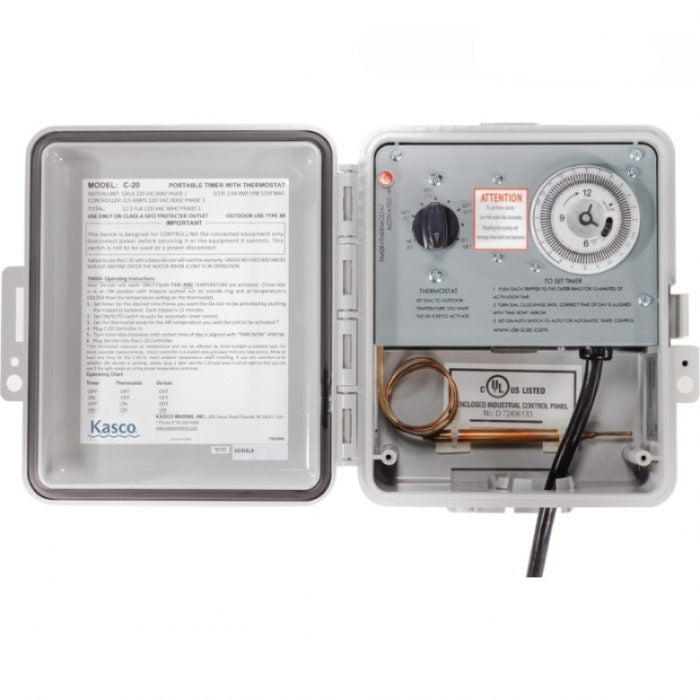

C-20 120V / 1 phase De-Icer Time + temperature controller, 0-40°F operating range. Includes 3 ft cord.

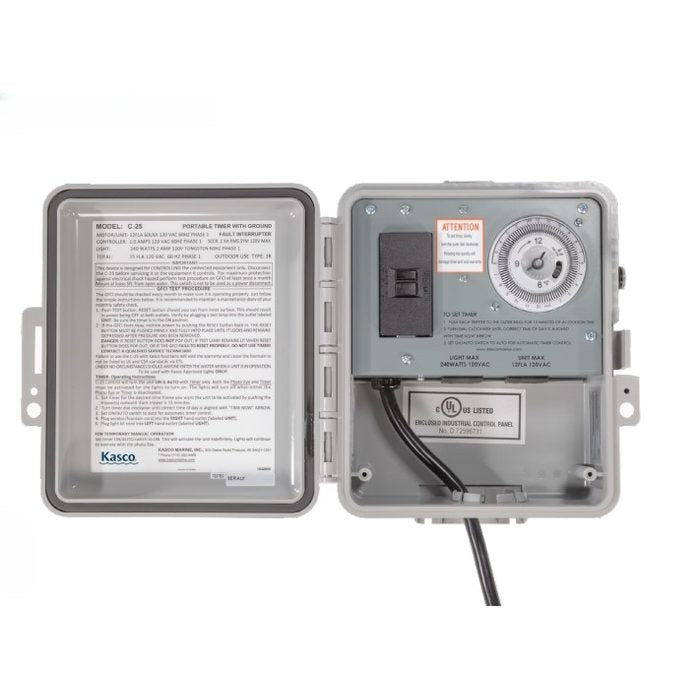

C-25 120V / 1 phase 120V 1/2 - 1 HP Fountains, AquatiClear, Surface Aerators 24-hour timer, GFCI protection, photocell outlet for optional lighting.

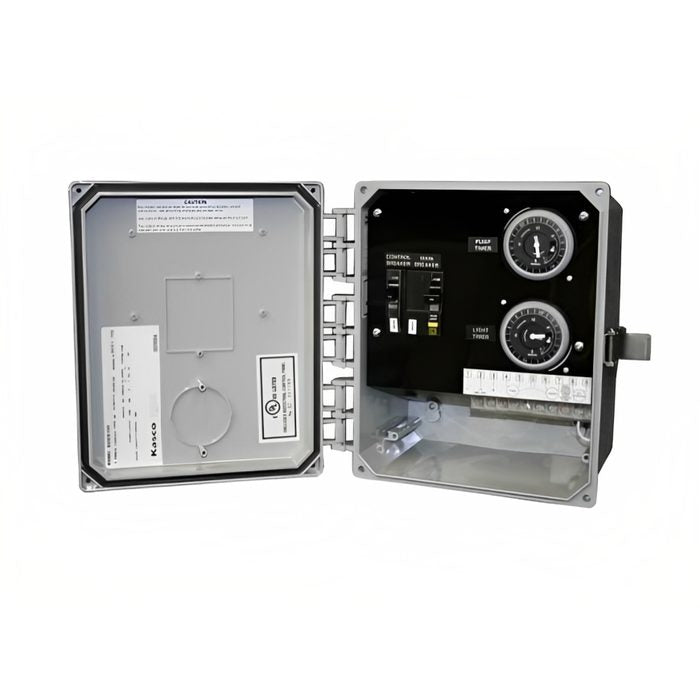

C-85 208-240V / 1 phase 240V 3/4 - 1 HP AquatiClear; 240V 3/4 - 2 HP Fountains and Surface Aerators GFCB protection, 24-hour timer, surge protector, 120V GFI-protected lighting outlet, rain-proof enclosure. Two timers (unit + lights).
C-95 208-240V / 1 phase 240V 3 - 5 HP Fountains and Surface Aerators GFCB protection, 24-hour timer, surge protector, 120V GFI-protected lighting outlet, rain-proof enclosure. Two timers (unit + lights).

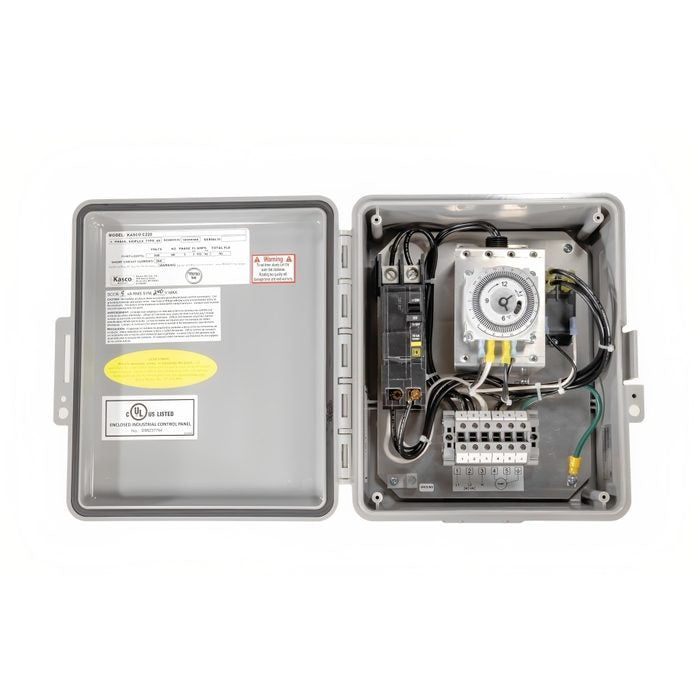

C-220 208-240V / 1 phase 240V 3/4 - 1 HP AquatiClear; 240V 3/4 - 2 HP Surface Aerators GFCB protection, 24-hour timer, surge protector. No lighting outlet.
C-230 208-240V / 1 phase 240V 3 - 5 HP Surface Aerators GFCB protection, 24-hour timer, surge protector. No lighting outlet.

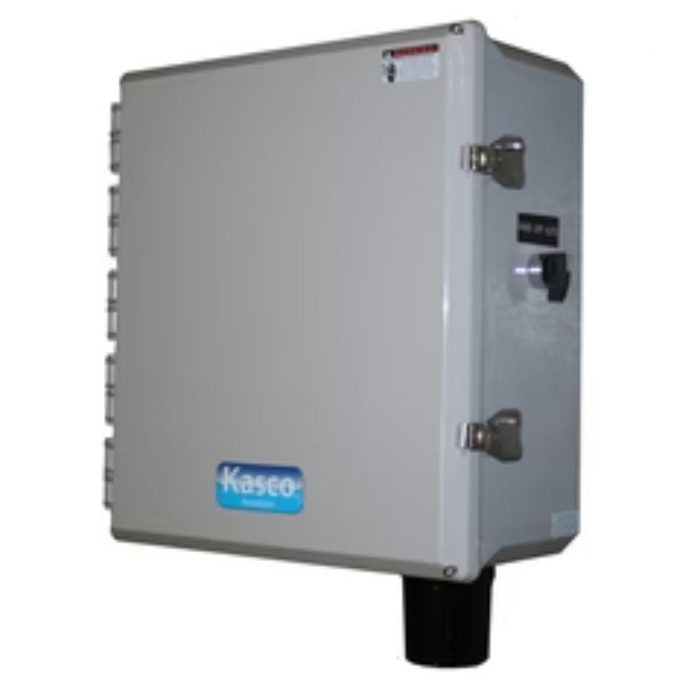

CF-3075 208-240V / 3 phase 240V 7.5 HP J Series Fountain (three-phase) Dual 24-hour timers (unit + lights), GFCI protected. Three-phase only.
Each Kasco panel controls one unit. Do not add cord to a Kasco unit - factory-attached cord up to 500 ft is available at order time. Adding cord voids the warranty and ETL approval. Call (470) 354-1969 with sizing questions.

Key Features Across the Lineup

  • UL and CSA Listed: Every Kasco panel is approved and listed to the strictest UL and CSA safety standards. The whole motor + cord + panel package is ETL listed.
  • GFCI Protection: All panels except the De-Icer thermostats include human-rated GFCI protection. Test GFCI monthly per the instructions in the manual.
  • 24-Hour Timer Dial: Every fountain/aerator/circulator panel includes a 24-hour timer dial so you can program when the unit runs each day. Panels with a lighting outlet include a second separate timer just for the lights.
  • Photocell or Timer Lighting Control: The C-25 uses a photocell to turn the lights on at dusk. The C-85, C-95, and CF-3075 use a separate 24-hour timer for the lighting outlet. C-220 and C-230 do not include a lighting outlet.
  • Rain-Proof Enclosure: Panels are designed for outdoor mounting. NEMA-rated rain-proof enclosure on every C-25 and larger model.
  • Cord-Length Warning: Do not splice additional cord onto a Kasco unit. Kasco factory-attaches cord up to 500 ft at order time. Adding cord after the fact voids the warranty, voids ETL approval, and causes nuisance GFCI tripping.
Manuals
Overview

Match the Right Kasco Control Panel to Your Fountain, Aerator, Circulator, or De-Icer

Every Kasco control panel is a UL- and CSA-listed, rain-proof enclosure that handles GFCI protection, daily run-time scheduling, and (on most models) lighting control for one Kasco fountain, aerator, circulator, or de-icer. Wiring a Kasco unit straight to a breaker works, but a control panel is what lets you run the unit on a daily schedule, dim the lights at the right time of night, and trip the GFCI safely when something goes wrong instead of damaging the motor.

Picking the right panel comes down to two things: which unit you're running, and whether you want a built-in lighting outlet. The C-10 and C-20 are dedicated thermostats for the De-Icer. The C-25 is the smallest fountain/aerator/circulator panel and the one most 120V owners need. The C-85, C-95, C-220, and C-230 cover bigger 240V units (the C-85 and C-95 include a lighting outlet; the C-220 and C-230 do not). The CF-3075 is the three-phase panel that fits the 7.5 HP J Series. Each panel ships with a 10% manufacturer restocking fee on returns.

One Kasco control panel per Kasco fountain, aerator, circulator, or de-icer. UL and CSA listed, rain-proof, GFCI-protected, 24-hour timer on every model. C-85, C-95, and CF-3075 also include a separate lighting outlet and a second timer for the lights.

C-10 and C-20 are thermostats for the De-Icer. C-25 is the 120V fountain/aerator/circulator panel. C-85/C-95 (with lighting) or C-220/C-230 (without lighting) cover 240V units. CF-3075 is the three-phase 7.5 HP J Series panel.

Free shipping on every Kasco Control Panel. Call (470) 354-1969 and we will confirm the right panel for your unit before you order.

Which Panel Do I Need

  • I own a Kasco De-Icer - pick C-10 for a simple air-temp thermostat, or C-20 if you want time-of-day scheduling layered on top of the temperature trigger.
  • I own a 120V Kasco fountain, AquatiClear, or Surface Aerator (1/2 to 1 HP) - C-25. Includes a photocell outlet for optional WaterGlow lighting.
  • I own a 240V Kasco fountain or surface aerator (3/4 to 2 HP) - C-85 if you want a built-in lighting outlet with a second timer; C-220 if you don't.
  • I own a 240V Kasco fountain or surface aerator (3 to 5 HP) - C-95 with lighting outlet, or C-230 without.
  • I own a 240V 7.5 HP J Series fountain (three-phase) - CF-3075. Dual 24-hour timers (unit + lights).
  • Still not sure? Call (470) 354-1969 with your unit's model number and we will match it to the right panel.

Control Panel Comparison

Panel Voltage / Phase Fits Features
C-10 120V / 1 phase De-Icer Air-temperature thermostat, 0-80°F operating range. Includes 8 ft cord.
C-20 120V / 1 phase De-Icer Time + temperature controller, 0-40°F operating range. Includes 3 ft cord.
C-25 120V / 1 phase 120V 1/2 - 1 HP Fountains, AquatiClear, Surface Aerators 24-hour timer, GFCI protection, photocell outlet for optional lighting.
C-85 208-240V / 1 phase 240V 3/4 - 1 HP AquatiClear; 240V 3/4 - 2 HP Fountains and Surface Aerators GFCB protection, 24-hour timer, surge protector, 120V GFI-protected lighting outlet, rain-proof enclosure. Two timers (unit + lights).
C-95 208-240V / 1 phase 240V 3 - 5 HP Fountains and Surface Aerators GFCB protection, 24-hour timer, surge protector, 120V GFI-protected lighting outlet, rain-proof enclosure. Two timers (unit + lights).
C-220 208-240V / 1 phase 240V 3/4 - 1 HP AquatiClear; 240V 3/4 - 2 HP Surface Aerators GFCB protection, 24-hour timer, surge protector. No lighting outlet.
C-230 208-240V / 1 phase 240V 3 - 5 HP Surface Aerators GFCB protection, 24-hour timer, surge protector. No lighting outlet.
CF-3075 208-240V / 3 phase 240V 7.5 HP J Series Fountain (three-phase) Dual 24-hour timers (unit + lights), GFCI protected. Three-phase only.
Each Kasco panel controls one unit. Do not add cord to a Kasco unit - factory-attached cord up to 500 ft is available at order time. Adding cord voids the warranty and ETL approval. Call (470) 354-1969 with sizing questions.

Key Features Across the Lineup

  • UL and CSA Listed: Every Kasco panel is approved and listed to the strictest UL and CSA safety standards. The whole motor + cord + panel package is ETL listed.
  • GFCI Protection: All panels except the De-Icer thermostats include human-rated GFCI protection. Test GFCI monthly per the instructions in the manual.
  • 24-Hour Timer Dial: Every fountain/aerator/circulator panel includes a 24-hour timer dial so you can program when the unit runs each day. Panels with a lighting outlet include a second separate timer just for the lights.
  • Photocell or Timer Lighting Control: The C-25 uses a photocell to turn the lights on at dusk. The C-85, C-95, and CF-3075 use a separate 24-hour timer for the lighting outlet. C-220 and C-230 do not include a lighting outlet.
  • Rain-Proof Enclosure: Panels are designed for outdoor mounting. NEMA-rated rain-proof enclosure on every C-25 and larger model.
  • Cord-Length Warning: Do not splice additional cord onto a Kasco unit. Kasco factory-attaches cord up to 500 ft at order time. Adding cord after the fact voids the warranty, voids ETL approval, and causes nuisance GFCI tripping.
Manuals
