Scott Aerator Solar Atriarch Fountain
Nine-Jet Off-Grid Display Fountain for Ponds That Deserve a Statement Piece: The Scott Aerator Solar Atriarch

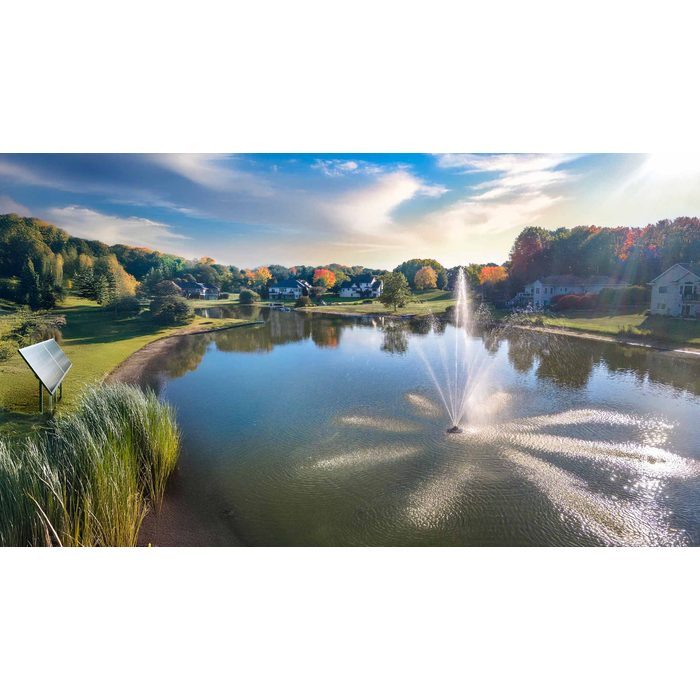

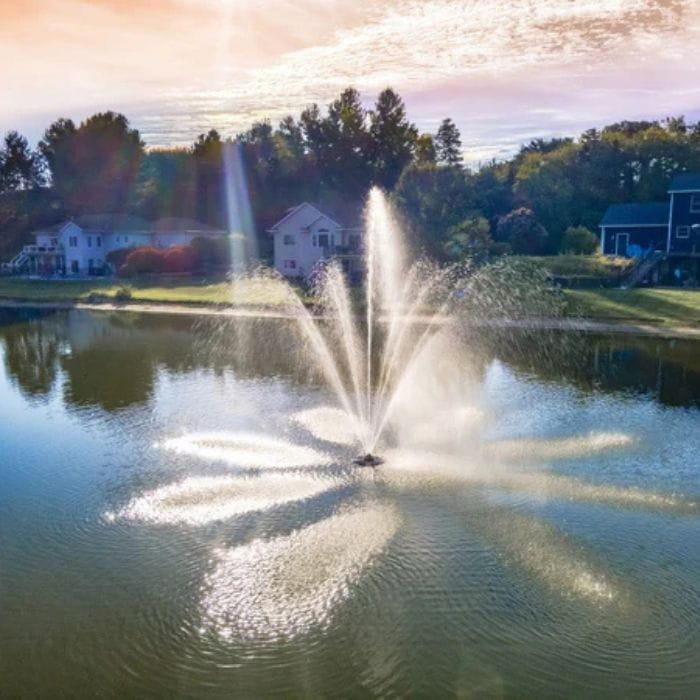

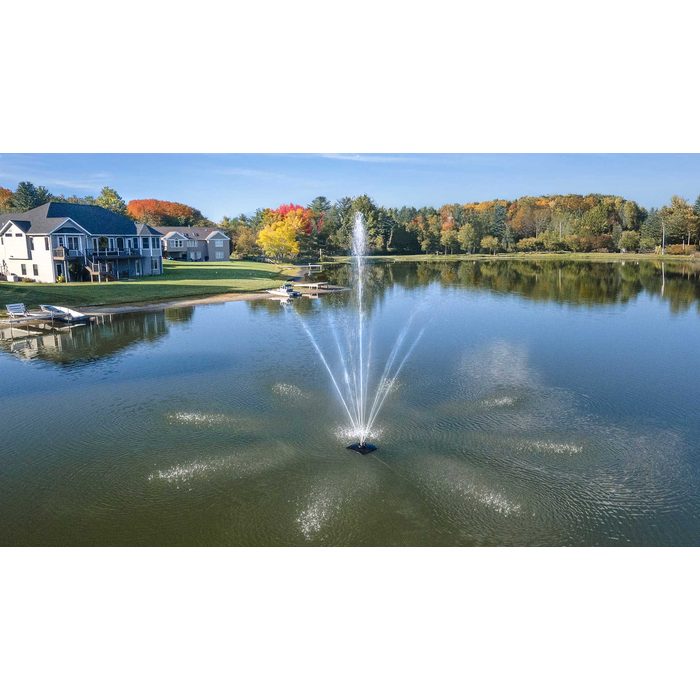

The Scott Aerator Solar Atriarch is a full nine-jet display fountain that runs on the sun. A solid brass nozzle throws one bold central column that reaches up to 20 feet high, wrapped in eight surrounding side jets that spread out to 35 feet in diameter. It is the tallest and widest of Scott's solar 1/2 HP display fountains, and the layered nine-jet pattern reads as a real statement piece on estate ponds, HOA lakes, resort water features and larger commercial installations.
Because the Atriarch runs on a Fhoton Drive variable-speed solar inverter and two 350-watt mono-crystalline panels, there is no electric hookup required, no ongoing power bill, and no battery bank to maintain. On bright days the pump runs at full flow, on cloudy days it ramps down gracefully, and after dark it shuts off until sunrise. That makes it the right pick for remote ponds where trenching electric would be cost-prohibitive.
The Atriarch also delivers real aeration work beneath the surface. 45 gallons per minute of oxygen-rich water circulation supports fish and aquatic life, breaks down decaying matter and reduces muck over time. Every unit uses Scott Aerator's stainless steel, oil-free, submersible Franklin Electric motor, is safe for fresh or salt water, and is backed by a 5-year unconditional motor warranty. Free shipping from Pro Pond Supply. Assembled and shipped from Holland, Michigan.
The Scott Aerator Solar Atriarch is a nine-jet display fountain that runs on the sun. Solid brass nozzle with 1 center jet and 8 side jets throws a 20 ft central column with a 35 ft spread. Estate-scale statement piece.
Powered by two 350-watt panels and a Fhoton Drive variable-speed inverter. No batteries, no maintenance, no monthly electric bill. Runs strong in sun, slower in clouds, off after dark.
45 GPM of circulation also aerates the pond and reduces muck. Stainless steel oil-free Franklin Electric motor, fresh or salt water, 5-year unconditional warranty. Free shipping from Pro Pond Supply.
Free shipping on every Scott Aerator Solar Atriarch Fountain. Assembled in Holland, Michigan and backed by a 5-year motor warranty.
Key Features
- Nine-Jet Solid Brass Nozzle: Precision brass nozzle with one central jet plus eight surrounding side jets. Distinctive multi-jet display pattern that reads as a real statement piece.
- 20 ft Center Jet, 35 ft Side Spread: Bold central column reaches up to 20 feet high, surrounded by side jets that spread to 35 feet in diameter. Estate-scale display presence.
- Fhoton Drive Solar Inverter: Variable-speed motor drive that gradually ramps the pump up and down with available sunlight. No batteries. Full flow in sun, slower in clouds, off at dark.
- Stainless Steel Oil-Free Motor: Franklin Electric submersible induction motor. Corrosion-resistant, fresh or salt water. No oil to leak into the pond.
- 45 GPM of Water Circulation: Enough flow to transfer real oxygen into the water, support fish and aquatic life, and reduce muck over time. This is a display fountain that also does work.

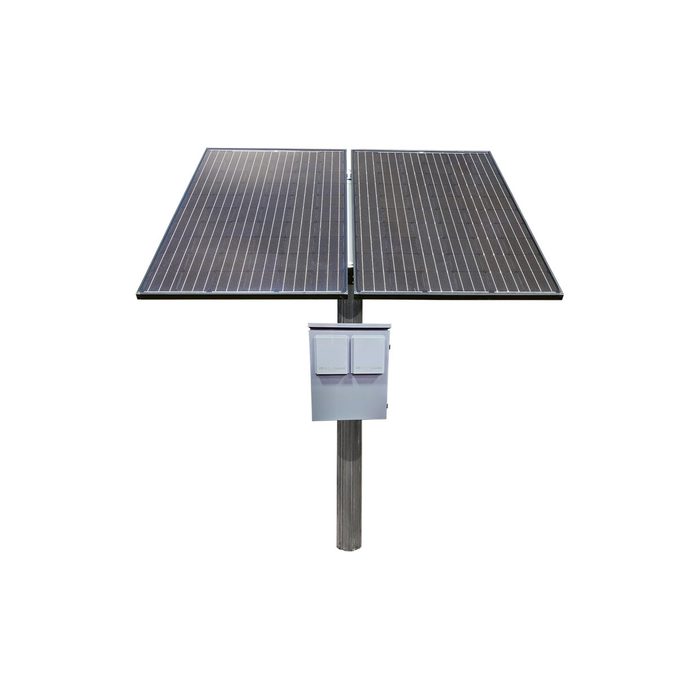

- Two 350-Watt Mono-Crystalline Panels: High-efficiency 60-cell panels measuring 41 x 69 in each. Mounts on a single galvanized steel pole (installer supplied) with concrete footing.
- Choose Your Cord Length: 12-gauge submersible power cord in 70, 100, 150, or 200 ft. Buyer selects based on distance from the panel pole to the fountain.
- 5-Year Motor Warranty: Unconditional warranty against defects in materials or workmanship under normal operating conditions.
See the Scott Aerator Solar Atriarch in Action
Requirements & What to Know Before You Buy
- Vertical mounting pole: 4-inch SCH 40 or 80 galvanized steel pipe (installer supplied).
- Concrete footing for the mounting pole (installer supplied).
- Two anchor ropes with 25 lb weights or concrete blocks for the floating fountain (installer supplied).
- Sun exposure on the panel location for the majority of the day.
- Minimum pond depth of 36 in.
- GFCI protection at the disconnect box.
- Disconnect power when swimmers are in the water.
What's Included & Optional Add-Ons
- Solar Atriarch Fountain with stainless steel oil-free submersible motor
- Solid brass 9-jet nozzle (1 center + 8 side jets)
- Two solar panels with mounting frame
- Fhoton Drive variable-speed solar inverter
- All required wiring components
- 12-gauge submersible power cord in the length you select (70, 100, 150, or 200 ft)
Solar Atriarch Fountain Specifications
| Manufacturer | Scott Aerator Company (est. 1963, Holland, Michigan) |
| Fountain Style | Nine-jet display spray with a bold central column and eight surrounding side jets |
| Nozzle | Solid brass, 1 center + 8 side jets |
| Motor | 1/2 HP stainless steel oil-free submersible, Franklin Electric |
| Flow Rate | 45 GPM |
| Volts / Phase / Hz | 48V 3-Phase 60 Hz |
| Amps | 10.3 A |
| Motor Power | 0.37 kW |
| Spray Height | Center stream reaches 20 ft |
| Spray Pattern | Side-jet angled pattern up to 35 ft in diameter |
| Solar Panels | Two 350-watt 60-cell mono-crystalline |
| Solar Panel Size | 41 in x 69 in each, 45 lb each |
| Controller | Fhoton Drive variable-speed solar inverter, no batteries required |
| Cord | 12-gauge submersible, 70 to 200 ft (buyer selects) |
| Anchoring | Two 25 lb weights or concrete blocks required (not included) |
| Mounting Pole | 4-inch SCH 40 or 80 galvanized steel pipe with concrete footing (installer supplied) |
| Minimum Pond Depth | 36 in |
| Water Compatibility | Fresh water and salt water |
| Maintenance Required | None |
| Country of Origin | Made in the USA (Holland, Michigan) |
| UPC / MPN | 810094926847 / 15500 |
| Warranty | 5-Year unconditional motor warranty |
