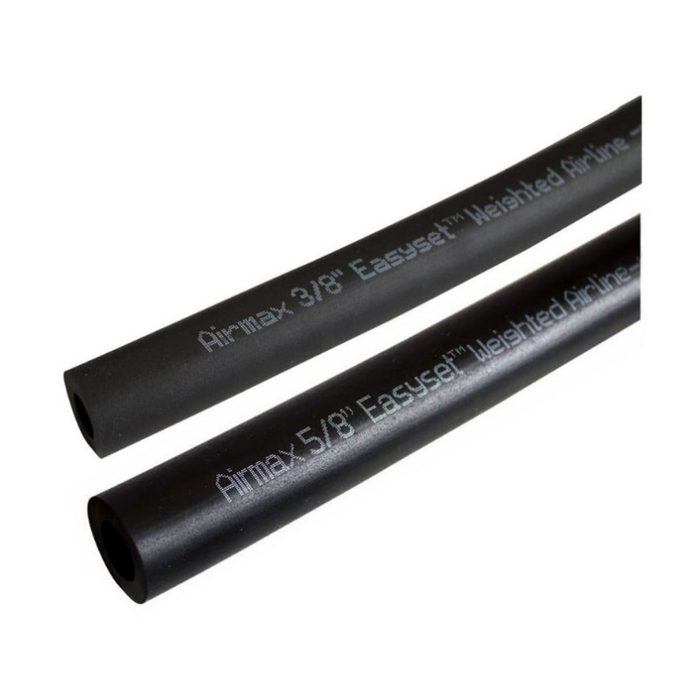

Airmax EasySet Weighted Airline
Replacement Weighted Airline for Airmax Diffused Aeration
The Airmax EasySet Weighted Airline is a self-weighted, kink-free, lead-free polyethylene tubing built for continuous submerged use in pond and lake aeration systems. Because it's weighted through the wall (not by adding external ballast) it sinks on its own the moment you drop it in the water and stays flat on the bottom - even when the compressor is running and the airline is pressurized. That means no floating loops, no snags on fishing line, and no separate weights to install.

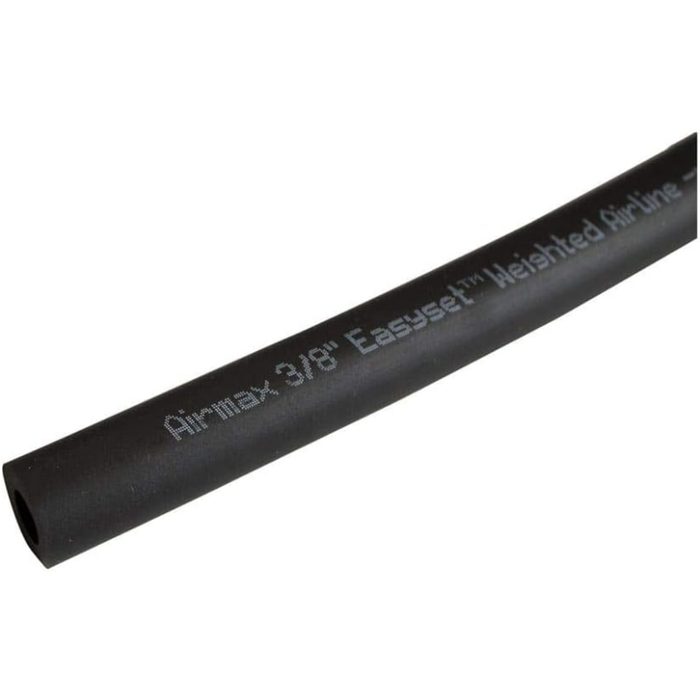

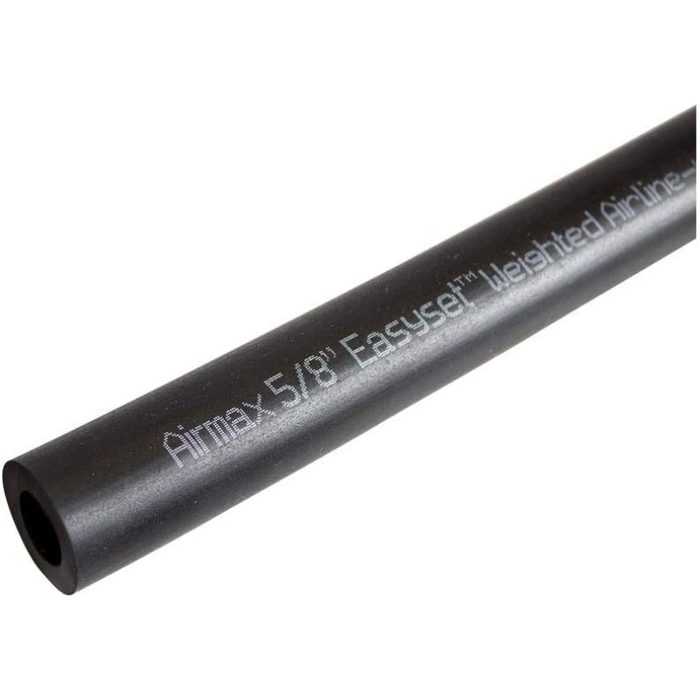

Pick the diameter and length that match your system. 3/8-inch airline is the standard for shorter runs and lower-CFM systems (SW20, PS10, PS20, PondSeries 3/8-inch installs). Available in 25 ft, 50 ft, and 100 ft rolls - great for short diffuser runs, replacements, or spot repairs. 5/8-inch airline is required for higher-CFM systems and any single run longer than 300 ft, or when total airline on the system exceeds 600 ft. Rated for total system runs up to 1,000 ft per diffuser plate.
Fish-safe, puncture-resistant, and lead-free. Connects to any Airmax aeration system compressor and any Airmax diffuser using the standard EasySet Airline Connector Kit (sold separately). Cuts to length with a utility knife. Backed by a 5-year warranty. Rated for underwater use only - for above-ground shore runs use Airmax Direct Burial Airline.
The Airmax EasySet Weighted Airline is self-weighted, kink-free polyethylene tubing built for underwater aeration systems. Weighted through the wall so it sinks and stays on the bottom - no floating loops, no separate weights.
Pick 3/8-inch for shorter runs and lower-CFM systems (SW20, PS10, PS20). 25 ft, 50 ft, or 100 ft rolls. Pick 5/8-inch for higher-CFM systems, any single run longer than 300 ft, or total airline over 600 ft.
Fish-safe, puncture-resistant, lead-free. Connects to any Airmax compressor and diffuser with the EasySet Connector Kit. Cuts to length with a utility knife. 5-year warranty. For underwater use only.
Free shipping on airline orders. Call (470) 354-1969 if you need help sizing.

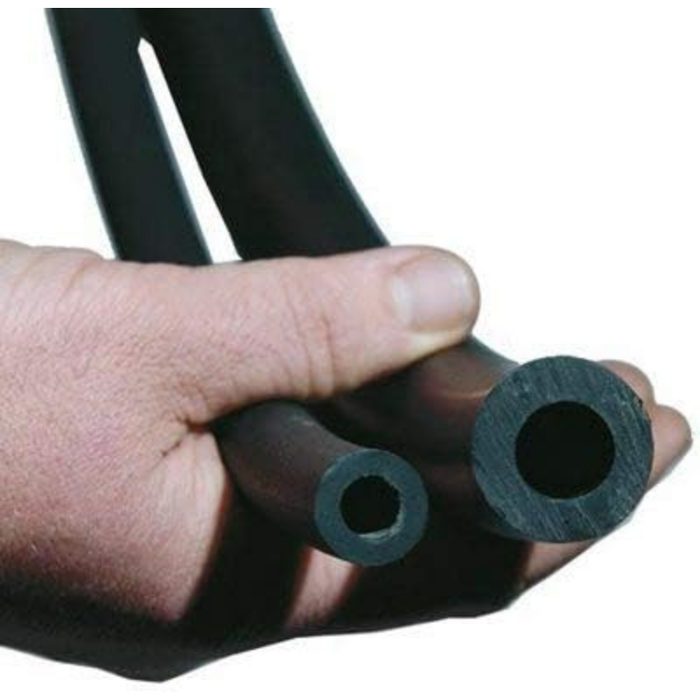

3/8" vs 5/8" Weighted Airline
| 3/8" EasySet | 5/8" EasySet | |
|---|---|---|
| Inside Diameter | 3/8" | 5/8" |
| Available Lengths | 25 ft, 50 ft, 100 ft | 100 ft |
| Application | Underwater pond aeration - compressor to diffuser | |
| Weighting | Self-weighted through the wall (lead-free) | |
| Wall Type | Thick-wall, kink-free, fish-safe, puncture-resistant polyethylene | |
| Recommended For | SW20, PS10, PS20, PondSeries 3/8" installs, short diffuser runs, spot replacements | SW40, PS40, PS60, SolarSeries, any single run over 300 ft, systems with 600+ ft total airline |
| Max Length per Plate | 1,000 ft (any Airmax aeration system) | |
| Cuts to Length | Yes - utility knife; connect with EasySet Connector Kit (sold separately) | |
| Compatible with Direct Burial Airline | Yes - connect using EasySet Connector Kit | |
| Warranty | 5 years | |
Requirements & What to Know Before You Buy
- Underwater Use Only: the EasySet Weighted Airline is engineered for continuous submerged operation. For above-ground or buried shore runs, use Airmax Direct Burial Airline instead - the two connect together with the EasySet Connector Kit.
- 3/8-inch or 5/8-inch: use 3/8-inch for shorter runs and lower-CFM systems (SW20, PS10, PS20). Use 5/8-inch when any single airline run is longer than 300 ft, when total airline on the system exceeds 600 ft, or on higher-CFM systems (SW40, PS40, PS60, SolarSeries).
- Maximum Length per Diffuser Plate: 1,000 ft total per diffuser. Beyond that, pressure drop starts to noticeably reduce diffuser output.
- Length Sizing: measure from the compressor cabinet to each diffuser drop point through any conduit runs, then add 5-10 ft of slack per line for depth variation and seasonal water-level changes.
- Connector Kit Required: use the EasySet Airline Connector Kit (Airmax part 490204 for 3/8-inch, and matching 5/8-inch kit) to join lengths of airline, connect to diffusers, and connect to Direct Burial Airline. Sold separately.
- Cutting to Length: the airline cuts cleanly with a utility knife. Make the cut square (not at an angle) for a proper seal with the connector fittings.
- Installation Position: drop the airline into the water and let it self-weight to the bottom. Do not intentionally coil the airline - it will straighten itself out as the compressor pressurizes it.
- Ozone / UV: if any of the airline sits above water (fittings at the compressor, brief exposed span at the diffuser), that section is not UV-rated for long-term direct sunlight. Bury or shield exposed sections.
- Sizing Help: Call (470) 354-1969 with your aeration system model, diffuser count, and shore-to-pond distance and we will confirm the right diameter and length.
What's Included & Optional Add-Ons
- 1 Roll of EasySet Weighted Airline in the diameter and length you select
- Optional EasySet Airline Connector Kit - required to connect the airline to compressors, diffusers, or between rolls (sold separately)
- Optional Direct Burial Airline - for above-ground shore runs and buried conduit sections (sold separately)
- Optional Airline Reel or Winder - useful when installing longer runs from a fixed shore location (sold separately)
EasySet Weighted Airline Specifications
| Manufacturer | Airmax, Inc. (Armada, Michigan) |
| Type | Self-weighted underwater aeration airline |
| Available Diameters | 3/8-inch and 5/8-inch inside diameter |
| Available Lengths | 3/8": 25 ft, 50 ft, 100 ft | 5/8": 100 ft |
| Material | Lead-free polyethylene, self-weighted through the wall |
| Weighting Method | Weighted through the wall (no external ballast) |
| Wall Construction | Thick-wall, kink-free, fish-safe, puncture-resistant |
| Application | Underwater use only - compressor to diffuser |
| Max Length per Plate | 1,000 ft (any Airmax aeration system) |
| 5/8" Recommended For | Runs over 300 ft, total airline over 600 ft, higher-CFM systems |
| Cutting | Utility knife - cut square for proper connector seal |
| Connector Kit Required | EasySet Airline Connector Kit (sold separately) |
| Compatible With | All Airmax diffused aeration systems (SW Series, PondSeries, SolarSeries) |
| Direct Burial Compatibility | Connects to Airmax Direct Burial Airline with the EasySet Connector Kit |
| Warranty | 5 years |
| Country of Origin | Made in USA (Armada, MI) |
