Airmax PondSeries Pond Fountain
Commercial-Tier Aeration and Display in a Single Fountain
The Airmax PondSeries is Airmax's commercial-duty fountain family - patent-pending high-flow cooling shroud design, energy-efficient sealed motor rated for continuous 24/7 duty, and crisp aerating spray patterns that read as a fountain but do serious aeration work. Three motor sizes cover backyard koi ponds through 2-acre HOA lakes, all built on the same platform.
Pick 1/2 HP 115V for standard household residential installs (up to 1/4 acre). Step up to 1/2 HP 230V when the cord run is long enough that 230V voltage-drop math matters. The 1 HP 230V is the sweet spot for HOA lakes up to 1 acre. The 2 HP 230V handles up to 2 acres of water with the tallest spray heights in the family - up to 17 ft on the Trumpet nozzle.

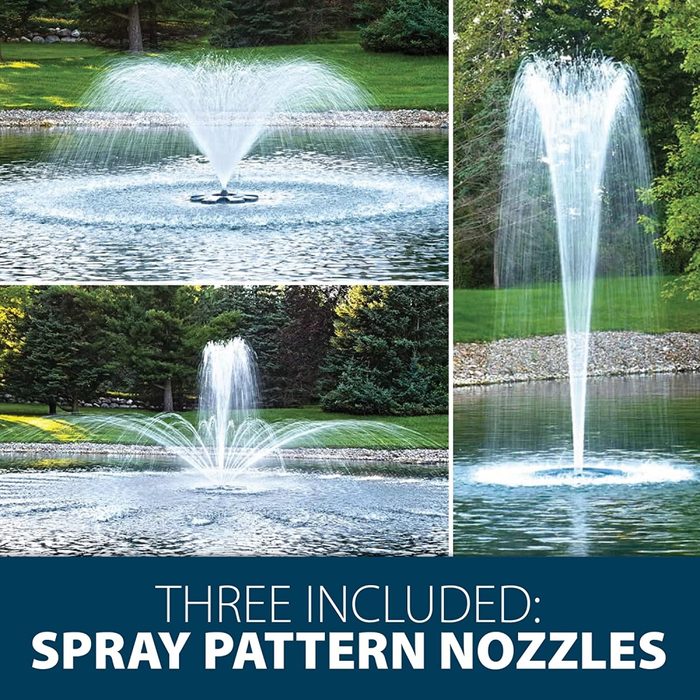

Every configuration ships with the sealed cooling-shroud motor, marine-grade float, three included spray patterns (Classic, Crown & Trumpet, Trumpet), and Airmax's dual-timer control panel. Four premium nozzles (Single Arch, Double Arch, Double Arch w/ Geyser, Blossom) are available if you want a wider or taller display. Every kit 200 ft and above ships with an underwater quick disconnect. Backed by a 3-year manufacturer warranty on the fountain and control panel.
The Airmax PondSeries is Airmax's commercial-duty fountain family - patent-pending cooling shroud motor, sealed and rated for continuous 24/7 duty, and crisp aerating patterns that read as a fountain but do serious aeration work. Three motor sizes cover backyard koi ponds through 2-acre HOA lakes.
Pick 1/2 HP 115V for standard residential ponds, 1/2 HP 230V for long cord runs, 1 HP 230V for HOA lakes up to 1 acre, or 2 HP 230V for water bodies up to 2 acres with the tallest spray heights in the family - up to 17 ft on the Trumpet nozzle.
Every kit includes the motor, float, dual-timer control panel, and three spray patterns (Classic, Crown & Trumpet, Trumpet). Four premium nozzles are available separately for taller or wider displays. Kits 200 ft and above ship with the underwater quick disconnect.
Free shipping on every PondSeries kit. Call (470) 354-1969 for sizing help.
See the PondSeries in Action

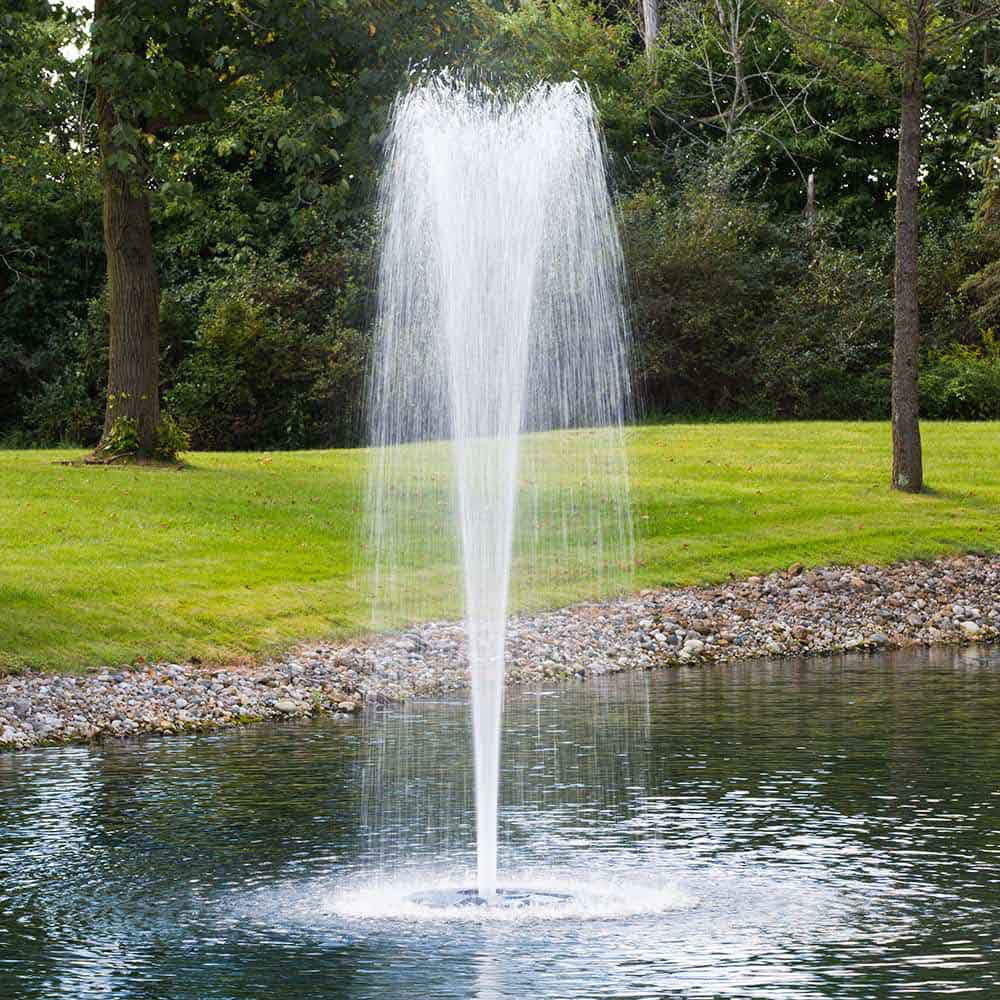

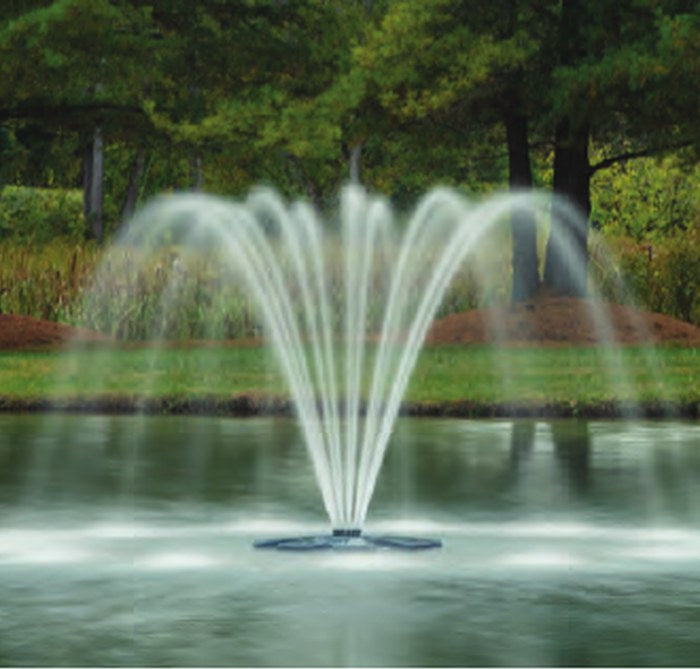

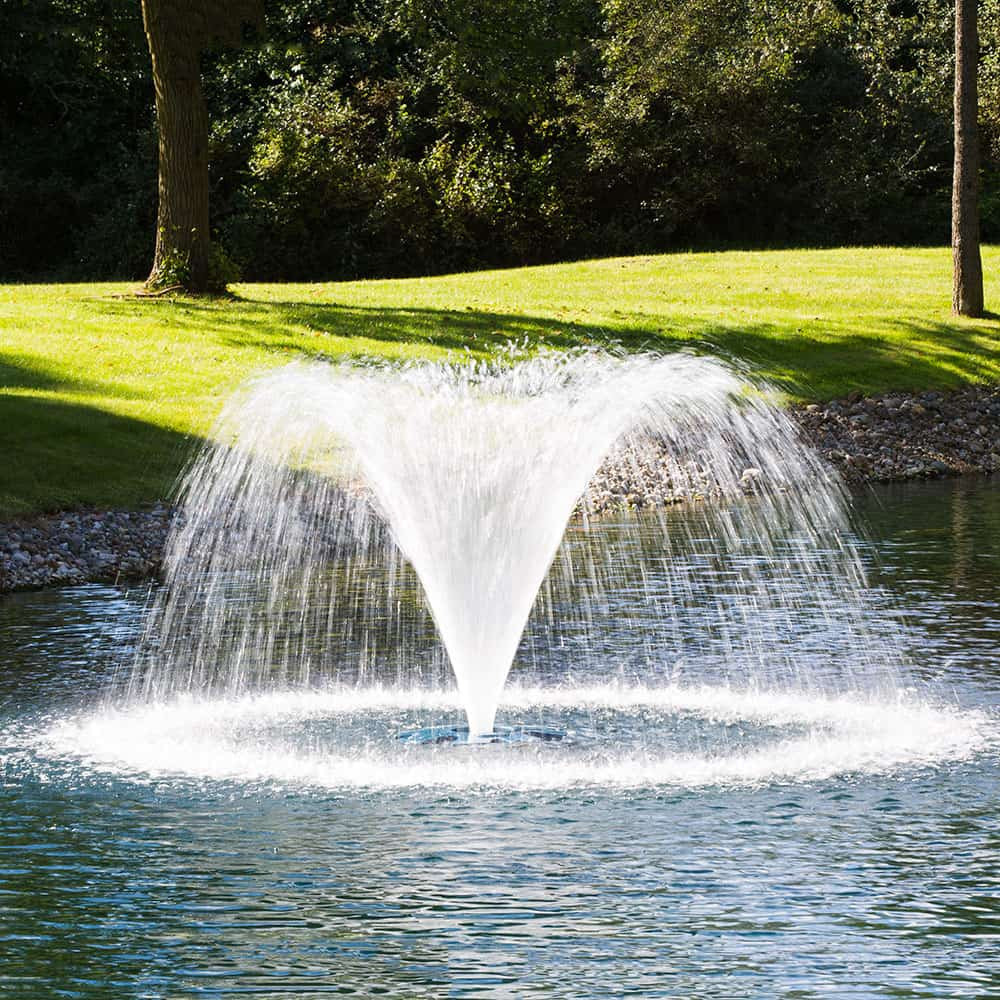

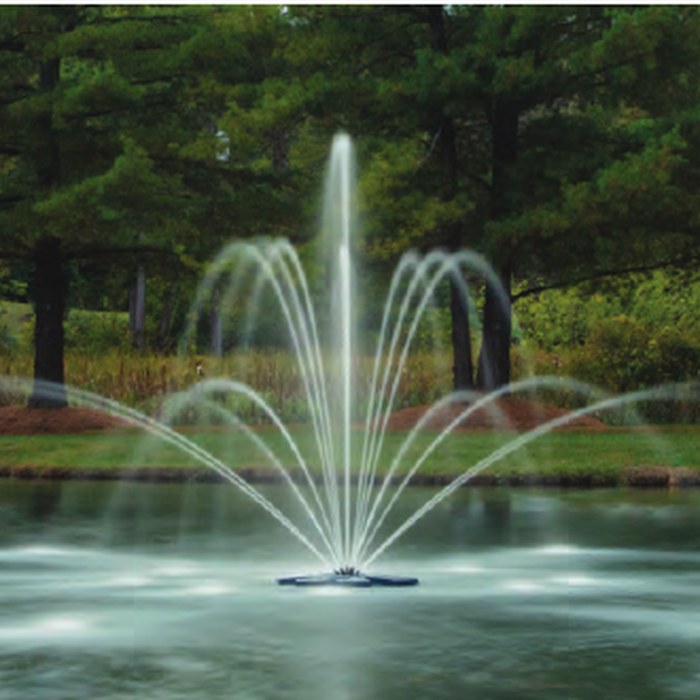

PondSeries Spray Pattern Comparison

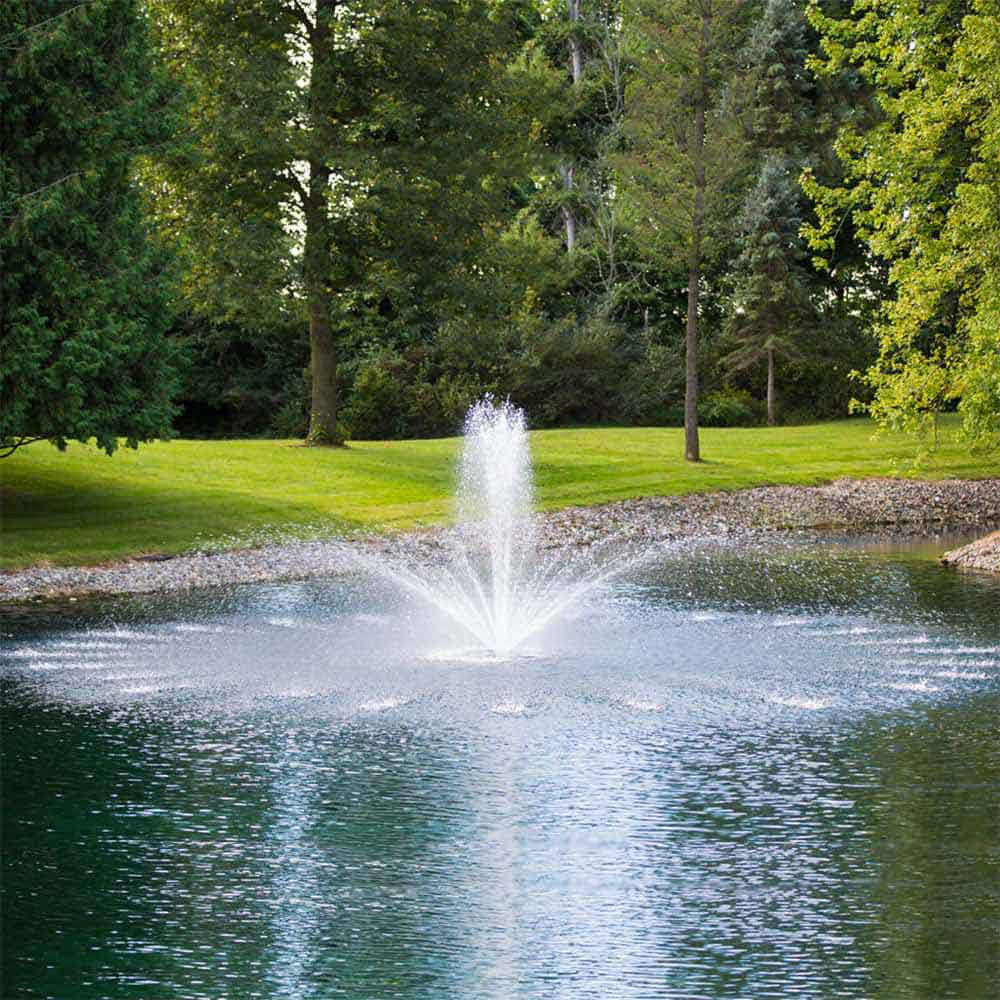

| Classic | Crown & Trumpet |
Trumpet | Single Arch |

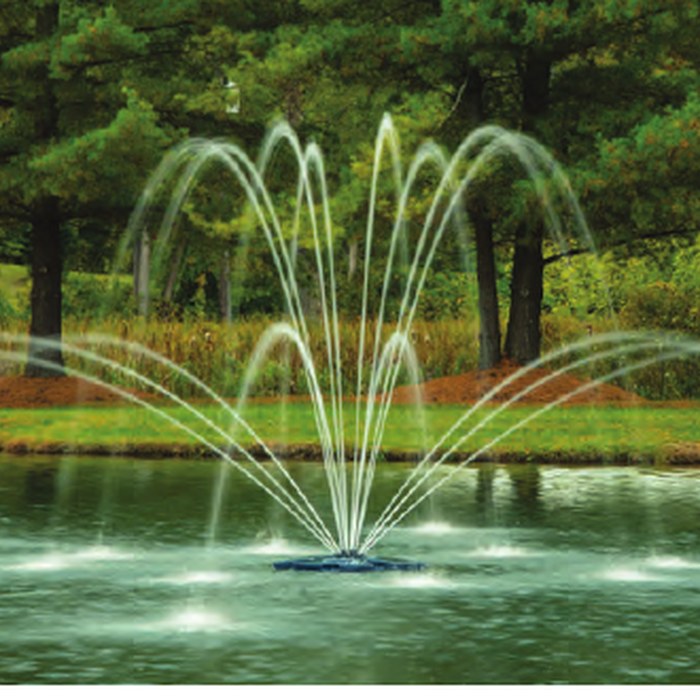

Double Arch |
Double Arch w/ Geyser |

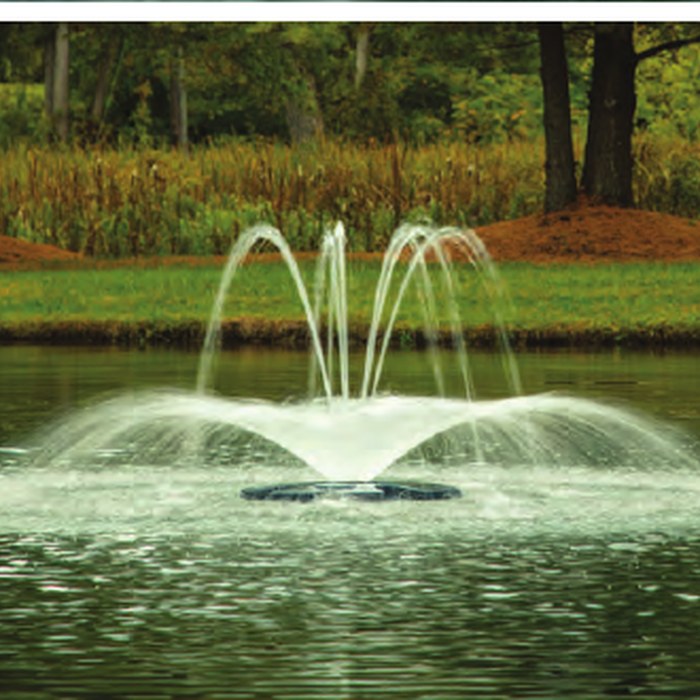

Blossom | |
|---|---|---|---|---|---|---|---|
| Pattern |  |
 |
 |
 |
 |
 |
 |
| Type | Included in Kit | Optional (Sold Separately) | |||||
| 1/2 HP Height x Width | 6' H x 16' W | Trumpet: 8' H x 4' W Crown: 4' H x 32' W |
12.5' H x 5' W | 9' H x 14' W | 1st Tier: 10' H x 14' W 2nd Tier: 5' H x 34' W |
Geyser: 8' H 1st Tier: 6' H x 7' W 2nd Tier: 5' H x 30' W |
1st Tier: 4' H x 7' W 2nd Tier: 2' H x 12' W |
| 1 HP / 2 HP Height x Width | Scales up with HP | Scales up with HP | Up to 17' H x 7' W | Up to 9' H x 24' W | Scales up with HP | Up to 7' H x 15' W | Scales up with HP |
| Best For | Standard everyday pond display and continuous aeration | Wider or taller displays; showpiece water features on HOA lakes and commercial ponds | |||||
Requirements & What to Know Before You Buy
- Pond Size: 1/2 HP handles up to about 1/4 acre, 1 HP up to about 1 acre, and 2 HP up to about 2 acres. Larger water bodies need additional diffused aeration or multiple fountains for full circulation.
- Minimum Operating Depth: 36 inches. Deeper than the EcoSeries because the PondSeries cooling shroud pulls water past the motor for cooling and needs the head clearance.
- Electrical - 1/2 HP 115V: standard 115V household circuit, ~12 A. Plug into a properly wired 20 A circuit with GFCI protection. Fine for residential installs.
- Electrical - 230V configs: dedicated 230V circuit with GFCI protection. 1/2 HP 230V is 6 A, 1 HP 230V is 7 A, 2 HP 230V is 13 A. Consult a licensed electrician for permanent installs.
- Cord Sizing: measure from the fountain's intended location straight to the shore panel. 1/2 HP 115V is limited to 200 ft (voltage drop math); the 230V configs run out to 500 ft.
- Cord Protection - Standard: SJTOOW / SEOOW outdoor rubber jacket. Best for buried conduit runs and protected shorelines.
- Cord Protection - PolyFlex: braided sleeve over the cord. Rated for rocky shorelines, rodent-exposed installs, and dock traffic.
- Cord Protection - Stainless Steel Armored: stainless steel braid over the cord. Best for public installs and vandalism-prone sites.
- Underwater Quick Disconnect: 200 ft and longer cord runs ship with the disconnect standard. Shorter runs do not include it by default.
- Mooring: supply anchors and rope separately. Airmax's Fountain Mooring Kit is available in 150', 250', and 500' lengths (sold separately).
- Sizing Help: Call (470) 354-1969 with your pond dimensions, shore layout, and voltage preference and we will confirm the right kit.

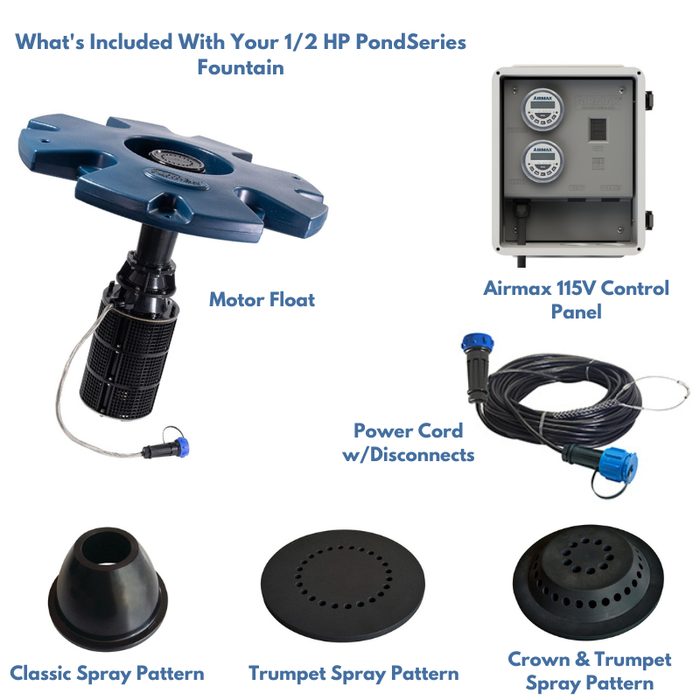

What's Included & Optional Add-Ons

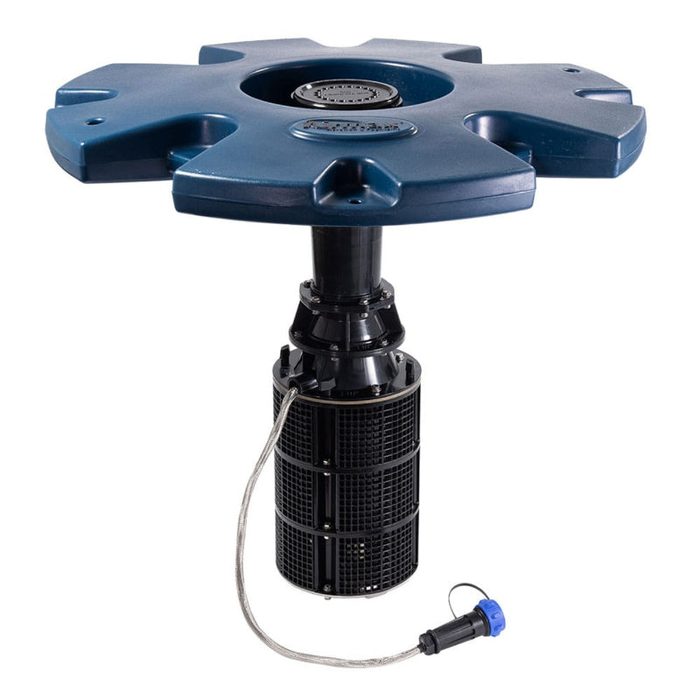

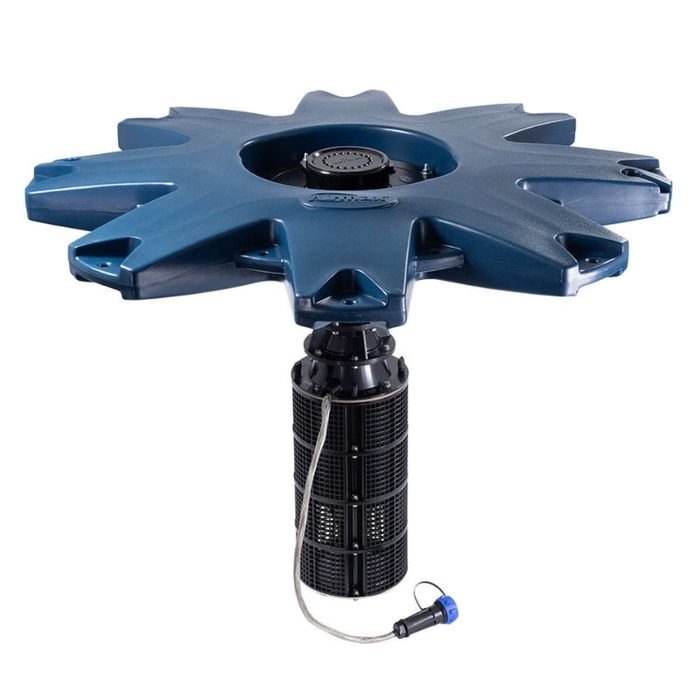

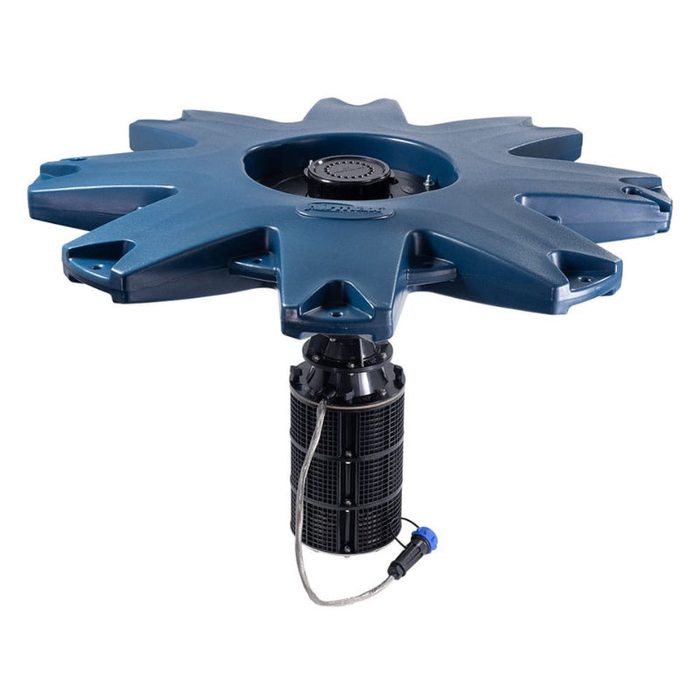

- PondSeries Sealed Cooling-Shroud Motor - 1/2, 1, or 2 HP; UL approved; rated for continuous 24/7 duty
- Marine-Grade Float - sized for wind and wake stability
- Classic Spray Pattern Nozzle
- Crown & Trumpet Spray Pattern Nozzle
- Trumpet Spray Pattern Nozzle
- 115V or 230V Control Panel - dual digital timers for fountain + optional light set, up to 8 daily run cycles
- Power Cord w/ Strain Relief - 100 to 500 ft depending on motor / voltage; standard, PolyFlex-protected, or stainless steel armored jacket
- Underwater Quick Disconnect - included on 200 ft and longer cord runs
- Optional Premium Nozzles - Single Arch, Double Arch, Double Arch w/ Geyser, and Blossom patterns (sold separately, HP-specific)
- Optional Fountain Light Kit - Airmax fountain lights compatible with the PondSeries control panel (sold separately)
- Optional Fountain Mooring Kit - 150', 250', or 500' lengths (sold separately)
PondSeries Fountain Specifications
| Manufacturer | Airmax, Inc. (Armada, Michigan) |
| Series | PondSeries |
| Motor Options | 1/2 HP 115V, 1/2 HP 230V, 1 HP 230V, 2 HP 230V |
| Motor Construction | Sealed, UL-approved, patent-pending high-flow cooling shroud design |
| Amps | 1/2 HP 115V: 12 A | 1/2 HP 230V: 6 A | 1 HP 230V: 7 A | 2 HP 230V: 13 A |
| Minimum Operating Depth | 36 in (all motors) |
| Recommended Pond Size | 1/2 HP: up to 1/4 acre | 1 HP: up to 1 acre | 2 HP: up to 2 acres |
| Max Spray Height | 1/2 HP Trumpet: 12.5 ft | 1 HP Trumpet: 16 ft | 2 HP Trumpet: 17 ft |
| Included Nozzles | Classic, Crown & Trumpet, Trumpet (per HP class) |
| Optional Nozzles | Single Arch, Double Arch, Double Arch w/ Geyser, Blossom (HP-specific SKUs) |
| Nozzle Material | Engineering-grade plastic; premium stainless steel flow straightener available |
| Control Panel | 115V or 230V matched to motor; dual digital timers (up to 8 daily cycles) for fountain + optional light set |
| Cord Lengths Available | 1/2 HP 115V: 100/150/200 ft | 1/2 HP 230V: 100-500 ft | 1 HP / 2 HP 230V: 100-500 ft |
| Cord Gauge | 1/2 HP: 10/3 SJTOOW | 1 HP / 2 HP: 12/4 SEOOW 600V |
| Cord Protection Options | Standard SJTOOW / SEOOW, PolyFlex braided sleeve, Stainless Steel armored |
| Underwater Quick Disconnect | Standard on 200 ft and longer runs |
| Tools Required | None for assembly or nozzle changes |
| Optional Lighting | Airmax RGBW LED and White LED fountain kits (sold separately) |
| Applications | Residential ponds, HOA lakes, resort water features, commercial installations, ranches / farms |
| Warranty | 3-year manufacturer warranty on fountain and control panel |
| Country of Origin | Made in USA (Armada, MI) |
