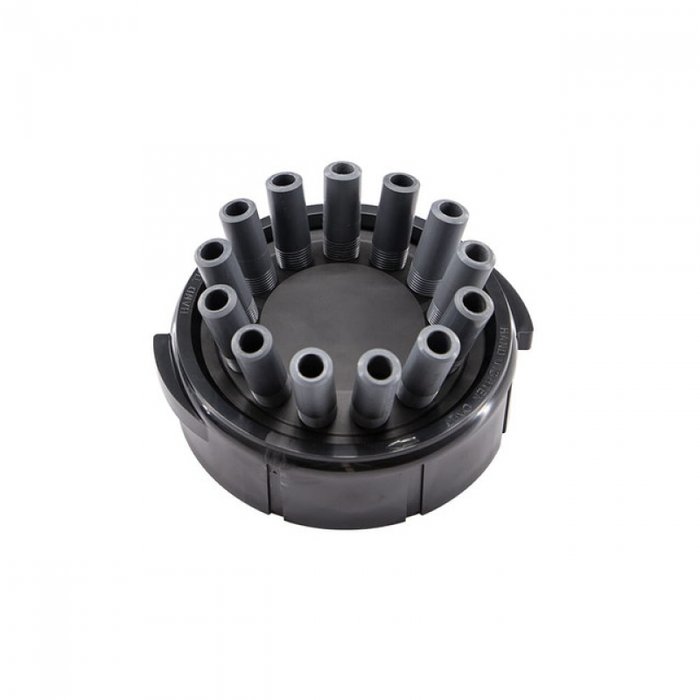

Airmax Single Arch Fountain Nozzle - Physical Closeup

Airmax Premium Fountain Nozzles

by Airmax
SKU 651446
$249.99
Made in the USA
No Sales Tax Outside Georgia
Free Delivery from U.S. Warehouses
Talk to a Specialist: (470) 354-1969
Better Price? Request a Wire Discount Bulk or Business Order? Get a Fast Custom Quote Veterans & First Responders Save
Free Shipping
Ships --
Arrives --

Notify me when back in stock

Airmax 3 year warranty trust badges Airmax 3 year warranty trust badges

Turn Your Fountain Into a Showpiece Water Feature

Airmax Premium Nozzles unlock the wider, taller, and more decorative spray patterns that don't come in the standard EcoSeries / PondSeries / SolarSeries kits. Four patterns to pick from - Single Arch, Double Arch, Double Arch w/ Geyser, and Blossom - each engineered to match a specific fountain HP class so the spray height and width look right at your pond scale.

Every premium nozzle drops onto the same discharge port as the three included patterns. Swap by hand in under a minute - no tools, no motor changes, no re-plumbing. The float, motor, and control panel stay exactly as-is. Add a premium nozzle and you go from a standard fountain to a decorative showpiece the next time you want a taller geyser for a holiday, a wider arch for a wedding, or a blossom pattern for a resort night display.

Pick your fountain HP class first (EcoSeries 1/2 HP, PondSeries 1/2 HP, PondSeries 1 HP or SolarSeries, or PondSeries 2 HP), then pick your spray pattern. The Airmax part number for your exact fit is listed on the variant. Free shipping on every nozzle.

Airmax Premium Nozzles unlock wider, taller, and more decorative spray patterns for your Airmax fountain. Four patterns - Single Arch, Double Arch, Double Arch w/ Geyser, Blossom - engineered to match specific fountain HP classes.

Every premium nozzle drops onto the same discharge as your standard patterns. Swap by hand in under a minute - no tools, no motor changes. Go from a standard fountain to a showpiece display anytime.

Pick your fountain HP class (EcoSeries 1/2 HP, PondSeries 1/2 / 1 / 2 HP, or SolarSeries), then pick your spray pattern. Compatible Airmax part number shows on the variant.

Free shipping on every nozzle. Call (470) 354-1969 if you need fit help.

Airmax Premium Fountain Nozzles - 4 spray patterns

Premium Nozzle Pattern Comparison

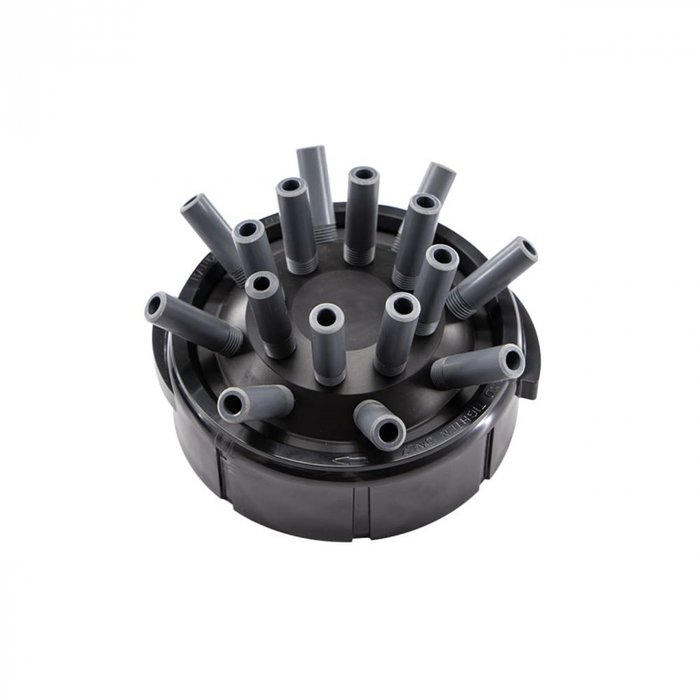

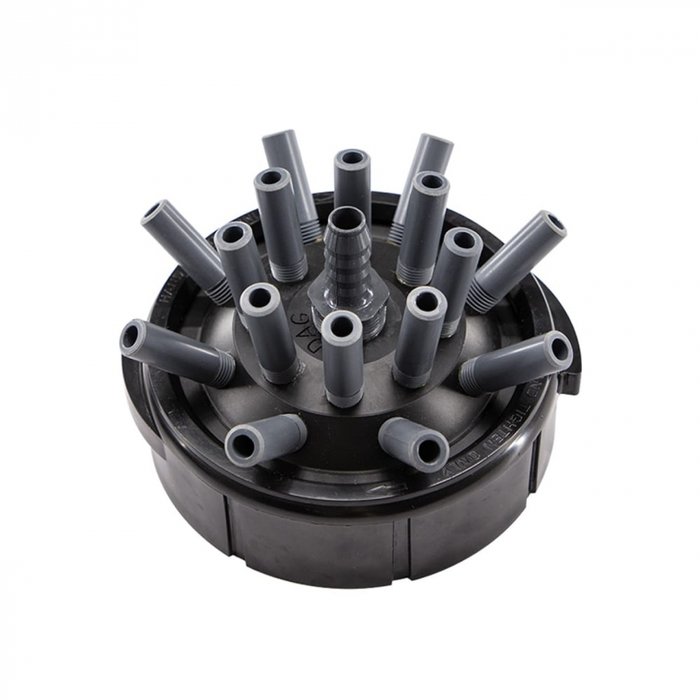

Single
Arch		 Double
Arch		 Double Arch
w/ Geyser		 Blossom

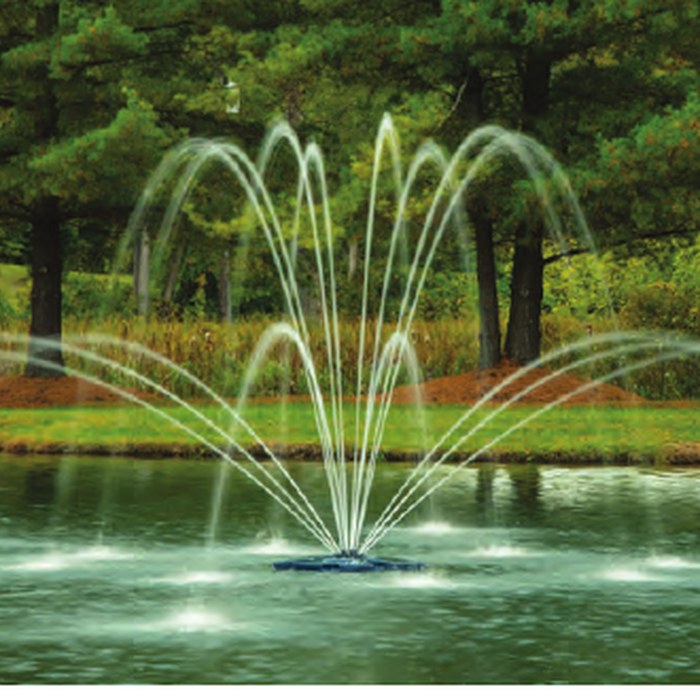

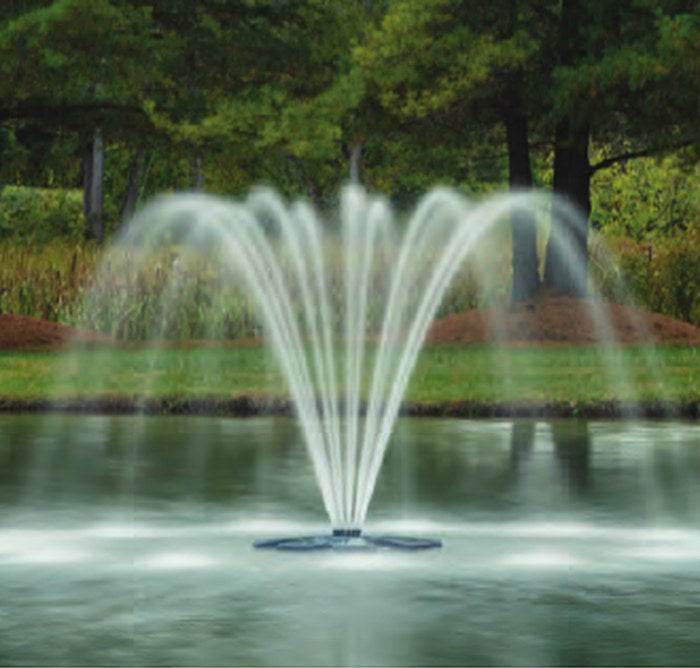

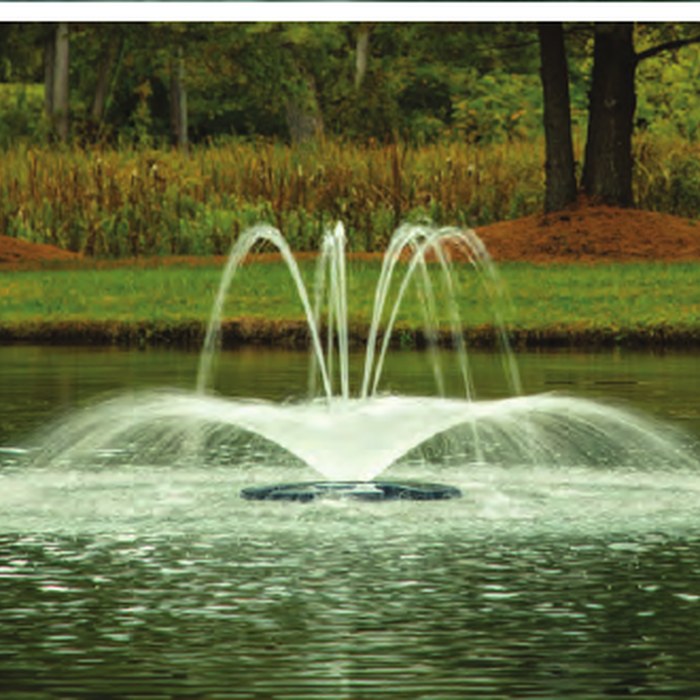

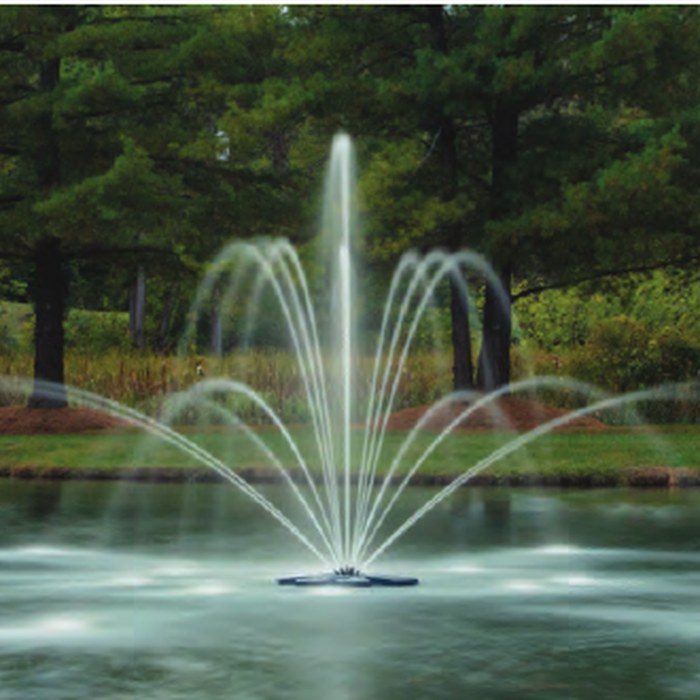

Pattern Airmax Single Arch spray pattern Airmax Double Arch spray pattern Airmax Double Arch w/ Geyser spray pattern Airmax Blossom spray pattern
EcoSeries 1/2 HP
Dimensions		 8' H x 16' W 1st: 10' H x 16' W
2nd: 5' H x 38' W		 Geyser: 9' H
1st: 7' H x 12' W
2nd: 5' H x 34' W		 1st: 4' H x 6.5' W
2nd: 1.5' H x 11' W
1 HP / 2 HP
Dimensions		 Up to 9' H x 24' W Scales up with HP Up to 7' H x 15' W Scales up with HP
Fits Fountains EcoSeries 1/2 HP, PondSeries 1/2 HP, PondSeries 1 HP, PondSeries 2 HP, SolarSeries - pick the right fit at checkout
Best For Classic decorative arch look; single continuous arch across the pond Two-tier decorative arch display; adds vertical depth to the pattern Center geyser + two arch tiers; commanding decorative display Compact blossoming crown pattern; short and wide for close-viewing

Requirements & What to Know Before You Buy

  • Fountain Compatibility: only fits Airmax fountains. The premium nozzles are sized to specific Airmax HP classes - always match the nozzle fit to your fountain motor class or the spray height and width will look off (or the nozzle simply will not thread onto the discharge port).
  • How to Pick the Right Fit: check your fountain's HP class first. EcoSeries fountains are always 1/2 HP 115V. PondSeries come in 1/2 HP, 1 HP, and 2 HP. SolarSeries uses the same nozzle threads as PondSeries 1 HP.
  • Installation: tool-free. Unscrew the current nozzle from the discharge port, screw the new nozzle on hand-tight. No motor changes, no re-plumbing, no re-wiring.
  • Dimensions Vary by HP: the same premium pattern gets taller and wider on larger HP motors. Refer to the comparison table above for typical dimensions on the 1/2 HP class, and scale up for 1 HP and 2 HP fountains.

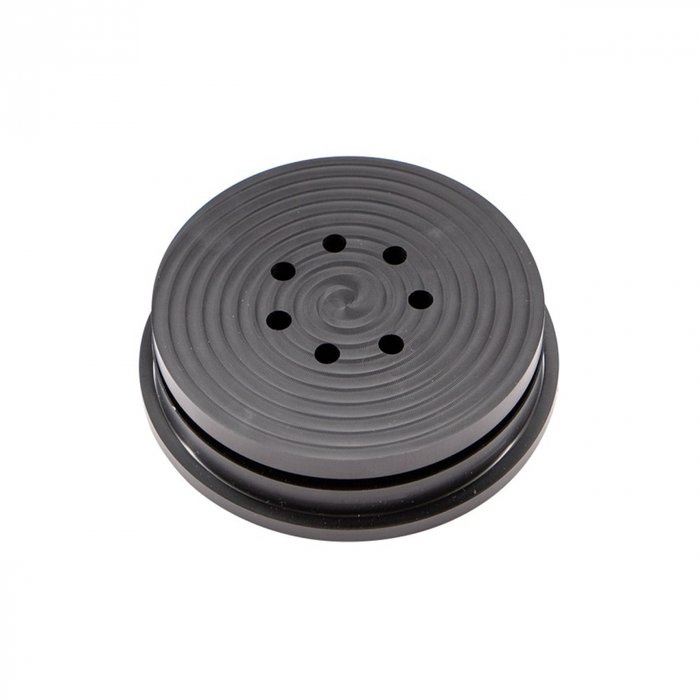

  • Blossom Pattern Note: the Blossom is a compact pattern with a wide, low, blossoming crown - great for close-viewing on smaller residential ponds. The Trumpet (included with every kit) is the tallest pattern in the lineup; add a Blossom if you want the opposite look.
  • Multi-Nozzle Owners: some customers keep two or three premium nozzles on hand so they can swap patterns for holidays and events. The nozzles store on a garage shelf and last indefinitely with basic care.
  • Made in USA: engineered and manufactured at Airmax's Armada, Michigan facility using engineering-grade plastic and stainless steel where required.
  • Fit Help: if you're unsure which HP class your fountain is, call (470) 354-1969 with the model number off the motor tag and we will confirm the right nozzle.

What's Included & Optional Add-Ons

  • Premium Nozzle Assembly - sized to your selected fountain HP class
  • Airmax Part Number - matches the compatible fountain family (visible on the variant SKU)
  • Optional Flow Straightener - Airmax offers a 4-inch stainless steel flow straightener (sold separately) that stabilizes the spray pattern in windy conditions
  • Optional Additional Nozzles - many customers add 2 or 3 different premium patterns to swap seasonally or for events

Airmax Premium Nozzle Specifications

Manufacturer Airmax, Inc. (Armada, Michigan)
Patterns Available Single Arch, Double Arch, Double Arch w/ Geyser, Blossom
Compatible Fountains EcoSeries 1/2 HP, PondSeries 1/2 HP, PondSeries 1 HP, PondSeries 2 HP, SolarSeries
Airmax Part Numbers EcoSeries: 651446 / 651445 / 651447 / 652147 | PondSeries 1/2 HP: 652990 / 652991 / 652992 / 652146 | PondSeries 1 HP + SolarSeries: 651911 / 651913 / 651915 / 652144 | PondSeries 2 HP: 652141 / 652142 / 652143 / 652145
Material Engineering-grade plastic with stainless steel where required
Installation Tool-free - thread onto standard Airmax discharge port
Included with Fountain Kits No - premium nozzles are sold separately (fountain kits include Classic, Crown & Trumpet, and Trumpet)
Optional Flow Straightener Airmax 4-inch premium stainless steel flow straightener (sold separately)
Applications Decorative pond displays, weddings and events, holiday features, resort and commercial water features, HOA lakes
Warranty Airmax standard nozzle warranty
Country of Origin Made in USA (Armada, MI)
