Vanguard Hydro-Torque Solar Series Aeration System
Solar-Powered Bottom Aeration - Off-Grid and Off-Bill
The Vanguard Solar Series pairs a 180-watt solar panel and a pre-programmed inverter/controller/battery-guard combo with the same Hiblow bottom-diffused aeration hardware Vanguard uses on their electric bottom kits. The result is a fully autonomous pond aerator that runs off sunlight - no electric bill, no shore-run wiring, and no need for grid power anywhere near the water.
Two configurations cover the range. The Shallow build (EBA-320 base) uses a Hiblow WG-3 3.2 CFM pump with a single diffuser for ponds up to 7 ft deep. The Deep build (EBA-520 base) steps up to a Hiblow HP-120LL 5.2 CFM pump with two diffusers for ponds up to 12 ft deep. Both share the same 180 W solar panel, adjustable mounting bracket, and IP65-rated aluminum component case that houses the electronics.

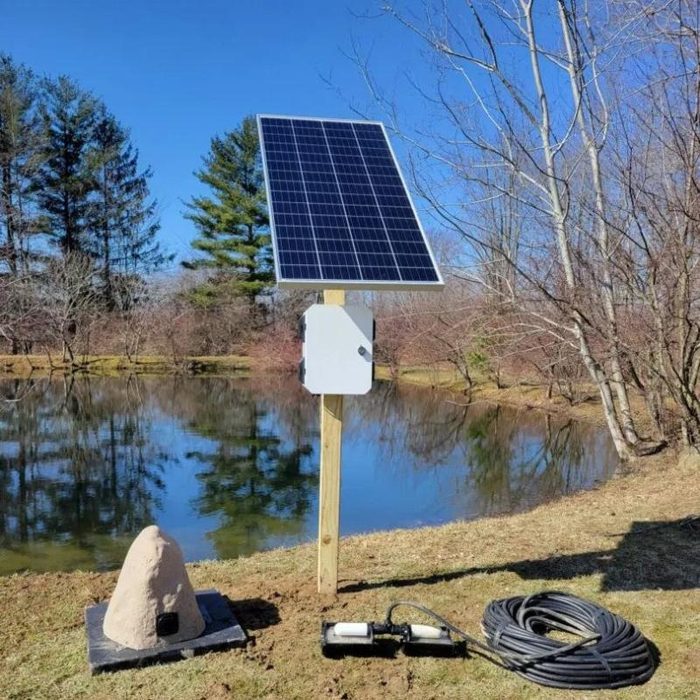

Everything ships together: solar panel, mounting bracket, waterproof component case, pre-programmed inverter, controller, battery guard, Hiblow air pump, decorative stone shore enclosure, equipment pad, 100 ft of pre-weighted sinking tubing, the diffuser(s), and 50 ft of outdoor-rated power cable. Backed by a 3-year manufacturer warranty on both the solar hardware and the aeration components. Free shipping on every unit.
Aerate your pond straight off the sun. The Vanguard Solar Series is a bottom-diffused aeration system paired with a 180 W solar panel, inverter, controller, and battery guard - a self-contained rig that runs off sunlight with no electric bill and no shore-run wiring.
Pick the Shallow build for ponds up to 7 ft deep - Hiblow 3.2 CFM pump with one bottom diffuser. Step up to the Deep build for ponds up to 12 ft deep - Hiblow 5.2 CFM pump with two diffusers so you fully turn over a taller water column.
Everything ships in the kit: 180 W solar panel, adjustable mounting bracket, IP65 waterproof component case, pre-programmed inverter and controller, battery guard, Hiblow air pump, decorative shore enclosure, equipment pad, 100 ft of sinking weighted tubing, diffuser(s), and 50 ft of outdoor power cord.
Free shipping on every solar aeration kit. Call (470) 354-1969 for pond sizing help.
See the Solar Series in Action
Compare Shallow vs Deep Solar Kits
| Shallow (SBA + EBA-320) | Deep (SBA + EBA-520) | |
|---|---|---|
| Max Pond Depth | Up to 7 ft | Up to 12 ft |
| Air Pump | Hiblow WG-3 | Hiblow HP-120LL |
| Airflow | 3.2 CFM | 5.2 CFM |
| Diffusers | 1 diffuser plate | 2 diffuser plates |
| Solar Panel | 180 W | 180 W |
| Inverter / Controller / Battery Guard | Pre-programmed, included | Pre-programmed, included |
| Component Case | IP65 aluminum, weatherproof | IP65 aluminum, weatherproof |
| Mounting Bracket | Adjustable, included | Adjustable, included |
| Weighted Tubing | 100 ft | 100 ft |
| Power Cord | 50 ft outdoor-rated | 50 ft outdoor-rated |
| Stone Shore Enclosure | Included | Included |
| Best For | Backyard residential ponds, off-grid installs, sites with no shore power | Half-acre HOA lakes, deeper ponds needing full column turnover, off-grid sites |
Why Choose the Solar Bottom Aerator
Requirements & What to Know Before You Buy
- Sun Exposure: the 180 W panel needs a clear line of sight to the southern sky for at least 6 hours per day. In heavily shaded sites, run time drops proportionally.
- Pond Depth: Shallow kit is rated to 7 ft, Deep kit to 12 ft. If your pond is deeper or larger than about half an acre, call for custom sizing.
- Panel Mounting Location: the adjustable bracket handles most shoreline mounting scenarios. You supply the pole, roof anchor, or ground stakes. The panel needs to be secured against wind.
- Component Case Location: place the IP65 aluminum case within cable reach of both the solar panel and the air pump. Under a small overhang or on the shaded side of a shed extends the life of the electronics.
- Tubing Run: 100 ft of weighted sinking tubing ships with the kit. Measure from the pump enclosure straight to the deepest point of the pond. Call if you need a longer run.
- Startup Behavior: when a bottom aerator first runs on a stratified pond, the water will cloud up briefly as bottom sediments get stirred. It clears within a few days.
- Winter Operation: most owners keep the system running through winter. It opens a hole in the ice, improves gas exchange, and prevents fish winterkill in freezing climates.
- Sizing Help: Call (470) 354-1969 with your pond dimensions, panel-mounting plan, and shade profile - we will confirm which kit fits.
What's Included & Optional Add-Ons
- 180 W Solar Panel
- Adjustable Panel Mounting Bracket
- IP65 Waterproof Aluminum Component Case - houses inverter/controller/battery guard
- Pre-Programmed Inverter
- Charge Controller and Battery Guard - protects the battery from over-discharge
- 115 V Air Pump - Hiblow WG-3 3.2 CFM (Shallow) or Hiblow HP-120LL 5.2 CFM (Deep)
- Decorative Stone Shore Enclosure - hides the air pump on the bank
- Equipment Pad - vibration-damping pad inside the enclosure
- 100 ft Weighted Sinking Air Tubing
- Air Diffuser Plate(s) - 1 on Shallow, 2 on Deep
- 50 ft Outdoor-Rated Power Cord
- Optional Extended Tubing / Cord: for installs needing more than 100 ft of tubing or 50 ft of cord. Call before ordering.
- Optional Additional Solar Panels: for heavily shaded sites or extended winter operation. Call for pricing.
Vanguard Solar Aeration Kit Specifications
| Manufacturer | Vanguard Water Creations |
| Configurations | Shallow (SBA + EBA-320), Deep (SBA + EBA-520) |
| Type | Solar-powered bottom-diffused pond aeration |
| Solar Panel | 180 W monocrystalline (1 panel) |
| Mounting Bracket | Adjustable, included |
| Component Case | IP65-rated marine-grade aluminum |
| Inverter | Pre-programmed, included |
| Controller and Battery Guard | Included, factory-configured |
| Air Pump - Shallow | Hiblow WG-3, 3.2 CFM |
| Air Pump - Deep | Hiblow HP-120LL, 5.2 CFM |
| Pump Voltage | 115V (fed by the solar/inverter combo) |
| Rated Pond Depth - Shallow | Up to 7 ft |
| Rated Pond Depth - Deep | Up to 12 ft |
| Diffusers - Shallow | 1 diffuser plate |
| Diffusers - Deep | 2 diffuser plates |
| Weighted Air Tubing | 100 ft (sinking, pre-weighted) |
| Power Cord | 50 ft outdoor-rated |
| Shore Enclosure | Decorative stone enclosure included |
| Applications | Off-grid ponds, remote HOA lakes, ranches and farms without shore power, backyard ponds where trenching is impractical |
| Warranty | 3-year manufacturer warranty on solar hardware and aeration components |
| Country of Origin | Made in USA |
